Description
WARNING
Should reel model 7342 be used to deliver
gasoline or aircraft fuel, the:
• delivery and connecting hose must contain a
grounding wire
• entire fuel delivery system must be properly
grounded
This prevents the build-up of static electricity.
Personal injury can occur due to fire and/or explo-
sion.
NOTE: The reel is grounded at the swivel
with a wave washer. See Figure 2.
High-capacity hose reel model 7342 is designed to:
• deliver fuel (such as diesel fuel, aircraft fuel, and
gasoline) and lubricating oils.
• mount to a lubrication truck or to a ceiling* or wall.
This reel mounts as a single unit or in banks of as
many as required. See Figure 4 for details.
NOTE: The Hose Guide Arms can attach to the
Base Assembly in five (5) different positions.
This model reel is spring-powered and self-retracting.
When the hose is extended, the reel can be latched on
either of two ratchet sections per revolution of the sheave.
A pull releases the latch from the ratchet and allows the
hose to retract onto the reel.
This model reel manages a maximum length of
delivery hose as indicated in Table 1.
High-Capacity Reel

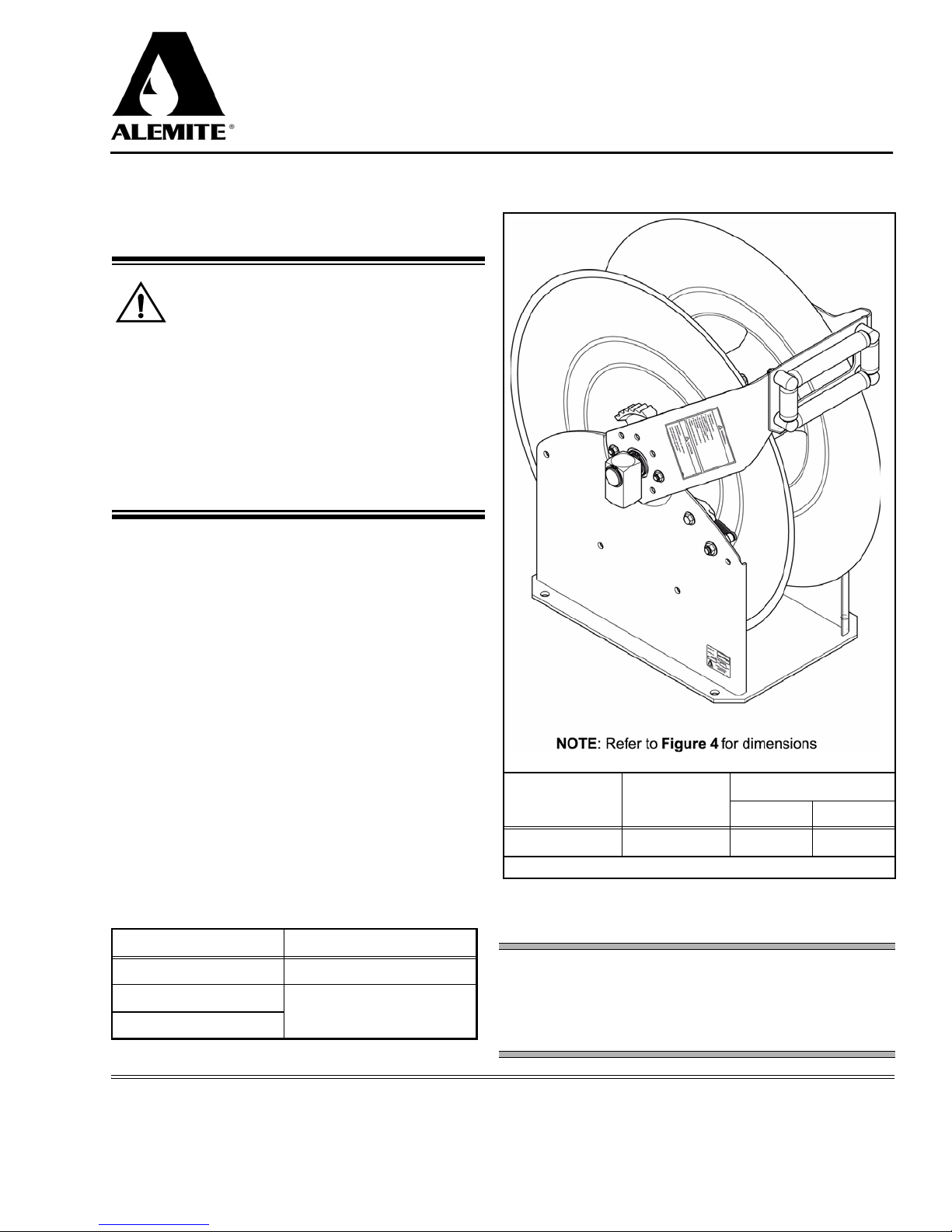

Figure 1 High-Capacity Reel Model 7342
Inlet (Swivel) Outlet Reel Max. Pressure
psi Bars
1 " NPTF (f) 1 " NPSM (f) * 1000 69
* A bushing (included) allows the outlet to be reduced to 3/4 " NPTF (f)
CAUTION
* The base of the reel must be at a height no greater
than 16 feet (4.9 m) from the floor to comply with the
warranty.
Delivery Hose Description Maximum Length of Hose in Feet
3/4 “ID Single-Wire Braid 70
1 “ID Single-Wire Braid 50
1 “ID Fuel
Table 1 Delivery Hose Capacity for Reel Model 7342

SER 7342 High-Capacity Reel
Revision (10-13) 2 Alemite LLC

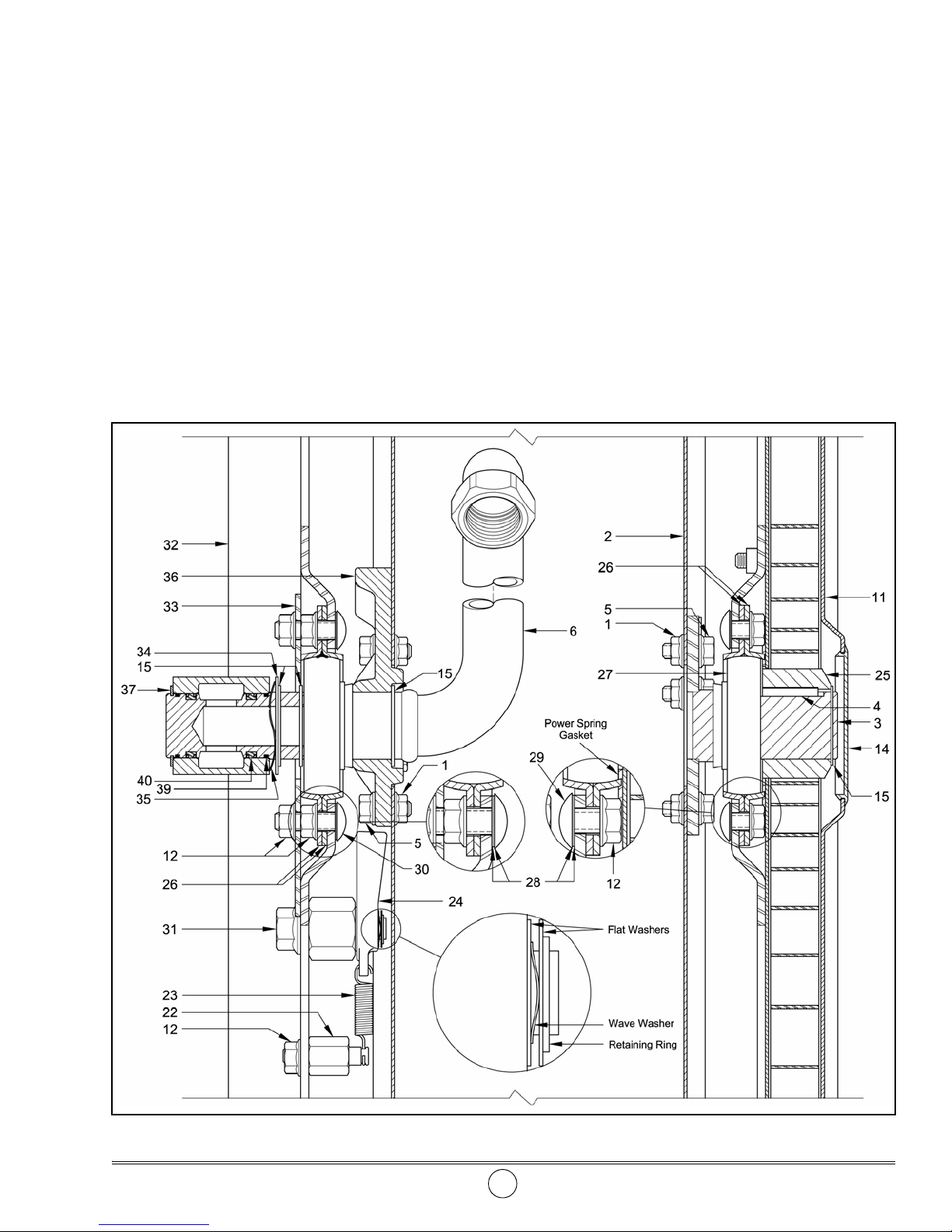

Figure 2 High-Capacity Reel Model 7342 - Exploded View

High-Capacity Reel SER 7342
Alemite LLC 3 Revision (10-13)
Item
No. Part No. Description Qty Notes Numeric Order Part # (Item #)
1 Nut, Flange 5/16 " -18 16 14534 (9)
2 Sheave Assembly 1 50876 (8)
3 339464 Shaft and Flange Assembly 1 171000-5 (21)
4 339521 Key, Square 1 171007-32 (37)
5 Screw, 5/16 " -18 x 3/4 " 20 171007-33 (15)
6 339476 Shaft and Riser Assembly 1 171009-13 (39)
7 320353 Bushing, 1 " NPTF (m) x 3/4 " NPTF (f) 1 Use w/ 3/4 " hose 320353 (7)
8 Nut, Wing, 1/4 " -20 2 339197 (25)
9 Washer, 5/16 " 2 339208 (28)
10 339219-1 U-Bolt, 1-1/8 " 1 Use w/ 3/4 " hose 339209 (34) 339219-2 U-Bolt, 1-1/2 " 1 Use w/ 1 " hose 339210 (23)
339219-3 U-Bolt, 1-1/4 " 1 Use w/ 1 " hose 339219-1 (10)
11 339469-2 Spring Assembly, Power 1 Includes Gasket 339219-2 (10)
12 Nut, Flange 3/8 " -16 11 4 in kit, 1 in kit 339219-3 (10)
13 Arm, Short 1 339435 (32)
14 339455 Plug, Button 1 339439 (24)
15 171007-33 Ring, Retaining 4 1 in kit 339441 (22)
16 Plate, Hose Guide 1 339443 (2)
17 Post and Shaft Assembly, Long 2 339446 (13)
18 Post and Shaft Assembly, Short 2 339447 (33)
19 Roller Assembly, Long 2 Includes Item 21 339448 (16)
20 Roller Assembly, Short 2 339451-1 (20)
21 O-Ring, 1/4 " ID x 3/8 " OD 8 339451-2 (19)
22 Post, Spring 1 339455 (14)
23 339210 Spring, Extension 1 339456 (27)
24 Pawl and Shaft Assembly 1 339457 (26)
25 339197 Arbor, Spring 1 339460 (31)
26 339457 Housing, Bearing 2 Includes Two Halves 339461 (5)
27 339456 Bearing 2 339462 (12)
28 Washer, 0.445 " ID x 0.75" OD 8 339463 (29)
29 Bolt, Ribbed-Neck, 3/8 " -16 x 3/4 " 2 339464 (3)
30 Bolt, Ribbed-Neck, 3/8 " -16 x 1-1/4 " 2 339467 (36)
31 Screw, 1/2 " -13 x 3/4 " 1 339469-2 (11)
32 Base Assembly 1 339476 (6)
33 Arm, Long 1 w/o Decal 339481 (38)
34 339209 Washer 1 339483 (35)
35 339483 Washer, Wave 1 339484 (30)
36 339467 Ratchet 1 339516-1 (18)
37 171007-32 Ring, Retaining 1 339516-2 (17)
38 339481 Body, Swivel 1 339520 (40)
39 O-Ring, 1-3/16 " ID x 1-5/16 " OD 2 339521 (4)
40 T-Seal 2 387370 (1)
Legend:
Part numbers left blank (or in italics) are not available separately
designates a repair kit item
Repair Kits
Part No. Kit Symbol Description
393727 Kit, Hose Guide
393724 Kit, Pawl and Shaft Assembly
393725 Kit, Swivel Repair

SER 7342 High-Capacity Reel
Revision (10-13) 4 Alemite LLC
IMPORTANT: Prior to performing any main-
tenance procedure, the following safety pre-
cautions must be observed. Personal injury
may occur.
WARNING
Release all pressure within the system prior
to performing any overhaul procedure.
• Disconnect the air supply line to the pump’s
motor.
• Into an appropriate container, operate the con-
trol valve to discharge remaining pressure
within the system.
Read each step of the instructions carefully. Make
sure a proper understanding is achieved before
proceeding.
Overhaul
IMPORTANT: Make sure all pressure is
released within the system.
NOTE: Refer to Figure 2 for component
identification on all overhaul procedures.
Disassembly
IMPORTANT: Prior to disassembly, release
tension on the power spring.
1. Remove the hose stop and the control valve from the
delivery hose.
2. Pull on the delivery hose to unlatch the reel.
3. Allow the delivery hose to retract onto the reel.
4. Turn the reel in the same direction until the power
spring bypasses Spring Arbor (25).
• A pronounced “click” will sound.
Swivel Assembly
5. Remove Retaining Ring (37) that secures Swivel Body
(38) to Shaft and Riser Assembly (6).
• Remove the Swivel Body.
6. From the Shaft and Riser Assembly remove:
• O-Ring (39). . . . . . . . . . . . . . . . . . . . . . . . . . . .Qty 2
•T-Seal(40) . . . . . . . . . . . . . . . . . . . . . . . . . . . .Qty 2
• Wave Washer (35). . . . . . . . . . . . . . . . . . . . . . .Qty 1
•Washer(34). . . . . . . . . . . . . . . . . . . . . . . . . . . .Qty 1
• Retaining Ring (15) . . . . . . . . . . . . . . . . . . . . .Qty 2
Hose Guide Assembly
7. Remove Nuts (12) that secure Post and Shaft
Assemblies (17) and (18) to Hose Guide Plate (16).
• Remove each Post and Shaft Assembly from the
Hose Guide Plate.
8. Remove Roller Assemblies (19) and (20) from each
Post and Shaft Assembly as required.
9. Remove O-Rings (21) from each Roller Assembly as
required.
HINT: Use an small flat-head screwdriver.
Arms and Power Spring Assembly
10. Remove Nuts (12) that secure Long Arm (33) to Bolts
(30).
• Remove the Arm from the Bolts.
11. Remove Nuts (1) and Screws (5) that secure Short
Arm (13) to Power Spring Assembly (11) as required.
• Remove the Arm from the Power Spring Assembly.
12. Remove Screws (5) that secure the Power Spring
Assembly to Base Assembly (32).
• Remove the Power Spring Assembly from the Base
Assembly.
WARNING
Do not attempt to disassemble the Power
Spring Assembly. Personal injury can occur.
Delivery Hose
13. Pull the delivery hose from Sheave Assembly (2).
14. Remove Wing Nuts (8) and Washers (9) that secure
U-Bolt (10) to the Sheave Assembly.
• Remove the U-Bolt from the Sheave Assembly.
15. Disconnect the delivery hose from the Shaft and Riser
Assembly.
• Remove the delivery hose from the Sheave
Assembly.
16. Remove Bushing (7) [if used] from the delivery hose
as required.
Arbor and Bearings
17. Remove Retaining Ring (15) that secures Arbor (25)
to Shaft and Flange Assembly (3).
• Remove the Arbor from the Shaft and Flange
Assembly.

High-Capacity Reel SER 7342
Alemite LLC 5 Revision (10-13)
18. Remove Square Key (4) from the Shaft and Flange
Assembly.
19. Remove Nuts (1) that secure Bearing Housings (26) to
the Base Assembly.
• Remove each set of Bearing Housings and Bearings
from the Base Assembly.
Sheave Assembly
20. Remove the Sheave Assembly (with attached
components) from the Base Assembly.
Shaft and Riser Assembly
21. Remove Screws (5) and Nuts (1) that secure the Ratchet
to the Sheave Assembly.
• Remove the Ratchet (with Shaft and Riser Assembly)
from the Sheave Assembly.
22. Remove the Shaft and Riser Assembly from the
Ratchet.
23. Remove remaining Retaining Ring (15) from the Shaft
and Riser Assembly as required.
Ratchet
24. Remove Screws (5) and Nuts (1) that secure the Shaft
and Flange Assembly to the Sheave Assembly.
• Remove the Shaft and Flange Assembly from the
Sheave Assembly.
Base Assembly
Pawl and Shaft Assembly
25. Remove Nut (1) that secures Spring Post (22) to the
Base Assembly.
• Remove the Spring Post from the Base Assembly.
26. Remove Extension Spring (23) from Pawl and Shaft
Assembly (24).
• Remove the Extension Spring from the Spring Post.
27. Remove Screw (31) that secures the Pawl and Shaft
Assembly to the Base Assembly.
• Remove the Pawl and Shaft Assembly from the
Base Assembly.
28. Remove Bolts (30 and 29), and Washers (28) from the
Base Assembly as required.
Clean and Inspect
NOTE: Use the appropriate repair kit for
replacement parts. Make sure all the compo-
nents are included in the kit before discard-
ing used parts.
Clean all metal parts in a modified petroleum-based
solvent. The solvent should be environmentally safe.
Make sure to remove the old sealant from the threads
of all components.
Assembly
NOTE: Prior to assembly, certain compo-
nents require lubrication. Refer to Table 2
for details.
Base Assembly
NOTE: Refer to Figures 2 and 3for com-
ponent identification on all of the assembly
procedures.
Pawl and Shaft Assembly
1. Apply Loctite 242 to the threads of Pawl and Shaft
Assembly (24).
NOTE: Make sure to attach the Pawl and
Shaft Assembly to the upright without the
captive nuts.
2. Secure the Pawl and Shaft Assembly to Base
Assembly (32) with Screw (31).
• Tighten the Screw to 42 - 48 ft-lbs (57 - 65 Nm).
Item No. Description Item No. Description
6 o-ring grooves and lands between grooves on Shaft and Riser Assembly 37 Retaining Ring
21 O-Ring, 1/4 " ID x 3/8 “OD 38 bore of Swivel Body
23 hooks of Pawl Spring 39 O-Ring, 1-3/16 “ ID x 1-5/16 “ OD
35 Wave Washer 40 T-Seal
36 teeth on Ratchet
Table 2 Components Lubricated in Lithium Grease
®
®

SER 7342 High-Capacity Reel
Revision (10-13) 6 Alemite LLC
3. Install Extension Spring (23) into the eye on the Pawl
and onto Spring Post (22).
4. Secure the Spring Post to the Base Assembly with
Nut (1).
•RefertoFigure 2 for the proper hole location.
• Tighten the Nut securely.
Ribbed-Neck Bolts
IMPORTANT: Make sure the longer Bolts (30)
mount on the Pawl Assembly side of the Base
Assembly.
5. Install Bolts (30 and 29) and Washers (28) onto the Base
Assembly as required.
Sheave Assembly
6. Secure Shaft and Flange Assembly (3) to Sheave
Assembly (2) with Screws (5) and Nuts (1).
7. Install Retaining Ring (15) into the furthest inward
groove of Shaft and Riser Assembly (6).
8. Install the Shaft and Riser Assembly into Ratchet (36).
9. Secure the Ratchet assembly to the Sheave Assembly
with Screws (5) and Nuts (1).
10. Position the Sheave Assembly (with attached
components) onto the Base Assembly.
• Make sure the Ratchet side faces the Pawl.
Bearings and Arbor
11. Install Bearing (27) into Bearing Housing (26).
IMPORTANT: Make sure the extended portion
of the Bearing faces inward. See Figure 2.
12. Install the first Bearing and Housing assembly (extended
side first) onto the Shaft and Riser Assembly and onto
the Bolts.
13. Attach the Bearing and Housing assembly to the Base
Assembly with Nuts (1).
• Do not tighten the Nuts at this time.
14. Install the second Bearing and Housing assembly
(extended side first) onto the Shaft and Flange Assembly
and onto the Bolts.
15. Secure the Bearing assembly to the Base Assembly with
Nuts (1).
• Tighten the Nuts alternately and evenly.
16. Tighten the Nuts on the opposite Bearing alternately
and evenly.
17. Install Retaining Ring (15) onto the Shaft and Riser
Assembly.
18. Install and hold Square Key (4) into the slot of the
Shaft and Flange Assembly.
19. Slide Spring Arbor (25) [flat side first] onto the
Shaft and onto the Key.
20. Install Retaining Ring (15) onto the Shaft and Flange
Assembly.
Power Spring Assembly and Arms
21. Remove Button Plug (14) from the Power Spring
Assembly.
• Use a blunt tool from behind the Plug to “pop” it
from the case.
HINT: Orient the hook on the Power
Spring’s inner coil to properly engage the
recess in the Arbor. Lift and center the coil
within the case during installation.
22. Install the Power Spring Assembly onto the Arbor.
• Make sure the end of the power spring properly
engages the Arbor.
IMPORTANT: Use care not to damage the
gasket.
23. Align the bolt holes in the Power Spring Assembly
with the Base Assembly.
24. Secure the Power Spring Assembly to the Base
Assembly with Screws (5).
25. Install the Button Plug into the case of the Power
Spring Assembly.
NOTE: The Hose Guide Arms can attach
to the Base Assembly in five (5) different
positions. Select the required relationship
of the Guide to the mounting plate of the
Base Assembly.
26. Secure Long Arm (33) to the Base Assembly with
Nuts (12).
• Do not tighten the Nuts at this time.
27. Secure Short Arm (13) to the Power Spring
Assembly with Screws (5) and Nuts (1) as required.
• Do not tighten the Screws at this time.

High-Capacity Reel SER 7342
Alemite LLC 7 Revision (10-13)
Hose Guide
28. Install each Roller Assembly (19) onto each Post and Shaft
Assembly (17).
29. Install each Roller Assembly (20) onto each Post and Shaft
Assembly (18).
30. Install each Roller and Post subassembly into one another
to create a rectangle.
31. Install the Roller and Post subassembly into Hose Guide
Plate (16).
32. Install the hose guide assembly into each Arm.
33. Secure the hose guide assembly to the Arms with Nuts (12).
34. Tighten the Long Arm Nuts, the Short Arm Screws, and the
hose guide assembly Nuts securely.
Swivel Assembly
35. Onto the Shaft and Riser Assembly install:
• Retaining Ring (15)Qty 1
•Washer(34)Qty 1
• Wave Washer (35)Qty 1
•O-Ring(39)Qty 2
• T-Seal (40)Qty 2
36. Install Swivel Body (38) onto the Shaft and Riser
Assembly.
• Use care not to damage the seals.
37. Install Retaining Ring (37) onto the Shaft and
Riser Assembly.
38. Check to ensure the Swivel Body moves freely.
Figure 3 High-Capacity Reel Model 7342 - Section View (w/o Reducing Bushing)

SER 7342 High-Capacity Reel
Revision (10-13) 8 Alemite LLC
Reel Mount
HINT: Should the reel mount to the ceiling
or a wall, it may be advantageous to lessen
its weight with the removal of the Power
Spring Assembly.
Follow the appropriate procedural steps
within the section entitled Overhaul.
1. Mount the reel assembly with the proper hardware.
CAUTION
Never connect rigid piping to the Swivel assembly.
Damage to components can occur.
2. Screw a connecting hose (with thread sealant) into the
Swivel Assembly.
3. Attach the connecting hose to the supply line.
IMPORTANT: Anchor the connecting hose
to a suitable surface to prevent the hose from
flexing at the Swivel Assembly.
The anchor should be in-line with the inlet of
the Swivel to minimize side loading. See Fig-
ure 4.
Setting Power Spring Tension
4. Make sure there is no tension on the Power Spring
Assembly.
IMPORTANT: Wear non--slip gloves when
handling the Sheave Assembly.
5. While facing the Ratchet, turn the Sheave Assembly
clockwise to set the tension suggested for the type and
length of delivery hose used.
•SeeTable 3 for details.
6. Allow the reel to latch.
Bench Test
While facing the Ratchet, turn the reel in a clockwise
direction and allow the Ratchet to latch the Pawl.
If the reel does not tension or latch properly, refer to
the Troubleshooting Chart.
Installation
WARNING
Do not exceed the lowest pressure rating
of any component in the system.
Never point a control valve at any portion of your
body or another person. Lubricant discharged at
high velocity can penetrate the skin and cause
severe injury. Should any fluid appear to puncture
the skin, get medical care immediately.
Ensure all components are in operable condition.
Replace any suspect parts prior to operation. Per-
sonal injury can occur.
Hold the delivery hose securely until the reel is
securely latched or fully retracted. Uncontrolled
retraction can result in personal injury.
Delivery Hose Description Length of Hose in Feet Number of Turns
3/4 “ID Single-Wire Braid 50 18
70
19
1 “ID Single-Wire Braid 50
1 “ID Fuel

Alemite LLC 9 Revision (10-13)
High-Capacity Reel SER 7342
Once the Sheave Assembly is secure:
8. Install the delivery hose through the guide assembly.
9. Connect the delivery hose to the Shaft and Riser
Assembly.
• Make sure the connection is secure.
HINT: Orient the hose to allow its natural
curve to match the Sheave.
This reduces torque load on the Power
Spring Assembly and eliminates the ten-
dency of the hose to stack on one side of the
Sheave.
Delivery Hose Attachment
7. Screw the delivery hose (with thread sealant) into
Bushing (7) [if used] as required.
WARNING
Precautions must be taken to ensure the
Sheave Assembly remains engaged with the
Ratchet. To prevent movement either:
• instruct an assistant to grip the Sheave
securely with non-slip gloved hands or
• install a clamp on the Sheave. See Figure 5.
Personal injury can occur.
Figure 4 Space Required for Banked Reels (with Bolt Pattern Dimensions)

SER 7342 High-Capacity Reel
Revision (10-13) 10 Alemite LLC
10. Install U-Bolt (10) onto the delivery hose and to the Sheave
Assembly.
11. Install Washers (9) and Wing Nuts (8) onto the U-Bolt.
• Tighten the Wing Nuts securely.
Accessories Attachment and Pressurization
12. Install the control valve onto the delivery hose.
13. Pressurize the system.
• Check for leaks.
14. Install and secure the hose stop to the delivery hose at the
desired position.
15. Make sure the reel is latched then:
• instruct the assistant to let go of the Sheave Assembly
or
• carefully remove the clamp from the Sheave Assembly
16. Pull the delivery hose to disengage the Ratchet.
17. Allow the delivery hose to slowly retract onto the Sheave
Assembly.
Checking Spring Tension
18. Check to ensure the tension on the power spring
is sufficient to properly hold the hose stop
against the hose guide.
Should the power spring tension require
adjustment:
Adjusting Spring Tension
CAUTION
Do not overwind the power spring. Too much
tension reduces the life of the spring.
When the hose is fully extended from the
reel, the power spring should be a minimum
of 1/2 turn from a fully wound condition.
19. Release all pressure within the system.
WARNING
Disconnect the air supply line to the
pump’s motor.
Into an appropriate container, operate the
control valve to discharge remaining
pressure within the system.
20. Remove the control valve and the hose stop
from the delivery hose.
21. Pull the free end of the delivery hose through
the guide.
22. Rotate the Sheave Assembly in the required
direction.
23. Install the control valve and the hose stop.
24. Pressurize the system.
25. Check to ensure the tension on the power spring
is sufficient to properly hold the hose stop
against the hose guide.
26. Repeat steps 19 - 25 until the proper tension is
achieved.

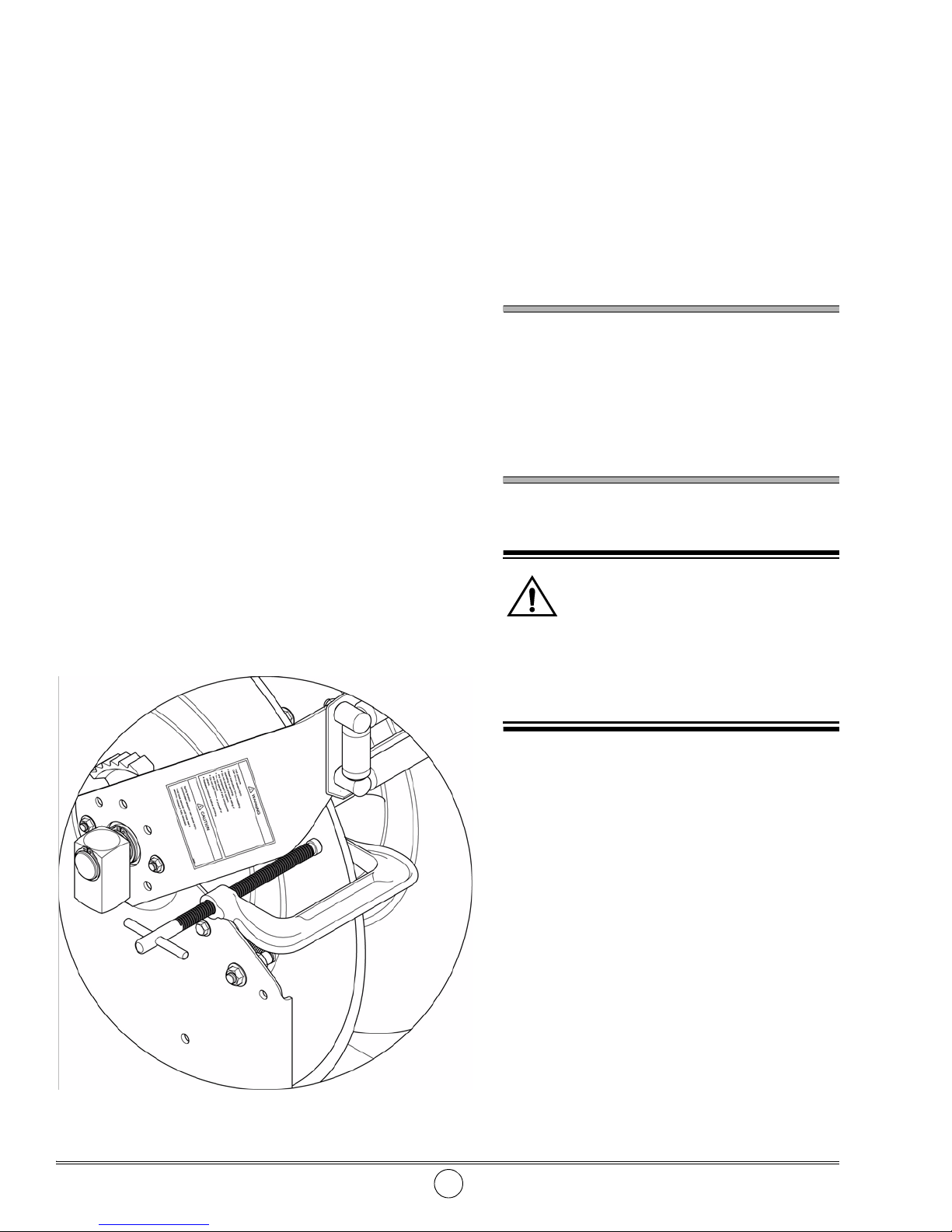

Figure 5 Clamp Attached to Sheave Assembly
