ALICE R&S NGL200 Series Installation and maintenance instructions
R&S®NGL200/NGM200
Power Supply Series
Getting Started
1178872002
Version 07
(;ÜåD2)
www.allice.de
Allice Messtechnik GmbH
This manual describes the following R&S®NGL/NGM models with firmware ver-
sion 1.00 and higher:
●R&S®NGL201 Single-channel power supply 60W (3638.3376.02)
●R&S®NGL202 Two-channel power supply 120W (3638.3376.03)
●R&S®NGM201 Single-channel power supply 60W (3638.4472.02)
●R&S®NGM202 Two-channel power supply 120W (3638.4472.03)
© 2022 Rohde & Schwarz GmbH & Co. KG
Muehldorfstr. 15, 81671 Muenchen, Germany
Phone: +49 89 41 29 - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1178.8720.02 | Version 07 | R&S®NGL200/NGM200
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol, e.g.
R&S®NGL200, R&S®NGM200 are indicated as R&S NGL/NGM.
www.allice.de
Allice Messtechnik GmbH
Contents
R&S®NGL200/NGM200
3Getting Started 1178.8720.02 ─ 07
Contents
1 Safety information................................................................. 5
2 Korea certification class A....................................................6
3 Documentation overview...................................................... 7
3.1 Manuals..................................................................................................7
3.2 Data sheet..............................................................................................8
3.3 Calibration certificate........................................................................... 8
3.4 Release notes, open source acknowledgment.................................. 8
3.5 Application notes, application cards, videos.....................................8
4 Welcome to R&S NGL/NGM.................................................. 9
5 Putting into operation..........................................................11
5.1 Safety................................................................................................... 13
5.2 Intended operation..............................................................................14
5.3 Unpacking and checking the instrument..........................................16
5.4 Setting up the instrument.................................................................. 17
5.4.1 Bench operation....................................................................................17
5.4.2 Rack mounting...................................................................................... 18
6 Instrument tour.................................................................... 19
6.1 Overview of controls.......................................................................... 19
6.1.1 Front panel............................................................................................19
6.1.2 Rear panel............................................................................................ 21
6.2 Switching on the instrument..............................................................24
7 Trying out the instrument................................................... 26
7.1 Setting the output voltage and current.............................................26
www.allice.de
Allice Messtechnik GmbH
Contents
R&S®NGL200/NGM200
4Getting Started 1178.8720.02 ─ 07
7.2 Activating the channels output......................................................... 26
8 Maintenance and support................................................... 28
8.1 Maintenance........................................................................................ 28
8.2 Contacting customer support............................................................28
Index..................................................................................... 30
www.allice.de
Allice Messtechnik GmbH
Safety information
R&S®NGL200/NGM200
5Getting Started 1178.8720.02 ─ 07
1 Safety information
The product documentation helps you use the R&S NGL/NGM safely and effi-
ciently. Follow the instructions provided here and in the printed "Basic Safety
Instructions". Keep the product documentation nearby and offer it to other users.
Intended use
The R&S NGL/NGM is intended for the development, production and verification
of electronic components and devices in industrial, administrative, and laboratory
environments. Use the R&S NGL/NGM only for its designated purpose. Observe
the operating conditions and performance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you about the
potential dangers and gives instructions how to prevent personal injuries or dam-
age caused by dangerous situations. Safety information is provided as follows:
●The printed "Basic Safety Instructions" provide safety information in many lan-
guages and are delivered with the R&S NGL/NGM.
●Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.
www.allice.de
Allice Messtechnik GmbH
Korea certification class A
R&S®NGL200/NGM200
6Getting Started 1178.8720.02 ─ 07
2 Korea certification class A
이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하
시기 바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.
www.allice.de
Allice Messtechnik GmbH
Documentation overview
R&S®NGL200/NGM200
7Getting Started 1178.8720.02 ─ 07
3 Documentation overview
This section provides an overview of the R&S NGL/NGM user documentation.
3.1 Manuals
You find the documents on the R&S NGL/NGM product page at:
www.rohde-schwarz.com/product/ngl200
www.rohde-schwarz.com/product/ngm200
Getting started
Introduces the R&S NGL/NGM power supply series and describes how to set up
and start working with the instrument. The printed document is delivered with the
instrument.
User manual
Contains the description of all instrument modes and functions. It also provides
an introduction to remote control, a complete description of the remote control
commands with programming examples, and information on maintenance and
instrument interfaces. Includes the contents of the getting started manual.
The online version of the user manual provides the complete contents for immedi-
ate display on the internet.
Basic safety instructions
Contains safety instructions, operating conditions and further important informa-
tion. The printed document is delivered with the instrument.
Instrument security procedures manual
Deals with security issues when working with the R&S NGL/NGM in secure
areas.
Manuals
www.allice.de
Allice Messtechnik GmbH
Documentation overview
R&S®NGL200/NGM200
8Getting Started 1178.8720.02 ─ 07
3.2 Data sheet
The datasheet contains the technical specifications of the R&S NGL/NGM power
supply series. It also lists all options with their order numbers and accessories.
See www.rohde-schwarz.com/brochure-datasheet/ngl200
See www.rohde-schwarz.com/brochure-datasheet/ngm200
3.3 Calibration certificate
The document is available on https://gloris.rohde-schwarz.com/calcert. You need
the device ID of your instrument, which you can find on a label on the rear panel.
3.4 Release notes, open source acknowledgment
The release notes list new features, improvements and known issues of the cur-
rent firmware version, and describe the firmware installation. The open source
acknowledgment document provides verbatim license texts of the used open
source software. It can also be read directly on the instrument.
See www.rohde-schwarz.com/firmware/ngl200.
See www.rohde-schwarz.com/firmware/ngm200.
3.5 Application notes, application cards, videos
These documents contain information about possible applications and back-
ground information on various topics:
See www.rohde-schwarz.com/appnotes/ngl.
See www.rohde-schwarz.com/appnotes/ngm.
Application notes, application cards, videos
www.allice.de
Allice Messtechnik GmbH
Welcome to R&S NGL/NGM
R&S®NGL200/NGM200
9Getting Started 1178.8720.02 ─ 07
4 Welcome to R&S NGL/NGM
The one or two-channel power supply series are based on a classical transformer
concept with linear regulators. This concept allows the instrument to achieve
highest accuracy and lowest residual ripple.
The R&S NGL/NGM power supply series feature galvanically isolated, floating
overload and short-circuit proof outputs. When multiple channels are connected in
parallel, higher currents can be achieved. When connected in serial, higher vol-
tages are achievable.
Multi-purpose protection functions are available for each channel which you can
set separately, such as overcurrent protection (OCP), overvoltage protection
(OVP) and overpower protection (OPP). If such a limit is reached, the affected
output channel is automatically turned off and an indicator icon ( , , ) blinks
on the display. In the case of two-channel power supply (R&S NGL202, R&S
NGM202), the overcurrent protection can be linked to the other channel. In this
case, the linked channel is turned off when the other channel reaches a limit.
Additionally, the R&S NGL/NGM is protected with overtemperature protection
(OTP). This safety feature protects the R&S NGL/NGM from overheating. When
the temperature in the power supply exceeds the OTP limit, the channel outputs
are automatically cut off.
The Arbitrary function allows a freely definable voltage and current sequences
with a timeframe as short as 1 ms. It allows varying the voltage or current during
a test sequence, for example to simulate different charging conditions of a bat-
tery. With "Ramp" function, the R&S NGL/NGM provides the operating condition
to ramp up the supply voltage within a defined timeframe of 10 ms to 10 s.
All R&S NGL/NGM power supplies are equipped with a color TFT display (800
pixels x 480 pixels) and enhanced with touch input capability. The
R&S NGL/NGM comes with a USB and LAN (LXI) interface. Equipped with a
wireless LAN (WLAN) option, you can establish a network connection wirelessly.
The digital I/O interface installed at the rear panel is activated with an option, it
allows a single trigger-in signal to control multi trigger-out signals on the power
supply, providing many possibilities to control outputs and associated devices in
the event when a trigger occurs.
The user manual contains description of the functionalities that the instrument
provides. The latest version is available for download at the product homepage
www.allice.de
Allice Messtechnik GmbH
Putting into operation
R&S®NGL200/NGM200
11Getting Started 1178.8720.02 ─ 07
5 Putting into operation
This chapter describes how to set up the R&S NGL/NGM power supply series for
the first time.
Risk of injury due to disregarding safety information
Observe the information on appropriate operating conditions provided in the
data sheet to prevent personal injury or damage to the instrument. Read
and observe the basic safety instructions provided with the instrument, in
addition to the safety instructions in the following sections. In particular:
●Do not open the instrument casing.
Risk of instrument damage due to inappropriate operating conditions
Specific operating conditions are required to ensure accurate measure-
ments and to avoid damage to the instrument. Observe the information on
appropriate operating conditions provided in the basic safety instructions
and the instrument's data sheet.
Instrument damage caused by electrostatic discharge
Electrostatic discharge (ESD) can damage the electronic components of the
instrument and the device under test (DUT). Electrostatic discharge is most
likely to occur when you connect or disconnect a DUT or test fixture to the
instrument's test ports. To prevent electrostatic discharge, use a wrist strap
and cord and connect yourself to the ground, or use a conductive floor mat
and heel strap combination.
www.allice.de
Allice Messtechnik GmbH
Putting into operation
R&S®NGL200/NGM200
12Getting Started 1178.8720.02 ─ 07
Risk of radio interference
This is a class A product. In a domestic environment, this product may
cause radio interference in which case the user may be required to take
adequate measures.
Risk of instrument damage during operation
An unsuitable operating site or test setup can cause damage to the instru-
ment and the connected devices. Ensure the following operating conditions
before you switch on the instrument:
●The instrument is dry and shows no sign of condensation
●The instrument is positioned as described in Chapter 5.4.1, "Bench
operation", on page 17
●The ambient temperature does not exceed the range specified in the
data sheet
●Signal levels at the input connectors are all within the specified ranges
●Signal outputs are correctly connected and not overloaded
EMI impact on measurement results
Electromagnetic interference (EMI) may affect the measurement results.
To suppress generated electromagnetic interference (EMI):
●Use suitable shielded cables of high quality. For example, use double-
shielded RF and LAN cables.
●Always terminate open cable ends.
●Note the EMC classification in the data sheet.
www.allice.de
Allice Messtechnik GmbH
Putting into operation
R&S®NGL200/NGM200
13Getting Started 1178.8720.02 ─ 07
5.1 Safety
Recommendations on secure operation
The R&S NGL/NGM is designed to operate at local workplaces or in
secured networks (LAN). It should not be accessible from the internet,
because of a potential security risk, e.g. attackers could misuse or damage
your device.
Please always install the latest firmware.
It is highly recommended that you work closely with your IT department or
system administrator to ensure compliance with your company policies
when connecting devices to your company's network.
This instrument was built in compliance with DIN EN 61010-1, safety regulations
for electrical instruments, control units and Iaboratory equipment.
It has been tested and shipped from the plant in safe condition. It is also in com-
pliance with the regulations of the European standard EN 61010-1 and the inter-
national standard IEC 61010-1.
To maintain this condition and ensure safe operation, you must observe all
instructions and warnings given in this user manual. Casing, chassis and all mea-
suring ports are connected to a protective earth conductor. The instrument is
designed in compliance with the regulations of protection class I.
For safety reasons, the instrument may only be operated with authorized safety
sockets. The power cable must be plugged in before signal circuits may be con-
nected.
Never use the product if the power cable is damaged. Check regularly if the
power cables are in perfect condition. Choose suitable protective measures and
installation types to ensure that the power cable cannot be damaged and that no
harm is caused by tripping hazards or from electric shock, for instance.
Safety
www.allice.de
Allice Messtechnik GmbH
Putting into operation
R&S®NGL200/NGM200
14Getting Started 1178.8720.02 ─ 07
Risk of electric shock
It is prohibited to disconnect the earthed protective connection inside or out-
side of the instrument!
If it is assumed that a safe operation is no longer possible, the instrument must be
shut down and secured against any unintended operation.
Safe operation can no longer be assumed when:
●Instrument shows visible damage
●Instrument includes loose parts
●Instrument no longer functions properly
– After an extended period of storage under unfavorable conditions (e.g. out-
doors or in damp rooms)
– After rough handling during transport (e.g. packaging that does not meet
the minimum requirements by post office, railway or forwarding agency)
Exceeding the low voltage protection
Use insulated wires and not bare wires for the terminal connection.
It is assumed that only qualified and trained personnel service the power
supplies and the connected loads.
Before switching on the product, it must be ensured that the nominal voltage set-
ting on the product matches the nominal voltage of the AC supply network.
5.2 Intended operation
The instrument is intended only for use by personnel familiar with the potential
risks of measuring electrical quantities.
For safety reasons, the instrument may only be connected to properly installed
wall outlets. Separating the ground is prohibited.
The power cable must be inserted before signal circuits may be connected.
Intended operation
www.allice.de
Allice Messtechnik GmbH
Putting into operation
R&S®NGL200/NGM200
15Getting Started 1178.8720.02 ─ 07
Use only the power cable included in the delivery package. See "Delivery
package" on page 17.
Before each measurement, measuring cables must be inspected for dam-
age and replaced if necessary. Damaged or worn components can damage
the instrument or cause injury.
The instrument may be operated only under the operating conditions and in the
positions specified by the manufacturer, without the product's ventilation being
obstructed. If the manufacturer’s specifications are not observed, this can result
in electric shock, fire and/or serious personal injury, and in some cases, death.
Applicable local or national safety regulations and rules for the prevention of acci-
dents must be observed in all work performed.
The instrument is designed for use in the following sectors: Industrial, residential,
business and commercial areas and small businesses.
The instrument is designed for indoor use only. Before each measurement, you
need to verify at a known source if the instrument functions properly.
To disconnect from the mains, unplug the IEC socket on the back panel.
See Table 5-1 for the general data on the instrument specification. For more infor-
mation, see the instrument datasheet (P/N: 5216.1057.32).
Table 5-1: General data on instrument specification
General data
Mains nominal voltage AC 100 V / 115 V / 230 V (±10 %) 50 Hz to 60 Hz
Maximum power consumption 400 W
Mains fuses 2 x IEC T4.0H 250 V
Operating temperature range +5 °C to +40 °C
Storage temperature range -20 °C to +70 °C
Humidity noncondensing 5 % to 95 %
Display TFT 5" 800 pixels x 480 pixels WVGA Touch
Rack installation R&S HZN96 rack adapter 2U (P/N: 3638.7813.02)
Dimensions (W x H x D) 222 mm x 97 mm x 436 mm (8.74" x 3.82" x 17.17")
Intended operation
www.allice.de
Allice Messtechnik GmbH
Putting into operation
R&S®NGL200/NGM200
16Getting Started 1178.8720.02 ─ 07
General data
Weight R&S NGL201
R&S NGM201
7.1 kg (15.65 lb)
7.2 kg (15.87 lb)
R&S NGL202
R&S NGM202
7.3 kg (16.09 lb)
7.4 kg (16.31 lb)
5.3 Unpacking and checking the instrument
Unpack the R&S NGL/NGM power supply carefully and check the content of the
package.
●Check the equipment for completeness using the delivery note and package
contents list for the various items.
●Check the instrument for any damage and loose parts. If there is any damage,
immediately contact the carrier who delivered the instrument.
Packing material
Retain the original packing material. If the instrument needs to be transpor-
ted or shipped later, you can use the material to protect the control elements
and connectors.
Risk of damage during transportation and shipment
Insufficient protection against mechanical and electrostatic effects during
transportation and shipment can damage the instrument.
●Always ensure that sufficient mechanical and electrostatic protections
are provided
●When shipping an instrument, the original packaging should be used. If
you do not have the original packaging, use sufficient padding to pre-
vent the instrument from moving around inside the box. Pack the instru-
ment in antistatic wrap to protect it from electrostatic charging
●Secure the instrument to prevent any movement and other mechanical
effects during transportation
Unpacking and checking the instrument
www.allice.de
Allice Messtechnik GmbH
Putting into operation
R&S®NGL200/NGM200
17Getting Started 1178.8720.02 ─ 07
Delivery package
The package contents contain the following items:
●R&S NGL power supply or R&S NGM power supply
●Four power cables
●One printed Getting Started manual
●One document folder containing a printed Basic Safety Instructions guide
5.4 Setting up the instrument
The R&S NGL/NGM is designed for benchtop and rackmount operation.
5.4.1 Bench operation
On a benchtop, the R&S NGL/NGM power supply can either lie flat or stand on its
feet. As shown in Figure 5-1, feet on the bottom can be folded out to set the
instrument in an inclined position.

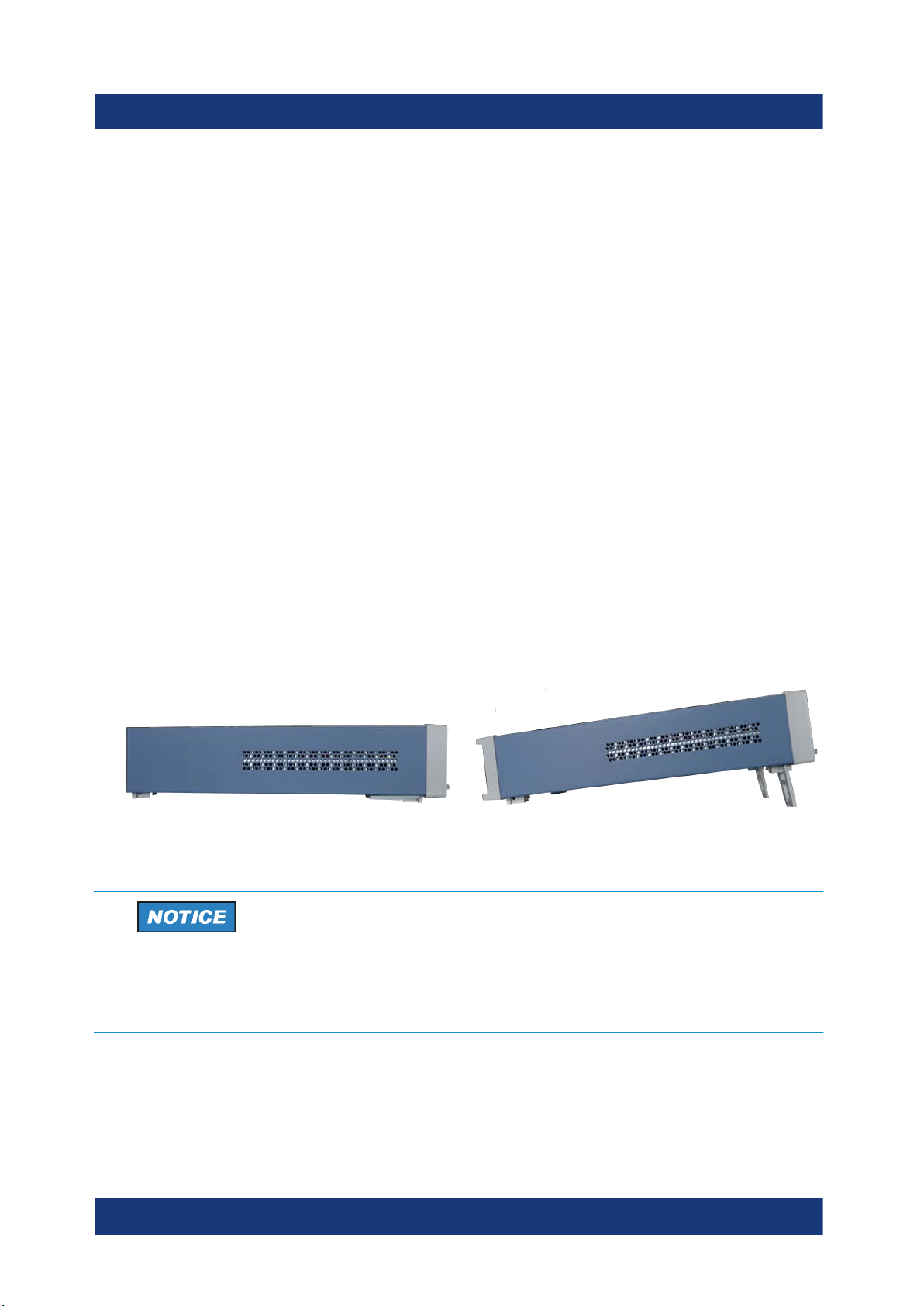

Figure 5-1: Operating positions
Positioning of instrument
The instrument must be positioned in a manner that allows you to discon-
nect the unit from the mains at any time and without restrictions.
Setting up the instrument
www.allice.de
Allice Messtechnik GmbH
Putting into operation
R&S®NGL200/NGM200
18Getting Started 1178.8720.02 ─ 07
5.4.2 Rack mounting
The instrument can be installed in a 19" rack using the rack adapter R&S HZN96
(P/N 3638.7813.02). Proceed according to the installation instructions supplied
with the rack adapter.
Ambient temperature
Place the R&S NGL/NGM power supply in an area where the ambient tem-
perature is within +5 °C to +40 °C. The R&S NGL/NGM power supply is
fan-cooled and must be installed with sufficient space along the sides to
ensure free flow of air.
Setting up the instrument
www.allice.de
Allice Messtechnik GmbH
Instrument tour
R&S®NGL200/NGM200
19Getting Started 1178.8720.02 ─ 07
6 Instrument tour
This chapter provides an overview of all the controls available in the
R&S NGL/NGM models and steps to switch on the instrument for the first time.
●Overview of controls........................................................................................19
●Switching on the instrument............................................................................ 24
6.1 Overview of controls
6.1.1 Front panel
The front panel of the R&S NGL/NGM is as shown in Figure 6-1. The function
keys and navigation controls are located beside the display. The various connec-
tors are located at the right side of the display.
The R&S NGL/NGM has one output channel for R&S NGL201, R&S NGM201
models and two output channels for R&S NGL202, R&S NGM202 models.
1 2
3
4
5
6
7
Figure 6-1: Front panel of R&S
NGL/NGM with 2 channels
1 = Display with touch screen
2 = Rotary knob and back key
3 = Output and channel keys
4 = Output terminals (one channel with sense for R&S NGL201, R&S NGM201; two channels for
R&S NGL202, R&S NGM202)
Overview of controls
www.allice.de
Allice Messtechnik GmbH
Instrument tour
R&S®NGL200/NGM200
20Getting Started 1178.8720.02 ─ 07
5 = Power key
6 = USB connector
7 = Menu control keys
Display (1)
The display is a color TFT touch screen. Depending on the instrument model, up
to two channels are shown on the display. The respective measurement settings
and functions are displayed in the individual channel display area. There is a sta-
tus bar in the device level and channel level, showing the device operating mode
and respective channel settings of the instrument.
For a detailed description on-screen layout, see section "Display Overview" in the
User Manual.
Rotary knob and back key (2)
The rotary knob and back key are used for menu navigation and value adjustment
in the instrument.
For a detailed description on rotary knob and back key, see section "Navigation
Controls" in the User Manual.
Output and channel keys (3)
The channel key allows you to select the power supply channel to source or sink
power. The output key allows you to enable or disable the output power on the
channel key.
Refer to datasheet for the channel voltage/current limits in the source and sink
mode.
Output terminals (4)
Depending on the instrument type, one or two output channels are available to
source or sink power.
Both instrument models are equipped with 4 terminals. The R&S NGL201, R&S
NGM201 models provide both the output plus the sense connectors at the front
panel while the R&S NGL202, R&S NGM202 models provide only output termi-
nals for both channels.
Power key (5)
The [Power] key switches the instrument on and off.
Overview of controls
www.allice.de
Allice Messtechnik GmbH
This manual suits for next models
9
Table of contents
