Alico Champion DH6000T-VHR User manual

Issue Date: 10.30.18
Manual P/N 116081 rev. A
For machines beginning with S/N D1806487 and above
DH6000T-VHR
Hot water sanitizing machine
w/fresh water rinse and built-in
stainless steel electric booster
Ventless Heat Recovery
LISTED
2674 N. Service Road, Jordan Station
Ontario, Canada L0R 1S0
[phone] Fax: [phone]
Toll-free: 1( 800) 263-5798
3765 Champion Boulevard
Winston-Salem, NC 27105
[phone] Fax: [phone]
Toll-free: 1 [phone]
Printed in the USA
Installation Manual

COPYRIGHT © 2018 All rights reserved Printed in the USA
ATTENTION
The model no., serial no., voltage,
Hz and phase are needed to
identify your machine.
The machine data plate
is located on the lower panel
right front corner.
Please have this information ready
if you call for service assistance.
National Service Department
In Canada: In the USA:
Toll-free: [phone] Toll-free: [phone]
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
email: [email protected] email: [email protected]
The USGBC Member Logo is a trademark owned by the U.S. Green Building Council and is used by permission. The logo signifies only that
Champion Industries is a USGBC member; USGBC does not review, certify or endorse the products or services offered by its members.

Two ways to
REGISTER YOUR PRODUCT and
ACTIVATE YOUR WARRANTY.
• Use your mobile device to visit our website at www.
championindustries.com and register your product.
• Complete the fax form on the next page and fax to 1-800 661-1660.
Product Registration
4:34 PM 44%

PRODUCT REGISTRATION
BY FA X
IMPORTANT IMPORTANT
Model Serial #
Date of Installation:
Company Name:
Telephone #: ( ) ---
Contact:
Address:
Address:
Telephone #:
Contact:
Installation Company:
(Street) State/Province Zip/Postal Code
FAILURE TO REGISTER YOUR PRODUCT MAY VOID YOUR WARRANTY
PRODUCT REGISTRATION CARD
[phone] in the USA
1-[phone] in Canada
COMPLETE THIS FORM AND FAX TO:
Product Registration

Revision History
Revision History
Revision Revised Serial Number Revision
Date Pages Effectivity Description
10.30.18 All D1806487 Released first edition
Specifications are subject to change based on continual product improvement. Equipment
owners may request a revised manual, at no charge, by calling 1 [phone] in the USA or
1(800) 263-5798 in Canada.
i

Limited Warranty
LIMITED WARRANTY
Champion Industries (herein referred to as “The Company”), 3765 Champion Blvd., Winston-Salem, North Carolina
27105, and 2674 N. Service Road, Jordan Station, Ontario, Canada, L0R 1S0, warrants machines, and parts, as set out
below.
Warranty of Machines: The Company warrants all new machines of its manufacture bearing the name “Champion
and installed within the United States and Canada to be free from defects in material and workmanship for a period of
one (1) year after the date of installation or fifteen (15) months after the date of shipment by The Company, whichever
occurs first. [See below for special provisions relating to glasswashers.] Warranty registration must be submitted to The
Company within ten (10) days after installation either online on the Champion Industries website (http://www.champion-
industries.com or by the fax form provided at the front of this manual. The Company will not assume any responsibility
for extra costs for installation in any area where there are jurisdictional problems with local trades or unions.
If a defect in workmanship or material is found to exist within the warranty period, The Company, at its election, will
either repair or replace the defective part or accept return of the machine for full credit; provided; however, as to glass-
washers, The Company’s obligation with respect to labor associated with any repairs shall end (a) 120 days after ship-
ment, or (b) 90 days after installation, whichever occurs first. In the event that The Company elects to repair, the labor
and work to be performed in connection with the warranty shall be done during regular working hours by a Champion
authorized service technician. Defective parts become the property of The Company. Use of replacement parts not au-
thorized by The Company will relieve The Company of all further liability in connection with its warranty. In no event will
The Company’s warranty obligation exceed The Company’s charge for the machine. The following are not covered by
The Company’s warranty:
a. Lighting of gas pilots or burners.
b. Cleaning of gas lines.
c. Replacement of fuses or resetting of overload breakers.
d. Adjustment of thermostats.
e. Adjustment of clutches.
f. Opening or closing of utility supply valves or switching of electrical supply current.
g. Cleaning of valves, strainers, screens, nozzles, or spray pipes.
h. Performance of regular maintenance and cleaning as outlined in the operator’s guide.
i. Damages resulting from water conditions, accidents, alterations, improper use, abuse,
tampering, improper installation, or failure to follow maintenance and operation procedures.
j. Wear on Pulper cutter blocks, pulse vanes, and auger brush.
Examples of the defects not covered by warranty include, but are not limited to: (1) Damage to the exterior or
interior finish as a result of the above, (2) Use with utility service other than that designated on the rating plate,
(3) Improper connection to utility service, (4) Inadequate or excessive water pressure, (5) Corrosion from
chemicals dispensed in excess of recommended concentrations, (6) Failure of electrical components due to
connection of chemical dispensing equipment installed by others, (7) Leaks or damage resulting from such
leaks caused by the installer, including those at machine table connections or by connection of chemical
dispensing equipment installed by others, (8) Failure to comply with local building codes, (9) Damage
caused by labor dispute.
Warranty of Parts: The Company warrants all new machine parts produced or authorized by The Company to be free
from defects in material and workmanship for a period of 90 days from date of invoice. If any defect in material and
workmanship is found to exist within the warranty period The Company will replace the defective part without charge.
DISCLAIMER OF WARRANTIES AND LIMITATIONS OF LIABILITY. THE COMPANY’S WARRANTY IS ONLY TO
THE EXTENT REFLECTED ABOVE. THE COMPANY’S MAKE NO OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED, TO ANY WARRANTY OF MERCHANTABILITY, OR FITNESS OF PURPOSE.
THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. THE REMEDIES
SET OUT ABOVE ARE THE EXCLUSIVE REMEDIES FOR ANY DEFECTS FOUND TO EXIST IN THE COMPANY’S’
DISHWASHING MACHINES AND THE COMPANY’S PARTS, AND ALL OTHER REMEDIES ARE EXCLUDED,
INCLUDING ANY LIABILITY FOR INCIDENTALS OR CONSEQUENTIAL DAMAGES.
The Company does not authorize any other person, including persons who deal in Champion dishwashing machines to
change this warranty or create any other obligation in connection with Champion dishwashing machines.
ii

Revision History............................................................................................................................ i
Limited Warranty......................................................................................................................... ii
Installation Codes and Safety Symbols ...................................................................................... iv
Table of Contents
Table of Contents
Installation ................................................................................................... 1
Receiving and Placement................................................................................ 1
Dish Table Connections...................................................................................2
Corner Operation............................................................................................ 3
Water Connection ........................................................................................... 5
Drain Connection ............................................................................................ 6
Drain Water Tempering Valve ......................................................................... 7
Electrical Connection ...................................................................................... 8
Chemical Connections .................................................................................. 10
Detergent Dispenser Connection........................................................ 10
Rinse-aid Dispenser Connection ......................................................... 11
APPENDIX B: DH6000T-VHR 3PH to 1PH Electrical Conversion Instructions ........................17
APPENDIX A: DH6000T Corner Splash Shield Kit, P/N 901104.............................................13
iii

Installation Codes and Safety Symbols
Safety Symbols
WARNING:
Warning statements indicate a condition or practice that can result in personal
injury or possible death.
CAUTION:
Caution statements indicate a condition or practice that can result in damage to
the machine or associated equipment.
CAUTION:
Damage or problems associated with improper installation will not be covered by
the limited warranty.
NOTE:
Note statements highlight important information necessary for the operation of
the machine.
The following symbols are used throughout this manual to alert the reader to important
information.
Installation Codes
The installation of the dishwasher must comply with all local electrical, plumbing, health
and safety codes or in the absence of local codes, installed in accordance with the
applicable requirements in the National Electrical Code, NFPA 70, Canadian Electrical
Code (CEC), Part 1, CSA C22.1; and the Standard for Ventilation Control and Fire
Protection of Commercial Cooking Operations, NFPA 96.
iv

Receiving
Compare the installation site utility connections with the dishwasher utility connections to
ensure they are the same.
Provide 20" [508mm] on right, left and front sides of the machine and 27" [686mm] above
the finished floor.

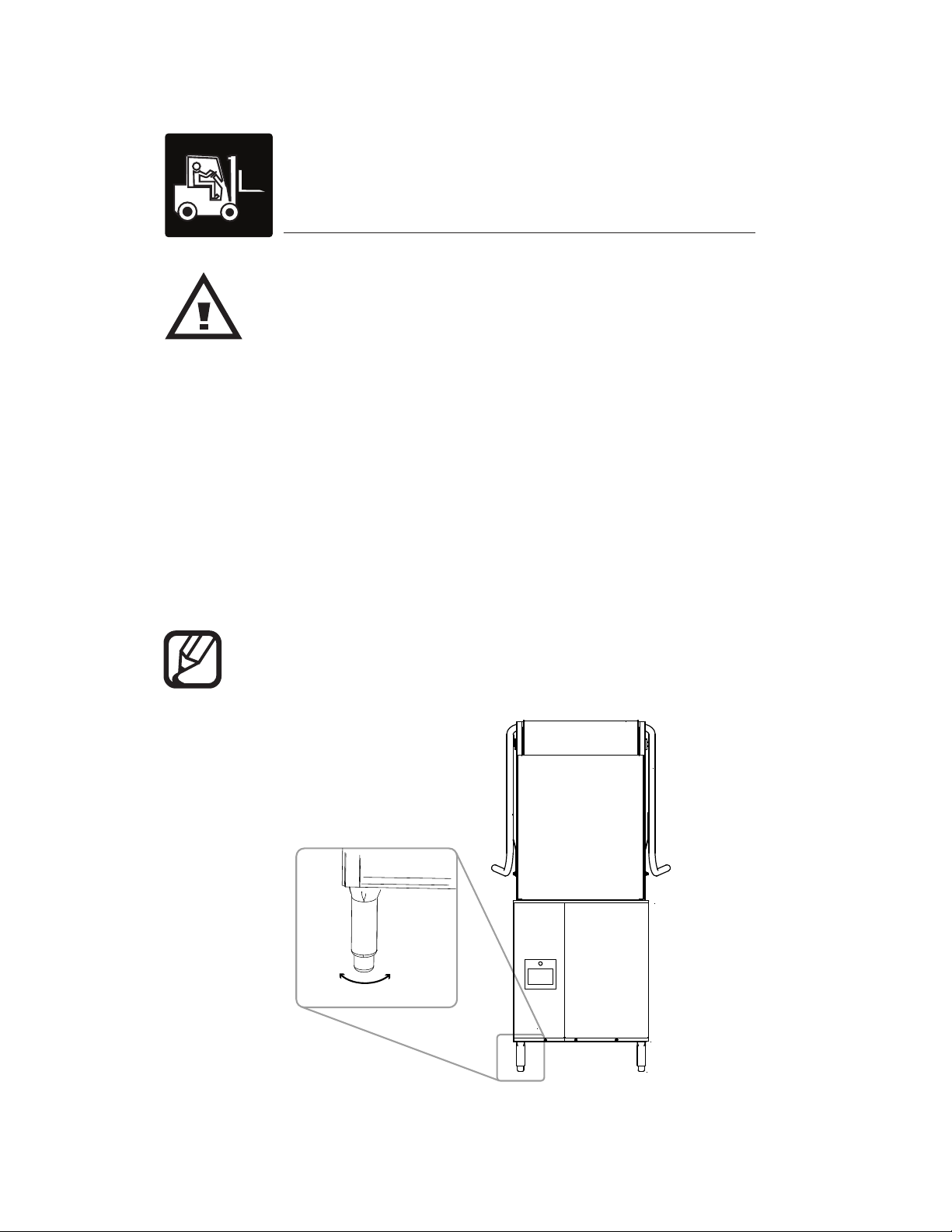

The dishwasher has four adjustable feet for leveling. Level the dishwasher front-to-back
and side-to-side.
Receiving and Placement - Installation
Inspect the outside of the shipping carton for signs of damage and report
any damage immediately to a supervisor.
Remove the carton, inspect the dishwasher, and check the inside of the
machine for accessories and installation parts.
Register your machine by fax or online as soon as possible.
CAUTION:
Be careful when lifting and moving the machine to avoid damage.
Placement
NOTE:
Dishwashers are shipped from the factory for straight-through operation but are field
convertible to corner operation.
Fig. 1
LEVEL ADJUSTMENT
1

Installation
Dish Table Connections
CAUTION:
Do not attach the dish tables until the dishwasher is set in its permanent location.
1/2”
Inner wall of
wash tank
Dish table flange
Drill holes, apply sealant,
& fasten flange to wash tank
Side
panel
Fig. 2
Dish table Dish table
Fig. 3
Level the dishwasher and dish tables to the required height. Fit the dish table flanges over the
ends of the dishwasher tank and mark two hole locations. Drill 1/4" holes through the table
flange and the dishwasher tank. Apply sealant between the table flanges and the wash tank
and install stainless steel 1/4-20 fasteners to secure.
2

Installation
Corner Operation - Corner Splash Shield
Machines are shipped from the factory for straight through operation. To convert to for
corner operation:
1. The control panel must be accessible from the front as shown in Fig. 4.
2. Install the optional splash shield, if equipped, see Fig. 5. Detailed instructions can be
found in Appendix A at the rear of this manual.
Fig. 4 Fig. 5
Control
Panel
NOTE:
TRACK CONVERSION INSTRUCTIONS ARE ON THE NEXT PAGE.
3

Installation
Corner Operation - Track Conversion
Follow the steps below to convert the track assembly for corner operation:
Track Assembly
Guide
Fig. 6
1. Pull the track assembly straight up out of the machine.
2. Rotate the track 180° and reinstall.
3. Remove the guide attached to the track assembly, save the hardware.
4. Reposition the guide on the right-hand side of the track assembly and secure with the
existing fasteners.
5. Slide a dish rack through the machine to ensure it moves freely.
6. Conversion is complete.
4

Installation
Water Connection
70º
RISE 55-75ºF / 13-24ºC
BOOSTER
RISE ºF
MINIMUM/MAXIMUM INCOMING
TEMPERATURE
45 PSI / 310 kPa
MINIMUM INCOMING
SUPPLY FLOWING PRESSURE
INSTALL A ¾” OR LARGER SHUT-OFF VALVE IN THE WATER SUPPLY LINE
AS CLOSE TO THE DISHWASHER AS POSSIBLE FOR SERVICING.
WATER HARDNESS OF 3 GRAINS/US GAL - 0.83 IMP GAL - 5.3mg/L OR LESS.
20/25 PSI / 138/172 kPa
MINIMUM/MAXIMUM
OPERATING FLOWING PRESSURE
CAUTION: To prevent damage to the dishwasher supply valves, the installing
plumber must thoroughly flush debris from the water supply line before
connecting it to the dishwasher. Damage caused by improper installation is not
covered by the limited warranty.
COLD
WATER
NOTE: Local codes may require the installation of a backflow preventer and a
pressure relief tank in the cold water supply line. Consult the local authority for
details. The backflow preventer and pressure relief tank are supplied by others.
Fig. 7
5
MINIMUM 3/4" NPT COLD WATER SUPPLY

Installation

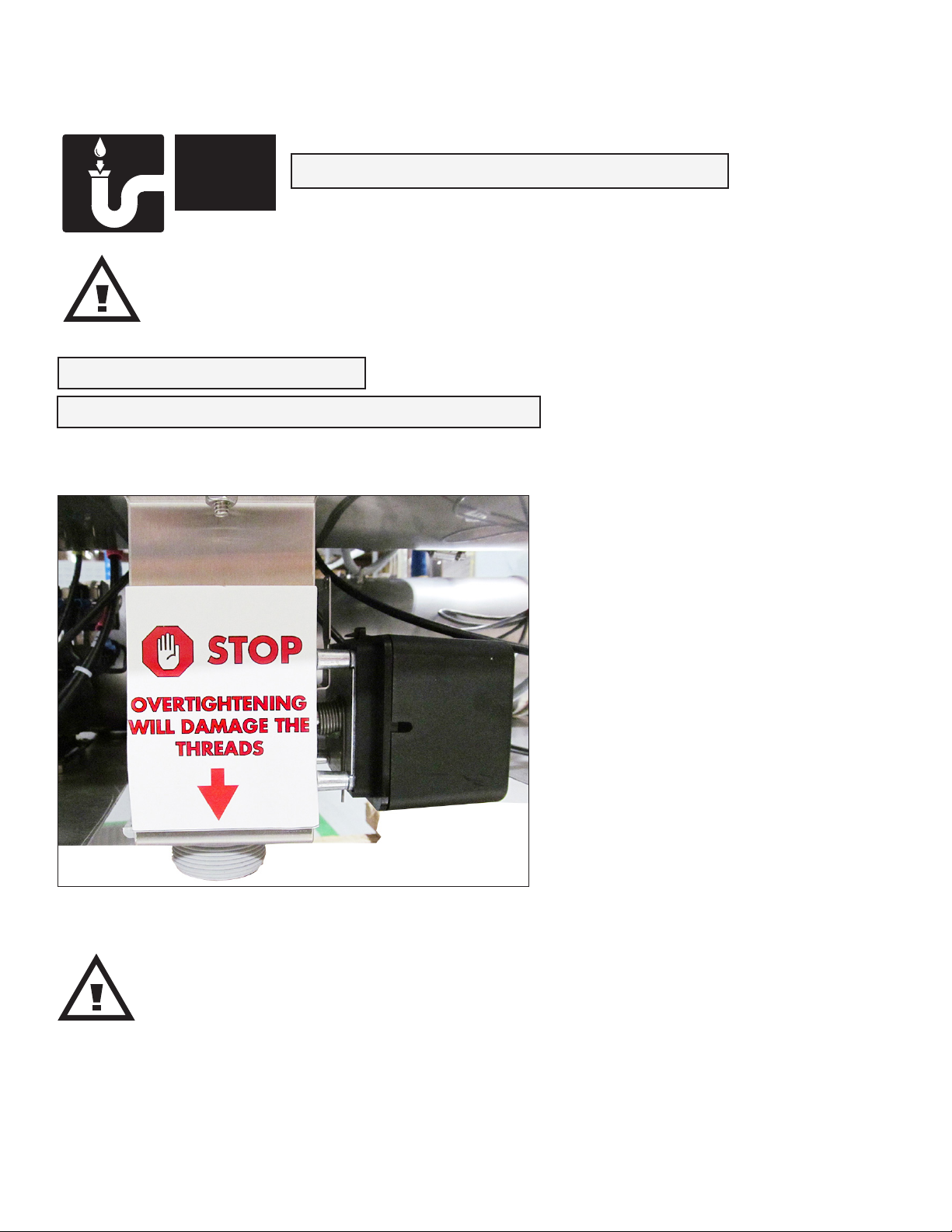

Drain Connection
DRAIN
CAUTION: The dishwasher drain connection must comply with all local plumbing,
health and safety codes. Damage caused by improper installation is not covered by
the limited warranty
GRAVITY DRAIN, 1-1/2" NPT CONNECTION
AUTOMATIC ELECTRIC DRAIN VALVE
MAXIMUM FLOW RATE: 15 USGPM/1.5 IMP. GPM/ 57LPM
Fig. 8
CAUTION: Use caution when making drain valve plumbing
connections.
6

Installation
COLD
WATER
A field installation kit is included with the machine to reduce the temperature of water
entering the building drain
Drain Water Tempering Kit
MECHANICAL WATER VALVE
MINIMUM 1/2" NPT COLD WATER SUPPLY LINE
USES BUILDING FLOWING PRESSURE
Installing the kit:
1. Installations should be done by a plumber in accordance with local plumbing codes.
2. The kit contains the tempering valve, double check valve and 1-1/2" CPVC TEE.
3. Consult with your local inspector prior to installation to verify code compliance if necessary.
4. Do not use sweat connection on any part of the kit or near the kit. This may destroy the
actuator and void the warranty. Be sure to only use the CPVC Tee 1-1/2" fitting included
in the kit.
5. Connect the tempering valve to the 1-1/2" drain line as close to the dishwasher hot water
discharge as possible.
6. Connect a 1/2" NPT cold water line to the tempering valve.
7. The installation of a ball shut-off valve as close as possible to the tempering valve is highly
recommended. The ball shut-off valve will be supplied by others.
8. Maintain an INDIRECT (air gap) connection to the floor drain, if the exit of the Tee is
finished to the floor drain. Turn on the cold water source, check for leaks, and test
machine operation.
9. The installation is complete.
CAUTION:
DO NOT USE TEFLON TAPE OR PIPE DOPE TO ASSEMBLE COMPONENTS.
Fig. 9
7

Installation
Electrical Connection - Single and Three Phase
WARNING:
Electrocution may occur when working on energized circuits.
Disconnect power at the main breaker or service disconnect switch,
then lock out and tag it to indicate that work is being performed
on the circuit.
The installation of the dishwasher must comply with all local electrical, plumbing,
health, and safety codes or in the absence of local codes, installed in accordance
with the applicable requirements in the National Electrical Code, NFPA 70,
Canadian Electrical Code (CEC), Part 1, CSA C22.1; and the Standard for Vent-
ilation Control and Fire Protection of Commercial Cooking Operations, NFPA 96.
Follow the instructions below and on the next page to connect the electrical power to the
machine.
1. A conduit mounting bracket is located at the right rear corner of the machine base as
shown in Fig. 10 below. Position the machine near its permanent location and route the
flexible conduit to the machine making sure to leave a 6 foot / 2 meter service loop.
2. Remove the machine front panel and locate the main terminal block at the right front
corner of the machine. Refer to the Machine Electrical Connection plate mounted
directly in front of the terminal block for electrical specifications. See Fig. 11 below.
3. Route the supply wiring to the main terminal block. A cable clamp is provided to
secure the wiring to the base of the machine. Connection diagrams are located on the
next page.
-- AMPS
Minimum
Machine Electrical Connection
For supply connection, use copper conductors
in accordance with local electrical code, Rated Minimum 90° C (194° F)
-- AMPS Maximum
Overcurrent Protection Device:
Voltage: Phase: 3
Hertz:
208
60 AMPS:--
Supply Conductor Ampacity
Supply Overcurrent Protection Device
Time Delay Fuse or Inverse Time CKT Breaker
Fig. 11
Fig. 10
TOP VIEW
FRONT VIEW
8

Installation
Electrical Connection - Single and Three Phase
LINE IN
L1
L2
L1
L2
1 Phase Power Connection
208-240V/60/1
GND
NOT
USED
NOT
USED
3 Phase Power Connection
208-240/480V/60/3
GND
LINE IN
L1
L2
L3
L1
L2
L3
Fig. 13
Fig. 12
Three Phase Motor
HIGH Voltage Connection
W2 U2 V2
U1 V1 W1
BLK BRN GR AY
L1 L2 L3
W2 U2 V2
BLK BRN GR AY
L1 L2 L3
U1 V1 W1
Single Phase Motor Wiring
with Run Capacitor
Three Phase Motor
LOW Voltage Connection
Y/G
Y/G
Y/G
GR AY
BRN
BLK
T
M
AWHT
BRN
BLK
Thermal
Protector
W1
V1 L1
L2
U1
Cable
Motor
CAP
Fig. 14
WARNING:
There may be more than one power source connected to the
machine. Make sure all power sources are disconnected,
locked and tagged out before working on the machine.
Single Phase Motor Wiring
with Run Capacitor
Y/G
GR AY
BRN
BLK
T
M
AWHT
BRN
BLK
Thermal
Protector
W1
V1 L1
L2
U1
Cable
Motor
CAP
Checking 460-480V/60/3 Motor Rotation
• The pump motor rotation is CCW from the rear factory.
• To reverse motor rotation: DISCONNECT MAIN POWER. Reverse
L1 and L2 wires at the input terminal block located on the machine
base. Reconnect power and bump the motor to verify rotation is
correct.
Fig. 15
9

Installation
Detergent Dispenser Connection
DET
INJECTION POINT
PROBE
Fig. 16
Fig. 17
SIGNAL
ONLY
COMMON
NEUTRAL 120VAC
1.5 A
MAX.
DETERGENT
120VAC
1.5 AMP
MAX.
RINSE AID
120VAC
1.5 AMP
MAX.
GROUND
120VAC
FACTORY
USE ONLY
GROUND
LINE
POWER
USE A NON-CHLORINATED COMMERCIAL GRADE DETERGENT
WASH TANK CAPACITY: 10 US GAL/8.33 IMP. GAL/ 38 L
SIGNAL ENABLED DURING WASH CYCLE.
TWO 7/8" DIAMETER HOLES AT LOWER RIGHT REAR
CORNER OF TANK.
- TOP HOLE IS DETERGENT INJECTION
- BOTTOM HOLE IS DETERGENT PROBE.
120VAC FUSE BLOCK-1.5 AMP- MAX LOAD DETERGENT
SIGNAL CONNECTION. LOCATED ON FRONT BASE.
10

Installation
Fig. 18
Rinse-Aid Dispenser Connection
R /A
Fig. 19
SIGNAL
ONLY
COMMON
NEUTRAL 120VAC
1.5 A
MAX.
DETERGENT
120VAC
1.5 AMP
MAX.
RINSE AID
120VAC
1.5 AMP
MAX.
GROUND
120VAC
FACTORY
USE ONLY
GROUND
LINE
POWER
120VAC FUSE BLOCK-1.5 AMP- MAX LOAD RINSE-AID SIGNAL
CONNECTION. LOCATED ON FRONT BASE.
1/8" NPT PIPE PLUG AT THE REAR OF THE MACHINE
NEAR THE VACUUM BREAKER FOR RINSE-AID INJECTION.
STD. RINSE/RACK: .85 US GAL/.7IMP. GAL/3.2.L
POT,PAN,RINSE/RACK 1.18 US GAL/.98IMP.GAL/ 4.5L
SIGNAL ENABLED DURING FINAL RINSE CYCLE.
11

Blank Page
This Page
Intentionally
Left Blank
12
