Alico CMA EST-AH Manual

MODEL EST REAR VIEW
Insert tube stiffener with chemical tubing
into each corresponding chemical
dispensers.
RED
3
STEP
BLUE
Models EST-AH , EST-C
EST-AH-(EXT)
& EST-C-(EXT)
Quick Setup
Instructions
WARNING: Electrical and
plumbing connections
need to be made by a
licensed service person
and comply with all
Federal, State and Local
Health, Electrical,
Plumbing and Safety
codes.
07-2021
2
STEP
WALL
DRAIN
8"
FLOOR DRAIN
Connect a 2" drain pipe (not
supplied) from scrap accumulator
to floor or wall drain.
Connect dishmachine to hot water source
recommended 140 temperature (120
minimum temperature required).
WHITE
TUBE
STIFFENER
CHEMICAL
TUBING
2" DRAIN
OUTLET
HARD WIRE
POWER SUPPLY
NORMAL-OFF DELIMER
SWITCH
3
2
3
ON/OFF
POWER SWITCH
1/2" WATER
INLET
1
PN: 10130.13
1
STEP

000000
CMA ENERGY SAVER
CMA ENERGY SAVER

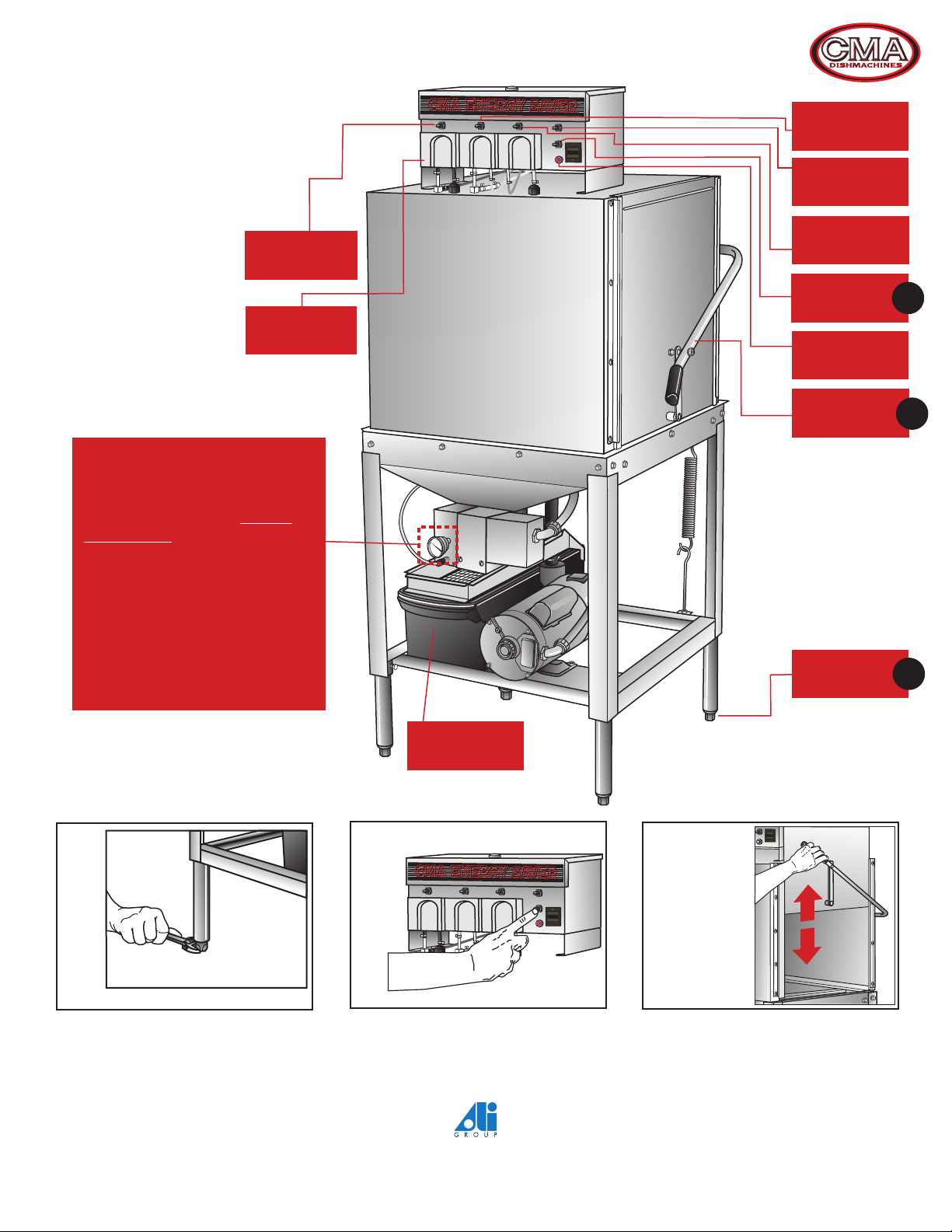

MODEL EST FRONT VIEW
07-2021
6
STEP
Level dishmachine by adjusting leveling legs.
Dishmachine must be level front and back to
ensure proper performance.
4
STEP
000000
Open dishmachine doors completely. Closing
the doors will automatically activate the
machine.
Press the "FILL/START" switch. Hold in the
"FILL" position until the water overflows into
the scrap accumulator.
WARNING: Electrical and
plumbing connections need
to be made by alicensed
service person and comply
with allFederal, State and
Local Health, Electrical,
Plumbing and Safety codes.
Models EST-AH
EST-C, EST-AH-(EXT)
& EST-C-(EXT)
Quick Setup
Instructions
POLY PRO
TM
SCRAP
ACCUMULATOR
PERISTALTIC
PUMP
THERMOMETER NEEDS TO
BE INSTALLED:
The Models EST-AH and EST-C
are Shipped from CMA without
thermometer being installed. To
prevent leaking, the installation
Team will need to install it on the
dishwasher using TEFLON TAPE.
So the thermometer for this unit is
not misplaced during shipment,
please find thermometer shipped
inside the dishwasher, zip-tied
to the dishrack.
LEVELING
LEGS
FILL/START
SWITCH 5
CYCLE LIGHT
DRAIN
SWITCH
RINSE
SWITCH
SANI
SWITCH
DETERGENT
SWITCH
DOOR
HANDLE 6
4
5
STEP
000000
CMA ENERGY SAVER
CMA ENERGY SAVER
