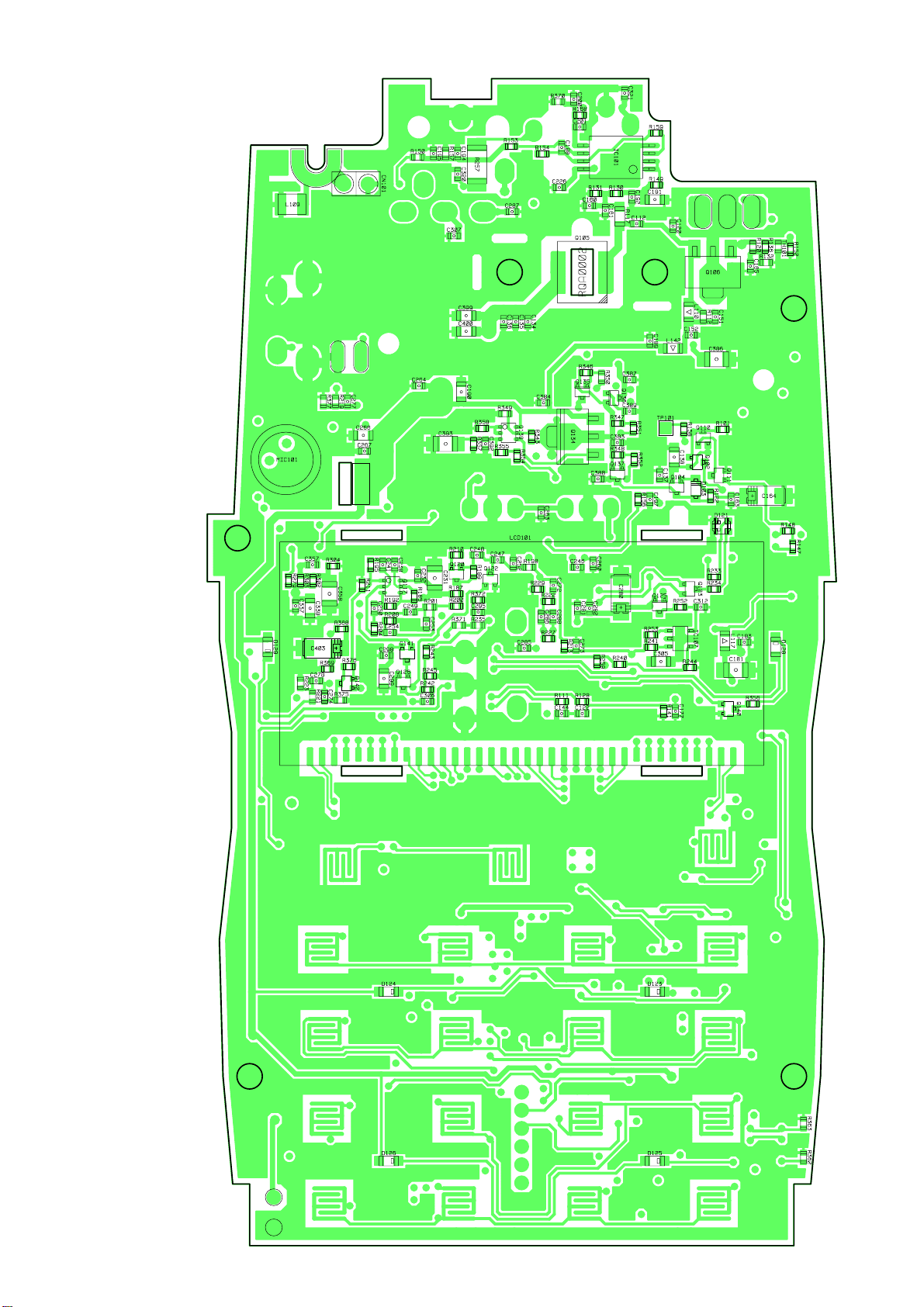

PC Board View
Adjustment
Schematic Diagram
Block Diagram
ALINCO, INC.
Service Manual
DJ-175

SPECIFICATIONS DJ-175
<GRNERAL>
T:
E:
TFH:
TX 144 ~ 147.995MHz
RX 136 ~ 173.995MHz
TX 144 ~ 145.995MHz
RX 144 ~ 145.995MHz
TX 136 ~ 173.995MHz
RX 136 ~ 173.995MHz
*144 ~ 147.995MHz
*144 ~ 147.995MHz
*144 ~ 145.995MHz
*144 ~ 145.995MHz
*150 ~ 173.995MHz
*150 ~ 173.995MHz
Frequency range:
Modulation:
Channel steps:
Memory channels:
Antenna impedance:
Frequency stability:
Microphone impedance:
Power supply:
Current drain (Approx.):
Temperature range:
Ground:
Dimension:
Weight:
DTMF:
Subaudible Tone (CTCSS):
Digital Code SQ. (DCS):
* Guaranteed range per specifications
F3E (FM), F2D* *T/E models only
5, 10, 12.5, 20, 25 & 30KHz
200 channels + 1 CALL channel + 1 Repeater-Access function memory
50Ωunbalanced
+/- 2.5ppm
2k ohm nominal
7.2V/ 7.4V (Battery only)
1.5A Transmit high at 5W
250mA Receive at 500mW
70mA Stand-by
30mA Battery save on
-10 ~ +45°C (+14 ~ 113°F)
Negative ground
58(W) x 107.5(H) x 36.3(D) mm
2.28(W) x 4.23(H) x 1.43(D) inches
Approx. 245g/ 8.7oz with EBP-72 & antenna
16 Buttons Keypad
encode/ decode 39 tones
encode/ decode 104 codes
<TRANSMITTER>
Output power (Approx.):
Modulation
Max. deviation
Spurious emission
5W (High)/ 2W (Middle)/ 0.5W (Low)
Variable reactance frequency modulation
±5KHz
(±2.5KHz)**
–60dB or less
<RECEIVER>
Receive system
Intermediate frequencies
Sensitivity (12dB SINAD)
Selectivity
Audio output power
Double conversion superheterodyne
1st: 21.7MHz / 2nd: 450KHz
-14dBµ (0.2µV)
-6dB: 12KHz or more/ -60dB: 26KHz or less
(-6dB: 6KHz or more/ -60dB: 14KHz or less)**
500mW (8Ω, MAX)
400mW (8Ω, 10% THD)
**Narrow FM models are available depending on areas of distribution.

CIRCUIT DESCRIPTION
1) Receiver System
The receiver system is a double superheterodyne system with a 21.7MHz first IF and
a 450kHz second IF.
1.Front End
The received signal at frequency in the 136~173.995MHz (E version:
144~145.995MHz) range is passed through the low-pass filter (L101, L102,
L104, L118, C101, 108, C109, C110, C117, C118, C119, C123, C124, C125,
C126, C127, and C188) and tuning circuit (C255, C256, C257, C258, D120,
L138, and L139) and amplified by the RF amplifier (Q119). The signal from
Q119 is then passed through the tuning circuit (C242, C243, C244, C245,
C269, C270, C271, D117, D118, D119, L135, L136, and L137) and converted
into 21.7MHz by the mixer (Q118).
The tuning circuit, which consists of L139, L135, L136, varicaps D117, D118,
D119, and D120 is controlled by the tracking voltage from the CPU so that it is
optimized for the reception frequency. The local signal from the VCO is
passed through the buffer (Q115), and supplied to the source of the mixer
(Q118). The radio uses the lower side of the superheterodyne system.
2. IF Circuit
The mixer mixes the received signal with the local signal to obtain the sum of
and difference between them. The crystal filter (FL101, and FL102) selects
21.7MHz frequency from the results and eliminates the signal of the unwanted
frequencies. The first IF amplifier (Q121) then amplifies the signal of the
selected frequency.
3. Demodulator Circuit
After the signal is amplified by the first IF amplifier (Q121), it is input to pin 16
of the demodulator IC (IC103). The second local signal of 21.25MHz (shared
with PLL IC reference oscillation), which is oscillated by the TCXO (X102).
Then, these two signals are mixed by the internal mixer in IC103 and the result
is converted into the second IF signal with a frequency of 450kHz. The second
IF signal is output from pin 3 of IC103 to the ceramic filter (FL103), where the
unwanted frequency band of that signal is eliminated, and the resulting signal
is sent back to the IC103 through pin 5.
The second IF signal input via pin 5 is demodulated by the internal limiter
amplifier and quadrature detection circuit in IC103, and output as an audio
signal through pin 9.

4. Audio Circuit
The audio signal from pin 9 of IC103 is amplified by the AF amplifier (Q120).
The signal is then input to pin 16 of the electronic volume (IC105) for volume
adjustment, and output from pin 14. The adjusted signal is sent to the audio
power amplifier (IC104) through pin 2 to drive the speaker.
5. Squelch Circuit
The signal except for the noise component in AF signal of IC103 is cut by the
active filter inside IC. The noise component is amplified and rectified, then
converted to the DC voltage to output from pin 14 of IC103. The voltage is led
to pin 2 of CPU and compared with the setting voltage. The squelch will open if
the input voltage is lower than the setting voltage.
2) Transmitter System
1. Modulator Circuit
The audio signal is converted to an electric signal in either the internal or
external microphone, and input to the microphone amplifier (IC110). IC110
consists of two operational amplifiers; one amplifier (pins 12, 13, and 14) is
composed of pre-emphasis and IDC circuits and the other (pins 5, 6, 7, 8, 9,
and 10) is composed of a splatter filter. The maximum frequency deviation is
obtained by IC105 and input to the cathode of the varicap of the VCO, to
change the electric capacity in the oscillation circuit. This produces the
frequency modulation.
2. Power Amplifier Circuit
The transmitted signal is oscillated by the VCO, amplified by the pre-drive
amplifier (Q101) and drive amplifier (Q106), and input to the final amplifier
(Q105). The signal is then amplified by the final amplifier (Q105) and led to the
antenna switch (D101) and low-pass filter (L104, L102, L101, C119, C118,
C117, C127, C126, C125, C124, C108, and C101), where un-wanted high
harmonic waves are reduced as needed, and the resulting signal is supplied to
the antenna.
3. APC Circuit
Part of the transmission power from the low-pass filter is detected by D108,
converted to DC, and then amplified by a amplifier (IC101). The output voltage
controls the bias voltage from the source of Q105 and Q106 to maintain the
transmission power constant.

3) PLL Synthesizer System
1. PLL
The dividing ratio is obtained by sending data from the CPU (IC113) to pin 10
and sending clock pulse to pin 9 of the PLL IC ( IC101 ). The oscillated signal
from the VCO is amplified by the buffer (Q116) and input to pin 8 of IC102.
Each programmable divider in IC102 divides the frequency of the input signal
by N according to the frequency data, to generate a comparison frequency of
5 or 6.25kHz.
2. Reference Frequency Circuit
The reference frequency appropriate for the channel steps is obtained by
dividing the 21.25MHz reference oscillation (X102) by 4250 or 3400,
according to the data from the CPU (IC113). When the resulting frequency is
5kHz, channel steps of 5, 10, 15, 20, and 30kHz are used. When it is 6.25kHz,
channel steps of 12.5, 25 , and 50kHz are used.
3. Phase Comparator Circuit
The PLL (IC102) uses the reference frequency, 5 or 6.25kHz. The phase
comparator in the IC102 compares the phase of the frequency from the VCO
with that of the comparison frequency, 5 or 6.25kHz, which is obtained by the
internal divider in IC102.
4. PLL Loop Filter Circuit
If a phase difference is found in the phase comparison between the reference
frequency and VCO output frequency, the charge pump output (pin 5) of IC102
generates a pulse signal, which is converted to DC voltage by the PLL loop
filter and input to the varicap of the VCO unit for oscillation frequency control.
5. VCO Circuit
A Colpitts oscillation circuit driven by Q108 directly oscillates the desires
frequency. The frequency control voltage determined in the CPU (IC113) and
PLL circuit is input to the varicaps (D105 and D107). This change the
oscillation frequency, which is amplified by the VCO buffer (Q113) and output
from the VCO unit.

4) CPU and Peripheral Circuits
1. LCD Display Circuit
The CPU turns ON the LCD via segment and common terminals with 1/4 the
duty and 1/3 the bias, at the frame frequency is 112.5Hz.
2. Display Lamp Circuit
When the LAMP key is pressed, “L” is output form pin 67 of CPU ( IC113) to
the bases of Q140. Q140 then turn ON and the LEDs (D128 and D129) light.
3. Reset and Backup
When the power form the DC jack or external battery increases from Circuits
0V to 2.5 or more, “ H “ level reset signal is output form the reset IC (IC108) to
pin 6 of the CPU (IC113), causing the CPU to reset. The reset signal, however,
waits at 100, and does not enter the CPU until the CPU clock (X104) has
stabilized.
4. S (Signal) Meter Circuit
The DC potential of pin 12 of IC103 is input to pin 83 of the CPU (IC113),
converted from an analog to a digital signal, and displayed as the S-meter
signal on the LCD.
5. DTMF Encoder
The CPU (IC113) is equipped with an internal DTMF encoder. The DTMF
signal is output from pin 71, through IC112 (Low-pass filter), and then through
the microphone amplifier (IC110), and is sent to the varicap of the VCO for
modulation. At the same time, the monitoring tone passes through the AF
circuit and is output form the speaker.
6. TONE Encoder
The CPU (IC113) is equipped with an internal tone encoder. The tone signal
(67.0 to 250.3Hz ) is output from pin 70 of the CPU to the 21.25MHz reference
oscillation (X102) of the PLL reference oscillator.
7. DCS Encoder
The CPU (IC113) is equipped with an internal DCS code encoder. The code
(023 to 754) is output from pin 70 of the CPU to the 21.25MHz reference
oscillation (X102) of the PLL reference oscillator.

8. CTCSS, DCS Decoder
The voice band of the AF output signal from pin 9 of IC103 is cut by sharp
active filter IC111 and amplified, then led to pin 80 of CPU. The input signal is
compared with the programmed tone frequency code in the CPU. The squelch
will open when they match.
9. Clock Shift
In the unlikely event that CPU clock noise is present on a particular operating
frequency programmed into the radio, you can shift the CPU clock frequency
to avoid the CPU clock-noise. The output signal from pin 8 of the CPU turns
on Q127. Then the oscillation frequency of X104 will be shifted about 200
ppm.

Ref. No. Parts No. Parts name Version Ref. No. Parts No. Parts name
C101 CU3535 GRM36B102K50PT C173
C102 CU3535 GRM36B102K50PT C174
C103 CU3519 GRM36CH470J50PT C175
C104 CU3535 GRM36B102K50PT C176 CU3502 GRM36CK010C50PT
C105 C177 CU3535 GRM36B102K50PT
C108 CU3535 GRM36B102K50PT C178 CU3513 GRM36CH150J50PT
C109 CU3512 GRM36CH120J50PT C179 CU3535 GRM36B102K50PT
C110 CU3505 GRM36CH040C50PT C180 CU3515 GRM36CH220J50PT
C111 CU3535 GRM36B102K50PT C181 CU0119 GRM21BB30J106KE18L
C112 CU3520 GRM1552C1H560JD01D C182 CU3554 GRM36B104K10PT
C113 CU3535 GRM36B102K50PT C183 CU3535 GRM36B102K50PT
C114 CU3503 GRM36CK020C50PT C184 CU3547 GRM36B103K16PT
C115 C185 CU3535 GRM36B102K50PT
C116 CU3512 GRM36CH120J50PT C186
C117 CU3513 GRM36CH150J50PT C187 CU3513 GRM36CH150J50PT
C118 CU3513 GRM36CH150J50PT C188 CU3508 1005 CH 50V 7PF D
C119 CU3513 GRM36CH150J50PT C189 CU3535 GRM36B102K50PT
C120 C190
C122 CU3559 GRM155B30J105KE18D C191 CU3137 GRM188B31C105KA92D
C123 C192 CU3535 GRM36B102K50PT
C124 CU3512 GRM36CH120J50PT C193 CU3514 GRM36CH180J50PT
C125 CU3512 GRM36CH120J50PT C194 CU3554 GRM36B104K10PT
C126 CU3513 GRM36CH150J50PT C195 CU3535 GRM36B102K50PT
C127 CU3514 GRM36CH180J50PT C196 CU3502 GRM36CK010C50PT
C129 CU3512 GRM36CH120J50PT C197 CU3527 GRM1552C1E221JD01D
C130 CU3514 GRM36CH180J50PT T, E, EUK C198 CU3554 GRM36B104K10PT
C131 CU3517 GRM36CH330J50PT C199 CU3515 GRM36CH220J50PT
C132 CU3516 GRM36CH270J50PT C200 CU3554 GRM36B104K10PT
C133 CU3517 GRM36CH330J50PT C201 CU3535 GRM36B102K50PT
C134 CU3513 GRM36CH150J50PT C202 CU3547 GRM36B103K16PT
C135 CU3513 GRM36CH150J50PT C203 CU3535 GRM36B102K50PT
C136 CU3513 GRM36CH150J50PT C204 CU3535 GRM36B102K50PT
C137 CU3535 GRM36B102K50PT C205 CS0396 20V 0.1UF
C138 C206 CS0396 20V 0.1UF
C139 C207 CU3547 GRM36B103K16PT
C140 CU3554 GRM36B104K10PT C209 CU3515 GRM36CH220J50PT T, E, EUK
C141 CU3535 GRM36B102K50PT C209 CU3514 GRM36CH180J50PT TFH
C142 CU3502 GRM36CK010C50PT C210 CU3505 GRM36CH040C50PT
C144 C211 CU3526 GRM1552C1E181JD01D
C145 CU3535 GRM36B102K50PT C212 CU3528 GRM1552C1E271JD01D
C146 CU3535 GRM36B102K50PT C213 CU3526 GRM1552C1E181JD01D
C147 CU3506 GRM36CH050C50PT C214 CU3535 GRM36B102K50PT
C149 CU3502 GRM36CK010C50PT C215 CU3554 GRM36B104K10PT
C150 CU3502 GRM36CK010C50PT C216
C151 CU3547 GRM36B103K16PT C219 CS0398 6.3V 2.2UF
C152 CU3535 GRM36B102K50PT C220 CU3535 GRM36B102K50PT
C153 C221 CU3535 GRM36B102K50PT
C155 CU3535 GRM36B102K50PT C222 CU3535 GRM36B102K50PT
C156 C223
C157 CU3535 GRM36B102K50PT C224 CU3547 GRM36B103K16PT
C158 CU3535 GRM36B102K50PT C225 CU3535 GRM36B102K50PT
C159 CU3547 GRM36B103K16PT C226 CU3535 GRM36B102K50PT
C160 CU3535 GRM36B102K50PT C227 CU3535 GRM36B102K50PT
C161 CU3535 GRM36B102K50PT C228 CU3515 GRM36CH220J50PT
C162 C229 CU3515 GRM36CH220J50PT
C163 CU3535 GRM36B102K50PT C230 CU3512 GRM36CH120J50PT
C164 CS0441 TMCMA0J226MTRF C231 CU0119 GRM21BB30J106KE18L
C165 CU3535 GRM36B102K50PT C232 CU3535 GRM36B102K50PT
C166 CU3513 GRM36CH150J50PT C233 CU3522 GRM1552C1H820JD01D
C167 CU3523 GRM1552C1H101JZ01D C234 CU3547 GRM36B103K16PT
C168 CU3502 GRM36CK010C50PT C235 CU3519 GRM36CH470J50PT
C169 CU3502 GRM36CK010C50PT C236 CU3535 GRM36B102K50PT
C171 CU3511 GRM36CH100D50PT C237 CU3547 GRM36B103K16PT
C172 CU3535 GRM36B102K50PT C238 CU3539 GRM36B222K50PT
MAIN UNIT
Parts List

Ref. No. Parts No. Parts name Version Ref. No. Parts No. Parts name
C239 CU3547 GRM36B103K16PT C305 CU3138 GRM188B31C225KE14D T, E, EUK
C240 CU3535 GRM36B102K50PT C306 CU3559 GRM155B30J105KE18D
C241 CU3539 GRM36B222K50PT C307 CU3535 GRM36B102K50PT
C242 CU3535 GRM36B102K50PT C308 CU3138 GRM188B31C225KE14D
C243 CU3573 GRM1554C1HR80BZ01D C310 CU3137 GRM188B31C105KA92D
C244 CU3573 GRM1554C1HR80BZ01D C311 CU3535 GRM36B102K50PT
C245 CU3523 GRM1552C1H101JZ01D C312 CU3554 GRM36B104K10PT T, E, EUK
C246 CU3554 GRM36B104K10PT C313 CU3137 GRM188B31C105KA92D
C247 CU3554 GRM36B104K10PT C314 CU3547 GRM36B103K16PT
C248 CU3559 GRM155B30J105KE18D C315 CU3547 GRM36B103K16PT
C249 CU3537 GRM36B152K50PT C316 CU3554 GRM36B104K10PT
C250 CU3537 GRM36B152K50PT C317 CU3517 GRM36CH330J50PT
C252 CU3535 GRM36B102K50PT C318 CU3516 GRM36CH270J50PT
C253 CU3543 GRM36B472K25PT C319
C254 CU3549 1005 B 16V 0.015UF K C320 CU3535 GRM36B102K50PT
C255 CU3535 GRM36B102K50PT C321 CU3535 GRM36B102K50PT
C256 CU3516 GRM36CH270J50PT C322 CU3559 GRM155B30J105KE18D
C257 CU3505 GRM36CH040C50PT C323 CU3535 GRM36B102K50PT
C258 CU3523 GRM1552C1H101JZ01D C324 CU3559 GRM155B30J105KE18D
C259 C325 CU3554 GRM36B104K10PT
C260 CU3554 GRM36B104K10PT C326
C261 CU3547 GRM36B103K16PT C327 CU3137 GRM188B31C105KA92D
C262 CU3535 GRM36B102K50PT C328 CU3535 GRM36B102K50PT
C263 CU3508 1005 CH 50V 7PF D T, E, TFH C329 CU3554 GRM36B104K10PT
C263 CU3513 GRM36CH150J50PT EUK C330 CU3535 GRM36B102K50PT
C264 CU3535 GRM36B102K50PT C331 CU0119 GRM21BB30J106KE18L
C265 CE0436 16CE47BSS C332 CU3535 GRM36B102K50PT
C266 CU3137 GRM188B31C105KA92D C333 CU3535 GRM36B102K50PT
C267 CU3535 GRM36B102K50PT C334 CU0119 GRM21BB30J106KE18L
C268 CU3535 GRM36B102K50PT C335 CU3540 GRM36B272K50PT
C269 CU3523 GRM1552C1H101JZ01D C336 CU3523 GRM1552C1H101JZ01D
C270 CU3523 GRM1552C1H101JZ01D C337 CU3535 GRM36B102K50PT
C271 CU3523 GRM1552C1H101JZ01D C338 CU3137 GRM188B31C105KA92D
C272 CU3535 GRM36B102K50PT C339 CU3137 GRM188B31C105KA92D
C273 CU3547 GRM36B103K16PT C340 CU3535 GRM36B102K50PT
C274 CU3554 GRM36B104K10PT C341 CU3547 GRM36B103K16PT
C275 CU3535 GRM36B102K50PT C342 CU3547 GRM36B103K16PT
C276 CU3523 GRM1552C1H101JZ01D C343 CU3554 GRM36B104K10PT
C277 CU3535 GRM36B102K50PT C344 CU3554 GRM36B104K10PT
C278 CU3523 GRM1552C1H101JZ01D C345 CU3554 GRM36B104K10PT
C279 CU3547 GRM36B103K16PT C346 CU3547 GRM36B103K16PT
C280 CS0441 TMCMA0J226MTRF C347 CU3523 GRM1552C1H101JZ01D
C281 CU3535 GRM36B102K50PT C348 CU3547 GRM36B103K16PT
C282 CU3554 GRM36B104K10PT C349 CU3539 GRM36B222K50PT
C284 CU3559 GRM155B30J105KE18D C350 CU3533 GRM36B681K50PT
C285 CU3554 GRM36B104K10PT C351
C286 CU3527 GRM1552C1E221JD01D C352 CU3547 GRM36B103K16PT
C287 CU3535 GRM36B102K50PT C353 CU3539 GRM36B222K50PT
C288 CU3527 GRM1552C1E221JD01D C354 CU3541 GRM36B332K50PT
C289 CU3535 GRM36B102K50PT C355 CU3547 GRM36B103K16PT
C290 CU3554 GRM36B104K10PT C356 CU3535 GRM36B102K50PT
C291 CU3138 GRM188B31C225KE14D C357 CU3535 GRM36B102K50PT
C292 CE0436 16CE47BSS C358 CU0119 GRM21BB30J106KE18L
C293 CU3554 GRM36B104K10PT C359 CU3553 GRM36B473K10PT
C294 CU3535 GRM36B102K50PT C360 CU3559 GRM155B30J105KE18D
C295 C361 CU3535 GRM36B102K50PT
C296 CE0463 10CE100BSS C362 CU3533 GRM36B681K50PT
C297 C363 CU3535 GRM36B102K50PT
C298 CU3535 GRM36B102K50PT C364 CU3539 GRM36B222K50PT
C299 CU3137 GRM188B31C105KA92D C365 CU3533 GRM36B681K50PT
C300 CU3554 GRM36B104K10PT C366 CU3537 GRM36B152K50PT
C301 CU3535 GRM36B102K50PT C367 CU3523 GRM1552C1H101JZ01D
C302 CE0462 6CE100BSS C368 CU3531 GRM36B471K50PT
C303 CU3535 GRM36B102K50PT C369 CU3541 GRM36B332K50PT
C304 CU3554 GRM36B104K10PT C370 CU3554 GRM36B104K10PT

Ref. No. Parts No. Parts name Version Ref. No. Parts No. Parts name
C371 CU3535 GRM36B102K50PT D130 XD0418 RB521S-30TE61
C372 CU3559 GRM155B30J105KE18D FL101 XF0059 Q21707AD27-21.7MHZ EUK
C373 FL101 XF0051 Q2175AD20 21.7MHZ T, E, TFH
C375 CU3541 GRM36B332K50PT FL102 XF0059 Q21707AD27-21.7MHZ EUK
C376 CU3554 GRM36B104K10PT FL102 XF0051 Q2175AD20 21.7MHZ T, E, TFH
C377 CU3554 GRM36B104K10PT FL103 XC0052 ALFYM450G=K EUK
C378 FL103 XC0060 ALFYM450F=K T, E, TFH
C379 CU3535 GRM36B102K50PT IC101 XA1103 LM2904PWR
C380 CU3535 GRM36B102K50PT IC102 XA1107 MB15E07SRPFTGBNDEFE1
C381 CU3535 GRM36B102K50PT IC103 XA0404 TA31136FNG(EL)
C382 CS0439 TMCMA0J476MF IC104 XA0210 IC NJM2070M
C383 CU3535 GRM36B102K50PT IC105 XA1293 M62364FP#DF1G
C384 CU3535 GRM36B102K50PT IC106 XA1119 XC6202P502MR
C385 CU3535 GRM36B102K50PT IC107 XA0617 TC75S56FU(TE85) T, E, EUK
C386 CU0119 GRM21BB30J106KE18L IC108 XA1120 S80845CLNB-B66-T2G
C387 CU3535 GRM36B102K50PT IC109 XA1117 S24CS64A01-J8T1G
C388 CU3535 GRM36B102K50PT IC110 XA1106 LM2902PWR
C389 CU3535 GRM36B102K50PT IC111 XA1106 LM2902PWR
C390 CU3554 GRM36B104K10PT IC112 XA1106 LM2902PWR
C391 CU3535 GRM36B102K50PT IC113 XA1358 UPD78F0395GC-8EA-A T, E, EUK
C392 CU3535 GRM36B102K50PT IC113 XA1292 UPD78F0394GC-8EA-A TFH
C393 CU0119 GRM21BB30J106KE18L JK101 UJ0019 HSJ1493-01-010
C394 CU3512 GRM36CH120J50PT JK102 UJ0022 HSJ1102-01-540
C395 CU3535 GRM36B102K50PT L101 QS401556 0.40-1.55-6TL
C396 CU3535 GRM36B102K50PT L102 QS402006 0.40-2.0-6TL
C397 CU3535 GRM36B102K50PT L104 QS402006 0.40-2.0-6TL
C398 CU3138 GRM188B31C225KE14D L105 QS401405 0.40-1.4-5TL
C399 L106 QS501403 0.50-1.4-3TL
C400 L108 QC0812 1005 100NH
C401 CU3554 GRM36B104K10PT L109
C403 CS0441 TMCMA0J226MTRF L110 QC0757 C1608CB22NJ
C404 CU3554 GRM36B104K10PT L111
C413 CU3559 GRM155B30J105KE18D T, E, EUK L112 QS402057 0.40-2.05-7TL
C414 CU3554 GRM36B104K10PT L113 QC0875 C2012H68NH
C415 CU3554 GRM36B104K10PT L114 QC0902 C2012C1R0J
CN101 L115 QC0812 1005 100NH
CN102 L116 QC0736 LK10052R2K-B
D101 XD0422 HSC277TRF-E L117 QB0057 MPZ1608S101AT
D103 XD0419 1SS400TE61 L118 QS402057 0.40-2.05-7TL
D104 L120 QB0057 MPZ1608S101AT
D105 XD0421 1SV323(TPH3,H) L121 QC0818 C2012H82NH
D106 XD0422 HSC277TRF-E L123 QC0736 LK10052R2K-B
D107 XD0421 1SV323(TPH3,H) L124 QC0773 C1608CBR47J
D108 XD0453 RB717F L125 QC0773 C1608CBR47J
D109 L126 QC0769 1608CBR22J
D110 XD0451 015AZ3.0-X(TPL3,F) L127 QC0765 1608 100NH
D111 L128
D112 XD0422 HSC277TRF-E L129 QC0812 1005 100NH
D113 XD0422 HSC277TRF-E L130
D114 XD0421 1SV323(TPH3,H) L132 QC0842 LB2518T221K
D115 XD0421 1SV323(TPH3,H) L133 QC0812 1005 100NH
D116 L134 QC0902 C2012C1R0J
D117 XD0421 1SV323(TPH3,H) L135 QC0875 C2012H68NH
D118 XD0421 1SV323(TPH3,H) L136 QC0875 C2012H68NH
D119 XD0421 1SV323(TPH3,H) L137 QC0875 C2012H68NH
D120 XD0421 1SV323(TPH3,H) L138 QC0875 C2012H68NH
D121 XL0097 SML-521MUWT86 L139 QC0874 C2012H56NH
D122 XD0338 1SS362(TE85L) L140
D123 XL0036 LED SML-310MT L141 QC0935 LB2012T150K
D124 XL0036 LED SML-310MT L142 QB0057 MPZ1608S101AT
D125 XL0036 LED SML-310MT L143
D126 XL0036 LED SML-310MT LCD101 EL0059 LCD DJ170
D127 XD0418 RB521S-30TE61 MIC101 EY0017 OB-27P44
D128 XL0036 LED SML-310MT Q101 XT0180 2SC5066FT-Y(TE85L)
D129 XL0036 LED SML-310MT Q102 XE0090 SSM3J15FV(TPL3,Z)

Ref. No. Parts No. Parts name Version Ref. No. Parts No. Parts name
Q104 XT0210 2SC6026MFV-GR R136 RK3562 1005 1/16W 100K OHMJ
Q105 XE0091 RQA0002DNS R137 RK3551 1005 1/16W 12K OHM J
Q106 XE0092 RQA0004PXDQS R138
Q107 R141
Q108 XT0219 15GN03F-TL-E R142 RK3530 1005 1/16W 220 OHM J
Q110 XU0211 RN2107FV R143 RK3550 1005 1/16W 10K OHM J
Q111 XU0210 RN1107FV R144 RK3526 1005 1/16W 100 OHM J
Q112 XT0219 15GN03F-TL-E R145 RK3532 1005 1/16W 330 OHM J
Q113 XT0219 15GN03F-TL-E R146 RK3550 1005 1/16W 10K OHM J
Q114 XT0213 2SC5659T2L R147 RK3501 1005 1/16W 0 OHM J
Q115 XT0219 15GN03F-TL-E R148
Q116 XT0219 15GN03F-TL-E R149 RK3552 1005 1/16W 15K OHM J
Q117 XT0214 HN2C01FE-GR(T5L,F) R150 RK3554 1005 1/16W 22K OHM J
Q118 XE0053 3SK293TE85L R151 RK3537 1005 1/16W 820 OHM J
Q119 XE0053 3SK293TE85L R152
Q120 XT0210 2SC6026MFV-GR R153 RK3550 1005 1/16W 10K OHM J
Q121 XT0213 2SC5659T2L R154 RK3570 1005 1/16W 470K OHMJ
Q122 R155 RK3552 1005 1/16W 15K OHM J
Q123 XU0220 RN2111MFV(TPL3) R156 RK3562 1005 1/16W 100K OHMJ
Q124 XT0223 2SA2070(TE12L,F) R157 RK3546 1005 1/16W 4.7K OHMJ
Q125 XU0211 RN2107FV T, E, EUK R158 RK3570 1005 1/16W 470K OHMJ
Q126 R159 RK3538 1005 1/16W 1.0K OHMJ
Q127 XU0220 RN2111MFV(TPL3) R160
Q128 XT0214 HN2C01FE-GR(T5L,F) R162 RK3538 1005 1/16W 1.0K OHMJ
Q129 XU0210 RN1107FV R163 RK3542 1005 1/16W 2.2K OHMJ
Q130 XU0212 RN2115FV R164 RK3550 1005 1/16W 10K OHM J
Q131 XU0210 RN1107FV R165 RK3501 1005 1/16W 0 OHM J
Q132 XT0210 2SC6026MFV-GR R166 RK3537 1005 1/16W 820 OHM J
Q133 XU0213 RN1111FV TPL3 R167 RK3539 1005 1/16W 1.2K OHMJ
Q134 XT0223 2SA2070(TE12L,F) R168 RK3558 1005 1/16W 47K OHM J
Q135 XT0212 2SA1955FV-A(TPL3) R169
Q136 XT0212 2SA1955FV-A(TPL3) R170 RK3530 1005 1/16W 220 OHM J
Q137 XT0212 2SA1955FV-A(TPL3) R171 RK3564 1005 1/16W 150K OHMJ
Q138 XU0213 RN1111FV TPL3 R172 RK3570 1005 1/16W 470K OHMJ
Q139 XT0214 HN2C01FE-GR(T5L,F) R173 RK3550 1005 1/16W 10K OHM J
Q140 XU0213 RN1111FV TPL3 R174 RK3526 1005 1/16W 100 OHM J
Q142 XE0090 SSM3J15FV(TPL3,Z) R175
R101 RK3562 1005 1/16W 100K OHMJ R176 RK3530 1005 1/16W 220 OHM J
R104 RK3526 1005 1/16W 100 OHM J R177 RK3530 1005 1/16W 220 OHM J
R105 RK3566 1005 1/16W 220K OHMJ R178 RK3570 1005 1/16W 470K OHMJ
R106 RK3501 1005 1/16W 0 OHM J R179 RK3550 1005 1/16W 10K OHM J
R107 RK3534 1005 1/16W 470 OHM J R180 RK3538 1005 1/16W 1.0K OHMJ
R108 RK3550 1005 1/16W 10K OHM J R181 RK3518 1005 1/16W 22 OHM J
R111 RK3550 1005 1/16W 10K OHM J R183 RK3538 1005 1/16W 1.0K OHMJ
R112 RK3530 1005 1/16W 220 OHM J R184 RK3550 1005 1/16W 10K OHM J
R113 RK3546 1005 1/16W 4.7K OHMJ R185 RK3574 1005 1/16W 1.0M OHMJ
R114 RK3538 1005 1/16W 1.0K OHMJ R186 RK3538 1005 1/16W 1.0K OHMJ
R116 RK3526 1005 1/16W 100 OHM J R187 RK3542 1005 1/16W 2.2K OHMJ
R117 RK3014 1608 1/10W 10 OHM J R188 RK3522 1005 1/16W 47 OHM J
R118 RK3518 1005 1/16W 22 OHM J R189 RK3550 1005 1/16W 10K OHM J
R119 RK3562 1005 1/16W 100K OHMJ R190 RK3556 1005 1/16W 33K OHM J
R120 RK3530 1005 1/16W 220 OHM J R191 RK3562 1005 1/16W 100K OHMJ
R121 R192 RK3574 1005 1/16W 1.0M OHMJ
R122 RK3542 1005 1/16W 2.2K OHMJ R193 RK3562 1005 1/16W 100K OHMJ
R123 R194 RK3562 1005 1/16W 100K OHMJ
R124 RK3552 1005 1/16W 15K OHM J R195 RK3560 1005 1/16W 68K OHM J
R126 R196 RK3566 1005 1/16W 220K OHMJ
R127 RK3557 1005 1/16W 39K OHM J R198 RK3550 1005 1/16W 10K OHM J
R128 RK3562 1005 1/16W 100K OHMJ R199 RK3570 1005 1/16W 470K OHMJ
R130 RK3562 1005 1/16W 100K OHMJ R200 RK3550 1005 1/16W 10K OHM J
R131 RK3558 1005 1/16W 47K OHM J R201 RK3550 1005 1/16W 10K OHM J
R132 RK3557 1005 1/16W 39K OHM J R202 RK3558 1005 1/16W 47K OHM J
R133 RK3518 1005 1/16W 22 OHM J R203 RK3562 1005 1/16W 100K OHMJ
R134 RK3501 1005 1/16W 0 OHM J R204 RK3570 1005 1/16W 470K OHMJ
R135 RK3551 1005 1/16W 12K OHM J R205 RK3542 1005 1/16W 2.2K OHMJ

Ref. No. Parts No. Parts name Version Ref. No. Parts No. Parts name
R206 RK3536 1005 1/16W 680 OHM J EUK R276 RK3552 1005 1/16W 15K OHM J
R206 RK3539 1005 1/16W 1.2K OHMJ T, E, TFH R277 RK3552 1005 1/16W 15K OHM J
R207 RK3536 1005 1/16W 680 OHM J EUK R278 RK3550 1005 1/16W 10K OHM J
R207 RK3539 1005 1/16W 1.2K OHMJ T, E, TFH R279 RK3514 1005 1/16W 10 OHM J
R208 RK3550 1005 1/16W 10K OHM J R280 RK3562 1005 1/16W 100K OHMJ
R209 RK3556 1005 1/16W 33K OHM J R281 RK3562 1005 1/16W 100K OHMJ
R210 RK3538 1005 1/16W 1.0K OHMJ R282 RK3538 1005 1/16W 1.0K OHMJ
R211 RK3550 1005 1/16W 10K OHM J R283 RK3550 1005 1/16W 10K OHM J
R212 RK3518 1005 1/16W 22 OHM J R284 RK3550 1005 1/16W 10K OHM J
R213 RK3550 1005 1/16W 10K OHM J R285 RK3562 1005 1/16W 100K OHMJ
R214 RK3518 1005 1/16W 22 OHM J R286 RK3562 1005 1/16W 100K OHMJ
R215 RK3574 1005 1/16W 1.0M OHMJ R287 RK3550 1005 1/16W 10K OHM J
R216 RK3574 1005 1/16W 1.0M OHMJ R288 RK3560 1005 1/16W 68K OHM J
R217 RK3574 1005 1/16W 1.0M OHMJ R289 RK3558 1005 1/16W 47K OHM J
R218 R290 RK3566 1005 1/16W 220K OHMJ
R219 RK3550 1005 1/16W 10K OHM J R291 RK3558 1005 1/16W 47K OHM J
R220 RK3574 1005 1/16W 1.0M OHMJ R292 RK3562 1005 1/16W 100K OHMJ
R221 RK3574 1005 1/16W 1.0M OHMJ R293 RK3562 1005 1/16W 100K OHMJ
R222 RK3564 1005 1/16W 150K OHMJ R294 RK3562 1005 1/16W 100K OHMJ
R223 R295 RK3562 1005 1/16W 100K OHMJ
R225 RK3550 1005 1/16W 10K OHM J T, E, TFH R297 RK3550 1005 1/16W 10K OHM J
R225 RK3547 1005 1/16W 5.6K OHMJ EUK R298 RK3554 1005 1/16W 22K OHM J
R226 RK3550 1005 1/16W 10K OHM J R299 RK3554 1005 1/16W 22K OHM J
R227 RK3564 1005 1/16W 150K OHMJ R300 RK3556 1005 1/16W 33K OHM J
R228 RK3554 1005 1/16W 22K OHM J R301 RK3550 1005 1/16W 10K OHM J
R229 RK3544 1005 1/16W 3.3K OHMJ R302 RK3554 1005 1/16W 22K OHM J
R230 RK3501 1005 1/16W 0 OHM J R303 RK3559 1005 1/16W 56K OHM J
R231 RK3514 1005 1/16W 10 OHM J R304 RK3550 1005 1/16W 10K OHM J
R233 RK3536 1005 1/16W 680 OHM J R305 RK3568 1005 1/16W 330K OHMJ
R234 RK3532 1005 1/16W 330 OHM J R306 RK3536 1005 1/16W 680 OHM J
R235 RK3562 1005 1/16W 100K OHMJ R307 RK3562 1005 1/16W 100K OHMJ
R237 RK3570 1005 1/16W 470K OHMJ R308 RK3550 1005 1/16W 10K OHM J
R239 RK3574 1005 1/16W 1.0M OHMJ R309 RK3550 1005 1/16W 10K OHM J
R240 RK3562 1005 1/16W 100K OHMJ T, E, EUK R310 RK3546 1005 1/16W 4.7K OHMJ
R241 RK3550 1005 1/16W 10K OHM J T, E, EUK R311 RK3550 1005 1/16W 10K OHM J
R242 RK3566 1005 1/16W 220K OHMJ R312 RK3550 1005 1/16W 10K OHM J
R243 RK3566 1005 1/16W 220K OHMJ R313 RK3559 1005 1/16W 56K OHM J
R244 RK3550 1005 1/16W 10K OHM J T, E, EUK R314 RK3559 1005 1/16W 56K OHM J
R245 RK3553 1005 1/16W 18K OHM J R316 RK3550 1005 1/16W 10K OHM J
R246 RK3550 1005 1/16W 10K OHM J R317 RK3570 1005 1/16W 470K OHMJ
R247 RK3574 1005 1/16W 1.0M OHMJ R318 RK3546 1005 1/16W 4.7K OHMJ
R248 RK3550 1005 1/16W 10K OHM J R319 RK3559 1005 1/16W 56K OHM J
R249 RK3550 1005 1/16W 10K OHM J R320 RK3562 1005 1/16W 100K OHMJ
R250 RK3550 1005 1/16W 10K OHM J R321
R251 RK3546 1005 1/16W 4.7K OHMJ R324 RK3558 1005 1/16W 47K OHM J
R252 RK3526 1005 1/16W 100 OHM J T, E, EUK R325 RK3558 1005 1/16W 47K OHM J
R253 RK3550 1005 1/16W 10K OHM J T, E, EUK R326 RK3562 1005 1/16W 100K OHMJ
R254 RK3553 1005 1/16W 18K OHM J R327 RK3566 1005 1/16W 220K OHMJ
R255 RK3566 1005 1/16W 220K OHMJ R328 RK3559 1005 1/16W 56K OHM J
R256 RK3562 1005 1/16W 100K OHMJ R329 RK3556 1005 1/16W 33K OHM J TFH
R257 RK1018 3216 1/8 W 100 OHM J R329 RK3557 1005 1/16W 39K OHM J T, E, EUK
R258 RK3566 1005 1/16W 220K OHMJ R330 RK3550 1005 1/16W 10K OHM J TFH
R259 RK3501 1005 1/16W 0 OHM J T, E, EUK R330 RK3551 1005 1/16W 12K OHM J T, E, EUK
R260 RK3562 1005 1/16W 100K OHMJ T, E, EUK R331 RK3550 1005 1/16W 10K OHM J
R261 R333 RK3546 1005 1/16W 4.7K OHMJ
R262 RK3542 1005 1/16W 2.2K OHMJ R334 RK3546 1005 1/16W 4.7K OHMJ
R263 RK3554 1005 1/16W 22K OHM J R335 RK3546 1005 1/16W 4.7K OHMJ
R265 RK3550 1005 1/16W 10K OHM J R336 RK3546 1005 1/16W 4.7K OHMJ
R266 RK3574 1005 1/16W 1.0M OHMJ R337 RK3558 1005 1/16W 47K OHM J
R267 RK3538 1005 1/16W 1.0K OHMJ R338 RK3558 1005 1/16W 47K OHM J
R268 RK3562 1005 1/16W 100K OHMJ R339
R269 RK3558 1005 1/16W 47K OHM J R340 RK3552 1005 1/16W 15K OHM J
R270 RK3550 1005 1/16W 10K OHM J R341 RK3562 1005 1/16W 100K OHMJ
R271 RK3538 1005 1/16W 1.0K OHMJ R342 RK3537 1005 1/16W 820 OHM J
R273 RK3560 1005 1/16W 68K OHM J R343 RK3550 1005 1/16W 10K OHM J

Ref. No. Parts No. Parts name Version Ref. No. Parts No. Parts name
R344 RK3537 1005 1/16W 820 OHM J KZ0219 FRONT CASE ASSYDJ175
R345 RK3546 1005 1/16W 4.7K OHMJ NK0081 KNOB
R346 RK3562 1005 1/16W 100K OHMJ SD0111A BATTERY TERMINAL
R347 RK3562 1005 1/16W 100K OHMJ SD0137 TERMINAL
R348 RK3562 1005 1/16W 100K OHMJ SP0013 KNOB SPRING 7800
R349 RK3550 1005 1/16W 10K OHM J SS0112 CHASSIS
R350 RK3550 1005 1/16W 10K OHM J ST0089 LCD HOLDER
R351 RK3542 1005 1/16W 2.2K OHMJ TL0033 REFLECTIVE SHEET
R352 RK3550 1005 1/16W 10K OHM J TS0188 VCO CASE DJ175
R353 RK3538 1005 1/16W 1.0K OHMJ UE0571 SMA ANT CONNECTOR
R354 RK3550 1005 1/16W 10K OHM J UR0027 ROTARY ENCODER
R355 RK3538 1005 1/16W 1.0K OHMJ YX0045 LCD TAPE
R356 RK3536 1005 1/16W 680 OHM J
R357 RK3550 1005 1/16W 10K OHM J
R358 RK3538 1005 1/16W 1.0K OHMJ CHARGER UNIT (EDC-165)
R359 RK3566 1005 1/16W 220K OHMJ Ref. No. Parts No. Parts name
R360 RK3562 1005 1/16W 100K OHMJ D101 XL0125 MVR3338S
R361 RK3554 1005 1/16W 22K OHM J JK101 UJ0033 HEC2781-010520
R362 R101 RF0027 SPR3 56 OHM
R363 R102 RK3038 1608 1/10W 1.0KOHM J
R363 RK3538 1005 1/16W 1.0K OHMJ TFH R103
R363 RK3564 1005 1/16W 150K OHMJ E, EUK UP0613 EDC165 INTEGRATED
R365 RK3534 1005 1/16W 470 OHM J AP0017 PH P2.6+10 FE/B.ZN
R366 RK3501 1005 1/16W 0 OHM J DD0017 BLIND SHEET
R367 RK3501 1005 1/16W 0 OHM J KS0103 BOTTOM CASE EDC165
R368 RK3546 1005 1/16W 4.7K OHMJ KU0162 UPPER CASE EDC164
R369 RK3538 1005 1/16W 1.0K OHMJ SP0020 CHARGE TERMINAL
R370 RK3550 1005 1/16W 10K OHM J TT1002 1.0X1MM
R371 RK3562 1005 1/16W 100K OHMJ
R372 RK3560 1005 1/16W 68K OHM J T, E, EUK
R372 RK3554 1005 1/16W 22K OHM J TFH ACCESSORIES
R373 RK3574 1005 1/16W 1.0M OHMJ BB0009Y HAND STRAP DJS41
R374 RK3558 1005 1/16W 47K OHM J BH0011 BELT CLIP
R375 RK3562 1005 1/16W 100K OHMJ DS0446 NITTO MODEL PLATE(S)
R376 EA0141 ANTENNA EA0141 T, E, EUK
R377 RK3558 1005 1/16W 47K OHM J EA0142 ANTENNA EA0142 TFH
R378 RK3558 1005 1/16W 47K OHM J EDC146 AC ADAPTOR 120V T
SW101 UU0043 EVQPJ705K EDC147 AC ADAPTOR 230V T, E, EUK
TH101 EDC148 AC ADAPTOR 230V UK PLUG EUK
W101 MRCL07AA #30R02-070-02 EBP072 NI-MH BATTERY PACK
W102 MACL07AA #30A02-070-02
W103 MACLH2GG #30AH1-025-H1 T, E
X102 XQ0208 DSX321SC21.250MHZ
X103 XK0005 CDBCB450KCAY24-R0
X104 XQ0212 SMD-49 8.192MHZ
UP0619A DJ175 INTEGRATED-A
AF0003 0PH M2+3 FE/N3
AF0030 0PH2+6FE/N1
AN0034 M6 NUT BR/B.N
AN0042 DIAL NUT
AX0009 OPH P2+6 FE/N 1
DG0046 LCD LIGHT DJ170
DP0195 LCD PANEL
ES0027 36-8BB-10B2 ROHS
FG0234Y MIC HOLDER DJ190
FG0392 WATERPROOF CAP
FG0418 LCD RUB CONE
FG0478 KEYBOAD
FG0479 PTT RUBBER
FG0480 JACK CAP
FM0265A HEAT SINK, DJV17
FM0300 ANT GND DJ175
FP0310 TERMINAL CASE
FP0321 SPACER
FP0324 BLIND SHEET DJ175

YX0045
DP0195
KZ0219
NK0081
FG0392
FG0480 FG0479
AX0009 FG0478
ES0027

FG0418
DG0046
TL0033
FG0234Y
SS0112
AN0034
AN0042
FM0300
SD0137
AF0003
AF0003
FP0310
SD0111A
EL0059
ST0089
AF0003
UE0571
UR0027
FP0321
FP0324
AF0030
AF0003

PC Board View
MAIN - Side A

PC Board View
MAIN - Side B

(Anode)
R101
JK101
D101
(-)
(+)
T103 T101 T102
R102
R103
Side-A
Side-B
PC Board View EDC165

Adjustments:
1) Required Test Equipment
The following items are required to adjust radio parameters
1.Regulated power supply
Supplyvoltage: 7－8 DC
Current: 3Aormore
2.Digital multimeter
Voltagerange: FS=Approx.20V
Current: 10Aormore
Input resistance: High impedance
3.Oscilloscope
Measurable frequency: Audio frequency
4.Audio dummy load
Impedance: 8Ω
Dissipation: 1Wormore
Jack: 3.5mmΦ
5.SSG
Output frequency: 200MHz or more
Impedance: 50Ω, unbalanced
Modulation: FM
6.Power meter
Measurable frequency: Up to 200MHz
Impedance: 50Ω, unbalanced
Measuring range: 0.1W-10W
7.Audio volmeter
Measurable frequency: Up to 100kHz
Sensitivity: 1mVto10V
8.Audio generator
Output frequency: 67Hz to 10kHz
Outputimpedance: 600Ω, unbalanced
9.Distortion meter/SINAD meter
Measurable frequency: 1kHz
Inputlevel: Upto40dB
Distortion: 1％-100％
10.Frequency counter
Measurable frequency: Up to 200MHz
Measurable stability: Approx. ±0.1ppm

11.Linear detector
Measurable frequency: Up to 200MHz
Characteristics: Flat
CN: 60dBormore
12. DC Ammeter
Current: 3Aormore
Note:
(1). SSG initial setting
Modulation Frequency:1kHz
Modulation Level:3.0kHz (T, E, TFH)/ 1.5kHz (EUK)
(2). Reference sensitivity: 12dB SINAD
(3). Specified audio output level: 500mW at 8Ω
(4). Standard audio output level: 50mW at 8Ω
(5). Use an RF cable ( 3D2W:1M ) for test equipment.
(6). Attach a fuse to the RF test equipment.
(7). All SSG outputs are indicated by EMF
(8). Supply voltage for the transceiver: 7.2VDC
