AlkoHAWK AlkoHAWK Beacon User manual

Owner’s Manual
© 2014 Quest Products v03172014

TABLE OF CONTENTS
INTRODUCTION.................................................................................1
PREPARATION...................................................................................3
COMPONENTS DIAGRAM.................................................................4
OPERATION .......................................................................................5
READ THE RESULTS.........................................................................6
ERROR MESSAGES ..........................................................................6
RECALL LAST RESULT ....................................................................7
SET TEMPERATURE DISPLAY FORMAT .........................................7
SET BAC RESULT DISPLAY FORMAT .............................................8
SET BAC ALERT LEVEL ...................................................................8
SET BEEP WHEN BLOWING ............................................................9
PRECAUTIONS ................................................................................10
SPECIFICATIONS.............................................................................11
CALIBRATION ..................................................................................11
WARRANTY......................................................................................12
DISCLAIMER ....................................................................................13

INTRODUCTION
Intended Use and Overview
The AlcoHAWK®Beacon is a breath alcohol tester designed to test for
the presence of alcohol in the breath. This product cannot determine
the subject’s exact blood alcohol concentration (BAC) and should not
be relied upon for such purposes. Please read this entire manual before
use.
Effects of Alcohol
Variations among people and other factors, such as altitude and air
temperature, affect the degree of intoxication. Some people may
become intoxicated at low BAC levels. A low BAC on a breath alcohol
tester does not mean that a person’s reaction times can respond to any
emergency. You should not drink alcohol and drive or use any machines
after consuming alcohol. There is no safe way to drive under the
inuence of alcohol. Even one drink can make you unsafe.
1

2
BAC Dose-Specic Effects 1
0.020-0.039% 2Generally no loss of coordination. Slight joy or loss of shyness.
Depressant effects are not clear.
0.040-0.069%
General feelings of well-being, relaxation, shyness is reduced and
sensation of warmth. Joy. Some minor impairment of reasoning and
memory. Lowering of caution. Driving skills may be impaired.
0.070-0.099%
Slight impairment of balance, speech, vision, reaction time, and hearing.
Joy. Judgment and self-control are reduced. Caution, reason and
memory are impaired. Driving skills are always impaired.
0.100-0.129%
Major impairment of motor coordination and loss of good judgment.
Speech may be slurred. Balance, vision, reaction time and hearing will
be impaired. Joy.
0.130-0.159%
Gross motor impairment and lack of physical control. Blurred vision and
major loss of balance. Joy reduced and state of feeling unwell begins
to appear.
0.160-0.249% Anxiety, restlessness predominates. Nausea may appear. Appearance
of a “sloppy drunk.”
0.250%-0.299% Needs assistance in walking. Total mental confusion. State of feeling
unwell with nausea and some vomiting.
0.300%-0.399% Loss of consciousness.
0.400% + Onset of coma. Possible death due to respiratory arrest. 3
1Bailey, William J., Drug Use in American Society, 3rd ed., Minneapolis: Burgess, 1993.
2Some individual’s may experience impairment at BAC levels at .03% or even lower.
3Death can occur at a lower BAC level in some individuals.

3
PREPARATION
Install the Batteries

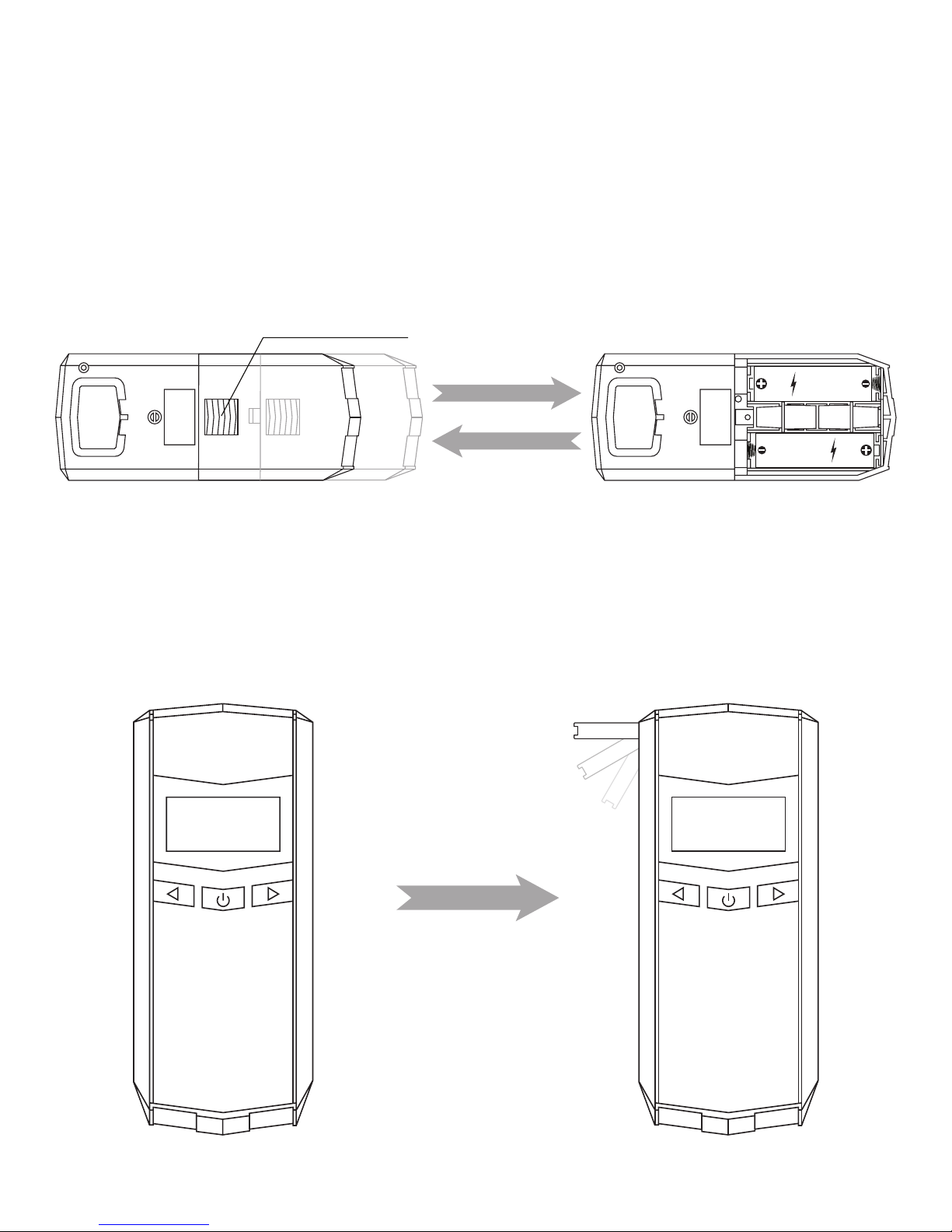

Apply a small amount of pressure on the battery cover located on the
back of the unit. Push down and slide away from the unit to release the
cover. Install two (2) AA alkaline batteries and slide the cover back into
place.
Opening the Mouthpiece and Inserting a New Cover
Pull up on the folding mouthpiece located on the left side of the unit
until the mouthpiece extends straight out from the unit. If testing multiple
individuals, insert a new cover over the mouthpiece before each test.
AA BATTERY
ALKALINE
AA BATTERY
ALKALINE
PUSH & SLIDE

4
COMPONENTS DIAGRAM
FOLDING
MOUTHPIECE
BREATH OUT
Do not cover
while testing
LCD DISPLAY
With backlight
LEFT BUTTON
Select / Begin test
POWER BUTTON
OK / Confirm
RIGHT BUTTON
Recall last record /
Access user menu
BATTERY
COMPARTMENT
MOUTHPIECE HOLDER
Holds 2 mouthpieces

5
OPERATION

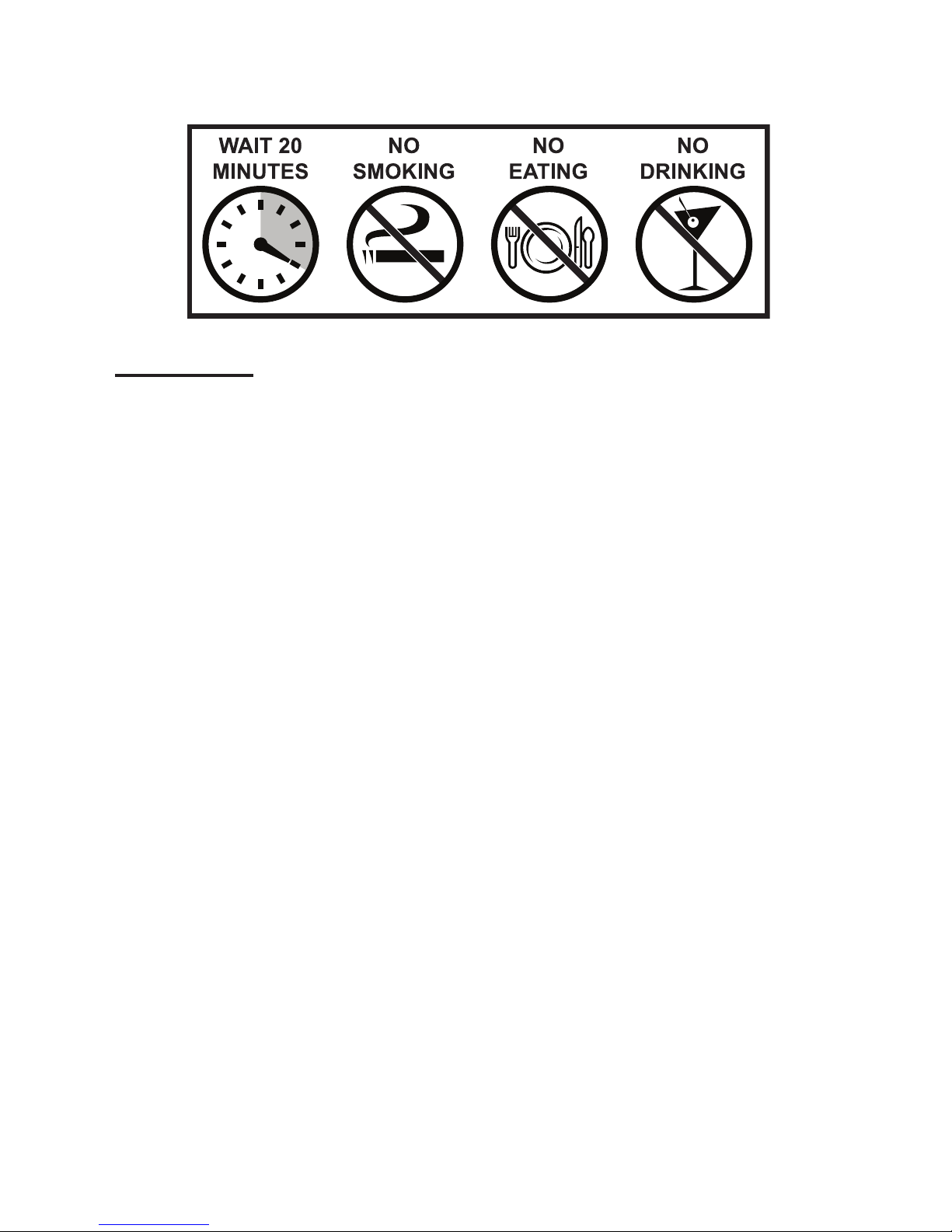

Wait 20 minutes after the subject smokes, eats or drinks before
testing. Failure to wait 20 minutes can give inaccurate BAC
readings and harm the sensor.
Step 1) Place a tted cover over the mouthpiece each time you test
another individual.
Step 2) If it has been more than 24 hours since the device was last
used, prime the sensor by blowing into the mouthpiece for 4
to 5 seconds before turning on the device.
Step 3) PRESS the Power Button and HOLD for one (1) second. A
single beep will sound and the device will display the room
temperature.
Note: The device will shut off after 30 seconds of non-use.
Step 4) PRESS the Left Button and the device will count down from 99
as it prepares the sensor for testing.
Note: The device will restart a count down from 10 if the sensor is not
ready within the rst countdown.
Step 5) WAIT until the unit displays “rdY” and you hear a SINGLE
BEEP. Take a DEEP BREATH AND BLOW STEADILY for at
least 5 seconds. The unit will display “bL” and count from 1 to 5
while you blow. A SINGLE BEEP sounds to signal completion
of the testing. Your estimated BAC will be displayed in the LCD
and the backlight indicates the alert level.
Note: The device will shut off after 10 seconds of non-use.

6
READ THE RESULTS
The result is an estimate of the subject’s BAC. A breath alcohol tester
cannot determine the exact BAC in the blood of the subject. Correlation
between BrAC and BAC depends on many factors, such as temperature
and health conditions. Only use this device to screen for the presence
of alcohol.
Many people consider a 0.02% BAC or greater a positive test for alcohol
in “zero tolerance” screening. Most states have 0.08% BAC as the legal
limit for tasks such as operating a motor vehicle. Some states prohibit
driving commercial vehicles or any vessel with a 0.04% BAC or higher.
Many states prosecute individuals for driving under the inuence at any
level.
LCD Backlight Color Alcohol Level
Green 0.00 - 0.01% BAC (0.00 - 0.10 ‰BAC, 0.00 - 0.005 mg/l)
Yellow Between 0.01% BAC (0.00 - 0.10 ‰BAC, 0.00 - 0.005 mg/l)
and alert level
Red Equal to or greater than alert level
Note: Alert level is adjustable, refer to the Set Alert Level section for guidance.
ERROR MESSAGES
Error Message Cause and Course of Action
Flo
The unit was not able to collect a deep lung air sample
because of a short blow. Make sure you blow softly and
continuously until the test is complete. Repeat operation
steps 1 – 5 to perform another test.

7
Error Message Cause and Course of Action
Snr
There has been an error with the sensor. This can occur
if the test subject does not wait at least 20 minutes after
smoking, eating or drinking before using the unit or if
the unit has not been used for an extended period of
time. Press the Power On/Off button once to turn off the
unit and repeat operation steps 1 – 5. If this message is
displayed four or more consecutive times, the unit may
need to be serviced.
rEP
The unit did not detect an even alcohol concentration in
the breath sample. This can occur if the user varies the
blowing force when performing a test or if the exhaust port
is obstructed. Repeat operation steps 1 – 5 to perform
another test.
HThe unit detected a very high alcohol concentration
(above 0.40% BAC).
Lo Low Battery. Install two (2) new AA batteries.
Err The sensor has sustained damage; please contact us for
further support.
RECALL LAST RESULT
Follow these directions to recall your last test result. From the main
screen (temperature display) press the Left Button one (1) time. Your
last test result will display on-screen.
SET TEMPERATURE DISPLAY FORMAT
Follow these steps to set the temperature display format to Fahrenheit
°F or Celsius °C. The default setting is Fahrenheit °F.
Step 1) From the main screen (temperature display) press the Right
Button for two (2) seconds until “USr” is displayed on-screen.
Step 2) Press the Power Button one (1) time.
Step 3) Press the Left Button to choose your desired format:

8
Value Meaning
F Fahrenheit °F
C Celsius °C
Step 4) Press the Power Button to conrm your setting and then press
the Right Button to return to the “USr” screen.
SET BAC RESULT DISPLAY FORMAT
Follow these steps to set the BAC result display format to %BAC,
‰BAC, or mg/l. The default setting is %BAC.
Step 1) From the main screen (temperature display) press the Right
Button for two (2) seconds until “USr” is displayed on-screen.
Step 2) Press the Power Button two (2) times.
Step 3) Press the Left Button to choose your desired format:
Value Meaning
0 ‰BAC
1 mg/l
2 %BAC
Step 4) Press the Power Button to conrm your setting and then press
the Right Button to return to the “USr” screen.
SET BAC ALERT LEVEL
Follow these steps to set the BAC alert level to 0.02, 0.03, 0.05, or 0.08
(assuming the display format is set to %BAC). The default setting is
0.05.
Step 1) From the main screen (temperature display) press the Right
Button for two (2) seconds until “USr” is displayed on-screen.
Step 2) Press the Power Button three (3) times.

9
Step 3) Press the Left Button to choose your desired level:
Value Meaning
2 Set alert level to 0.02
3 Set alert level to 0.03
5 Set alert level to 0.05
8 Set alert level to 0.08
Note: These levels are assuming that your display format is set to %BAC.
Step 4) Press the Power Button to conrm your setting and then press
the Right Button to return to the “USr” screen.
SET BEEP WHEN BLOWING
Follow these steps to enable or disable the beep when blowing. The
default setting is no beep when blowing.
Step 1) From the main screen (temperature display) press the Right
Button for two (2) seconds until “USr” is displayed on-screen.
Step 2) Press the Power Button four (4) times.
Step 3) Press the Left Button to choose your desired setting:
Value Meaning
0 No beep when blowing
1 Beep when blowing
Step 4) Press the Power Button to conrm your setting and then press
the Right Button to return to the “USr” screen.

10
PRECAUTIONS
1. Wait at least 20 minutes after drinking, smoking and eating before
testing.
2. Do not test in strong winds or in a closed room with smoke or
alcohol present.
3. When the unit displays “Lo”, install two (2) new AA batteries.
4. Do not blow smoke, food or liquid into the unit.
5. Only use the unit in a temperature range of 10 - 40°C or 50 - 104°F.
Operation above or below this range may affect the results.
6. Avoid testing in the presence of any substances that contain methyl
alcohol, isopropyl alcohol or acetone. These substances may
interfere with the results of the test.
7. Conditions that increase the amount of ketones on the breath, such
as diabetes and low caloric intake, may cause a false positive test.
8. BAC changes over time depending on many factors. BAC at one
time can differ from BAC a few minutes later.
9. Do not use this unit with an ignition interlock device or while inside a
vehicle.
10. You cannot use the results of this unit in court of law.
11. Do not use this unit to determine if you or anyone else can operate
any vehicle or machinery.
12. Do not let yourself or anyone else drink and drive. Always use a
designated driver when you or anyone else drinks alcohol.

11
SPECIFICATIONS
Dimensions 4.6” x 2” x .71” (118 mm x 50 mm x 18 mm)
Weight 2.1 oz (60 g) without batteries; 3.7 oz (105 g) with batteries
Housing Shock resistant, molded plastic with glass front
Power Supply Two (2) AA alkaline batteries
Battery Life 200-300 tests 1
Sensor Technology Sensitive Semiconductor Sensor
Blowing Time 5 seconds
Response Time 5-6 seconds 1
Display LCD Display with backlight
Operating Temperature 10 - 40°C (50 - 104°F)
Detection Range 0.00 - 0.40% BAC (0.00 - 4.00 ‰BAC or 0.00 - 2.00 mg/l)
Air Sample 5 seconds
Operation 3 buttons
Warranty 1 Year Limited Warranty
1 Estimates, results may vary.
CALIBRATION
Calibration of the AlcoHAWK®Beacon occurs during manufacturing
using advanced alcohol simulation equipment. The manufacturer
passes known alcohol concentrations through the sensor to set baseline
values for testing. During testing, the unit compares users’ breath
samples to these baseline values. If the verication determines that the
BAC is not consistent with actual BAC levels, a technician calibrates
the unit. The accuracy of breath alcohol testers can uctuate over time,
depending on frequency of use and operating conditions.
If the unit is providing inconsistent results or unusually high or low
readings, the unit may need calibration. A general rule of thumb
is to have the unit calibrated every 300 tests (you may view the
test counter by pressing the Right Button twice when the room
temperature is displayed). At a minimum, a technician should

12
recalibrate this unit at least every six to twelve months. More
frequent calibrations may be required depending on frequency of
use; such as once per month if the unit is used daily.
Please visit www.alcohawk.com or call 888-399-1687 for calibration or
support.
ONE-YEAR LIMITED WARRANTY
Quest Products (Quest) warrants this unit to be free from defects in
workmanship or material (excluding calibration) under normal use for
ONE (1) YEAR from the date of retail purchase by the original buyer
(”Warranty Period”).
The warranty covers parts and labor on covered repairs and
ground freight back to the customer (USA only). Except as
provided above, Quest provides this product “as is.”
If a defect arises and Quest receives a valid claim within the
Warranty Period, at its option, Quest will either (1) repair the
product, (2) exchange the product with a product that is new or
which has been built from new or serviceable used parts and
functionally equivalent to the original product, or (3) refund the
purchase price of the product. If a refund is given, the returned
product becomes Quest’s property. The warranty does not cover
shipping to Quest. The warranty is void if anyone tampers or
abuses the unit.
This warranty is limited to the original consumer purchaser and can not
be transferred to any other owner.
For warranty service please follow these instructions:
1. Call 888-399-1687 or email [email protected] to obtain an
RMA number. Return the unit postage paid, insured and in proper
box.
2. You should obtain a proof of delivery receipt. You must pay the cost

13
for shipping the unit to us.
3. You must enclose the following with the unit:
a. The completed RMA form (available at
www.alcohawk.com/support)
b. Your name, return address and description of the problem. (No
PO Box)
c. Your phone number to reach you during the day.
d. A copy of your sales receipt or invoice.
DISCLAIMER
Quest Products (Quest) makes no warranties, expressed or implied, as
to the ability of this unit to determine whether, or to the extent to which,
a test subject’s mental or physical functionality, or judgment, is impaired
by blood alcohol including whether the test subject is intoxicated, under
any denition of that word. Quest expressly disclaims any liability for
incidental, special, or consequential damages of any nature under any
legal theory. Any act or failure to act based upon a reading from this
product is at the test subject’s or user’s own risk. Quest assumes no
responsibility for consequences to users or test subjects who use this
product and are later under the inuence of alcohol or to have had
their judgment or any mental or bodily function impaired by alcohol.
Correlation between BrAC and BAC depends on many variables, such
as temperature and health conditions of the test subject. A safe or low
BAC reading does not mean that the test subject’s physical or mental
performance or judgment (including reaction times) can respond to any
emergency encountered. A breath alcohol tester cannot determine the
exact concentration of alcohol in the blood of a test subject.
Quest does not warrant that the operation of the product will be error-
free. Quest is not responsible for any consequences arising from failure
to follow instructions or relating to the product’s use. This warranty
does not apply: (a) to consequences caused by accident, abuse,

14
tampering, misuse, ood, re, earthquake or other external causes; (b)
to consequences caused by operating the product outside the permitted
or intended uses described by Quest; (c) to consequences caused by
service performed by anyone who is not a representative of Quest or
a Quest Authorized Service Provider; or (d) to a product or part that
has been modied to alter functionality or capability without the written
permission of Quest.
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE
REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU
OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS,
WHETHER ORAL OR WRITTEN, STATUTORY, EXPRESS
OR IMPLIED. AS PERMITTED BY APPLICABLE LAW, QUEST
SPECIFICALLY DISCLAIMS ANY AND ALL STATUTORY OR IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT
DEFECTS. IF QUEST CANNOT LAWFULLY DISCLAIM STATUTORY
OR IMPLIED WARRANTIES, THEN TO THE EXTENT PERMITTED
BY LAW ALL SUCH WARRANTIES ARE LIMITED TO THE DURATION
OF THE EXPRESS WARRANTY AND TO THE REPAIR OR
REPLACEMENT SERVICE AS DETERMINED BY QUEST IN ITS SOLE
DISCRETION.
Quest does not authorize any Quest reseller, agent, or employee to
make any modication, extension, or addition to this warranty. If anyone
determines any terms to be illegal or unenforceable, the legality or
enforceability of the remaining terms shall not be affected or impaired.
EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE
MAXIMUM EXTENT PERMITTED BY LAW, QUEST IS NOT
RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES UNDER ANY LEGAL THEORY,
INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF
REVENUE OR INCOME; LOSS OF ACTUAL OR ANTICIPATED
PROFITS (INCLUDING LOSS OF PROFITS FROM A CONTRACT);
LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS;
LOSS OF BUSINESS; LOSS OF OPPORTUNITY; LOSS OF

15
GOODWILL, OR LOSS OF REPUTATION.
Some countries, states and provinces do not allow the exclusion or
limitation of incidental or consequential damages or allow limitations
on how long an implied warranty or condition may last, so the above
limitations or exclusions may not apply to you. This warranty gives
you specic legal rights, and you may also have other rights that vary
by country, state or province. This limited warranty is governed by
and construed under the laws of the country where the product was
purchased.

16
DO NOT DRINK ALCOHOL AND DRIVE
ALWAYS USE A DESIGNATED DRIVER
AFTER DRINKING ALCOHOL
BE SAFE AND RESPONSIBLE

© 2014 Quest Products v03172014
2349 Jamestown Ave Suite #4
Independence, IA 50644
Tel: [phone]
Fax: [phone]
Sales Email: [email protected]
Service Email: [email protected]
www.alcohawk.com
