INTENDED USE
Allen® Advance Table User Guide (D-720722 Ver D) 7
INTENDED USE
The intended users of the Allen® Advance Table are healthcare employees
who have been trained to use the product, and who have the physical
strength and cognitive skills to operate and control the product. Follow
facility safety protocols if an intended user does not have the physical
strength or cognitive skills to operate and control the product safely. The
Allen® Advance Table is intended to be used in an operating room
environment to support and position patients during surgical procedures.
Several types of specialty tops can be attached to the Allen® Advance
Table to permit surgical access and 360° radiolucency for various types of
surgical operations. The patient can be secured into various operable
positions from the supine, prone, or lateral position. Electronic controls on
the Allen® Advance Table pendant permit the adjustment of table height,
angle, tilt, and auxiliary function for the lateral top. The Allen® Advance
Table contains electronic locking casters that permit the Allen® Advance
Table to be moved and locked into position by use of an electronic control
on the Allen® Advance Table pendant.
This manual provides the information required for normal operation of the
Allen® Advance Table. Before you operate the Allen® Advance Table, be
sure that you have read and understood in detail the contents of this manual.
It is important that you read and strictly obey the aspects of safety contained
in this manual. Any reference to a side of the Allen® Advance Table is
from the patient’s view lying on an installed patient support top on his or
her back.
NOTE:
When we discuss the installation of the Prone Support Set, any position
reference is with the patient lying face down on the patient support top.
This manual includes the different features and options for the Allen®
Advance Table, some of which may not apply to your unit. To identify the
model that you have, look at the model number label that is on the inside of
the head-end base, near the power outlet.

Model Identification
8 Allen® Advance Table User Guide (D-720722 Ver D)
Model Identification
Document Symbols
This manual contains different typefaces and symbols to make the content
easier to read and understand:
•Standard text—used for regular data.
•Boldface text—emphasizes a word or phrase.
•NOTE: —sets apart special data or important instruction
clarification.
•WARNING or CAUTION
–A WARNING identifies situations or actions that may have an
effect on patient or user safety. To ignore a warning could
cause patient fall, patient injury, or user injury.
–A CAUTION identifies special procedures or precautions that
persons must obey to help prevent equipment damage.

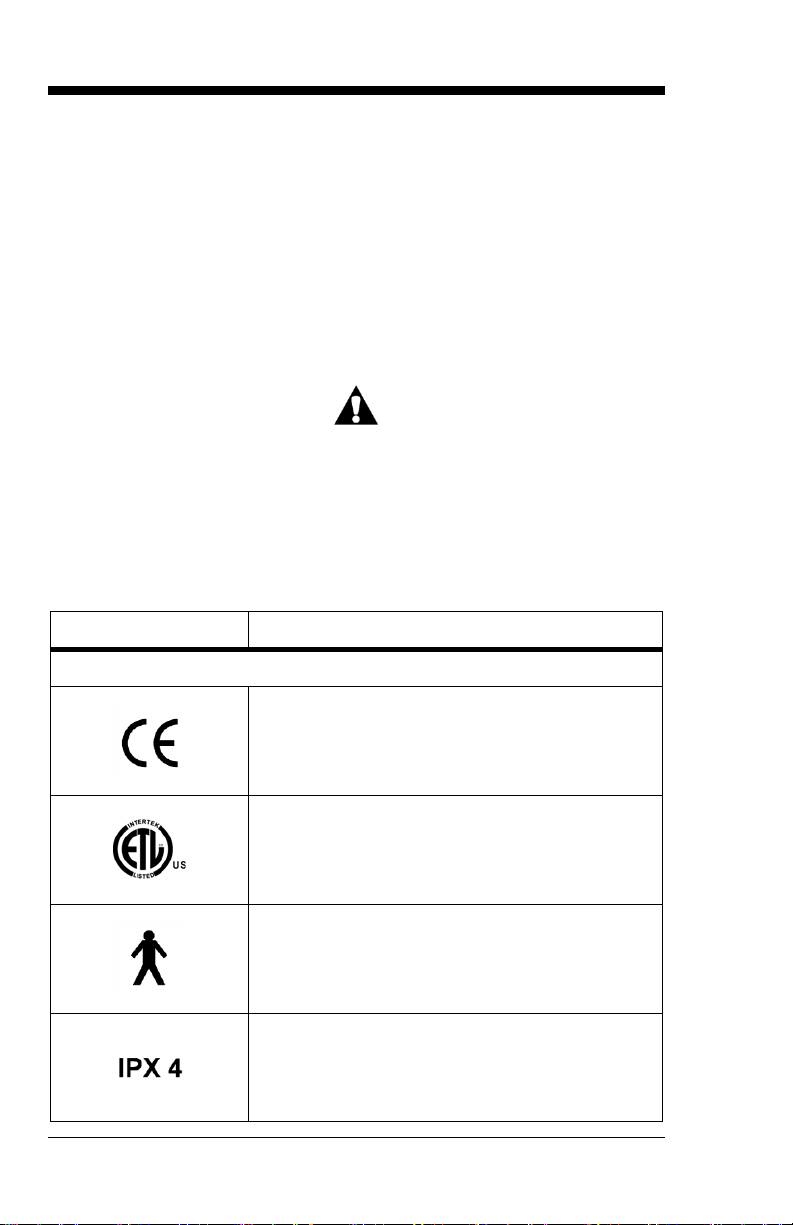

Product Symbol
Symbol
Description
Table Frame Symbols
Conforms to European Medical Device Directive
93/42/EEC.a
Medical Electrical Equipment Evaluated in
accordance with UL60601-1, EN 60601-1,
IEC 60601-1, IEC 60601-2-46, and
IEC 60601-1-2.
Type B applied part.
Degree of protection against the ingress of water.

Model Identification
Allen® Advance Table User Guide (D-720722 Ver D) 9
Symbol
Description
Manufacturer.
Equipotential.
WARNING symbol in accordance with
IEC 60601-1. (This symbol is black with a yellow
background. The yellow background indicates a
warning).
Follow the Operating Instructions symbol in
accordance with IEC 60601-1. (This symbol is
black with a white background.)
Failure to Follow the Operating Instructions
could put the patient or operator at risk, symbol in
accordance with IEC 60601-1. (This symbol is
white with a blue background. The blue
background indicates a mandatory action.)
Shows the maximum patient weight for the
Allen® Advance Table.
The Allen® Advance Table is not suitable for use
in oxygenenriched environments or where there is
a flammable anesthetics mixture with air, oxygen,
or nitrous oxide.
Battery charge level indicator.
Power indicator.

Model Identification
10 Allen® Advance Table User Guide (D-720722 Ver D)
Symbol
Description
Identifies the emergency brake releases.

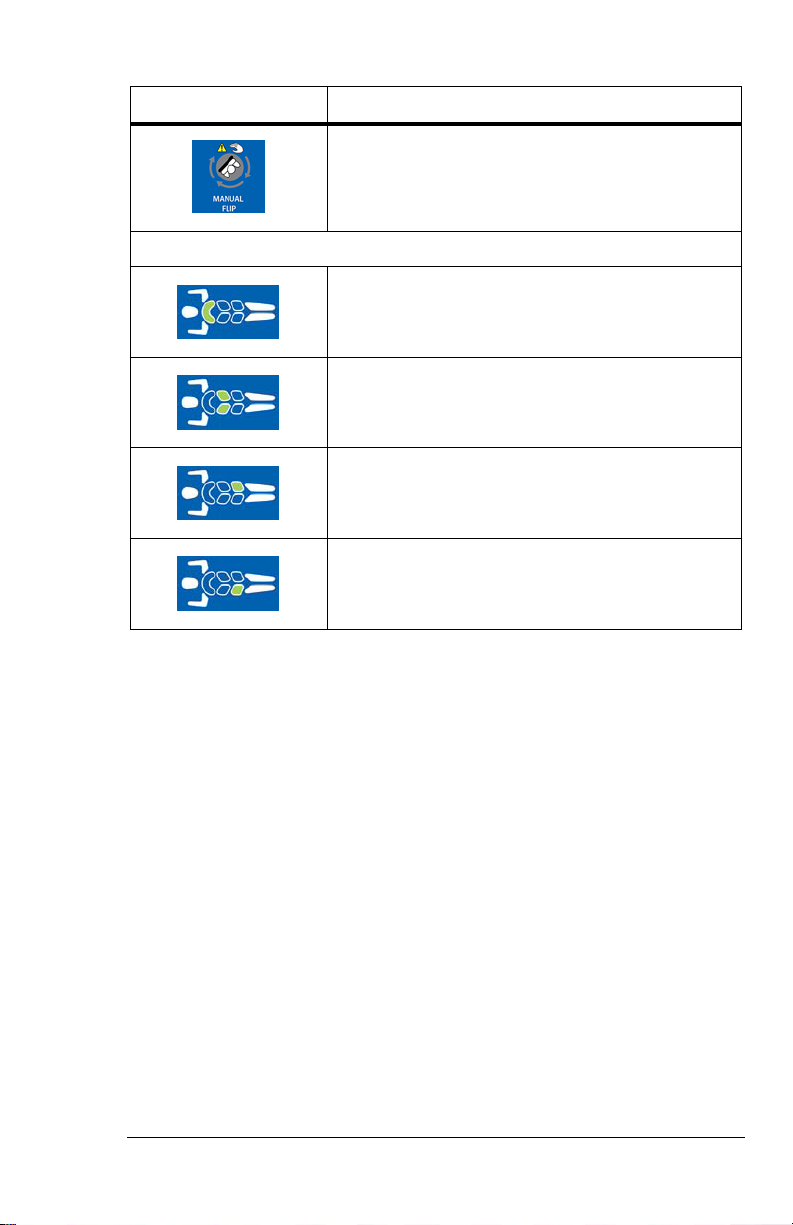

Shows that when the flip handle is in the lowered
position, the Allen® Advance Table is in flip
mode (the top can be turned manually).
Shows that when the flip handle is in the raised
position, the Allen® Advance Table can be
operated by the pendant.
Identifies the location of the cervical traction
assembly.
Pendant symbols
Identifies the controls in the area as tilt controls.
This is not a control.

Model Identification
Allen® Advance Table User Guide (D-720722 Ver D) 11
Symbol
Description
Tilt left control—turns a support top up to 25°
counterclockwise.
Tilt right control—turns a support top up to 25°
clockwise.
Identifies the controls in the area as column
height controls. This is not a control.
Up control—raises both columns at the same
time.
Down control—lowers both columns at the same
time.
Trendelenburg control—lowers the head-end
column as it raises the foot-end column.
Reverse Trendelenburg control—raises the head-
end column as it lowers the foot-end column.
Identifies the controls in the area as brake
controls. This is not a control.

Model Identification
12 Allen® Advance Table User Guide (D-720722 Ver D)
Symbol
Description
Lock control—locks the brakes.
Unlock control—when pressed along with the
key control, unlocks the brakes.
Key control—when pressed along with the
unlock control, unlocks the brakes.
Display symbols
Tilt indicator area—shows how far the support
top is tilted to the left or right.
Tilt level indicator—when the Tilt level indicator
is green, the patient is not tilted to the left or
right.
Brake status indicators—the Locked indicator is
green when the brakes are locked; the Unlocked
indicator is orange when the brakes are unlocked.
Pendant control indicator—is green when the
Allen® Advance Table is in Pendant mode (the
Allen® Advance Table can be operated by the
pendant controls).

Model Identification
Allen® Advance Table User Guide (D-720722 Ver D) 13
Symbol
Description
Manual flip indicator—is orange when the
Allen® Advance Table is in flip mode (the top
can be turned manually).
Prone Support Setb
Identifies the chest pad.
Identifies the hip pads.
Identifies the right thigh pad.
Identifies the left thigh pad.
A. The CE mark was first applied in 2013.
b. The labels show the patient lying face down on the supports.

Safety warnings and cautions
14 Allen® Advance Table User Guide (D-720722 Ver D)
Safety warnings and cautions
WARNING:
Obey these safety instructions to help prevent patient fall, injury, and/or
equipment damage:
•Read and understand all warnings in this manual and on the unit
itself prior to use with a patient.
•This device should be operated by trained persons only.
•The procedures in this manual are only manufacturer’s
suggestions. The final responsibility for patient care with respect to
this device remains with the attending physician.
•No modification of this equipment is allowed.
•Support tops and accessories from Allen Medical are designed to
industry standard dimensions. Before you use products that are not
from Allen Medical, you must verify with the product
manufacturer that the product can be used safely with the Allen®
Advance Table.
•Before you use Allen™ Patient Support Tops with a table not
manufactured by Allen Medical, you must verify with the product
manufacturer that the support tops can be used safely with their
product.
•There are no known contraindications for use of the Allen®
Advance Table.
•Except for patient transfer, always use safety straps to help secure
the patient to the support top.
•Never remove a cross pin from a support top while a patient is on
the support top.
•Before each use of the unit, make sure that all parts are correctly
installed and that the unit operates correctly.
•If the unit has been dropped or damaged, before you use the unit,
make sure facility maintenance has examined the unit completely
and determined that it is safe to operate.
•To avoid the risk of electric shock, the unit must only be connected
to a supply mains with protective earth.
•The potential for electrical shock exists with electrical equipment.
Failure to follow facility protocols may cause death or serious
injury.

Safety warnings and cautions
Allen® Advance Table User Guide (D-720722 Ver D) 15
•If the Allen® Advance Table is to be used near high-frequency
surgical equipment, cardiac defibrillators, and cardiac defibrillator-
monitors, refer to the product manufacturer’s instructions to make
sure the equipment will operate as intended.
•Incorrect use or handling of the power cord may cause damage to
the power cord. If damage has occurred to the power cord or any of
its components, immediately remove the Allen® Advance Table
from service, and contact the applicable maintenance persons.
•Do not expose the unit to excessive moisture.
•Fluid spills on to the electronics can cause a hazard. If such a spill
occurs, unplug the unit and remove it from service. When fluid
spills occur outside that seen in normal use, immediately do as
follows:
a. Unplug the unit from its power source.
b. Remove the patient from the unit.
c. Clean the fluid spill from the unit.
d. Have maintenance examine the unit completely.
e. Do not put the unit back into service until it is completely dry,
tested, and determined to be safe to operate.
•Be aware of these pinch points on the Allen® Advance Table:
–Between the caster and base skins
–Between an H-bracket and the column
–Between the head of the cross pin and the end cap during an
extreme tilt and Trendelenburg, or Reverse Trendelenburg
position.
–Between the cross pin drop lock and the bowtie.
–Between an H-bracket and the column during the removal of a
cross pin.
•The unit is not intended for patient transport. However, if you must
use the unit to transport a patient, make sure that the unit is in its
lowest position and the patient is in a level position (not tilted).
•Before you transport the unit, make sure of these:
–The unit is in its lowest position.
–The power cord is disconnected from the facility power outlet
and stored on the unit.
–Accessories, supports, and any equipment that is to be
transported with the unit are within the perimeter of the unit
and secure on the unit.

Safety warnings and cautions
16 Allen® Advance Table User Guide (D-720722 Ver D)
•During transport, make sure to do these:
–Use caution so that the unit does not tip or overbalance.
–For inclines and thresholds, approach them as you move
forward or backward, rather than sideways.
–Push the unit safely; do not make sharp corners or turn the unit
at high speeds.
•Do not use tape on the Allen® Advance Table. Adhesive residue
could affect the functions of the Allen® Advance Table or the
support tops.
•However, you may use tape on the lateral top. Use an alcohol wipe
to remove adhesive residue.

Quick View™ list of features
Allen® Advance Table User Guide (D-720722 Ver D) 17
Quick View™ list of features
View 1
Item
Feature
Page
Item
Feature
Page
A
Flip handle
36
F
On/Off switch
21
B
Cervical traction rope
insertion
42
G
Power cord outlet
21
C
Patient support top
with pad
24
H
Pendant
20
D
Cross pin and H-
bracket storage
28
I
Pendant holder
44
E
Collapsible cross tube
23

Quick View™ list of features
18 Allen® Advance Table User Guide (D-720722 Ver D)
View 2
Item
Feature
Page
Item
Feature
Page
J
Bowtie holder
24
O
Battery charge level
22
K
Cross pin
24
P
Power indicator
21
L
H-bracket
24
Q
Emergency brake
release
23
M
Display
20
R
Pendant control
connector
50
N
Pendant cord holder
44
S
Cervical traction
release
42

Controls and indicators
Allen® Advance Table User Guide (D-720722 Ver D) 19
Controls and indicators
You will find the different controls and indicators for the Allen® Advance
Table on the cross tube, on both columns, and on the pendant.
You will find these controls and indicators on the head-end base:
•Model number label
•Serial number label
•Plug outlet
•On/Off switch
•Equipotential ground point
•Manual Brake release (red handle
on both columns)
•Power indicator—when on, the
Allen® Advance Table is plugged
in.
•Battery charge level
•Manual flip handle—when
released, the flip feature can be
used.
•Cervical traction release—when
pressed, the traction assembly
moves out from the column.

Controls and indicators
20 Allen® Advance Table User Guide (D-720722 Ver D)

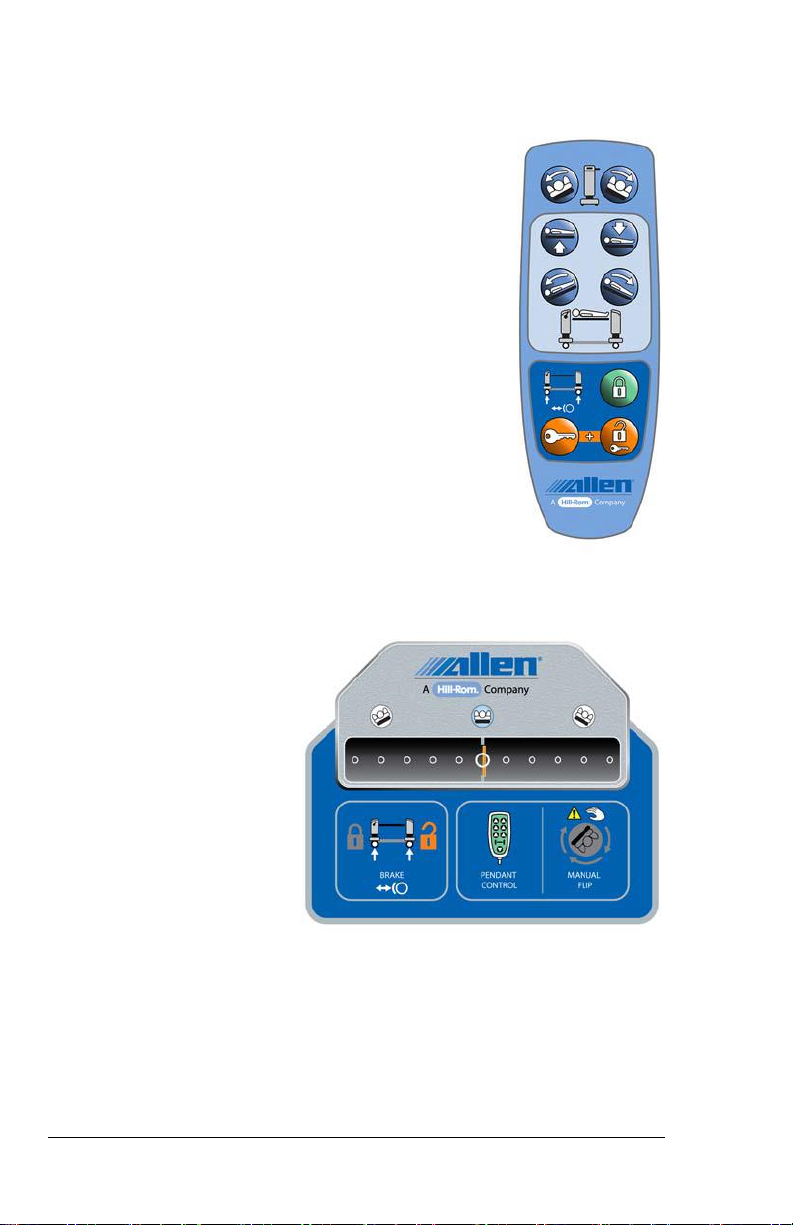

You will find these controls on the pendant:
•Left/Right tilt—turns a support top
approximately 25° clockwise or
counterclockwise.
•Height Adjust—raises or lowers the table
columns. The height can be adjusted from
67.3 cm to 127.0 cm (26.5" to 50"; measured
from the support top to the floor).
•Trendelenburg / Reverse Trendelenburg—
raises one column in relation to the opposite
column.
•Electronic brake lock/unlock—locks and
unlocks the brakes.
You will find these important information indicators on the display:
•Tilt level indicator
(when the indicator
is green, the patient
is not tilted to the
left or right)
•Tilt indicator and tilt
indicator area
•Brakes locked and
unlocked indicators
•Pendant Control
indicator
•Manual flip indicator
