Allfyll Series N User manual

1
Nano Water Purifier
Series N
Instruction Manual
Introduction 2
Specification 3
Components 4
Cartridge and Filters 5
Parts of main body 6
Tubing connection 8
Installation 9
Cartridges replacement 10
Filters replacement 11
Operation steps 12
FAQ 14
Spare parts 15
PRODUCT OF
THAILAND
All For Your Long Life

2
Introduction
Water purifier with Nano filtration (NF) Series N is for production of pure drinking water
by Nano filtration technology.
It consists of 5-7 hight quality filters and a NF filter which can
removes particles down to 0.001 micron up to 99%, some ions, heavy metals, organic
compounds, bacterias and visruses up to 95%.
●Needs no pump, tank and power.
●Includes housing frame that can be installed on the floor under sink, needs no drilling
the wall.
●Includes standard accessories and instruction manual.
●Each unit is already tested for the leakage and performance from factory and ready
to use.

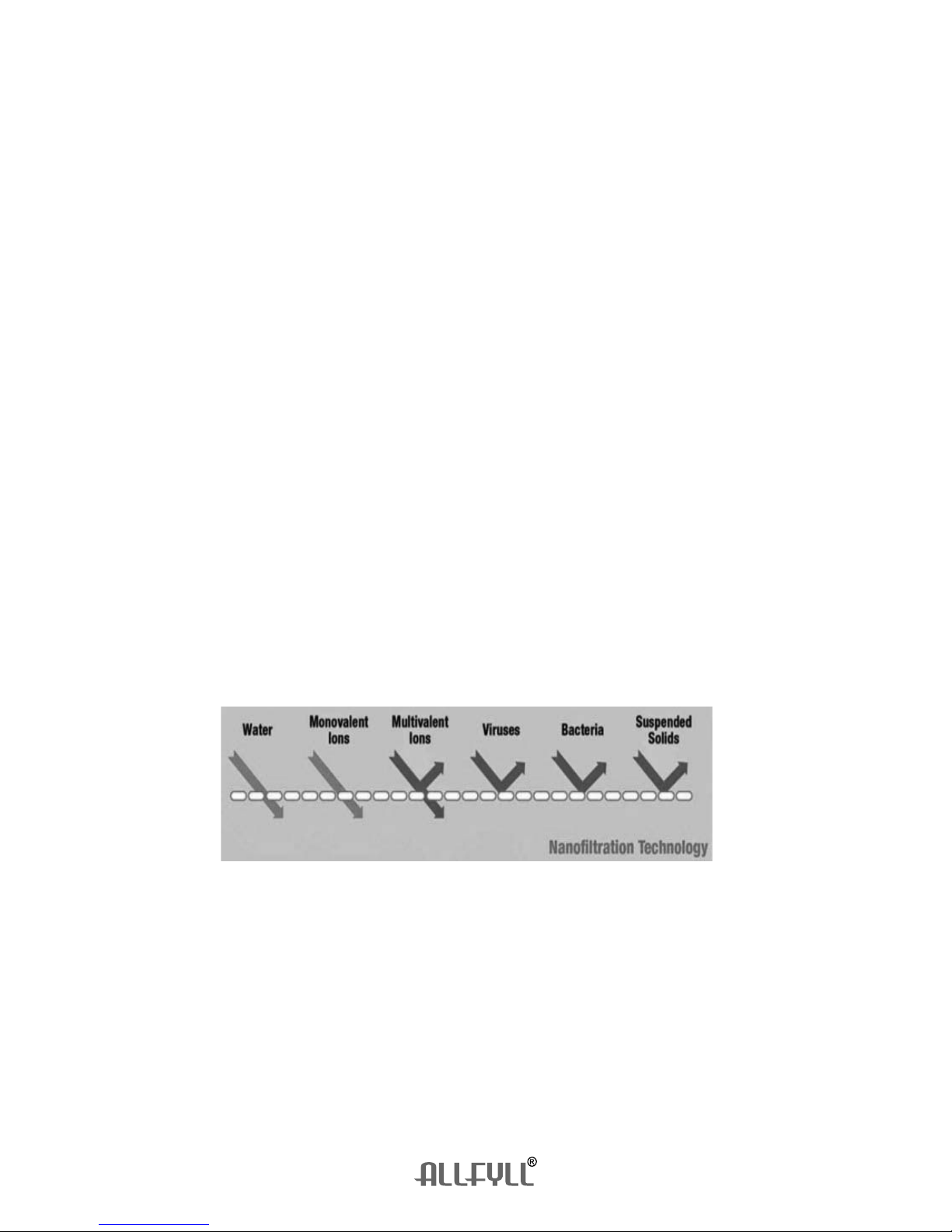

What is Nano Filtration?
Nano filtration (NF) is the exceptional technology for drinking water purification. The
raw water is filtered by NF filter (maded of Thin Film Composit
with pore size of 0.001
micron). Only water molecules can pass through this filter while others im
purities which
partilcle size bigger than 0.001 micron are removed, incuding some ions, dissolved solids,
orgainc compounds, bacterias and viruses.

3
Specification Model
N1 NA NL NAL
Number of stages for water purification 5667
Flowarte (gallons per day / liters per hour) 150 150 150 150
PP 5 micron cartridge ••••
CTO cartridge ••••
Resin cartridge ••••
NF inline filter ••••
Post carbon inline filter ••••
Alkaline inline filter ••
UV lamp ••
Operating pressure 5-80 psi
Feed water tap water
Dimensions 20 (W) x 37 (D) x 48 (H) cm
Weight 9 kg
Specification

4
Components
A
B
C
E
D
Components Part No.
A Faucet AF-4004
B Housing wrench AF-4005
C Deliver-valve AF-4006
D Water supply connector AF-4007
E Tubing, 3m AF-4009

5

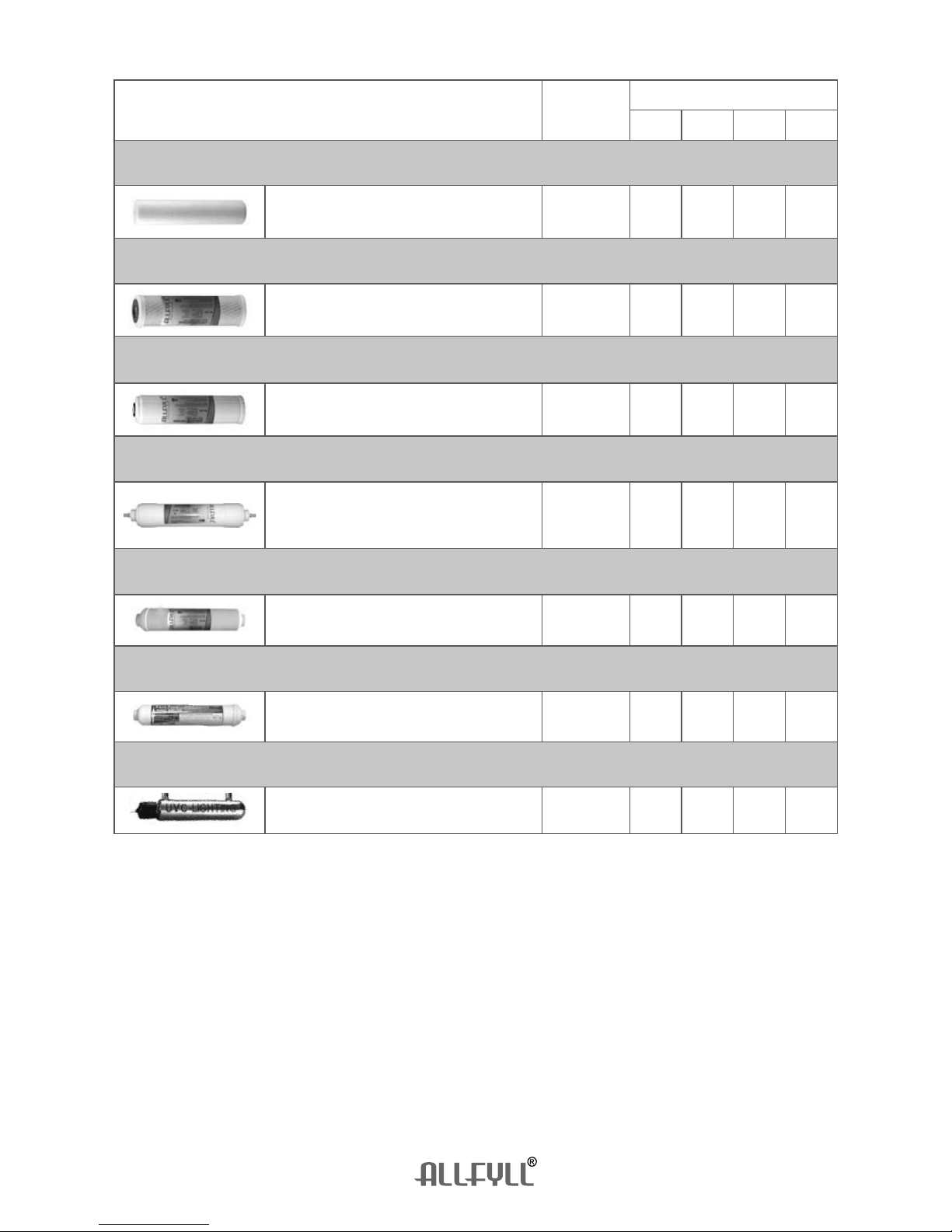

Cartridges and Filters Part No. Model
N1 NA NL NAL
PP 5micron inline filter
for removing of dirts, rusts and sand particles down to 5 microns.
Allfyll®, Thailand
Life time > 6 months AF-3101 ••••
CTO inline filter
For removing of chlorine, taste and odor and organic chemicals
Allfyll®, Thailand
Life time > 6 months AF-3102 ••••
Resin inline filter
For removing of the mineral salts to produce deionized water with soft taste
Allfyll®, Thailand
Life time > 6 months AF-3103 ••••
NF Inline filter
For removing of contaminants down to 0.001 micron
Hidrotek®, U.S.A.
Capacity 150 GPD
Life time > 1 years AF-5105 ••••
Post carbon inline filter
For removing of chlorine, taste and odors
Allfyll®, Thailand
Life time > 1 year AF-3105 ••••
Alkaline inline filter
for perfectly pH-balanced drinking water
Kenbisui®, Korea
Life time > 1 year AF-3006 ••
UV lamp
For removing of bacterias and viruses for better health and beauty
Allfyll®, Thailand
Life time 8,000 hours AF-4001 ••

6
Parts of main body
Post carbon Inline Filter
3rd Housing (with Resin Cartridge)
2nd Housing (with CTO Cartridge)
1st Housing (with PP Cartridge)
Pressure Gage
NF Inline Filter

7

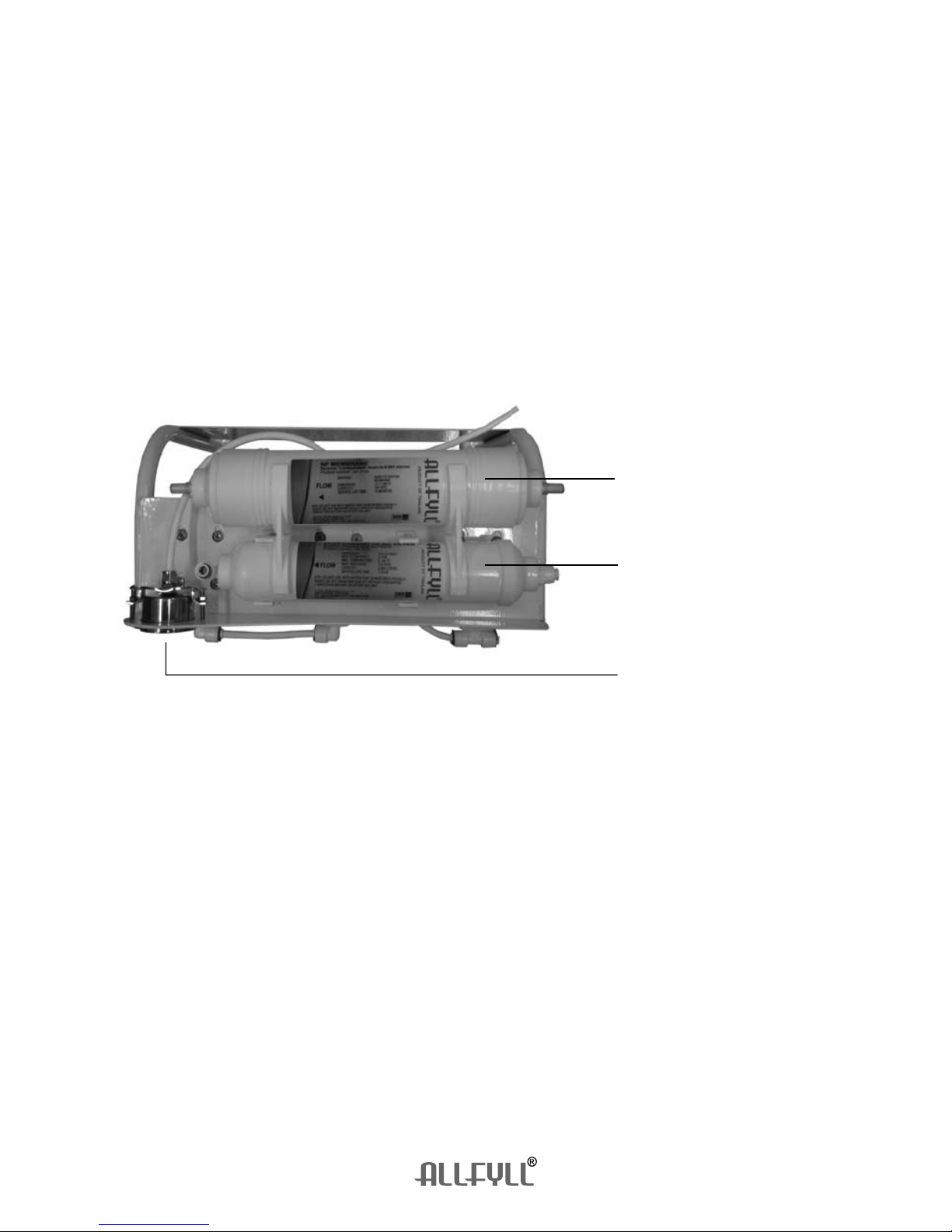

Parts of main body
NF Inline Filter
Post carbon Inline Filter
Pressure Gage

8
Tubing connection
A. Connect the A tubing to the water supply connector.
B. Connect the B tubing to the sink top faucet.
C. Connect the C tubing to the drain saddle.
Faucet
Drain
Input water
A
B
C
Faucet
Input water
Drain

9
Installation
Input water :
To Nano system
Deliver
valve
To
water
source
pipe
To
faucet
Install European ceramic
faucet :
Install drain saddle :
Mount drain
saddle
aligning holes.
Drill a 1/4”
hole into the
drain pipe.
Assemble Filters :

10
12
3
45
3

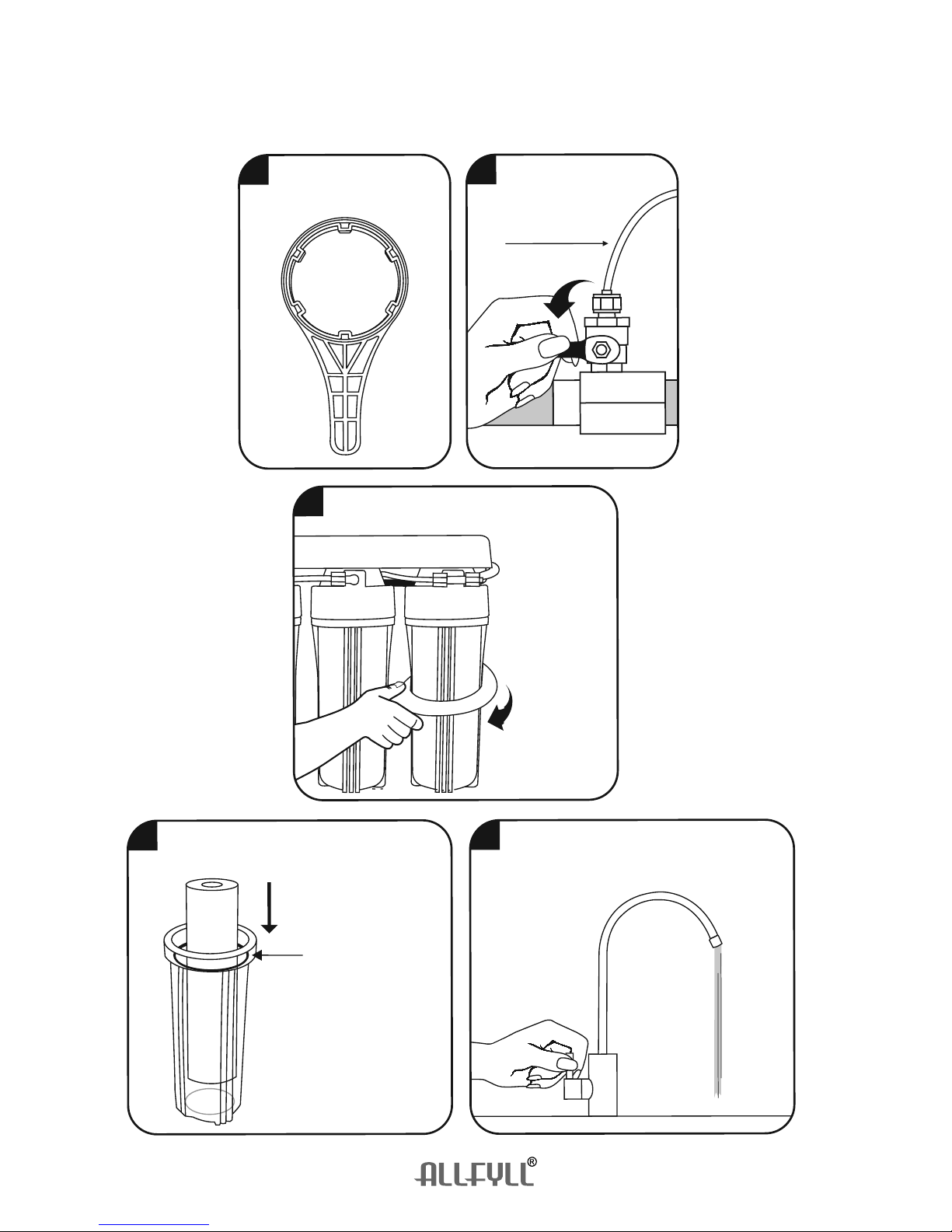

Cartridges replacement
Prepare a
housing wrench. Turn off water
source.
To Nano system
Open housings clockwise
with a wrench.
Put the replacement filters in the
housings and double O’ ring.
Be sure tighten
with O-ring to
prevent from
leaking.
Drain out 1 Gallon of water
to purify replacement filters.

11

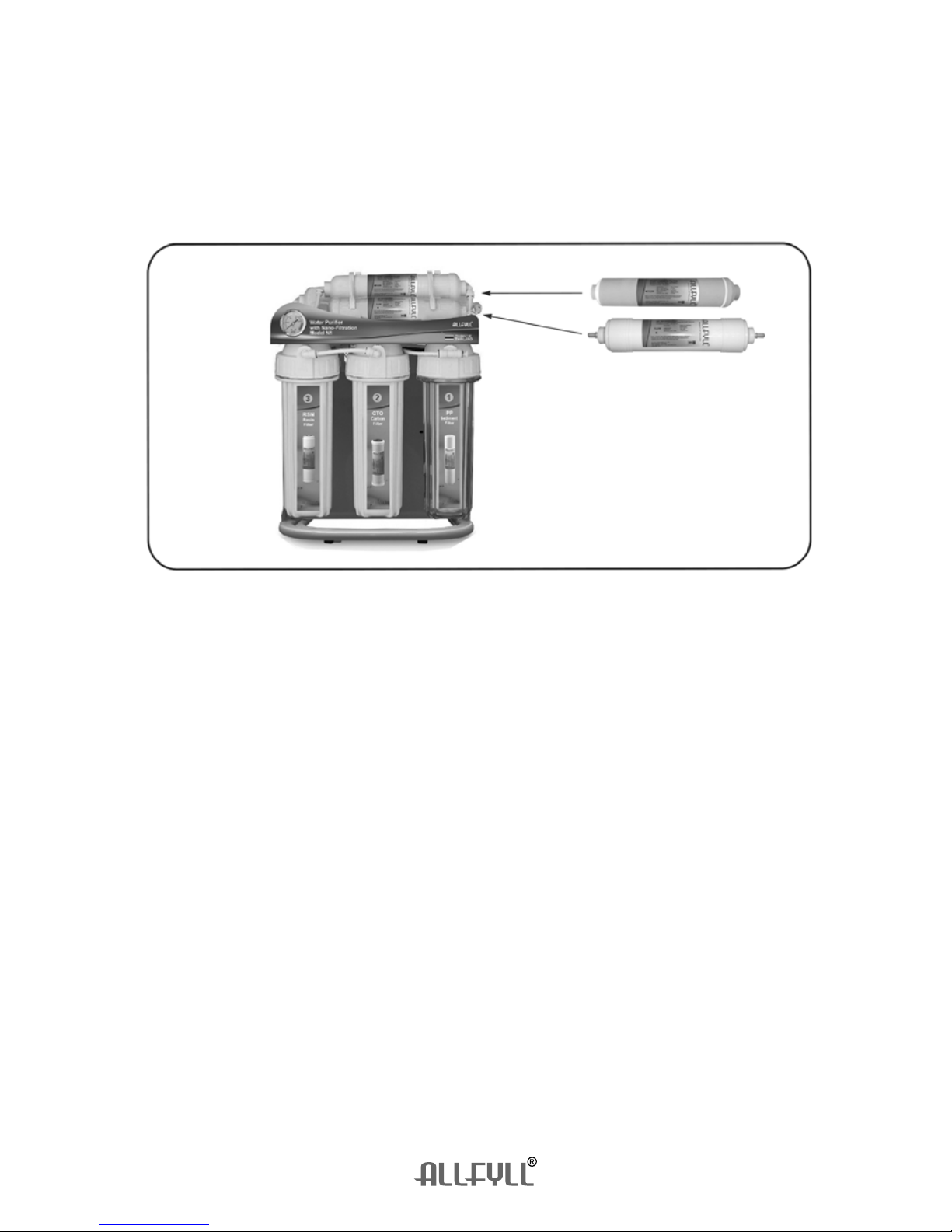

Filters replacement
1. Remove the old filters.
2. Replace with the new
fililters.

12
Operation steps
1. With everything connected, turn on the water, check for leaks.
2. Open the sink top faucet.
3. Within a few minutes (up to 15) the water will start to run from the faucet slowly.
4 Let the water run for at least 30 minutes. This flushes the carbon filters on first time
use.
5. After initial flushing, close the sink top faucet. The system is now ready for use.
6. Change filters and Nano Inline filter regularly (see page 5 for the life time of filters) or
when the total disolve solid (TDS) of output water is over 300 mg/L.
1. Do not use hot water (over 45 oC)!
2. Do not freeze the machine!
3. Switch off electricity and water source if away for more than 5 days, and drain out
pure water.
Caution

13
12
Operation guide
Turn on water source.
To Nano system
Let the water run for at least
30 minutes. This flushes the
carbon filters on first time
use.

14
FAQ
Q: What is the guarantee on the Allfyll water purifier?
The Allfyll water purifier (excluding cartrifges and filters) is guaranteed for 1 year for
material and workmanship.All defective parts will be replaced free within the first year
under normal breakdown. The membrane has one year pro-rated guarantee.
Q: Can the Allfyll water purifier be connected to an extra faucet?
It only takes a 1/4” tee and tubing to run the water to a refrigerator or a extra faucet.
Some families run Allfyll water purifier to all of their bathrooms.
Q: What does the Allfyll water purifier drinking water taste like?
The taste of the water depends on the amount of contaminants in the tap water. If
95% of dissolved minerals and chemicals are removed, the water produced may taste
like distilled water (no minerals), bottled water (low mineral), or natural spring water
(moderate mineral content).
Q: How will the Allfyll water puifier water affects mixed beverages?
Because reverse osmosis removes soluble contaminants that mask flavor, it allows
the natural taste of your beverages to come through. You will be able to use less coffee
and still get the full flavor. Concentrated beverages like orange juice will taste tangier.
You will probably be drinking a lot more water as well, since many people drink soda,
Kool-Aid, concentrated juices, and beer as an alternative to bad-tasting tap water.
Also, Allfyll water purifier eliminates most of the lime build up on drip coffee makers,
pre
venting the need for frequent cleaning. No longer will you find the white scum on
the inside of pans after boiling water.

15
Spare Parts Part No.
Allfyll®5 micron PP Cartridge, 10” AF-3101
Allfyll®CTO Inline Filter, 10” AF-3102
Allfyll®Resin Inline Filter, 10” AF-3103
Hidrotek®NF Filter 150GPD AF-5105
Allfyll®Post Carbon Inline Filter, 10” AF-3105
Kenbisui®Alkaline Inline filter, 10” AF-3006
Ultraviolet light (UV) lamp AF-4036
Wrench 10” AF-4005
Chromed Ball valve 3/8” AF-4006
T-WAY CONNECTOR 1/2”, side port 1/4” AF-4007
PE Tubing 1/4”, White, 3m AF-4009
Spare parts

16
Allfyll (Thailand) Co., Ltd.
8 Thaiyanon 12, Nonthaburi 46, Muang-Nonthaburi, Nonthaburi 11000
Tel: [phone]
Fax: [phone]
Email: [email protected]
Website: www.allfyll.com
Allfyll® Instruction manual, Series N © 2013 Allfyll (Thailand) Co., Ltd. Printed in Thailand, 11/2013
All For Your Long Life
Date PP
Cartridge CTO Cartridge Resin Cartridge NF Inline Filter
Post Carbon
Inline Filte rAlkaline Inline Filter UV lamp
Maintenance time table
