Kohler Bevel Series User manual

1406034-T01-D
KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD,
JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436
©
©
Copyright Kohler China Investment Co., Ltd.
seireSleveBmetsySnoitartliFretaWnehctiKrelhoK
科勒厨房净饮机贝芙系列
Installation Guide
产品安装使用说明书
K-30843T-KPT40-01R
K-30843T-KPP40-01R
K-30843T-KPQ40-C10
* Image is for reference only
*照片仅供参考，以实物为准
*使用产品前请仔细阅读本说明书并且严格按照说明书操作，并请妥善保管以备需要。

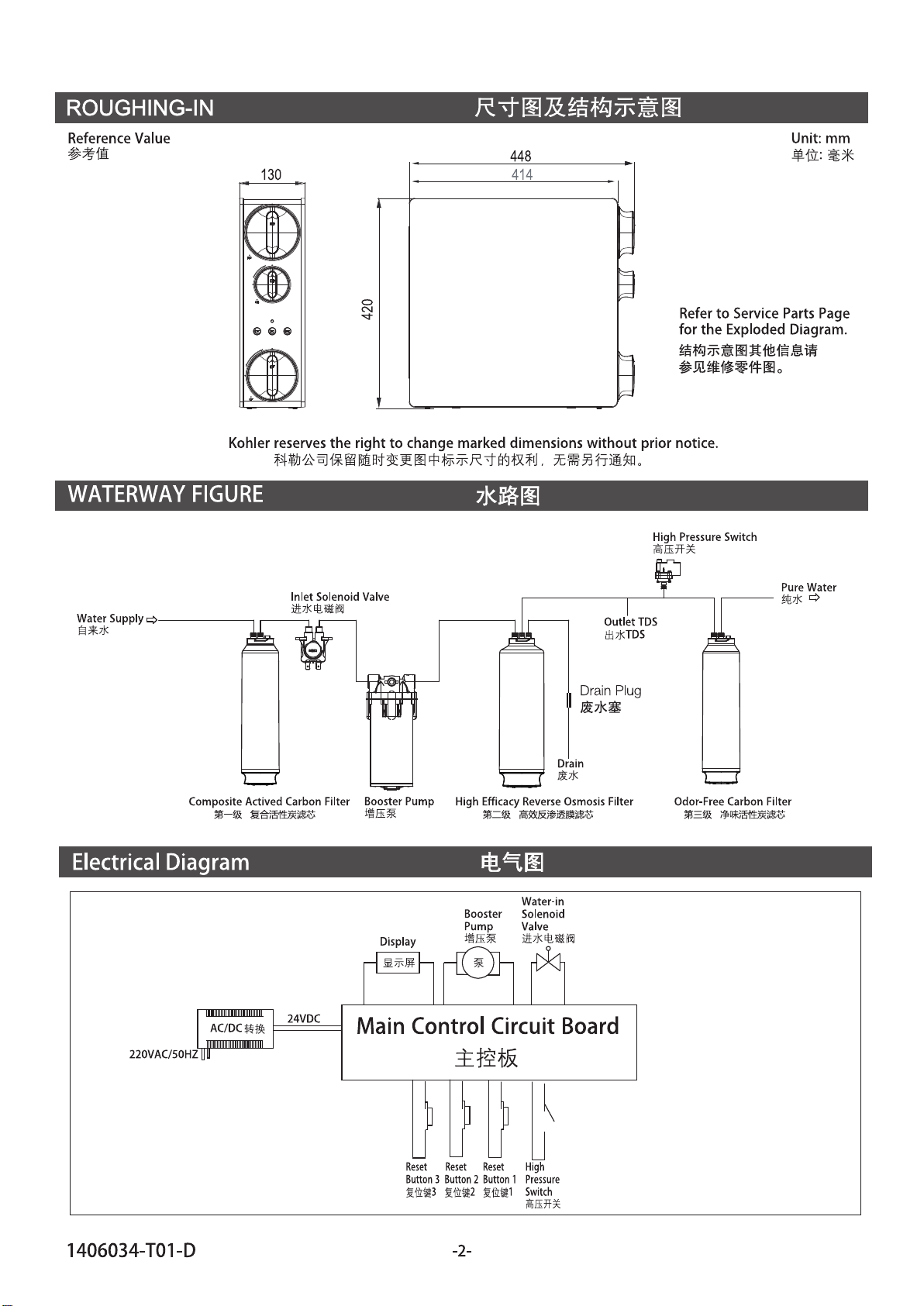

1406034-T01-D -3-
PERFORMANCE DATA SHEET
RO400-T
RO400-P
RO400-Q
30843T-KPT40-01R
30843T-KPP40-01R
30843T-KPQ40-C10
SKU
Description Kitchen Water Filtration System BEVEL series
Name Kohler Reverse Osmosis Purifier
Model
Production Rate11.05L/min
Inlet Pressure/Operation Temperature
//0.1~0.4MPa / 0.2~0.6MPa / 5~38℃
MOH Certificated System Capacity 4000L
Inlet Water 适用范围 (进水水质) Municipal Tap Water 市政自来水，符合GB5749-2006
符合《生活饮用水水质处理器卫生安全与功能评价规范——
反渗透处理装置 》(2001)的规定。
Outlet Water Quality
Water Treatment Process Raw Water Composite Activated Carbon Filter Reverse Osmosis Filter
Extrued Activated Carbon Filter Purified Water
Electrical Requirements/
Electrical Power Consumption
/220V~,50Hz 75W
Wi-Fi & Bluetooth
Product Standard
Official Certification, No
Q31/0106000060C001 《科勒牌家用和类似用途饮用水过滤产品》
科勒（中国）投资有限公司
上海市静安区市北工业园区江场三路158号
免费服务热线： 800 820 2628 手机用户：400 820 2628
(2019) 0061
Company Name
Actual Production Factory 302-303 307-308
科勒厨房净饮机贝芙系列
Appearance Difference
系列差异
整机白色
O400-P： 整机白色、金色贴纸
原水->复合滤芯->反渗透滤芯->压缩活性炭滤芯->纯水
出水水质
此反渗透系统以复合滤芯、反渗透滤芯、压缩活性炭滤芯为净化单元，对市政自来水
中的浊度、有机物、可溶性重金属及相关微生物进行去除，帮助进一步提高饮用水水质。
Product Function
产品功能

1406034-T01-D -4-
PERFORMANCE DATA SHEET
INFLUENT WATER CHARACTERISTIC
Total Dissolved Solids 10 - 1500 ppm(10 - 1500 mg/L)
pH 6 - 9
Chlorine 0 - 1 ppm (0 - 1mg/L)
Turbidity 0 - 5 NTU
Hardness Limits of local standards of drinking water quality
Iron 0 - 0.5 ppm (0 - 0.5 mg/L)
Filter Element Capacity
Composite Activated Carbon Filter
High Efficacy Reverse Osmosis Filter
High Efficacy
Reverse
Osmosis Filter
Odor-Free Carbon Filter
Odor-Free
Carbon Filter
Recommendation: about 6~12 months
(Particulate, Chlorine Reduction)
6~12 ( )
3
Recommendation: about 2 ~ 3years
(Heavy metal & Microbes Reduction)
)
3
Recommendation: about 6~12
(Particulate, Chlorine, VOC Reduction)
6~12 ( )
months3
1 Production Rating at 40 psi, 25 , 250 mg/L Nacl solution influent.
2 Ratio of Product to Flush Flow may vary with water pressure & temperature.
3 The RO Filter performance varies depending on local water quality and product water Consumption.
1 40PSI 25℃
2
3 RO
Key Components
Key Component Unit Name Specification
RO400-T/P/Q
PP Cotton Filter
PP
Polypropylene Cap
Polypropylene Filter Housing
Polypropylene Filter Housing
Polypropylene Filter Housing
Composite
Activated
Carbon Filter
Aperture 孔径：10μm
ID46 / OD65mm x 263mm
93mm 360mm
100mm 360mm
60mm 360mm
Reverse Osmosis Filter 74mm 254mm
Membrane Area 1.87m
Aperture 0.0001 m
2
µ
Compressed Activated Carbon
Compressed Activated Carbon
(
2~3
Polypropylene Cap
77.2mm 39.5mm
69 mm 32.5mm
50mm 15mm
50 mm 30mm
Aperture 孔径：5μm
φ43.5mm x 263mm
Aperture 孔径：5μm
φ43.5mm x 177mm
250 mg/L Nacl
复合活性炭（复合滤芯）
高效反渗透膜（反渗透滤芯）
净味活性炭棒（压缩活性炭滤芯）
(1套)
(1支)
(1支)

-5-
Water Supply
Adapter
3/8" PE Tubing
3/8" PE
1/4" PE Tubing
1/4" PE
GETTING STARTED
Package list
Assorted
Screwdrivers
Adjustable
Wrench Drill
Pencil Towels
Thread
Sealant Tape
Utility Knife or
Tube cutter Measure Tape
Tools & Material required (not included) ( )
Installation Guide
Service Parts Page
Compliance Certification
Connect Fittings
Drain Saddle
Clamp Kit
Drain plug
3/8" Tubing Clip
3/8"
1/4" Tubing Clip
1/4"
Main Body Assembly
Composite Activated Carbon Filter
High Efficacy Reverse Osmosis Filter
Odor-Free Carbon Filter
Power Adaper
1406034-T01-D

-6-
Note: Please pre-install Water filtration faucet of Kohler
brand or other brands on the sink. (Refer to Water filtration
Faucet Installation Manual for tools and detailed
installation steps of water filtration faucet. For water
filtration faucet other than Kohler brand, please make sure
the inlet dimension is 1/4" adapter).
(
2)

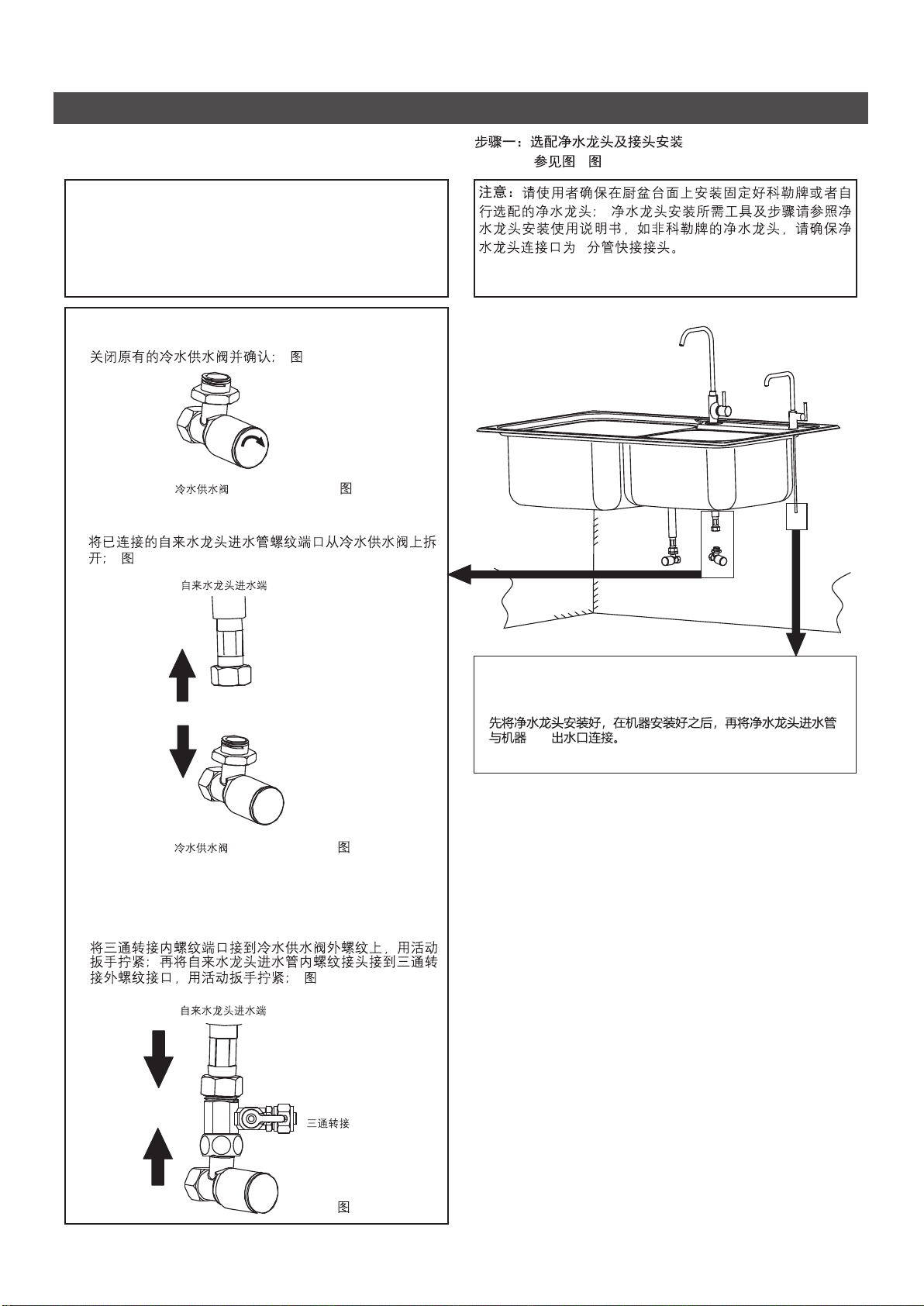

Step 1 Pre-install Water Filtration Faucet
(Refer to Figure 1- Figure 3) ( 1- 3)
INSTALLATION & USE METHOD
1. Make sure cold water supply line under the sink is
turned off; (Figure 1)
( 1)
2. Disconnect cold water line from threaded stub on
bottom of tap faucet; (Figure 2)
( 2)
Cold Water Supply Valve
Cold Water Supply Valve
Fig.#1
1
Fig.#2
2
Stub of Tap Faucet
3. Screw the water supply adapter - female threaded stub
to the cold water supply valve male threads as shown.
Hand it tighten and snug with wrench. Screw the
female threaded tap faucet stub to the water supply
adapter;(Figure 3)
( 3)
Fig.#3
3
Stub of Tap Faucet
Water Supply Adapter
4. Install faucet and connect faucet with system's
filter water outlet after machined is installed.
净水
1406034-T01-D
安装及使用方法

-7-
Note: Cut tubing straight with a utility knife, make sure there
are no cuts, nicks, flat spots or sharp edge, If any of these
are present, cut the tubing again; Do not kink tubing. ( Fig. 6)
( 6)
Step 2: Making connections
Refer to Figure 4, insert the 3/8" Plastic tubing into the
filter inlet port and the water supply adapter, insert the
1/4" Plastic tubing into the filter outlet port and filtration
faucet; then insert the 1/4" Plastic tubing into the drain
port of RO system and the drain line under the sink.
(Figure 4)
Note:
please refer Fig#5 to install drain plug into drain port of system.
please don’t open water inlet untill filters are installed.
.
Tubing Connectors
Drain Plug
4 3 2
RO
( 4)
Fig.#6
6
Connections to undersink plumbing can be
made with a saddle clamp designed to
accept the drain tubing from the RO
system.
RO
Correct Cut Incorrect Cut
Fig.#7
7
To attach tubing
Push tubing in as
far as it can go
Tubing must be inserted
past O-ring and hit
backstop
O
Insert the locking clip
123
Fig.#8
8
To release tubing
Pull outlocking clip Push in collect to release tubing.
With collect held, pull tubing straight out.
123
( 7 8)
The Bevel system features reliable and convenient push-to-connect tubing connectors. Tubing is easily connected and
)8erugiFdna7erugiF(.swollofsasgnittifesehtmorfdetcennocsid
Power
ColdHot
Outlet 出水
（1/4”Tube 2分PE管）
Drain Pipe 废水管
（1/4”Tube 2分PE管）
Fig.#4
4
Inlet 进水
（3/8”Tube 3分PE管）
Note: Insert drain plug to 1/4” drain pipe , then
connect 1/4” drain pipe to the drain port of
RO system.(Fig.5)
Fig.#5
5
注意：
1. 请务必在机器废水出口端安装废水塞
2. 管路连接好，请先不要打开进水水源。
等滤芯安装好之后，再打开进水水源。
（不可安装在纯水/龙头出水口端）见下图5。
废水塞
1406034-T01-D
2

-8-
NOTE: After the filter is replaced, the corresponding button
can be reset only. If not, the filter life indicator can't be
accurate. No need to reset after the first installation.
NOTE: Filtration performance varies depending on local
water quality.
Step 3: Installing Filter Cartridge & Replacing Filter
Cartridges
Fig.#9
9
Remove and discard the dustproof cap (sanitary
protective cap) from the cartridge;
Push the filter cartridge into the filter base align the hollow
icon of the cartridge with the hollow icon on the filter base,
then turn cartridge clockwise until the hollow icon of the
cartridge were aligned the color filled icon on the filter
base, it will be fully installed. (Figure 9)
90
( 9)
Fig.#10
10
When filters replaced remember to push and hold the
corresponding reset button to the filter for 5 seconds until
the indicator automatically with 2 short beep, then
corresponding orange LED light turn to white. (Figure 10)
Please replace filter when prompted by the indicator.
5
( 10)
System Model
First Stage
Second Stage
Third Stage
Press filter button for 5 seconds to reset
K-30843T-KPT40-01R
K-30843T-KPP40-01R
K-30843T-KPQ40-C10
K-30844T-R1-01R
K-30844T-R2-01R
K-30844T-R3-01R
BEFORE AFTER
滤芯安装前 滤芯安装后
/
LED white: Filter is in regular service 白色：滤芯可正常使用
LED turn to red：Filter life is running low (replace filter one month later) 红色常亮： 滤芯预警（约1个月左右需要更换）
LED turn to red blinks：Filter life is running out 红色闪烁： 滤芯报警（建议立刻更换该滤芯）
长按该滤芯按键5秒重置滤芯寿命
1406034-T01-D
注意：滤芯的点应朝上对齐，不可朝下安装

Step 4: Start-Up
CAUTION! If the power cord from the transformer
to the unit looks or becomes damaged,
the cord and transformer should be
replaced by a Kohler Service Agent or
similarly qualified person in order to
avoid a hazard.
CAUTION! Do not touch the power plug with a wet
hand.
CAUTION! If our product produces a strange
noise or odd smell, immediately
unplug from the electrical outlet and
call our Service Center.
Please open faucet to flush system for 30 minutes and
follow below instruction to flush system.
Note: Please confirm supply water inlet
pipe & drain pipe is already connected.
Step 5: Test System
5
打开龙头冲洗35分钟
1406034-T01-D
再
, open the water inlet later.
注意：为了保证RO膜的性能，RO膜出厂时含有保湿剂，
为保证用户的饮水安全，请按照如下方法进行使用操作：
新机器安装或更换新的RO膜后，请先打开净水龙头冲
洗35分钟。之后每停机4个小时以上，打开净水龙头放水冲
洗10分钟为一个循环，重复7个循环及以上。在完成7个循
环前，放出的水可以用于家庭清洗，不可饮用。
Note: In order to ensure the performance of RO film, RO film is
manufactured with moisturizer. To ensure the user's drinking
water safety, please follow the below methods of use:
After the new machine is installed or new RO film is
replaced, please run pure water for 35 minutes of flushing
firstly. Every 4 hours shutdown, please turn on the clean tap to
rinse water for 10 minutes for a cycle, repeat those procedure 7
cycles. Before 7 cycles are completed, released water can be
only used for cleaning and is not allowed for drinking.
如果有异常的响声及气味，立即拔掉电源并联系
科勒授权的专业安装维护人员进行维护。

-10-

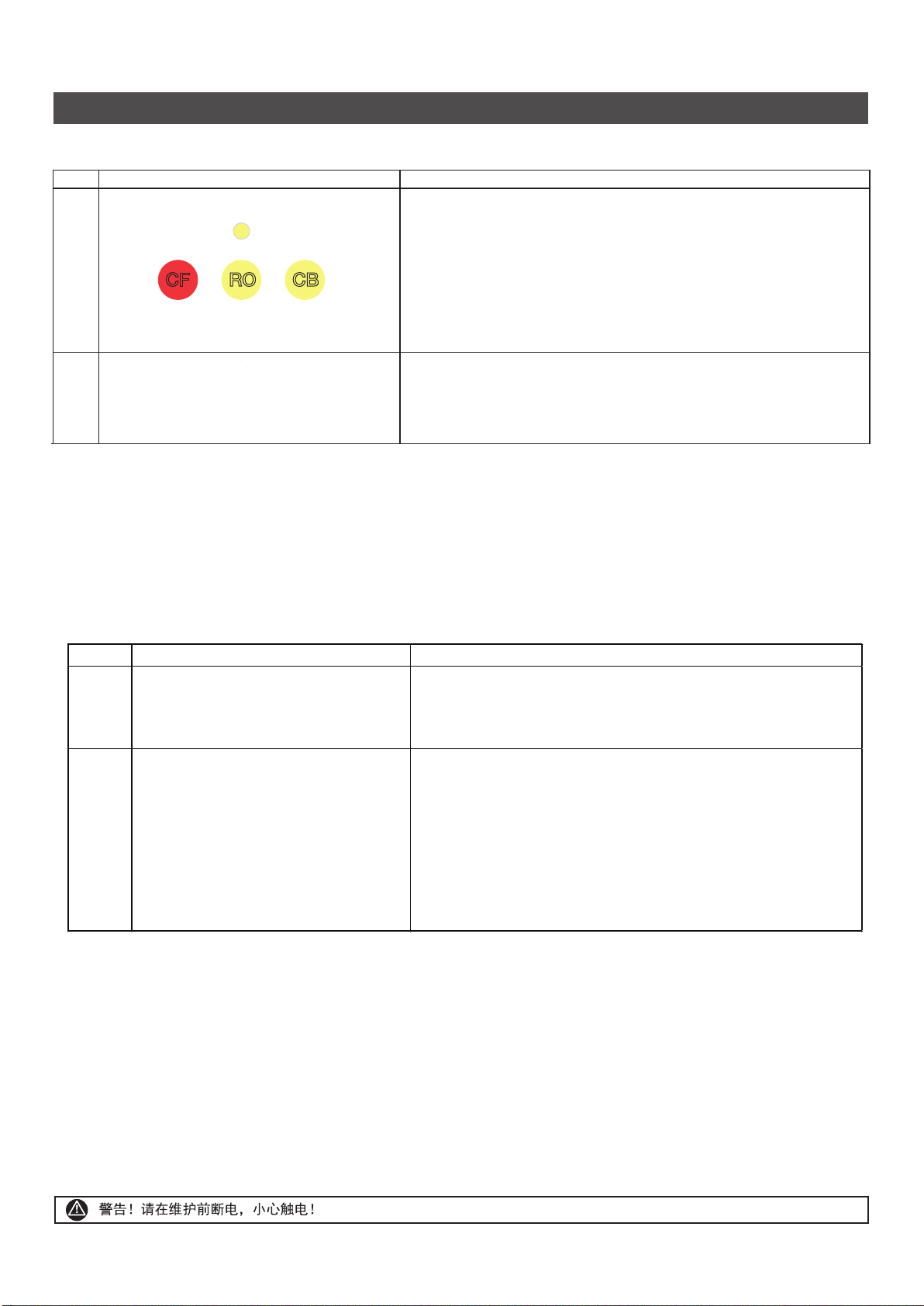

PERFORMANCE INDICATOR
PRODUCE:
When first time Start-up procedure is finished,
each time open the water filtration faucet to get the pure
water the operation status light will light on.
Shut off faucet, all lights will black out.
When filter life is running low or out each time open the
filtration faucet filter LEDs will change to orange with
normally lighting on or blinking.
性能提示
制水：
机器正常使用后，每次打开龙头取水，机器的状态灯、滤芯状态
灯都会亮起显示。
滤芯正常提示灯亮起白色。
关闭龙头，所有灯熄灭。
当某级滤芯快到期时，每次打开龙头取水，对应的指示灯会亮起
红色（常亮或闪烁），并伴随蜂鸣音提示。
Status: Produce well
When produce the pure water
with performance well filters,
the filter indicator will be white.
状态：正常制水
当滤芯寿命正常时，滤芯状态灯为白色。
Normal
制水状态
Operation status Indicator
运行状态指示灯
Filter performance Indicator
滤芯状态指示灯
Stand-by Mode
待机状态
All Indicators turn off
所有指示灯关闭
Status: Filter life will be expired after
1 month approximately
Filter LEDs will change to red with 2 short
beep as the filtration faucet is ON
状态：滤芯即将到期（约1个月后）
请准备更换滤芯
当打开净水龙头时，滤芯状态灯会变为红色
常亮，并伴随2声蜂鸣。
Status: Filter life has expired.
Filter LEDs will change to red blinking
with 3 short beep as the filtration
faucet is ON
状态：滤芯已经到期，
请立刻更换滤芯
当打开净水龙头时，滤芯状态灯会变
为红色闪烁，并伴随3声蜂鸣。
Expiration notice
滤芯预警 Expiration notice
滤芯报警
（Red blinking）
（红色闪烁）
1406034-T01-D

-11-
TROUBLESHOOTING GUIDE
WARNING！Electrical shock hazard！Unplug the unit before maintaining
No. QUESTION EXPLAIN
1
This is a reminder for filter change.
please replace filter when prompted by indicator
Alert: The red light of the filter indicator stays on (it is
recommended to prepare the replacement of the filter. The filter
will reach the end of service life in about one month.)
Expiration: The red light of the filter indicator is blinking (it is
recommended to replace the filter without delay)
Attention: The following conditions are not product malfunctions.
Kohler Service Hotline: [phone]
No. Question Trouble Shooting
1 Machine keep working Please check whether there is a drain plug in the drain port.
Please intall the darin plug in the drain port.
2 The flow rate is lower
1. Please check whether there is a drain plug in the faucet
port, if there is a drain plug, please remove it.
2. The filter life is low, please change the filter
3. RO filter is not intalled in the right position, please check
the filter's position
1406034-T01-D
2
When installing machine or replacing filter
, a small amount of water was found at the
bottom or filter sleeves
This is normal
When you install the filter or replace the filter, because the base is
spinned ,and filter has water pressure,water will run out.
Please wipe water with a duster.

-12-
常见问题及处理
No. 问题 说明
1
2
这个是滤芯提醒。
滤芯指示灯变为
·红色常亮为预警--建议准备更换滤芯（约1个月后到期）
·红色闪烁为报警--建议立刻更换滤芯
更换滤芯后，长按对应的滤芯指示灯，即可复位
请注意：如下状况非产品故障。
科勒服务热线: 800 820 2628 / 400 820 2628
（任意一级或多级）滤芯指示灯
从白色变为红色（亮/闪烁）
No. 问题 解决方法
1机器连续工作不停机、
废水一直在排放
检查机器废水出水口是否有安装废水塞，
如果未安装废水塞，请安装废水塞
2 机器出水流量较小
1. 检查机器纯水出水端是否有安装废水塞，如果有安装，请
去掉废水塞。
同时建议检查废水端是否有安装废水塞，废水端应装有废水
塞。
2. 滤芯使用时间较久，滤芯堵塞，建议更换滤芯。
3. RO滤芯安装不正确，检查滤芯是否安装到位，正确方式对
应点位应朝上，不可朝下。
在安装机器或者更换滤芯时，发现机器底部
或者滤芯套筒处有少量水或者流出少量水
这个是正常现象。
安装滤芯或者更换滤芯时，滤芯基座和滤芯内会有少量水流出，
因为旋出滤芯时，基座和滤芯有水压，在旋转过程会流出，请擦干即可。
1406034-T01-D

DESCR IPTION OF CONTENT OF HAZARDOUS SUBSTANCES IN PRODUCT
Reclaim Indication:
When the product exceeds service life or is unable to use after repair, do not throw the product away in the normal trash. Please
dispose the waste electronic parts throughaqualified reclamation enterprise. Make sure the product is handled properly.
Disposing of product must be done in accordance with the local or national government law.
According to SJ/T 11364.
O: Indicates that the substance in the material composition is below the high limits of the current requirements in GB/T 26572.
X: Indicates that at least one of the homogeneous substance in the material composition is below the high limits of the current
requirements in GB/T 26572.
The product "service life for environment protection" is 10 years; Kohler Company will specify product service
life based on product characteristics. The product "service life for environment protection" is only effective
when the product is used as described in the product specification.
10
Toxic or Hazardous Substance or Elements
Part name Lead (Pb) Mercury (Hg) Cadmium (Cd)
Hexavalent
Chromium
(Cr6+)
Polybrominated
biphenyls (PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
Power Adapter
PCB
Wire
Iron Parts
X
X
X
XO O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
SJ/T 11364
O GB/T 26572
X GB/T 26572
10
10
X
X
X
XO O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
(Pb) (Hg) (Cd) (Cr6+) (PBB) (PBDE)
-13-
1406034-T01-D

扫码了解
产品信息
1406034-T01-D
