INSTRUCTION MANUAL
for the PRO X Electric Survival Filter
For other languages, please visit:
www.survivorfilter.com/pages/manuals

2
Save These Instructions
The Survivor Filter PRO X Electric Survival Filter
is a precision device. Please follow all instructions in order
to allow trouble free and reliable performance.
ANY PROBLEMS?
Do Not Return Product to the Store.
Contact us at 1-888-602-6367 or
support@survivorfilter.com for help.
Your satisfaction is our priority.
PRO X Electric Survival Filter
© SURVIVOR FILTER™, 2020

3

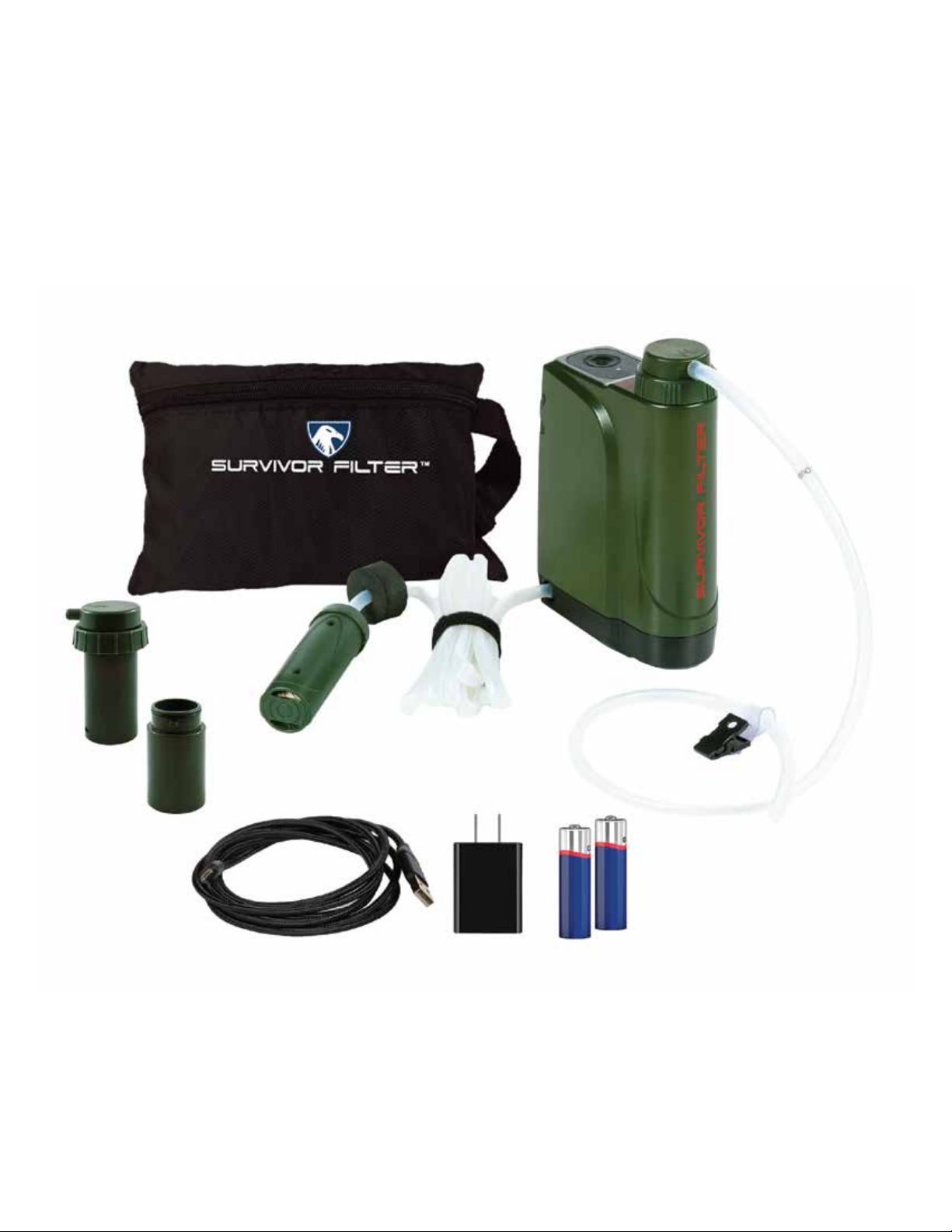

PRO X Electric Survival Filter
Component View
© SURVIVOR FILTER™, 2020

4
PRO X Electric Survival Filter
Exploded View
Ultra Filter Water Outlet Tip
Housing
Ultra Filter
Pre-Filter
Water Inlet Hose
Water Inlet Fixture
Water Outlet Hose
Ultra Filter
Carbon Filter
Float
Clip
Battery
Door
Micro USB
Port/Port cover
Power Button
Ultra Filter/
Carbon Filter
Chamber
Pre-Filter
Water Outlet Tip
© SURVIVOR FILTER™, 2020

5
PRO X Electric Survival Filter
3 Filter Components
The Ultra Filter (UF) Pre-Filter
The Carbon Filter
The Ultra Filter
© SURVIVOR FILTER™, 2020

6
PRECAUTIONS
•
PRO X Electric Survival Filter
3 Filter Components Provide Triple Filtration
The Ultra Filter Pre-Filter provides the first line of defense
to remove large particles from incoming water. Insert the
Ultra Filter Pre-Filter (make sure to attach it to the Water
Inlet Hose first) directly into the water to be filtered. Use
the Float to keep the Ultra Filter Pre-Filter away from
mud or sediment. The Ultra Filter Pre-Filter must be fully
submerged in the water for proper operation of the
Survivor Filter PRO X. The Ultra Filter Pre-Filter can be
reused up to 100,000 liters (26,417 gallons).
Heavily polluted water or water with a high concentration
of silt will plug the Ultra Filter Pre-Filter and shorten its
life prematurely, avoid if possible. Clean/replace the Ultra
Filter Pre-Filter as necessary.
Component #1 - The Ultra Filter Pre-Filter
© SURVIVOR FILTER™, 2020

7
PRECAUTIONS
PRO X Electric Survival Filter
3 Filter Components Provide Triple Filtration
The Carbon Filter provides the second line of defense
to remove heavy metals, residual pesticides, organic
materials and odors from incoming water. The Carbon
Filter clips into the bottom of the Ultra Filter. Both
the Carbon Filter and the Ultra Filter sit within the
Housing during normal operation. The Carbon Filter
can be reused up to 2,000 liters (528 gallons).
•
•
Component #2 - The Carbon Filter
Since the Carbon Filter absorbs and holds contaminants
within its fibers, it cannot be cleaned and must be re-
placed after regular use.
Also replace the Carbon Filter if you notice that the fil-
tered water has a bad taste or odor.
© SURVIVOR FILTER™, 2020

8
PRECAUTIONS
PRO X Electric Survival Filter
3 Filter Components Provide Triple Filtration
The Ultra Filter provides the third line of defense to
remove smaller particles which have not been trapped
or absorbed by the Ultra Filter Pre-Filter or the Carbon
Filter. The Ultra Filter membrane is enclosed in an ABS
housing and cannot be removed. Both the Ultra Filter
and the Carbon Filter sit within the Housing during
normal operation. The Ultra Filter can be reused up to
100,000 liters (26,417 gallons).
The Ultra Filter can be gently tapped and rinsed in
clean running water to dislodge trapped particles.
Replace the Ultra Filter if the water flow becomes re-
duced.
•
•
Component #3 - The Ultra Filter
© SURVIVOR FILTER™, 2020

9
PRO X Electric Survival Filter
How to Use
Connect Water Inlet Hose to Water Inlet Fixture.
Ensure that the Ultra Filter Pre-Filter is attached to
other end of Water Inlet Hose.
Connect Water Outlet Hose to Water Outlet Fixture.
Ensure that other end of Water Outlet Hose drains
into a clean receptacle.
Assembly
Power Supply Options
There are several different ways to power the Survivor
Filter PRO X
Two AA-baeries: Slide open the battery cover, insert
the batteries and close the cover. Make sure the cover
is closed properly to ensure a water resistant seal.
External baery/solar pack (not included): Open the
USB cover and connect the Micro USB cable to the PRO
X. The other end can be connected to your power source.
Electrical outlet/wall socket: Connect the Micro USB
cable to the PRO X and plug the other end into the wall.
© SURVIVOR FILTER™, 2020

10
PRO X Electric Survival Filter
How to Use
Priming the Internal System
NOTE: If you intend to store your PRO X for more than
4 weeks, please also follow the steps for priming the
internal system before next use.
NOTE: Once connected to a power source, you will need to
prime the internal system with water before the first use.
Unscrew and remove the Ultra Filter/Carbon Filter as-
sembly and fill the chamber with clean water.
You can then reinsert the Ultra Filter/Carbon Filter as-
sembly and begin operating the PRO X.
Fill the entire backwashing Syringe with clean water.
Attach syringe to the Water Inlet Fixture on the PRO X.
Push through water and allow water to flow out of the
Ultra Filter Water Outlet Tip. Ensure the Carbon Filter and
Ultra Filter are still installed in the unit during this step.
You are now ready to use the PRO X!
1.
2.
3.
4.
1.
2.
Priming the System Option #1:
Priming the System Option #2:
NOTE: To avoid damaging the internal system and the
pump mechanism, ensure the Ultra Filter Pre-Filter is at-
tached to the hose before use. Do not allow dirty water go
flow into the PRO X without the Ultra Filter Pre-Filter.
© SURVIVOR FILTER™, 2020

PRO X Electric Survival Filter
Cleaning
The Survivor Filter PRO X is a precision device. Please
follow all instructions in order to allow trouble-free
and reliable performance.
11
•
1.
2.
3.
4.
Unscrew the Ultra Filter counter-clockwise and gently
remove the Ultra Filter/Carbon Filter assembly.
Unclip the Carbon Filter counter-clockwise from the
Ultra Filter/Carbon Filter assembly.
Flush all filter elements and hoses with clean, fresh
water. Shake out each filter element to remove any
excess water.
Air dry and then reassemble for storage.
WARNING: DO NOT use commercial cleaning solu-
tions or chemicals to clean your Survivor Filter PRO
X as they may damage the delicate filters and com-
ponents.
Do not submerge the PRO X with the baery door or
Micro USB door open. To clean housing of the PRO X,
simply wipe down with a clean cloth or paper towel.
Cleaning: Your Survivor Filter PRO X should be disassembled
and cleaned with fresh, clean water after each use.
© SURVIVOR FILTER™, 2020

12
PRO X Electric Survival Filter
Cleaning
After prolonged use or before storing your Survivor
Filter PRO X, the Ultra Filter and Ultra Filter Pre-Filter
can be cleaned with clean water and/or vinegar/denture
cleaning solution. WARNING: Do not use vinegar or
denture cleaning solution on the Carbon Filter.
Disassemble all components and flush with clean,
fresh water as described in this instruction manual.
Soak the Ultra Filter and Ultra Filter Pre-Filter in vine-
gar/denture cleaning solution for 20 minutes.
Remove the Ultra Filter and Ultra Filter Pre-Filter from
vinegar/denture cleaning solution and flush with clean,
fresh water. Shake out each filter element to remove
any excess water.
Air dry all components and then reassemble.
1.
2.
3.
4.
WARNING: DO NOT soak the Carbon Filter in vinegar
or denture cleaner as this will shorten the life of the
Carbon Filter.
Store your Survivor Filter PRO X in a clean, dry place.
Avoid exposure to direct sunlight and store away
from excessive heat sources. DO NOT FREEZE.
© SURVIVOR FILTER™, 2020

13
PRO X Electric Survival Filter
Cleaning/Backwashing the Ultra Filter Pre-Filter
1.
2.
3.
4.
Fill the Syringe with clean, filtered water.
Attach the end of the Syringe to the Water Outlet Tip
of the Ultra Filter Pre-Filter.
Push the water in the Syringe through the Ultra Fil-
ter-Pre Filter.
Repeat as needed and backwash up to 100,000 liters.
Clean, filtered water
Syringe
Ultra Filter Pre-Filter
Backwashing can be done once you return from your trip
and can even be performed while on the trail. To backwash
while on the trail or in the wilderness, make sure that you
have saved some clean water that has already been filtered.
Option #1: Use the included Syringe to backwash
your Survivor Filter PRO
© SURVIVOR FILTER™, 2020

14
PRO X Electric Survival Filter
Option #2: Backwash without the Syringe
1.
2.
3.
4.
5.
6.
7.
Remove the Ultra Filter Pre-Filter from Water Inlet Hose
and clean the Ultra Filter Pre-Filter Outlet Tip with vine-
gar or a clean wet paper towel.
Place Water Inlet Hose in clean, fresh water. If on the go
you can use the treated water that has been filtered by
the Survivor Filter PRO X.
Place Survivor Filter PRO X on a firm, flat base.
In preparation for backwashing, turn on the filter for 5 seconds
to prime the internal system with water and to remove air.
Connect the Ultra Filter Pre-Filter to the Water Outlet Hose.
Turn on the PRO X, allowing water to flow into the Ultra
Filter Pre-Filter, flushing out any blockages or small debris.
Backwash up to 100,000 liters using the same process.
Clean, filtered water
Ultra Filter
Pre-Filter
Inlet Hose
Outlet Hose
© SURVIVOR FILTER™, 2020

15
PRO X Electric Survival Filter
Frequently Asked Questions
• The Survivor Filter PRO X is intended for use with fresh
water sources only. DO NOT USE IN SALT WATER.
•
•
•
How long will two AA baeries last?
How oen should I replace the filters?
Can I filter salt water?
Under normal conditions, the Survivor Filter PRO X can
filter up to 100,000 liters, guaranteed. If the water to be
filtered is heavily contaminated or full of silt, the filters
may need to be removed, and/or replaced sooner.
Clean/backwash or replace the Ultra Filter Pre-Filter as
needed if pumping becomes difficult or water flow is re-
duced from normal.
If the flow rate is still reduced after you have cleaned
and backwashed your PRO X, you will know that it is time
to replace the Carbon Filter.
•
Depending on the quality of the water being filtered, the
batteries should last 6-8 hours.
Please visit http://www.survivorfilter.com/pages/prox for
more frequently asked questions.
© SURVIVOR FILTER™, 2020

16
The Survivor Filter PRO X is manufactured
for and distributed by SURVIVOR FILTER™.
Replacement parts and filters may be purchased
on Amazon.com, at www.survivorfilter.com or
by calling us at 1-888-602-6367.
PRO X Electric Survival Filter
Specifications
Model: Survivor Filter PRO X Electric Survival Filter L800
Filtration: Up to 0.01 Microns
Weight:
Size:
Capacity: Ultra Filters: 100,000 Liters (26,417 Gallons),
Carbon Filter: 2,000 Liters (528 Gallons)
Water Flow: 17 oz/min (500 ml/min)
Material: ABS Housing, Food Grade Carbon Fiber,
Membrane Ultra Filters (Polysulfone), Silicone
Rubber Tubing, Nylon Carry Bag, Plastic Clip
(ABS, PPC and Iron), Polypropylene Syringe.
6.5 x 2.1 x 4.9 inches
Net Weight: 14.10 ounces
Gross Weight: 21.16 ounces
© SURVIVOR FILTER™, 2020
