Allfyll A300 User manual

1
RO Water Purifier
Series A
Instruction Manual
Introduction 2
Specification 3
Components 4
Cartridge and Filters 5
Parts of main body 6
Display 7
Tubing connection 8
Installation 9
Cartridges replacement 10
RO membrane replacement 11
Operation steps 12
FAQ 14
Spare parts 15
PRODUCT OF
THAILAND
All For Your Long Life

2
Introduction
Water purifier with Reverse Osmosis (RO) Series A is for production of pure drink-
ing water by Reverse Osmosis technology. It consists of 5 hight quality filters and a RO
membrane which can removes particles down to 0.0001 micron up to 95%, ions, heavy
metals, organic compounds and bacterias up to 99%.
●Includes high pressure booster pump with maximum pressure rating to 300 psi. This
helps continueous water production where or when the water input pressure is low.
●Includes manual flushing valve for cleaning of the RO membrane to prolong the life
time and prevent baterias growing up.
●Includes housing frame that can be installed on the floor under sink, needs no drilling
the wall.
●Includes standard accessories and instruction manual.
●Each unit is already tested for the leakage and performance from factory and ready
to use.
What is Reverse Osmosis?
Reverse Osmosis (RO) is the best technology for drinking water purification. The raw
water with the pressure is filtered by RO membrane (maded of Thin Film Composit
with
pore size of 0.0001 micron). Only water molecules can pass through this membrane
while
others impurities which partilcle size is bigger than 0.0001 micron are removed, including
ions, heavy metals, salts, dissolved solids, organic compounds, bacterias and viruses.
Pressure
Membrane

3
Specification Model
A300 A600
Number of stages for water purification 5 5
Flowarte (gallons per day) 300 600
Booster pump 300GPD 1 2
PP 5 micron cartridger ••
CTO cartridge ••
Resin cartridge ••
RO membrane 300GPD 1 2
Post Carbon inline filter ••
Water tank volume 20 gallons or 75 Liters
Operating pressure 5-80 psi
Power 220 V, 50Htz
Feed water tap water, ground water
Dimensions 47 (W) x 25 (D) x 82 (H) cm - system
38 (W) x 38 (D) x 77 (H) cm - tank
Weight 22 kg - system
14 kg - tank
Specification

4
Components
A
C
B
D
F
G
E
Standard accessories Part No
A Faucet AF-4004
B 20G Water storage tank AF-0022
C Housing wrench, 20” AF-4033
D Chromed Ball valve 3/8” AF-4006
E T-WAY Connector 1/2”, side port 3/8” AF-4038
F Tank ball shut-off valve AF-4008
G Tubing 3/8”, 3m AF-4034
H Tubing 1/4”, 3m AF-4009
B
H

5
Cartridges and Filters Part No. Model
A300 A600
PP 5micron inline filter
for removing of dirts, rusts and sand particles down to 5 microns.
GE PURTREX®, U.S.A.
Life time > 12 months AF-3301 ••
CTO inline filter
For removing of chlorine, taste and odor and organic chemicals
Omnipure®, U.S.A.
Life time >12 months AF-3302 ••
Resin inline filter
For removing of the mineral salts to produce deionized water with soft taste
Jacobi®, Sweden
Life time > 12 months AF-3303 ••
RO membrane
For removing of contaminants down to 0.0001 micron
HYDROTEK®, U.S.A.
Capacity 300 GPD
Life time 3-4 years AF-3015 12
Post carbon inline filter
For removing of chlorine, taste and odors
Omnipure®, U.S.A.
Life time 3-4 years AF-3305 ••
Option
UV lamp
For removing of bacterias and viruses for better health and beauty
Allfyll®, Thailand
Life time 8,000 hours AF-4002

6
Parts of main body
Post carbon Inline Filter
3rd Housing (with Resin Cartridge)
2nd Housing (with CTO Cartridge)
1st Housing (with PP Cartridge)
Post carbon Inline Filter
Display
Pressure Gage
Pressure Gage
Flush valve
RO Housing (with RO membrane)
Power box
Solinoid valve
Solinoid vavle

7
Display
POWER Bulb is lightening as connecting power.
WATER The system starts to function 20 seconds after plugging in.
WORKING The system begins to produce water.
FULL Pump stops when tank is full of pure water.
POWER WATER FULLWORKING

8
Tubing connection
Input water
Faucet
To Tank
Drain Out
To Faucet

9
Installation
Input water :
To RO system
Deliver
valve
To
water
source
pipe
To
faucet
Install water tank :
Install European ceramic
faucet :
Install drain saddle :
Mount drain
saddle
aligning holes.
Drill a 1/4”
hole into the
drain pipe.
Assemble membrane :
1.Remove the membrane
housing cap.
2.Replace the membrane.
1. Screw in ball valve connector.
2. Take tubing white, connect it
to the deliver valve and the
inlet water to storage tank
12

10
12
4
6
7
5
3

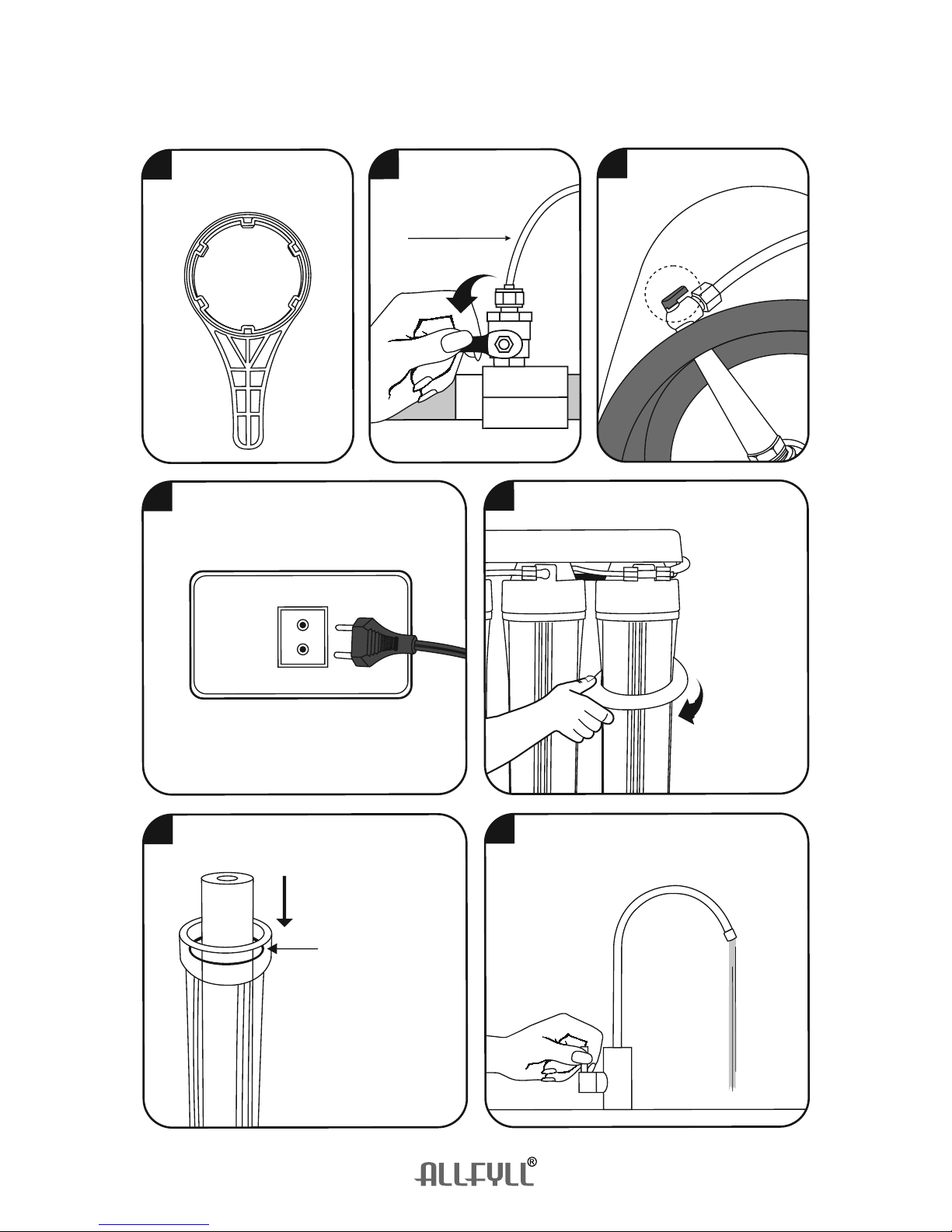

Cartridges replacement
Prepare a
housing wrench. Turn off water
source. Switch off water
tank.
To RO system
Unplug electricity. Open housings clockwise
with a wrench.
Put the replacement filters in the
housings and double O’ ring.
Be sure tighten
with O-ring to
prevent from
leaking.
Drain out 1 Gallon of water
to purify replacement filters.

11
PRO
RE
NG WATER SYSTEM
45
6
7
12
3
Unplug electricity. Turn off water
source. Switch off water tank.
To RO system
Loose the Joco fitting
anticlockwise. Remove the membrane
housing cap anticlockwise.
Remove the membrane
by a pincer. Install the membrane by
carefully pushing the spigot
end into the socket at the
far end of the housing until
completely in.
RO membrane replacement

12
Operation guide
1. With everything connected, turn on the water, check for leaks.
2. Make sure the storage tank shut-off valve is “OFF”. Open the sink top faucet.
3. Within a few minutes (up to 15) the water will start to run from the faucet slowly.
4 Let the water run for at least 30 minutes. This flushes the carbon filters on the first time
use.
5 After initial flushing, open the shut-off valve on the tank and close the sink top faucet.
6. Tank will now full of water (usually 2 to 3 hours) after the tank has filled. Open the sink
top faucet and drain all water until the storage tank is empty and there is only a small
flow from the sink top faucet. *** DO NOT USE FIRST TANK OF WATER.***
7. Close the sink top faucet. The system is now ready for use.
8. Weekly clean the RO membrane by turning on the flush valve and turning off the shut-
off valve of water tank for 30 minutes.
9. Change filters and RO mebrane regularly (see page 5 for the life time of filters and RO
membrane) or when the total disolve solid (TDS) of output water is over 100 mg/L.
1. Do not use hot water (over 45 oC)!
2. Do not freeze the machine!
3. Switch off electricity and water source if away for more than 5 days, and drain out
pure water.
Caution

13
12
6
4
3
5
POWER WATER FULLWORKING

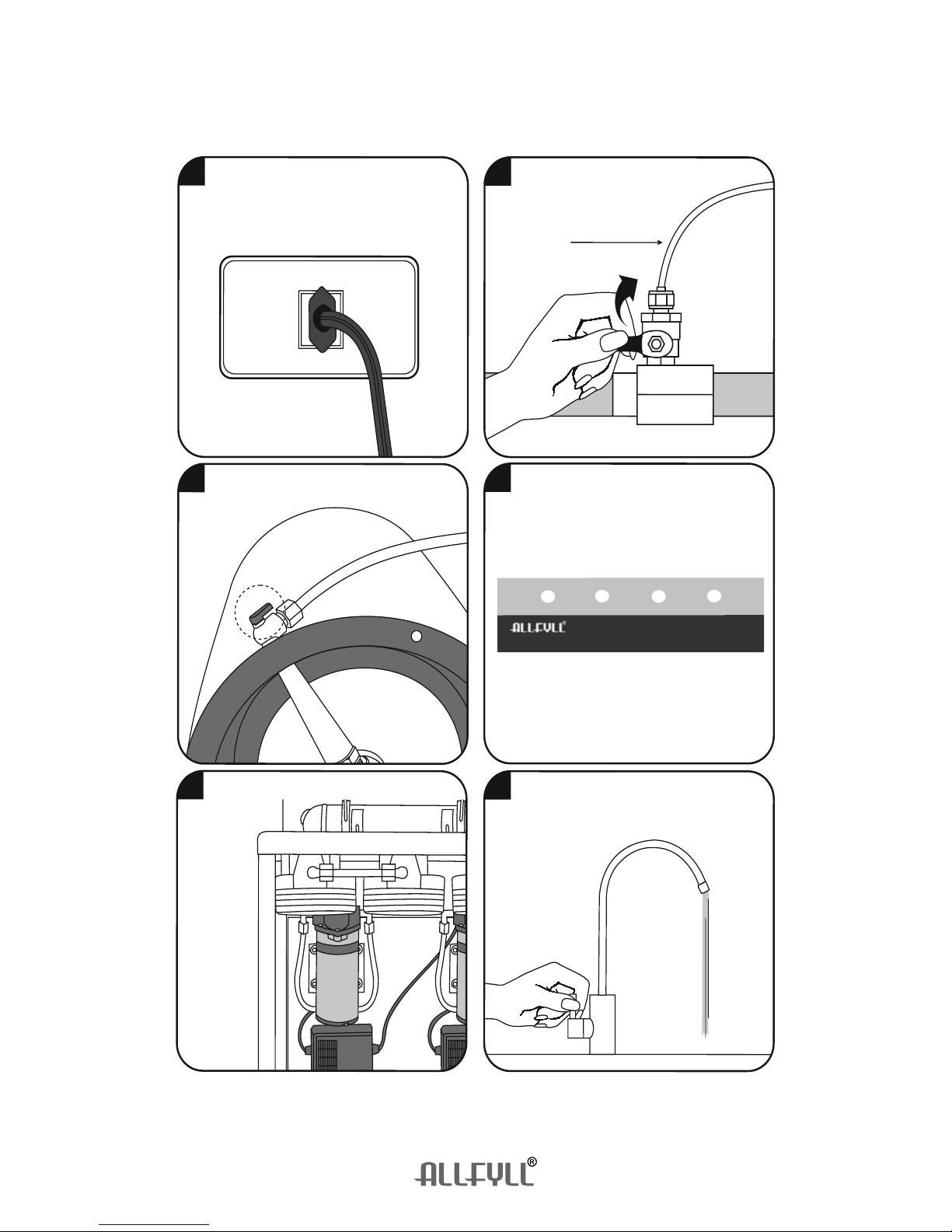

Operation guide
Plug into power. Turn on water source.
To RO system
Switch on water tank. Display signals are on.
Pump starts to function. Let the water run for at least
30 minutes. This flushes the
carbon filters on first time
use.

14
FAQ
Q: What is the guarantee on the Allfyll water purifier?
The Allfyll water purifier (excluding cartrifges and filters) is guaranteed for 1 year for
material and workmanship.All defective parts will be replaced free within the first year
under normal breakdown. The membrane has one year pro-rated guarantee.
Q: What factors affect the quantity and the quality of the water production?
There are four major variables to consider:
1. Pressure -The greater the water pressure, the better water quantity and quality it
produced. Water pressure of 60 PSI is ideal.
2. Temperature -76 oF is the ideal water temperature for RO. 40 oF water will cause
the production of RO water to fall to half of that at 76 oF. The maximum water
tem
perature recommended is 85 oF.
3. Total Dissolved Solids (TDS) -The higher the amount of dissolved contaminants
in the water, the lower the quantity of water produced. A high level of TOTAL
DISSOLVED
SOLIDS can be overcome with additional water pressure.
4. Membrane -Different membranes have different characteristics. Some produce
more water than others; some have better contaminant rejection capabilities; some
have greater resistance to chemical abrasion for longer life. Allfyll water purifiers use
The Thin Film Composite (TFC) membrane that combines the best of these characteristics
and are considered the best performance.
Q: Can the Allfyll water purifier be connected to an extra faucet?
It only takes a 1/4” tee and tubing to run the water to a refrigerator or a extra faucet.
Some families run Allfyll water purifier to all of their bathrooms.
Q: What does the Allfyll water purifier drinking water taste like?
The taste of the water depends on the amount of contaminants in the tap water. If
95% of dissolved minerals and chemicals are removed, the water produced may taste
like distilled water (no minerals), bottled water (low mineral), or natural spring water
(moderate mineral content).
Q: How will the Allfyll water puifier water affects mixed beverages?
Because reverse osmosis removes soluble contaminants that mask flavor, it allows
the natural taste of your beverages to come through. You will be able to use less coffee
and still get the full flavor. Concentrated beverages like orange juice will taste tangier.
You will probably be drinking a lot more water as well, since many people drink soda,
Kool-Aid, concentrated juices, and beer as an alternative to bad-tasting tap water.
Also, Allfyll water purifier eliminates most of the lime build up on drip coffee makers,
pre
venting the need for frequent cleaning. No longer will you find the white scum on
the inside of pans after boiling water.

15
Spare Parts Part #
PURTREX® 5 micron PP Cartridge, 20” AF-3301
Omnipure® CTO Cartridge, 20”, Long life AF-3302
Jarcobi® Resin Cartridge, 20”, Long life AF-3303
HYDROTEK® RO Membrane 300GPD AF-3015
Omnipure® Post Carbon Inline Filter, 12” AF-3305
Ultraviolet light (UV) 16W Kit AF-4002
RO Pump 300GPD 3/8” EZ 24VDC AF-4028
Solinoid valve 3/8”, EZ, 220VAC AF-4029
High Pressure Switch, 1/4”, EZ AF-4016
Low Pressure Switch, 3/8”, EZ AF-4030
Flow Restrictor, 800ml/min, EZ AF-4027
Plastic Ball valve, 1/4”, EZ AF-4018
Housing wrench, 20” AF-4033
Chromed Ball valve 3/8” AF-4006
T-WAY CONNECTOR 1/2”, side port 1/4” AF-4007
T-WAY Connector 1/2”, side port 3/8” AF-4038
PE Tubing 1/4”, White, 3m AF-4009
PE Tubing 3/8”, White, 3m AF-4034
Ultraviolet light (UV) Lamp 16W AF-4037
Faucet AF-4004
20G Water storage tank AF-0022
Tank ball shut-off valve AF-4008
Spare parts

16
Allfyll® Instruction manual, Series A © 2013 Allfyll (Thailand) Co., Ltd. Printed in Thailand, 5/2014
All For Your Long Life
Date PP
Cartridge CTO Cartridge Resin Cartridge RO Membrane
Post Carbon
Inline Filte rUV lamp
Maintenance time table
Allfyll (Thailand) Co., Ltd.
8 Thaiyanon 12, Nonthaburi 46, Muang-Nonthaburi, Nonthaburi 11000
Tel: [phone]
Fax: [phone]
Email: [email protected]
Website: www.allfyll.com
