Allied Schuco S6000 User manual

S168-606-001
Rev-
/Schuco
byAllied
Schuco S6000
50PSIAirCompressor
Operator's IVIanual
^ Cautifin
Federallawrestrictsthisdevicetosalebyor on orderof a physician, orany
otherpractitionerlicensedbythelawoftheStateinwhichhepracticesto
use orordertheuseofthisdevice.

CONTENTS
Page No.
INSPECTION 1
GENERAL INFORMATION.... 1
SAFETY PRECAUTIONS 2
BASIC OPERATING COMPONENTS 3
OPERATING INSTRUCTIONS.. 4
-Initial SetUpandInstallation4
-Operation4
ROUTINE MAINTENANCE.. ............5
-RemovingandCleaningtheAir Intake Filter.5
SPECIFICATIONS 6
TROUBLE SHOOTING .7
SYMBOLS 7
LIMITED WARRANTY 8
INSPECTION
UponreceivingyourSchuco® IVIodel S6000Compressor,Inspectthepackagingforsigns
ofdamageintransit.Inspectthe unit thoroughly.Anysignofdamage,externalor
internal,shouldbereportedtoyourHomecareDealerimmediately.
GENERAL INFORMATION
Thismanualprovides Information necessarytooperatetheSchucoModelS6000
50PSICompressor.This unit isdesignedforefficient,continuoushighpressure
performance.TheModelS6000Compressorprovideshighpressure,whichclinical
studieshaveIndicatedarerequiredforoptimalparticlesize(2micronsorless)during
nebulizationtreatments.
The unit operatesquietlyandeffectivelyduetotheuniquedesign ofthe WOBLpiston.
This unit operatesusingstandard120VACcurrent,ItIseasytoclean,verylow
maintenance,compact, light-weight, andportable.The unit Isdesignedforusewith:
-Compatible with hand-heldnebulizersystems.
-Heatednebulizers.
-Dualactionhumidifier/nebulizers.
-Pediatric mist tents.
-Child/adult misttents.
-High output pneumaticnebulizers.
-Deluxenebulizers with oxygendiluters.

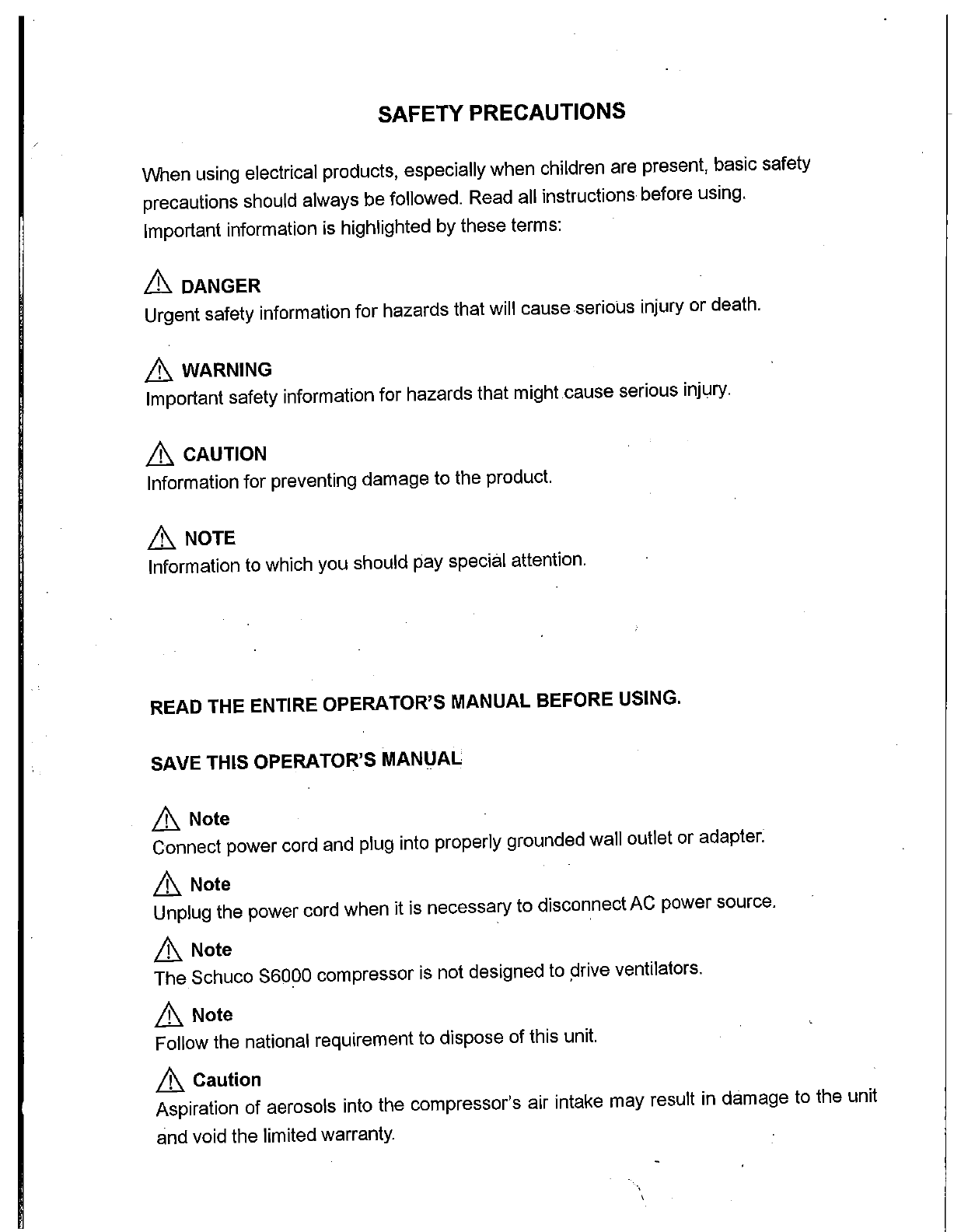

SAFETY PRECAUTIONS
When usingelectricalproducts,especiallywhenchildrenarepresent,basicsafety
precautionsshouldalwaysbefollowed. Read allinstructionsbeforeusing.
Important informationishighlightedbytheseterms:
ADANGER
Urgentsafetyinformationforhazards that willcauseseriousinjuryordeath.
A WARNING
Important safetyinformationforhazards that mightcauseseriousinjury.
ACAUTION
Informationforpreventingdamagetotheproduct.
ANOTE
Informationtowhichyoushouldpayspecialattention.
READTHEENTIREOPERATOR'SMANUALBEFOREUSING.
SAVE THIS OPERATOR'SMANUAL
A Note
Connect powercordandplugintoproperlygroundedwalloutletoradapter.
A Note
Unplug thepowercordwhenitisnecessarytodisconnect AC powersource.
A Note
The SchucoS6000compressorisnotdesignedtodriveventilators.
A Note
Follow thenationalrequirementtodisposeofthisunit.
A Caution
Aspirationofaerosolsintothecompressor'sairintakemayresultindamage
and voidthelimitedwarranty.

BASICOPERATINGCOMPONENTS
PRESSURE GAUGE
(Indicates pressure)
REGULATOR
(Determines
Pressure output)
iNTAKERLTER
HANDLE
POWERCORD
ON/OFFSWiTCH
(Starts andstops unit)
PROTECTIVE
COVER
FIGURE1
COMPRESSED
AiROUTLET
(Shown with
L-Bracket
attached)
POWERRESET
(Resets circuit
breaker should
overload occur)

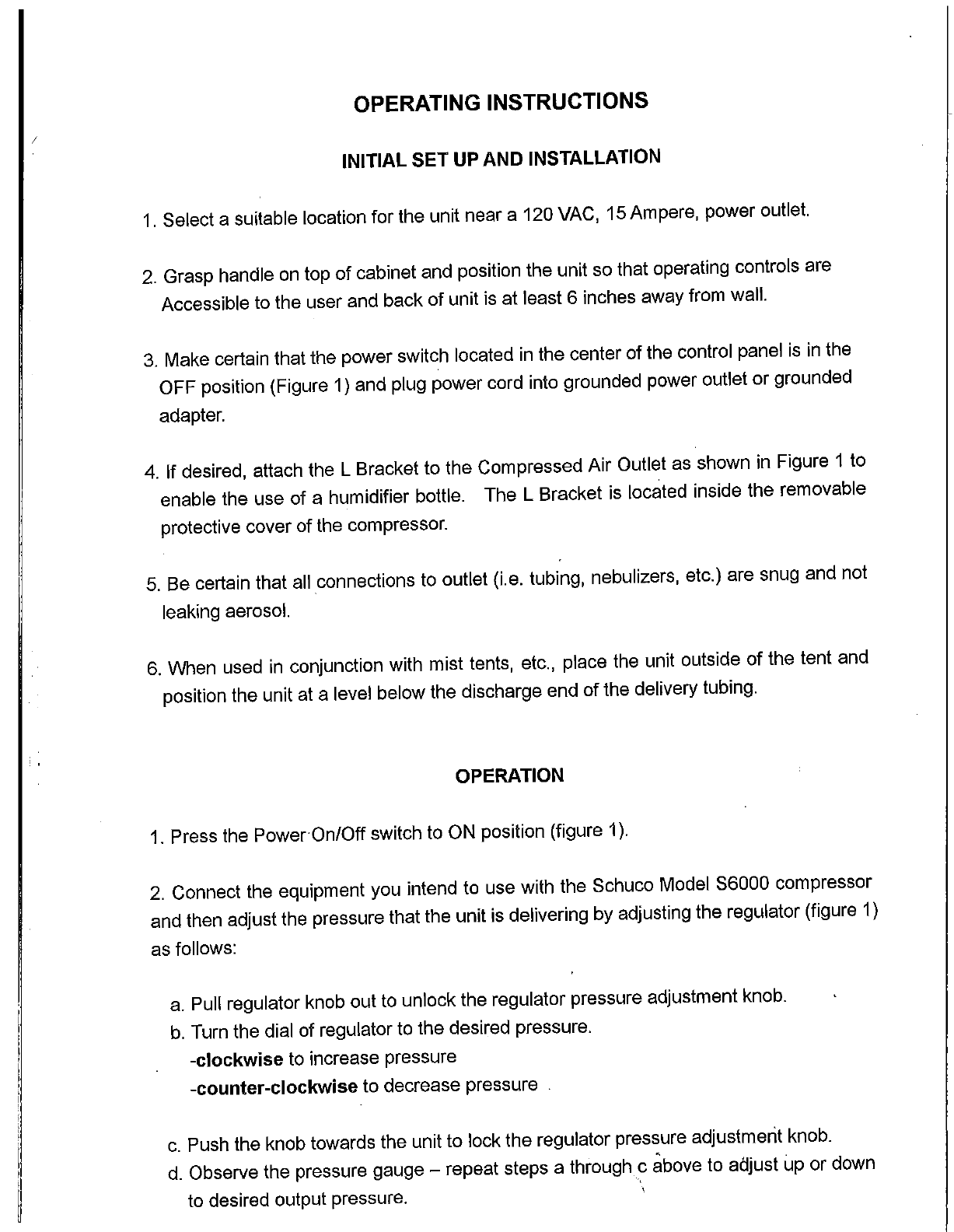

OPERATING INSTRUCTIONS
INITIAL SETUPAND INSTALLATION
1.Selecta suitablelocationforthe unit neara120VAC, 15Ampere, poweroutlet.
2. Grasphandleontopofcabinetandpositionthe unit so that operatingcontrolsare
Accessible totheuserandbackof unit isatleast6 inchesawayfromwall.
3. IVIakecertain that thepowerswitchlocatedinthecenterofthecontrolpanelisinthe
OFF position(Figure1)andplugpowercord into groundedpower outlet orgrounded
adapter.
4. Ifdesired,attachtheL BrackettotheCompressedAirOutletasshowninFigure1 to
enabletheuseofa humidifierbottle.TheL Bracketislocatedinsidetheremovable
protectivecoverofthecompressor.
5. Becertain that allconnectionsto outlet (i.e.tubing,nebulizers,etc.)aresnugandnot
leakingaerosol.
6.Whenusedinconjunction with misttents,etc.,placethe unit outsideofthe tent and
positionthe unit ata levelbelowthedischargeendofthedeliverytubing.
OPERATION
1. Press thePowerOn/OffswitchtoONposition (figure 1).
2. Connecttheequipmentyouintendtouse with theSchucoIVIodelS6000compressor
andthenadjustthepressure that the unit isdeliveringbyadjustingtheregulator (figure 1)
as follows:
a. Pullregulatorknobouttounlocktheregulatorpressureadjustmentknob.
b.Turnthedialofregulatortothedesired pressure,
-clockwise toincreasepressure
-counter-clockwise todecreasepressure
c. Push theknobtowardsthe unit tolocktheregulatorpressureadjustmentknob.
d. Observethepressuregauge- repeatstepsa throughc abovetoadjustupordown
todesired output pressure.

ROUTINE MAINTENANCE
REMOVINGANDCLEANING/REPLACINGTHEFILTERS
Pull theairintake filter outfromthe front ofthe unit (figure^Xaridreplace with newone
whendirty.Donotwashit.ReplacementAirFilter Par(#S66-012^(Pack of5)
CLEANINGTHECOMPRESSOR HOUSING Q&OOO -
The compressorhousingmaybecleaned(afterthe unit isunplugged)bywipingthe
unit down with a dampclothorcleaningwipecontaininghouseholdcleaneror
disinfectant.Donotsprayordripanyliquidsdirectlyontothecompressor.
FIGURE2

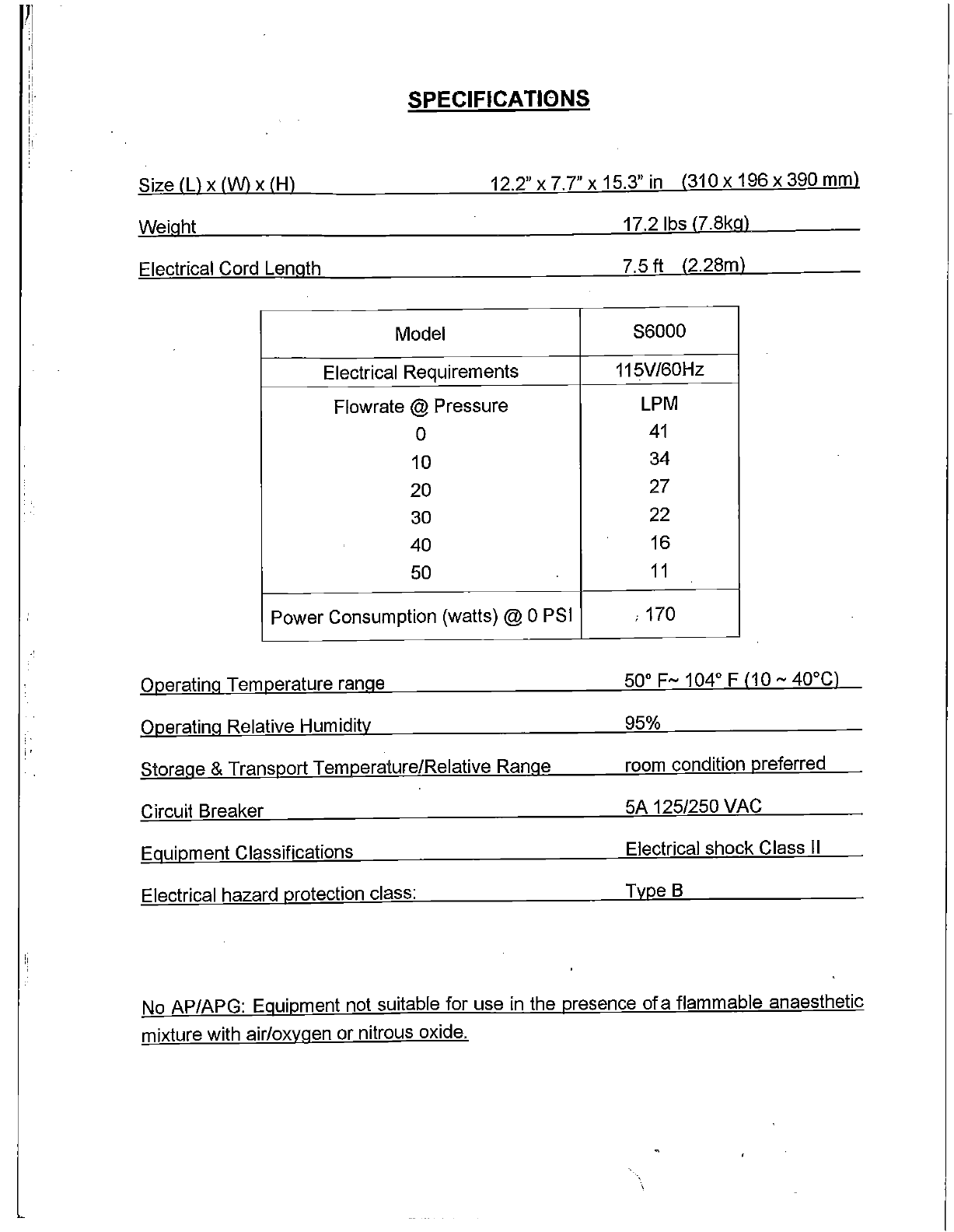

SPECIFICATIQNS
Size(Dxf\AAxfH) 12.2" x IT x 15.3'' in (310 x 196 x 390mm)
Weight 17.2 Ibs(7.8kg)
Electrical CordLength 7.5 ft (2.28m)
Model
S6000
Electrical Requirements
115V/60HZ
Flowrate@ Pressure
LPM
0 41
10 34
20 27
30 22
40 16
50 11
Power Consumption (watts) @ 0 PSI
; 170
OperatingTemperaturerange50° F-104^ F (10 - 40°C)
OperatingRelativeHumiditv 95%
Storage & TransportTemperature/RelativeRangeroomconditionpreferred
CircuitBreaker 5A 125/250VAC
Eouipment ClassificationsElectricalshock Class 11
Electrical hazardprotection class: Type B
No AP/APG: Eguipmentnotsuitableforuseinthepresenceof a flammableanaesthetic
mixture with air/oxygenornitrousoxide.

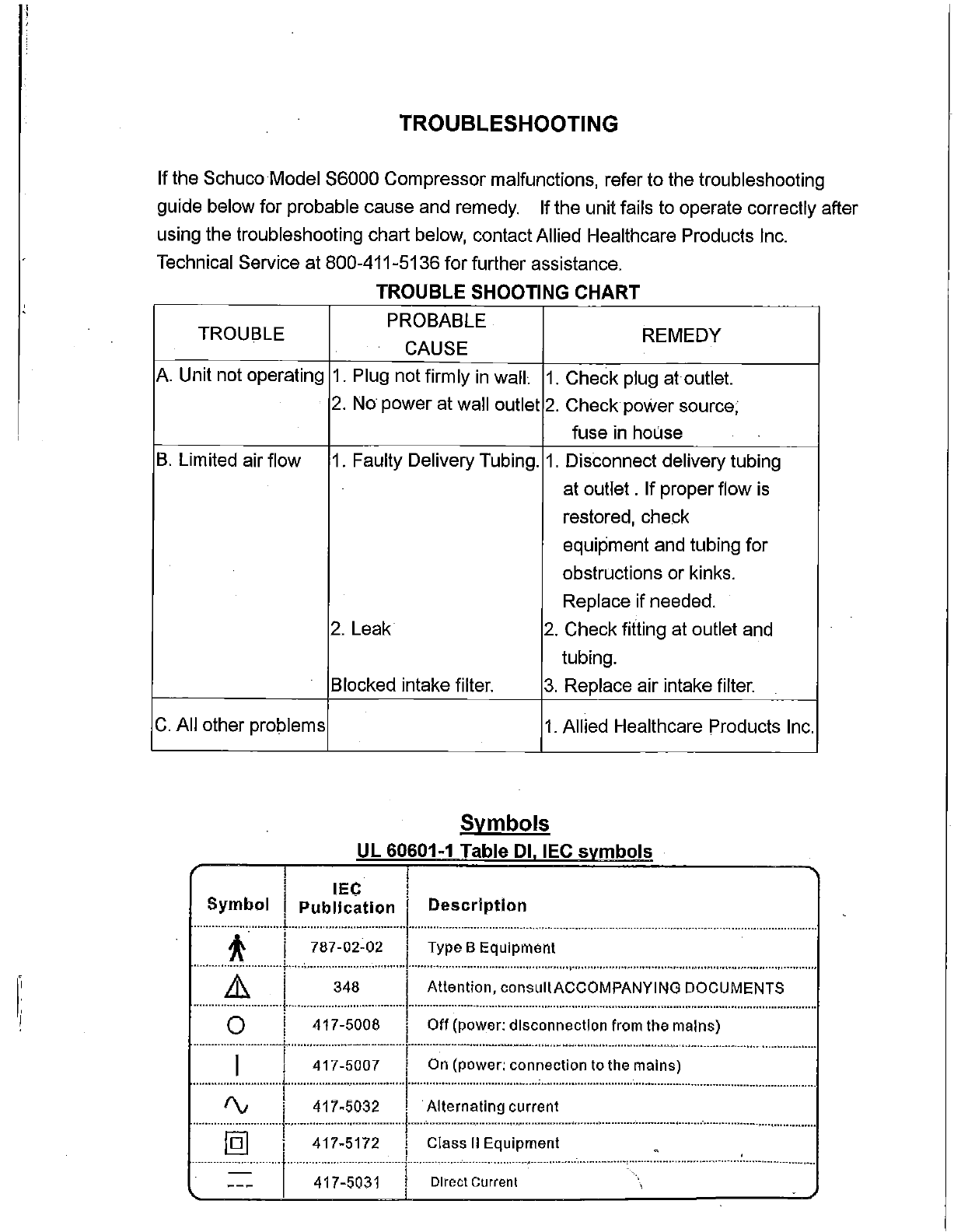

TROUBLESHOOTING
Ifthe SchucoModelS6000Compressormalfunctions, referto thetroubleshooting
guidebelowforprobablecauseandremedy.Ifthe unit failstooperatecorrectlyafter
using thetroubleshootingchartbelow,contactAlliedHealthcareProductsInc.
Technical Serviceat 800-411-5136 forfurtherassistance.
TROUBLE SHOOTINGCHART
TROUBLE
PROBABLE
CAUSE
REMEDY
A. Unitnotoperating 1.Plugnotfirmlyinwall.
2. Nopoweratwalloutlet 1.Checkplugatoutlet.
2. Check powersource,
fusein hoOse
B. Limitedairflow
1. FaultyDeliveryTubing.
2. Leak
Blocked intake filter.
1.Disconnectdeliverytubing
at outlet. Ifproperflowis
restored, check
equipmentandtubingfor
obstructionsorkinks.
Replace ifneeded.
2. Check fitting atoutletand
tubing.
3. Replaceairintake filter.
C. Allotherproblems 1.AlliedHealthcareproductsInc.
Symbols
UL 60601-1 Table Dl.IECsymbols
Symbol
IEC
Publication
Description
^ 1 787-02-02
Type B Equipment
A
348 Attention,
consullACCOMPANVING DOCUMENTS
0
417-5008
Off(power;disconnectionfromthemains)
1
417-5007 On (power;connectionto ttie mains)
417-5032 Alternatingcurrent
417-5172 Ciass H Equipmenl
417-5031 DirectCurrent

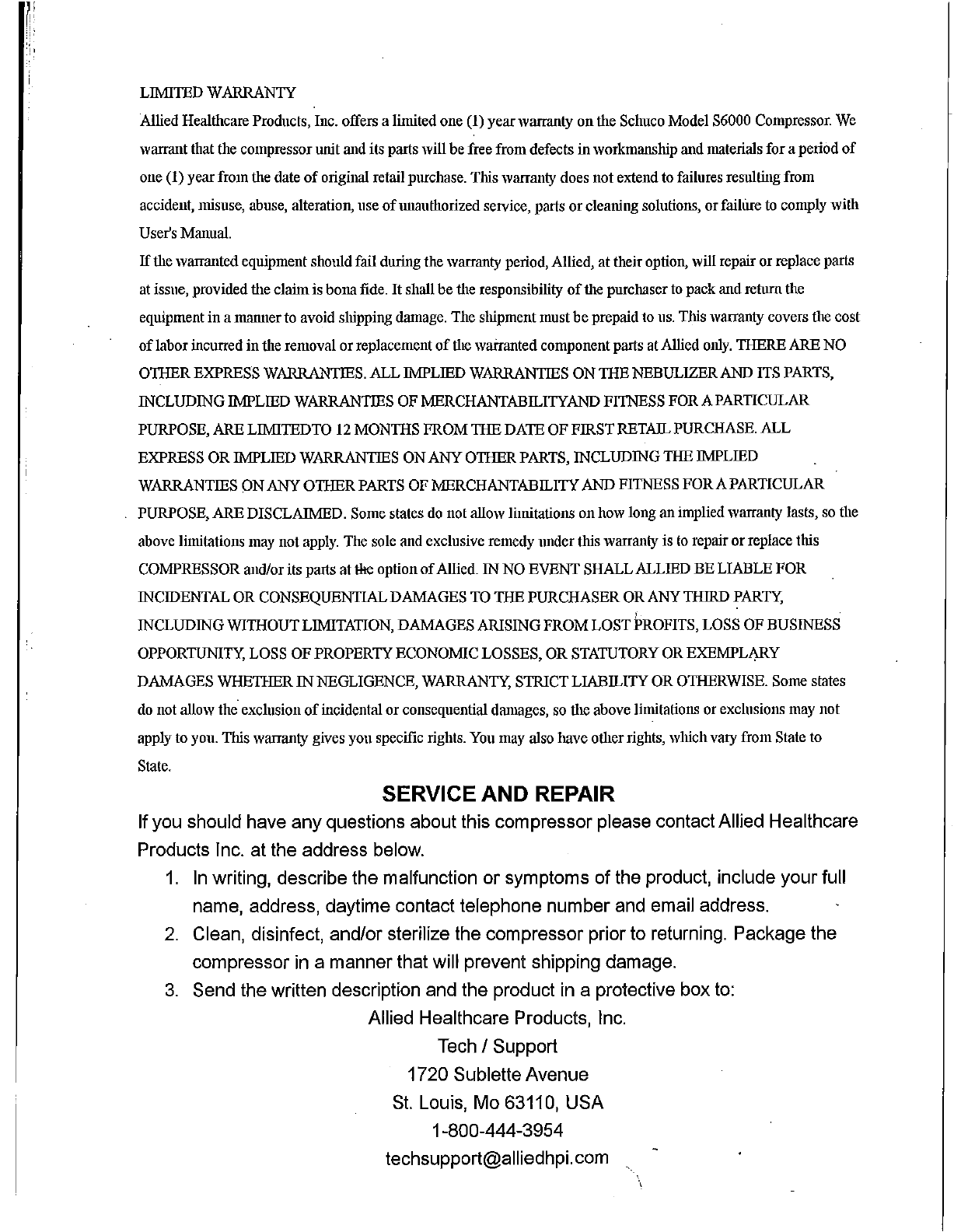

LIMITEDWARRANTY
Allied Healthcare Products, Inc.offersalimitedone(I) year warranty ontheSchuco Model S6000 Compressor. We
warrant thatthecompressor unit and itsparts will befree from defects in workmanship and materials fora period of
one(I) year from thedateof original retail pmchase. This warranty does notextendtofailures resultuig from
accident,misuse,abnse,alteration,use of miauthorized service,parts or cleaningsolutions, or failure tocomplywith
User's Manual.
If tlie warranted equipment should fail during the warranty period, Allied, at their option, will repair or replaceparts
at issue, provided tlie claun is bona fide. It shall be tlie responsibility of tlie pmchaser to pack and return the
equipmentin a mamier to avoidsliippingdamage.Thesliipmentmustbe prepaid tous. This warranty coversthe cost
of labor incurred in tlie removal or replacementof tlie warranted component parts at Allied only. TIIEREARENO
OTHER EXPRESSWARRANTIES. ALL IMPLIEDWARRANTIES ON THENEBULIZERANDITSPARTS,
INCLUDINGIMPLIEDWARRANTIESOFMERCHANTABILITYAND FITNESS FOR A PARTICULAR
PURPOSE,ARELIMITEDTO 12 MONTHS FROM THE DATE OF FIRST RETAILPURCHASE.ALL
EXPRESSORIMPLIEDWARRANTIES ON ANYOTHERPARTS,INCLUDINGTHEIMPLIED
WARRANTIES ON ANYOTHERPARTSOFMERCHANTABILITYAND FITNESS FORAPARTICULAR
PURPOSE,AREDISCLAIMED. Some states donotallowlimitationsonhowlong an implied warranty lasts, so tlie
abovelimitationsmaynot apply. The sole and exclusiveremedy under this warranty isto repair or replace this
COMPRESSOR and/or itspartsatfte option of AUied. IN NOEVENT SHALL ALLIED BELIABLEFOR
INCroENTAL ORCONSEQUENTIALDAMAGES TO THEPURCHASER OR ANYTHIRDPARTY,
INCLUDINGWITHOUTLIMITATION,DAMAGES ARISING FROM LOST i>ROFITS, LOSSOF BUSINESS
OPPORTUNITY,LOSSOFPROPERTYECONOMICLOSSES,ORSTATUTORYOR EXEMPLARY
DAMAGESWHETHERIN NEGLIGENCE, WARRANTY,STRICT LL\BILITY OROTHERWISE. Some states
donotallowtheexclusionof incidental orconsequentialdamages,so tlie abovelimitations or exchisions maynot
apply to you. This warranty gives youspecific rights. You may also haveotiier rights, wliich vary from State to
State.
SERVICEAND REPAIR
If youshouldhaveanyquestionsabout this compressorpleasecontactAlliedHealthcare
Products Inc. at theaddressbelow.
1. In writing, describethemalfunction or symptoms of theproduct,includeyour full
name,address,daytimecontacttelephonenumberandemailaddress.
2. Clean, disinfect,and/orsterilizethecompressorprior to returning.Package the
compressor ina manner that will preventshippingdamage.
3. Sendthe written descriptionand the product ina protectivebox to:
AlliedHealthcareProducts, Inc.
Tech / Support
1720SubletteAvenue
St. Louis,Mo63110,USA
1-800-444-3954
[email protected]m

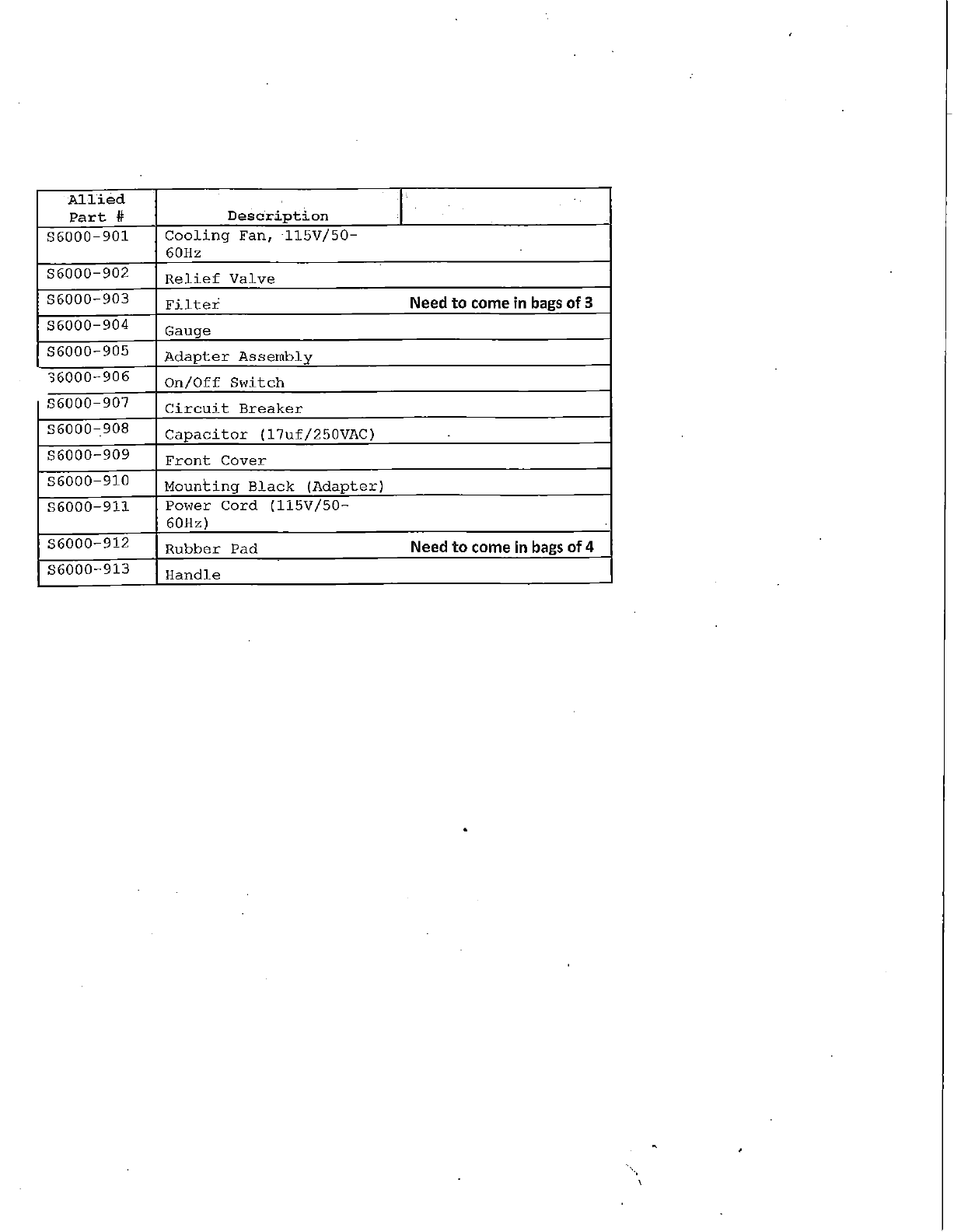

Allied
Part #
Description
S6000-901
Cooling Fan, IISV/SO-
60Hz
S6000-902
Relief Valve
S6000-903
Filter
Need tocomeinbagsof3
S6000-904
Gauge
S6000-905
Adapter Assembly
36000-906
On/Off Switch
S6000-907
circuit Breaker
S6000-908
Capacitor {17uf/250VAC)
S6000-909
Front Cover
S6000-910
Mounting Black (Adapter)
S6000-911 Power
Cord (115V/50-
60Hz)
S6000-912
Rubber Pad
Need tocomeinbagsof4
S6000-913
Handle
