Allmand Night-Lite V-Series Instruction Manual

SN 39-000001 to 39-999999
Night-Lite V-Series Parts Catalog
©2018 Allmand™
112622_B

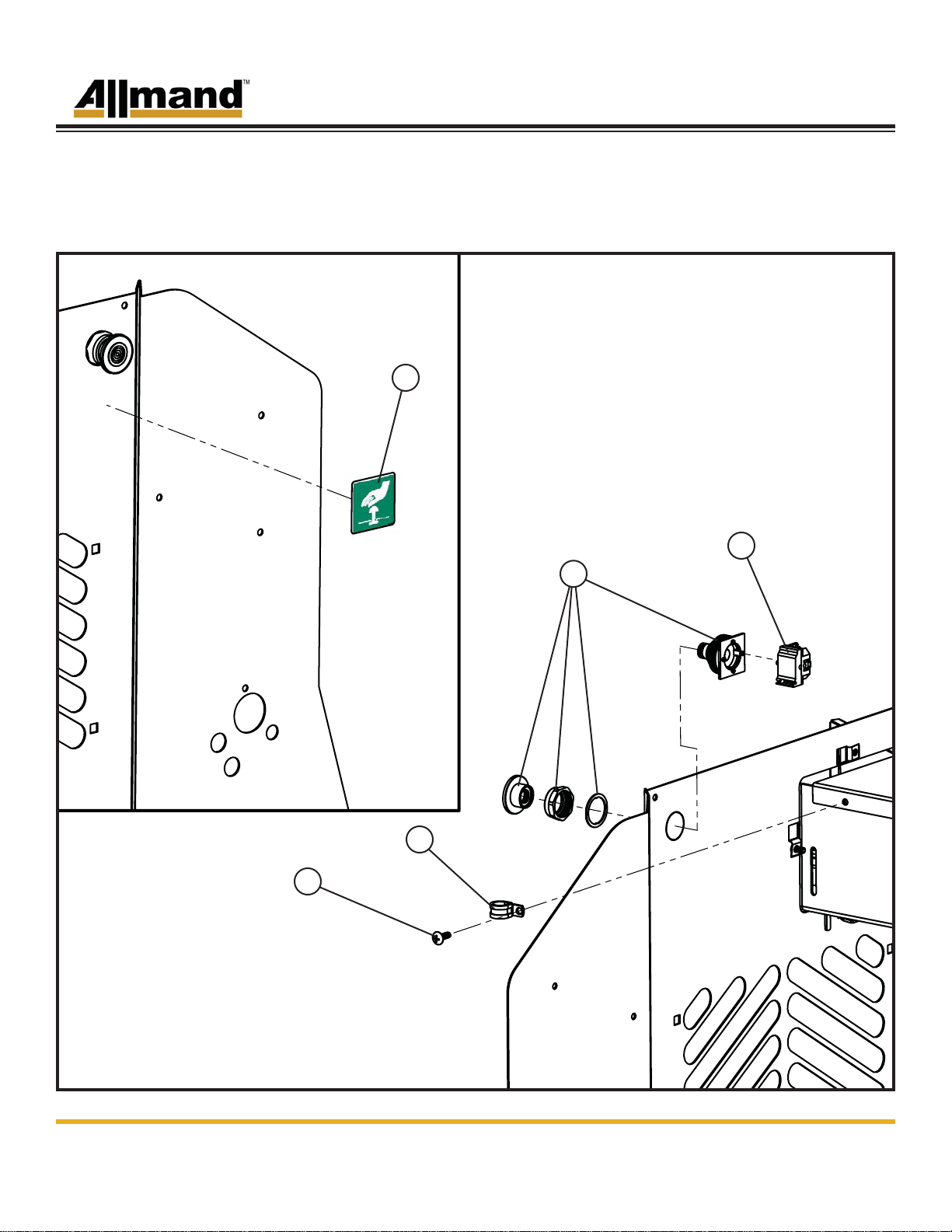

5.7 - Emergency Stop
5.7
3
2
4
5
1

Night-Lite V-Series
Night-Lite V-Series Parts Catalog
©2018 Allmand™
SN 39-000001 to 39-999999
Item Part No. Part Description Qty.
1 650460 EMERGENCY STOP OPERATOR BUTTON 1
2 650461 EMERGENCY STOP CONTACT BLOCK 1
3 022021 #10 CUSH CLAMP 1
4 041050 1/4-20 x 3/4 PH-TRUSS HEAD MS SS MACHINE SCREW 1
5 105567 EMERGENCY STOP DECAL 1
NS 108867 EMERGENCY STOP SCHEMATIC 1
NS 105991 EMERGENCY STOP WIRE HARNESS 1
*NS - NOT SHOWN
5.7 - Emergency Stop
5.7

SN 39-000001 to 39-000559
Night-Lite V-Series Parts Catalog
©2018 Allmand™
110299

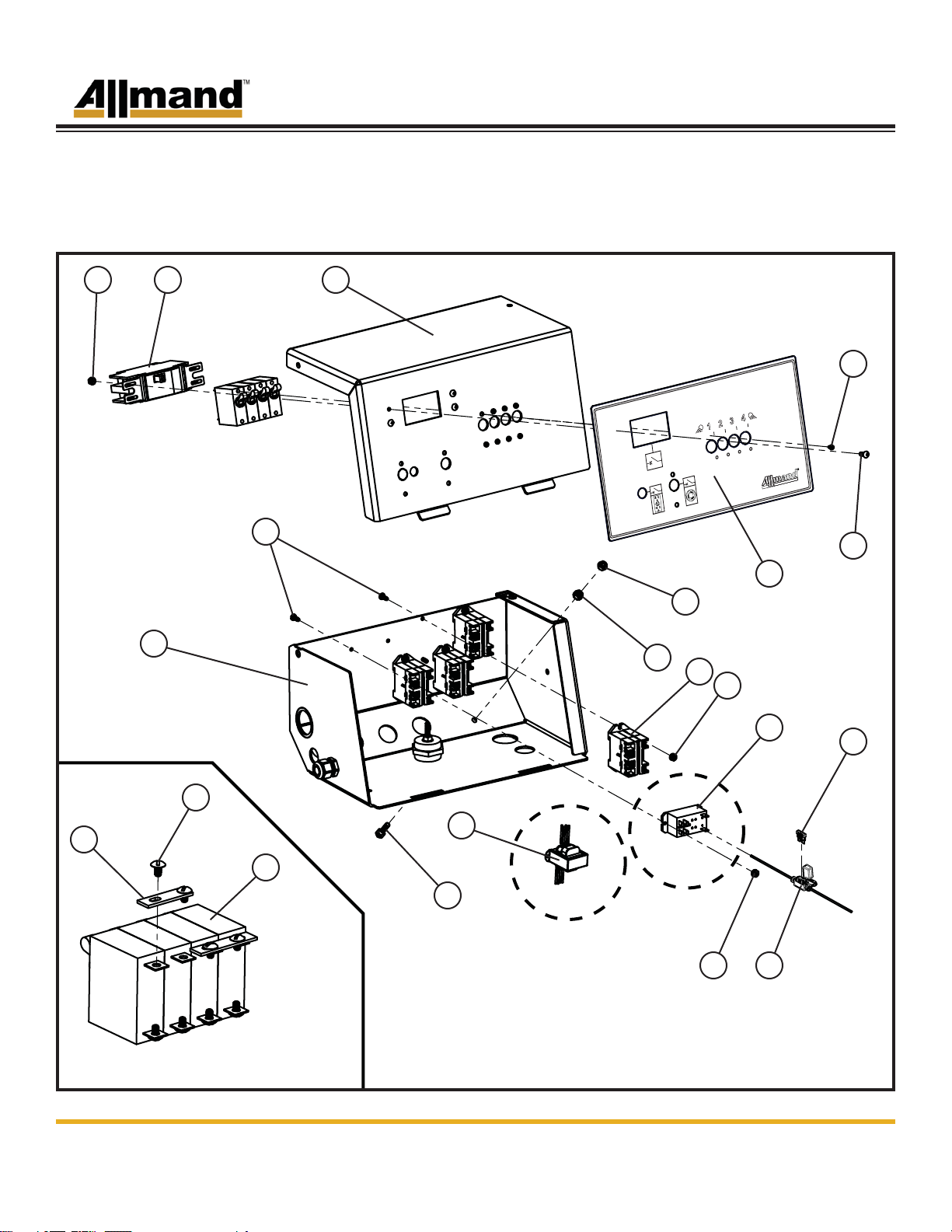

6.1 - Circuit Breaker Box (1 of 2)
6.1
15 2
3
111485_A
111489_A
111491_A
BREAKER BOX
ASSEMBLY
4
6
7
NOTE:
CIRCUIT BREAKER
INCLUDES SCREW
5
8
16
155
14
4
12
9
11
10
6
13
SLS
LSC
17

SN 39-000001 to 39-000559
Night-Lite V-Series
Night-Lite V-Series Parts Catalog
©2018 Allmand™
6.1 - Circuit Breaker Box (1 of 2)
6.1
Item Part No. Part Description Qty.
1 111431P CIRCUIT BREAKER BOX PANEL 1
2 350354 35 AMP DOUBLE POLE BREAKER 1
3 041018 #6-32 x 1/4 PH-ROUND HEAD MS PL MACHINE SCREW 8
4 041012 SCREW MS #8-32 x 1/2 PL 14
5 044003 #8-32 NC KEPS NUT 14
6 330458 15 AMP SPST BREAKER SWITCH 4
7 620560 BUSS BAR 2
8 109025 RELAY 277VAC 30 AMP 12VDC COIL 4
9 111430P CIRCUIT BREAKER BOX 1
10 044021 1/4-20 KEPS HEX NUT PL 1
11 044023 1/4-20 NYLOCK HEX NUT PL 1
12 046015 1/4-20 x 1 HEX HEAD CS GR5 PL 1
13 110299 DECAL BREAKER BOX 1
14 105219 RELAY 30 AMP 1
15 103864 FUSE HOLDER INLINE BLADE 1
16 104990 FUSE BLADE 2 AMP ATO/ATC 1
17 108057 POWER FILAMENT 266 SERIES 1
NS 112035 SCHEMATIC MAIN BREAKER TO LIGHT 1
*NS - NOT SHOWN

SN 39-000001 to 39-000559
Night-Lite V-Series Parts Catalog
©2018 Allmand™
111489_A

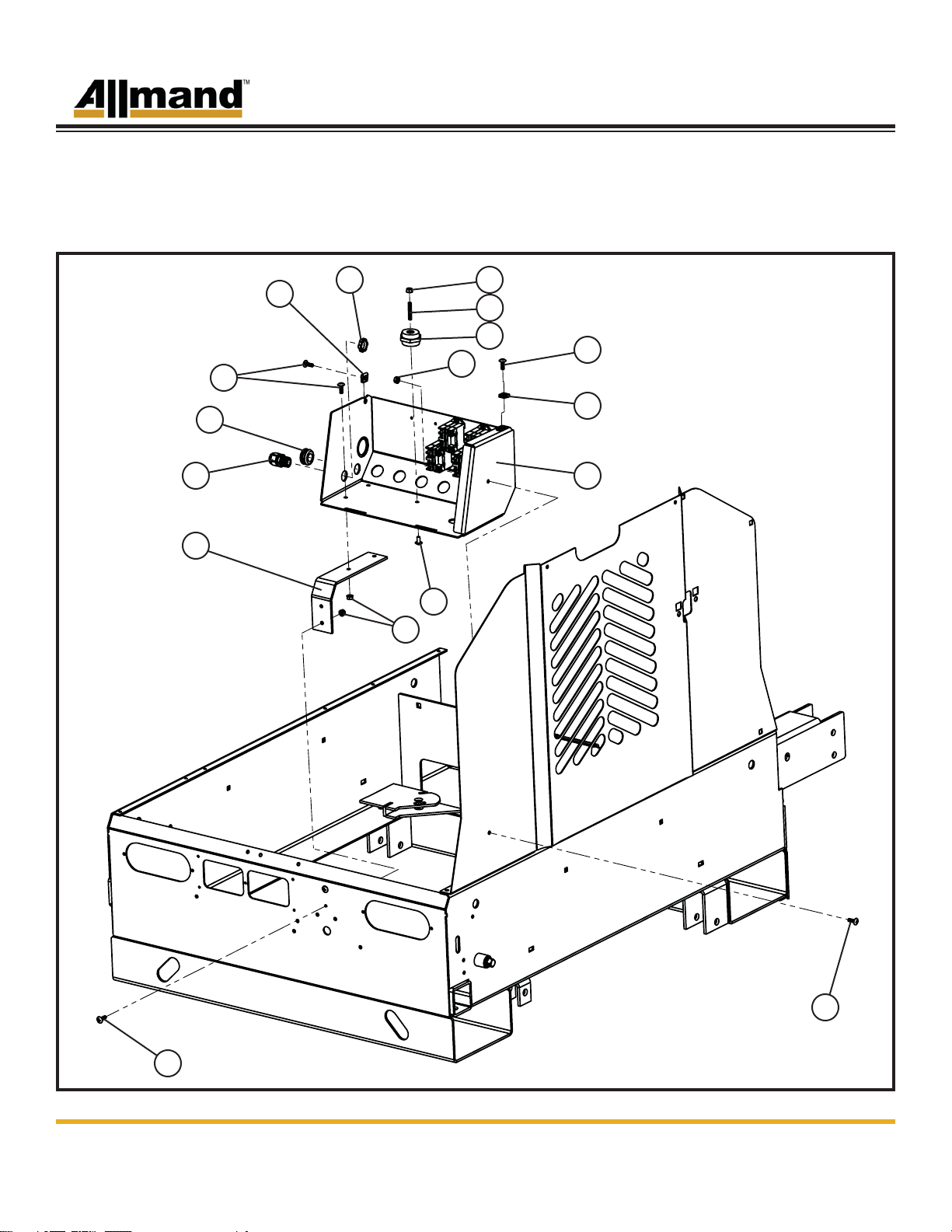

6.1 - Circuit Breaker Box (2 of 2)
6.1
1
11
9
7
211
8
3
10
9
11
4
6
9
5
8
11
BREAKER BOX
INSTALL

SN 39-000001 to 39-000559
Night-Lite V-Series
Night-Lite V-Series Parts Catalog
©2018 Allmand™
6.1 - Circuit Breaker Box (2 of 2)
6.1
Item Part No. Part Description Qty.
1 111429P CIRCUIT BREAKER BOX MOUNT 1
2 106318 LOW VOLTAGE INSULATOR 1-1/4”, 1/4-20 1
3 111430P CIRCUIT BREAKER BOX 1
4 105626 CORD GRIP 1/2” NYLON BLACK 1
5 022035 1/2 CORD GRIP NUT 1
6 330463 11/16 RUBBER GROMMET 1
7 045003 1/4-20 x 1-1/2 STUD PL 1
8 045216 1/4-20 TINNERMAN NUT 2
9 044021 1/4-20 KEPS HEX NUT PL 6
10 041078 1/4-20 x 1/2 PH-TRUSS HEAD MS SS 1
11 041050 1/4-20 x 3/4 PH-TRUSS HEAD MS SS MACHINE SCREW 7

SN 39-000001 to 39-000559
Night-Lite V-Series Parts Catalog
©2018 Allmand™
111486_A
112221_A
6.2 - 20A GFCI and 30A Twistlock Outlets Install Group
6.2
11
15
7
12
111490_A
21 7
OUTLET PANEL
COVER INSTALL
OUTLET PANEL
ASSEMBLY
BREAKER BOX
INSTALL
RECEPTACLE COVER
INSTALL
3 6
4
6
3
9 8
17
16
5
10 4
10
8
13
14
14

SN 39-000001 to 39-000559
Night-Lite V-Series
Night-Lite V-Series Parts Catalog
©2018 Allmand™
Item Part No. Part Description Qty.
1 653102 4-PRONG 30A 125-250V TWISTLOCK RECEPTACLE 1
330491 3-PRONG 30A 250V TWISTLOCK RECEPTACLE 1
2 330499 20A GFCI RECEPTABLE 1
3 105916 3/4” CORD GRIP NYLON 2
4 022036 3/4” CORD GRIP NUT 2
5 111476P OUTLET PANEL 1
6 105627 1” CORD GRIP NYLON 2
7 022038 1” CORD GRIP NUT 2
8 650138 CIRCUIT BREAKER 20A PUSH BUTTON 1
9 330456 30A DPST CIRCUIT BREAKER 1
10 041259 #6-32 x 1/2 PH-FLAT HEAD MS PL 4
11 044004 #6-32 KEPS HEX NUT PL 4
12 041021 #10-24 x 1/2 PH-ROUND HEAD MS PL 4
13 041018 #6-32 x 1/4 PH-ROUND HEAD MS PL 2
14 112278 HORIZONTAL WEATHERPROOF COVER 2
15 111477P OUTLET PANEL COVER 1
16 041050 1/4-20 x 3/4 PH-TRUSS HEAD MS SS MACHINE SCREW 3
17 044021 1/4-20 KEPS HEX NUT PL 3
NS 112037 1-GFCI, 1-30A OUTLET PANEL SCHEMATIC 1
NS 110439 CORD 10/4 240V TWISTLOCK 1
NS 110438 CORD 12/3 GFCI OUTLET 1
*NS - NOT SHOWN
6.2 - 20A GFCI and 30A Twistlock Outlets Install Group
6.2

SN 39-000001 to 39-000559
Night-Lite V-Series Parts Catalog
©2018 Allmand™
112571_A
6.3 - 30A RV Plug Adapter
6.3
3
2
4
5
1

SN 39-000001 to 39-000559
Night-Lite V-Series
Night-Lite V-Series Parts Catalog
©2018 Allmand™
Item Part No. Part Description Qty.
1 112403P RV PLUG ADAPTER TRAY 1
2 045216 1/4-20 TINNERMAN NUT 3
3 112400 RV PLUG ADAPTER 1
4 041050 1/4-20 x 3/4 PH-TRUSS HEAD MACHINE SCREW 3
5 112402 LANYARD 36 INCHES 1
6.3 - 30A RV Plug Adapter
6.3

SN 39-000560 to 39-999999
Night-Lite V-Series Parts Catalog
©2018 Allmand™
7.1 - Outlet Circuit Breaker Box Face Plate
7.1
5
4
1
112674_B
113664_A
NOTE:
CIRCUIT BREAKER
INCLUDES SCREW
3
5
2
7
6
5
8

SN 39-000560 to 39-999999
Night-Lite V-Series
Night-Lite V-Series Parts Catalog
©2018 Allmand™
7.1 - Outlet Circuit Breaker Box Face Plate
7.1
Item Part No. Part Description Qty.
1 350354 35 AMP DOUBLE POLE BREAKER 1
650534 25 AMP 120/240V DPST MAIN BREAKER 1
2 041018 #6-32 x 1/4 PH-ROUND HEAD MS PL MACHINE SCREW 8
3 041012 SCREW MS #8-32 x 1/2 PL 4
4 044003 #8-32 NC KEPS NUT 4
5 330458 15 AMP SPST BREAKER SWITCH 4
6 620560 BUSS BAR 2
7 112677P OUTLET CIRCUIT BREAKER BOX FACE PLATE 1
8 113180 OUTLET CIRCUIT BREAKER BOX SCHUKO DECAL 1
113492 OUTLET CIRCUIT BREAKER BOX 2-GFCI DECAL 1
113179 OUTLET CIRCUIT BREAKER BOX DECAL 1
NS 112035 SCHEMATIC MAIN BREAKER TO LIGHT 1
*NS - NOT SHOWN

SN 39-000560 to 39-999999
Night-Lite V-Series Parts Catalog
©2018 Allmand™
7.2 - Outlet Circuit Breaker Box Group (1 of 2)
7.2
1
58
113742_A
112675_A
BREAKER BOX
MOUNT INSTALL
7
8
5
6
6
4
7
8
4
8
7
5
5
73
BREAKER BOX
COVER AND FACE
PLATE INSTALL
2

SN 39-000560 to 39-999999
Night-Lite V-Series
Night-Lite V-Series Parts Catalog
©2018 Allmand™
7.2 - Outlet Circuit Breaker Box Group (1 of 2)
7.2
Item Part No. Part Description Qty.
1 113230P MOUNT OUTLET CIRCUIT BREAKER BOX 1
2 112678P COVER OUTLET CIRCUIT BREAKER BOX 1
3 112676P OUTLET CIRCUIT BREAKER BOX 1
4 045216 1/4-20 TINNERMAN NUT 3
5 044021 1/4-20 KEPS HEX NUT PL 7
6 041050 1/4-20 x 3/4 PH-TRUSS HEAD MS SS MACHINE SCREW 3
7 047009 1/4 FLAT WASHER 7
8 046010 1/4-20 x 3/4 HEX HEAD 7
*NS - NOT SHOWN

SN 39-000560 to 39-999999
Night-Lite V-Series Parts Catalog
©2018 Allmand™
7.2 - Outlet Circuit Breaker Box Group (2 of 2)
7.2
7
14
5
11
OUTLET BREAKER
BOX INTERIOR
ASSEMBLY
10
12
10
9
8
17
18
12
17
20
2
6
16
19
1
SLSLSC 15
13
133
4
113742_A
112675_A
LED
LIGHTING
TERMINAL

SN 39-000560 to 39-999999
Night-Lite V-Series
Night-Lite V-Series Parts Catalog
©2018 Allmand™
7.2 - Outlet Circuit Breaker Box Group (2 of 2)
7.2
Item Part No. Part Description Qty.
1 106318 /2:92/7$*(,168/$725´ 1
2 106732 SCREW TERMINAL BLOCK 8 GANG 1
3 109025 RELAY 277VAC 30 AMP 12VDC COIL 4
4 114184P OUTLET CIRCUIT BREAKER BOX 1
5 105626 CORD GRIP 1/2” NYLON BLACK 1
6 022035 1/2 CORD GRIP NUT 1
7 114183 11/16 RUBBER GROMMET 1
8 106730 SCREW TERMINAL BLOCK 4 GANG 1
9 045003 1/4-20 x 1-1/2 STUD PL 1
10 044021 1/4-20 KEPS HEX NUT PL 2
11 044023 1/4-20 NYLOCK HEX NUT PL 1
12 041012 SCREW MS #8-32 x 1/2 PL 10
13 044003 #8-32 NC KEPS NUT 10
14 041078 1/4-20 x 1/2 PH-TRUSS HEAD MS SS 1
15 046029 1/4-20 x 1 3/4 HEX HEAD CS GR5 PL 1
16 041027 #10-24 x 3/4 PH-ROUND HEAD MACHINE SCREW 2
17 044016 #10-24 KEPS HEX NUT 4
18 041030 #10-24 x 1 PH-ROUND HEAD MACHINE SCREW 2
19 105219 RELAY 30 AMP 1
20 108057 POWER FILAMENT 266 SERIES 1
NS 113288 LIGHT RELAY DC COIL WIRES 1
NS 112698 4 LIGHT 725 LIGHT RELAYS WIRE HARNESS 1
NS 113333 4 LIGHT 725 LIGHT RELAYS AC WIRE HARNESS 1
NS 103864 FUSE HOLDER INLINE BLADE 1
NS 104990 FUSE BLADE 2 AMPATO/ATC 1
NS 112035 SCHEMATIC MAIN BREAKER TO LIGHT 1
*NS - NOT SHOWN

SN 39-000560 to 39-999999
Night-Lite V-Series Parts Catalog
©2018 Allmand™
7.3 - 30A Twistlock, 30A RV, 20A GFCI Outlets Group
7.3
3
1
113197_A
113195_A
CIRCUIT BREAKER
INSTALLS
2
4
6
12
5
12
9
2
10
11
7
OUTLET INSTALLS
8

SN 39-000560 to 39-999999
Night-Lite V-Series
Night-Lite V-Series Parts Catalog
©2018 Allmand™
7.3 - 30A Twistlock, 30A RV, 20A GFCI Outlets Group
7.3
Item Part No. Part Description Qty.
1 330472 30A SPST CIRCUIT BREAKER 1
2 650138 20A PUSH BUTTON CIRCUIT BREAKER 1
3 330456 30A DPST CIRCUIT BREAKER 1
4 330499 20A GFCI RECEPTABLE 1
5 653102 4-PRONG 30A 125-250V TWISTLOCK RECEPTACLE 1
330491 3-PRONG 30A 250V TWISTLOCK RECEPTACLE 1
6680815 125V 30A RV OUTLET 1
7 113241 VERTICAL WEATHERPROOF RV OUTLET COVER 1
8 112278 HORIZONTAL WEATHERPROOF COVER 1
9 113839 VERTICAL WEATHERPROOF OUTLET COVER 1
10 113179 OUTLET CIRCUIT BREAKER BOX DECAL 1
11 044004 #6-32 KEPS HEX NUT PL 4
12 041018 #6-32 x 1/4 PH-ROUND HEAD MS PL 2
NS 113472 SCHEMATIC OUTLET 1-GFCI, 1-30A RV, 1-30A 3-TWISTLOCK NLV 1
NS 113473 SCHEMATIC OUTLET 1-GFCI, 1-30A RV, 1-30A 4-TWISTLOCK NLV 1
*NS - NOT SHOWN

SN 39-000560 to 39-999999
Night-Lite V-Series Parts Catalog
©2018 Allmand™
7.4 - 2-20A GFCI Outlets Group
7.4
113489_A
CIRCUIT BREAKER
INSTALLS
1
7
2
1
3
4
6
OUTLET INSTALLS
5

SN 39-000560 to 39-999999
Night-Lite V-Series
Night-Lite V-Series Parts Catalog
©2018 Allmand™
7.4 - 2-20A GFCI Outlets Group
7.4
Item Part No. Part Description Qty.
1 650138 20A PUSH BUTTON CIRCUIT BREAKER 2
2 330499 20A GFCI RECEPTABLE 2
3 113492 OUTLET CIRCUIT BREAKER BOX 2-GFCI DECAL 1
4 044004 #6-32 KEPS HEX NUT PL 6
5 100029 #6-32 x 1/2 PH-ROUND HEAD MS PL 2
6 113839 VERTICAL WEATHERPROOF OUTLET COVER 2
7 112680P OUTLET HOLE COVER PLATE 1
NS 113860 SCHEMATIC OUTLET 2-GFCI NLV 1
*NS - NOT SHOWN
