Operator’s Manual
APE7210
Model
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE. FAILURE TO COMPLY WITH
THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
Diagrams within this manual may not be drawn proportionally. Due to continuing improvements,
actual product may differ slightly from the product described herein.
418cc
Diesel Engine

To correctly operate your engine please read this for your own safety,
Be sure to read this manual carefully to prevent accidents.
PREFACE:
• This manual guides you on how to operate the air-cooled diesel engine correctly.
Be sure to read this manual before operating to keep your engine in the best working condition.
• This manual should be considered as the permanent part of the engine for easy check ups.
• Should you loose this manual, please make an order from your service center. If you there is
anything unclear about this manual, please contact your servece center. This air-cooled diesel engine will
meet your requirement if you operate it according to the manual instructions.
Indicates that serious personal injury even death will result if the instructions
are not followed.
Indicates that serious personal injury even death will result if the instructions
are not followed.
Indicates that serious personal injury or equipment damage will result if the
instructions are not followed.
Indicates that you must give special attention while operating the engine.
1
DANGER
WARNING
CAUTION
OPERATING NOTICE
(To operate the engine safely, please follow these items strictly)
To prevent fire, please pay attention to the following items:
• If the gasoline is filled into the engine, fire can result, so identify the fuel type
and model before refilling.
• Be sure to stop the engine before refilling.
• Wipe off excess fuel/oil.
• Keep the engine far away from flammable materials.
Be careful when using a battery:
• The battery will exhaust hydrogen while charging, charge the battery in a
well ventilated place. Flames and sparks are not allowed while charging.
• The electrolyte is heavy acid solution, be sure not to contact it with any
part of yout body, otherwise rinse with water immediately.
The exhaust is poisonous, pay attention to the following:
• The exhaust is harmful to the health, do not run the engine in confined rooms
or unventilated places. Do not run the engine indoors!
Be carefull with moving parts:
• Do not touch moving parts while the engine is running at any time.
Be carefull with hot parts:
• The muffler and the engine body will be very hot during running or just after
running, do not touch these parts.
Other safety information:
• Do not operate the engine after drinking.
• Be sure that the surroundings are safe before starting the engine.
• Wear appropriate clothing.
SAFETY INFORMATION
2
DANGER
DANGER
WARNING
WARNING
CAUTION
WARNING

1. ENGINE SPECIFICATIONS
3
Model
,
de
l
o
oc
-
r
i
a
,
l
a
t
n
oz
i
r
o
h
,
e
k
o
r
t
s
-
4
,r
ed
nil
yc
-
el
gn
i
S
ep
y
T
Combustion System
Bore x Stroke (Mm) 1-70x55(70x57)
Piston Displacement (L)
Rated Power
Output Shaft
Fuel Oil
Lubricating
r
e
tra
t
S
li
oce
Rm
e
t
sy
S
g
n
i
tra
tS
Cooling System
• The Specifications May Vary Due To The Development Of The Product.
• The Figures Included In This Book Maybe Have Little Differences With The Physical Products.
Forced Air-cooled
System.
Lubricating Method Pressure Plus Splashing
Applicable Lube Oil SAE 15W-40 Semi Synthetic Oil
Lube Oil
Capacity Effective (L)
Full(L) 0.75 1.1 1.65
0.25 0.4 0.6
Rated Speed (Rpm)
Rotation Direction
Spray Pressure Kgf/cm2(Mpa) 200(19.6)
Applicable Fuel Oil
Fuel Tank Capacity (L)
Light Diesel
counter-clockwise Viewed From The Output Shaft
3600/1800
Max. kw
Continue.kw
3(3.1) 4.3(4.4) 6.4(6.6)
2.7(2.8) 3.9(4) 6.1(6.3)
2.5 3.5 5.5
0.211(0.219) 0.296(0.305) 0.406(0.418)
1-78x62(78x64) 1-86x70(86x72)
Direct Injection Combustion
Direct-injection Diesel Engine
Jd170f(Fa) Jd178f(Fa) APE7210(Jd186fFa)
Jd170fs(Fas) Jd178fs(Fas) Jd186fs(Fas)
This labels guide you on how to operate the engine safely. If the label comes off or becomes hard to read,
contact your service cenetr at 888-896-6881 for replacement.
• TOO much shock during the running of the engine will damage the engine and the load, be sure to
set the engine tightly.
1. Fixing the engine base. Seat the engine tightly to prevent the engine from off-setting and shock.
2. Be sure the PTO shaft centers are in line.
• Caution do not set the pulley too tight or damage to the engine may occur. Use correct pulley size.
3. If the pulley drives the engine. The pulley size must be in conformance will the load speed.
The diameter of the pulley can be calculated by the following format:
Load side pulley x load speed
Engine side pulley= _________________________
Engine speed(rated speed)

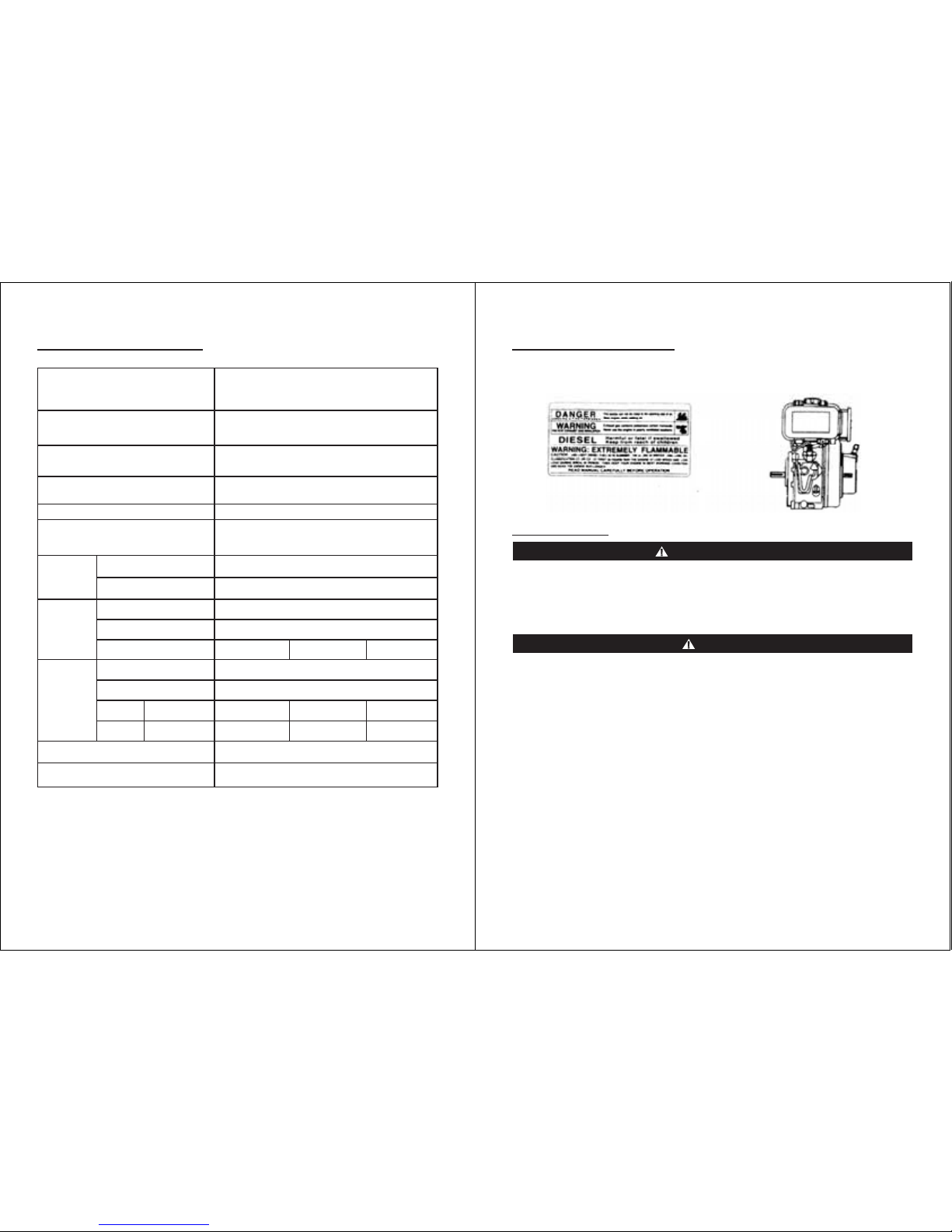

2.SAFETY LABEL LOCATION
3. ASSEMBLING
4
OPERATING NOTICE
CAUTION
4. Make sure that the bearing hole of the pulley, key way size are in conformance with the PTO shaft.
Otherwise damage may occur. Correctly tighten the PTO shaft bolt. Reselect the appropriate
diameter pulley, if the exhaust shoots out black smoke.
5. Be sure the pulley tension is appropriate. If the belt is to tight, hard starting will result.
The belt will wear quickly and will cause damage to the PTO shaft.
Torsion of the pulley: Press the central part of the pulley surface. Every 100mm of the pulley,
deflection is about 1.6mm.(for example: the clearance of the pulley is 500mm, the deflection will
)
.
m
m
8
e
b

6. Specified V-belt quantity:
If you have any question about the assembling of
Model Belt Model x Quantity
JD170F(A)
JD178F(A)
JD186F(A)
A type x 2
B type x 3
B type x 3
the engine and the connection to the load, contact
service center.
The first 20hrs are the break-in period of the engine, the operator must obey to following items:
• Warm up the engine 5 minutes after the initial starting.
Run the engine at low speed and zero load before the engine becomes warm. Do not run the engine
at high speed and zero load.
• Do not run the engine with overload.
Run the engine at 3000r/m with 50% load in break –period.
• Replace the engine oil on time.
Replace the engine oil while the engine is warm after
20-hours-running it, drain the old oil
completely. (Please see 8.1 Replacing the Engine oil)
4-1 Selection and usage of the fuel and oil
1. Selection and usage of the fuel and oil. Please use light
diesel most applicable for the performance of the engine.
5
4. ENGINE USAGE
2. Diesel usage:
• If diesel is mixed with water abnormal running will result. Seal the diesel in clean
• If diesel has been stored for several hours,water and dirt deposits at the bottom of the drum.
drums and store the drums in a dry place away from rain and dust.
You can pump the upper portion of the diesel for usage.
3. Refueling the diesel
• It is very dangerous to fill gasoline into a diesel engine. Identify the fuel oil type and
model before refueling
• Stop the engine before refueling
• Wipe off excess diesel.
DANGER

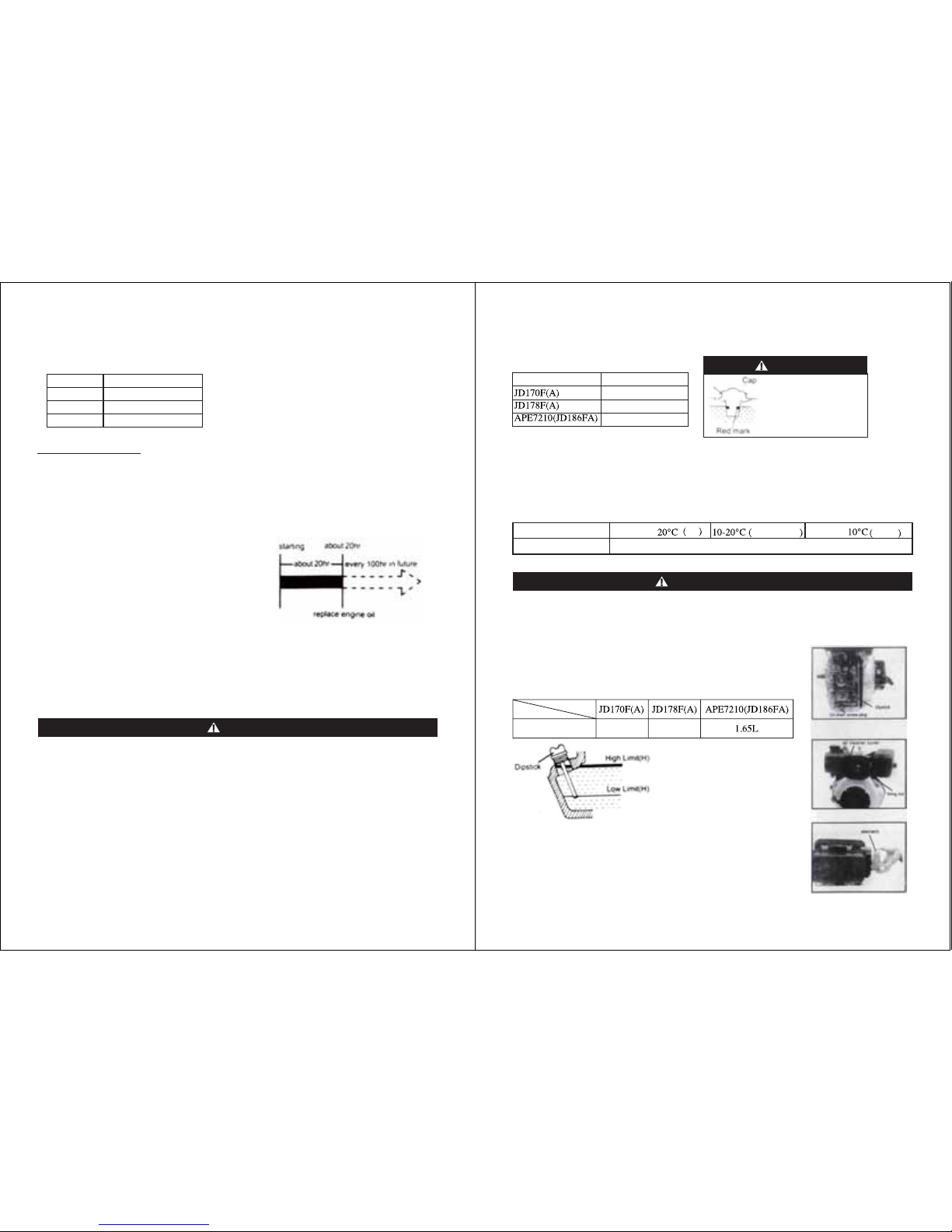

4-2 Selection and Usage of engine oil
4-3 Replace the air cleaner
1. Selection of engine oil
2. Check and Refill the Engine Oil
It is very important to select the appropriate engine oil, if you use the improper diesel the piston
rings will adhere together. The piston will burn out, and the cylinder head gasket will wear out
quickly as well as bearings and other moving parts. The engine life will be shortened.
We recomend CC/CD oil classified by API for all four seasons.
The viscosity of the engine oil is depended on the ambient temperature.
Ambient Temperature
SAE 15W-40 Semi Synthetic Oil
• FUEL OIL CAPACITY
6
OPERATING NOTICE
Model Fuel Oil Capacity
2.5
3.5
5.5
CAUTION
• Do not let fuel level be
above Red Mark
• Check the engine oil level with the engine on a level surface and the engine stopped.
• Check the engine oil level before tightening the filler cap.
A. Be sure to check the engine oil level before starting the engine.
• Check whether the engine oil level is between the upper level and the lower level.
• Wipe off any excess engine oil.
• Screw one the oil filler cap after checking.
B. The engine oil level can not beyond the upper level
C. The following is the engine oil capacity table:
Engine Oil capacity 0.75L 1.10L
1. Screw off the wing nut and remove the air cleaner cover. If the output
power of the engine is not sufficient, the exhaust color will be abnormal,
then it is necessary to replace the element.
2 Re-assemble the air cleaner and screw on the wing nut after replacement.

4-4 Exhaust Direction
To prevent the exhaust from flowing into the air cleaner
assemble an exhaust siphon on the case of the muffler
• Prevent the water from accumulating in the
exhaust syphon from flowing into the muffler

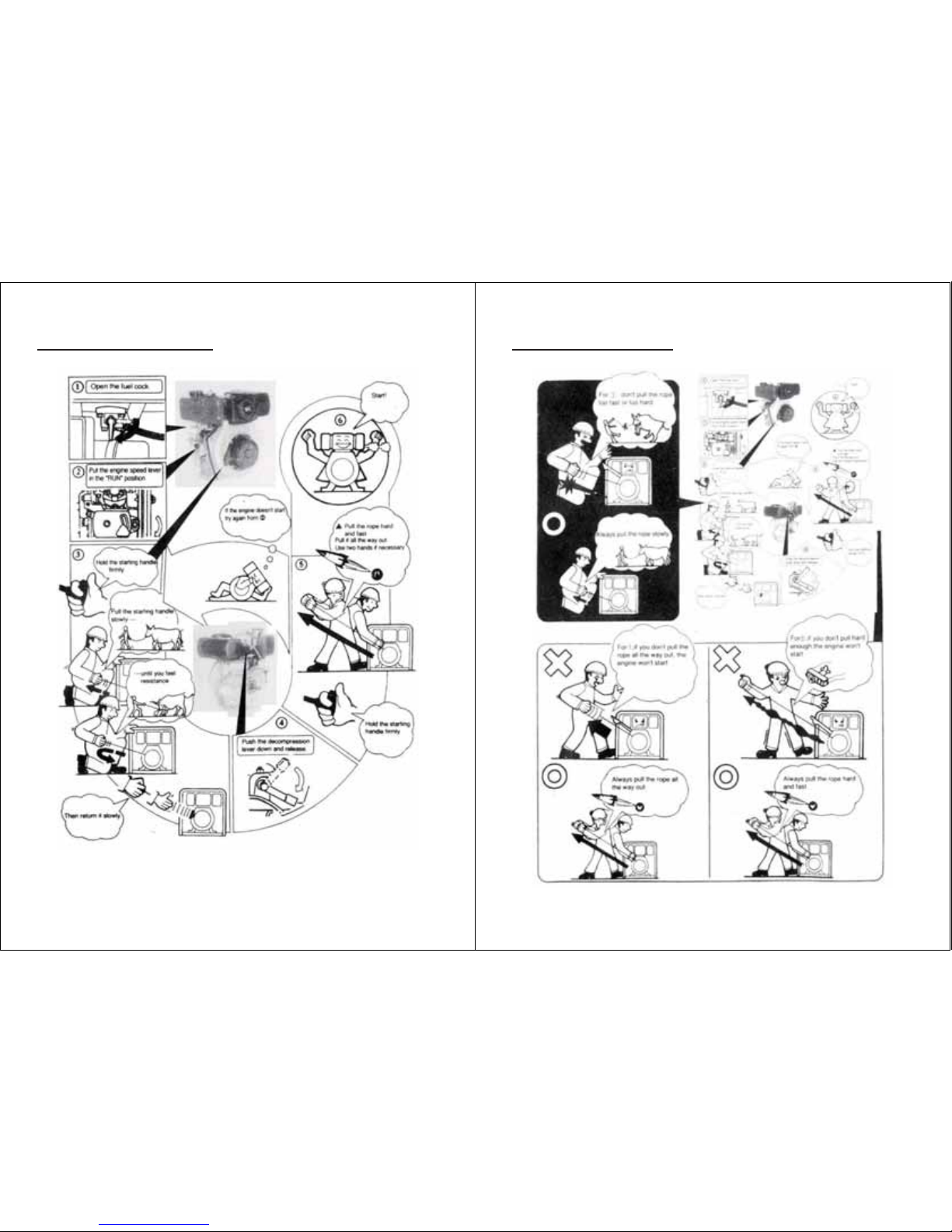

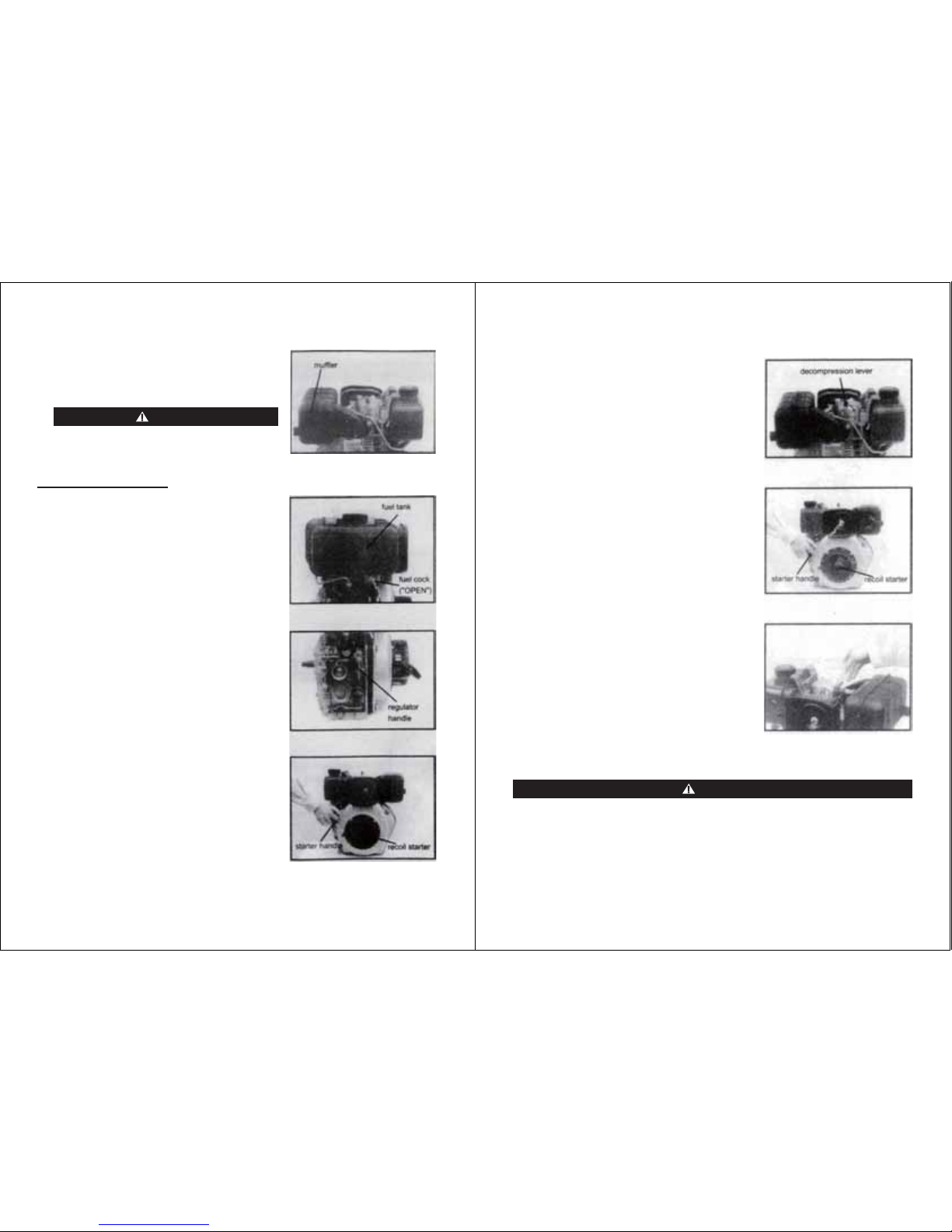

5-1 Manual starting:
• Start the engine according to the following Procedures:

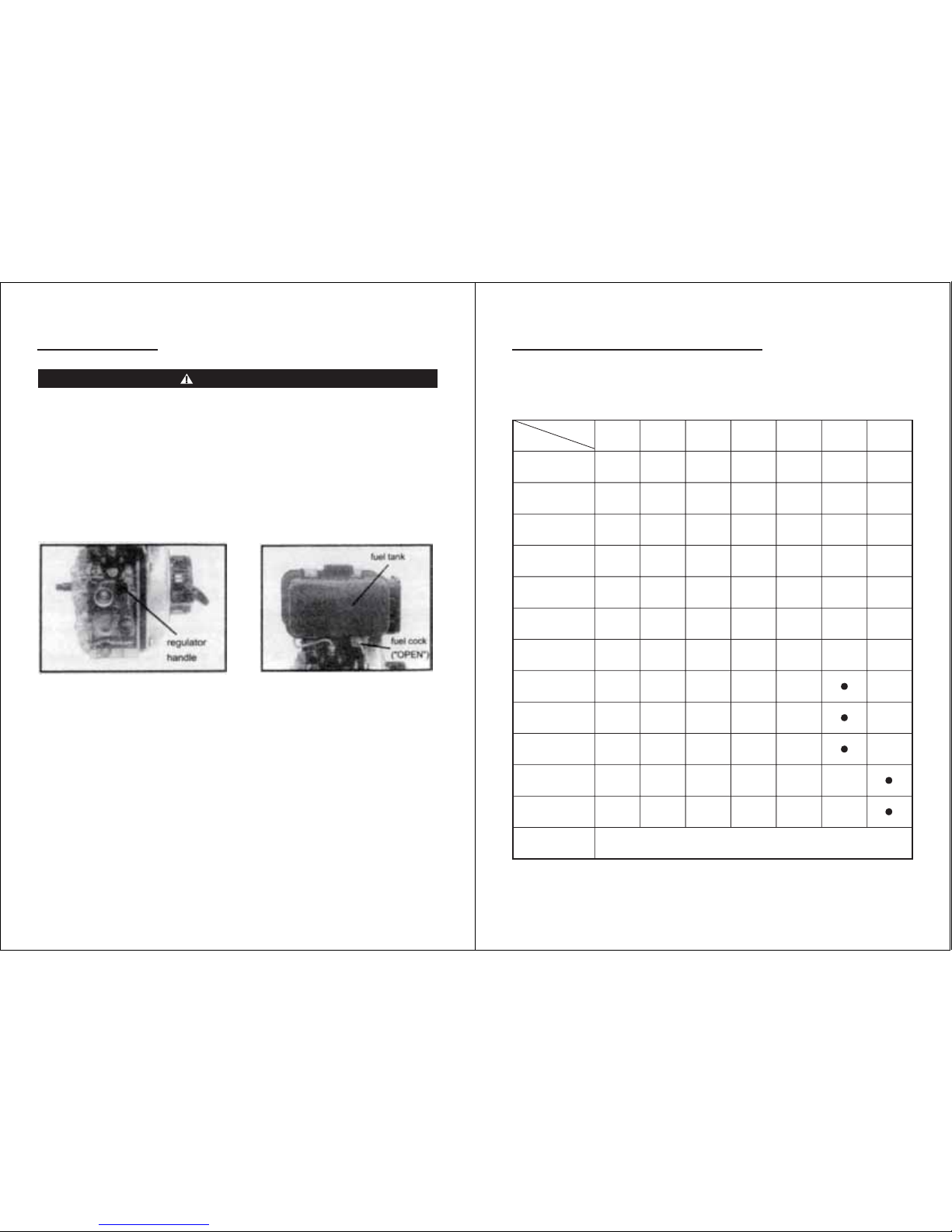

1. Open the fuel cock
2. Turn the governor lever to” STARTING” position
3. Hold the recoil starter handle
A. Pull the starter handle until you feel the resistance,
Then return the handle slowly.
5. STARTING THE ENGINE
7
NOTE

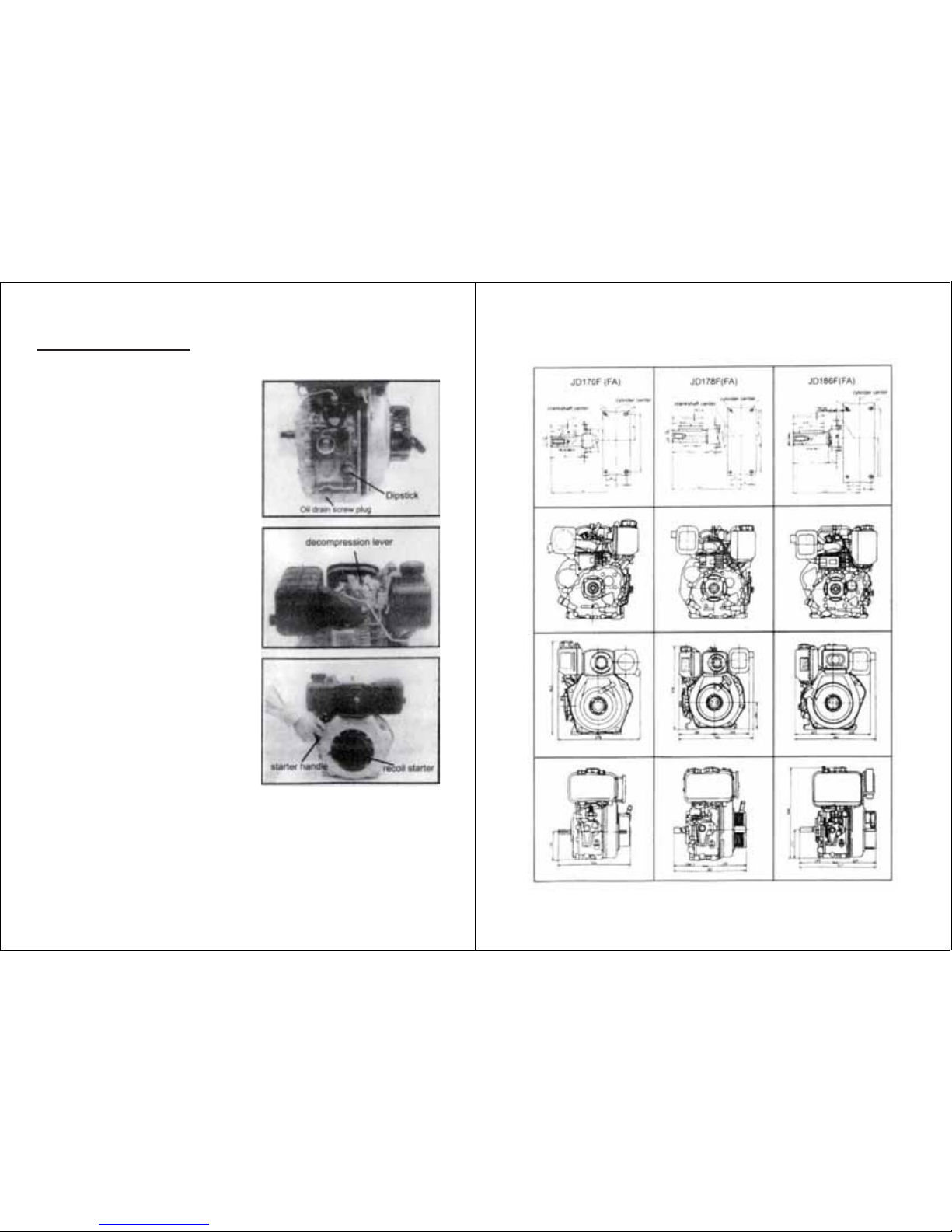

B. Press the decompression lever to “Non-compression”
position. The lever will return back automatically after the
engine started
C. Hold the recoil starter handle with two hands and
pull it swiftly
D. It is difficult to start the engine in cold weather. Remove the
rubber plug on the cylinder head and fill with 2 CCʼs of
engine oil before starting.
• Always screw on the rubber plug on the cylinder head except when filling, to prevent
the rain and dust from flowing into the engine body.
8
NOTE

STARTING THE DIESEL ENGINE
9
STARTING THE DIESEL ENGINE
10

5-2 Electric starting
1. Starting Method: (Pre-starting check is same as that of manual starting)
A. Open the fuel cock
B. Turn the governor lever to “STARTING” position
C. Turn the electric starting key clockwise to ”STARTING”
position
D. Release the electric starting key after the engine is started.
E. If the engine will not start after the starting motor ran 10
seconds, start it again after 15 seconds.(Running the starting
motor for a long time will cause damage to the battery motor.
2. Maintenance of the battery
A. Check the battery every month.
Recommended battery size:
JD170F(A) 12V24AH-36AH
APE7210 (JD186FA) up to 36AH
5-4 Assembling the Electric Start Switch
If the electric start switch is located on the top of the cylinder head case.
Assemble it with the following parts according to the specified procedures.
11
PROCEDURES:
1. Remove the electric starting switch body from the standard
panel, then re-assemble it to the installation panel of the cylinder
head case.
2. Screw off the two bolts from the cylinder head case
3. Clip and re-assembled the panel with the long washer, then tight
it with hex bolts.
• If the wire harness touchess the muffler or the PTO shaft, it
can cause it to burn.
4. Set the ground terminal of the harness with M6 bolts.
ASSEMBLY:
12
No. Specification Quantity
1 Electric starting switch body 1
2 Electric starting switch panel 1
3 Long washer 2
4 Hexagonal bolt M6 x 70 2
OPERATING NOTICE

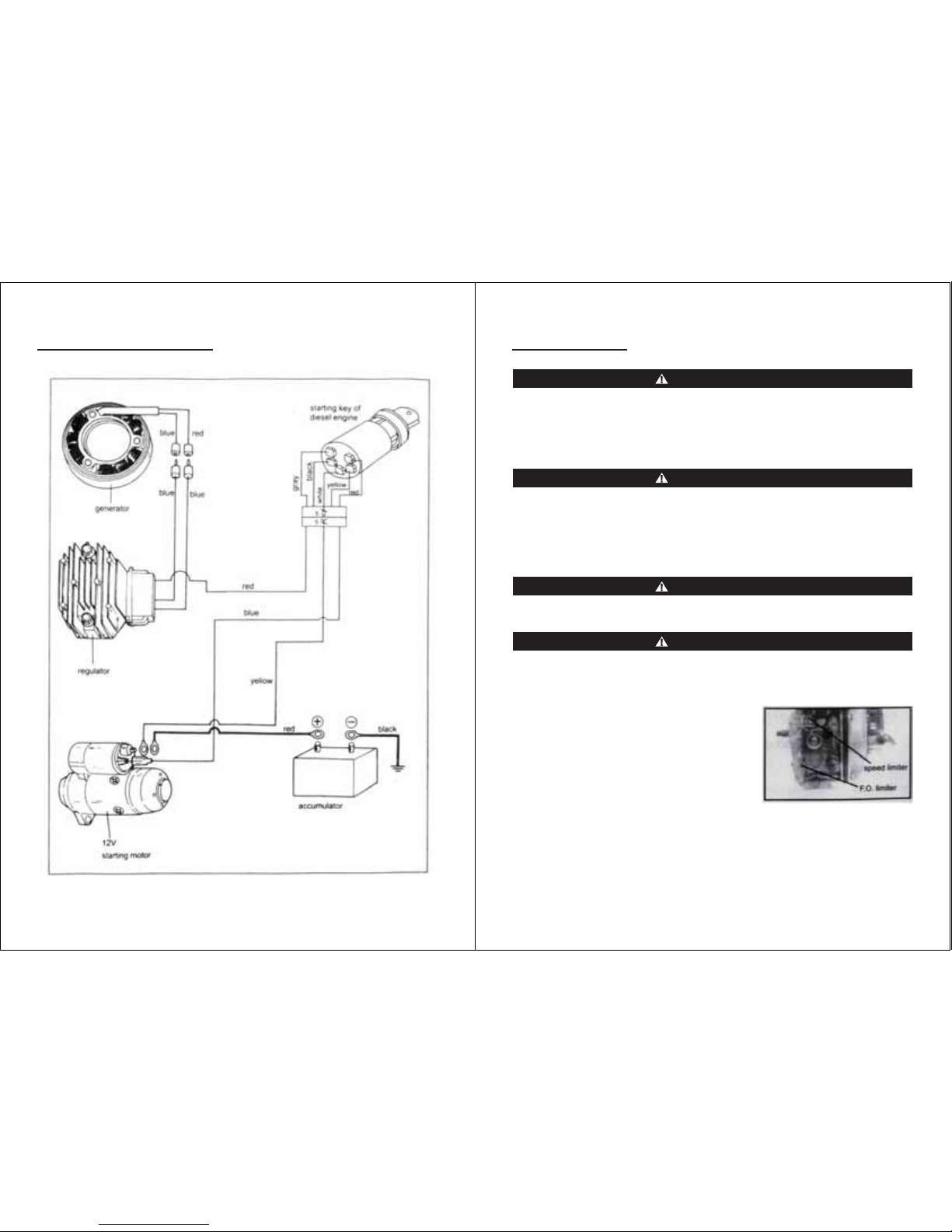

ELECTRIC WIRING DIAGRAM
13
WARNING
CAUTION
NOTE
NOTE
• To prevent from toxic exhaust, be sure to run the engine at ventilated area.
• To prevent from personal injury avoid hands, body and cloths from clinging into the output
shaft, pulley and V pulley moving parts.
• Check the moving parts and the surrounding parts after stopping the engine. Be sure that there is no
tools or clothing inside the engine body.
• The muffler is very hot during operation, do not touch the muffler.
• The air cleaner will suck the surrounding airflow during operation. To prevent injury ,avoid
hands, personal body and cloths from contact the engine.
1. Warm the engine for 5 minutes.
• Be sure to regulate the engine speed with the governor lever.
• Do not screw off adjusting bolts and fuel adjusting bolts.
3. If the engine shoots out black smoke through itʼs exhaust,
this indicates that the engine is running in an overloaded
capacity, adjust the engine pulley and the load pulley.
6. Running the Engine
14
PLEASE PAY ATTENTION TO THE FOLLOWING ITEMS WHILE RUNNING:
1. Abnormal vibration or sound. Whether the exhaust is normal.
2.The engine smoke is white or black.
3. Be sure to shut off the engine when any of these accur.

If the engine is stopped in emergency, the engine temperature will rise quickly, thus the engine life
will be shortened.
1. Set the governor lever to the low speed position, then run the engine at zero load for five minutes.
2. Set the governor lever to the “STOP” position. Do no stop the engine with the decompression lever.
3. Set the fuel cock to “OFF” position.
4. Pull the recoil starter handle slowly until you feel resistance.(At this point the decompression just
begins and intake/exhaust valves are both closed and the cylinder can be prevented from rusting.)
5. Turn the starting key to the “CLOSE” position.
PREPARE FOR THE NEXT OPERATION:
1. Fill diesel .
2. Check all the bolts and nuts.
3. Clean the dirt on the surface of the engine body.
7. STOPPING THE ENGINE
15
OPERATING NOTICE
Periodical Check and maintenance are very imortant for maintaning the performance and life of the
engine.
The following is the maintenance intervals and items table. Periodical check and maintenance table.
Intervals
Items
Check all the bolts
and nuts
O
O
O
O O
O
O O
Check all the refill
engine oil
Replace engine oil (First time) (Secondtime)
O O
(Clean) (Clean)
O
(Replace)
O
(Replace)
Clean or replace
engine oil cleaner
Check oil leakage
Replace air cleaner
Clean fuel oil
cleaner
Check nozzle
Check fuel injection
pump
Adjusttheclearanceof
theintake/exhaustvalve
Check the intake/
exhaust valve
Replace the piston
ring
Checkthe electrolyte Check it every month, refill the distilled water if necessary.
every day 20 hrs 50 hrs 100 hrs 200 hrs 500 hrs 1000 hrs
8. Periodical Check and Maintenance
16

17
1. Replace Engine Oil
Drain out the engine oil while the engine is warm and refill with recommended engine oil.
2. Clean Engine Oil Cleaner
Screw off the bolt and take out the engine oil cleaner.
s
rh0
0
1
y
r
ev
E
n
ael
C
Replace Every 1000 hrs
Ambient temperature
Replace Engine Oil Intervals
First time 20th hrs
Second time Every 100 hrs
Vicosity
SAE 15W-40 Semi Synthetic Oil
SAE 15W-40 Semi Synthetic Oil
SAE 15W-40 Semi Synthetic Oil
3. Replace the air cleaner
A. Paper element:
Replace the element every 500 hrs.
JD178F(A)/JD186F(A)(APE7210)
CAUTION
2.SAFETY LABEL LOCATION
18
• If the element is too dirty, the air flow will be blocked and starting will be hard, thus insufficient
output will result, further more, it will cost both fuel oil and engine oil, the Engine will exhaust
black smoke.
• Running engine with worn element or without element is not allowed.
B. Oil-soak Type Element
• Check the engine oil level before running the engine.
• Refill the engine oil to the upper level. Replace if it is too dirty. Clean the the element often.
4. Clean the Fuel Oil Cleaner
Remove the fuel oil cleaner from the tank and clean it often.
A. Completely drain out the fuel oil.
B. Screw off two nuts and take out the fuel oil cleaner.
5. Screw on the bolts on the cylinder head.
This operation requires special tools, please contact service center.
Clean Every 500 hrs
Replace Every 1000 hrs
6. The adjustment of fuel nozzle and fuel injection pump and the
replacement of the valve seats, parts require special technology,
please contact service center

Prepare the following items before long-term Storage:
1. Run the engine five minutes.
2. Drain out the engine oil while the engine is warm
And refill with fresh engine oil.
3. Remove the filler screw plug on the cylinder head
Case and refill with about 2cc of engine oil
4. Press down the decompression lever and pull the
Recoil starter 2-3 times (Do not start the engine)
5. Return the decompression lever back to the
decompression position, and pull the recoil starter
slowly until you feel the resistance.(At this point
both intake/exhaust valves are closed to prevent
the engine from rust)
6. Clean off the dirt on the engine surface, then store
the engine in a dry place.
9. LONG-TERM STORAGE
19
APPENDIX 1.OVERALL INSTALLATION DIMENSIONS
20

APPENDIX 2. PERFORMANCE CURVE & SIZES OF PTO FLANGES
21
APPENDIX 3. SIZE OF OUTPUT SHAFT
22

PRÉVENTION DES DOMMAGES.................................................................................................... 1
INFORMATIONS DE SÉCURITÉ ....................................................................................................
.... 1
COMPOSANT/EMPLACEMENT DE LA COMMANDE ...........................................................2
AVANT CONTRÔLE DE FONCTIONNEMENT ........................................................................ 3
EST VOTRE MOTEUR PRÊT À L'EMPLOI ................................................................................... 3
OPÉRATION..................................................................................................................... ............... 3
PRÉCAUTIONS DE SÉCURITÉ DE FONCTIONNEMENT ......................................................... 3
DÉMARRAGE DU MOTEUR ..........................................................................................................
.3
ARRÊT DU MOTEUR ...................................................................................................................
..... 4
L'ENTRETIEN DE VOTRE MOTEUR ........................................................................................ 4
L'IMPORTANCE DE LA MAINTENANCE .................................................................................... 4
SÉCURITÉ DE L'ENTRETIEN ........................................................................................................
... 5
5
MESURES DE SÉCURITÉ ...............................................................................................................
PROGRAMME DE MAINTENANCE ............................................................................................. 5
RÉAPPROVISIONNEMENT EN COMBUSTIBLE ........................................................................
................ 6
L'AJOUT DE CARBURANT ............................................................................................................................... 6
HUILE MOTEUR ....................................................................................................................
................ 6
HUILE PRÉCONISÉE ...............................................................................................................
.............. 6
CONTRÔLE DU NIVEAU D'HUILE ...........................................................................................
.................. 7
CHANGEMENT DE L'HUILE .........................................................................................................
..................... 8
FILTRE À AIR ................................................................................................................... .............. 9
TABLE DES MATIÈRES
SÉCURITÉ ........................................................................................................................................
....... 1
9VÉRIFICATION ................................................................................................................................
9BRIQUET ..........................................................................................................................................
10
CONSEILS & SUGGESTIONS ......................................................................................................
10MÉMORISATION DE VOTRE MOTEUR .......................................................................................
10
CARBURANT..........................................................................................................................
...........................
L'AJOUTDECARBURANTLESTABILISATEURÀÉTENDREDESTOCKAGEDECARBURANTLAVIE 11
VIDANGE DU RÉSERVOIR À CARBURANT ET LE CARBURATEUR.....................................11
12
HUILE MOTEUR.....................................................................................................................
.......................
12
PRÉCAUTIONS DE STOCKAGE .........................................................................................................
12
DÉPOSE DE STOCKAGE ......................................................................................................................
12
TRANSPORTER ..................................................................................................................
......................
Manuel de L'opérateur
APE7210
Modèle
ATTENTION
LIRE ET SUIVRE TOUTES LES RÈGLES DE SÉCURITÉ ET INSTRUCTIONS DE CE
D'ENTRETIENAVANT D'ESSAYER DE FAIRE FONCTIONNER CETTE MACHINE.
LE NON-RESPECT DE CES INSTRUCTIONS PEUT ENTRAÎNER DES BLESSURES.
.
Les schémas de ce manuel ne peut pas être établi proportionnellement. En raison de la persistance des
améliorations, produit réel peut différer légèrement dans le produit décrit dans le présent document.
418cc
Moteur Diesel

À faire fonctionner correctement votre moteur veuillez lire ceci pour votre propre
sécurité, veillez à lire attentivement ce manuel pour éviter les accidents.
PRÉFACE:
• Ce manuel vous guide sur la façon d'utiliser le diesel refroidi par air le moteur correctement.
Assurez-vous de lire ce manuel avant de mettre en marche pour maintenir le moteur en parfait
état de fonctionnement.
• Ce livret doit être considéré comme la partie permanente du moteur pour contrôler facilement
l'onduleur.
• Si vous perdez ce manuel, veuillez rendre une ordonnance de votre centre d'entretien. Si vous il n'y a
quoi que ce soit pas claire sur ce manuel, veuillez contacter votre centre d'entretien. Ce diesel refroidi
par air moteur répondre à vos besoins si vous faites fonctionner selon les instructions du livret
d'entretien.
Indique que des blessures graves voire la mort, si les instructions
sont pas suivie.
Indique que des blessures graves voire la mort, si les instructions
sont pas suivie.
Indique que des blessures graves ou des dommages matériels si le
Les instructions ne sont pas suivies.
Indique que vous devez accorder une attention particulière lors du
fonctionnement du moteur
1
DANGER
ATTENTION
AVERTIR
AVIS D'EXPLOITATION
(Pour faire fonctionner le moteur en toute sécurité, veuillez suivre ces éléments strictement)
Pour éviter tout risque d'incendie, veuillez faire attention aux éléments suivants :
• Si l'essence est rempli dans le moteur, le feu peut entraîner, pour identifier le type de
carburant et le modèle avant le remplissage.
• Veillez à arrêter le moteur avant de le remplir.
• Essuyer l'excès de carburant/huile.
• Maintenir le moteur loin de matériaux inflammables.
Soyez prudent lorsque vous utilisez une batterie :
• La batterie sera l'hydrogène d'échappement pendant le chargement, charger la
batterie dans un et bien ventilé. Les flammes et étincelles ne sont pas autorisés
pendant la charge
• L'électrolyte est une solution acide, veillez à ne pas toucher avec n'importe quel
Partie de yout corps, sinon rincer immédiatement avec de l'eau. .
L'échappement est toxique, prêter attention à ce qui suit :
• La ligne d'échappement est préjudiciable à la santé, ne pas faire tourner le moteur
dans un endroit fermé chambres
• Non ventilé ou lieux. Ne pas faire tourner le moteur à l'intérieur !
Soyez prudent avec les pièces mobiles :
• Ne touchez pas les pièces en mouvement pendant que le moteur est en cours
d'exécution à tout moment.
Soyez prudent avec les parties chaudes :
• Le silencieux et le moteur sera très chaud pendant la marche ou juste après
en marche, ne touchez pas ces pièces.
Autres informations relatives à la sécurité :
• Ne pas faire fonctionner le moteur après avoir consommé de l'alcool.
• Assurez-vous que les environs sont sûrs avant de démarrer le moteur.
• Portez des vêtements appropriés.
INFORMATIONS DE SÉCURITÉ
2
DANGER
DANGER
WARNING
WARNING
ATTENTION
WARNING

1. CARACTÉRISTIQUES DU MOTEUR
3
Modèle
Seul-cylinder,4-course,horizontal,refroidi par air,
injection directe du moteur diesel
Type
Système de Combustion
Alésage x Course (Mm) 1-70x55(70x57)
Déplacement du Piston (L)
Puissance Nominale Max. KW
L'arbre de
Sortie
Carburant
Huile
Système de
Lubrification
Démarrage à RappelSystème de Démarrage
système de Refroidissement
• Les spécifications peuvent varier en raison du développement du produit.
• Les chiffres inclus dans ce livre peut-être ont peu de différences avec les produits physiques.
Forcé Refroidis par Air
Méthode de Lubrification Pression Plus Aux Éclaboussures
SAE 15W-40 Huile Semi Synthétique
Huile de
Lubrification
Capacité Effective (L)
Pleine (L) 0.75 1.1 1.65
0.25 0.4 0.6
Régime Nominal (RPM)
Sens de Rotation
Spray Pressure Kgf/cm2(Mpa) 200(19.6)
Applicable D'huile Carburant
Capacité du Réservoir de
Carburant (L)
Diesel Lumière
Contre-sens horaire vu de l'arbre de sortie
3600/1800
Continue KW
3(3.1) 4.3(4.4) 6.4(6.6)
2.7(2.8) 3.9(4) 6.1(6.3)
2.5 3.5 5.5
0.211(0.219) 0.296(0.305) 0.406(0.418)
1-78x62(78x64) 1-86x70(86x72)
Injection directe de combustion
Jd170f(Fa) Jd178f(Fa) APE7210(Jd186fFa)
Jd170fs(Fas) Jd178fs(Fas) Jd186fs(Fas)
Cette étiquette vous guide sur la façon de faire fonctionner le moteur en toute sécurité. Si l'étiquette est ou
devient difficile à lire contactez votre service au coeur au 888-896-6881 pour le remplacement.
• Trop de chocs pendant la marche du moteur risque d'endommager le moteur et la charge,
assurez-vous pour définir le moteur serré.
1. Fixer la base du moteur. Siège le moteur étroitement pour éviter que le moteur de réglage et les chocs.
2. Assurez-vous que l'arbre de prise de force sont en ligne.
• Attention ne pas mettre la poulie trop serré ou l'endommagement du moteur peut se produire.
Utiliser la bonne taille de la poulie.
3. Si la poulie entraîne le moteur. La taille de la poulie doit être en conformité sera la vitesse de
chargement. The diameter of the pulley can be calculated by the following format:
Côté charge poulie x vitesse de chargement
Côté moteur la poulie=_________________________
Régime moteur (régime nominal)
2.LA SÉCURITÉ EMPLACEMENT DE L'ÉTIQUETTE
3. ASSEMBLAGE
4
AVIS D'EXPLOITATION
Attention
4. Assurez-vous que le trou de roulement de la poulie, moyen taille sont en conformité avec l'arbre
DE PRISE DE FORCE. Faute de quoi des dommages pourraient survenir. Bien serrer l'arbre DE
PRISE DE FORCE vis. Resélectionnez le cas échéant Poulie de diamètre, si les pousses
d'échappement de fumée noire.
5. Assurez-vous que la tension de la poulie est appropriée. Si la ceinture est à bien serrés, un démarrage
difficile. La courroie s'usent rapidement et provoque des dommages à l'arbre DE PRISE DE FORCE.
Torsion de la poulie : appuyez sur la partie centrale de la surface de la poulie. Toutes les 100mm
de la poulie, déflexion est environ 1,6 mm. (par exemple : l'écartement de la poulie est de 500mm,
la déflexion 8 mm)
Applicable D'huile de
Lubrification

6. Specified V-belt quantity:
Si vous avez des questions concernant le montage de
Modéle
JD170F(A)
JD178F(A)
JD186F(A)
A type x 2
B type x 3
B type x 3
Le moteur et la connexion de la charge, contact
centre de service.
La première 20h sont la période de rodage du moteur, l'opérateur doit obéir aux éléments suivants :
• Faire chauffer le moteur 5 minutes après le démarrage initial.
Faire tourner le moteur à bas régime et zéro charge avant que le moteur est chaud. Ne pas faire
tourner le moteur À haute vitesse et sans charge.
• Ne pas faire fonctionner le moteur en surcharge.
Faire tourner le moteur à 3000r/m avec 50% de charge de rupture -période.
• Replace the engine oil on time.
Remplacer l'huile moteur pendant que le moteur est chaud
après avoir 20 heures de fonctionnement, vidanger l'huile
complètement. (Veuillez voir 8.1 Remplacement de
l'huile moteur)
4-1 Sélection et l'utilisation du carburant et de l'huile
1. Sélection et l'utilisation du carburant et de l'huile. Veuillez
utiliser la lumière diesel most applicable for the performance
of the engine.
5
4. L'UTILISATION DU MOTEUR
2. Consommation de carburant Diesel :
• Si le diesel est mélangé à de l'eau fonctionnement anormal. Le joint le diesel à nettoyer
• Si diesel a été stockée pendant plusieurs heures, l'eau et les dépôts de saleté au fond du tambour.
Les fûts et stocker la batterie dans un endroit sec, à l'abri de la pluie et de la poussière.
Vous pouvez pomper sur la partie supérieure du gazole pour l'utilisation.
3. Ravitaillement en carburant de la diesel
• Il est très dangereux de remplir l'essence dans un moteur diesel. Identifier le type d'huile et
modèle avant de faire le plein
• Arrêter le moteur avant de refaire le plein
• Essuyer l'excédent de gazole.
DANGER
4-2 Sélection et l'utilisation de l'huile moteur
4-3 Replace the air cleaner
1. Sélection de l'huile moteur
2. Vérifier et le remplissage de l'huile du moteur
Il est très important de sélectionner l'huile du moteur, si vous utilisez le mauvais le diesel, le piston
joints toriques se conformera ensemble. Le piston va brûler, et le joint de culasse s'usent
rapidement, ainsi que les roulements et autres pièces en mouvement. La durée de vie du moteur
sera raccourcie. Nous vous conseillons d'huile semi synthétique pour tous les quatre saisons.
La viscosité de l'huile moteur est dépend de la température ambiante.
Température Ambiante En Haut En Haut
SAE 15W-40 Huile Semi Synthétique
• LE CARBURANT CAPACITÉ D'HUILE
6
AVIS D'EXPLOITATION
Modéle
2.5
3.5
5.5
AVERTIR
• Ne laissez pas niveau
de carburant au-dessus
repère rouge
• Vérifier le niveau d'huile moteur avec le moteur sur une surface plane et le moteur arrêté.
• Vérifier le niveau d'huile moteur avant de serrer le bouchon de remplissage.
A. Assurez-vous de vérifier le niveau d'huile moteur avant de démarrer le moteur.
• Vérifier si le niveau d'huile du moteur est entre le niveau supérieur et le niveau inférieur.
• Wipe off any excess engine oil.
• Visser le bouchon de remplissage d'huile après contrôle.
B. Le niveau de l'huile moteur peut pas au-delà du niveau supérieur
C. Ce qui suit est la capacité d'huile moteur table :
0.75L 1.10L
1. Dévisser l'écrou à ailettes et déposer le couvercle du filtre à air. Si la
sortie Puissance du moteur n'est pas suffisant, l'échappement couleur
anormale, est alors nécessaire de remplacer l'élément.
2 Re-assemble the air cleaner and screw on the wing nut after replacement.
La Courroie Modèle X Quantité
Le Carburant Capacité D'huile
été
Printemps/Automne
Hiver
Capacité D'huile Moteur

4-4 Direction d'échappement
Pour éviter que les gaz d'échappement des qui s'écoule
dans le filtre à air monter un échappement siphon sur
le cas du silencieux
• Empêcher l'eau de s'accumuler dans le
syphon Filter d'échappement de s'écouler dans le
silencieux
5-1 Démarrage manuel :
• Démarrer le moteur en suivant les procédures ci-dessous :
1. Ouvrir le robinet de carburant
2. Tourner le levier de régulateur de " démarrage " position
3. Hold the recoil starter handle
A. Pull the starter handle until you feel the resistance,
Then return the handle slowly.
5. DÉMARRAGE DU MOTEUR
7
NOTE
B. Appuyer sur la commande de décompression au "Non-compression"
Position. Le levier revient automatiquement après le
démarrage du moteur
C. Maintenir le démarreur manuel avec deux mains et
tirez-le rapidement
D. Il est difficile de démarrer le moteur par temps froid.
Déposer la bouchon en caoutchouc sur la culasse et
remplir avec 2 cc d'huile moteur avant le démarrage.
• Always screw on the rubber plug on the cylinder head except when filling, to prevent
la pluie et la poussière de pénétrer dans le moteur.
8
NOTE

DÉMARRAGE DU MOTEUR DIESEL
9
DÉMARRAGE DU MOTEUR DIESEL
10

5-2 Démarrage électrique
1. Mode de démarrage : (pré-démarrage vérifier est la même que celle de démarrage manuel)
A. Ouvrir le robinet de carburant
B. Activer le levier de régulateur à "DÉMARRAGE" position
C. Tourner le démarreur électrique clé dans le sens horaire à
"DÉMARRAGE" position
D. Version électrique la clé de démarrage après le démarrage
du moteur.
E. Si le moteur ne démarre pas après le démarrage du moteur
a couru 10 secondes, lancez-le à nouveau après 15
secondes. (Exécution du démarrage moteur pendant une
longue période risque d'endommager la batterie moteur.
2. Maintenance de la batterie
A. Vérifier la batterie tous les mois.
Recommandé taille de la batterie :
JD170F(A) 12V24AH-36AH
APE7210 (JD186FA
5-4 Montage du démarrage électrique Interrupteur
Si le démarrage électrique contacteur est situé sur le haut de la culasse.
Assemblez-le avec les pièces suivantes selon les modalités spécifiées.
11
PROCÉDURES :
1. Déposer le démarreur électrique corps du commutateur de la norme
Tableau de bord, puis re-monter sur le panneau d'installation de la
culasse cas
2. Dévisser les deux vis de la culasse cas
3. Clip et re-assemblé le panneau avec la rondelle, puis serrer avec
boulons hexagonaux.
• Si le faisceau de câblage toucher le silencieux ou l'arbre de
prise de force, il peut l'amener à graver.
4. Fixer la borne de masse du faisceau avec des boulons M6.
ASSEMBLÉE:
12
No. Specification Quantity
1 1
1
2
2
3
2
4
AVIS D'EXPLOITATION
est capable de s'y tenir 36AH
Démarrage électrique corps du commutateur.
Démarrage électrique du panneau des interrupteurs.
Longtemps la rondelle
Six pans de la vis.

SCHÉMA ÉLECTRIQUE
13
WARNING
AVERTIR
NOTE
NOTE
• Pour éviter de d'échappement toxiques, veillez à bien exécuter le moteur à zone aérée.
• Pour éviter tout risque de blessure éviter mains, corps et chiffons de s'accrocher à la sortie
l'arbre, la poulie et la poulie V pièces mobiles.
• Vérifier les pièces en mouvement et les pièces environnantes après l'arrêt du moteur. Assurez-vous
qu'il n'y a pas outils ou vêtements dans le corps du moteur.
• Le silencieux est très chaud en cours de fonctionnement, ne touchez pas le silencieux.
• Le filtre à air va aspirer l'air environnant en cours de fonctionnement. Pour éviter les blessures,
éviter mains, corps personnelle et chiffons de contact du moteur.
1. Chauffer le moteur pendant 5 minutes.
• Assurez-vous de régler la vitesse de rotation du moteur avec le levier de régulateur.
• Ne pas dévisser les vis de réglage de carburant et les vis de réglage.
3.Si le moteur tire de fumée noire à l'échappement,
cela indique que le moteur est en cours d'exécution dans une
surcharge capacité, régler la poulie du moteur et la charge
la poulie.
6. LE MOTEUR TOURNE
14
VEUILLEZ PRÊTER ATTENTION AUX POINTS SUIVANTS LORS DE L'EXÉCUTION :
1.Vibrations anormales ou le son. Si le pot d'échappement est normal.
2.La fumée moteur est blanc ou noir.
3. Assurez-vous de couper le moteur lorsque l'un quelconque de ces être endommagée.
Table of contents
Languages:
Other ALLPOWER Engine manuals
