ALLPOWER All-Power APG3004A User manual

APG3004A
1000W 2 STROKE GENERATOR
TM
Owner’s Manual
www.allpoweramerica.com
HAVE QUESTIONS
OR NEED SERVICE
PREGUNTAS O
NECESITA SERVICIO
DO NOT RETURN
TO STORE
888.896.6881
NE PAS RETOURNER
AU MAGASIN
888.896.6881
POR FAVOR NO
REGRESE A TIENDA
888.896.6881
DES QUESTIONS
BESOIN D’UNE RÉPARATION

Exploded View
Safety Information
Specifications
Components
Starting Your Generator
Operating Your Generator
Stopping Your Generator
Maintenance
Storage
Statement
Trouble Shooting
5
4
3
6
7
6
6
6
8
7
2
1000 WATT GENERATOR
2

1000 WATT GENERATOR
3
Exploded View
7
8
5
4
1
2
3
6
43
44
45
46
47
48
33
34
35
37
36
38
40
41
39
24
23
22
21
29
28
27
26
25
19 20
15
18 17 16
9
13
12
11
10
14
30
42
31
32

1000 WATT GENERATOR
4
Safety Information
CAUTION
PLEASE READ AND UNDERSTAND THIS MANUAL
COMPLETELY, BEFORE OPERATING THIS GENERATOR.
!
Never operate the engine in an enclosed area, All gasoline engines produce carbon
monoxide gas while running. Breathing exhaust fumes can kill. Operate the engine in a
well-ventilated area, only.
Extract from CPSC Document #5008 on Carbon Monoxide
The U.S. Consumer Product Safety Commission (CPSC) has issued the following warning regarding
carbon monoxide poisoning:
• Do not use portable heaters or lanterns while sleeping in enclosed areas such as tents, campers, and
other vehicles. This is especially important at high altitudes, where the risk of carbon monoxide
poisoning is increased.
• Know the symptoms of carbon monoxide poisoning: headache, dizziness, weakness, nausea,
vomiting, sleepiness, and confusion. Carbon monoxide reduces the blood`s ability to carry oxygen.
Low blood oxygen levels can result in loss of consciousness and death
• See a doctor if you or a member of your family develops cold or flu like symptoms.
Carbon monoxide poisoning can easily be mistaken for a cold or flu, and is often detected too late.
• Alcohol consumption and drug use increase the effects of carbon monoxide poisoning.
• Carbon monoxide is especially toxic to mother and child during pregnancy, infants the elderly,
smokers, and people with blood or circulatory system problems, such as anemia, or heart disease.
Fuel Is Highly Flamable
DO NOT refuel while engine is running.
DO NOT refuel near sparks or open flame.
DO NOT smoke while refueling.
ALWAYS allow the engine and muffler to cool before refueling.
Refuel ONLY in well-ventilated area.
DO NOT over-filll gas tank
Engine And Mufler Get Very Hot
Keep flammable materials at least 3 feet from generator.
When in use, place generator in an area where children are not likely to touch it.
Electric Shock Hazard
DO NOT operate in rain or snow, or next to body of water.
DO NOT touch with wet hands.
Be sure to USE GROUNDED PLUGS with the generator.
DO NOT connect generator to commercial power outlets.

1000 WATT GENERATOR
5
Specifications
DIMEMSIONS
Length 15 in.
Width 12 in.
Height 14 in.
Weight 44.1 Ibs.
ENGINE
Type Air cooled 2-stroke
Fuel Nonleaded gasoline with a minimum of 85% octane
Oil Two-stroke lubrication
Gasoline and oil mixing ratio 50 : 1
Displacement 63 cc
Starting System Recoil (Electronic Ignition)
Driving System Direct Coupling, Taper Fit
Spark Plug BSES
Governor Mechanical(Adjustable)
Lubrication Forced Air
Cooling System 45 X 40 mm
Stroke TWO Stroke
Carburetor Type Hg63
Air Cleaner Type Sponge element
Compression Rate 6
Decibel Ratio 80db @ 3.3 ft
65db @ 24 ft.
Rated Output 2 HP @ 3600 rpm
Fuel Tank Capacity 1.2 Gal.
GENERATOR
AC Output Rating 120 Volts
Frequency 60 Hz
AC Current 7 Amps
Rated Output, Continuous 850 Watts
DC Output Rating 12 Volts
DC Current 15 Amps
Power Factor COSφ= 1
Steady State Voltage range +/- 15%
Steady State Frequency range Less than 7%
Voltage Waveform Twist Rate Less than 25%

1000 WATT GENERATOR
6
Generator Components
11
22
33
44
55
66
77
88
99
1313
1212
1111 1010
1. Handle
2. Fuel Cap
3. Fuel Tank
4. Fuel Shut-off
5. Recoil Starter
6. Engine On-Off Switch
7. Throttle Lever
8. Air Cleaner
9. Control Panel
10. Generator
11. Muffler
12. Cylinder
13. Spark Plug

1000 WATT GENERATOR
7
STARTING THE ENGINE
1. Disconnect all electric appliances from generator before starting.
2. Turn fuel shut-off lever to "ON".
3. Move Choke lever all the way to the left.
4. Turn engine switch to "ON" position.
5. Pull recoil starter cord slowly until engaged, then pull briskly to start.
6. Once engine has started, move choke lever all the way back to the right.
CONNECTING ELECTRICAL APPLIANCES
Always allow engine to warm up before connecting any electrical load
to the generator.
STOPPING ENGINE
1. Turn off all appliances, then disconnect them from the generator.
2. Turn engine Switch to "STOP" position.
3. Turn fuel shut-off lever to "OFF"
4. Allow engine to cool before attempting to move the generator or to refuel.
RESETTING BREAKER BUTTONS
If reset trips, disconnect all external electrical appliances before pushing the reset
button. After reconnecting the external electrical appliance, if reset continues to trip
that indicates that the electrical lead connected to the generator from one or more of
the appliances may have a short circuit. In that event, discontinue use of that item
until it has been checked and/or repaired by a qualified technician.
PERIODIC MAINTENANCE
Service intervals
Clean air filter after every 150 hours of run time. (If used in very dusty conditions,
clean air filter after every 10 hours of run time)
1. Remove foam filter and wash in mild detergent or dish washing liquid.
2. Rinse thoroughly, than squeeze out excess water.
3. Allow to thoroughly dry at room temperature.
4. Pour a small amount of gasoline in filter element, then squeeze out any
excess gasoline.
5. Replace filter.
Clean spark plug every 50 hours of run time.
1. Remove spark plug and clean electrode with wire brush.
2. Reset gap to .028- .031 in. (.7-.8mm)

1000 WATT GENERATOR
8
Clean fuel filter every 150 hours of run time.
1. Remove fuel filter from inside fuel tank.
2. Clean with solvent.
3. Wipe dry.
4. Insert filter back in fuel tank.
STORAGE
If the generator will not be used for more than one month, follow the following
procedures:
1. Drain all fuel from engine (including fuel tank, fuel cock, and carburetor).
2. Shake tank and drain excess oil.
3. Remove spark plug and pour approximately one (1) tablespoon of motor oil
into spark plug hole.
4. Replace spark plug.
5. With ignition switch in "OFF" position, pull starter cord several times until
you feel piston is in its compression stroke. (resistance will increase).
6. Cover generator and store in dry, well-ventilated, place.
STATEMENT
1. For non-handheld engines: The Emissions Compliance Period referred to on
the Emissions Compliance label indicates the number of operating hours for
which the engine has been shown to meet Federal emission requirements.
For engines less than 66 cc, Category C=50 hours, B=125 hours, and
A=300 hours. For engines equal to or greater than 66 cc but less than
225 cc displacement, Category C=125 hours, B=250 hours, and A=500
hours. For engines of 225 cc or more, Category C=250 hours, B=500
hours, and A=1000 hours.
2. For handheld engines: The Emissions Compliance Period referred to on
the Emissions Compliance label indicates the number of operating hours
for which the engine has been shown to meet Federal emission
requirements. Category C=50 hours, B=125 hours, and A=300 hours.

1000 WATT GENERATOR
9
GENERATOR SET TROUBLESHOOTINGGENERATOR SET TROUBLE SHOOTING
ENGINE
ENGINE
Engine won`t
start
Engine won`t
start
Engine run
erratically
Engine run
erratically
Insufficient
compression Insufficient
compression
Loose spark
plug
Loose spark plug
Loose cylinder
headbolt
Loose cylinder
head bolt
Tightenplug TightenplugTightenbolt
Tightenbolt
Fuel systems causeFuel systems cause
No fuel supplied
Nofuel supplied
Insufficientpulling
speedfor starting rope
Insufficientpulling
speedforstartingrope
Pull rope sharplyPullrope sharply
Foreign matter
infuel tank
Foreignmatter
in fuel tank
Fuel shut-off
notopen
Fuelshut-off
notopen
Clean tank Clean tankOpen Valve
Open Valve
GENERATOR SET TROUBLE SHOOTINGGENERATOR SETTROUBLE SHOOTING
GENERATORGENERATOR
Indicator Light on
NoAC Output
Indicator Light on
No AC Output
Indicator Light off
No AC Output
Indicator Light off
No AC Output
TrippedCircuit
Breaker
Tripped Circuit
Breaker
Poor Connection
or Faulty Lead
Poor Connection
or Faulty Lead
Broken
Receptacle
Broken
Receptacle
Faulty Generator
Faulty
Generator
Reset Reset
Check and RepairCheck and Repair
Consult DealerConsult Dealer ConsultDealerConsult Dealer
Output Power Availa
Abnormality Exists
OutputPower Availa
Abnormality Exists
Engine RPMset
too High or Low
EngineRPM set
tooHighor Low
Noload for 60Hz set
Noload for 50Hz set
Noload for 60Hz set
Noload for 50Hz set
Sufficient compression
Sufficient compression
Electricsystems causeElectric systems cause
ImpropersparkImproper spark
Proper spark
Proper spark
Spark plugdirty with
carbon orwet with fuel
Spark plug dirtywith
carbon or wet with fuel
Damaged spark
plug
Damaged spark
plug
Remove carbon orwipe
upspark plug
Remove carbon orwipe
up spark plug
Replacesparkplug
Replace spark plug
Faulty magneto
Faulty magneto
Improper adjustment
of carburetor
Improper adjustment
of carburetor
Consult dealerConsult dealer Consult dealerConsult dealer

1000 WATT GENERATOR
10

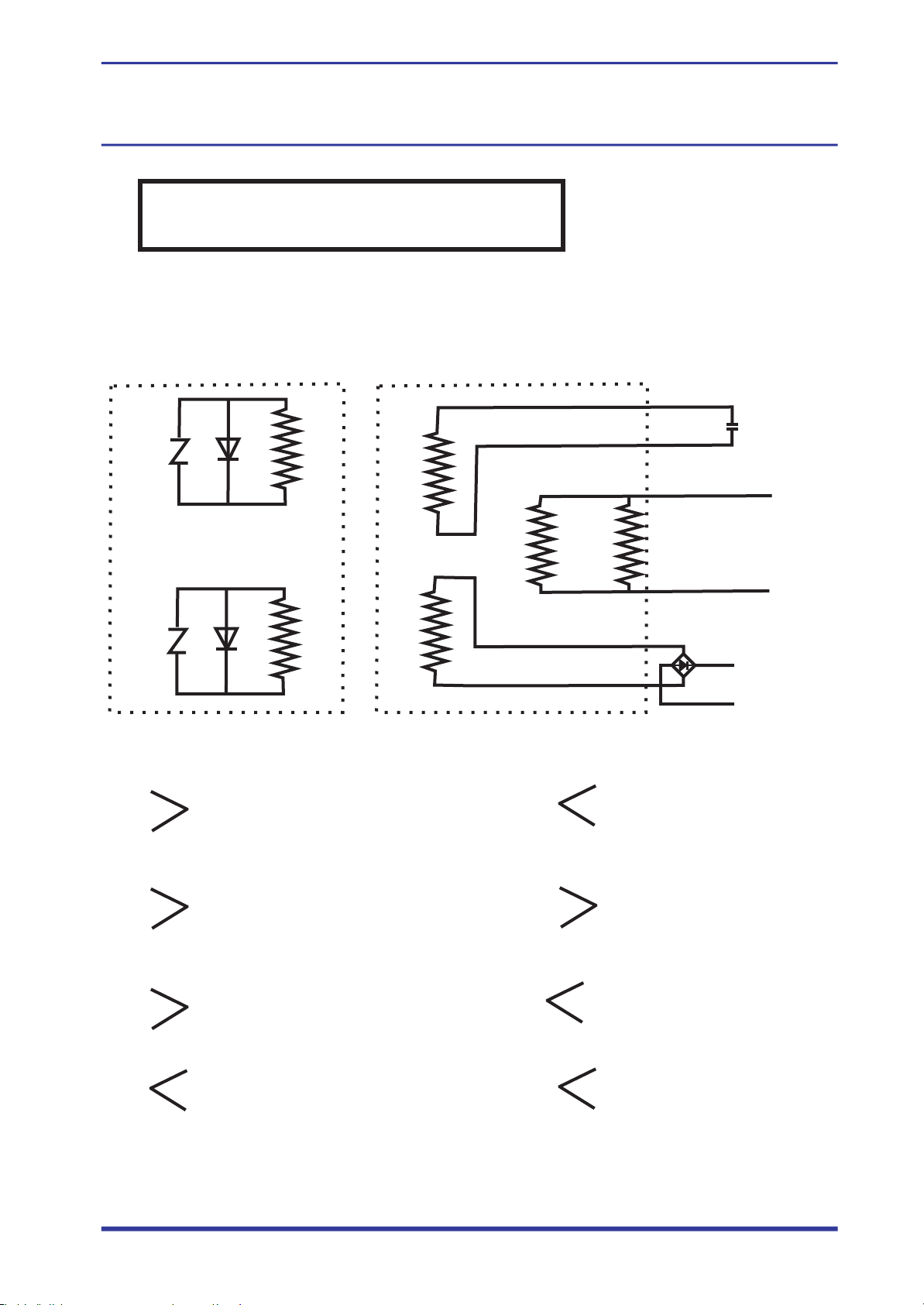

G E N E R AT O R T H E O R Y D IA G R A MG E N E R AT O R T H E O R Y D IA G R A M
RotorRotor StatorStator
FC1
FC1
R1R1
D1D1
FC2FC2
R2R2
D2D2
SCSC
DCDC D3D3
CC
MC1MC1 MC2MC2
U1U1
U2U2
++
--
R2R2
R1R1
D2D2
D1D1
FC2FC2
FC1FC1
SCSC
MC2MC2
MC1MC1
DCDC
CC
D3D3
Over Volt ProtectiveOver Volt Protective
ResistanceResistance
Spin RectifierSpin Rectifier
Rotor Pole WindingRotor Pole Winding
Stator Auxiliary WindingStator Auxiliary Winding
Stator DC WindingStator DC Winding
Stator Main WindingStator Main Winding
CapacitorCapacitor
Single-phase RectifierSingle-phase Rectifier
