Allsalt SHOXS Installation and operating instructions

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
Revision 5, Jan 2021, ECR 5335

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
Table of Contents
Section 1: General Information.................................................................................... 3
Our Sales & Support Team ..............................................................................................4
For Your Safety ................................................................................................................6
Section 2: Pedestal Instructions.................................................................................. 7
Mounting Flange Torque Procedure ...............................................................................8
Adapter Mounting............................................................................................................9
Pedestal Mounting ....................................................................................................... 10
Pedestal Setup Instructions......................................................................................... 10
Operating Instructions.................................................................................................. 14
Section 3: Service Instructions.................................................................................. 15
Recommended Service................................................................................................. 16
Servicing Your Isolator ................................................................................................. 16
Cleaning ........................................................................................................................ 17
Protecting...................................................................................................................... 17
Isolator Troubleshooting.............................................................................................. 17
Pedestal Trouble Shooting........................................................................................... 18
Service Notes................................................................................................................ 19
Limited Warranty Statement ........................................................................................ 20

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
Section 1: General Information

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
Our Sales & Support Team
GLOBAL SALES TEAM
Tony Van Meter | VP Sales
Email: [email protected]
Andrew Hughes | Managing Director - Europe
Email: [e-mail]
Bryan Wood | VP Business Development & Marketing
Email: [e-mail]
Sarah Honebon | Sales Officer - Europe
Email: [e-mail]
Philip Gibson | Business Development
Email: [e-mail]
Jordan Tilton | Dealer and OEM Programs Manager
Email: [e-mail]
PARTS SALES AND CUSTOMER SUPPORT
TOLL FREE (U.S.) | 888 637 4697
Main Office | [phone]
Support Email | [e-mail]
Website | www.shoxs.com
MAILING ADDRESS
Allsalt Maritime Corporation
2952 Ed Nixon Terrace
Victoria, BC V9B 0B2
Canada
Allsalt Maritime Europe Ltd.
Unit 3 – Barnes Hill Farm, Milton Abbas
Blandford, Dorset DT11 0BB
United Kingdom

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
YOUR PRODUCT INFORMATION
To serve you better, record the information below and have it ready if you require parts or technical support.
Your serial number is located as shown below. Always keep your receipt as proof-of-purchase for Warranty Claims.
Model Serial
Number:
S/N X___________________________
Purchased
From:
________________________________
________________________________
Purchase Date: _________ / _________ / _________

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
For Your Safety
SHOXS Shock Mitigating Pedestals are designed to be capable of use in extreme conditions. SHOXS can
increase both vessel operating envelopes and crew and passenger endurance by increasing safe and
comfort and aiding in the prevention of personal injury. These features can assist in completing operations
that take place in challenging environments.
WARNING
TO REDUCE THE RISK OF SEVERE INJURY OR DEATH TO
PERSONS:
READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS. Failure to follow the installation
instructions may cause serious injury or death to persons and damage to the vessel and product.
OPERATE YOUR VESSEL RESPONSIBLY. There are upper limits to the operation of any vessel or
vehicle – SHOXS products are not a replacement for their responsible operation and will not prevent
personal injury. High-G impacts can and will still exceed the product’s ability to absorb them.
DO NOT USE THIS PRODUCT IF it is damaged or suspected to be malfunctioning.
REPAIRS OR ALTERATIONS made without prior approval of the manufacturer will void your warranty
and may cause serious injury or death to persons and damage to the vessel and product.
Do not use this product outside of the scope of its intended purpose. Follow the SETUP PROCEDURE to
ensure your shock mitigating pedestal is performing at its best capability for conditions.
LIMITED WARRANTY AND LIABILITY
SEE THE LAST PAGE FOR A DETAILED LIMITED WARRANTY STATEMENT.
The information contained in this Operation & Service Manual is subject to revision at any time without notice.
CAUTION

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
Section 2: Pedestal Instructions

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2

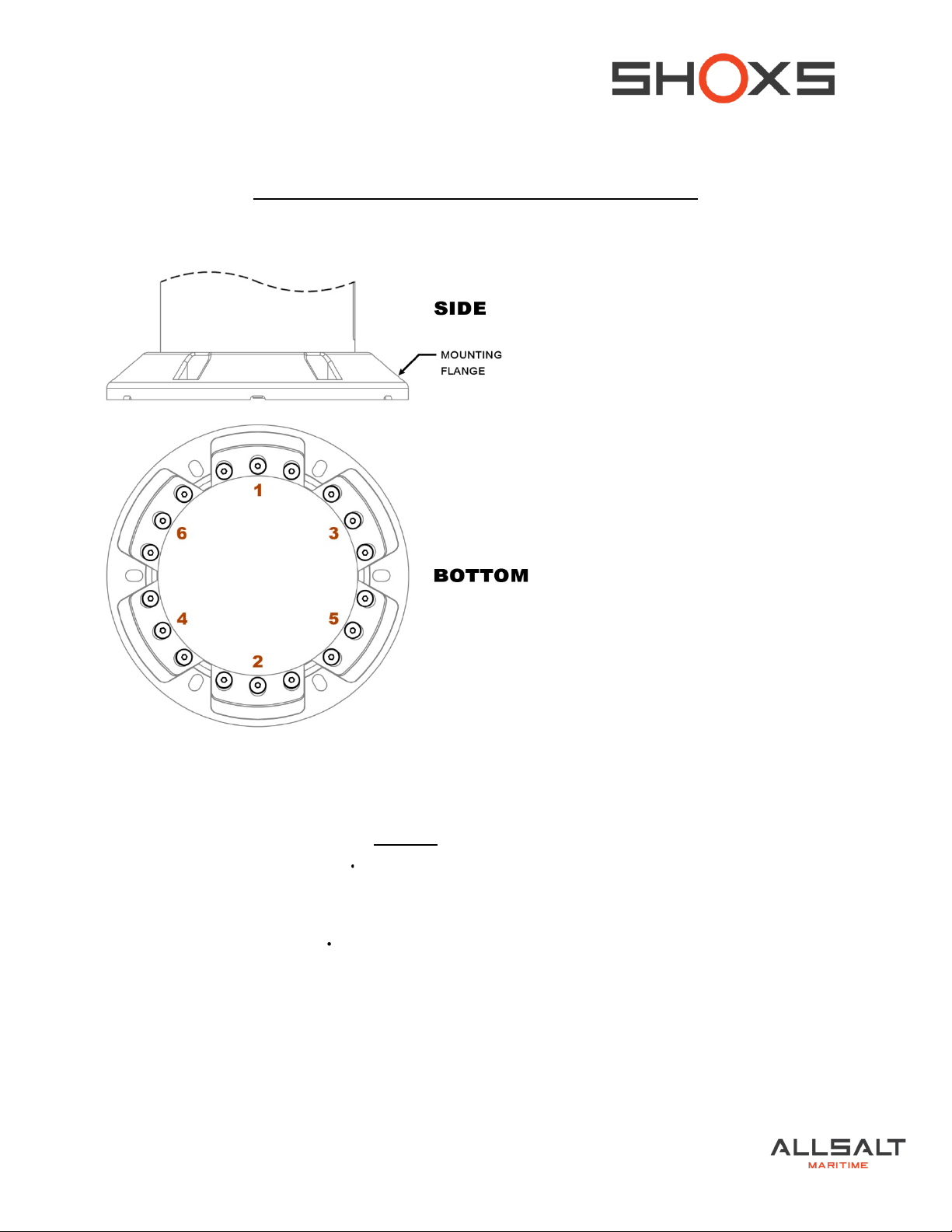

Mounting Flange Torque Procedure
The mounting flange of your shock
mitigating pedestal is shipped installed
in the lowest position available. This
torque procedure must be followed if
loosening the fasteners to adjust the
position* of the mounting flange.
Following the numbered sequence
(left), tighten the middle bolts:
1) Hand-tight
2) ½ required torque
3) Full required torque
Tighten all remaining fasteners by
hand, then apply the full required torque
to all fasteners.
All fasteners must be torqued and
checked until applying torque no longer
tightens any fasteners more than 1/16
of a tu
Required torque for S/N starting with X403B18:
120 inch-pounds (13.5 N m)
Required torque for all other Serial Numbers:
78 inch-pounds (9.0 N m)
*NOTE: Do not adjust the mounting flange all the way up the Base tube such that it is
covering the slot openings at the top of the tube.

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
Adapter Mounting
A standard square adapter plate for
mounting with a 5.25” square hole pattern is
typically pre-installed.
Mount your seat to this adapter plate or
remove it to mount your own adapter or
another SHOXS adapter in its place.
All fasteners should be installed with a
medium-strength threadlocker such as
Loctite®243™.
Pedestal Mounting
The fastener size for pedestal mounting
should be 3/8”-16 UNC or 3/8”-24 UNF,
with sufficient length for full engagement
with the threads of the
mounting provisions (either bonded
stainless steel inserts or stainless steel
nylon lock nuts).
Minimum thread engagement should be at
least 0.56” for a 3/8” bolt.
All fasteners should be installed with a
medium-strength threadlocker such as
Loctite®243™.

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2

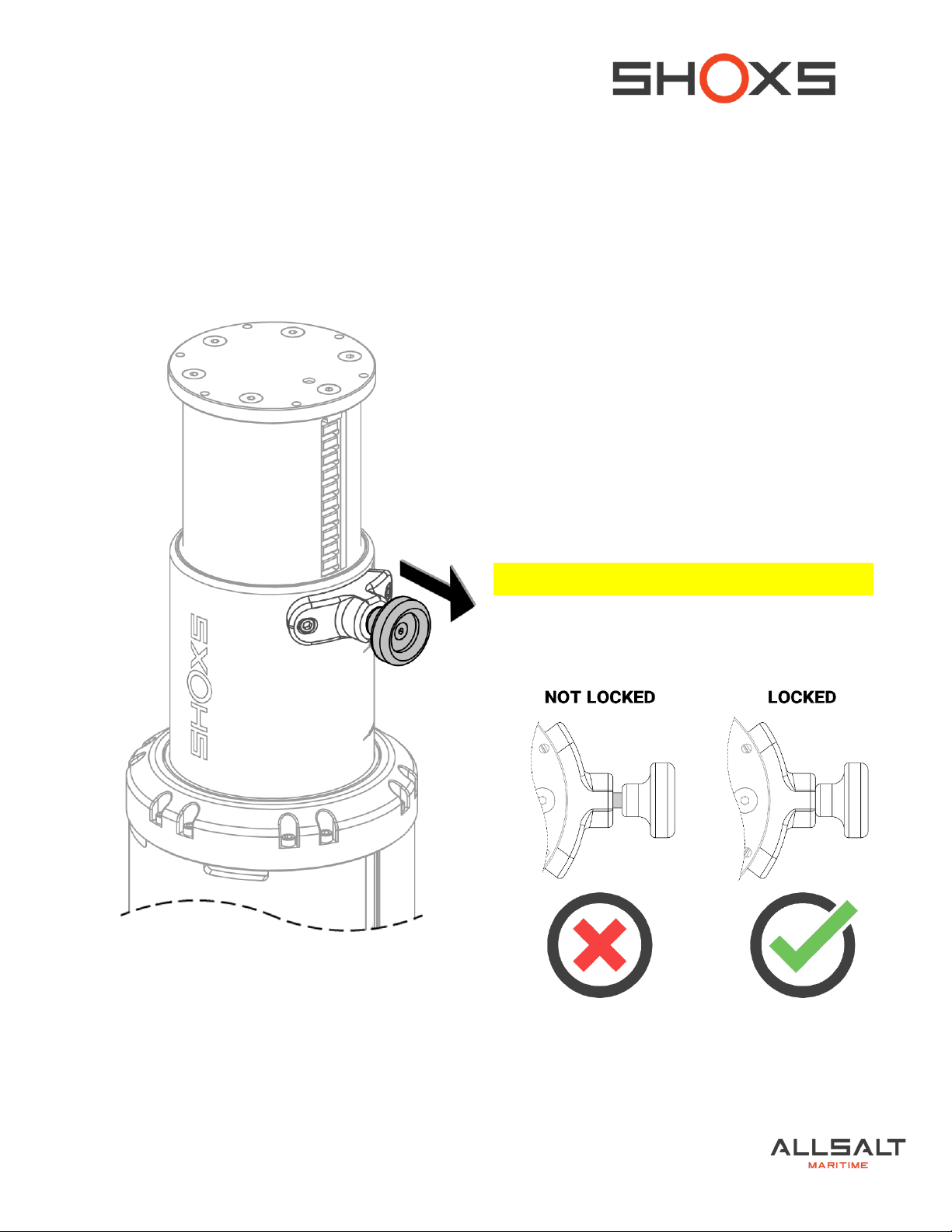

Note: Preferred installation orientation is with the side access door of the pedestal facing aft. SHOXS
logos on the upper pedestal will be on the STBD and PORT sides of the unit.
Pedestal Setup Instructions
It is essential to correctly setup your shock mitigating pedestal to achieve the best performance for
expected conditions. Setup is performed by adjusting the pressure of the isolator.

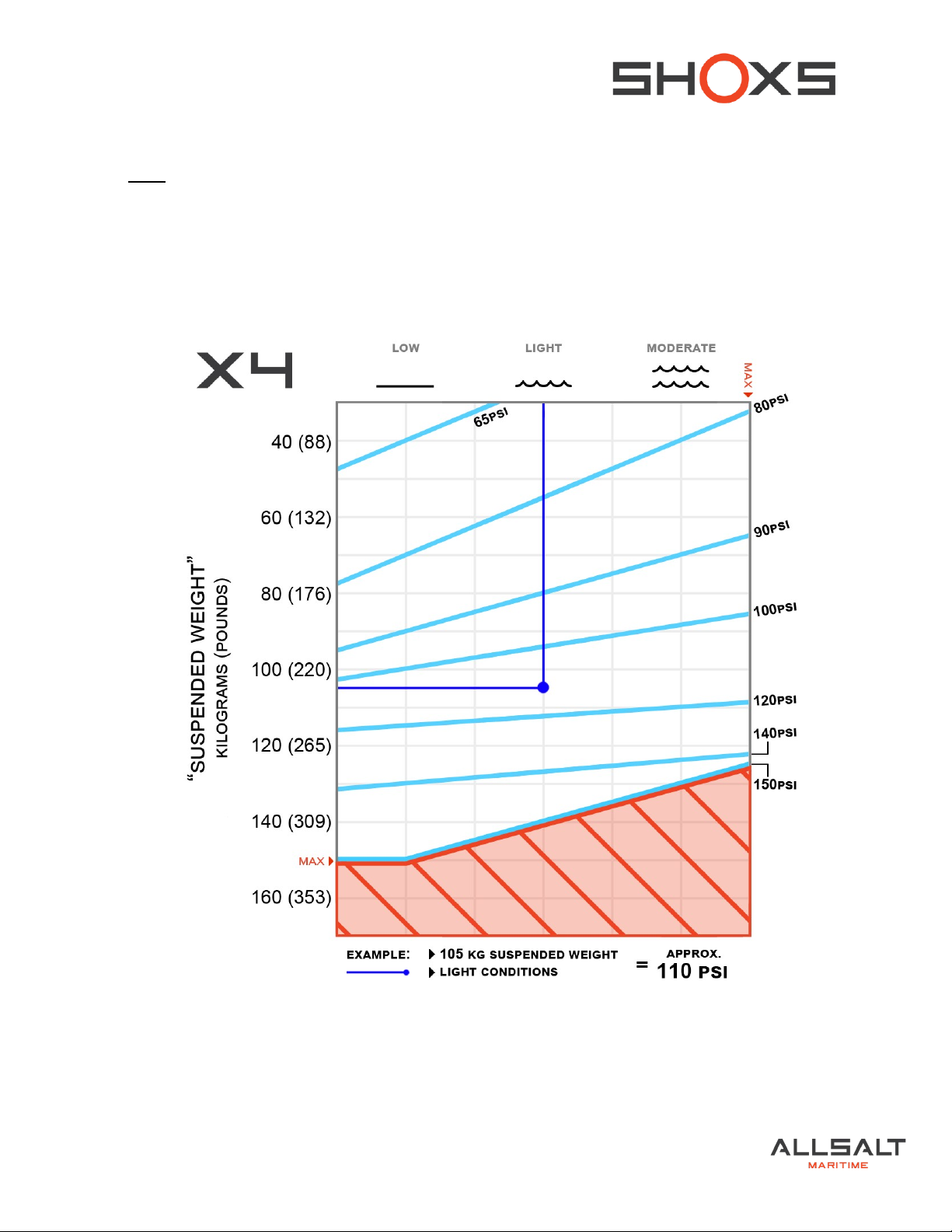

THE PRESSURES INDICATED IN THE CHART ABOVE ARE RECOMMENDATIONS ONLY. THE RESULTS OF TESTING IN ACTUAL CONDITIONS
USING THE STATIC LIMIT AND OPERATING LIMIT INDICATORS ARE THE FINAL DECISIVE FACTORS IN WHICH PRESSURE TO USE IN
SERVICING AND OPERATING YOUR SHOCK MITIGATING PEDESTAL. ALWAYS ERR TOWARDS A HIGHER PRESSURE TO ENSURE
PROTECTION FROM ‘BOTTOMING’ THE ISOLATOR.

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
Step 1
Choose a starting pressure, rounded to nearest 5 psi, based on the expected average operating
conditions and the “suspended weight” (the combined weight of the seat mounted atop the
pedestal, including any accessories, and the weight of the occupant).
Step 2
Get the isolator moving by bouncing in the seat a few times, then service the pressure in the
isolator using the side access port or the bottom access port without occupant or extra weight
in the seat. See the Recommended Service section for details on servicing the isolator.
Step 3
The intended occupant should take a seat normally, and
then step out and inspect the indicator O-ring on the upper
tube of the pedestal against the markings engraved in the
side, as shown on the right (NOT TO SCALE).
The indicator should be at or below the STATIC LIMIT line
on the seat. If the indicator is above the static limit, then
increase the pressure of the isolator by 5-10 psi (up to a
maximum of 150 psi), return the indicator O-ring to the
bottom of the tube and repeat the test.

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
INJURY TO SEAT OCCUPANTS MAY RESULT FROM
REGULARLY EXCEEDING THE OPERATING LIMIT.
The OPERATING LIMIT is the upper limit of normal travel for your shock mitigating pedestal. If
you are observing the indicator to be above the operating limit, first ensure the isolator is at your
set pressure, and either
a) Decrease the severity of vessel operating conditions
b) Increase the pressure in your isolator by 5-10 psi.
In the event there is a conflict between the indications from the static limit check and the operating
limit, the operating limit takes priority.
CAUTION

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
Operating Instructions
Height Adjustment (Optional Feature)
A spring-loaded knob located on the side of the pedestal
retracts the locking pin, allowing the seat to be raised or
lowered.
While in a standing position, pull the knob and adjust the
seat to the desired height. The pedestal may not rise on
its own, depending on the weight of the seat and
components installed.
Release the spring-loaded knob and bounce in your
seat to ensure the locking pin is engaged.
Always ensure your adjustment is locked
before operation.
CAUTION

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
Section 3: Service Instructions

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
Recommended Service
• After each use:
oAll components should be rinsed with fresh water
• Every 30 days:
oCheck isolator pressure and ensure STATIC LIMIT check is normal oInspect
all fasteners for security
Servicing Your Isolator
To provide flexibility, there are two points by which you can access the Schrader valve of your
isolator to check and service the pressure, as shown below.
This pedestal has internal
moving parts. Use caution
when using the SIDE
ACCESS Schrader valve.
Loss of pressure from
connecting an air supply
may cause the top portion
of the pedestal to sink.
CAUTION

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
Cleaning
The following products are recommended for cleaning your SHOXS seats:
• Upholstery (if applicable) – 303® Aerospace Protectant™
• All other components – wet rag with mild soap detergent
Protecting
Regular application of a corrosion-inhibiting product such as Rust Check for stainless steel
components and fasteners may be desired to protect these against harsh marine environments.
Isolator Troubleshooting
Use the flowchart below to troubleshoot when an issue is suspected with your isolator.
Fill your isolator to 2-4 psi above your desired pressure to account for some pressure loss when
disconnecting, unless using a lossless type connector.

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
Pedestal Trouble Shooting
Problem:
Pedestal has developed a noticeable squeak during vertical motion.
Solution:
Under certain circumstances some users have experienced squeaking when the
pedestal operates. Allsalt Engineering staff have investigated the cause of this sound
and have identified no negative impact on the performance or longevity of the
pedestal. It does not denote a seized component or accelerated wear of parts and is
not a cause for concern.
A lubricant can be applied to the inside of the pedestal to eliminate this squeak and
has been laboratory tested to be effective for up to 350,000 cycles.
Please follow the procedure outlines in CST-TB-0001 – Technical Bulletin Pedestal
Squeak R-01 for details on how to properly apply the lubricant in the event of a squeak
developing.

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
Service Notes

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2

QMS - CTL
Shock Mitigating Pedestal
Operation & Service Manual
This document and its contents are proprietary and confidential to Allsalt Maritime or its subsidiaries and
affiliates. Neither this document, nor any part of it may be disclosed or conveyed to, used or copied by or for any
third party without the prior written consent of Allsalt Maritime all rights reserved.
R-05 / Jan 2021 / 1 of 2
Limited Warranty Statement
All products and accessories come with a limited warranty against defects in materials and workmanship from the original date of
invoice.
1. Limited Warranty Conditions
The limited warranty is provided to the original owner only and is not transferable. Proof of purchase will be required for any
limited warranty on ALLSALT MARITIME products. ALLSALT MARITIME’s warranty covers only those defects which arise as a
result of normal use of the product, and do not apply to any product which:
(i) has been repaired or altered unless done or approved by ALLSALT MARITIME,
(ii) has not been maintained in accordance with any servicing or handling instructions provided by ALLSALT MARITIME,
(iii) has been altered or damaged by accident,
(iv) has been subjected to unusual physical or mechanical stress, misuse, abuse, or negligence,
(v) has been used other than in accordance with the product operating and handling instructions,
(vi) has been used and handled beyond what is considered to be a normal duty cycle in a typical marine operating
environment.
(vii) was not manufactured by ALLSALT MARITIME
2. Limited Warranty Coverage
Within the period of time from the original date of invoice identified below, if ALLSALT MARITIME receives notice of and verifies a
defect in any ALLSALT MARITIME product which is covered by ALLSALT MARITIME’s warranty, ALLSALT MARITIME shall either
repair the defective product or replace with a new or refurbished unit, at ALLSALT MARITIME's option. ALLSALT MARITIME shall
have no obligation to perform a repair or replacement until the customer returns the defective product to ALLSALT MARITIME
according to the Warranty Procedure below. Accessories include, but are not limited to, seat options (such as workstations,
consoles, safety harnesses) or any ALLSALT MARITIME products which are not part of a fixed or suspended seat. All warranty
periods are defined from the original date of invoice.
Allsalt Product Duration of Limited Warranty
Fixed or suspended seats (new) (excluding accessories or upholstery) - 2 years
Fixed or suspended seats (refurbished) (excluding accessories or upholstery) - 1-year
Accessories (including pedestals) or seat upholstery by Allsalt Maritime - 1 year
Seat upholstery modified, cut, sewn, embroidered, and/or installed by third party shall be warranted by the respective entity that
performed the work
3. Warranty Procedure
If a product is suspected of being defective, the owner should contact ALLSALT MARITIME's Customer Support department. A
representative will assess the report and, if validated, authorize the exchange or repair of the defective item. On request from
ALLSALT MARITIME, warrantied products must be shipped in the original or comparable packaging with shipping to a ALLSALT
MARITIME approved facility with insurance charges prepaid in U.S. currency.
4. Limitation of Warranty
Neither ALLSALT MARITIME nor its third-party suppliers make any other warranty or condition of any kind whether expressed or
implied, with respect to the ALLSALT MARITIME products, and specifically disclaim any statutory or implied warranties or
conditions, including without limitation, any such warranties or conditions in respect of merchantability, quality, durability, or
fitness for a particular purpose.
5. Limitation of Liability
Except for the limited obligations specifically set forth in this warranty statement, in no event shall ALLSALT MARITIME or its
third-party suppliers be liable for direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or
any other legal theory and whether advised of the possibilities of such damages.
