Allwins AWU50G-US User manual

AWU50G-US
（WT-mU-MTRa01）(AWM503g-WT)
User’s Manual
Part Name：802.11b/g Wireless Module
Part No.：AWU50G-US
Version：V1.0

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
Revision History
Release Date Revision Initials
1.0 2009-6-24 Initial release SH

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
Table of Contents
1. PRODUCT OVERVIEW 4
2. KEY FEATURE 4
3. SPECIFICATIONS 4
4. INSTALL THE DRIVER 5
5. CONNECT 8
6. MAKE INFRASTRUCTURE CONNECTION 9
7. HELP INFORMATION IN RAUI 10
8. MAKE AD-HOC MODE CONNECTION 10
APPENDIX A: TERMINOLOGY 15
APPENDIX B: IMPORTANT NOTICES 16

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
AWU50G-US User’s Manual
(WT-mU-MTRa01) (AWM503g-WT)
1. Product Overview
The AWU50G-US is a 802.11b/g wireless Module is used on wireless termination. It
delivers incomparable wireless performance for your device. As a value added Wi-Fi card, it
provides 64/128/256 WEP, WPA/WPA-PSK、WPA2/WPA2-PSK security as well.
2. Key Feature
• IEEE 802.11b、IEEE 802.11g Compliant;
• PCI-E interface,hot-swapping supported;
• Work mode : Infrastructure、Ad-Hoc;
• Modulation: OFDM/DBPSK/DQPSK/CCK;
• 64/128/256 WEP encryption; WPA/WPA-PSK 、WPA2/WPA2-PSK security
mechanism supported;
• QoS-WMM、WMM-PS quality mechanism supported;
• Transfer Rate : 54/48/36/24/18/12/9/6/11/5.5/2/1Mbps;
• Operating system: Windows 98/ME/2000/XP/64bit XP/2003,Linux;
• Transfer distance: Farthest 100 meters Indoor ,Farthest 300meters Outdoor（As a
result of the environment varies ）;
• ROHS Compliant
3. Specifications
3-1. Solution
3-2. Technical Spec
Standard IEEE 802.11g、IEEE 802.11b
Operating Frequency IEEE 802.11b/g ISM Band
USA(FCC): 2.412GHz ~ 2.462 GHz (CH1 ~ CH11)
Modulation 802.11b :CCK,DQPSK, DBPSK
802.11g :OFDM
Item Description
MCU+SWITCH Ralink RT2571+RT2528

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
RX sensitivity 802.11b :11Mbps:≦-84dBm
802.11g :54Mbps:≦-70dBm
11b: RX: ≦226mA TX: ≦236mA
Power consumption 11g: RX: ≦228mA TX: ≦238mA
Antenna RF Antenna Cable Assembly
Operating Voltage DC 5V
IEEE 802.11b: Min Typical Max
11/5.5/2/1 Mbps: 15dBm 17dBm 19dBm
IEEE 802.11g: Min Typical Max
Output Power
54/48/36/24/18/12/9/6Mbps 13dBm 14dBm 15dBm
Security WEP 64/128/256-bit; WPA/WPA-PSK; WPA2/WPA2-PSK
Supported OS Win CE 5.0/ 98 / ME / 2000 / XP / 64-bit
Linux
Dimension (L*W *H) 75.5mm x 20mm x 5mm
Temperature Humidity
Operating: 0-40℃Operating:10%-90% （Non-
condensing）
Environment
Specification
Storage: -10℃-70℃Storage: 5%-90%（Non-condensing）
4. Install the driver
Step1 Insert the installation CD into your CD-ROM driver, Double click the icon
to start setup.
Step2 Choose I accept the terms of the license agreement and click next to go
on.

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
Step3 Choose Ralink Configuration Tool and click next to go on.

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
Step4 Choose Optimize for WiFi mode and click next to go on.

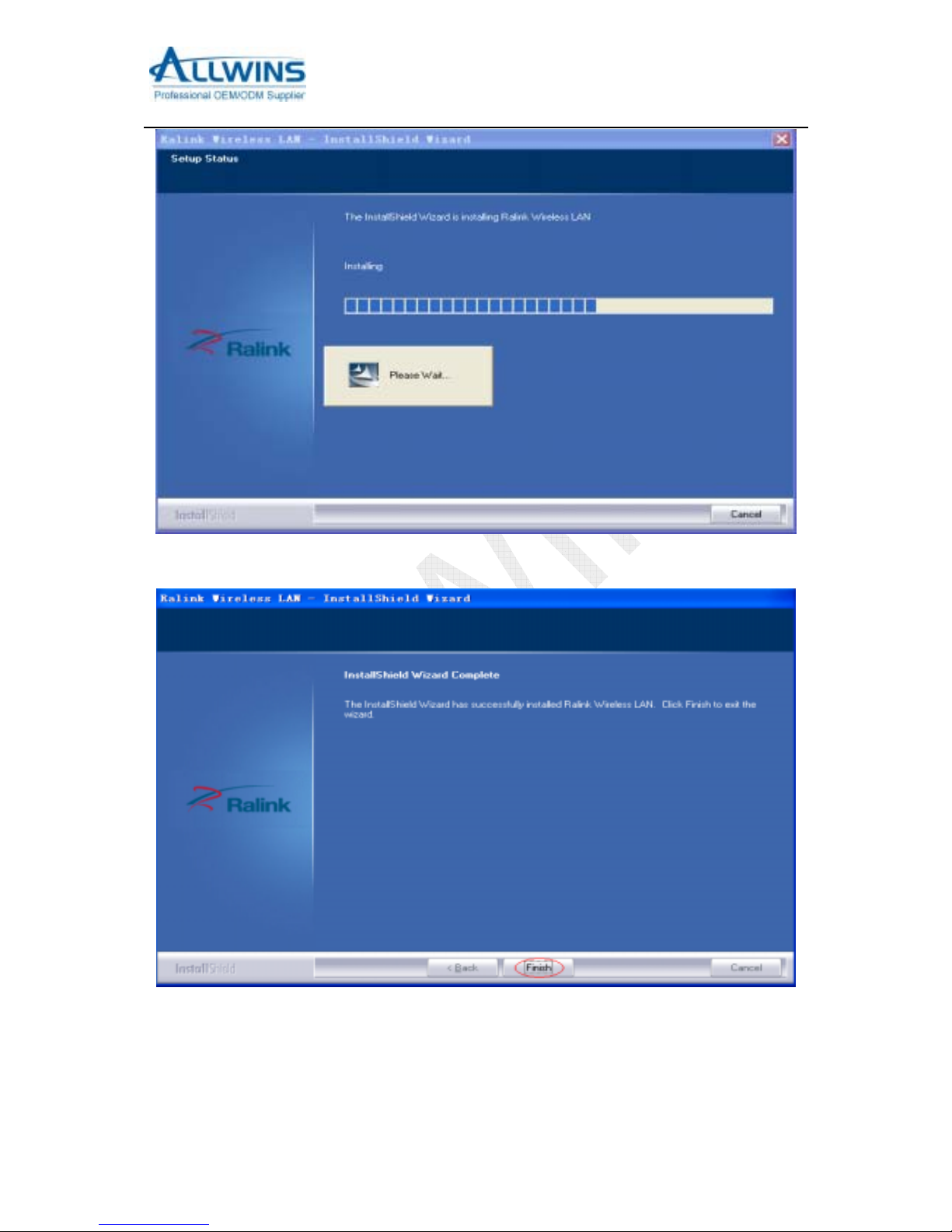

Step5 Click Install to begin the setup.

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
Step6 Click Finish to end the setup.
5. connect

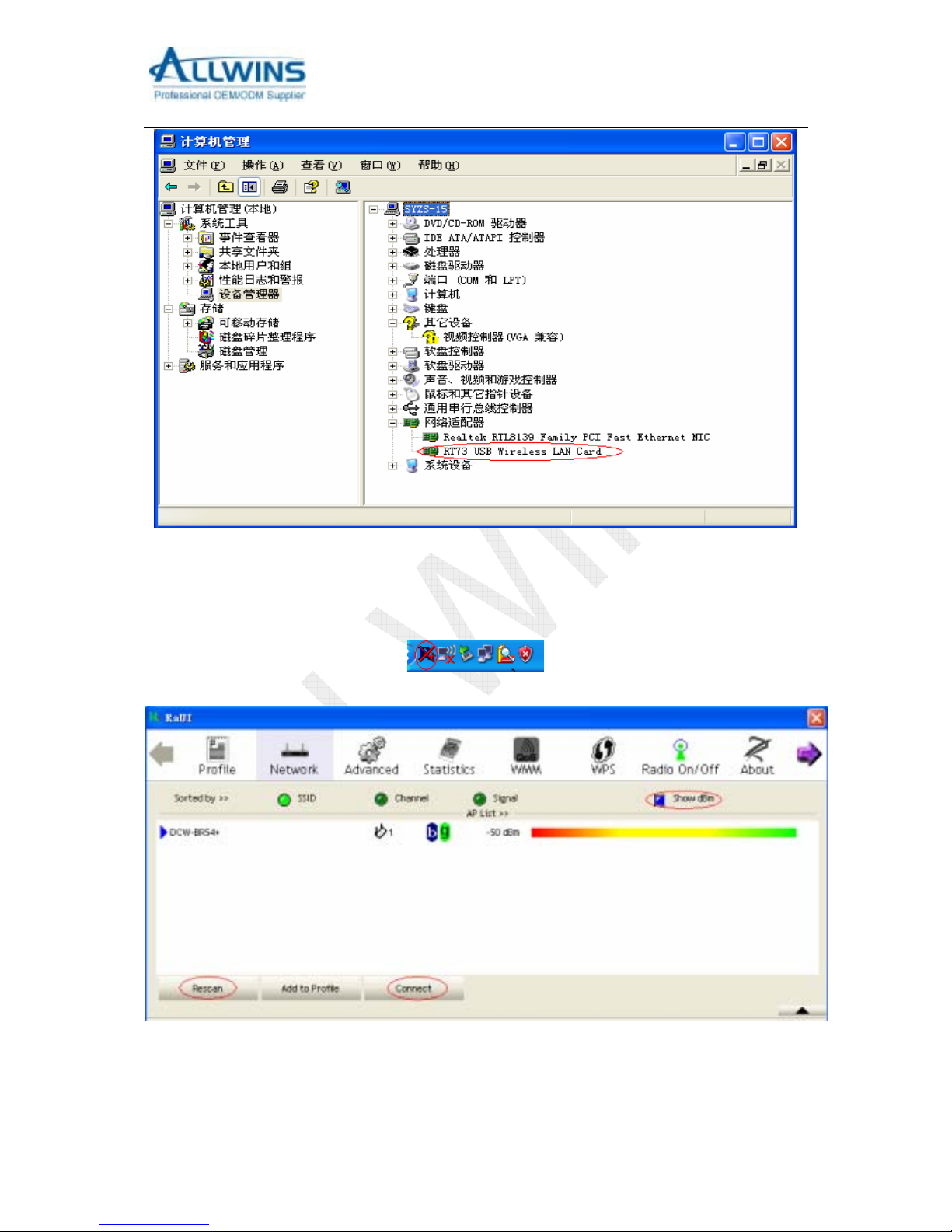

Plug in your wireless LAN adapter, it will be recognized and auto installed. Just confirmed it like below:

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
6. Make infrastructure connection
Double click the icon in red circle
You will see:
You can click the button Rescan to find which AP is in range, they will show on
the window. Choice one you want to connect, and click the button connect to finish
the connection. An infrastructure connection is completed.

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn

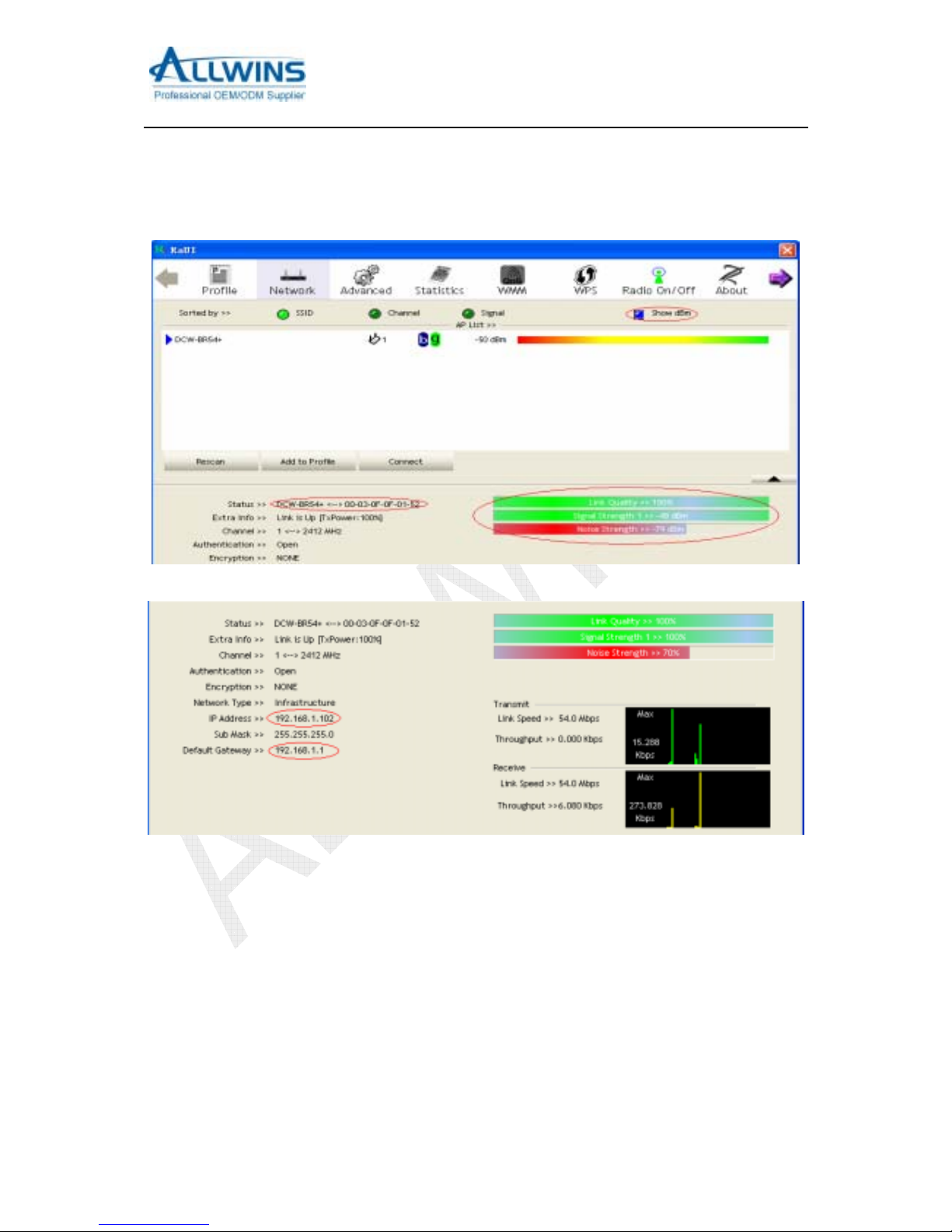

7. Help information in RaUI
How to find out which WIFI environment you are inside :
How to find out your IP address:
8. Make Ad-Hoc mode connection
8.1 Make an Ad-Hoc SSID

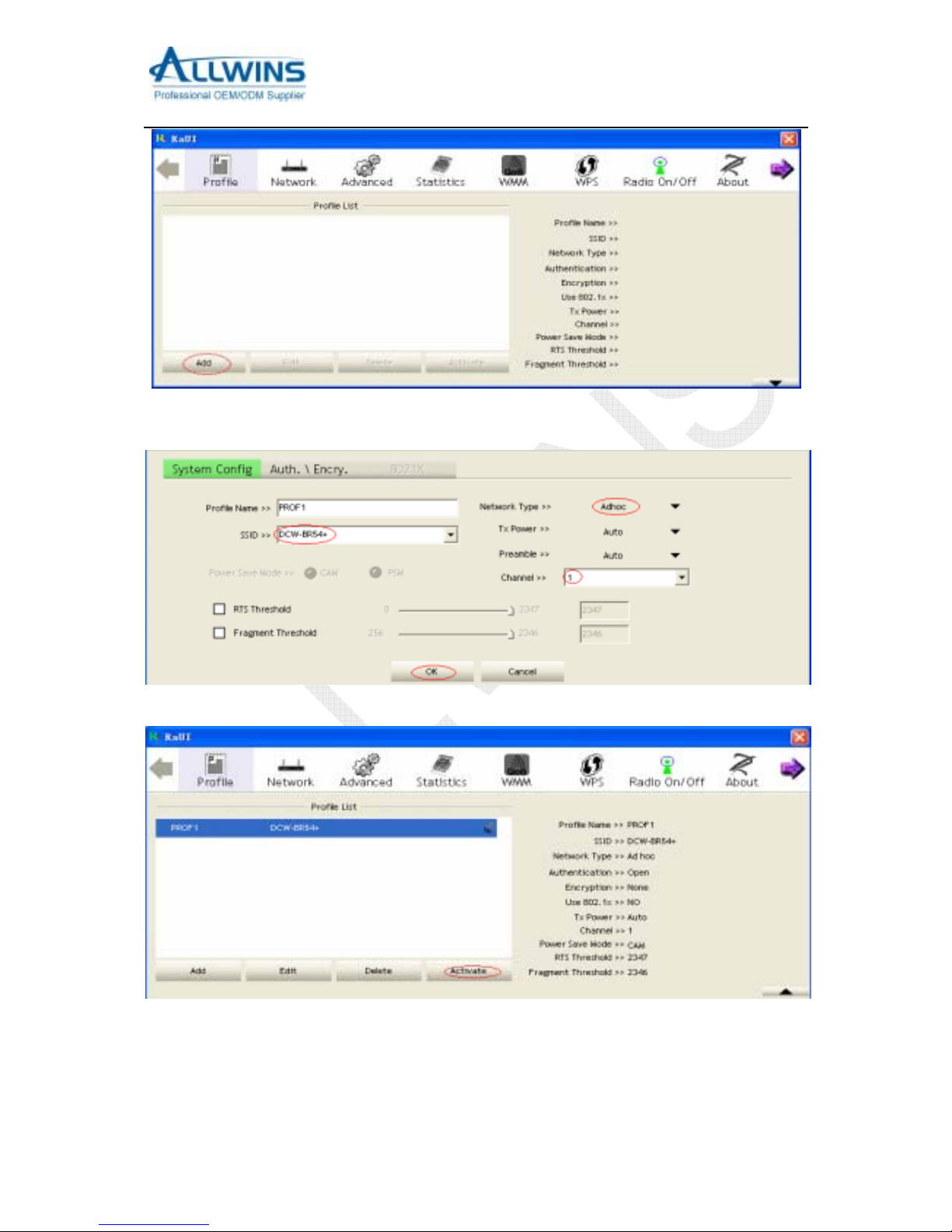

Step1 Click the button Add to make the Ad-Hoc SSID:

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
Step2 Choose the SSID and Network Type as blew,and click OK to go on.
Step3 Clilk the PROF1 in the window，and you can see the information of Ad-Hoc SSID.
8.2 Setup static IP address for the Ad-Hoc link
Step1 At its property page, double click item Internet Protocol (TCP/IP)

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
Step2 You will get:

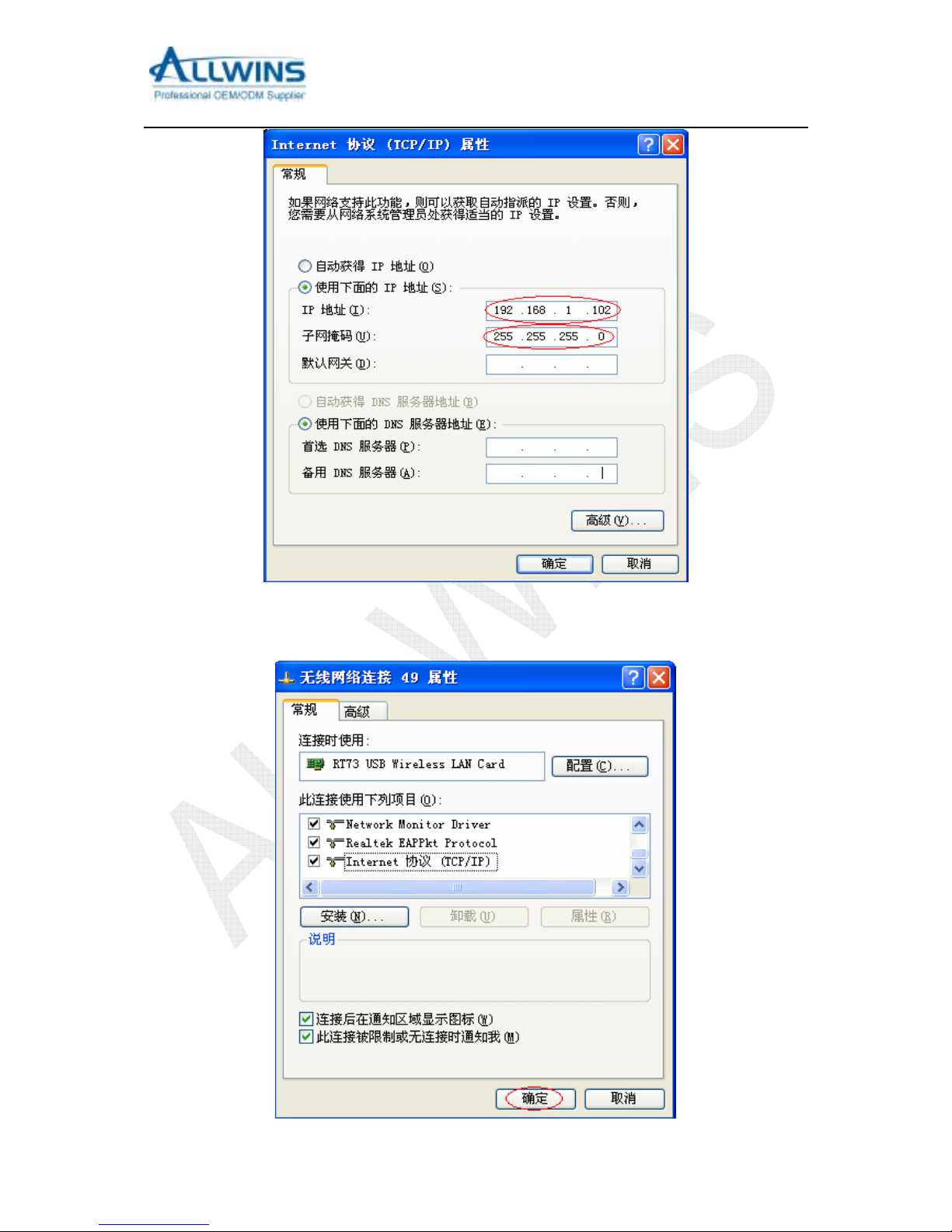

Step3 Fill the IP address blank, example as below:

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
Step4 Click OK to finish the setup.

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
8.3 Ad-Hoc setup for one point completed.
8.4 Setup another Ad-Hoc point as step a,b,c,d.
8.5 Ad-Hoc mode link accomplished. And you can visit each other.
Note: To make an Ad-Hoc mode link, we should choice the same channel. Its
static IP address should be in the same subnet, and the SSID should be the same
too.

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
Appendix A: Terminology
ad hoc network A network composed solely of stations within mutual communication range
of each other via the wireless medium (WM).
access point (AP) Any entity that has station functionality and provides access to the
distribution ser-vices, via the wireless medium (WM) for associated stations.
Station (STA) Any device that contains an IEEE 802.11 conformant medium access control
(MAC) and physical layer (PHY) interface to the wireless medium (WM).
RTS (Request To Send) The frame type used to deign the RTS-CTS clearing exchange.
RTS frames are used when the frame that will be transmitted is larger than the RTS
threshold.
CTS (Clear To Send) The frame type used to acknowledge receipt of a Request to Send
and the second component used in the RTS-CTS clearing exchange used to prevent
interference from hidden nodes.
WEP (Wired Equivalent Privacy) The optional cryptographic confidentiality algorithm
specified by IEEE 802.11 used to provide data confidentiality that is subjectively equivalent
to the confidentiality of a wired local area network (LAN) medium that does not employ
cryptographic techniques to enhance privacy.
authentication The service used to establish the identity of one station as a member of the
set of stations authorized to associate with another station.
WPA (Wi-Fi Protected Access) A specification of standards-based, interoperable security
enhancements that strongly increase the level of data protection and access control for
existing and future wireless LAN systems.

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
Appendix B: Important Notices
The RF antenna cable assembly used for this product is designed that no antenna other than
that furnished by the responsible party shall be used with the device. The use of a permanently
attached antenna. The maximum peak Gain of this antenna is only 2dBi(Frequency Range
2.4GHz-2.5GHz, Length=12cm).
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
This device is intended only for OEM integrators under the
following conditions:
The antenna must be installed such that 20 cm is maintained between the antenna
and users,and The transmitter module may not be co-located with any other
transmitter or antenna.As long as 2 conditions above are met, further transmitter test
will not be required. However,the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this module
installed (for example, digital device emissions, PC peripheral requirements, etc.).

AWU50G-US User’s Manual
(WT-mU-MTRa01/AWM503g-WT)
Shenzhen Allwins Technology Corporation Add:9/F,Block A,Tsinghua Hi-tech Park,Nanshan,Shenzhen,China.
Tel:[phone] 26030361 26030362 260630363 Fax:[phone] Http://www.allwins.com.cn
IMPORTANT NOTE:In the event that these conditions can not be met, then the
FCC authorization is no longer considered valid and the FCC ID can not be used on
the final product. In these circumstances, the OEM integrator will be responsible for
re-evaluating the end product (including the transmitter) and obtaining a separate
FCC authorization.
