ALMACRAWLER JIBBI Series User guide

1300 551 108 | [e-mail] | alfasihire.com.au
JIBBI
1250 EVO
2820
3740
2420
2550
1840
720
1150
1950
1400
JIBBI is the new crawler
telescopic boom by
AlmaCrawler.
Patent Pending Innovations
New Dynamic Work Performance (DWP by Almac)
Undercarriage integrated by new Safe-lock System
Cable remote console by AUTEC
2820
3740
2420
2550
1840
720
1150
1950
1400
JIBBI is the new crawler
telescopic boom by
AlmaCrawler.
Patent Pending Innovations
New Dynamic Work Performance (DWP by Almac)
Undercarriage integrated by new Safe-lock System
Cable remote console by AUTEC
Mixed slope levelling

Max working height 12,2 m
Max height basket floor 10,2 m
Moving height 8,0 m
Max outreach (load 80 kg) 7,0 m
Max outreach (load 230 kg) 5,4 m
Rotation angle +/-110°
Basket size 1,4 x 0,7 m
Basket rotation angle +/- 70°
Max basket capacity 230 kg
Length in stowed position (with detached basket) 3,7 (3,0) m
Min width in stowed position 1,15 m
Max working width 1,95 m
Min height in stowed position 1,98 m
Longitudinal leveling +/- 15°
Lateral leveling +/- 15°
Max gradeability 25°
Max side greadeability 25°
Drive speed (fast) 2,5 km/h
Security speed 0,3 km/h
Trafcload 3,86 kN/m2
Total weight 2850 kg
3TNM68 -AS Yanmar engine (diesel) 14 kW - 19,2 Hp
Non-marking tracks -
Eletric pump 220V-2,2KW / 50Hz -
Radio remote control -
Arctic lubricant for cold climate -
Yanmar Diesel Engine, 3 Cylinders
(14,1kW - 19,2 HP)
240° Slewing ring rotation
Basket rotation kit +/- 70°
Integrated Drive System
(using single joystick)
Max working height 12,2 m
Max height basket floor 10,2 m
Moving height 8,0 m
Max outreach (load 80 kg) 7,0 m
Max outreach (load 230 kg) 5,4 m
Rotation angle +/-110°
Basket size 1,4 x 0,7 m
Basket rotation angle +/- 70°
Max basket capacity 230 kg
Length in stowed position (with detached basket) 3,7 (3,0) m
Min width in stowed position 1,15 m
Max working width 1,95 m
Min height in stowed position 1,98 m
Longitudinal leveling +/- 15°
Lateral leveling +/- 15°
Max gradeability 25°
Max side greadeability 25°
Drive speed (fast) 2,5 km/h
Security speed 0,3 km/h
Trafcload 3,86 kN/m2
Total weight 2850 kg
3TNM68 -AS Yanmar engine (diesel) 14 kW - 19,2 Hp
Non-marking tracks -
Eletric pump 220V-2,2KW / 50Hz -
Radio remote control -
Arctic lubricant for cold climate -
Yanmar Diesel Engine, 3 Cylinders
(14,1kW - 19,2 HP)
240° Slewing ring rotation
Basket rotation kit +/- 70°
Integrated Drive System
(using single joystick)
Max working height 12,2 m
Max height basket floor 10,2 m
Moving height 8,0 m
Max outreach (load 80 kg) 7,0 m
Max outreach (load 230 kg) 5,4 m
Rotation angle +/-110°
Basket size 1,4 x 0,7 m
Basket rotation angle +/- 70°
Max basket capacity 230 kg
Length in stowed position (with detached basket) 3,7 (3,0) m
Min width in stowed position 1,15 m
Max working width 1,95 m
Min height in stowed position 1,98 m
Longitudinal leveling +/- 15°
Lateral leveling +/- 15°
Max gradeability 25°
Max side greadeability 25°
Drive speed (fast) 2,5 km/h
Security speed 0,3 km/h
Trafcload 3,86 kN/m2
Total weight 2850 kg
3TNM68 -AS Yanmar engine (diesel) 14 kW - 19,2 Hp
Non-marking tracks -
Eletric pump 220V-2,2KW / 50Hz -
Radio remote control -
Arctic lubricant for cold climate -
Yanmar Diesel Engine, 3 Cylinders
(14,1kW - 19,2 HP)
240° Slewing ring rotation
Basket rotation kit +/- 70°
Integrated Drive System
(using single joystick)
1300 551 108 | [e-mail] | alfasihire.com.au
Compact dimensions
Removable basket
Automatic & Dynamic Levelling
Pro-Active Levelling

80 kg
120 kg
230 kg
80 kg
120 kg
230 kg
1300 551 108 | [e-mail] | alfasihire.com.au

JIBBI SERIES:
JIBBI 1250 - JIBBI 1270 - JIBBI 1670
JIBBI U-1570
USE AND MAINTENANCE
ENGLISH
Original Instructions
ALMAC S.r.l.
e-mail: [email protected]
Tel. [phone]
Fax. [phone]
Registered office
Viale Ruggeri 6/A
42016 –Guastalla (RE) - Italy
Operational Headquarters
Via Caduti sul Lavoro 1
42012 –Viadana (MN) - Italy
EDITION: 03/2023

PAGE2
DATE
DESCRIPTION OF THE REVISION
01/08/2022
•First issue of the unified manual document for the whole JIBBI range.
30/03/2023
•Correction of errors in reduced-track working diagrams: INHIBITED
TRANSLATION was incorrectly indicated.

PAGE3
SUMMARY
1GENERAL INFORMATION.......................................................................................... 7
1.1 REGULATORY AND LEGAL ASPECTS. .............................................................................. 7
1.1.1 Documentation supplied. ............................................................................. 7
1.1.2 Notification of commissioning, first check, subsequent periodic checks and transfer of
ownership. .......................................................................................................... 7
1.1.2.1 Notification of commissioning and first check (only for Italy). ......................................................8
1.1.2.2 Periodic checks following the first check................................................................................8
1.1.2.3 Transfers of ownership of the PLE. .......................................................................................8
1.1.3 Training, information and training of operators. ................................................ 9
1.1.4 Tests are carried out before delivery. ............................................................. 9
1.1.5 Warranty, Request for intervention under warranty and technical assistance.............. 9
1.1.5.1 Warranty and disclaimer. ..................................................................................................9
1.1.5.2 Request for intervention under warranty and technical assistance. .............................................. 10
1.2 DESCRIPTION AND INTENDED USE OF THE MACHINE. .............................................................11
1.3 OPERATING POSITIONS. .........................................................................................13
1.3.1 Use with driver on foot. .............................................................................13
1.4 POWER.......................................................................................................... 13
1.5 USES NOT PERMITTED AND "DISEMBARKATION AT HIGH ALTITUDE". ..............................................14

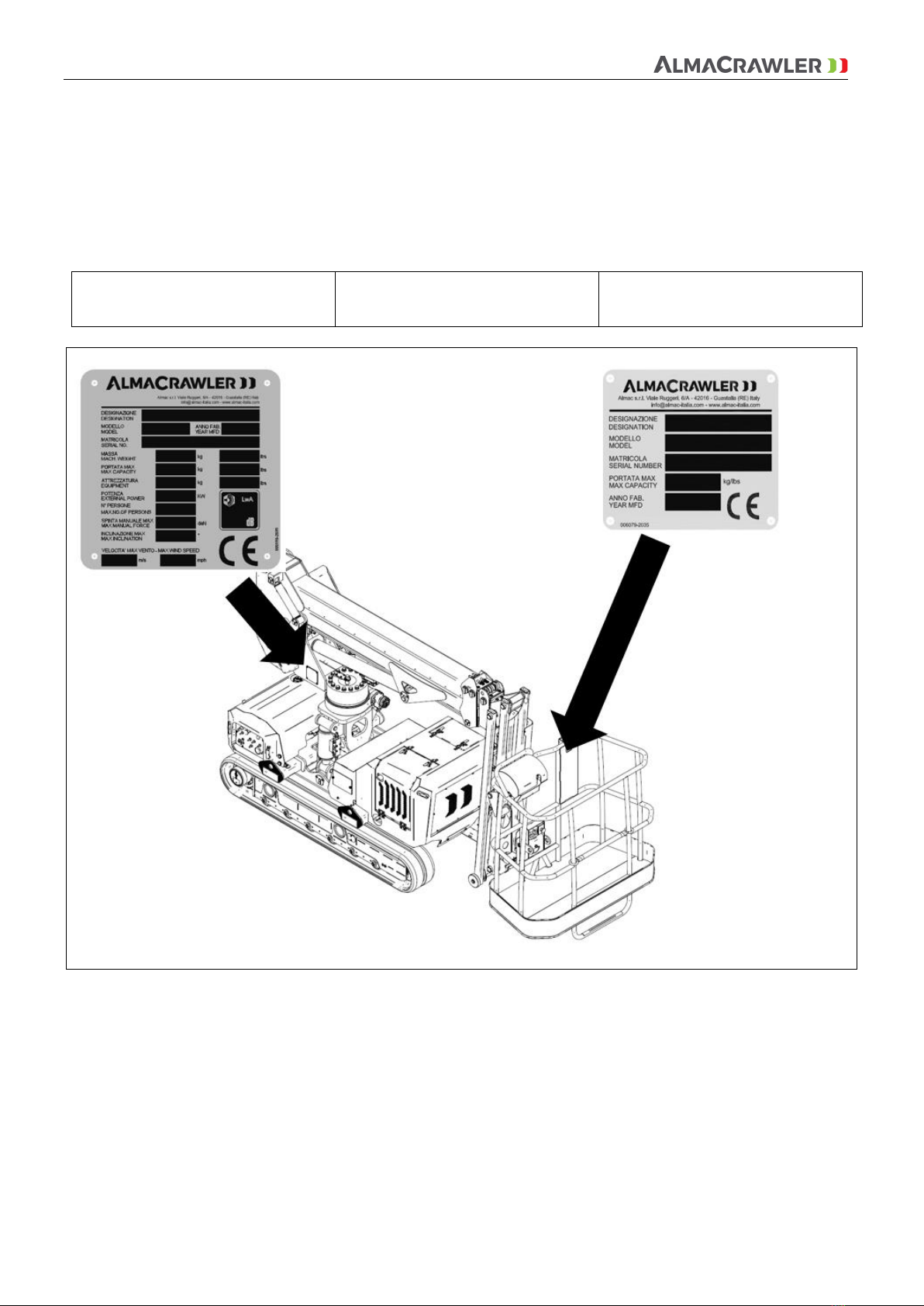

1.6 IDENTIFICATION. ................................................................................................15

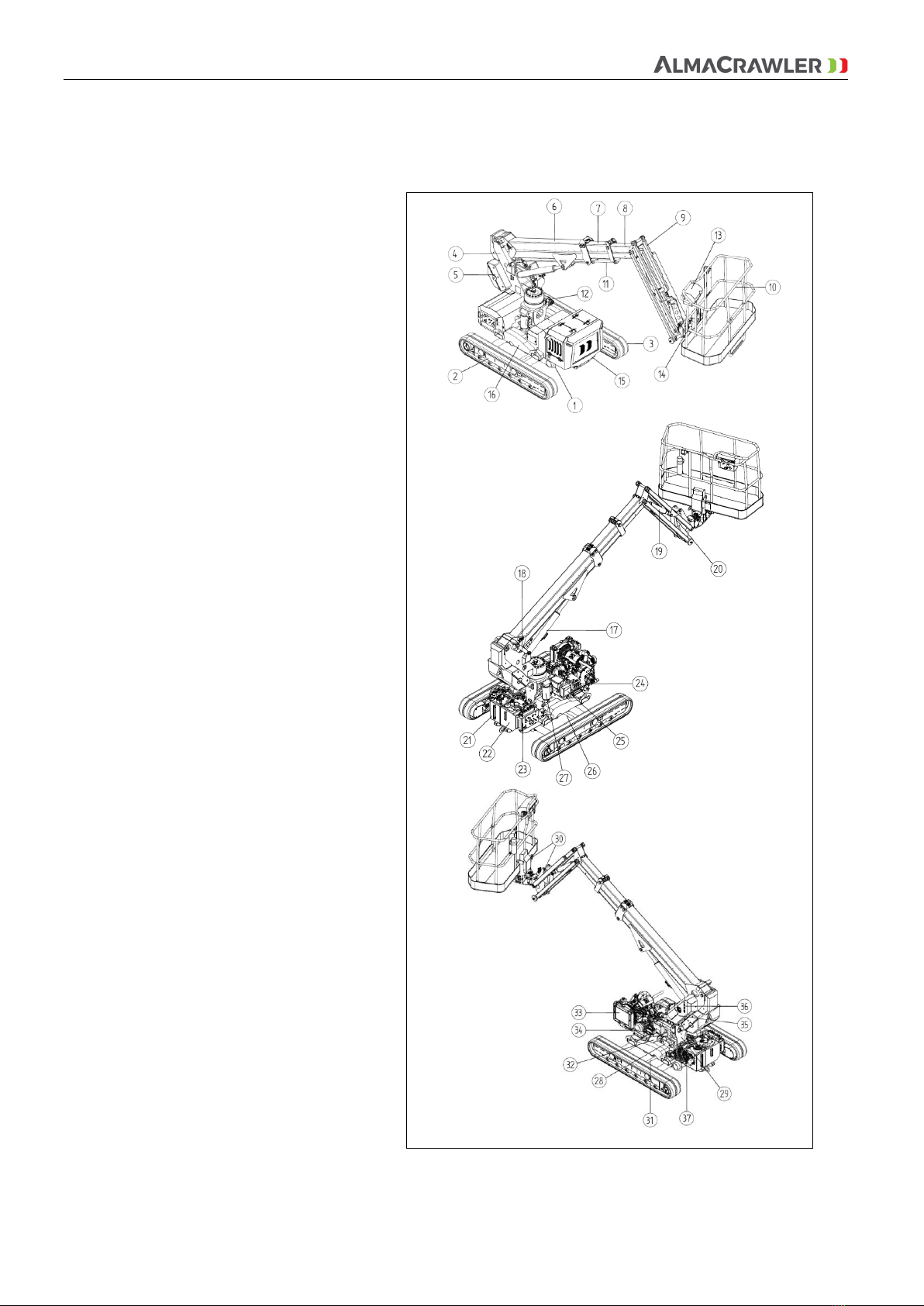

1.7 DEFINITIONS AND LOCATIONS OF THE MAIN COMPONENTS........................................................16
2TECHNICAL DATA, DIMENSIONS AND WORKING DIAGRAMS. ............................................. 18
2.1 JIBBI 1250.....................................................................................................18
2.1.1 General technical data JIBBI 1250. ................................................................18
2.1.2 Technical data version JIBBI 1250 EVO - YANMAR 3TNM68-AS................................. 19
2.1.3 Technical data version JIBBI 1250 EVO - YANMAR 3TNV74-SDSA. .............................20
2.1.4 Technical data JIBBI 1250 ELC version.............................................................21
2.1.5 Technical data JIBBI 1250 LTH version. ........................................................... 22
2.1.6 JIBBI 1250 working diagrams (all versions - except RT). ....................................... 23
2.1.6.1 JIBBI 1250 working diagrams at the maximum track. Translation inhibited. .................................... 23
2.1.6.2 JIBBI 1250 working diagrams at the maximum track. Translation allowed....................................... 25
2.1.6.3 JIBBI 1250 working diagrams with reduced track (capacity 140 kg). Translation inhibited ................... 26
2.1.6.4 JIBBI 1250 transport configuration...................................................................................... 27
2.2 JIBBI 1250 RT.................................................................................................28
2.2.1 General technical data JIBBI 1250 RT. ............................................................28
2.2.2 Technical data version JIBBI 1250 EVO-RT - YANMAR 3TNM68-AS. ...........................29
2.2.3 Technical data version JIBBI 1250 EVO-RT - YANMAR 3TNV74-SDSA ..........................30
2.2.4 JIBBI 1250 RT working diagrams. ................................................................... 31
2.2.4.1 JIBBI 1250 RT working diagrams. Maximum height and maximum outreach. Translation inhibited.......... 31
2.2.4.2 JIBBI 1250 RT working diagrams. Translation allowed............................................................... 33
2.2.4.3 JIBBI 1250 RT transport configuration.................................................................................. 34
2.3 JIBBI 1270.....................................................................................................35
2.3.1 General technical data JIBBI 1270 .................................................................35
2.3.2 Technical data version JIBBI 1270 EVO - YANMAR 3TNM68-AS.................................36
2.3.3 Technical data version JIBBI 1270 EVO - YANMAR 3TNV74-SDSA ..............................37
2.3.4 JIBBI 1270 working diagrams ........................................................................ 38
2.3.4.1 JIBBI 1270 working diagrams with maximum track. Translation inhibited. ...................................... 38
2.3.4.2 JIBBI 1270 working diagrams with reduced track. Translation inhibited. ........................................ 39
2.3.4.3 JIBBI 1270 working diagrams with maximum track. Translation allowed......................................... 39
2.3.4.4 JIBBI 1270 transport configuration...................................................................................... 40
2.4 JIBBI U-1570. ................................................................................................. 41
2.4.1 General technical data JIBBI U-1570...............................................................41
2.4.2 Technical data version JIBBI U-1570 EVO - YANMAR 3TNM68-AS. .............................42
2.4.3 Technical data version JIBBI U-1570 EVO - YANMAR 3TNV74-SDSA. ..........................43
2.4.4 Technical data JIBBI U-1570 LTH version.......................................................... 44
2.4.5 JIBBI U-1570 working diagrams (all versions). ................................................... 45
2.4.5.1 JIBBI U-1570 working diagrams with maximum track. Translation inhibited. ................................... 45

PAGE4
2.4.5.2 JIBBI U-1570 working diagrams with maximum track. Translation allowed. ..................................... 46
2.4.5.3 JIBBI U-1570 working diagrams with reduced track 2.19 m. Translation inhibited. ............................ 47
2.4.5.4 JIBBI U-1570 working diagrams with reduced track 1.98 m. Translation inhibited. ............................ 48
2.4.5.5 Working diagrams JIBBI U-1570 with reduced track 1.9 m asymmetrical. Translation inhibited. ............ 49
2.4.5.6 JIBBI U-1570 working diagrams with reduced track (1.35 m). Translation inhibited. .......................... 50
2.4.5.7 JIBBI U-1570 transport configuration................................................................................... 51
2.5 JIBBI 1670.....................................................................................................52
2.5.1 General technical data JIBBI 1670. ................................................................52
2.5.2 Technical data version JIBBI 1670 EVO - YANMAR 3TNM68-AS................................. 53
2.5.3 Technical data version JIBBI 1670 EVO - YANMAR 3TNV74-SDSA. .............................54
2.5.4 Technical data JIBBI 1670 LTH version. ........................................................... 55
2.5.5 JIBBI 1670 working diagrams (all versions). ......................................................56
2.5.5.1 JIBBI 1670 working diagrams with maximum track (2.45 m). Translation inhibited. ........................... 56
2.5.5.2 JIBBI 1670 working diagrams with maximum track (2.45 m). Translation allowed. ............................ 57
2.5.5.3 JIBBI 1670 working diagrams with reduced track 2.19 m. Translation inhibited. ............................... 58
2.5.5.4 JIBBI 1670 working diagrams with reduced track 1.9 m. Translation inhibited. ................................ 60
2.5.5.5 JIBBI 1670 working diagrams with reduced track 1.9 m asymmetrical. Translation inhibited. ............... 62
2.5.5.6 JIBBI 1670 working diagrams with reduced track (1.35 m). Translation inhibited. ............................. 63
2.5.5.7 JIBBI 1670 transport configuration...................................................................................... 64
3SAFETY INFORMATION, OBLIGATIONS AND PROHIBITIONS. ............................................. 65
3.1 PERSONAL PROTECTIVE EQUIPMENT (PPE)......................................................................65
3.1.1 Restraint / fall arrest device and platform anchoring points. ................................65
3.2 SAFETY RULES................................................................................................... 66
3.2.1 General safety rules. ................................................................................. 66
3.2.2 Handling and displacements.........................................................................68
3.2.3 Stages of work. ........................................................................................ 69
3.2.4 Wind action and Beaufort scale. ...................................................................71
3.2.5 Ground suitability and pressure to the ground of the machine............................... 72
3.2.5.1 Bearing capacity of the ground.......................................................................................... 72
3.2.5.2 Ground inclination......................................................................................................... 74
3.2.6 Live power lines .......................................................................................75
3.3 IN CASE OF ACCIDENT. ..........................................................................................75
4INSTALLATION AND PRELIMINARY CHECKS. ................................................................ 76
4.1 FAMILIARIZATION................................................................................................76
4.2 PRE-USE CHECKS ................................................................................................76
4.3 DEFECTS FOUND DURING PRE-USE CHECKS. .....................................................................77
5METHOD OF USE. ................................................................................................ 78
5.1 CONTROL PANEL ON THE PLATFORM.............................................................................78
5.1.1 Document compartment on the platform......................................................... 78
5.1.2 Fixing the push-button panel on the platform...................................................79
5.1.3 Platform push-button panel with GRAPHIC DISPLAY. ...........................................80
5.1.3.1 "Dead man" system. ....................................................................................................... 81
5.1.3.2 Traction, steering and track widening controls. ..................................................................... 82
5.1.3.2.1 Traction and steering control with DYNAMIC & PROACTIVE LEVELLING function. ........................... 83
5.1.3.2.2 Traction and steering control with FAST DRIVE and BOOSTER function....................................... 84
5.1.3.3 Manual control of the levelling of the fifth wheel plane............................................................ 85
5.1.3.4 Platform handling (ascents, descents, rotations). ................................................................... 86
5.1.3.4.1 Ascent / Descent of the main arm. ................................................................................. 86
5.1.3.4.2 Rotation of the turret. ................................................................................................ 86
5.1.3.4.3 Extension / retraction of the telescopic arm. .................................................................... 87
5.1.3.4.4 Rotation of the platform.............................................................................................. 87
5.1.3.4.5 Ascent / Descent of the jib. ......................................................................................... 87
5.1.3.4.6 Platform movement with DYNAMIC & PROACTIVE LEVELLING function. ...................................... 87
5.1.3.5 Winch control (optional). ................................................................................................ 88
5.1.3.6 Other functions and devices of the control panel.................................................................... 89
5.1.3.6.1 Emergency stop. ....................................................................................................... 89
5.1.3.6.2 THERMAL / ELECTRIC power selector (EVO versions). ........................................................... 89
5.1.3.6.3 Motor ON / OFF / PREHEAT selector (EVO versions). ............................................................ 89
5.1.3.6.4 Speed selector potentiometer. ...................................................................................... 89
5.1.3.6.5 START button. .......................................................................................................... 90

PAGE5
5.1.3.6.6 HORN button............................................................................................................ 90
5.1.3.6.7 "MANUAL" function activation button............................................................................... 90
5.1.3.6.8 Safety key (only for RADIO CONTROL version). ................................................................... 90
5.1.3.6.9 Radio remote control additional battery (only for RADIO CONTROL version). ............................... 90
5.1.3.6.10 Cable and connector (only for RADIO CONTROL version). ..................................................... 91
5.1.3.6.11 Graphic display and service buttons (versions with DISPLAY). ................................................ 92
5.1.4 Platform push-button panel with LED DISPLAY. .................................................99
5.1.4.1 "Dead man" system. ......................................................................................................100
5.1.4.2 Traction, steering and track widening controls. ....................................................................101
5.1.4.2.1 Traction and steering control with DYNAMIC & PROACTIVE LEVELLING function. ..........................101
5.1.4.2.2 Traction and steering control with FAST DRIVE and BOOSTER function......................................102
5.1.4.3 Platform handling (ascents, descents, rotations). ..................................................................103
5.1.4.3.1 Ascent / Descent of the main arm. ................................................................................103
5.1.4.3.2 Rotation of the turret. ...............................................................................................103
5.1.4.3.3 Extension / retraction of the telescopic arm. ...................................................................103
5.1.4.3.4 Rotation of the platform.............................................................................................104
5.1.4.3.5 Ascent / Descent of the jib. ........................................................................................104
5.1.4.3.6 Platform movement with DYNAMIC & PROACTIVE LEVELLING function. .....................................104
5.1.4.4 Winch control (optional). ...............................................................................................105
5.1.4.5 Other functions and devices of the control panel...................................................................106
5.1.4.5.1 Emergency stop. ......................................................................................................106
5.1.4.5.2 THERMAL / ELECTRIC power selector (EVO versions). ..........................................................106
5.1.4.5.3 Motor ON / OFF / PREHEAT selector (EVO versions). ...........................................................106
5.1.4.5.4 START button. .........................................................................................................106
5.1.4.5.5 HORN button...........................................................................................................106
5.1.4.5.6 Safety key (only for RADIO CONTROL version). ..................................................................107
5.1.4.5.7 Radio remote control additional battery (only for RADIO CONTROL version). ..............................107
5.1.4.5.8 Cable and connector (only for RADIO CONTROL version).......................................................107
5.1.4.5.9 LED display (version with LED display). ...........................................................................107
5.1.5 Operator anti-crushing kit (OPTIONAL). ........................................................ 113
5.1.6 Anti-collision kit (OPTIONAL). .................................................................... 113
5.2 CONTROL STATION ON THE GROUND. ......................................................................... 114
5.2.1 Main key switch / control station selector. .................................................... 115
5.2.2 ON / OFF selector / Preheating of thermal and electric engines / ENABLE function. .. 115
5.2.3 Emergency stop button............................................................................. 116
5.2.4 Emergency Override Button with leaded protection.......................................... 116
5.2.5 Platform presence warning light. ................................................................ 116
5.2.6 Connector for use with winch kit (OPTIONAL). ................................................ 117
5.2.7 Winch presence warning light (OPTIONAL). .................................................... 117
5.2.8 Hour counter......................................................................................... 117
5.2.9 Extendable structure movement switches. ..................................................... 117
5.3 ACCESS TO THE PLATFORM. ................................................................................... 118
5.4 STARTING THE MACHINE....................................................................................... 119
5.4.1 Starting the single-phase thermal or electric engine (EVO versions) ...................... 120
5.4.2 Starting the electric motor (ELC-LTH versions)................................................ 120
5.5 STOPPING THE MACHINE....................................................................................... 121
5.5.1 Normal shutdown. .................................................................................. 121
5.5.2 Emergency stop...................................................................................... 121
5.6 END OF WORK................................................................................................. 121
5.7 REMOVING AND REPLACING THE PLATFORM /WINCH. ......................................................... 123
6LOADING AND TRANSPORT. .................................................................................. 124
6.1 TRANSPORT LENGTH REDUCTION (JIBBI 12XX). .............................................................. 124
6.2 LOADING WITH LOADING RAMP. ............................................................................... 125
6.3 LOADING WITH A FORKLIFT.................................................................................... 125
6.4 LOADING WITH A CRANE....................................................................................... 126
6.5 FIXING THE MACHINE ON THE MEANS OF TRANSPORT. ......................................................... 126
7EMERGENCY COMMANDS. ..................................................................................... 127
7.1.1 Emergency recovery of the incapacitated operator........................................... 127
7.1.2 Emergency recovery of the incapacitated operator in the presence of an overload alarm.
128

PAGE6
7.1.3 Emergency recovery with a manual pump. ..................................................... 129
7.1.3.1 Operator emergency recovery..........................................................................................129
7.1.4 Emergency movement of the machine in case of control failure. .......................... 131
8MAINTENANCE................................................................................................... 132
8.1 SAFETY RULES DURING MAINTENANCE. ........................................................................ 132
8.2 ORDINARY MAINTENANCE...................................................................................... 133
8.2.1 Cleaning the machine and adhesive plates. .................................................... 135
8.2.2 Functional checks. .................................................................................. 135
8.2.3 Visual inspection of the structural elements of the machine. .............................. 137
8.2.4 Visual check screw tightness / Screw tightening. ............................................. 138
8.2.5 Greasing joints, telescopic extensions and slewing ring. .................................... 139
8.2.6 Hydraulic oil level check / oil change. .......................................................... 140
8.2.7 Hydraulic oil filter replacement. ................................................................ 140
8.2.8 Traction reduction gear oil level check / oil change. ........................................ 142
8.2.9 Tracks: check for wear, tensioning and replacement......................................... 143
8.2.9.1 Track wear check.........................................................................................................143
8.2.9.2 Track tension control and adjustment. ...............................................................................143
8.2.9.3 Track replacement. ......................................................................................................143
8.2.10 Extension chains: Wear control, Tensioning and Lubrication................................ 145
8.2.10.1 Chain wear check.........................................................................................................145
8.2.10.2 Chain tension control and adjustment. ...............................................................................145
8.2.10.3 Chain lubrication. ........................................................................................................146
8.2.11 Check wear and register of sliding pads. ....................................................... 146
8.2.12 Turret rotation game control. .................................................................... 147
8.2.13 Platform rotation game control. ................................................................. 147
8.2.14 Overload control device check. ................................................................... 148
8.2.15 Check the efficiency of the differential switch 115-220V socket........................... 149
8.2.16 Machine sensor control............................................................................. 149
8.2.17 ANTI-COLLISION and ANTI-CRUSHING sensors control (optional)............................ 149
8.2.18 Battery................................................................................................ 150
8.2.18.1 Starter battery (versions with heat engine)..........................................................................150
8.2.18.1.1 Starter battery maintenance. .....................................................................................150
8.2.18.1.2 Starter battery charging............................................................................................150
8.2.18.2 LITHIUM battery (LTH versions). .......................................................................................151
8.2.18.2.1 Maintenance of the LITHIUM battery (LTH versions)...........................................................151
8.2.18.2.2 LITHIUM battery charging (LTH versions) ........................................................................152
8.2.18.3 TRACTION battery (ELC versions). .....................................................................................153
8.2.18.3.1 TRACTION battery maintenance (ELC versions). ...............................................................153
8.2.18.3.2 TRACTION battery charging (ELC versions). .....................................................................155
9DEMOLITION. .................................................................................................... 157
9.1 MACHINE LIFE. ................................................................................................ 157
9.2 DECOMMISSIONING AND DEMOLITION. ......................................................................... 157
9.3 BATTERY DISPOSAL............................................................................................ 157
10 CE DECLARATION OF CONFORMITY (FAC-SIMILE). ....................................................... 158
11 CONTROL REGISTER. ........................................................................................... 164
11.1 REGISTER OF PERIODIC INSPECTIONS AND CHECKS BY THE CONTROL BODIES. ........................... 165
11.2 REGISTER OF PERIODIC INSPECTIONS BY THE OWNER...................................................... 166
11.3 TRANSFERS OF OWNERSHIP. .................................................................................. 174
12 FUNCTIONAL DIAGRAMS. ...................................................................................... 175
12.1 WIRING DIAGRAMS. ........................................................................................ 175
12.2 HYDRAULIC DIAGRAMS. ................................................................................... 175

PAGE7
1GENERAL INFORMATION.
This document contains proprietary information. All rights reserved.
This document cannot be reproduced, in whole or in part, without the prior written consent of ALMAC
s.r.l.
The use of this document is permitted only to the customer to whom the manual was provided as a kit
with the equipment, and only for purposes of use and maintenance of the equipment to which the manual
refers.
ALMAC s.r.l. declares that the information contained in this manual is consistent with the technical and
safety specifications of the equipment to which the manual refers. ALMAC s.r.l. assumes no responsibility
for direct or indirect damage to people, things or animals resulting from the use of the equipment in
conditions other than those provided.
ALMAC s.r.l. reserves the right to make changes or improvements without notice to this document and to
the equipment, without any obligation to update equipment already sent.
The information contained in this manual refers to the various equipment mentioned on the cover; some
images and / or information may not be specific to the set-up in the customer's possession because they
are not available or available on request.
1.1 Regulatory and legal aspects.
1.1.1 Documentation supplied.
The machine is delivered complete with the following documentation:
-Instruction manual (this document) including the Control Register;
-Spare parts manual;
-EC mark applied to the machine;
-EC declaration of conformity;
-Hydraulic scheme;
-Wiring diagram.
The instruction manual and the attached documents are integral parts of the machine and a copy of
these, together with the certificates of the mandatory periodic checks, must be kept on the machine in
the appropriate box. The original documents must be kept in a dry and protected place; in case of change
of ownership these documents must always accompany the machine.
In case of loss or damage, a new copy must be requested, specifying the model and serial number of the
machine.
1.1.2 Notification of commissioning, first check, subsequent periodic checks and
transfer of ownership.
The legal obligations of the owner of the machine differ according to the state in which the machine is
put into service. It is advisable to inquire about the procedures envisaged in your area at the bodies for
the protection of safety in the workplace. In order to improve the filing of documents and to record the
modification / assistance work, a section has been provided at the end of this booklet called "Control
Register".

PAGE8
1.1.2.1Notification of commissioning and first check (only for Italy).
In Italy, the owner of the Elevating Work Platform (PLE) must report its commissioning to INAIL and submit
it to mandatory periodic checks. The first check is carried out by INAIL within sixty days from the request,
after which the employer can make use of the ASLs or authorized public or private entities.
Subsequent checks are carried out by the aforementioned subjects, who provide them within thirty days
from the request, after which the employer can make use of authorized public or private subjects. The
checks are expensive and the costs for their execution are borne by the owner of the machine. To carry
out the checks, the territorial supervisory bodies (ASL / USL or ARPA) and INAIL may avail themselves of
the support of authorized public or private entities. Authorized private entities acquire the qualification
of public service officers and report directly to the public structure that holds the function.
To report commissioning in Italy, it is necessary to connect to the INAIL portal following the instructions
on the portal itself.
INAIL will assign a serial number and during the First Inspection, will fill in the "technical identification
sheet", reporting on it only the data detectable by the machine already in service or inferable from the
instruction manual. This document will be an integral part of the machine documentation.
1.1.2.2Periodic checks following the first check.
In Italy, compulsory periodic checks take place annually. For their performance, it is necessary that the
owner of the PLE makes a request by registered letter to the supervisory body (ASL / USL or ARPA or other
authorized public or private subjects) competent for the territory at least twenty days before the end of
the year from the time of past verification.
It should be noted that, if a machine without a valid verification document is moved on the territory in
an area outside the competence of the usual supervisory body, it is the owner's obligation to request the
annual check from the supervisory body competent for the new territory. in which the machine is to
operate.
1.1.2.3Transfers of ownership of the PLE.
In Italy, in case of transfer of ownership, the previous owner of the PLE is required to communicate the
unavailability of the machine by connecting to the INAIL portal.
The new owner will have to retrieve the registration data of the PLE on the same INAIL portal, in order
to continue to subject the machine to the periodic checks required by law.
The new owner must in any case obtain from the previous owner the accompanying documentation
already mentioned in the previous chapters (see SUPPLIED DOCUMENTATION).
To take advantage of the WARRANTY and to receive any updates and SERVICE BULLETINS, the new owner
must report to ALMAC SRL that he has taken possession of the machine by means of written
communication using the forms provided at the end of this manual.

PAGE9
1.1.3 Training, information and training of operators.
Training, information and training of operators are legal obligations for the employer. The employer must
in fact ensure that the workers in charge of the use of the equipment receive adequate and specific
training to allow their use in a suitable and safe way, also in relation to the damage that may be caused
to other people and things. Remember that both the one who directly manoeuvres the machine and the
one on the ground for any recovery and rescue operations are considered operators.
The operators in charge must be at least 18 years old and be recognized as suitable from a psycho-physical
point of view for this task. In particular, before driving, it is necessary to check the following
requirements:
-Sight and hearing in good condition;
-Absence of alterations induced by the use of alcohol or drugs;
-Psychological balance, absence of depression or stress.
1.1.4 Tests are carried out before delivery.
Before being placed on the market, each example of the ALMAC platform was subjected to the following
tests:
▪Braking test
▪Overload test
▪Function test
1.1.5 Warranty, Request for intervention under warranty and technical assistance.
1.1.5.1Warranty and disclaimer.
ALMAC S.r.l. guarantees the devices of its own production and undertakes to replace, free of charge, in
the shortest time possible, those parts that in its opinion are found to be defective.
Any intervention under warranty can only be carried out at authorized ALMAC S.r.l. and on the condition
that the Customer is up to date with the payments.
The warranty is not recognized if the customer does not deliver the appliance for repair within 30 days
from the date of the first complaint to be made in writing.
With the exception of cases of willful misconduct or gross negligence, any liability of ALMAC S.r.l. to the
Customer is excluded. for any damage resulting from faults/defects in the devices sold.
ALMAC S.r.l. is relieved of any liability and the warranty is void in the following cases:
-Use not permitted or not intended by this manual;
-Improper use of the machine or its use by not instructed and / or untrained personnel;
-Use that does not comply with specific regulations;
-Lack of maintenance and / or not on time;
-Removal of seals;
-Modifications have been made to the machine without the prior written authorization of
ALMAC S.r.l.;
-Non-original spare parts or spare parts not approved by ALMAC s.r.l. are used.

PAGE10
1.1.5.2Request for intervention under warranty and technical assistance.
Any requests for spare parts or technical interventions under warranty must be reported to ALMAC S.r.l.
as soon as a defect is found.
For any request for assistance, always contact the ALMAC technical assistance service as indicated below:
Always indicate the type and the serial number of the machine when requesting spare parts under
warranty or technical interventions. These data are indicated on the machine identification plate.
REGISTERED OFFICE
OPERATIONAL
HEADQUARTERS
ALMAC S.r.l.
Viale Ruggeri 6 / A
42016 Guastalla (RE) Italy
ALMAC S.r.l.
Via Caduti sul lavoro 1
46019 Viadana (MN)
Tel. [phone]
Fax. [phone]
Mail: [email protected]

PAGE11
1.2 Description and intended use of the machine.
The machine described in this manual is a self-propelled Elevating Work Platform or, as described by the
EN280 technical standard, a mobile machine designed to move people to work positions, in which they
perform tasks while remaining on the work platform, with the understanding that persons enter and exit
the work platform only through access positions at ground or chassis level, and which consists of at least
a work platform with controls, an extendable structure (lift arms) and a frame.
The planned activities are:
-Green maintenance;
-Maintenance and installation of systems or devices at height;
-Cleaning;
-Stripping, sandblasting, painting, welding;
-All the activities to be carried out at height with the operator on the platform;
The maximum capacity allowed (different for each model; refer to the technical data in the tables later
in this manual) consists of:
-For each person a load of 80 kg is considered;
-For the equipment, a minimum load of 40 kg is considered;
-The remaining load is represented by the material being processed.
The machine essentially consists of:
-A motorized base undercarriage, with variable track (excluding “RT” models with fixed track),
equipped with tracks.
-Hydraulically rotating turret;
-Extensible structure operated by hydraulic cylinders;
-Operator platform.
The base tank supports the power source (heat engine or battery) and is mainly composed of the following
components:
-Fixed lower frame on which the oil and fuel tanks are installed (if the machine is equipped
with a heat engine), the battery, the hydraulic and electrical systems and the ground
emergency control station;
-Left track equipped with gearmotor for moving the machine, and telescopic supports for
controlling the variable track (excluding “RT” models with fixed track);
-Left track equipped with gearmotor for moving the machine, and telescopic supports for
controlling the variable track (excluding “RT” models with fixed track);
-Articulated fifth wheel support is operated by a pair of hydraulic cylinders for the levelling
control of the superstructure, on which the rotation fifth wheel is fixed.
The hydraulically rotating turret is fixed to the articulated support of the carriage and allows rotation of
the superstructure with respect to the vertical axis of the machine. The allowed rotation is limited, and
this limitation varies from model to model (see the technical data table to understand the maximum
rotation angle of each model).
The extensible structure consists of
oTelescopic main arm;
oJib
The lifting / lowering movements of the arm and the jib are carried out by means of hydraulic cylinders
equipped with over-centre valves directly flanged on them in order to keep the arms in position even in
the event of accidental breakage of a supply pipe.
The telescopic extension is operated by:
-A double-acting hydraulic cylinder with over-centre valve and a flyer chain system for the JIBBI
1250, JIBBI 1270 and JIBBI 1670 models;
-A double-acting and double-extension hydraulic cylinder (without chains) for the JIBBI U 1570
model.
Appropriate sensors monitor the position of the platform at a height, verifying that the operator always
remains within the expected safety operating limits (height, outreach).
The work platform is fixed to the end of the jib arm and can be rotated differently for each model (see
the technical data table to understand the maximum rotation angle of each model) by means of a rotary
actuator also provided of the over-centre valve to keep it in position in case of hydraulic failure. The

PAGE12
platform is made of aluminium and is equipped with parapets and toe-boards of regular height (parapets
H = 1100 mm; toeboard H = 150 mm). Platforms of various sizes can be installed; see technical data.
The levelling of the platform is automatic and is guaranteed by:
-Master-slave hydraulic system for models JIBBI 1250, JIBBI 1270 and JIBBI 1670;
-Electronic levelling system for the JIBBI U 1570 model.
For some versions, on request it is possible to provide:
-Quick basket removal system;
-Material lifting hoist to be applied as an interchangeable accessory in place of the platform.
The machine control system consists of several sensors that allow you to keep overall stability under
control by keeping the turret and the extensible structure level and adjusting the height, outreach and
working speed according to the various monitored parameters, i.e.:
-Ground inclination;
-Machine track (excluding fixed track "RT" models);
-Position of the rotating turret;
-Opening angle of the main arm;
-Position of the telescopic extension of the arm;
-Opening angle of the jib;
-Loading on the platform.
Through the display (or the LED lights) on the platform control panel, the operator on board is constantly
informed of the operating limits reached and the permitted movements.

PAGE13
1.3 Operating positions.
The machine control system can be of two types:
-Control system with wired console on platform (remote control - standard);
-Control system with console connected via radio on platform (radio control - optional).
In both cases, the normal operating position is located on the platform while on the ground there is a
control station for the emergency recovery of the platform. However, it is possible to drive the machine
on foot during transfers.
1.3.1 Use with driver on foot.
Regardless of the type of control system (remote control or radio control), it is possible to remove the
control console from the platform, and drive the machine on foot when placing the machine or for loading
and unloading the machine from the means of transport.
-With the remote control outside its housing on the platform, all the machine controls are
allowed limited to the length of the connection cable;
-With the radio control (optional) outside its housing on the platform, the following commands
are allowed:
oIf the platform load is less than 20 kg:
▪All commands are allowed.
oIf the platform load is greater than 20 kg:
▪Variable track control, translation and turret levelling only if the arm is in
TRANSPORT POSITION;
▪Controls for the development of the extensible structure (ascents / descents /
rotations) up to the limit of the TRANSPORT POSITION.
For machines equipped with the winch option, the operator drives the machine on foot in the following
ways:
-With remote control connected to the connector available on the ground control station;
-With radio control.
1.4 Power.
The machines are equipped with a hydraulic system through which the movement is obtained. The
machines can be set up with different energy sources based on the following:
-ELC version = Machine powered by lead-acid battery and electric pump;
-LTH version = Machine powered by lithium battery and electric pump;
-EVO version = Machine powered by a diesel engine and hydraulic pumps.
As an option, for the EVO and LTH versions, it is possible to have an electric pump powered by the mains
voltage.
In any case, both the hydraulic and electrical systems are equipped with all the necessary protections
(see electrical and hydraulic diagrams supplied as attachments to this manual).

PAGE14
1.5 Uses not permitted and "Disembarkation at high altitude".
Normal and permitted use of the machine is described in the previous paragraphs. Anything not described
as normal and permitted use is to be considered as not permitted use.
-It is forbidden to operate the work platform from the ground control station except for
emergency recovery operations.
-It is forbidden to operate the work platform with the control console outside the work platform
if there are operators on board; the control system is already configured to prevent such use
if there is a load greater than 20 kg on the platform.
-Since the MEWPs are designed to operate from the operating position on the platform, and the
only permitted access position is the one that foresees the platform on the ground, any activity
that involves accessing and / or abandoning the same with the platform in a position other
than that of access (the so-called "landing at height") is formally prohibited.

PAGE15
1.6 Identification.
In the event of a request for spare parts and for interventions, the data shown on the registration plate
located on the turret or on the identification plate on the platform must always be mentioned. In case
of loss or illegibility of the plates (as well as for the various adhesive plates located throughout the
machine), it must be restored as quickly as possible.
For the location of the plates see the following figure. It is advisable to transcribe these data in the
following table:
TEMPLATE:______________
SERIAL NUMBER: ______________
YEAR: __________________
Figure 1

PAGE16
1.7 Definitions and locations of the main components
The main components of the machine are shown in the following images. This manual deals with different
models and equipment so some images may differ slightly from the model owned.
1. Lower frame
2. Left track
3. Right track
4. Turret
5. Turret ballast
6. Arm
7. First extension
8. Second extension
9. JIB
10. Platform
11. Arm extension cylinder
12. Slewing bearing and hydraulic
motor
13. Control console
14. Platform rotation actuator
15. 230V socket
16. Wagon ballast
17. Arm lifting cylinder
18. "Master" levelling cylinder
19. JIB lifting cylinder
20. "Slave" levelling cylinder
21. Fuel tank
22. Oil tank
23. Ground control electrical panel
24. 12V starter battery
25. Differential magnetothermic
switches electrical panel
26. Left track enlargement cylinder
27. Side levelling cylinder
28. Lower turret levelling joint
29. Upper turret levelling joint
30. Platform support and levelling
joint
31. Right track enlargement cylinder
32. Turret longitudinal levelling
cylinder
33. Endothermic engine
34. Electric motor (if present)
35. Aircraft movement distributor
36. Hand pump
37. Earthmoving distributor
Figure 2

PAGE17

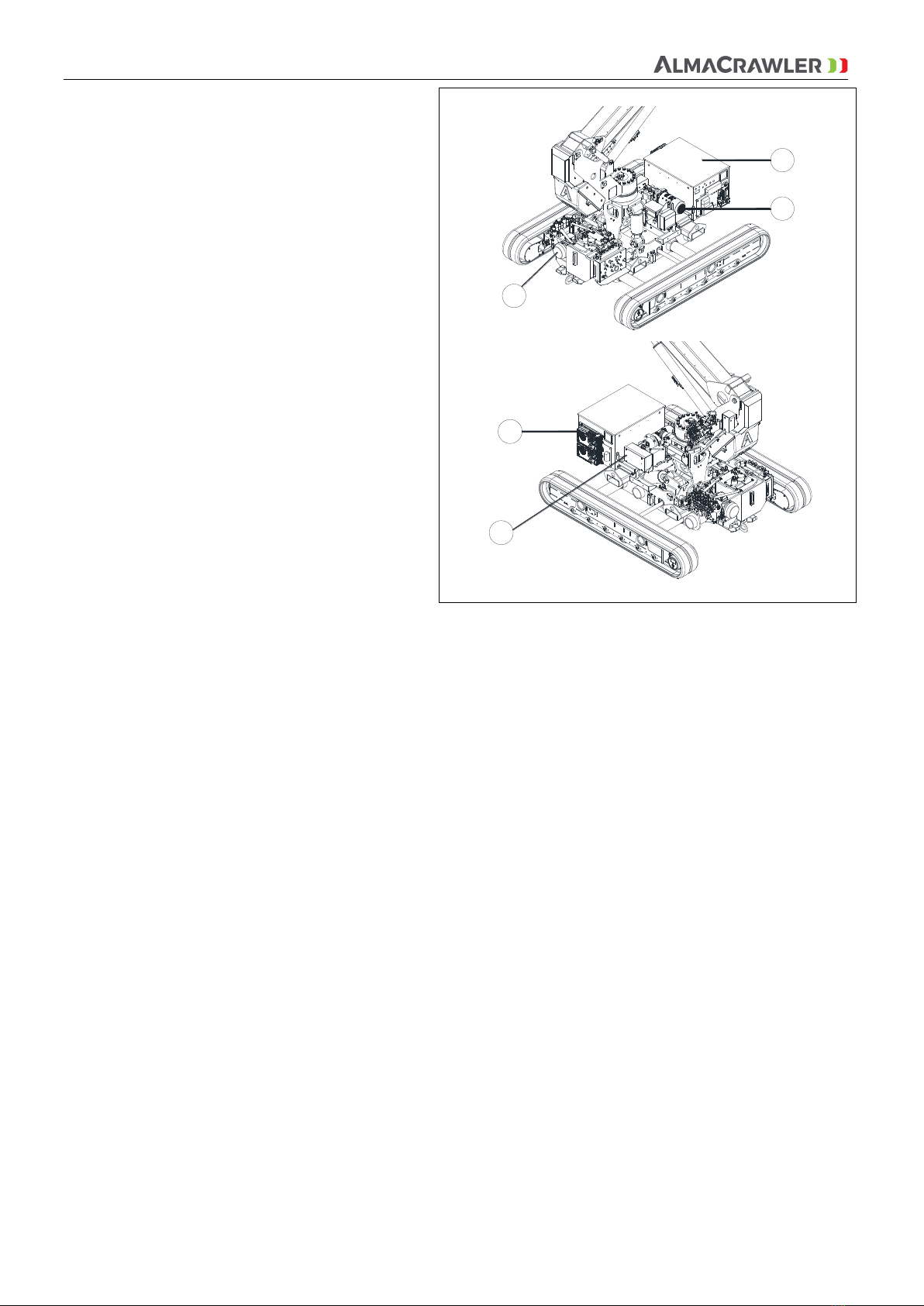

Specific components for ELC - LTH versions:
1. Lithium (LTH) or pb-acid (ELC) traction
batteries
2. 48V electric motor
3. Electric motor 220V / 110V (LTH) or
ballast (ELC)
4. Battery charger
5. Electrical box for contractors
Figure 3
3
2
1
5
4
