Service and Repair Manual
Serial Number Range
Z®-135/70
from Z13505-101 to
Z13513-
2000
This manual includes:
Repair
procedures
Fault Codes
Electrical and
Hydraulic Schematics
For detailed maintenance
procedures, refer to the
appropriate Maintenance
Manual for your machine.
Part No. 1268557GT
Rev A4
October 2018

Service and Repair Manual October 2018
Introduction
ii Z®-135/70 Part No. 1268557GT
Intr oduct io n Intr oduct io n
Important
Read, understand and obey the safety rules and
operating instructions in the appropriate Operator's
Manual on your machine before attempting any
procedure.
This manual provides troubleshooting and repair
procedures for qualified service professionals.
Basic mechanical, hydraulic and electrical skills are
required to perform most procedures. However,
several procedures require specialized skills, tools,
lifting equipment and a suitable workshop. In these
instances, we strongly recommend that
maintenance and repair be performed at an
authorized Genie dealer service center.
Compliance
Machine Classification
Group B/Type 3 as defined by ISO 16368
Machine Design Life
Unrestricted with proper operation, inspection and
scheduled maintenance.
Technical Publications
Genie has endeavored to deliver the highest
degree of accuracy possible. However, continuous
improvement of our products is a Genie policy.
Therefore, product specifications are subject to
change without notice.
Readers are encouraged to notify Genie of errors
and send in suggestions for improvement. All
communications will be carefully considered for
future printings of this and all other manuals.
Contact Us:
Internet: www.genielift.com
E-mail: [e-mail]
Find a Manual for this Model
Go to http://www.genielift.com
Use the links to locate Service Manuals,
Maintenance Manuals, Service and Repair
Manuals, Parts Manuals and Operator's Manuals.
Copyright © 2015 by Terex Corporation
1268557 Rev A, September 2015
First Edition, First Printing
Genie is a registered trademark of Terex South Dakota, Inc. in
the U.S.A. and many other countries.
“Z” is a trademark of Terex South Dakota, Inc.

October 2018 Service and Repair Manual
Introduction
Part No. 1268557GT Z®-135/70 iii
Revision History
Revision
Date
Section
Procedure / Page / Description
A 9/2015 Initial Release
A1 11/2015 Schematics Wire Color Legend
A2 6/2016 Specifications Performance Specifications
Repair Procedures 4-9, 6-1
A3 3/2018 Repair Display Module
A4
10/2018
Specifications
Perfromance Specifications
Reference Examples:
Electronic Version
Click on any content or procedure in the Table of Contents to view
the update.
Section – Repair Procedure, 4-2
Section – Fault Codes, All charts
Section – Schematics, Legends and schematics

Service and Repair Manual October 2018
Introduction
iv Z®-135/70 Part No. 1268557GT
Serial Number Legend
1 Model
2 Model year
3 Sequence number
4 Serial label (located under cover)
5 Serial number (stamped on chassis)

October 2018 Service and Repair Manual
Safety Rules
Part No. 1268557GT Z®-135/70 v
Section 1 Safet y Rul es
Danger
Failure to obey the instructions and safety rules in
this manual and the appropriate Operator's Manual
on your machine will result in death or serious
injury.
Many of the hazards identified in the operator's
manual are also safety hazards when maintenance
and repair procedures are performed.
Do Not Perform Maintenance
Unless:
RYou are trained and qualified to perform
maintenance on this machine.
RYou read, understand and obey:
•manufacturer's instructions and safety rules
•employer's safety rules and worksite
regulations
•applicable governmental regulations
RYou have the appropriate tools, lifting
equipment and a suitable workshop.

Service and Repair Manual October 2018
Safety Rules
vi Z®-135/70 Part No. 1268557GT
Personal Safety
Any person working on or around a machine must
be aware of all known safety hazards. Personal
safety and the continued safe operation of the
machine should be your top priority.
R
ead each procedure thoroughly. This
manual and the decals on the machine,
use signal words to identify the following:
Safety alert symbol
—
used to alert
personnel to potential personal
injury hazards. Obey all safety
messages that follow this symbol
to
avoid possible injury or death.
Indicates a imminently hazardous
situation which, if not avoided, will
result in death or serious injury.
Indicates a potentially hazardous
situation which, if not avoided,
could result in death or serious
injury.
Indicates a potentially hazardous
situation which, if not avoided,
may cause minor or moderate
injury.
Indicates a potentially hazardous
situation which, if not avoided,
may result in property damage.
Be sure to wear protective eye wear and
other
protective clothing if the situation
warrants it.
Be aware of potential crushing hazards
such as moving parts, free swinging or
unsecured components when lifting or
placing loads. Always wear approved
steel
-toed shoes.
Workplace Safety
Any person working on or around a machine must
be aware of all known safety hazards. Personal
safety and the continued safe operation of the
machine should be your top priority.
Be sure to keep sparks, flames and lighted
tobacco away from flammable and
combustible
materials like battery gases
and engine fuels. Always have an
approved fire extinguisher within easy
reach.
Be sure that all tools and working areas
are properly maintained and ready for
use. Keep work surfaces clean and free of
debris that could get in
to machine
components and cause damage.
Be sure any forklift, overhead crane or
other lifting or supporting device is fully
capable of supporting and stabilizing the
weight to be lifted. Use only chains or
straps that are in good condition and of
ample
capacity.
Be sure that fasteners intended for one
time use (i.e., cotter pins and self
-locking
nuts) are not reused. These components
may fail if they are used a second time.
Be sure to properly dispose of old oil or
other fluids. Use an approved
container.
Please be environmentally safe.
Be sure that your workshop or work area
is properly ventilated and well lit.

October 2018
Table of Contents
Part No. 1268557GT Z®-135/70 vii
Introduction Introduction...........................................................................................................ii
Important Information .............................................................................................ii
Find a Manual for this Model..................................................................................ii
Serial Number Legend ..........................................................................................iv
Section 1 Safety Rules..........................................................................................................v
General Safety Rules .............................................................................................v
Section 2 Specifications.......................................................................................................1
Machine Specifications...........................................................................................1
Performance Specifications....................................................................................1
Hydraulic Specification...........................................................................................2
Hydraulic Component Specifications......................................................................5
Deutz BF4L 2011 Engine Specifications................................................................7
Deutz TD2011L04i Engine Specifications..............................................................9
Cummins B4.5L Engine Specifications ................................................................11
Cummins B3.3T Engine Specifications................................................................13
Perkins 1104C-44 Engine Specifications.............................................................15
Perkins 804D-33T Engine Specifications.............................................................17
Machine Torque Specifications............................................................................19
Hydraulic Hose and Fitting Torque Specifications ...............................................20
Torque Procedure ................................................................................................21
SAE and Metric Fasteners Torque Charts ...........................................................23

October 2018
Table of Contents
viii Z®-135/70 Part No. 1268557GT
Section 3 Repair Procedures.............................................................................................24
Introduction ..........................................................................................................24
Platform Controls...............................................................................................26
Platform Controls .................................................................................................26
1-1 Platform Circuit Board....................................................................................27
How to Remove the LED Circuit Board ..........................................................28
1-2 Membrane Decal ...........................................................................................29
1-3 Joysticks - How to Calibrate a Joystick .........................................................30
How to Reset a Proportional Valve Coil Default.............................................34
How to Set the Function Thresholds and Default Functions Speeds.............34
How to Adjust the Function Speeds ...............................................................36
How to Adjust the Function Ramp Rate Setting .............................................37
Platform Components .......................................................................................39
2-1 Platform Leveling Cylinder.............................................................................39
2-2 Platform Rotator.............................................................................................40
How to Bleed the Platform Rotator.................................................................41
2-3 Platform Level Sensor - How to Calibrate the Platform Level Sensor...........42
2-4 Platform Overload System (if equipped)........................................................43
Jib Boom Components......................................................................................46
3-1 Jib Boom Cable Track ...................................................................................47
How to Repair the Cable Track.......................................................................49
3-2 Jib Boom........................................................................................................50
3-3 Jib Boom Lift Cylinder....................................................................................52
3-4 Jib Boom Level Cylinder................................................................................53
3-5 Jib Boom Extension Cylinder.........................................................................54
3-6 Jib Boom Bellcrank Angle Sensor .................................................................56
How to Calibrate the Jib Boom Bellcrank Angle Sensor ................................58

October 2018
Table of Contents
Part No. 1268557GT Z®-135/70 ix
Boom Components ............................................................................................64
4-1 Primary Boom Cable Track............................................................................65
How to Repair the Primary Boom Cable Track...............................................67
4-2 Secondary Boom Cable Track.......................................................................68
How to Repair the Secondary Boom Cable Track..........................................70
4-3 Primary Boom.................................................................................................71
4-4 Primary Boom Lift Cylinder ............................................................................73
4-5 Secondary Boom Lift Cylinder........................................................................74
4-6 Primary Boom Extension Cylinder .................................................................78
4-7 Secondary Boom Extension Cylinders...........................................................79
4-8 Primary Boom Angle Sensor..........................................................................81
How to Calibrate the Primary Boom Angle Sensor.........................................82
4-9 Secondary Boom Angle Sensor.....................................................................88
How to Calibrate the Secondary Boom Angle Sensor....................................89
Engines................................................................................................................95
5-1 RPM Adjustment ............................................................................................95
5-2 Flex Plate .......................................................................................................95
How to install a Type "A" Flex Plate................................................................96
How to install a Type "B" Flex Plate................................................................98
Ground Controls.................................................................................................99
6-1 Bypass/Recovery Key Switch ........................................................................99
How to Use the Recovery Mode ...................................................................101
6-2 Circuit Boards...............................................................................................102
6-3 Membrane Decal..........................................................................................104
6-4 Full Machine Calibration...............................................................................105
Display Module.................................................................................................106

October 2018
Table of Contents
x Z®-135/70 Part No. 1268557GT
Hydraulic Pumps..............................................................................................115
7-1 Function Pump.............................................................................................115
How to Prime the Function Pump.................................................................116
How to Adjust the Function Pump Standby Pressure...................................116
How to Adjust the Function Pump Pressure Compensator..........................117
7-2 Drive Pump..................................................................................................118
How to Prime the Drive Pump ......................................................................119
Manifolds ..........................................................................................................120
8-1 Function Manifold - (before serial number 440)...........................................120
8-2 Function Manifold - (after serial number 439)..............................................124
8-3 Valve Adjustments - Function Manifold .......................................................128
How to Adjust the System Relief Valve ........................................................128
How to Adjust the Primary Boom Extend Relief Valve.................................129
8-4 Platform Manifold.........................................................................................131
8-5 Jib Boom Manifold .......................................................................................132
8-6 Flow Control Mainfold..................................................................................134
8-7 Function Enable Valve.................................................................................135
8-8 Turntable Rotation Manifold.........................................................................136
8-9 Steer and Axle Manifold...............................................................................138
8-10 Valve Adjustments - Steer and Axle Manifold ...........................................142
8-11 Traction Manifold .......................................................................................144
8-12 Valve Adjustments - Traction Manifold......................................................148
8-13 Drive Oil Diverter Manifold (welder option)................................................149
8-14 Valve Coils.................................................................................................150
Turntable Rotation Components....................................................................152
9-1 Turntable Rotation Assembly.......................................................................152
How to Adjust the Turntable Rotation Gear Backlash..................................153
9-2 Turntable Level Sensor - How to Calibrate the Turntable Level Sensor.....154

October 2018
Table of Contents
Part No. 1268557GT Z®-135/70 xi
Axle Components.............................................................................................158
10-1 Steer Sensors ............................................................................................158
How to Calibrate a Replacement Steer Sensor ............................................160
How to Calibrate All Steer Sensors...............................................................161
10-2 Steer Cylinders...........................................................................................163
10-3 Axle Extension Cylinders ...........................................................................164
10-4 Axle Angle Sensors....................................................................................165
How to Calibrate the Axle Angle Sensors.....................................................167
Section 4 Fault Codes.......................................................................................................171
Introduction.........................................................................................................171
Control System Fault Codes ..............................................................................172
Fault Matrix.........................................................................................................189

October 2018
Table of Contents
xii Z®-135/70 Part No. 1268557GT
Section 5 Schematics.......................................................................................................191
Introduction ........................................................................................................191
Wire Circuit Legend ...........................................................................................192
Wire Color Legend.............................................................................................196
Limit Switches and Angle Sensors.....................................................................201
Circuit Connector Legend..................................................................................205
Drive Chassis and Platform Controller Pin Legend ...........................................208
Safety Controller Pin Legend.............................................................................209
Turntable Controller Pin Legend........................................................................210
Engine Relay and Fuse Panel Legend - Deutz BF4L 2011, TD2011L04i, Perkins
1104C-44 and 804D-33T ...........................................................................211
Engine Relay and Fuse Panel Legend - Cummins B4.5L and B3.3T................212
Electrical Symbols Legend.................................................................................213
Hydraulic Symbols Legend ................................................................................214
Perkins 1104C-44 and 804D-33T Engine Electrical Schematic........................216
Cummins B4.5L and B3-3.3T Engine Electrical Schematic...............................217
Generator Wiring Schematic..............................................................................220
Hydraulic Generator (Welder Option) ................................................................221
Hydraulic Schematic (before serial number 180, except for serial number 102)224
Hydraulic Schematic (serial number 102 and from serial number 180 to 534)..225
Hydraulic Schematic (from serial number 535)..................................................227
Electrical Schematic...........................................................................................229

October 2018 Service and Repair Manual
Part No. 1268557GT Z®-135/70 13
This page intentionally left blank.

October 2018 Service and Repair Manual
Specifications
Part No. 1268557GT Z®-135/70 1
Section 2 Speci fic ati ons
Machine Specifications
Tires and wheels
Tire size
445/65D22.5, FF
Tire ply rating
18
Tire weight, new foam
-filled
(minimum)
815 l
bs
370 k
g
Overall tire diameter
46.5 i
n
118.1 c
m
Wheel diameter
22.5 i
n
57.2 c
m
Wheel width
13 i
n
33 c
m
Wheel lugs
10 @ 3/4 -
16
Lug nut torque, dry
420 ft-
lbs
569.4 Nm
Lug nut torque, lubricated
320 ft-
lbs
433.9 Nm
Fluid capacities
Fuel tank
40 g
allons
151.4 l
iters
Hydraulic tank
65 g
allons
246 l
iters
Hydraulic system (including tank)
123 g
allons
466 l
iters
Drive hubs
47 f
l oz
1390 c
c
Turntable rotation drive hub
40 f
l oz
1183 c
c
Drive hub oil type: SAE 9
0 multipurpose hypoid gear oil
API service classification GL5
Performance Specifications
Drive speed, maximum
Stowed position, high speed
2.8 m
ph
4.5 k
m/h
40 ft / 9.7 s
ec
12.2 m / 9.7 s
ec
Raised or extended
0.7 m
ph
1.1 k
m/h
40 ft / 40 s
ec
12.2 m / 40 s
ec
Primary and Secondary booms
raised, and
Primary and Jib
extended
0.4 m
ph
0.6 k
m/h
40 ft / 68.5 s
ec
12.2 m / 68.5 s
ec
Braking distance, maximum
High range on paved surface
3 to 6 f
t
1 to 2
m
Gradeability
See Operator's
Manual
Boom function speeds, maximum from platform
controls
Jib boom
up/down 38 to 43 s
econds
Jib boom extend/retract
27 to 38 s
econds
Primary boom up/down
-
60° to +70° 110 to 125 s
econds
Primary boom extend/retract
35 to 48 s
econds
Secondary boom up/down
80 to 95 s
econds
Secondary boom extend/retract
88 to 98 s
econds
Turntable rotate, 360°
fully stowed
88 to 92 s
econds
Turntable rotate, 360°jib or
primary booms extended
160 to 180 s
econds
Turntable rotate, 360°jib and
primary booms extended
280 to 350 s
econds
For operational specifications, refer to the
Operator's Manual.
Continuous improvement of our products is a
Genie policy. Product specifications are
subject to change without notice or obligation.

Service and Repair Manual October 2018
Specifications
2 Z®-135/70 Part No. 1268557GT
Hydraulic Oil Specifications
Hydraulic Fluid Specifications
Genie specifications require
hydraulic oils which are
designed to give maximum protection to hydraulic
systems, have the ability to perform over a wide
temperature range, and the viscosity index should
exceed 140. They should provide excellent antiwear,
oxidation prevention, corrosion
inhibition, seal
conditioning, and foam and aeration suppression
properties.
Cleanliness level,
minimum
ISO 15/13
Water content,
maximum
250 p
pm
Recommended Hydraulic Fluid
Hydraulic oil type
Chevron Rando HD Premium
Viscosity grade
32
Viscosity
index
200
Optional Hydraulic Fluids
Mineral based
Shell Tellus S2 V 32
Shell Tellus S2 V 46
Shell Tellus S4 VX 32 Shell
Shell Donax TG (Dexron III)
Chevron 5606A
Biodegradable
Petro Canada Environ MV
46
Fire resistant
UCON Hydrolube HP-
5046
Note: Genie specifications require additional
equipment and special installation instructions for
the approved optional fluids. Consult Genie Product
Support before use.
Optional fluids may not have the
same hydraulic lifespan and
may result in component
dama
ge.
Note: Extended machine operation can cause the
hydraulic fluid temperature to increase beyond it's
maximum allowable range. If the hydraulic fluid
temperature consistently exceeds 200°F / 90°C an
optional oil cooler may be required.
Do not top off with incompatible
hydraulic fluids. Hydraulic fluids
may be incompatible due to the
differences in base additive
chemistry. When incompatible
fluids are mixed, insoluble
materials may form and deposit
in the hydraulic system,
plugging hydraulic lines, filt
ers,
control valves and may result in
component damage.
Note: Do not operate the machine when the
ambient air temperature is consistently above
120°F / 49°C.

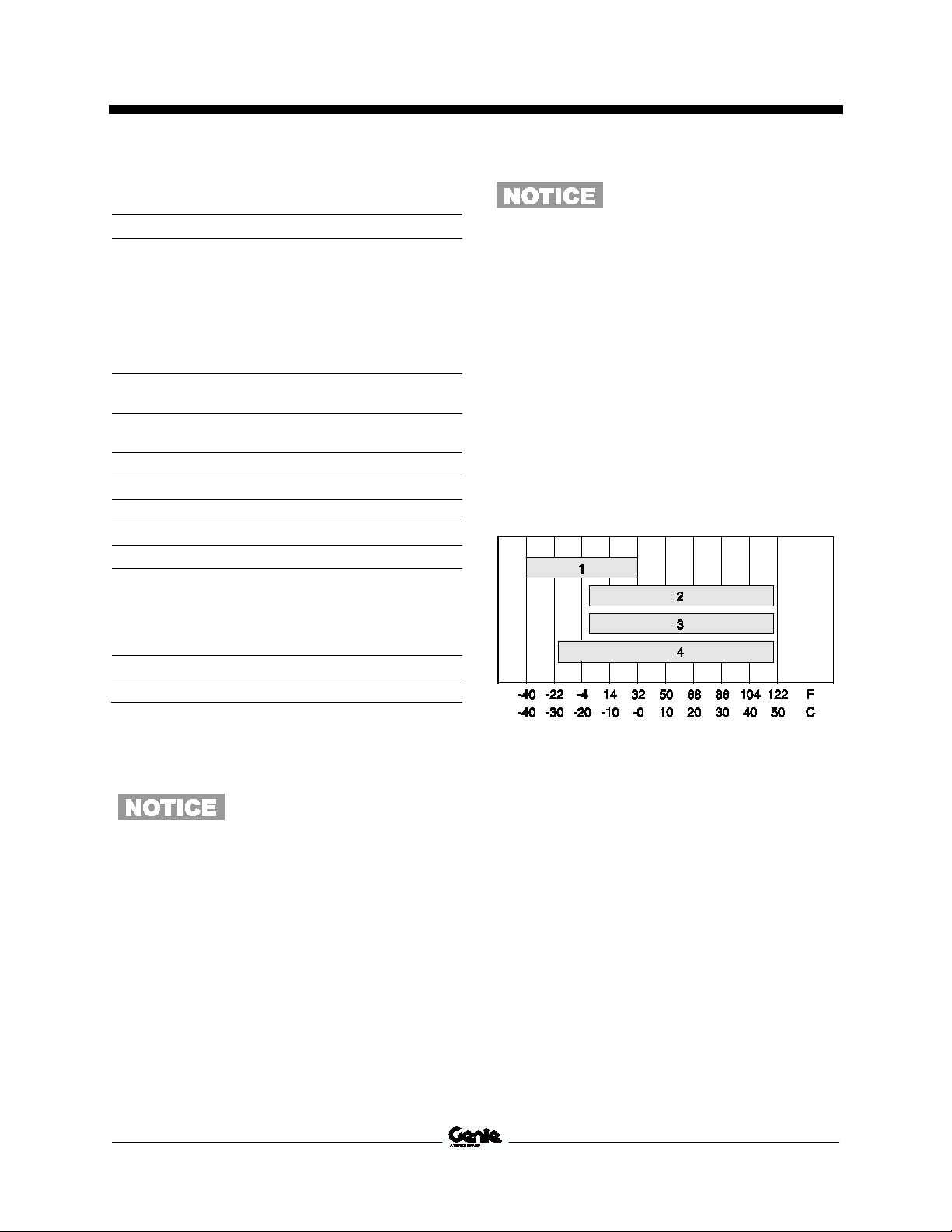

Hydraulic Fluid Temperature
Range
Ambient air temperature
1 Chevron hydraulic oil 5606A
2 Petro-Canada Environ MV 46
3 UCON Hydrolube HP-5046D
4 Chevron Rando HD premium oil MV

October 2018 Service and Repair Manual
Specifications
Part No. 1268557GT Z®-135/70 3
Chevron Rando HD Premium Oil
MV Fluid Properties
ISO Grade
32
Viscosity index
200
Kinematic Viscosity
cSt @ 200°F / 100°C
cSt @ 104°F / 40°C
7.5
33.5
Brookfield Viscosity
cP @
-4°F / -20°C
cP @
-22°F / -30°C
1040
3310
Flash point
375°F / 190°C
Pour point
-58°F / -
50°C
Maximum continuous operating
temperature
171°F / 77°C
Note: A hydraulic oil heating system is
recommended when the ambient temperature is
consistently below 0°F / -18°C.
Note: Do not operate the machine when the
ambient temperature is below -20°F / -29°C with
Rando HD Premium MV.
Chevron 5606A Hydraulic Oil
Fluid Properties
ISO Grade
15
Viscosity index
300
Kinematic Viscosity
cSt @ 200°F / 100°C
cSt @
104°F / 40°C
cSt @
-40°F / -40°C
5.5
15.0
510
Flash point
180°F / 82°C
Pour point
-81°F / -
63°C
Maximum continuous operating
temperature
124°F / 51°C
Note: Use of Chevron 5606A hydraulic fluid, or
equivalent, is required when ambient temperatures
are consistently below 0°F / -17°C unless an oil
heating system is used.
Continued use of Chevron
5606A hydraulic fluid, or
equivalent, when ambient
temperatures are consistently
above 32°F / 0°C may result in
component damage

Service and Repair Manual October 2018
Specifications
4 Z®-135/70 Part No. 1268557GT
Petro-Canada Environ MV 46
Fluid Properties
ISO Grade
46
Viscosity index
154
Kinematic Viscosity
cSt @ 200°F / 100°C
cSt @ 104°F / 40°C
8.0
44.4
Flash point
482°F / 250°C
Pour point
-49°F / -
45°C
Maximum continuous operating
temperature
180°F / 82°C
Shell Tellus S4 VX Fluid
Properties
ISO Grade
32
Viscosity index
300
Kinematic Viscosity
cSt @ 200°F / 100°C
cSt @ 104°F / 40°C
9
33.8
Brookfield Viscosity
cSt @
-4°F / -20°C
cSt @
-13°F / -25°C
cSt @
-40°F / -40°C
481
702.4
2624
Flash point
>100
Pour point
-76°F / -
60°C
Maximum continuous operating
temperature
103°F / 75°C
UCON Hydrolube HP-5046 Fluid
Properties
ISO Grade
46
Viscosity index
192
Kinematic Viscosity
cSt @ 149°F / 65°C
cSt @ 104°F / 40°C
cSt @ 0°F /
-18°C
22
46
1300
Flash point
None
Pour
point -81°F / -
63°C
Maximum continuous operating
temperature
189°F / 87°C

October 2018 Service and Repair Manual
Specifications
Part No. 1268557GT Z®-135/70 5
Hydraulic Component
Specifications
Drive Pump
Type: bi
-directional variable displacement piston pump
Displacement per revolution
2.8 c
u in
46 c
c
Flow rate @ 235
0 rpm 28.5 g
pm
108 L/min
Drive pressure, maximum
3625 p
si
250 b
ar
Charge Pump
Type
gerotor
Displacement per revolution
0.85 c
u in
13.9 c
c
Flow rate @ 235
0 rpm 9 g
pm
34 L/min
Charge pressure @ 235
0 rpm
Neutral position
315 p
s
i21.7 b
ar
Function pump
Type: variable displacement piston pump
Displacement per revolution
0 to 2.75 c
u in
0 to 45 c
c
Flow rate @ 235
0 rpm 0 to 28 g
pm
0 to 106 L/min
Pressure, maximum
2900 p
si
200 b
ar
Pressure compensator
2900 p
si
200 b
ar
Standby
pressure 250 p
si
17 b
ar
Auxiliary Pump
Type: fixed displacement gear pump
Displacement per revolution
0.15 c
u in
2.47 c
c
Function manifold
System relief valve pressure, maximum
(measured at test port)
3100 p
si
213.7 b
ar
Primary boom extend
relief pressure
(measured at ptest port)
2600 p
si
179 b
ar
Jib and platform manifolds
Platform rotate and platform level flow
regulator
0.2 g
pm
0.76 L/min
Jib manifold flow regulator
2 g
pm
7.6 L/min
Steer/Axle Manifold
Axle extend relief pressure
2400 p
si
165 b
ar
Traction Manifold
Hot oil relief pressure
250 p
si
17.2 b
ar
Hydraulic Filters
High pressure filter:
Beta 3 ≥ 200
High pressure filter bypass pressure
102 p
si
7 b
ar
Medium pressure filter
Beta 3 ≥ 200
Medium pressure filter bypass
pressure 51 p
si
3.5 b
ar
Hydraulic tank return filter
10 m
icron
with 25 p
si /
1.7 b
ar
bypass
Drive motor case drain return filter
Beta 10 ≥ 2
Continuous improvement of our products is a
Genie policy. Product specifications are
subject to change without notice or obligation.

Service and Repair Manual October 2018
Specifications
6 Z®-135/70 Part No. 1268557GT
Brakes
Brake relief pressure
190 p
si
13 b
ar
Drive Motors
(before serial number 180)
(see note below)
Displacement per revolution, high
speed
0.8 c
u in
13.3 c
c
Displacement per revolution, low
speed (square end)
2.7 c
u in
45 c
c
Displacement per revolution, low
speed (circle end)
1.5 c
u in
25 c
c
Drive Motors
(after serial number 179)
Displacement per revolution, high
speed 0.8 cu in
13.3 cc
Displacement per revolution, low
speed (square end) 2.7 cu in
45 cc
Displacement per revolution, low
speed (circle end) 1.5 cu in
25 cc
Note: Serial number 102 is equipped with drive
motors equal to those used on machines after serial
number 179.
Manifold Component Specifications
Plug torque
SAE No. 2
36 in-lbs / 4 Nm
SAE No. 4
10 ft-
lbs / 13 Nm
SAE No. 6
14 ft-
lbs / 19 Nm
SAE No. 8
38 ft-
lbs / 51 Nm
SAE No. 10
41 ft-
lbs / 55 Nm
SAE No. 12
56 ft-
lbs / 76 Nm
Valve coil resistance specifications
Proportional solenoid valve
(schematic items N, P, R, T, V)
3.5 t
o
5.5Ω
Solenoid valve,
3 position 4 way
(schematic item B)
4 to 6Ω
Solenoid valve,
3 position 4 way
(schematic items BN, BO, BP, BQ)
7 to 9Ω
Solenoid valve,
3 position 4 way
(schematic item AH)
8 t
o 10Ω
Proportional solenoid valve,
3 position 4 way
(schematic
items Y, AI) 8 t
o 10Ω
Solenoid Valve,
2 position 3 way
(schematic items F and AD)
5.5 t
o
7.5Ω
Solenoid Valve,
2 position 3 way
(schematic items AE, AF)
8 t
o 10Ω
Solenoid valve,
2 position 2 way
(schematic items H, J)
3.5 t
o
5.5Ω
Solenoid Valve,
2 position 3 way
(schematic items C, D, G, I, K,AX, AY, BU, BT)
7.5 t
o
9.5Ω
Solenoid valve,
2 position 2 way
(schematic item A)
3.5 t
o
5.5Ω
Continuous improvement of our products is a
Genie policy. Product specifications are
subject to change without notice or obligation.
