ALP K2 DM-4000 User manual

This manual is intended to assist the user for the safe and efficient operation of the Automatic
Sphygmomanometer DM-4000. The product must be used in accordance with the procedures
contained in this manual and must not be used for purposes other than those described herein. It is
essential to read and understand the entire manual before use.
A128851-1_2
Automatic Sphygmomanometer
DM-4000
INSTRUCTIONS
<ENGLISH>

- 2 -
Contents
General information......................................................3
Precaution and contraindication..................................6
Parts and product components ....................................8
-AUTO measurement-............................................10
-AUTO3 measurement-..........................................13
-MANUAL (auscultation) measurement- ............16
Memory function.........................................................20
Operation with built-in rechargeable battery...........22
Error displays and troubleshooting...........................24
Tips on taking blood pressure....................................28
Care and maintenance ................................................30
Technical description ..................................................31
Warranty and service ..................................................36
Taking blood pressure

- 3 -
General information
Product Features
◇AUTO Mode of Measurement
Perform automatic measurement (AUTO measurement).
◇AUTO3 measurement mode
Perform AUTO measurement three times in a row, calculate the average of the measurement results,
and then display the reliable blood pressure value according to AUTO measurements.
◇MANUAL Mode of Measurement
Measurement can be performed using a stethoscope. The following deflation rates can be selected: 2.5,
3.5, 4.5, 5.5, and 6.5 mmHg/s.
◇Regular and Large Size Cuffs
The regular size cuff will accommodate an upper arm circumference range of approximately 22 to 32
centimeters and the large size cuff will accommodate that of approximately 32 to 42 centimeters.
◇AC adaptor and built-in rechargeable battery
The device can be powered by either an AC adaptor or built-in rechargeable nickel metal hybrid (NiMH)
battery.
◇Backlight function
If the buttons of this device are operated, the backlight switches on.
◇Automatic re-inflation
During measurement, the cuff is automatically inflated to the set preset pressure value. If the set preset
pressure value was low and insufficient for the measurement, deflation of the cuff starts, and then
inflation is carried out again to a pressure higher than the preset value.
◇Memory function
If measurement ends in AUTO measurement mode or AUTO3 measurement mode, the measurement
result is saved to memory automatically. The memory can store up to 30 measurement results.
◇Irregular pulse wave rhythm mark
If the pulse wave interval is not constant, the Irregular pulse wave rhythm mark [ ] appears.
The Irregular pulse wave rhythm mark may appear regularly even when the patient is measured in a
calm condition.
Further investigation may be necessary for the determination of the actual cause.

- 4 -
Operation principles
This device is equipped with two types of measurement. AUTO measurement measures the systolic blood
pressure, diastolic blood pressure, and pulse rate automatically using the oscillometric method. With
MANUAL measurement, an operator uses a stethoscope to measure blood pressure using auscultation. If
the artery is compressed by the pressure of a tourniquet (cuff), the artery causes a pulsation that matches
the pulse, which becomes the pulsation of the internal pressure of the cuff. The size of the pulsation
changes in accordance with the magnitude correlation of the blood pressure and the cuff pressure. An
oscillometric blood pressure monitor determines systolic and diastolic blood pressures based on the
change pattern of the size of the pulsation that appears when the cuff interior pressure has been gradually
changed. Furthermore, with auscultation, a stethoscope is used to detect the Korotkov sounds generated
when the cuff interior pressure is gradually changed and measure the blood pressure.
Indication for use
This product is intended for noninvasive measurement of systolic and diastolic blood pressure,
determination of pulse rate in adults in a hospital. The product is not designed for neonatal use. Please
consult with the doctor or physician to use this product to take blood pressure of child or person in
pregnancy or under pre-eclamptic condition. This device is for medical staff use.

- 5 -
General information
Product specications
Model : DM-4000
Operating Principle : Oscillometric method (AUTO measurement) / auscultation (MANUAL measurement)
Indicator : 12-digit LCD
Pressure Indicating Range : 3 to 300 mmHg (cuff pressure)
Measuring Range : 50 to 250 mmHg (systolic)
40 to 180 mmHg (diastolic)
40 to 160 bpm (pulse rate)
Memory : Results of 30 measurements and the average value
Accuracy* : ±3 mmHg (cuff air pressure)
±5% of reading (pulse rate)
Quick Exhaust : 10 seconds or less during quick exhaust from 260 to 15 mmHg
Inflation : Automatic (air pump)
Inflation Setting Value : 130 to 280 mmHg
Deflation : Electronic control valve
Deflation Rate Setting Value : 2.5, 3.5, 4.5, 5.5, or 6.5 mmHg/s (during MANUAL measurement)
Exhaust : Automatic exhaust valve
Power Supply : AC adaptor (model: UM312-7516) or rechargeable nickel metal hybrid (NiMH) battery
(model: GP170AAH)
Electrical Rating : Rated voltage: 4.8 V, AC adaptor: 7.5 V
Power consumption: 14 W (maximum)
Operating Environment : 10 to 40 °C / relative humidity 15 to 85% (no condensation) /
Atmospheric pressure 700hPa to 1060hPa
Storage Environment : -20 to 60 °C / relative humidity 10 to 95% (no condensation)
Coverage Arm Circumference : Regular size cuff: 22 to 32 cm
Large size cuff: 32 to 42 cm
Main Unit Size : 228 × 134.3 × 206 mm (L x W x D)
Main Unit Weight : Approx. 925 g (not including accessories and battery)
Protection class IP : IP 20; Protected against solid foreign particles with a diameter of more than 12.5 mm, no
protection against water.
Electric-shock Protection : Internal power supply device / Class II device
: Type BF equipment
: Class II device
: Important: Read operating instructions.
: Keep dry
:The used electrical and electronic products are not household waste. Follow your national/
local recycling rules to dispose of them properly. In the EU countries, please refer to waste
management symbol(s) marked on the package or the instrument.
This device complies with EN1060-1:1995+A2:2009 Non-invasive sphygmomanometers
Part 1: General requirements, EN1060-3:1997+A2:2009 Non-invasive sphygmomanometers
Part 3: Supplementary requirements for electro-mechanical blood pressure measuring system and EMC (IEC60601-1-
2:2007).
*Accuracy is guaranteed with the measured values that are within the measuring range.
Specifications are subject to change without notice due to improvements in performance.

- 6 -
Precaution and contraindication
• Please carefully check patient’s conditions in advance to the measurement if he /
she is under dialysis therapy or on anticoagulants, antiplatelets or steroids. Use of
this instrument under such conditions could cause internal bleeding.
• Do not use this product along with implantable and wearable medical electrical
equipment such as pacemaker, defibrillator, or electrocardiographic monitor.
• This product is not also intended to be used with HF surgical equipment.
• Do not use this product in an explosive environment such as near flammable
anesthetics or inside oxygen chamber.
• The system may fail to yield specified measurement accuracy if operated or stored
in temperature or humidity conditions outside the limits stated in the specifications
section of this manual.
• Do not use cuffs or accessories other than those specified by the manufacturer.
Otherwise, correct measurement readings cannot be obtained.
• Use of this product in areas near mobile phones, microwave ovens or other devices
with strong electromagnetic field may cause malfunctions.
• Do not apply the cuff over wounded arm, arm under an intravascular access or
therapy or an arterio-venous shunt, or arm on the side of a mastectomy. Otherwise
injury may be resulted.
• Make sure that inflation of the cuff is not causing prolonged impairment of blood
circulation. Also, be cautious about temporary loss of the functions of any other
medical equipment if any monitoring equipment is used on the same limb with the
blood pressure measuring cuff.
• To avoid harmful injury due to interfered blood flow from cuff inflation,
- Make sure that AIR TUBE is not kinking before measurement. Otherwise, cuff
inflation may not be conducted properly and prolonged, and
- Do not make measurements repeatedly.
• To avoid any possibility of accidental strangulation, keep this product away from
children and do not drape AIR TUBE around your neck.
• Because the product includes precision parts, avoid extreme temperature variations,
humidity, shock, dust, and direct sunlight. Do not drop or strike the product. Make
sure not to expose it to moisture. This product is not water resistant.

- 7 -
Precaution and contraindication
• The performance of this product may be affected by extremes of temperature,
humidity and altitude.
• Do not press the display or place the monitor with display face down.
• Do not take out batteries or unplug the AC adaptor when the monitor is turned on.
Make sure to switch off the monitor before removing batteries or AC adaptor.
• Do not touch the output plug of AC adaptor during measurement.
• Do not disassemble or modify the product.
• Do not inflate the cuff when it is not wrapped around patient’s arm.
• Carefully monitor the patient's condition during measurement.

- 8 -
DISPLAY
POWER BUTTON
SET/MEMORY BUTTON
MODE BUTTON
UP BUTTON
AC ADAPTOR JACK
BATTERY COMPARTMENT COVER
BATTERY CONNECTOR
CUFFHOLDER CUFF HOLDER
CUFF CUFF
AIR CONNECTOR
START/STOP BUTTON
DOWN BUTTON
CUFF HOLDER
MAIN UNIT
RIGHT SIDE LEFT SIDE
REARFRONT
BATTERY
PLUG
Parts and product components

- 9 -
AC ADAPTOR
AIR PLUG
AIR TUBE
ADAPTOR PLUG
AIR
CONNECTOR
AIR
CONNECTOR
Please check that all of the items above are included.
When you purchase consumables or options, contact a dealer.
LARGE SIZE CUFF
For arm circumference of 32 to 42 cm
REGULAR SIZE CUFF
For arm circumference of 22 to 32 cm
Model: UM312-7516
INSTRUCTION MANUAL
(English)
INSTRUCTION MANUAL
(Spanish)
Parts and product components

- 10 -
-AUTO measurement-

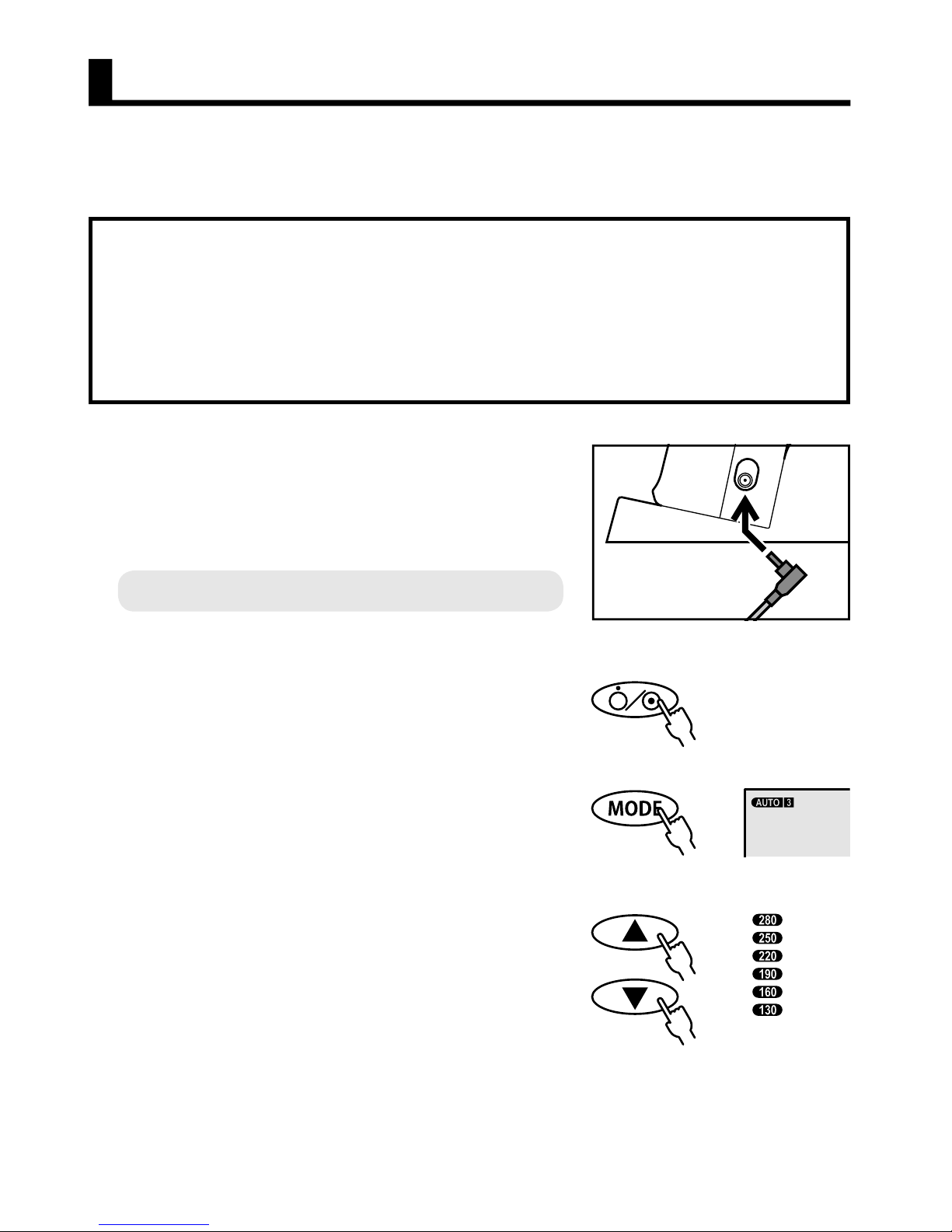

1. Connect the AC adaptor
The AC adaptor jack is on the right side of the main unit.
When the AC adaptor is connected correctly, the AC adaptor
mark switches on.
To use the rechargeable battery, see page 22.
2. Push the POWER BUTTON to turn on the power
3. After 0 appears in the display, press the MODE
BUTTON to set [AUTO]
4. Set the preset pressure value using the UP or DOWN
BUTTON
If the UP or DOWN BUTTON is pressed, the preset pressure
value can be changed. The following pressures can be set:
130, 160, 190, 220, 250, and 280 mmHg.
Select a pressure approximately 30 to 40 mmHg above the
expected systolic pressure.
Set the pressure at 190 mmHg if patient’s systolic pressure is
difficult to predict. By default, the inflation value is set to 190
mmHg.
If the preset pressure value was insufficient for the
measurement, inflation is carried out again automatically.
For information about re-inflation, see page 3.
To allow the patient to relax, have a five-minute rest before starting measurement.
Furthermore, make sure the patient does not talk or move during measurement.
Ensure that the cuff is kept at the height of patient’s heart during measurement.
To stop measurement, press the START/STOP BUTTON.
Air is exhausted quickly from the cuff.
DC7.5V
ADAPTOR PLUG
or
Taking blood pressure

- 11 -
CUFF SIZE
REGULAR
LARGE
ARM CIRCUMFERENCE
22-32 cm
32-42 cm
Inflation mark
2 to 3cm
AIR PLUG

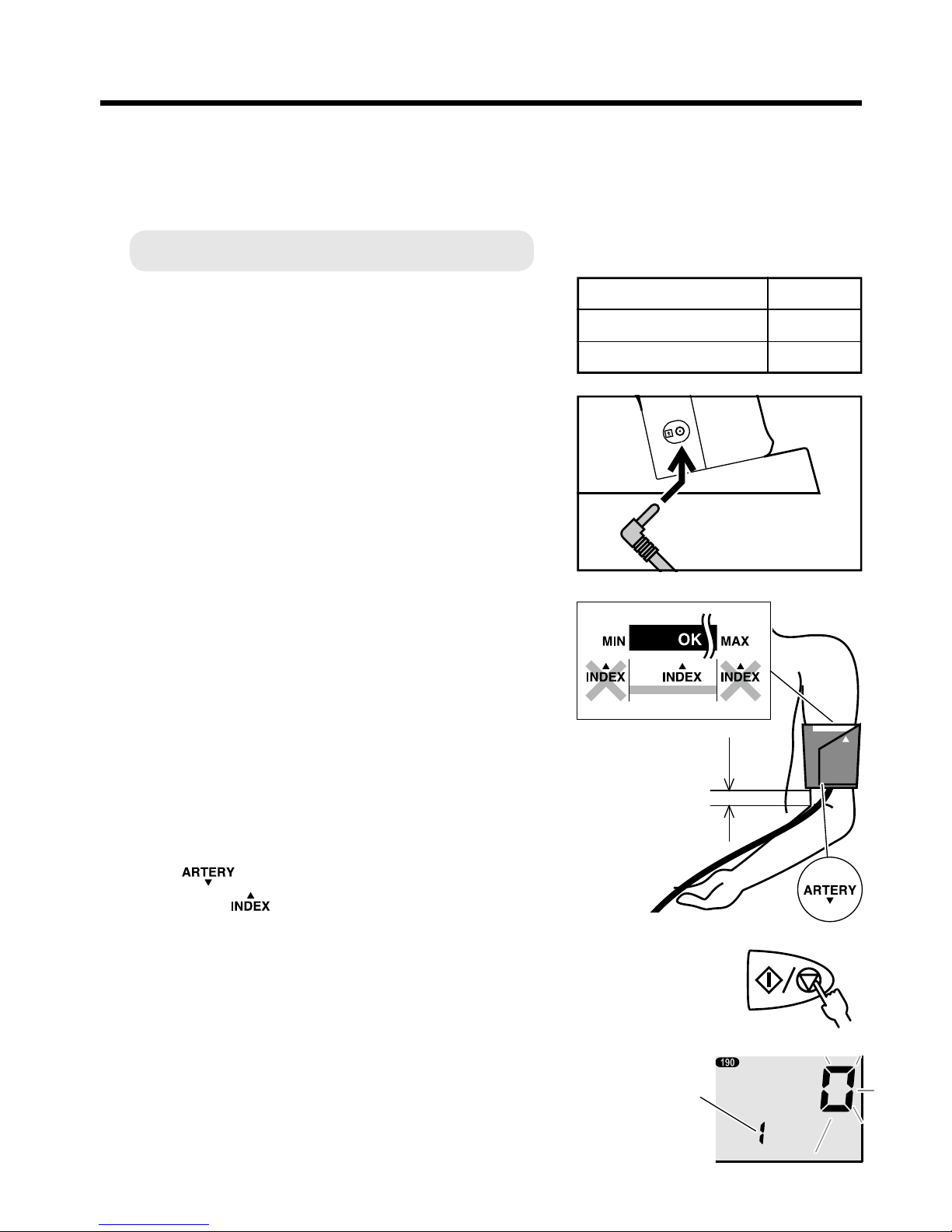

5. Connect the cuff
Measure the patient’s arm circumference, and then use an
appropriate cuff based on the table on the right.
Securely insert the air plug of the cuff into the air
connector on the left side of the main unit.
6. Apply the cuff to the patient’s arm.
Find a chair and a table so that the patient can be
comfortably seated with patient’s back and arm supported.
Legs should not be crossed and feet kept flat on the floor.
Measure the left arm during AUTO measurement. If the
right arm is measured, it may not be possible to measure
normally due to the attachment state of the cuff.
When applying the cuff, make sure that the ARTERY mark
“” aligns with the brachial artery and the INDEX
mark “ ” is within the OK line.
7. Press the START/STOP BUTTON to start
measurement

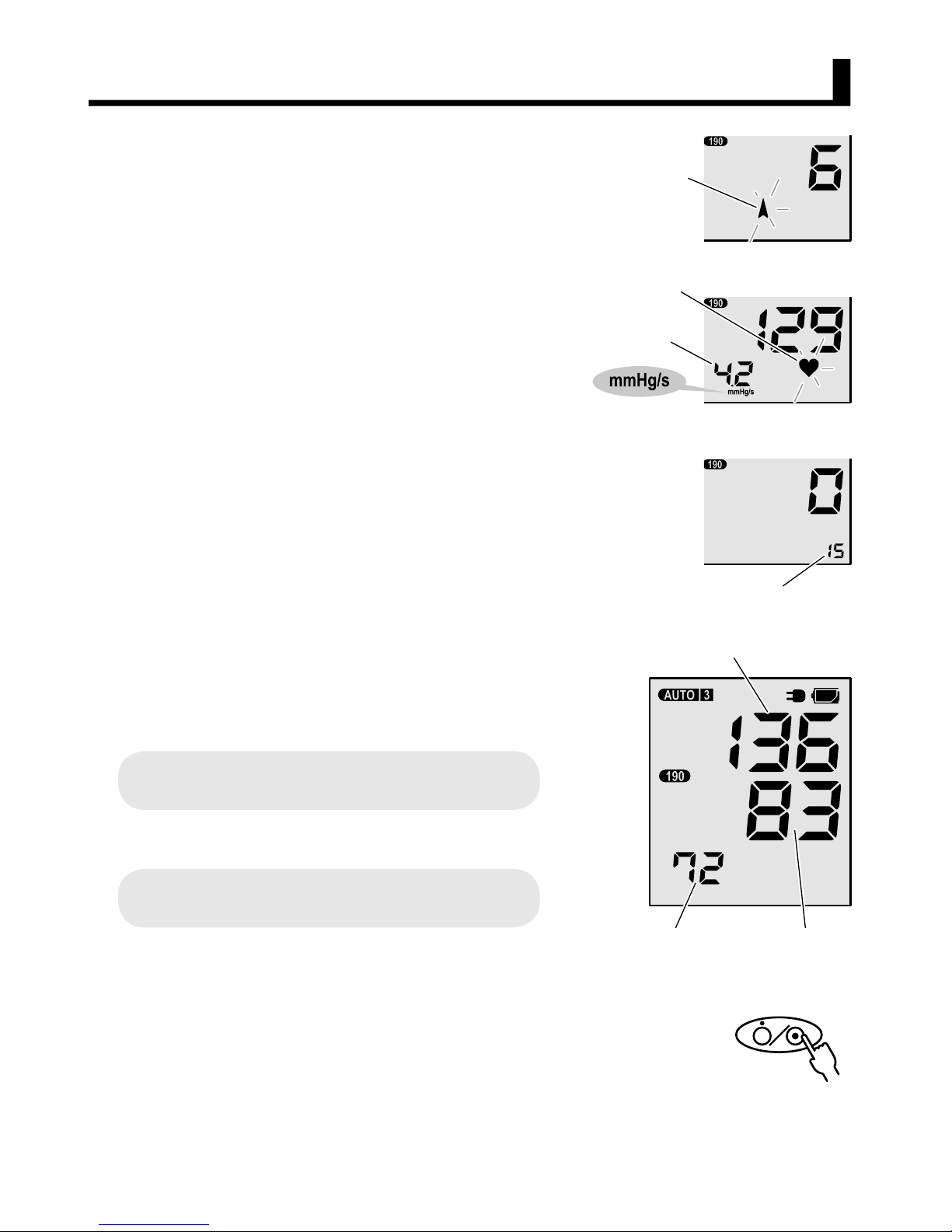

Automatic inflation of the cuff starts.
Pressurization stops when the cuff pressure reaches the
preset pressure value, and then the pressure starts to
descend.

- 12 -
Taking blood pressure -AUTO measurement-
When a pulse wave is detected, the pulse mark flashes in the
display.
When measurement ends, air is rapidly exhausted, and then
the measurement result is displayed.
The measurement result is saved to memory automatically.
For information about the memory function, see page
20.
Error results are not saved.
For information about the error display, see page 24.
8. Push the POWER BUTTON to turn off the power
Even if you forget to switch off the power, the power switches
off automatically after about three minutes.
Systolic
Pulse rate Diastolic
Deflation
rate
Pulse mark

- 13 -
-AUTO3 measurement-
This device is equipped with an average mode function. This function performs blood pressure
measurement three times in a row, calculates the average of these measurement results, and then displays
the reliable blood pressure value according to AUTO measurements.
1. Connect the AC adaptor
The AC adaptor jack is on the right side of the main unit.
When the AC adaptor is connected correctly, the AC adaptor
mark switches on.
To use the rechargeable battery, see page 22.
2. Push the POWER BUTTON to turn on the power
3. After 0 appears in the display, press the MODE
BUTTON to set [AUTO3]
4. Set the preset pressure value using the UP or DOWN
BUTTON
If the UP or DOWN BUTTON is pressed, the preset pressure
value can be changed. The following pressures can be set:
130, 160, 190, 220, 250, and 280 mmHg.
Select a pressure approximately 30 to 40 mmHg above the
expected systolic pressure.
Set the pressure at 190 mmHg if patient’s systolic pressure is
difficult to predict. By default, the inflation value is set to 190
mmHg.
To allow the patient to relax, have a five-minute rest before starting measurement.
Furthermore, make sure the patient does not talk or move during measurement.
Ensure that the cuff is kept at the height of patient’s heart during measurement.
To stop measurement, press the START/STOP BUTTON.
Air is exhausted quickly from the cuff.
or
DC7.5V
ADAPTOR PLUG
Taking blood pressure

- 14 -
If the preset pressure value was insufficient for
the measurement, inflation is carried out again
automatically.
For information about re-inflation, see page 3.
5. Connect the cuff
Measure the patient’s arm circumference, and then use
an appropriate cuff based on the table on the right.
Securely insert the air plug of the cuff into the air
connector on the left side of the main unit.
6. Apply the cuff to the patient’s arm.
Find a chair and a table so that the patient can be
comfortably seated with patient’s back and arm
supported. Legs should not be crossed and feet kept flat
on the floor.
Measure the left arm during AUTO measurement. If
the right arm is measured, it may not be possible to
measure normally due to the attachment state of the cuff.
When applying the cuff, make sure that the ARTERY
mark “ ” aligns with the brachial artery and the
INDEX mark “ ” is within the OK line.
7. Press the START/STOP BUTTON to start
measurement
Measurement
count
CUFF SIZE
REGULAR
LARGE
ARM CIRCUMFERENCE
22-32 cm
32-42 cm
2 to 3cm
AIR PLUG

- 15 -
Automatic inflation of the cuff starts.
Pressurization stops when the cuff pressure reaches the
preset pressure value, and then the pressure starts to
descend.
When a pulse wave is detected, the pulse mark flashes in
the display.
When measurement ends, air is quickly exhausted, and
then a countdown (15 seconds) starts.
After the countdown ends, inflation starts automatically,
and then the next measurement starts.
When three measurements end, the measurement result is
displayed.
The measurement result is saved to memory automatically.
For information about the memory function, see page
20.
Error results are not saved.
For information about the error display, see page
24.
8. Push the POWER BUTTON to turn off the power
Even if you forget to switch off the power, the power
switches off automatically after about three minutes.
Taking blood pressure
-AUTO3 measurement-
Systolic
Pulse rate Diastolic
Count
Deflation rate
Pulse mark
Inflation mark

- 16 -
-MANUAL (auscultation) measurement-
In MANUAL measurement mode, this device inflates the cuff automatically, and then blood pressure is
measured using auscultation. A stethoscope is not included in the product. Please prepare your own
stethoscope.
1. Connect the AC adaptor
The AC adaptor jack is on the right side of the main unit.
When the AC adaptor is connected correctly, the AC adaptor
mark switches on.
To use the rechargeable battery, see page 22.
2. Push the POWER BUTTON to turn on the power
3. After 0 appears in the display, press the MODE
BUTTON to set [MANUAL]
4. Use the up or down button to set the preset
pressure value
If the UP or DOWN BUTTON is pressed, the preset pressure
value can be changed. The following pressures can be set:
130, 160, 190, 220, 250, and 280 mmHg.
Select a pressure approximately 30 to 40 mmHg above the
expected systolic pressure.
Set the pressure at 190 mmHg if patient’s systolic pressure is
difficult to predict. By default, the inflation value is set to 190
mmHg.
To allow the patient to relax, have a five-minute rest before starting measurement.
Furthermore, make sure the patient does not talk or move during measurement.
Ensure that the cuff is kept at the height of patient’s heart during measurement.
To stop measurement, press the START/STOP BUTTON.
Air is exhausted quickly from the cuff.
or
DC7.5V
ADAPTOR PLUG
Taking blood pressure

- 17 -

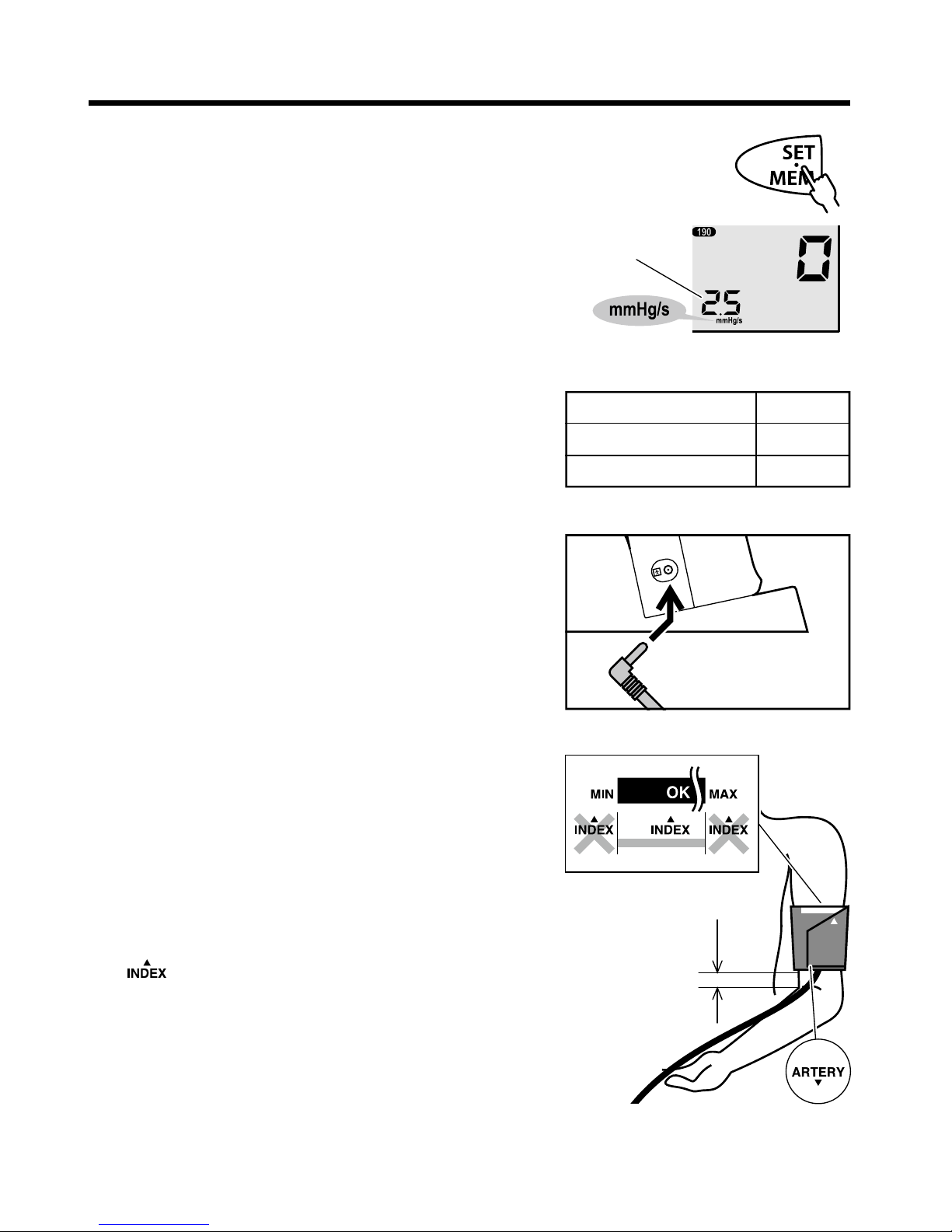

5. Press the SET/MEMORY BUTTON to set the
deflation rate
The deflation rate displayed in the bottom left of the
display area changes each time the SET/MEMORY
BUTTON is pressed.
Select from one of the following: 2.5, 3.5, 4.5, 5.5, or 6.5
mmHg/s.
6. Connect the cuff
Measure the patient’s arm circumference, and then use an
appropriate cuff based on the table on the right.
Securely insert the air plug of the cuff into the air
connector on the left side of the main unit.
7. Apply the cuff to the patient’s arm.
Find a chair and a table so that the patient can be
comfortably seated with patient’s back and arm supported.
Legs should not be crossed and feet kept flat on the floor.
As when measuring with a standard column of mercury,
apply the cuff, and then apply the stethoscope.
When applying the cuff, make sure the INDEX mark
“” is within the OK line.
Deflation rate
CUFF SIZE
REGULAR
LARGE
ARM CIRCUMFERENCE
22-32 cm
32-42 cm
2 to 3cm
AIR PLUG

- 18 -

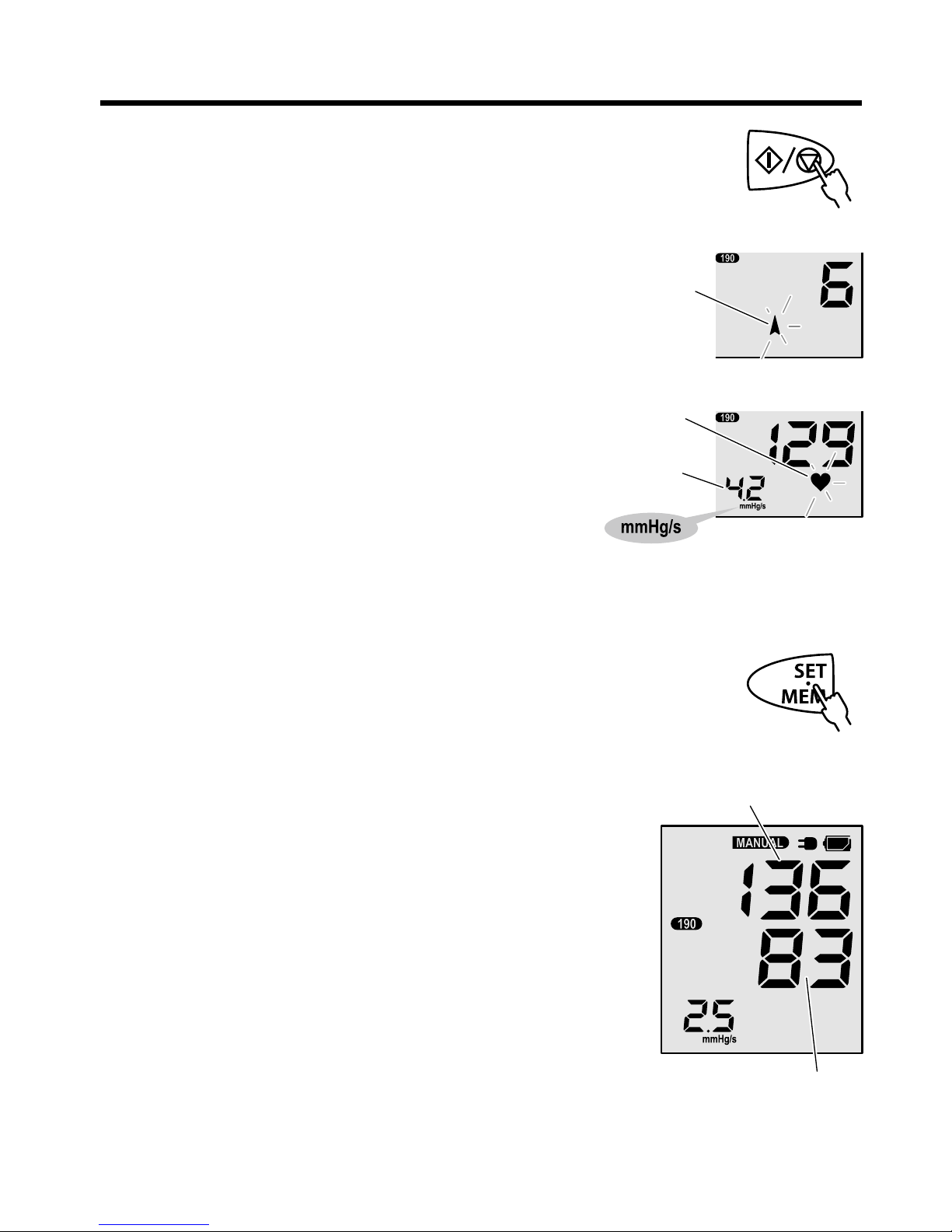

8. Press the START/STOP BUTTON to start
measurement
Automatic inflation of the cuff starts.
Pressurization stops when the cuff pressure reaches the
preset pressure value, and then the pressure starts to
descend.
If the preset pressure value was insufficient for
measurement, wait until inflation stops and deflation
starts, and then press and hold the START/STOP BUTTON.
Inflation will continue while the button is pressed. Pressure
does not exceed 280 mmHg.
When a pulse wave is detected, the pulse mark flashes in
the display.
9. After checking the blood pressure, press the SET/
MEMORY BUTTON
If the SET/MEMORY BUTTON is pressed while monitoring
the systolic and diastolic blood pressures, these values are
recorded to the device. After measurement, you can check
the values on the LCD. (They are not saved to memory.)
If you do not need to check the values on the LCD after
measurement, you do not need to press the button.
After the SET/MEMORY BUTTON has been pressed twice,
the device soon quickly exhausts the air.
If pressure reaches 30 mmHg, the air is quickly exhausted
automatically, even if the SET/MEMORY BUTTON is not
pressed.
Systolic
Diastolic
Deflation rate
Pulse mark
Inflation mark

- 19 -
10.Push the POWER BUTTON to turn off the power
Even if you forget to switch off the power, the power switches
off automatically after about three minutes.
Taking blood pressure
-MANUAL (auscultation) measurement-

- 20 -

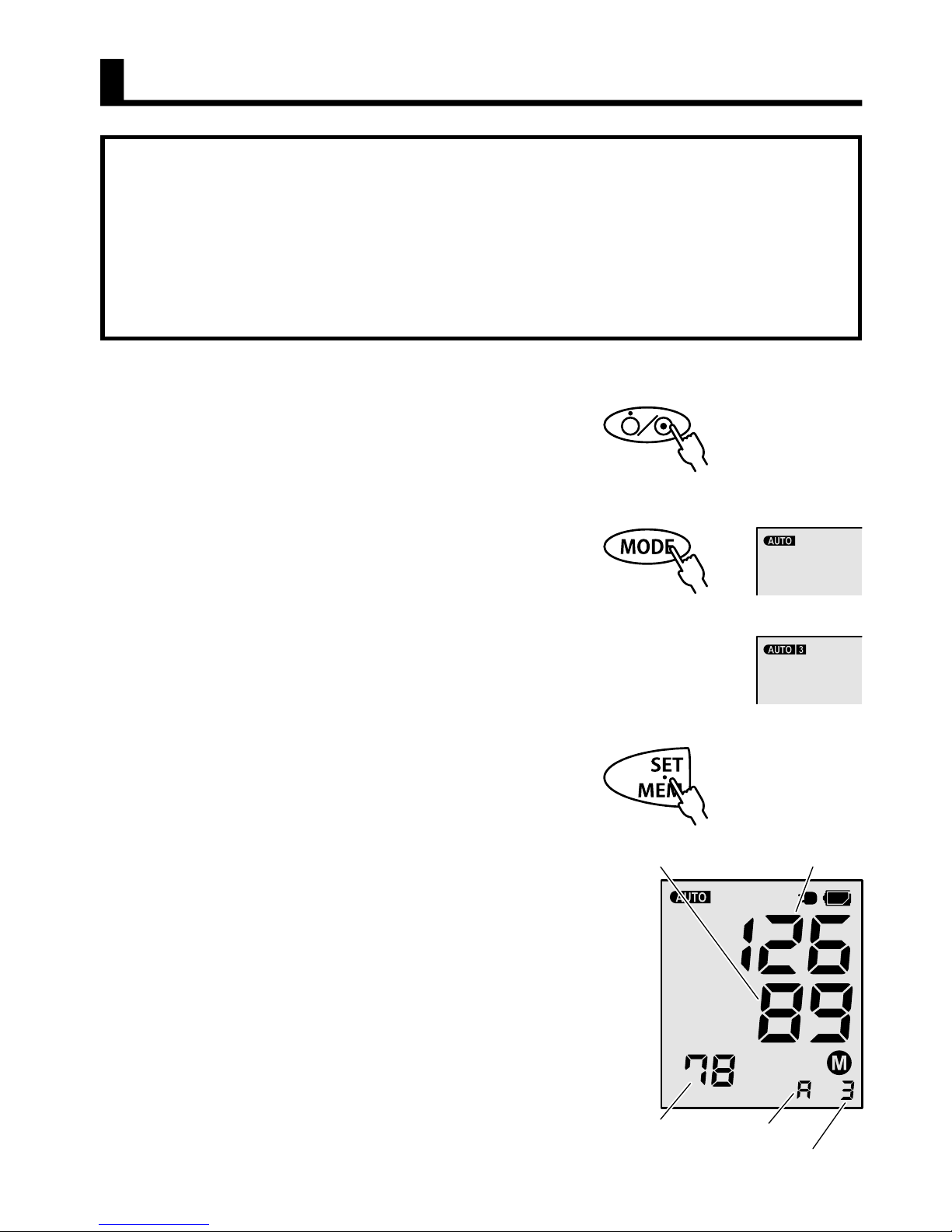

Recalling saved measurement results
1. Push the POWER BUTTON to turn on the power
2. After 0 appears in the display, press the MODE
BUTTON to set [AUTO] or [AUTO3]
In the [MANUAL] setting, saved results cannot be recalled.
3. Press the SET/MEMORY BUTTON
The average value of saved measurement results is
displayed.
The average indicates the average of, at most, the last three
measurement results from the latest measurement result.
Measurement results (average) indicates the number of
measurement results used for the average.
When there is only one saved measurement result, this
measurement result is displayed.
Memory function
Measurement results measured using AUTO measurement and AUTO3 measurement are saved
to memory automatically after measurement. Measurement results recorded using MANUAL
measurement are not saved.
The memory can store up to 30 measurement results.
If the number of saved measurement results reaches 30, the oldest measurement result is deleted, and
the latest measurement result is saved after the next measurement.
Furthermore, you can delete unnecessary measurement results from memory.
or
SystolicDiastolic
Average
Pulse rate
Measurement results (average)
