Alpen Optics ALP600724 User manual

Discover the Difference
DE Bedienungsanleitung
US/GB Instruction manual
FR Manuel d‘instruction
ES Manual de instrucciones
NL Gebruiksaanwijzing
IT Manuale d‘istruzioni
PL Instrukcja obsługi
CRESTONE XP 7X24
OLED LASER RANGEFINDER
ALP600724

2www.alpenoptics.de

3
www.alpenoptics.de
DOWNLOAD AREA
www.alpenoptics.de/download
DE Bedienungsanleitung.................................. 22
US/GB Instruction manual ........................................ 4
FR Manuel d‘instruction ...................................40
ES Manual de instrucciones............................. 58
NL Gebruiksaanwijzing.....................................76
IT Manuale d‘istruzioni....................................94
PL Instrukcja obsługi....................................... 112

4www.alpenoptics.de
Read the safety instructions
and the instruction manu-
al carefully before using this
device.
Keep this instruction manual in a safe
place for future reference. When the
device is sold or given to someone else,
the instruction manual must be provided
to the new owner/user of the product.
General warnings
DANGER!
Children may only use the device under
adult supervision. Keep packaging ma-
terials (plastic bags, rubber bands, etc.)
away from children!
DANGER OF CHOKING!
Do not expose the device to
high temperatures. Use only the
ABOUT THIS INSTRUCTION MANUAL
recommended batteries. Do not short-
circuit the device or batteries or dispose
of in re! Excessive heat and improper
handling can cause short circuits, res
and even explosions!
Do not expose this device - especially
the lenses - to direct sunlight! Focusing
of sunlight could cause res.
DANGER OF AN ELECTRIC
SHOCK!
This unit contains electronic parts
that are powered by a power source
(AC adapter or batteries). Never leave
children unattended whilst handling the
device! Only use the device as described
in the manual. Otherwise, you run the
DANGER of an ELECTRIC SHOCK.

US / GB
FR
DE
ES
NL
IT
PL
RU
5
www.alpenoptics.de
RISK OF BURNS!
Leaking battery acid can lead to chemi-
cal burns. Avoid contact of battery acid
with skin, eyes and mucous membranes.
In the event of contact with acid, rinse
the affected region immediately with
plenty of water and seek for medical
attention.
NOTE!
• All electronic operation should strictly
comply with electrical safety codes,
re codes, and other pertinent codes
in your area.
• Please use the cable normally included
in the delivery. The power consump-
tion must not be less or greater than
the required value.
• Do not drop the device or expose it
to strong mechanical shocks or large
electromagnetic radiation.
• Do not clean the device with deter-
gent but use a slightly damp cloth
to clean the lens
• Do not expose the device to di-
rect sunlight or similar strong heat
sources. Otherwise, blooming or
smear effects may occur and at the
same time the service life of the
sensor will be impaired. The sun
can burn into the sensor
and cause
irreparable sensor damage.
• The optics can be twisted out of the
socket if turned excessively. Please
turn the optics only so far in both di-
rections until you have optimized the
focus of the device. - If necessary,
clean the lens with a slightly damp
eyeglass cleaning cloth and do not
use physical pressure. The protective
surface could be damaged by this.

6www.alpenoptics.de
Privacy PROTECTION!
The Alpen Optics Crestone XP 7x24
OLED Rangender is intended for home
use. Respect the privacy of your fellow
human beings - do not look into private
ats with this device, for example!
Scope of delivery
• Rangender device
• Hand strap
• Transport bag
• 1x CR2-Battery (3V)
4
• Instruction manual
DANGER
CLASS 1 LASER PRODUCT INVISI-
BLE LASER RADIATION AVOID
DIRECT EYE EXPOSURE
This product complies with IEC
60825-1 : 2014 Ed. 3 and complies with FDA
performance standards for laser products
except for deviations pursuant to Laser No-
tice No. 50, dated June 24, 2007. Pp < 25W, =
905 nm, tp = 200 ns
SAFETY AND PRECAUTIONS
CLASS 1 LASER PRODUCT INVISIBLE LASER
RADIATION AVOID DIRECT EYE EXPOSURE
This product complies with IEC 60825-1 : 2014 Ed. 3 and complies
with FDA perfomance standards for laser products excepts for
deviations pursuant to Laser Notice No. 50, date
June 24, 2007. P. p. < 25W, λ = 905 nm, tp = 200ns
ALPEN OPTICS·Herderstr. 18·40721 Hilden·Germany
Do not stare into beam or view directly
without laser eye protection. Staring continu-
ously into beam for prolonged periods of
time could cause harm to your eyes. If used
properly, this device is safe for your eyes and
laser eye protection is not needed. Do not
activate device while aiming at someone’s
face or looking into objective lens.
CAUTION: Use of controls, adjustments or
performance of procedures other than those
specied herein may result in hazardous laser
radiation exposure.

US / GB
FR
DE
ES
NL
IT
PL
RU
7
www.alpenoptics.de
• OLED projected red readout with adjustable
brightness
• Compact and contoured design for best
hand t and grip
• 7x magnication with a 24mm objective
lens
• Hard target measurement up to 2000 yards
(1828 meters)
• Soft target measurement up to 700 yards
(640 meters)
• Reticle can be dimmed / brightened to
6 different levels for low light and bright
conditions
• Choose between yards or meters
• Water-resistant IPX4 rating
• Multi-coated lens
• Comes with soft pouch
KEY FEATURES
Outdoor sports enthusiasts can get the
precise measurements they need to con-
nect with their target with the Alpen 7x24
OLED Rangender. This compact device,
which has an easy-to-grip dual-barrel
design, quickly and accurately measures
distances up to 2000 yards for hard
targets and 700 yards for soft targets.
The measurements, which can be given in
yards or meters, are shown on an OLED
display with a red readout and adjustable
brightness.

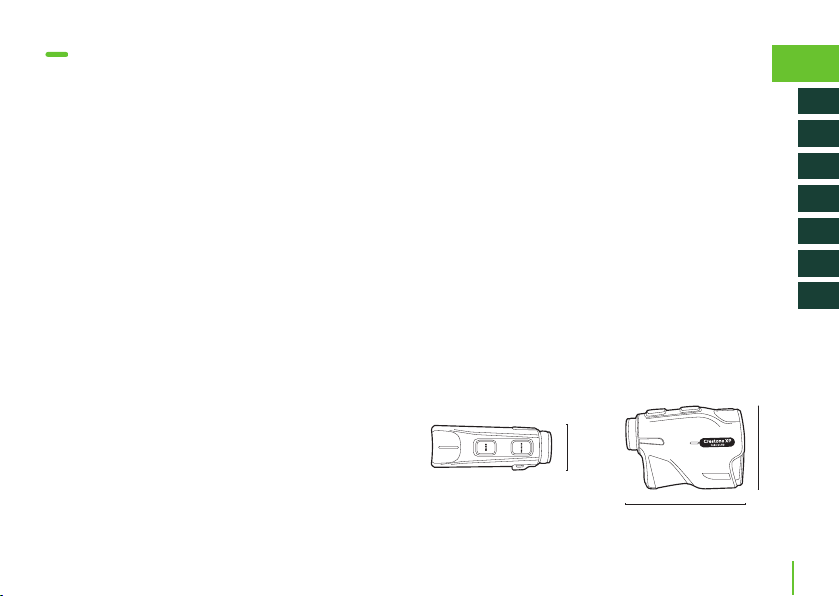

4.1875in / 106mm
3in / 76mm
1.5in / 38mm

d


g
h
f
e
8www.alpenoptics.de

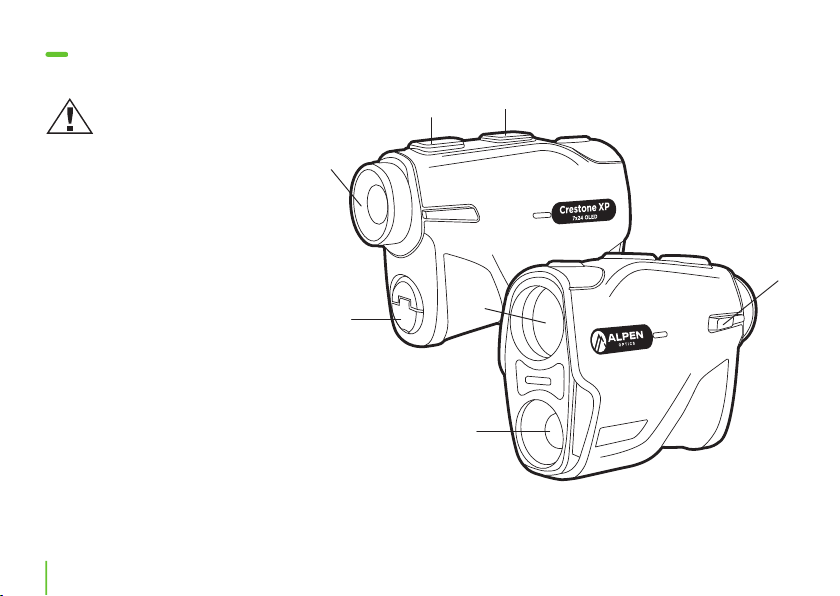

PARTS OVERVIEW
 Mode Button
 Measure Range Button
 Eyepiece/Diopter Focus Adjustment
 Objective Lens
 Laser Rangender Modules
 Battery Compartment
 Lanyard Loop
IMPORTANT
This device has an IPX4 wa-
ter resistance rating, which
means it is protected from
minor splashes coming
from any direction. DO
NOT SUBMERGED UNDER
WATER.

(+)
(-)
Fig. 1
+
-
Fig. 2
US / GB
FR
DE
ES
NL
IT
PL
RU
9
www.alpenoptics.de
SET UP
Installing Battery
Remove the battery cap by turning the
cap in a counter-clockwise direction.
Insert (1) CR2 lithium battery (-) termi-
nal side rst. The (+) terminal should
be facing out, Fig. 1. Place the cap onto
the (+) battery terminal and reinstall the
battery cap by turning the cap in the
clockwise direction.
Diopter Adjustment
The diopter adjustment is used to
bring the OLED display into sharp fo-
cus along with the target image. The
diopter adjustment can turn clock-
wise (+) or counter-clockwise (-) from
the eyecup and adjusted depending
upon the user’s prescription, Fig.2.
CAUTION - Be careful to
not cross-thread
the cap or overtighten.

F G H
A
D
E
B
C
10 www.alpenoptics.de
A. Degrees Display
B. Circle Center Reticle
C. Range Display
D. Meters and Yards Unit
E. Battery Status
F. Brightness Display 0-6
G. Horizontal Component Distance Mode (HCD)
H. Line of Sight Mode (LOS)
OLED DISPLAY INFORMATION

Power On Press Second Press Press & Hold
US / GB
FR
DE
ES
NL
IT
PL
RU
11
www.alpenoptics.de
When the MEASURE button (2) is
pressed, the OLED display will power on
and show the circle center reticle, unit of
measure (Y or M), LOS angle degree or
HCD measurement, and battery status.
The display will remain active for up to
10 seconds.
The rst press will power on and dis-
play the scan mode and unit of meas-
ure. Second press will start scanning.
If you press and hold the MEASURE
button (2), you will noticed a blinking
“S” and it will continuously scan ob-
jects until the button is released.

Fig. 3
Settings Mode
12 www.alpenoptics.de
SETTINGS
To change display settings, press the MEASURE button (2) to power on and press
and hold the MODE button (1) for 3 seconds until you see the screen below, Fig. 3.
Depress the MODE button (1) and the rst setting menu will be brightness, then
unit of measure, then mode conversions.

Brightness Menu
0 - 6
Unit of Measure Menu
Y or M
Mode Menu
LOS or HCD
US / GB
FR
DE
ES
NL
IT
PL
RU
13
www.alpenoptics.de
Use the MODE button (1) to change the setting menu and the MEASURE button
(2) to select the options.
Once you have the desired settings, press and hold the MODE button (1)for 3 sec-
onds until you see the power on screen again. At this point the rangender is ready
for scanning objects.

Angle Degree
&
Horizontal
Distance
LOS Mode HCD Mode
Target
Distance
14 www.alpenoptics.de
Line of Sight Mode (LOS):
In the LOS Mode, the following information is displayed: Horizontal distance to the
object and the angle that the device is being held in relation to the target.
Angle Measurement:
The angle of measurement between your position and any target can be displayed
in the upper area of the display.
Horizontal Component Distance Mode (HCD):
The HCD mode shows you the horizontal and straight distance to the target.

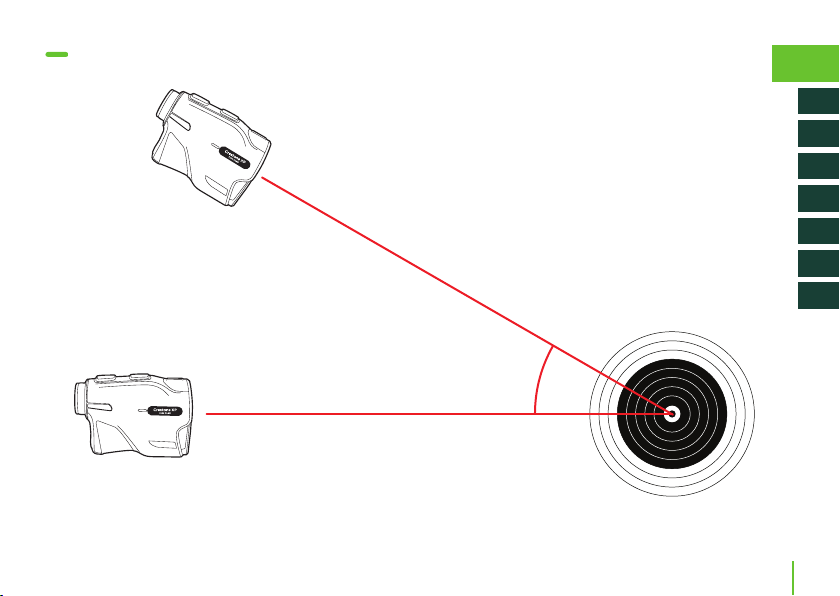

LOS AND HCD MODES

Line of Sight (LOS) range of 500 yards
at 30° decline
Horizontal Component Distance Mode
(HCD) is 433 yards
30°
US / GB
FR
DE
ES
NL
IT
PL
RU
15
www.alpenoptics.de
LOS AND HCD MODES

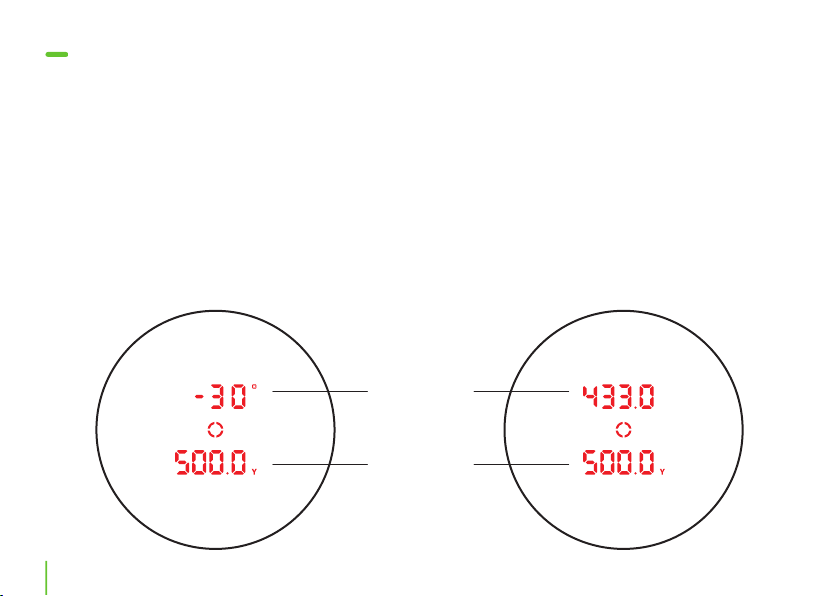

Example:
A LOS range of 500 yards at a 30° decline equals to a HCD of 433 yards.

16 www.alpenoptics.de
SPECIFICATIONS
Magnication 7x
Objective Diameter 24mm
Transmission Diameter 18mm
Field of View 6.6°
Eye Relief 14mm
Exit Pupil 3.4mm
Diopter Focus -3.0 ~ +3.0dpt
Lens Coating Multi-Coated
Waterproof IPX4 Water-resistant
Auto-Off 10 seconds
Units of Measure Yards & Meters
Distance Range Min. 5m/6yds
Distance Range Max. 1828m/2000yds
Range Reective Target up to 1828m/2000yds
Range Building Target up to 1280m/1400yds

US / GB
FR
DE
ES
NL
IT
PL
RU
17
www.alpenoptics.de
Range Tree Target up to 914m/1000yds
Range Deer Target up to 640m/700yds
Range Response Time <1.5 seconds
Range Accuracy < 100yds ±1yds
Range Accuracy 100yds - 1000yds ±2yds
Range Accuracy > 1000yds ±3yds
Inclinometer Max ±60°
Inclinometer Accuracy within ±30° ±1°
Inclinometer Accuracy between ±30° - ±60° ±2°
Battery Type (1) CR2
Display Type Red OLED
Laser Type Class 3R
Operating Temperature Range 14°F - 122°F (-10°C - 50°C)
Storage Temperature Range -4°F - 149°F (-20°C - 65°C)

18 www.alpenoptics.de
CLEANING & STORAGE
Blow away any dust or debris on the
lens (or use a soft lens brush).
To remove ngerprints or other smears,
clean with a soft cotton cloth rubbing
in a circular motion. A “microber”
cleaning cloth (available from camera
or computer retailers) is ideal for the
routine cleaning of your optics.
For a more thorough cleaning, photo-
graphic lens tissue and photograph-
ictype lens cleaning uid or isopropyl
alcohol may be used. Always apply the
uid to the cleaning cloth – never direct-
ly on the lens.
For extended periods of storage, store
in a cool and dry environment to avoid
any damage to the device.
CE DECLARATION OF CONFORMITY
A "Declaration of conformity"
in accordance with the
applicable directives and
corresponding standards has been
prepared by Alpen Optics GmbH.
This can be viewed at:
http://www.alpenoptics.de/down-
load/
ALP600724_CE.pdf
DISPOSAL
Dispose of the packaging materials
properly, according to their type,
such as paper or cardboard.
Contact your local waste-disposal
service or environmental authority for
information about the proper disposal.
Do not dispose of electronic devices
in the household waste! According to
the European Directive 2012/19/EU on
Waste Electrical and Electronic Equip-
ment and its transposition into national
law, used electrical equipment must
be collected separately and recycled
in an environmentally sound manner.
Batteries and rechargeable batteries

US / GB
FR
DE
ES
NL
IT
PL
RU
19
www.alpenoptics.de
must not be disposed of with household
waste. You are legally obliged to return
used batteries and accumulators and
can return the batteries after use either
at our sales outlet or in the immediate
vicinity (e.g. in the trade or in municipal
collection points) free of charge. Batter-
ies and accumulators are marked with
a crossed-out dustbin and the chemical
symbol of the pollutant, "Cd" stands for
cadmium, "Hg" stands for mercury and
"Pb" stands for lead.
WARRANTY & SERVICE
The regular guarantee period is 5
years and begins on the day of pur-
chase. Batteries and rechargeable
batteries have a 1-year guarantee.
You can consult the full guarantee
terms as well as information on
extending the guarantee period and
details of our services at
www.alpenoptics.de/warranty_
terms
Would you like instruc-
tions for this product in
a particular language?
Then visit our website
via the link below (QR
code) for available
versions. Alternatively, you can send
us an e-mail to the address info@
alpenoptics.de or call us at +49 (0)
21 03 - 89787-11*.
Please always include your name,
your exact
address, a valid phone number and
email address, and the item number
and description.
*Local number in Germany (The amount of the charges per
call depends on the tariff of your telephone provider); calls
from abroad are subject to higher charges. Errors and tech-
nical changes reserved.

20 www.alpenoptics.de
Download the user manual
http://www.alpenoptics.de/download
SERVICE AND WARRANTY
www.alpenoptics.de/warranty_terms
Please be prepared for service requests:
Art. No.: ALP600724
Product name:
Crestone XP 7x24 OLED Laser Rangender
