ALPHA 8100 OPERATING MANUAL
www.alpharadioproducts.com
8
1.2 Amplifier Capabilities
CAUTION:
It is extremely important to thoroughly review the Installation and Operation
sections of this manual before attempting to use the Alpha 8100. Failure to do so
could result in serious damage not covered under warranty.
• Continuous RF Output. The 8100 is capable of 1.5 kW continuous RF output on all commonly
used modes and on any authorized amateur frequency from 1.8 to 29.7 MHz.
• Compatibility with popular amateur transceivers and exciters. The 8100 requires approximately
50-65 W peak RF drive for 1.5 kW output.
• Capable of full CW break-in, QSK and all digital modes when used with any appropriate
transceiver.
• Protective functions are built in. The control system incorporates protective functions that
minimize the probability of accidental damage to the amplifier or its power tubes. In most cases,
when one of the protective functions is“tripped,”the amplifier will go to Standby.
1.3 Shipping Information
The Alpha 8100 amplifier ships in two heavy-duty cardboard cartons. One carton holds the power
transformer and weighs 43 lb (20 kg) and the second carton contains the amplifier and weighs 38 lb.(17
kg). Both of these cartons are mounted on a wooden pallet and strapped down for a total weight of 98
lb.(45 kg).
Alpha recommends that you retain the pallet and the cartons after installation in the unlikely
situation that you need to ship the unit later. Contact Alpha at 303.473.9232 for shipping advice
and assistance.
1.4 Safety Information – Installation and Operation

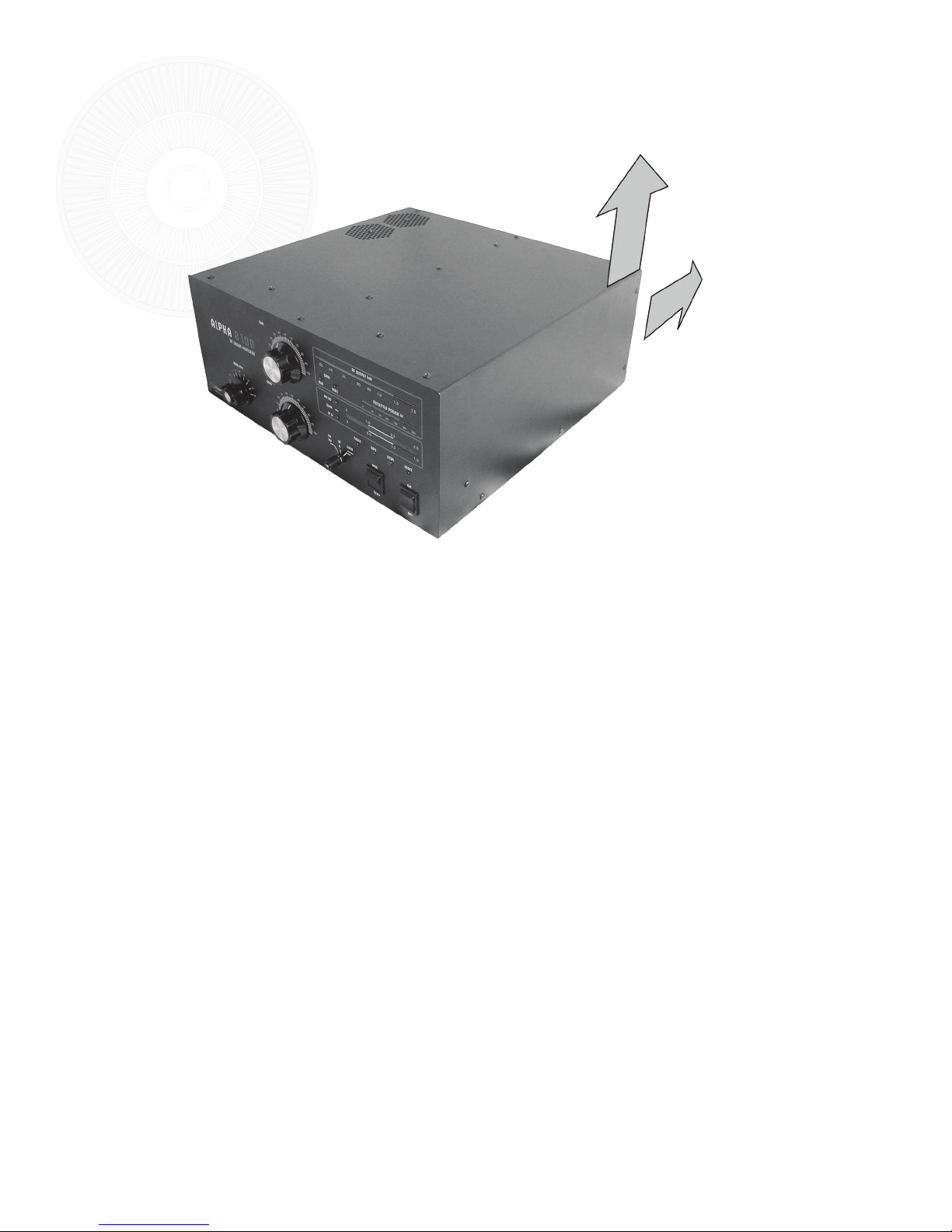

• Make sure the Alpha 8100 is located where there is good air circulation all around and on
top of the cabinet. The unit may become hot during operation.
• The Alpha 8100 weighs approximately 68 pounds when the transformer is installed. Use
proper lifting techniques and two people when moving the amplifier.
