Alpha ARES Pro 150 User guide

Floor standing, high water content
condensing boilers
Installation and Servicing
Instructions
Leave these instructions with the
Building Manager
ARES Pro 150
ARES Pro 230
ARES Pro 300
ARES Pro 348
ARES Pro 400
ARES Pro 500
ARES Pro 600

Warning this manual contains the exclusive instructions for use for professionally qualied
installers and/or maintenance technicians, in compliance with laws in force.
e USER is not authorised to intervene on the boiler.
e manufacturer will not be held liable in the case of damage to people, animals or property
due to the failure to observe the instructions contained in the manuals supplied with the boiler
INDEX
The company Alpha Heating Innovation (registered office - Nepicar House - London Road - Wrotham Heath - Kent - TN15 7RS), declares
that the design, manufacturing and after-sales assistance processes comply with the requirements of standard UNI EN ISO 9001:2015.
For further details on the product CE marking, request a copy of the Declaration of Conformity from the manufacturer, specifying the appliance
model and the language of the country.
Instructions on how to correctly dispose of the product.
At the end of its life, this appliance must not be disposed of as mixed municipal waste.
It is mandatory to separate this type of waste so that the materials making up the appliance can be recycled and reused. Contact
authorised operators for disposal of this type of appliance. Incorrect management of waste and its disposal has potential negative
eects on the environment and on human health. e symbol on the appliance represents the prohibition of disposing of the product as mixed
municipal waste.
1 General information ............................................................4
1.1 General warnings .......................................................................... 4
1.2 Symbols used in the manual ........................................................5
1.3 Compliant use of the appliance ...................................................5
1.4 Information for the system manager ..........................................5
1.5 Safety warnings .............................................................................6
1.6 Technical data plate ......................................................................7
1.7 Water treatment ............................................................................8
1.8 Boiler frost protection .................................................................. 8
2 Technical features and dimensions............................................9

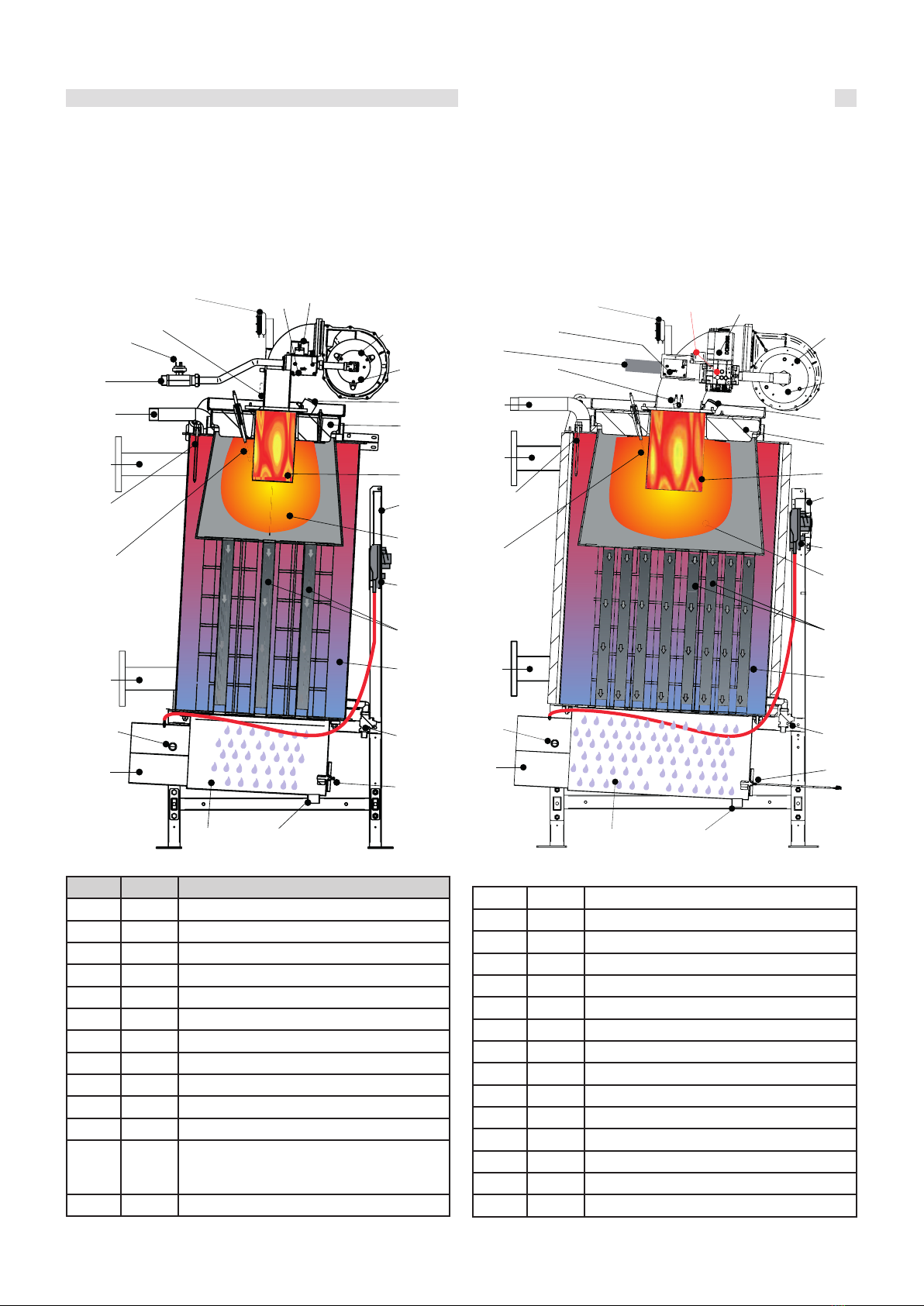

2.1 Internal view with indications of main components ...............9

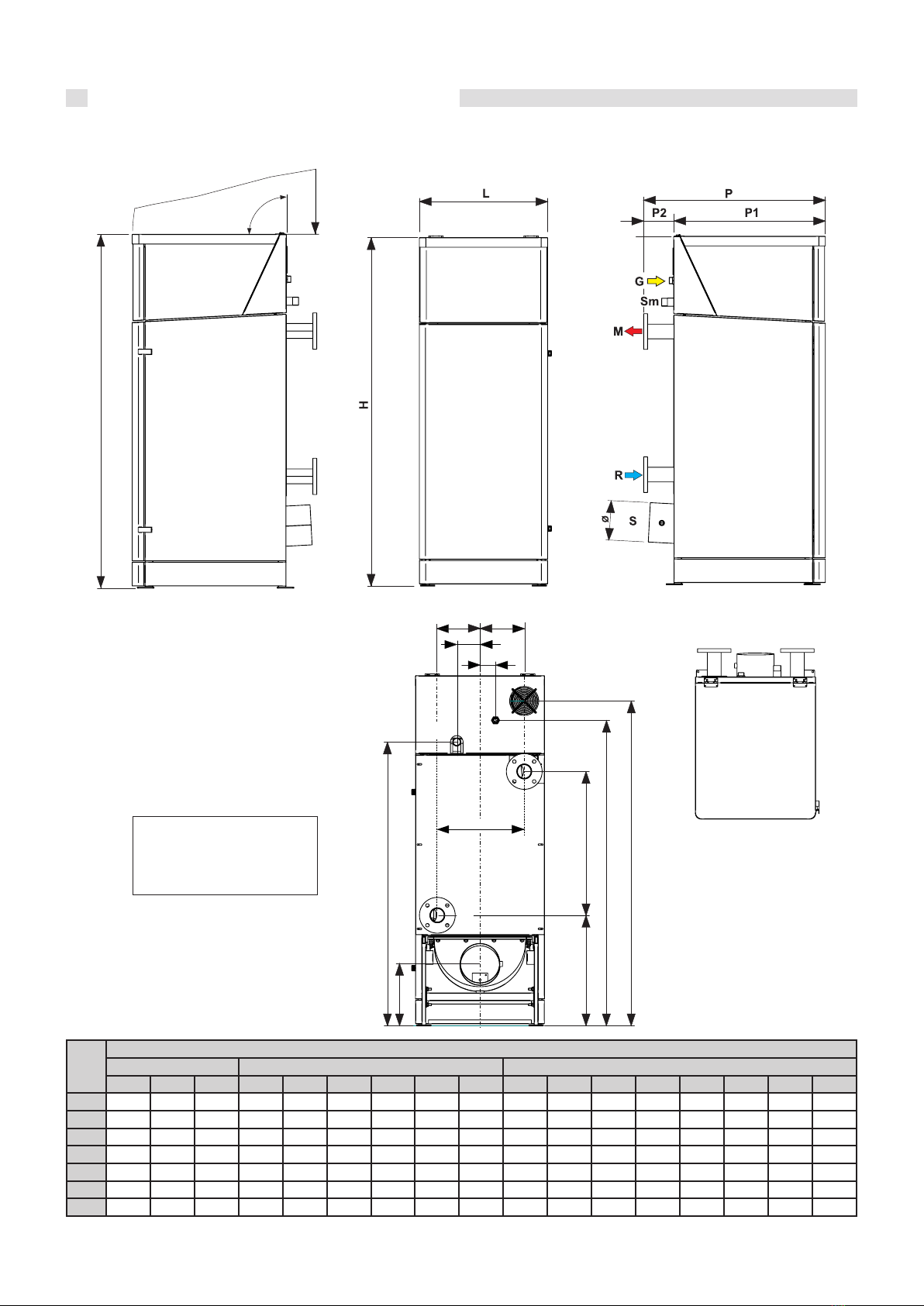

2.2 Dimensions .................................................................................. 10

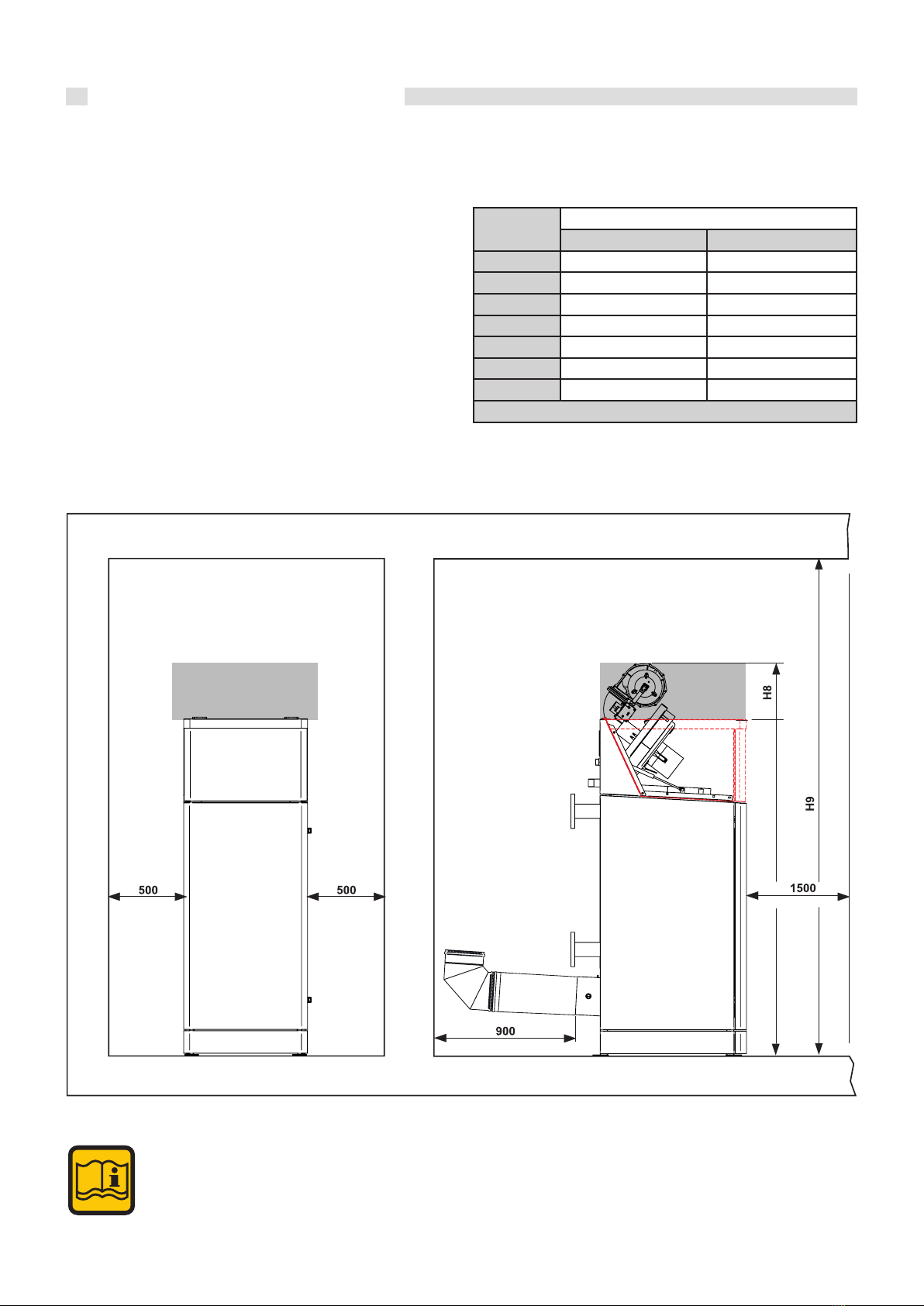

2.2.1 Dimensions to install the boiler in heating control unit .......11
2.2.2 View to accessibility inside ........................................................12

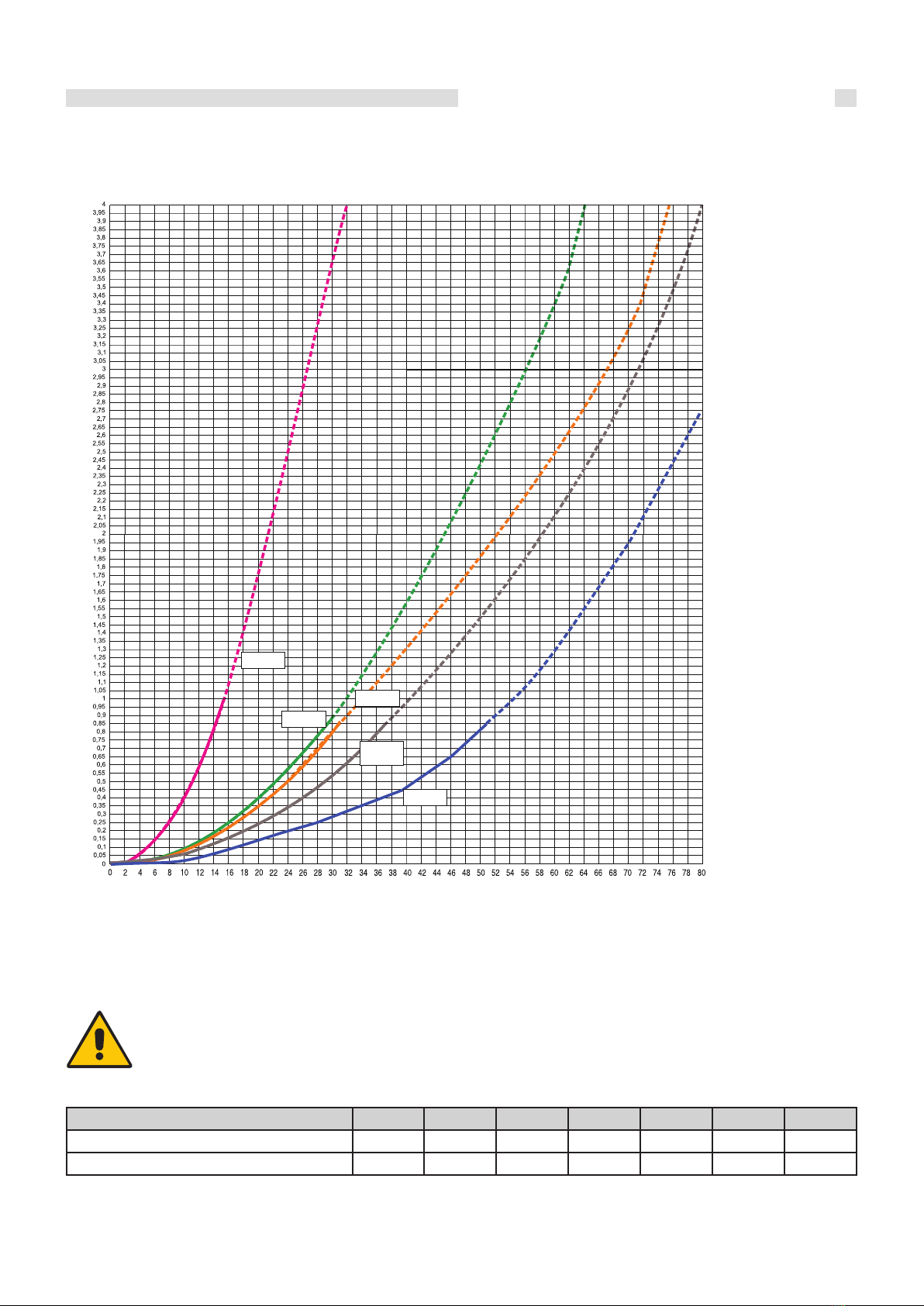

2.3 Diagram of water side head losses ............................................ 13
2.3.1 Determination of the primary circuit pump or boiler pump 13
2.4 Functioning data / general features ..........................................14
2.4.1 Technical data according to the ErP directive ........................15
3 Instructions for installation ..............................................16
3.1 General recommendations ........................................................16
3.2 Regulations for installation........................................................16
3.3 Preventative checks and adaptation of the system .................16
3.4 Packaging .....................................................................................17
3.4.1 Handling ......................................................................................17
3.5 Positioning the heating control unit.........................................18
3.6 Flue exhaust pipe connection .................................................... 19
3.7 Connection ..................................................................................20
3.8 System lling and emptying ......................................................22
3.9 Electrical connections ................................................................22
3.10 First ignition ................................................................................27
3.11 On-site measurement of the combustion eciency...............28
3.11.1 Enable the calibration function ............................................... 28
3.11.2 Positioning the probes ..............................................................28
3.12 Burner adjustment ......................................................................29
4 Inspection and maintenance .............................................34
4.1 Instructions for inspection and maintenance .........................34
4.2 Adapt it for use with other gases ...............................................37
4.3 Programming the operation parameters .................................38
4.4 Wiring diagram for practical connection ................................40
4.5 Error code ....................................................................................42

4
General information
1 GENERAL INFORMATION
1.1 GENERAL WARNINGS
e instruction handbook is an integral and essential part of the product
and must be kept safe by the user.
Read the warnings contained in the handbook carefully, as they provide
important instructions regarding installation, user and maintenance
safety.
Keep the handbook safe for future consultation.
e appliance must be installed and maintained in accordance with
regulations in force, pursuant to the instructions of the manufacturer,
the state of the art and by authorised and qualied personnel, in ac-
cordance with the law.
Domestic hot water production systems MUST be built entirely with
compliant materials.
Professionally qualied personnel means sta with specic technical
skills in the sector of heating system parts for civil use, hot water pro-
duction for domestic use and maintenance. is personnel must have
the authorisations required by legislation in force.
Incorrect installation or poor maintenance can cause injury to persons
and animals and damage to objects, for which the manufacturer is not
liable.
Before carrying out any cleaning or maintenance operations, cut the
appliance o from the power mains by acting on the switch on the
system and/or using the cut-o devices.
Do not obstruct the intake/exhaust pipe terminals.
In case of breakdown and/or poor operation of the appliance, switch
it o, and do not attempt in any way to repair it or intervene directly.
Only contact an authorised company that has been authorised in
accordance with the law.
Any repairs to the products must be carried out by an authorised
company only, using original spare parts only. Failure to observe the
above can jeopardise the safety of the appliance and will void the
warranty.
e guarantee the eciency of the appliance and its correct operation
it is essential for authorised company to carry out annual maintenance.
If the appliance is put out of use for downtime, any part that is
susceptible to posing a potential source of danger must be made safe.
Before re-commissioning an appliance that has been put out of use,
proceed to washing the domestic hot water production system, making
water ow through it for the amount of time required to change the
water completely.
If the appliance is sold or transferred to another owner or if the owner
moves, leaving the appliance behind, always ensure the handbook
accompanies the appliance so that it may be consulted by the new
owner and/or installer.
All appliances with optionals or kits (including electric) must only use
original spare parts.
e appliance must only be employed for its expressly foreseen use.
Any other use must be considered improper and therefore dangerous.
ATTENTION!
e heat unit must be installed so as to avoid, under the envisioned operating conditions, the liquid contained in it from freezing
and avoid exposing the command and control parts to temperatures below -15°C and over +40°C.
e heat unit must be protected from climatic/environmental variations by:
- insulating the hydraulic and condensation exhaust pipes
- adopting specic anti-freeze products in the hydraulic system.

5
General information
1.3 COMPLIANT USE OF THE APPLIANCE
The ARES PRO appliance was built based on the current technical level and recognised technical safety rules.
Nevertheless, following improper use the safety and life of the user or other people may be exposed to danger, i.e.
damage to the appliance or other objects.
e appliance is designed for operation in hot water circulating heating systems.
Any other use is considered improper.
Alpha Heating Innovation will not be held liable for any damage resulting from improper use.
Any use in accordance with the envisioned purposes includes the strict observance of the instructions in this manual.
1.4 INFORMATION FOR THE SYSTEM MANAGER
e user must be instructed in the use and operation of his/her heating system, in particular:
- Deliver these instructions to the user, as well as the other documents relative to the appliance contained in the packaging in
an envelope. e user must keep this documentation safe so that it is available for future consultation.
- Inform the user of the importance of aeration vents and the ue exhaust system, highlighting how essential they are and how
it is strictly forbidden to change them.
- Inform the user on how to control the water pressure in the system as well as the operations required to restore it.
- Inform the user on how to correctly regulate the temperature, control units/thermostats and radiators in order to save energy.
-Remember that, in compliance with the laws in force, the equipment must be inspected and maintained according to the
requirements and on the basis set down by the manufacturer.
- If the appliance is sold or transferred to another owner or if the owner moves, leaving the appliance behind, always ensure the
manual accompanies the appliance so that it may be consulted by the new owner and/or installer.
e manufacturer will not be held liable in the case of damage to people, animals or property due to the failure to observe
the instructions contained in this manual.
1.2 SYMBOLS USED IN THE MANUAL
When reading this manual, pay special attention to the parts marked with these symbols:
DANGER!
Serious danger to
safety and life
ATTENTION!
Possibly dangerous
situation for the product
and environment
NOTE!
Tips for the user
DANGER!
Scalding hazard!
OBLIGATION!
Wear protective
gloves

6
General information
1.5 SAFETY WARNINGS
ATTENTION!
e appliance must not be used by children.
e appliance can be used only by adults who have read the instruction manual for the user / manager with care.
Children must be supervised to ensure they do not play or tamper with the appliance.
ATTENTION!
Installation, adjustment and maintenance of the appliance must be carried out by professionally authorised company, in
compliance with regulations and provisions in force, as incorrect installation can cause damage to people, animals and
property, for which the manufacturer will not be held liable.
DANGER!
NEVER attempt to carry out maintenance or repairs on the boiler of your own initiative.
Any work must be carried out by professionally qualied sta; we advise you to stipulate a maintenance contract.
Poor or irregular maintenance can compromise the operational safety of the appliance and cause damage to people, animals
and property for which the manufacturer will not be held liable.
Changes to parts connected to the appliance (aer installation of the appliance)
Do not make changes to the following elements:
- to the boiler
- to the gas, air, water and power supply lines
- to the ue pipe, safety valve and exhaust pipe
- to the constructive elements that aect the operational safety of the appliance.
ATTENTION!
To tighten or loosen the screw-attached ttings, use suitable wrenches only.
Improper use and/or unsuitable tools can cause damage (for ex. water and gas leaks).
ATTENTION!
Instructions for appliances running on propane gas
Make sure that the gas tank has been deaerated prior to installing the appliance.
For a thorough deaeration of the tank contact the liquid gas supplier and in any case authorised company, in accordance with the law.
Ignition problems can arise if the tank is not thoroughly deaerated.
In this case contact the liquid gas tank supplier.
Smell of gas
In case of the smell of gas observe the following safety instructions:
- do not use electric switches
- do not smoke
- do not use the telephone
- shut o the gas cut-o valve
- aerate the room where the gas leak occurred
- notify the gas supply company or a company specialised in the installation and maintenance of heating systems.
Explosive and easily ammable substances
Do not use or deposit explosive or easily ammable materials (for ex. petrol, paints, paper) in the room where the appliance is
installed.
ATTENTION!
Do not use the appliance as a base to support any object. Specically, do not place receptacles containing liquids (Bottles, Glasses,
Containers or Detergents) on top of the boiler. If the appliance is installed inside a box, do not insert or place other objects inside it

/
7
General information

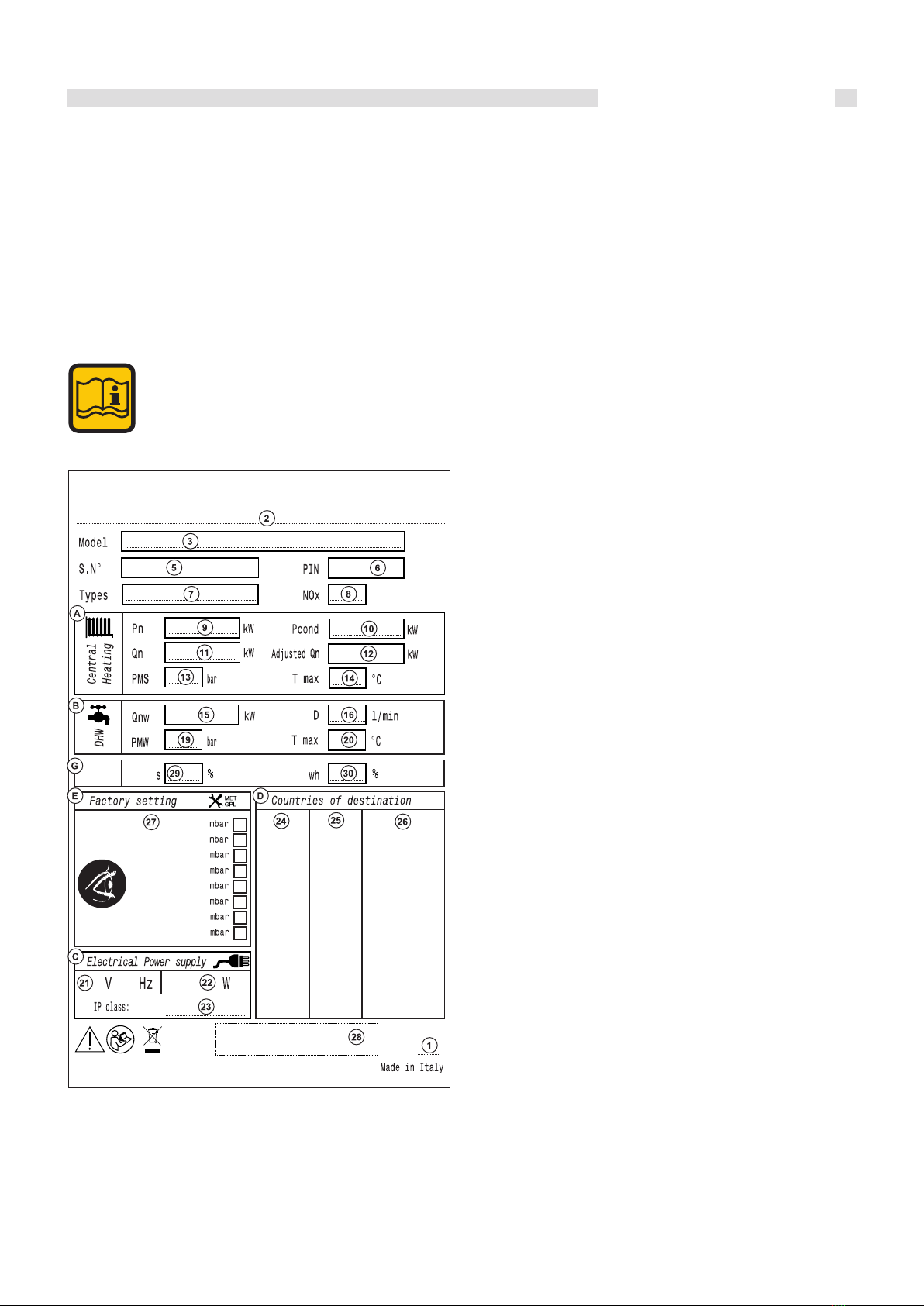

1.6 TECHNICAL DATA PLATE
CE Marking
certies conformity of the appliance with the essential safety require-
ments set down by the directive and applicable European regulations,
and operation in compliance with the technical standards of reference.
e CE marking is applied on each appliance with a label.
e CE declaration of conformity, released by the Manufacturer in
compliance with the international regulations in force, can be found
in the documents enclosed with the product.
e technical data plate is located under the casing,
on the front cross member. ere is a DUPLICATE
of the plate near the temperature control unit.
KEY:
1 = CE supervisory body
2 = Type of boiler
3 = Boiler model
5 = (S.N°) Serial Number
6 = P.I.N. Product Identication Number
7 = Types of approved ue exhaust congurations
8 = (NOx) NOx class
A = Characteristics of the heating circuit
9 = (Pn) Useful heat output
10 = (Pcond) Useful output in condensation
11 = (Qn) Maximum heat input
12 = (Adjusted Qn) Adjusted for useful heat input
13 = (PMS) Max. central heating operating pressure
14 = (T max) Max. central heating temperature
A = Characteristics of the DHW circuit
15 = (Qnw) Nominal heat input in DHW mode (if dierent from Qn)
16 = (D) Specic ow rate for DHW according to EN625-EN13203-1
19 = (PMW) Max. DHW operating pressure
20 = (T max) Max. DHW temperature
C = Electrical features
21 = Electric power supply
22 = Consumption
23 = Degree of protection
D = Countries of destination
24 = Direct and indirect countries of destination
25 = Gas category
26 = Supply pressure
E = Factory settings
27 = Adjusted for gas type X
28 = Space for national brands
G = ErP
29 = Seasonal central heating energy eciency
30 = Seasonal water heating energy eciency.

8
General information
1.7 WATER TREATMENT
Treating the feed water allows you to prevent prob-
lems and maintain the functionality and eciency of
the generator over time.
e ideal pH value of the water in the central heating
system must be:
VALUE MIN. MAX.
PH 6.5 8
HARDNESS (°fr) 9 15
To minimise corrosion, it is essential to use a corrosion
inhibitor. In order for it to work eciently, the metal
surfaces must be clean.
ATTENTION!
Any damage caused to the boiler, due to the formation
of build-up or corrosive water, will not be covered by
the warranty.
ATTENTION!
e models only equipped with central heating are
NOT suitable for hot water production for human
consumption (M.D. 174/2004).
1.8 BOILER FROST PROTECTION
Activated by default
is protection only cuts in when the electric and gas supply are present.
If the electric or gas supply are disconnected and 11 (SM) detects a
temperature of between 2 and 5°C when the supply is restored, the
appliance responds as indicated in the table below, in pos.2.
Antifreeze products with an inhibitor for central
heating systems (specic for multimetal) can be used
to ensure ecient protection of the central heating
against freezing.
Do not use antifreeze products for car engines since
these can damage the water gaskets.
POS.
ANTIFREEZE FUNCTION
Supply 11 - SR (*) Status of antifreeze
function Actions
Electric Gas
1ON ON < 7°C ON Burner and Pump ON until T > 15°C
2
ON OFF < 5 ÷ 5°C OFF
INDICATION OF FAULT CODE 16
(see Par. 4.4 ERROR CODES).
Ignition inhibited.
OFF ON OFF Ignition inhibited.
OFF OFF OFF Ignition inhibited.
(*) SR sensor, see Par. 2.2

9
S
R
G
*53 18
54
27
60
56
57
14
58
32
S.cond
59
3
19
61
62
28
10-1
1
63
64
M
55
5
33
S.cond
59
S
32
58
14
57
56
R
27
M
18
60
19
3
61
62
G
28
10-11
53
63
64 54
55
5
33
Technical features and dimensions
2 TECHNICAL FEATURES AND DIMENSIONS
2.1 INTERNAL VIEW WITH INDICATIONS
OF MAIN COMPONENTS
Key:
N° S.E. Description
3VG Gas valve
5 Burner
10 TL Probe Limit ermostat
11 SR Central heating sensor
14 Boiler draining valve
18 VM Fan
19 PF Flue pressure switch
27 E. RIL. Detection electrode
28 E. ACC. Ignition electrode
32 Flue inspection point
33 Control panel
53 PGmin
PGmax
Gas pressure switch (min. *ARES PRO 150)
(min. ARES PRO 230 - 300)
(min. / max ARES PRO 348 ÷ 600)
54 Glass inspection hole
55 Door insulation
56
Stainless steel vertical smoke pipe with aluminium internal.
57 Technical water tank
58 SL Level sensor
59 Condensate collection pan
60 Combustion chamber
61 Mixer Aria/gas
62 T.ACC Igniters
63 PFmin Min. ue pressure switch
64 Air vent tting
G Gas inlet
M Central heating system ow
R Central heating system return
S.cond Condensate drain DN 32
S.E. = WIRING DIAGRAM KEY
ARES PRO 150 ARES PRO 230 - 300 - 400 - 500 - 600

10
H1
H
H3
H2
L1
L4
L2
A
G
M
S
Sm
H4
H5
H6
H7
R
L3
L5
Technical features and dimensions
2.2 DIMENSIONS
SIDE VIEW SIDE VIEWFRONT VIEW
REAR VIEW TOP VIEW
ARES
PRO
DIMENSIONS [mm]
Depth Width Height
P P1 P2 L L1 L2 L3 L4 L5 H H1 H2 H3 H4 H5 H6 H7
150 944 788 156 666 120 81 228.5 228.5 457 1809 65.6 1467 323.5 770 554.5 1579 1679
230 1092 954 141 846 120 43 277 277 554 1917 65.6 1557 356 800 604.5 1697 1768
300 1181 1036 144 910 100 200 297 297 594 1946 65.6 1618 353 825 600.5 1741 1796
348 1276 1152 124 996 100 200 338 338 676 2130 65.6 1712 390 853 664 1794 1974
400 1276 1152 124 996 100 200 338 338 676 2130 65.6 1712 390 853 664 1794 1974
500 1276 1152 124 996 100 200 338 338 676 2130 65.6 1712 390 853 664 1794 1974
600 1398 1256 142 1096 200 220 386 386 772 2206 65.6 1753 390 900 673 1863 2052
NOTE:
Refer to the relative chapter
regarding the dimensions of the
ttings.

11
P(P1+P2)
L
Lc
Lp
< 150
P
Technical features and dimensions
2.2.1 DIMENSIONS TO INSTALL THE BOILER IN HEATING
CONTROL UNIT
FRONT VIEW SIDE VIEW
Example of corridor width (Lc) required to handle the boiler ARES
PRO 150:
L = Boiler width
P = Boiler depth
Lc = Corridor Width
Lp = Door Width
666
Lc = 900 x 944 = > 698 mm
ARES
PRO
BOILER DIMENSIONS WITHOUT
CASING [mm]
P L H
150 917 655 1785
230 1027 795 1895
300 1134 845 1910
348 1258 965 2075
400 1258 965 2075
500 1258 965 2075
600 1313 1065 2186

12
1
1
2
2
Technical features and dimensions
Series scale for models:
ARES PRO 348 - ARES
PRO 400 - ARES PRO
500 - ARES PRO 600
Optional for models:
ARES PRO 150 - ARES
PRO 230 - ARES PRO 300
ARES PRO 150 - ARES PRO 230 - ARES PRO 300

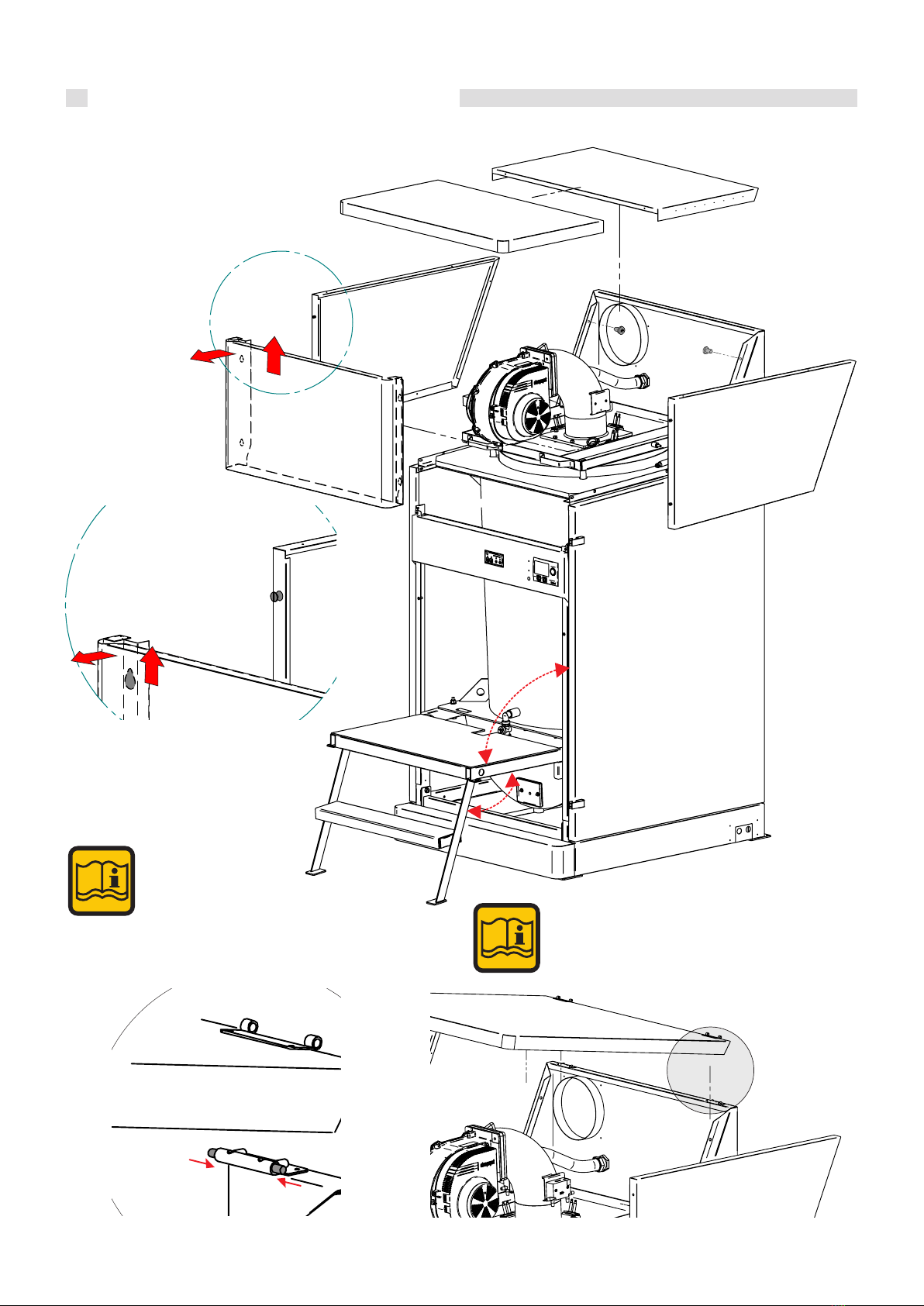

To remove the cover, release the 2 springs, refer to the
part shown below.
2.2.2 VIEW TO ACCESSIBILITY INSIDE

13
ARES PRO
150
ARES PRO
230
ARES PRO
300
ARES PRO
348 - 400 -
500
ARES PRO
600
Technical features and dimensions
2.3.1 DETERMINATION OF THE PRIMARY CIRCUIT PUMP
OR BOILER PUMP
e boiler pump must have head that can ensure circulator ow rates
according to the circuit’s ∆.
e pumps must be determined by the installer or
designer based on the data for the boiler and system.
2.3 DIAGRAM OF WATER SIDE HEAD
LOSSES
Head losses (m/H20)
Flow rate (m3/h)
ARES PRO 150 230 300 348 400 500 600
Maximum ow rate in l/h (∆t=15K) 7,818 11,999 15,740 19,575 21,386 25,338 30,978
Nominal requested ow rate in l/h (∆t = 20K) 5,863 9,000 11,805 14,681 16,039 19,004 23,234
e pump is not an integral part of the boiler.
It is advisable to choose a pump with a ow rate and head of approx-
imately 2/3 of its typical curve.

14
Technical features and dimensions
2.4 FUNCTIONING DATA /
GENERAL FEATURES
Room Temperature = 20°C
(*) Temperatures read with the device operating with ow 80°C / ret. 60°C
CO2 (min/max) See “NOZZLES - PRESSURES” table
Seasonal Energy Eciency according to 2009/125 EEC (<=400Kw) ηs - see Table ErP
Losses at shutdown at ∆T 30°C - Pstb - see Table ErP
Electrical consumption in standby - Psb - see Table ErP
ARES PRO 150 230 300 348 400 500 600
Boiler category II2H3P
Modulation ratio 1 : 4.0 1 : 4.3 1 : 4.3 1 : 3.9 1 : 4.2 1 : 3.9 1 : 4.4
Nominal heat input on L.V.C. Qn kW 140 214 280 348 380 450 550
Minimum heat input on L.C.V. Qmin kW 35 50 65 90 90 115 125
Nominal eective power (Tr 60 / Tf 80 °C) Pn kW 136.36 209.29 274.54 341.42 373.01 441.95 540.32
Minimum eective power (Tr 60 / Tf 80 °C) Pn min kW 32.52 48.25 63.57 87.67 87.80 111.09 118.53
Nominal eective power (Tr 30 / Tf 50 °C) Pcond kW 145.88 226.84 292.88 363.31 399.00 472.20 581.19
Minimum eective power (Tr 30 / Tf 50 °C) Pcond min kW 36.54 54.60 70.01 99.09 97.20 124.09 135.88
Eciency at nominal power (Tr 60 / Tf 80°C) % 97.4 97.8 98.05 98.11 98.16 98.21 98.24
Eciency at minimum power (Tr 60 / Tf 80°C) % 92.92 96.5 97.8 97.41 97.55 96.6 94.82
Eciency at nominal power (Tr 30 / Tm 50°C) % 104.2 106 104.6 104.4 105 104.9 105.67
Eciency at minimum power (Tr 30 / Tm 50°C) % 104.4 109.2 107.7 110.1 108 107.9 108.7
Eciency at 30% of the load ( Tr 30°C) % 107.7 107.2 108.9 108.4 108.8 108.9 106.5
Combustion eciency at nominal load % 97.8 97.9 98.2 98.2 98.2 98.2 98.3
Combustion eciency at a reduced load % 98.38 98.32 98.40 98.34 98.31 98.43 98.42
Losses from operating burner casing (Qmin) % 5.46 1.82 0.60 0.93 0.76 1.83 3.60
Losses from operating burner casing (Qn) % 0.4 0.1 0.1 0.1 0.1 0.03 0.04
Flue temperature at net of Tf-Ta (min)(*) °C 32.3 33.6 32 33.2 33.7 31.3 31.5
Flue temperature at net of Tf-Ta (max)(*) °C 44.2 42.7 36.7 35.6 35.4 35.5 34.3
Maximum permitted temperature °C 100
Maximum operating temperature: °C 90
Mass ue ow rate (min) kg/h 57 82 106 147 147 188 204
Mass ue ow rate (max) kg/h 229 350 458 569 621 735 899
Air excess % 25.53
Chimney losses with burner in operation (min) % 1.62 1.68 1.60 1.66 1.69 1.57 1.58
Flue losses with burner in operation (max) % 2.21 2.14 1.84 1.78 1.77 1.78 1.72
Minimum pressure of heating circuit bar 0.5
Maximum pressure of heating circuit bar 6
Water content l 153 210 270 340 340 340 425
Methane gas consumption G20 (supp.press. 20 mbar) at Qn m3/h 14.80 22.63 29.61 36.80 40.18 47.58 58.15
Methane gas consumption G20 (supp.press. 20 mbar) at Qn m3/h 3.70 5.29 6.87 9.52 9.52 12.16 13.22
Propane gas consumption (supp.press. 37/50 mbar) at Qn kg/h 10.87 16.61 21.73 27.01 29.50 34.93 42.69
Propane gas consumption (supp.press. 37/50 mbar)
at Qn kg/h 2.72 3.88 5.05 9.70 6.99 8.93 8.70
Maximum pressure available at ue base Pa 100
Max condensate production kg/h 11.5 13.7 15.8 29.1 28.5 28.8 31.0
Boiler seasonal efficiency (Part L)
CO at maximum heat input with 0% O2
mg/kWh 13.73 18.05 28.08 25.27 18.25 22.46 22.1
NOx at maximum heat input with 0% O2
mg/kWh 5351 53 49 50 48 50
NOx class 6
Electrical data
Frequency/Power supply voltage: V/Hz 230/50
Supply fuse A (R) 6
Degree of protection IP X4D
%
95.3 95.0 96.2 95.9 96.2 96.3 94.5

15
Technical features and dimensions
2.4.1 TECHNICAL DATA ACCORDING TO THE ERP DIRECTIVE
ARES TEC 150 230 300 348 400 500 600
Element Symbol Unit
Useful heat output Nominal
output kW 146 195 244 294 342 442 540
Room central heating seasonal energy eciency ηs % 93 92 94 93 94 94 92
Central heating seasonal eciency class A A A A A * *
For boilers for central heating and combination
boilers: useful heat output
Useful heat output in high temperature mode (Tr
60 °C / Tm 80 °C) P4kW 136,3 209,3 274,5 341,4 373,0 441,9 540,3
Eciency at nominal heat output in high temperature
mode (Tr 60 °C / Tm 80 °C)
η4% 87,8 88,1 88,3 88,4 88,4 88,5 88,5
Useful heat output at 30% nominal heat output in
low temperature mode (Tr 30 °C)
P1kW 45,2 68,8 91,5 113,2 124,0 147,1 175,7
Efficiency at 30% nominal heat output in low
temperature mode (Tr 30 °C)
η1% 97,0 96,6 98,1 97,7 98,0 98,2 96,0
Boiler with power range adjustment: YES / NO NO NO NO NO NO NO NO
Auxiliary electricity consumption
At full load elmax kW 0,190 0,195 0,210 0,270 0,425 0,555 0,590
At partial load elmin kW 0,042 0,040 0,032 0,036 0,051 0,053 0,088
In standby mode PSB kW 0,005 0,005 0,005 0,005 0,005 0,004 0,007
Other items
Heat loss in standby Pstb kW 0,32 0,39 0,34 0,95 0,95 0,95 1,34
Emissions of nitrogen oxides ref. PCI (PCS) NOx Mg/kWh 53 51 53 49 50 48 50
Annual electrical consumption QHE GJ 424 653 844 1054 1148 1358 1694
For mixed central heating appliances
Stated load prole -------
Water central heating energy eciency ηwh % - - - - - - -
Daily electrical power consumption Qelec kWh -------
Daily fuel consumption Qfuel kWh -------
Sound power level indoors Lwa dB (A) - - - - - - -
Annual electrical consumption AEC kWh -------
Annual fuel consumption AFC GJ - - - - - - -
DHW seasonal eciency class -------
* (Devices not covered by directive 2009/125/EC)

16
Technical features and dimensions
3 INSTRUCTIONS FOR INSTALLATION
3.1 GENERAL RECOMMENDATIONS
ATTENTION!
is boiler must only be employed for its explicitly
intended use. Any other use must be considered
improper and therefore dangerous.
is boiler is used to heat water to below boiling
temperature in atmospheric pressure.
ATTENTION!
These appliances are designed exclusively for
installation inside suitable technical compartments.
Before connecting the boiler, have professionally
authorised company:
a) Accurately washing all of the pipes in the system
to remove any residues or sediments could stop
the boiler form running eciently, even in terms
of health and hygiene.
b) Making sure the boiler is set up to operate with the
available type of fuel. e type of fuel is stated on the
packaging and technical characteristics plate.
c) Make sure that the chimney/ue has an adequate
draught, that it is not choked, and that there are no
other exhausts for other appliances, unless the ue
is designed for multiple utilities, in accordance with
standard specications and requirements in force.
Only once this check has been carried out can the
tting between boiler and chimney/ue be set up.
ATTENTION!
In rooms with aggressive vapour or dust, the
appliance must operate independently of the air in
the room of installation!
ATTENTION!
e appliance must be installed by an authorised
company possessing professional-technical
qualications in accordance with the law, who, under
his/her own responsibility, enforces the observance of
regulations according to the rules of good practice.
ATTENTION!
Assemble the appliance in observance of the minimum
required distances for installation and maintenance.
e boiler must be connected to a heating system
compatibly with its specications and power.
3.2 REGULATIONS FOR INSTALLATION
Installation must be carried out by a professionally authorised company,
who is in charge of enforcing observance of all local and/or national
laws published in the Ocial Gazette, as well as all applicable technical
regulations.
3.3 PREVENTATIVE CHECKS AND
ADAPTATION OF THE SYSTEM
When the appliance is installed on existing systems, make sure that:
-e ue is suitable for condensation appliances, for the temperatures
of the combustion products, calculated and built in accordance with
regulations in force. at is it a straight as possible, water-tight and
insulated and does not have any obstructions or constrictions.
- e ue is equipped with an attachment to evacuate the condensation.
e boiler room is equipped with a pipe for the evacuation of the
condensation produced by the boiler.
-e electrical system is built in accordance with specic regulations
and by professionally authorised company.
-e ow rate, head and direction of ow of the circulation pumps is
appropriate.
-e fuel feed line and any existing tanks are set up in accordance with
regulations in force.
-e expansion vessels ensure complete absorption of the dilation of
the uid contained in the system.
- Slurry and build-up have been cleaned out of the system.
If it is possible to schedule the replacement, the system must be washed
preventively with alkaline dispersants.
Washing must be carried out four weeks prior to replacement, with a
system operating between 35°C - 40°C.
Attention! If the new boiler has been replaced in an old system without
having preventively washed it as described above, do not wash the sy-
stem, as any residues of the product in the circuit may ll the generator
with residues aer replacement.
It is advisable to contact a company specialised in water treatment.

17
Instructions for the installer
3.4 PACKAGING
Make sure the content is intact.
Packaging materials (cardboard box, straps, plastic bags,
etc.) constitute a potential hazard and must be kept
out of the reach of children.
Alpha Heating Innovation will not be held liable
in case of damage caused to people, animals or
property due to failure to observe the above.
ARES
PRO
P
depth (mm)
L
width (mm)
H
height (mm) Net Weight (kg) Package Weight (kg)
150 1280 970 2700 303 355
230 1280 970 2700 375 427
300 1280 970 2700 508 560
348 1500 1214 2142 704 771
400 1500 1214 2142 704 771
500 1500 1214 2142 705 772
600 1500 1214 2142 843 910
(*) casing - (**) pallet - (***) cardboard
In addition to the system, the packaging contains:
e Documentation Envelope including:
- Installer and maintenance engineer instructions handbook,
- HSCP control unit user handbook,
- BCM Instructions handbook,
- SHC book,
-Warranty ,
- Inspection certificate,
- Gas conversion label.
Besides the device, the package also contains a box of accessories
comprising:
- 5 bends + one T + plastic cap for condensate drain
- External probe
- Storage tank probe
- Cables metal-sheet plate outlet
- SHC multifunction module kit
- 1 m condensate drain trap pipe.
3.4.1 HANDLING
e boiler can be lied from the holes on the upper
plate or by means of a pallet truck.
OBLIGATION!
wear protective gloves
-e boiler must only be transported using suitable
transport devices.
- Protect all parts against impacts, if they must be
transported.
- Follow the transport instructions on the package.

18
Instructions for the installer
Observe the minimum clearance distances required to
perform normal maintenance and cleaning operations.
3.5 POSITIONING THE HEATING
CONTROL UNIT
Special attention must be paid to local standards and regulations re-
garding heating control units, especially the minimum distances that
must be observed.
Installation must be comply with the requirements contained in the
most recent standards and legislation regarding heating control units,
heating system installation and hot water production, ventilation, ues
suitable for condensation boiler combustion product exhaust, and any
other applicable regulation.
Follow the safety guidelines below when choosing the device’s instal-
lation area:
- Place the device in an area protected against freezing.
- Do not install the device in corrosive or very dusty rooms.
ARES PRO MINIMUM MEASUREMENTS
H8 (*) H9
150 2109 2300
230 2147 2500
300 2366 2500
348 2690 3000
400 2690 3000
500 2690 3000
600 2770 3000
(*) Space with combustion chamber opening

19
Instructions for the installer
3.6 FLUE EXHAUST
PIPE CONNECTION
e ue exhaust pipe must comply with local and national regulations
If the boiler is replaced, ALWAYS replace the ue pipe.
e boiler is approved for the draining settings described below:
HEAD AVAILABLE AT THE BASE OF THE CHIMNEY
S (Exhaust) A (Intake)
Dp = 100 Pa Dp = 40 Pa
e maximum permitted length of the pipes is determined by the
head (Dp) available at the base of the chimney

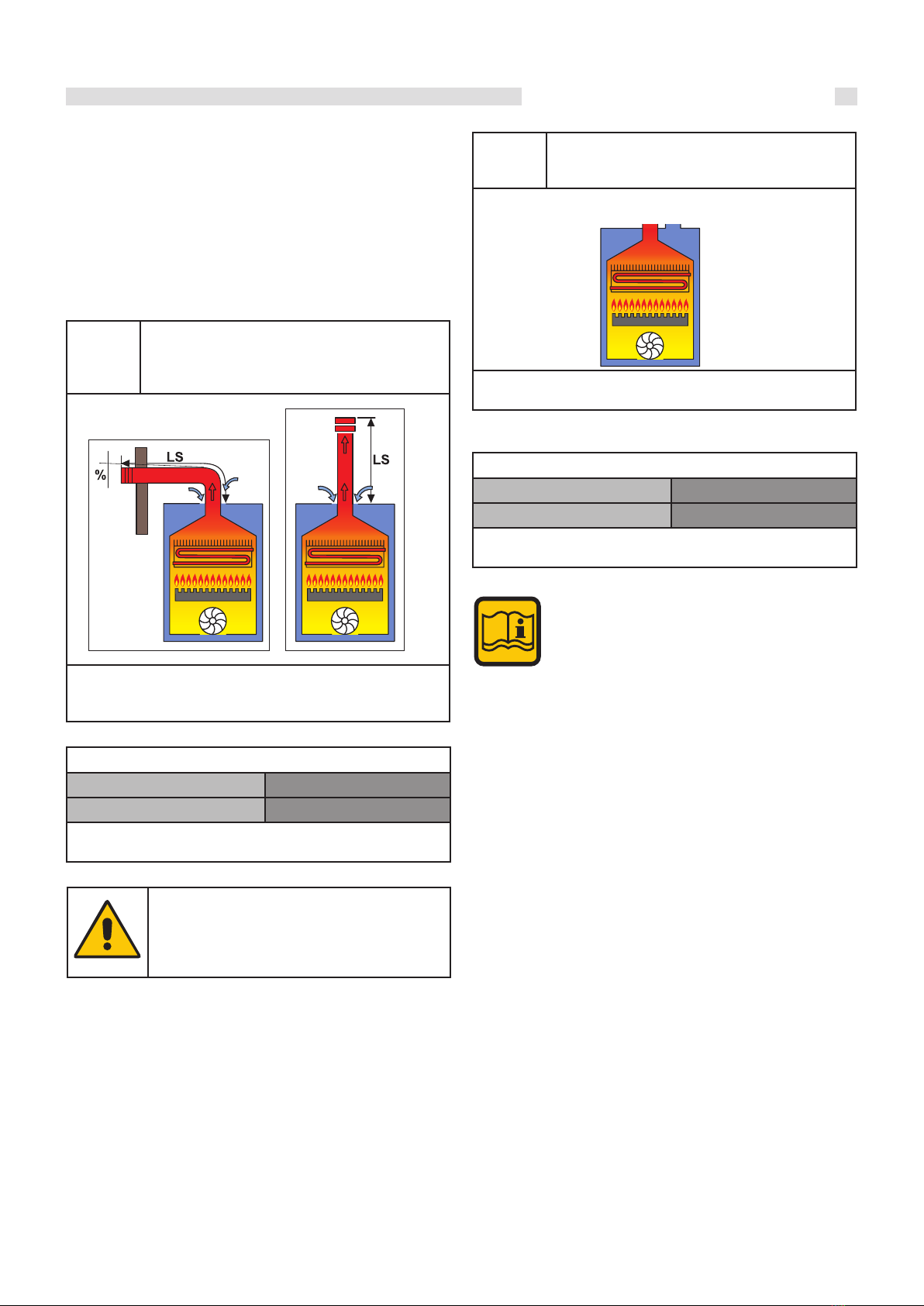

C63 ATTENTION
To congure the C63 you need to order the optional air
intake kit which includes instructions on application.
Separate ducts for combustion air intake and evacuation of combus-
tion products. (Commercial accessories)
B23P ATTENTION
For this type of connection, the room follows the same
installation regulations for boilers with natural draught.
Connection to a combustion product evacuation pipe outside the
room, the combustion air is taken directly from the room where the
device is installed.
HEAD AVAILABLE AT THE BASE OF THE CHIMNEY
S (Exhaust) A (Intake) A (Intake)
Dp = 100 Pa - -
e maximum permitted length of the pipes is determined by the
head (∆p) available at the base of the chimney.
ATTENTION:
for the type of B23P connection, the room follows the
same installation regulations for boilers with natural
draught.
ATTENTION:
e ue must comply with the standards in force

20
A
G
M
S
Sm
Scond
Sc
R
Instructions for the installer
3.7 CONNECTION
Danger!
e gas connection must be set up by an
authorised installation engineer who must observe
and apply the contents of the legislation in force
and the local requirements of the gas supply
company, as incorrect installation can cause damage
to people, animals and property, for which the
manufacturer will not be held liable.
If you notice the smell of gas:
a) Do not work the electrical switches, the telephone
or any other object that can generate sparks;
b) Immediately open doors and windows to create an
air current that puries the room;
c) Close the gas valves.
SAFETY VALVE DRAIN
Set up a runo pipe with funnel and trap that lead to a
suitable drain next to the drain.
e drain must be visually controlled.
e manufacturer will not be held liable in the case of
failure to observe this precaution, where any work on
the safety valve may cause damage to people, animals
and property.
Important!
Do not mix the heating water with antifreeze or an-
ti-corrosion substances at incorrect concentrations!
This may damage the gaskets and cause noise to
develop during operation.
Alpha Heating Innovation will not be held liable
in case of damage caused to people, animals or
property due to failure to observe the above.
e main supply pressure must be between 0.5 and 6
bar (If the pressure is higher, install a pressure reducer).
ARES
PRO
CONNECTIONS
G
Gas Inlet
[Inch]
M
Flow
[DN]
R
Return
[DN]
A
Air intake [Ø
mm]
S
Flue exhaust
fm [Ø mm]
Sm
Safety pipe cou-
pling [Inch]
Scond
Condensate drain
[Ø mm]
150 1’’ 65 65 150 200 (*) 1’’ DN 40
230 1’’ ¼ 65 65 250 250 1’’ ¼ DN 40
300 1’’ ¼ 80 80 250 250 1’’ ½ DN 40
348 1’’ ½ 80 80 250 300 1’’ ½ DN 40
400 1’’ ½ 80 80 250 300 1’’ ½ DN 40
500 1’’ ½ 80 80 250 300 1’’ ½ DN 40
600 1’’ ½ 100 100 250 300 1’’ ½ DN 40
SC: BOILER EXHAUST
Scond: CONDENSATE DRAIN
