Altimium PWSU12 User manual

PWSU12
Integrated Switching Power Supply
All Rights Reserved
Version: PWSU12_2016V1.0
User Manual

Integrated Switching Power Supply
Altimium www.altimium.com
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
are for reference only, different model and specifications are subject to real product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till December 2016. In the constant effort
to improve our product, we reserve the right to make functions or parameters changes
without notice or obligation. Please refer to the dealers for the latest details.
All product function is valid till 2016-12-5.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this manual
are acknowledged as the properties of the trademark owner. No part of this publication
may be copied or reproduced without the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

Integrated Switching Power Supply
Altimium www.altimium.com
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

Integrated Switching Power Supply
Altimium www.altimium.com
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions –All the safety and operating instructions should be read
before this product is operated.
2. Keep these instructions –The safety and operating instructions should be retained
for future reference.
3. Heed all warnings –All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow all instructions –All operating and use instructions should be followed.
5. Do not use this apparatus near water –The appliance should not be used near
water or moisture –for example, in a wet basement or near a swimming pool, and
the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacture’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. Apolarized
plug has two blades with one wider than the other. A grounding plug has two blades
and a third grounding prong. The wide blade or the third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart or rack is used, use caution when moving
the cart/apparatus combination to avoid injury from tip-over.

Integrated Switching Power Supply
Altimium www.altimium.com
13. Unplug the apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
15. CAUTION: These servicing instructions are for use by qualified service personnel
only. To reduce the risk of electric shock, do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
16. Caution –To prevent electric shock hazard, replace grille.
17. Do not install this equipment in a confined or building-in space such as a book case
or similar unit, and remain a well ventilation conditions at open site. The ventilation
should not be impeded by covering the ventilation openings with items such as
newspaper, table-cloths, curtains etc.
18. WARNING: Only use attachments/accessories specified or provided by the
manufacturer (such as the exclusive supply adapter, battery etc).
19. WARNING：Please refer the information on exterior bottom enclosure for electrical
and safety information before installing or operating the apparatus.
20. WARNING：To reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture. The apparatus shall not be exposed to dripping or splashing and
that objects filled with liquids, such as vases, shall not be placed on apparatus.
21. WARNING：For the terminals marked with symbol of “ ” may be of sufficient
magnitude to constitute a risk of electric shock. The external wiring connected to

Integrated Switching Power Supply
Altimium www.altimium.com
the terminals requires installation by an instructed person or the used of
ready-made leads or cords.
22. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type.
23. WARNING: To prevent injury, this apparatus must be securely attached to the
floor/wall in accordance with the installation instruction.
24. WARNING: The battery (battery or batteries or battery pack) shall not be exposed
to excessive heat such as sunshine, fire or the like.
25. WARNING: Excessive sound pressure from earphones and headphones can cause
hearing loss.
WARNING: Listening to music at high volume levels and for extended durations can
damage one’s hearing. In order to reduce the risk of damage to hearing, one should
lower the volume to a safe, comfortable level, and reduce the amount of time listening at
high levels. Headsets should comply with EN 50332-2 requirements (for GS
certification).
26. WARNING: The mains plug/appliance coupler/direct plug-in adapter is used as
disconnect device, the disconnect device shall remain readily operable. or
The all-pole mains switch located on front panel is used as the disconnect device, the
switch shall remain readily operable. or
The all-pole mains switch and all-pole circuit breaker are not provided with the
apparatus, the installation shall be carried out in accordance with all applicable
installation rules. Or
27.

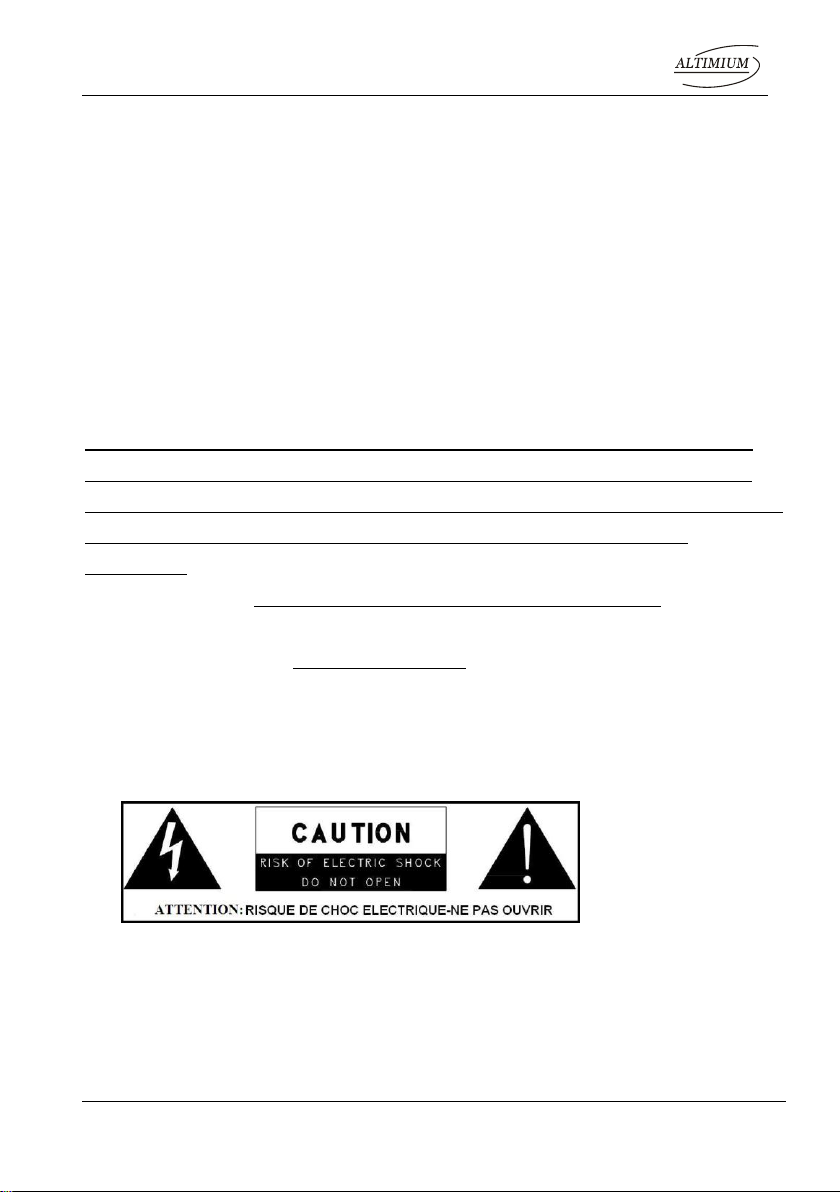

- This lightning flash with arrowhead symbol within an equilateral triangle is intended to
alert the user to the presence of non-insulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
- Warning: To reduce the risk of electric shock, do not remove cover (or back) as there
are no user-serviceable parts inside. Refer servicing to qualified personnel.

Integrated Switching Power Supply
Altimium www.altimium.com
- The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance instructions in the literature
accompanying the appliance.
28. Protective earthing terminal. The apparatus should be connected to a mains
socket outlet with a protective earthing connection.
29. Caution –To prevent electric shock hazard, replace grille. (CSA60065, clause
5.3A)

Integrated Switching Power Supply
Altimium www.altimium.com
Contents
1. Introduction.................................................................................................................1
1.1 Brief Introduction ...............................................................................................1
1.2 Features ............................................................................................................1
1.3 Package List......................................................................................................1
2. Panel Description........................................................................................................2
2.1 Front Panel........................................................................................................2
2.2 Rear Panel.........................................................................................................2
3. System Connection.....................................................................................................4
3.1 Usage Precautions............................................................................................4

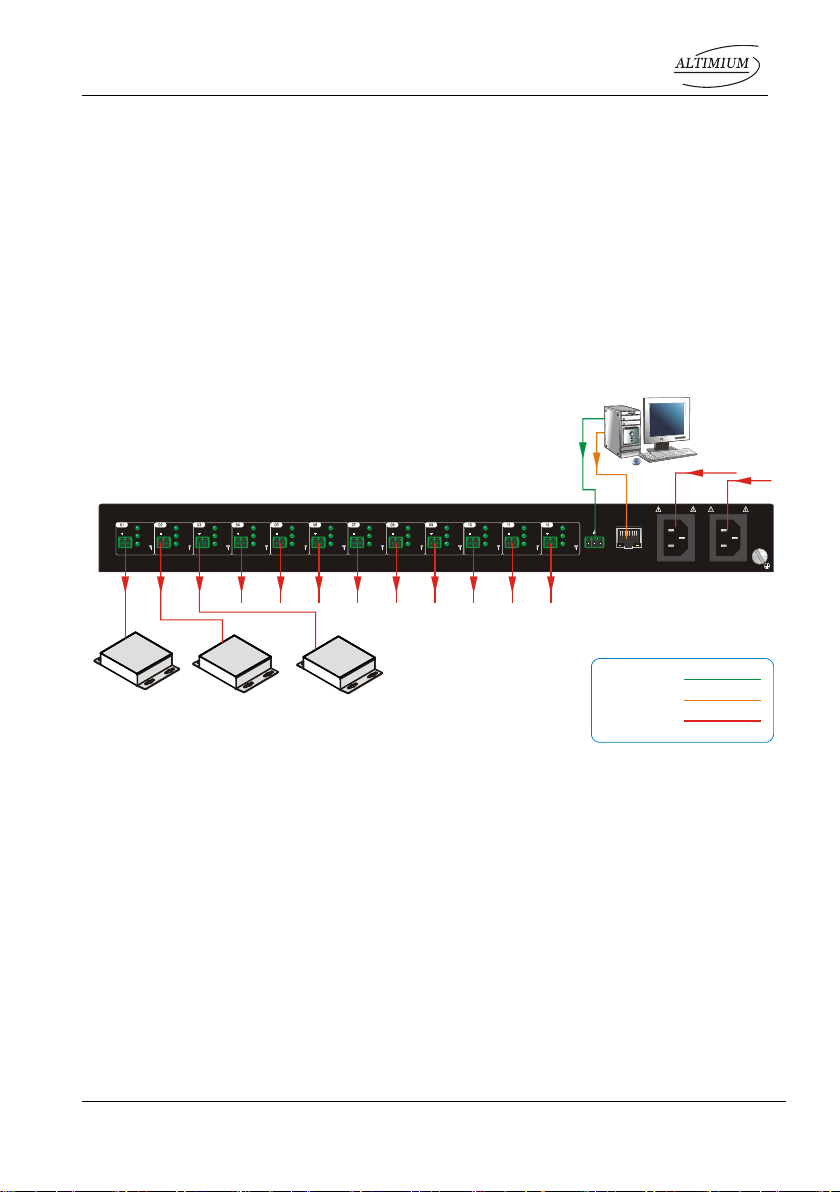

3.2 System Diagram................................................................................................4
3.3 Connection Procedure.......................................................................................4
4. System Operations .....................................................................................................5
4.1 Front Panel Buttons...........................................................................................5
4.2 RS232 Control...................................................................................................5

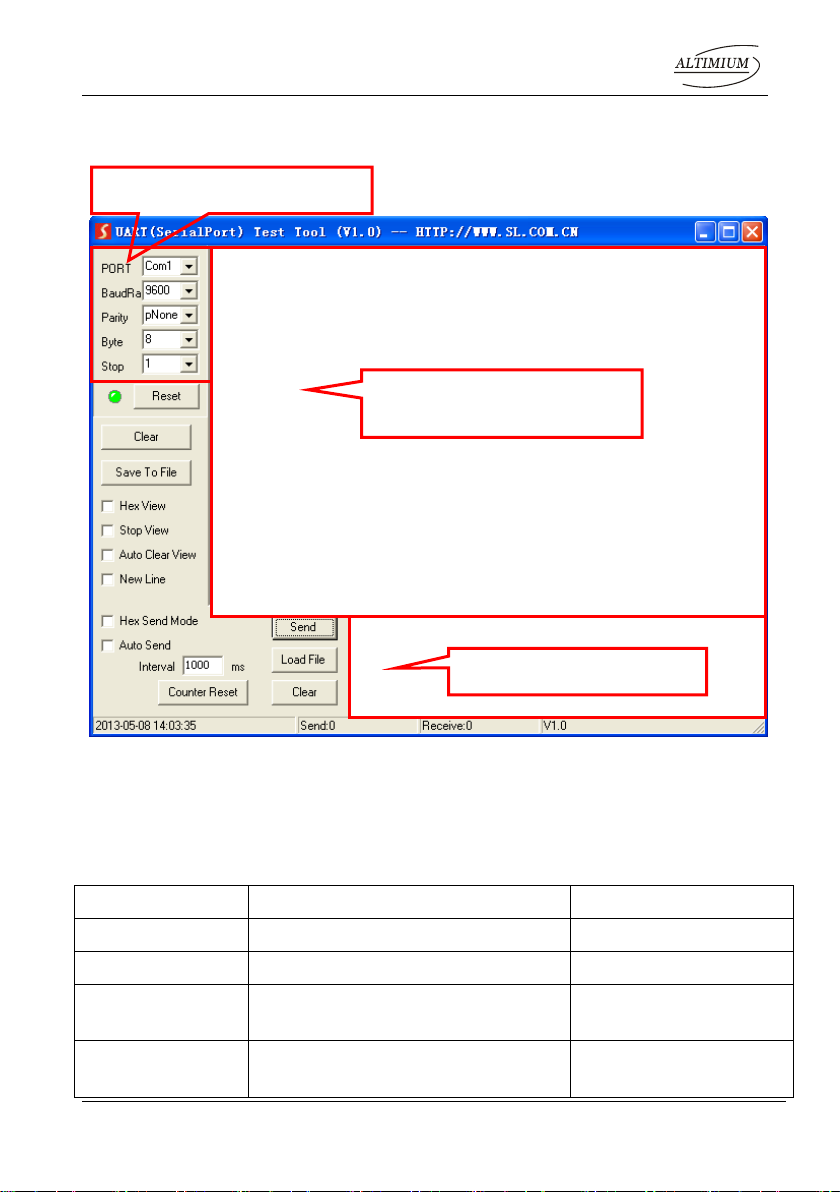

4.2.1 Installation/uninstallation of RS232 Control Software..............................5
4.2.2 Basic Settings..........................................................................................5
4.2.3 RS232 Communication Commands ........................................................6
4.3 Web-based GUI Control ....................................................................................9

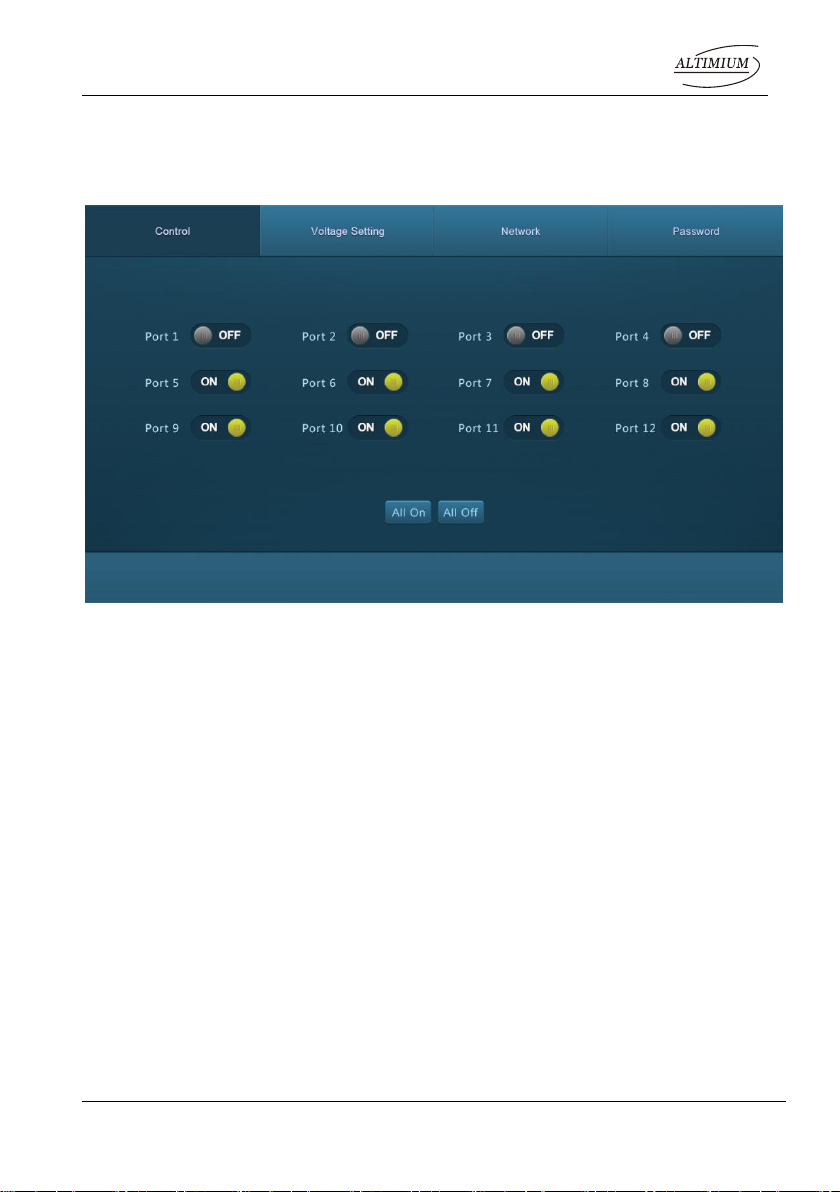

4.3.1 Control Menu.........................................................................................11

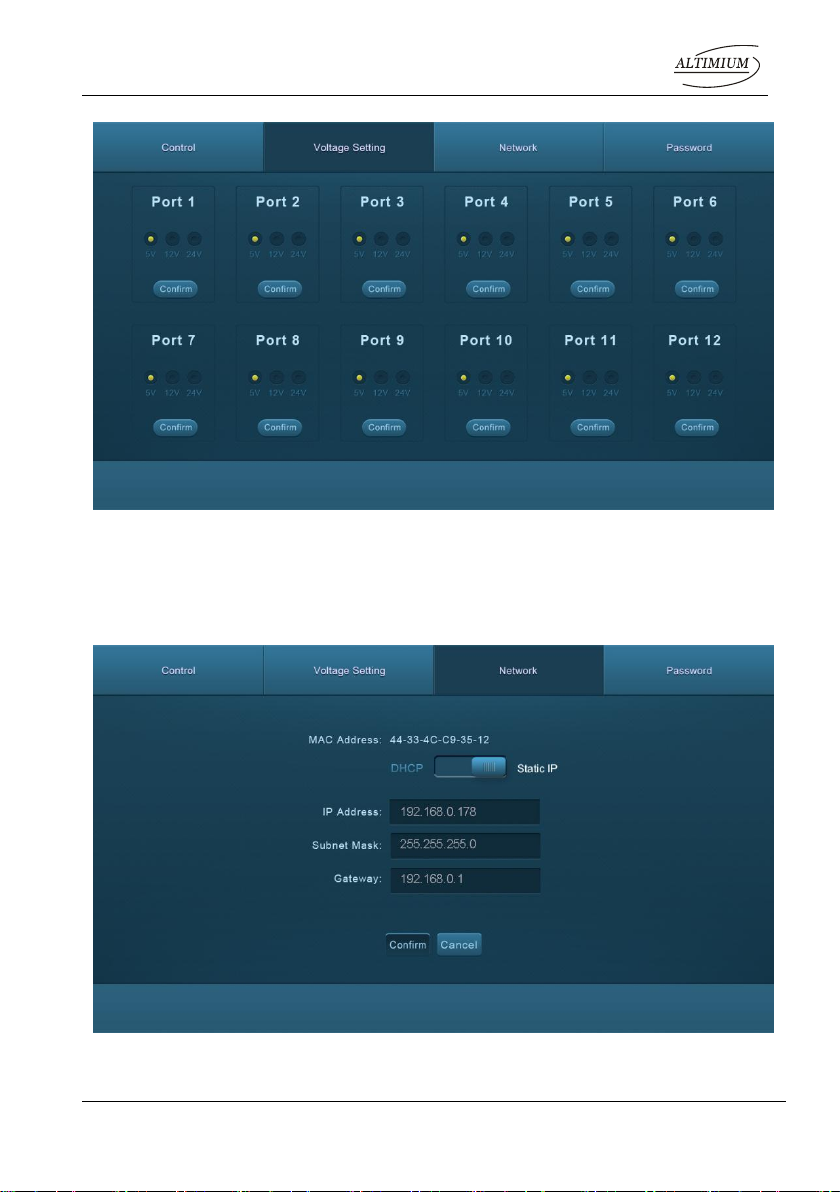

4.3.2 Voltage Setting Menu ............................................................................11
4.3.3 Network Menu .......................................................................................12
4.3.4 Password Menu.....................................................................................13

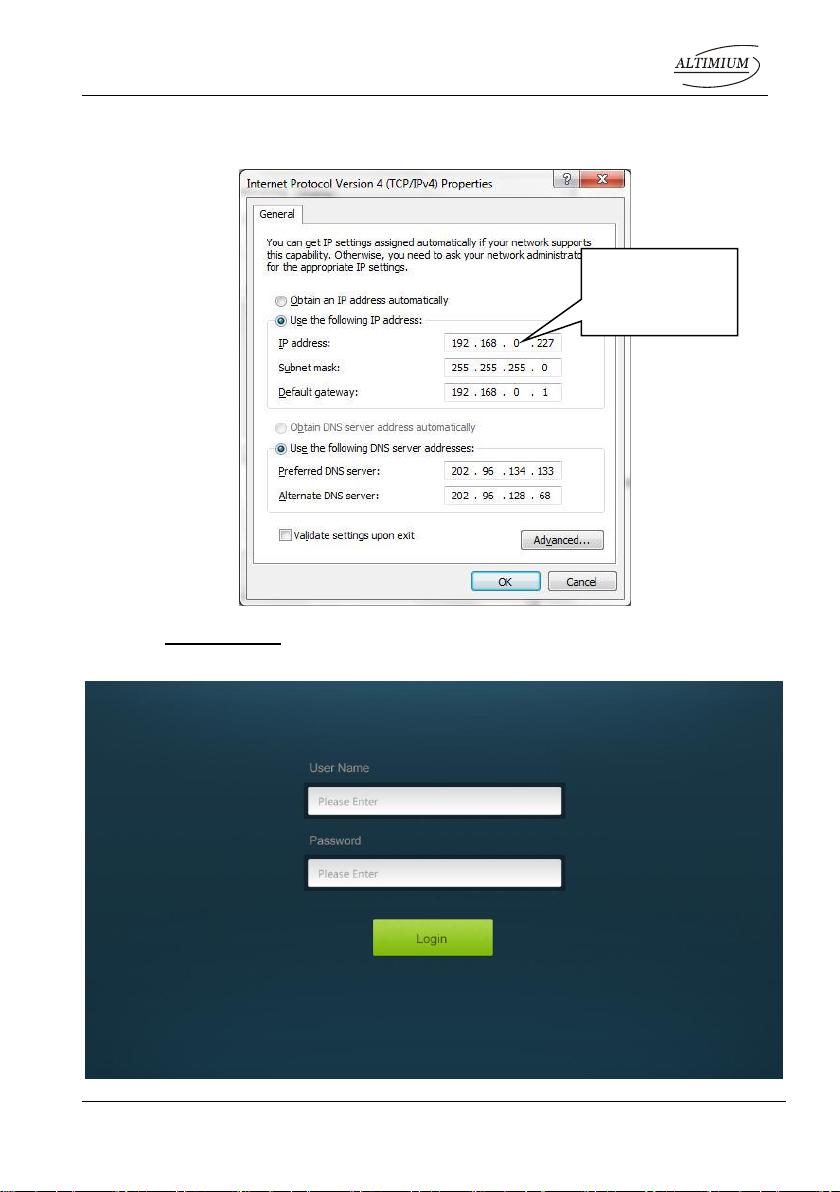

4.3.5 Web-based GUI Update ........................................................................13
5. Specification .............................................................................................................14
6. Panel Drawing ..........................................................................................................15
7. Troubleshooting & Maintenance ...............................................................................16
8. After-sales Service....................................................................................................18

Integrated Switching Power Supply
Altimium 1 www.altimium.com
1. Introduction
1.1 Brief Introduction
The product is an integrated switching power supply designed for converting AC into DC
power. It provide 2 input channels and 12 output channels, input voltage 100~240VAC,
output 5/12/24VDC, the max power consumption of single channel is 15W.
Base on the sequential control technology, when power on, the 12 output channels will
turned on orderly every 100ms.In addition, each output channel also can be switch
on/off via front panel button, RS232 commands or Web-based GUI, and the output
voltage on each output channel can be selected as 5/12/24V DC via the TACT Switch on
rear panel, RS232 command, or web-based GUI.
1.2 Features
Double input channel designed for ensuring the stable AC source.
Total 12 output channels, and each channel has three kinds of output voltage
(5/12/24VDC) can be selected.
Output channels can be switch on/off by via the front panel buttons, RS232
commands or Web-based GUI.
Output voltage (5/12/24VDC) can be selected via the TACT Switch on rear panel,
RS232 commands, or web-based GUI.
Adopt sequential control technology.
Supports online software upgrading.
1.3 Package List
1 x PWSU12
2 x Power Cable
12 x Power Cable (2-Pin phoenix connectors to DC)
1 x 3-Pin phoenix connector
1 x RS232 cable (DB9 to 3-Pin phoenix connector)
2 x DC cables
Note ： Please confirm if the product and the accessories are all included, if not, please
contact with the dealers.

Integrated Switching Power Supply
Altimium 2 www.altimium.com
2. Panel Description
2.1 Front Panel
No.
Name
Description
①
FIRMWARE
USB port for updating system firmware.
②
AC1 & AC2
Input AC source indicators.
Green when the device is powered on and normal output.
Red when there is no power to the device
Orange when the input voltage is too low or too high.
③
01~12
Output channel switching buttons and Activity LEDs, 12 in total.
Press the button to trun on/off the corresponding
channel,and the corresponding LED will turn green and
keep on.
Long-press the button for 3 seconds or more to
lock/unlock the corresponding channel, and then the
corresponding LED will flash 3 times.
Note: Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.
2.2 Rear Panel
FIRMWARE
01 02 03 04 05 06
07 08 09 10 11 12
AC 2AC 1
12 3
C
24V
+
DC
12V
5V
+
SELECT
AC100V 240V-
Tx Rx
RS232 TCP IP/
24V
+
AC100V 240V-
AC1 AC2
DC
12V
5V
+ ++ ++ ++ ++ ++ ++ ++ ++ ++ ++ ++
SELECT
24V
DC
12V
5V
SELECT
24V
DC
12V
5V
SELECT
24V
DC
12V
5V
SELECT
24V
DC
12V
5V
SELECT
24V
DC
12V
5V
SELECT
24V
DC
12V
5V
SELECT
24V
DC
12V
5V
SELECT
24V
DC
12V
5V
SELECT
24V
DC
12V
5V
SELECT
24V
DC
12V
5V
SELECT
24V
DC
12V
5V
SELECT
1
A
B
234
