Altina A600 User manual

User’s Manual in English
English Version
R01
Aug. 2007
Trademarks
All brand and product names are trademarks or registered trademarks of their
respective companies.
Note
The information in this manual is subject to change without notice.

Before You Start
※Precautions and Notices
※For your own safety, do not operate the controls of the product while
driving.
※Use this product prudently. The product is intended to be used only as
a navigation aid. It is not for precise measurement of direction,
distance, location or topography.
※The calculated route is for reference only. It is the user’s responsibility
to follow the traffic signs and local regulations while driving.
※When you get out of the car, do not leave your device on the
dashboard in direct sunlight. The overheating of the battery can cause
malfunction and/or danger.
※GPS is operated by the United States government, which is solely
responsible for the performance of GPS. Any change to the GPS
system can affect the accuracy of all GPS equipments.
※GPS satellite signals cannot pass through solid materials (except
glass). When you are inside a tunnel or building, GPS positioning is
not available.
※A minimum of 4 GPS satellite signals is needed to determine current
GPS position. Signal reception can be affected by situations such as
bad weather or dense overhead obstacles (e.g. trees and tall
buildings).
※The wireless devices might interfere the reception of satellite signals
and cause the reception of the signal to be unstable. For better signal
reception, it is recommended that you use a car antenna (option).
※A car holder is needed when using the device in a car. It is
recommended that you place the device in an appropriate place, so as
not to obstruct the driver’s view, or deployment of airbags.
※When battery runs out, the device will automatically turn off the power.
So, when plug-in the car charger or power adaptor, please reset the
ON/OFF switch to turn on the device.
※Overview
GPS Navigation Features
※ Electronic maps with roads, freeways, highways, railways, rivers,
lakes, points of interest, etc.
※ GPS positioning
※ Optimal route calculation and trip plan
※ Friendly and efficient navigation with turn-by-turn, voice, and visual
guidance
※ Various ways for searching a location on the map
- Using a known address
2

- Using a POI (point of interest)
- Using Favorites (personal stored locations)
- Using History (previous destinations)
※ Recording and playback of journeys
※ Viewing modes for different needs and situations:
- 2D or 3D
- Daytime or nighttime view
- Turn-by-turn view of the route
- Driving direction of the route
Other Features
※ MP3 Player: playing MP3 music.
※ Photo Viewer
※ Movie Player: playing movies in Wmv. Asf. Mpeg format
※ Calculator
About this Manual
This manual is divided into four major parts:
※Part I “Basic Operations” tells you how to get your device running and
customize system settings.
※Part II “Media” introduces MP3 Player, Photo Viewer, Video
Player.,etc.
※How to use the navigation? Please see Navigation Manual attached to
the package and CD.
3

Part I. Basic Operations
Part I guides you through the process of getting your device running,
familiarizes you with the external components, and tells you how to customize
system settings.
4

1. Getting Started
This chapter gives you step by step instruction for the initial startup and
introduces you to the external components of your device.
1.1 Setting the ON/OFF Switch
The ON/OFF switch should be set to the ON position for normal operation. Pull
out the stylus pen and use it to slide the ON/OFF switch to the ON (left)
position.
CAUTION: Always leave the ON/OFF switch in the ON position for normal
operation.
On / Off Switch Reset
5

1.2 Connecting to AC Power and Charging the
Battery
Fully charge the battery before using your device for the first time.
1. Connect the adapter cable to the left side of your device.
2. Plug the AC adapter into a wall outlet.
※The charge indicator glows orange twinkle when charging is in progress. Do
not disconnect your device from AC power until the battery is fully charged.
This will take a couple of hours.
6

1.3 Using Your Device in a Vehicle
A car holder and a car charger are supplied with your device.
Using the Car Holder
※CAUTION:
1. Select an appropriate location for the car holder. Never place the
holder where the driver’s field of vision is blocked.
2. If the car’s windshield is tinted with a reflective coating, an external
antenna (optional) may be needed to route the antenna to the top of
the car through a window. When closing the car window, be careful
not to pinch the antenna cable. (Cars with an anti-jam window
design may automatically leave adequate space as needed.)
The car holder consists of a bracket and a dashboard stand. Use the car holder
to mount your device in a vehicle.
Ps. Subject to varied configurations, the car holders might be different.
7

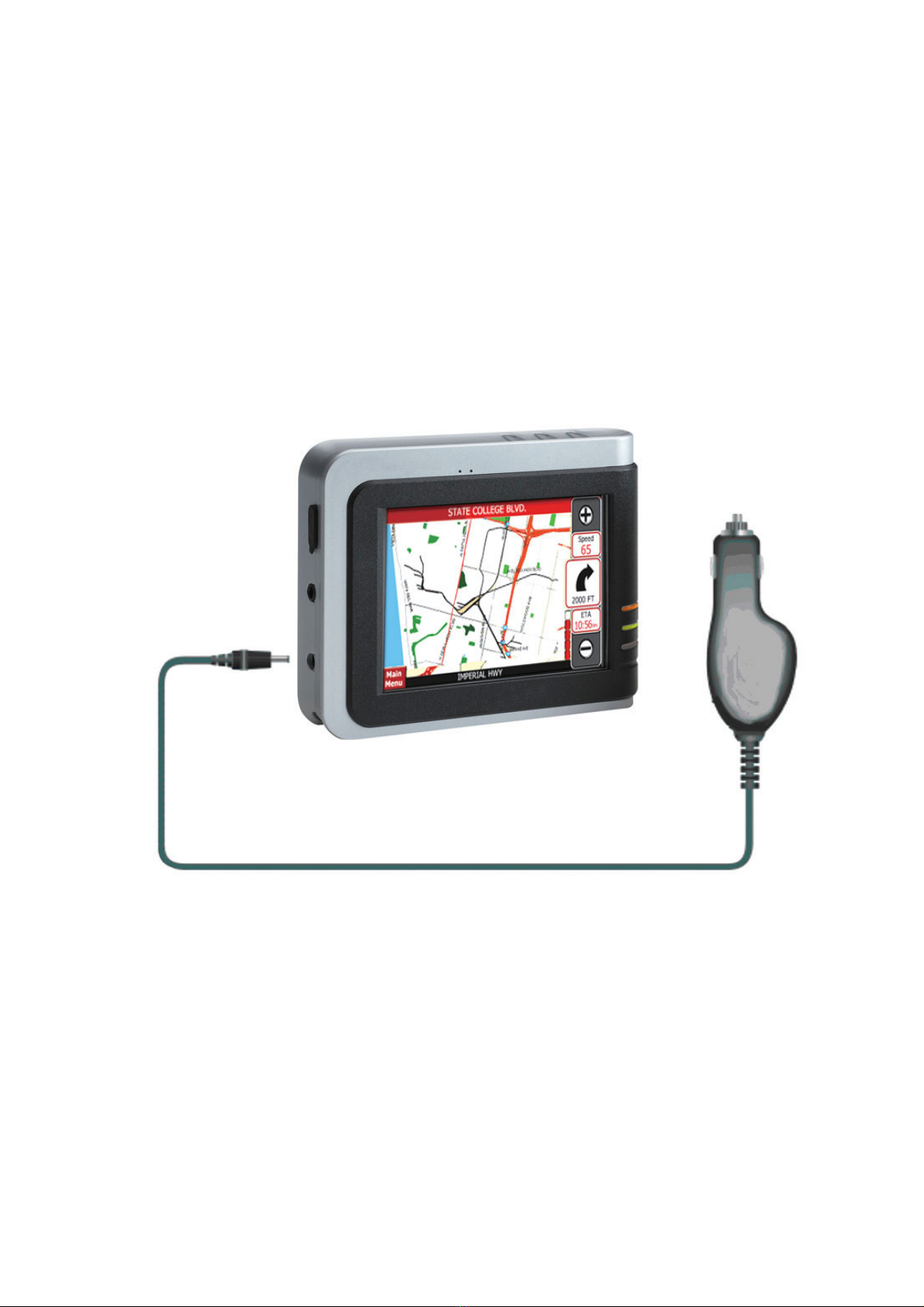

Connecting the Car Charger
The car charger supplies power to your device when you are using the device in
a car.
※CAUTION: To protect your device against sudden surges in current,
connect the car charger only after the car engine has been
started.
1. Insert the pin of the charger into the charging socket on the left side of
the unit.
2. Connect the other end to the cigarette lighter socket and charge your
device.
8

1.4 Understanding Hardware Features
NOTE: Depending upon the specific model purchased, the color of your device
may not exactly match the device shown in this manual.
Front Components
nCharge indicator
oGPS signal indicator
pBlue tooth indicator
(disabled)
qTouch screen
Ref Component Description
nCharge Indicator Battery Full – Orange (Static)
Battery in charging -- Orange (twinkle)
oGPS signal
indicator GPS Signal in allocating – Yellow (twinkle)
GPS Signal allocation finished – Yellow (static)
pBlue tooth
indicator Disabled
※Blue tooth only support Model No.NAV-6220
qTouch Screen Displays the output of your device. Tap the screen with the
stylus pen to select menu commands or enter information.
9

Back Components
ON / OFF Switch Reset Button
nSpeaker
Ref Component Description
nSpeaker Sends out music, sounds and voice.
ON/OFF Switch The main power/battery cutoff switch.
Reset Button Restarts your device (soft reset).
10

Left-Side Components
nExternal
antenna
Connector
oHeadphone
Connecoto
r
Power
Connector
Stylus Pen
Ref Component Description
nExternal Antenna
Connector This connector (under rubber dust cover) allows use of an
optional external antenna with magnetic mount, which may be
positioned on top of the car for better signal reception in areas
with poor reception.
oHeadphone Connector Connects to stereo headphones.
Power Connector Connects to the AC adapter.
Stylus Pen For use on the touch screen.
Stylus pen is stored as shown above.
11

Right-Side Components
nSD/MMC Slot
Ref Component Description
nSD/MMC Slot Accepts a SD (Secure Digital) or MMC (MultiMediaCard) card
for accessing data such as maps and MP3 music.
NOTE: Before using GPS navigation software and maps, you
need to insert the storage card included with your device. Do
not remove the card during GPS operation.
12

Top Components
nPower
On/Off
Volume
Increase
Volume
Decrease
Ref Component Description
nPower ON/OFF Turn on and turn off the power.
Volume Increase Press the button to increase the volume
Volume
Decrease Press the button to decrease the volume
13

Bottom Components
nStylus Pen
Ref Component Description
nStylus Pen Tap on the touch screen to make selections and enter
information. Pull the stylus pen out of its slot to use it, and
store it in the slot when not in use.
14

2. Basic Skills
This chapter guides you through the process of using your device and
familiarizes you with the basic operations such as using the stylus pen and
navigation pad..
2.1 Turning On and Off Your Device
Use the power button on the top side of your device to turn on and off your
device.
When you turn on the device for the first time, the Main screen appears as
shown below. There are three buttons on the Main screen: Navi, Media, and
Setup. Each button represents a function or feature. To use a function, just tap
the corresponding button. (For more information, refer to the following
chapters.)
Navi Medi Setu
p
When you press the power button to turn off the unit, your device actually enters
a suspend state and the system stops operating. Once you turn on the system
again, it resumes.
15

2.2 Operating Your Device
To operate your device, use the hardware buttons and/or the stylus pen.
Using Hardware Buttons
Button Name Description
Power On/Off Turns on and off the device.
Volume Volume Increase
Volume Volume Decrease
Stylus Pen
The stylus pen is your input device. You use it to select objects such as
command and option on the screen.
Pull the stylus pen out of the slot for ease of use. Store it in the slot when not in
use.
16

You can use the stylus pen to do the following actions:
Tap
Touch the screen once with the stylus pen to open items or select options.
Drag
Hold the stylus pen on the screen and drag up/down/left/right or across the
screen.
Tap and hold
Tap and hold the stylus until an action is complete, or a result or menu is
shown.
17

3. System Settings
Your device is supplied with default settings. You may also customize the
settings to suit your personal needs. Once you change settings, your new
settings will remain until either you change them again, or until battery cut off
switch is turned off and then back on again, which resets the unit to factory
defaults.
3.1 Using System Settings
Tap the Setup button on the Main screen.
2007 01-07 21:54:05
Navi Media Setup
The Setup screen contains six buttons as shown below. The following sections
describe these six buttons and their functions.
Clock Volume Language
Backlight Calibration Information
18

3.2 Clock
To set the clock:
1. Tap the Clock button on the Setup screen.
Clock Volume Language
Backlight Calibration Information
2. A calendar will pop up showing TimeZone, Date and Time as shown below.
TimeZone:59, (GMT + 8:00)
Date: 2007-01-07
Time: 12:50:32
19

3. Tap the down arrow to go to the TimeZone setting as shown below.
TimeZone
(GMT+08:00)
59, Perth
DST
Tap the right arrow or left arrow to select the time zone. Tap the right arrow to
“ Yes “ to switch to DST (Daylight Saving Time). Press “OK” to finish time
zone setting.
(GMT+08:00)
59, Perth
DST
TimeZone
20
