TE460-137 2K/4K HDMI SIGNAL GENERATOR & ANALYZER User’s Guide
400-0753-001 1
Welcome!
Everyone at Altinex greatly appreciates your purchase of the
TE460-137. We are confident that you will find it to be reliable and
easy to use. If you need support, please do not hesitate to call us
at 714-990-2300.
At Altinex, we are committed to developing unique and state of
the art Signal Management Solutions®for demanding audiovisual
installations. Welcome to the Altinex family of satisfied customers
around the world!
1. Precautions and Safety Warnings
•These instructions are to ensure the reliable operation of
your TE460-137 and to prevent fire and shock hazards.
Please read them carefully and heed all warnings.
1.1 General
•Qualified Altinex service personnel or their authorized
representatives must perform all service.
1.2 Installation Precautions
•To prevent fire or shock, do not expose this unit to water
or moisture. Do not place in direct sunlight, near heaters
or heat-radiating appliances, or near liquid. Exposure to
direct sunlight, smoke, or steam can harm internal
components.
•Handle carefully; dropping or jarring can cause damage.
1.3 Cleaning
•Clean with a dry cloth only. Never use strong detergents
or solvents such as alcohol or thinner.
1.4 FCC Notice
•This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
•This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 2
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions found herein, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at their own expense.
•Any changes or modifications to the unit not expressly
approved by Altinex, Inc. could void the user’s authority to
operate the equipment.
2. Installation Procedures
Note: Download and read the entire online manual to become familiar with the TE460-137 and for detailed information.
See the top label of the TE460-137 for control details or refer to the complete online manual.
Step 1: Insert a small paperclip into the battery compartment slot and press firmly.
Step 2: Install the battery provided with the tester. Make sure the mylar tab is
underneath the battery as shown in the image to the right.
Caution: Make sure the polarity of the battery matches the tester.
Step 3. The tester is now ready.
Step 4. Select the desired mode of operation using the TASK button on the front of
the tester. Press ENTER to confirm the selection.
Step 5. Use the MENU and UP/DN arrows to navigate the menus.
Step 6. The ENTER button selects the menu, the UP/DN buttons cycle through the
available options, and the ENTER button confirms the selection.
3. Warranty and Return Policies
Please visit the Altinex website at www.altinex.com for details on warranty and return policies. In the case of a unit needing repair,
please complete a RMA (return material authorization) form located on the bottom left hand corner of the Altinex homepage. Once
completed, please email the form to [e-mail].

TE460-137 User’s Guide
400-0761-001 2
4. Technical Specifications
Specifications are subject to change due to design improvements. Please see www.altinex.com for up to date information.
Features/Description
TE460-137
Input Connectors
Digital Video + Audio
HDMI F, Type A
Power
Micro USB F (1)
Output Connectors
Digital Video + Audio
HDMI F, Type A
Compatibility
Digital Signal types
HDMI 1.4,3D
Signal resolution
Up to 4k x 2k
Accessories Included
Power supply
2.4A USB Wall charger (1)
2.0 USB cable
6ft, A- M /B- M cable (1)
HDMI Cable
1 ft, HDMI M/M cable (1)
Lithium battery
3.6V 3350MAB (1)
Optional Accessories
Table 1. TE460-137 General
Mechanical
TE460-137
Material
Steel
Color
Silver
Height
1.06 in. (27 mm)
Width
3.15 in. (80 mm)
Length
4.88 in. (124 mm)
Weight
0.6 lb. (0.26 kg)
T° Operating
10°C-40°C
Humidity
60% RH non-condensing
MTBF (calc.)
38,000 hrs.
Table 2. TE460-137 Mechanical
Electrical
TE460-137
Video Input Signals
Digital Video + Audio
HDMI Standard
Output Signals
Digital Video + Audio
HDMI Standard
Power
5V
5W
Table 3. TE460-137 Electrical
HDMI, the HDMI Logo, and High Definition Multimedia
Interfaces are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.

TE460-137 User’s Guide
400-0761-001 3
5. About Your TE460-137
•HDMI input and output with 18Gbps (600MHz) 4K UHD support
•DVI 1.0 compliant with the use of an HDMI-DVI adaptor
•HDCP 1.4 and 2.2 compliant
•Supports HD resolutions up to 4096×2160@60Hz (4:4:4, 8-bit)
•Source bypass support in Analyzer mode
•4K sources can be scaled down to 1080p in Analyzer mode to
support a wider range of displays when analyzing a high-bandwidth
source
•HDR bypass and analysis support
•Source video, audio and timing analysis
•Analysis and emulation of EDID data
•HDCP and SCDC monitoring functions
•HDMI packet analysis
•Analyzer mode complies with the CEA standard HDR static
metadata extensions CEA-861-F and CEA-861.3
•23 selectable output resolutions available in Test Pattern mode
•11 selectable static test patterns in Test Pattern mode
•HDMI 2.0 cable test function including tests for 5V, CEC and hot- plug detection support
•Supports LPCM 2.0, 5.1, and 7.1 audio output with adjustable sinewave frequencies for each channel
•Comprehensive EDID management support with 10 built-in default EDIDs and 10 user EDIDs copied from sink devices
•Powered by a single Lithium-ion battery (included). Use of an external USB power bank can provide extended operation time
•OLED display with rapid updates of current status information
•Supports optional Windows control software
TE460-137 HDMI Signal Generation and Analysis tool provides a convenient way to test and verify all aspects of an HDMI signal path,
including source and sink. TE460-137 complies with the HDMI 2.0a and HDCP 1.4/2.2 standards. The TE460-137 Analyzer mode
complies with the CEA standard HDR static metadata extensions CEA-861-F and CEA-861.3 for EDID analysis.
TE460-137 is powered by a single rechargeable Lithium-ion battery. Beyond the Lithium-ion battery, the unit may also be powered (and
the battery recharged) via the micro USB port using included with unit USB wall charger and USB cable. An external power bank can
also be used to extend the portable service time. 4K sources can be scaled down to 1080p output in Analyzer mode to support a wider
range of displays when analyzing high- bandwidth sources.
TE460-137 has an integrated OLED display which provides a way to quickly and clearly view the current signal state or the
results of signal analysis. This portable handheld design is ideal for both the professional end user and installation engineer
alike. TE460-137 unit can be used in following applications Installer/Integrator multi-function test tool, HDMI source and sink
testing, HDCP compliance verification, production testing, etc.

TE460-137 User’s Guide
400-0761-001 4
6. Application Diagrams

TE460-137 User’s Guide
400-0761-001 5
7. Operation
7.1 Modes of Operation

TE460-137 User’s Guide
400-0761-001 6
7.2 Rear Panel

TE460-137 User’s Guide
400-0761-001 7
7.3 Battery Compartment

TE460-137 User’s Guide
400-0761-001 8

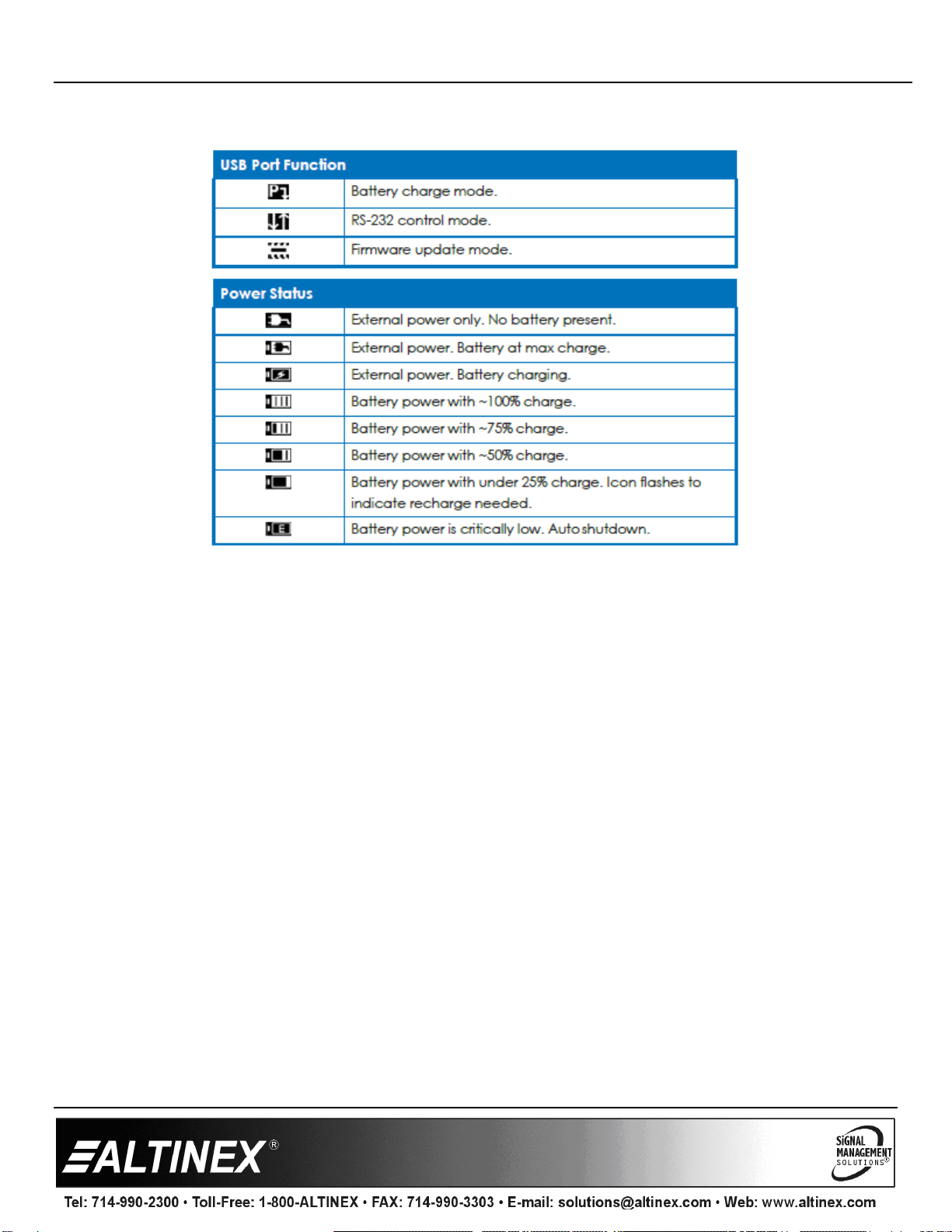

7.4 OLED Display

TE460-137 User’s Guide
400-0761-001 9
7.5 OSD Menus

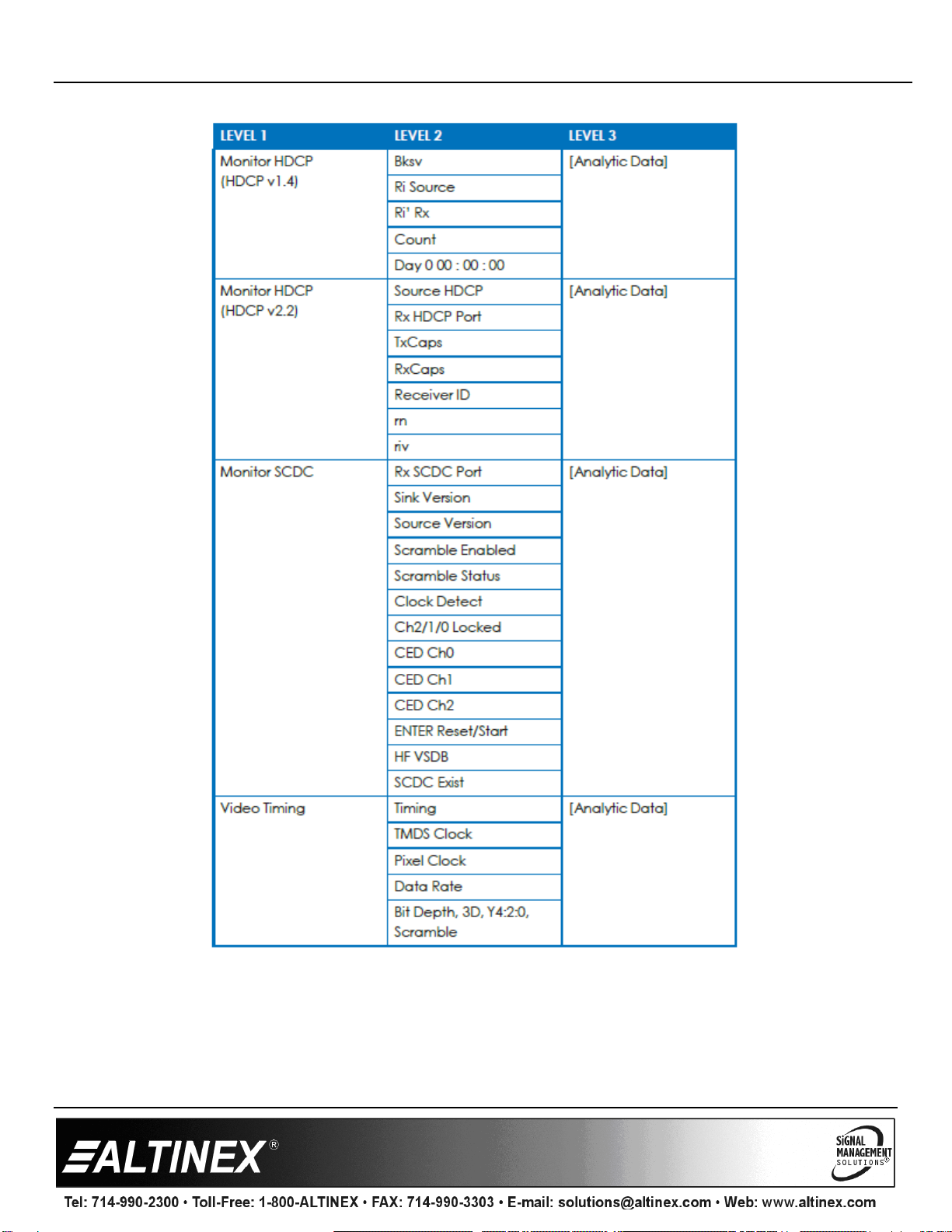

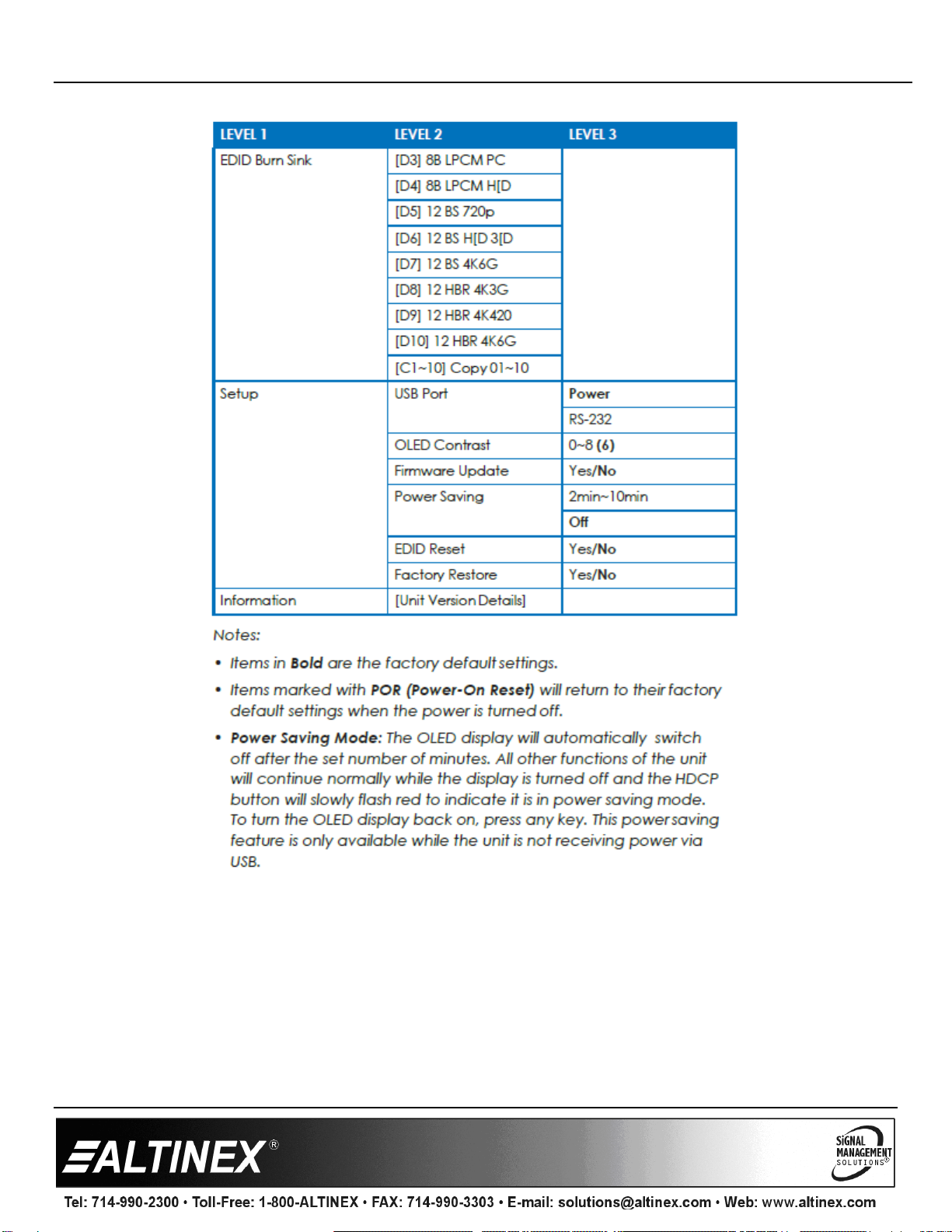

7.5.1 OSD Menu –Analyzer

TE460-137 User’s Guide
400-0761-001 10

TE460-137 User’s Guide
400-0761-001 11

TE460-137 User’s Guide
400-0761-001 12

TE460-137 User’s Guide
400-0761-001 13

TE460-137 User’s Guide
400-0761-001 14

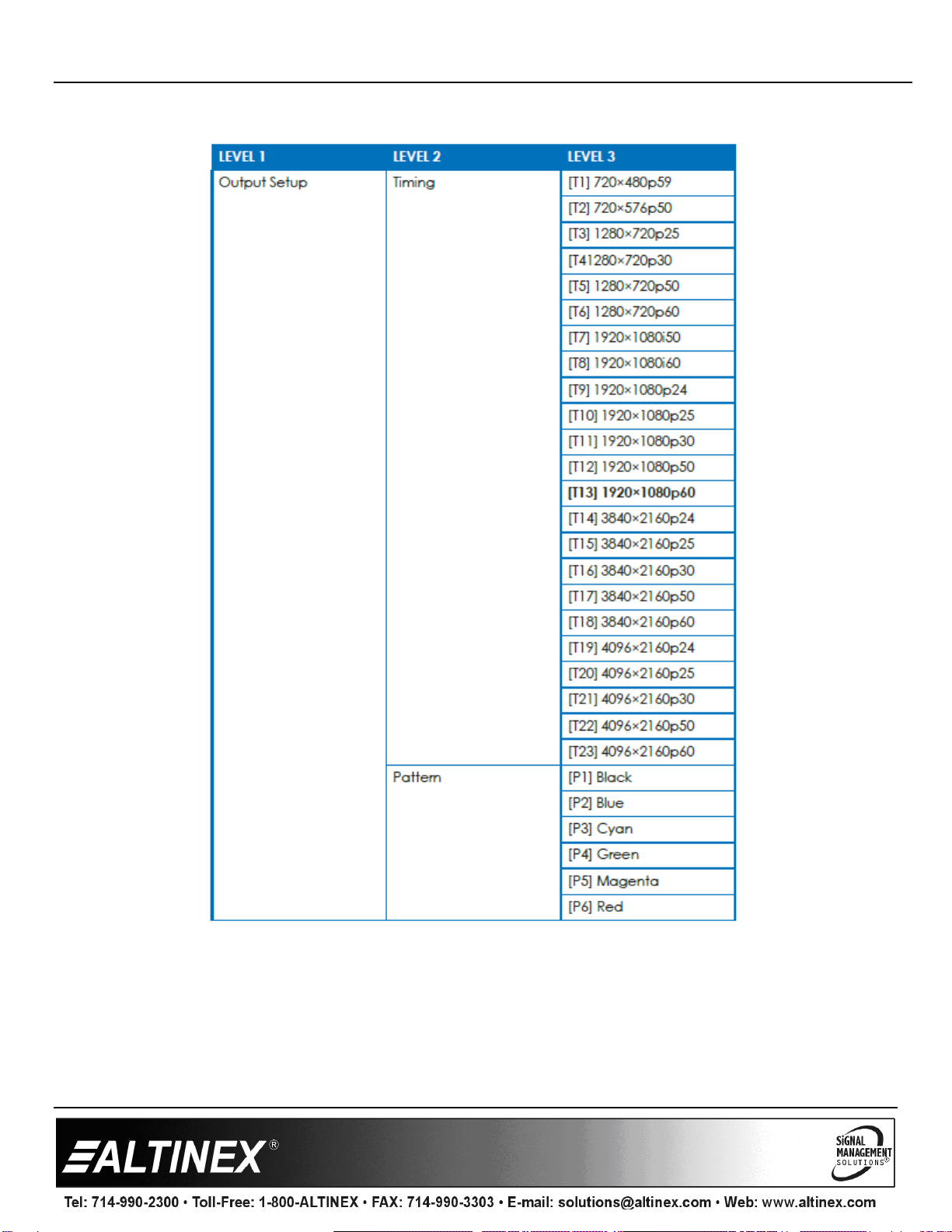

7.5.2 OSD Menu –Pattern Generator

TE460-137 User’s Guide
400-0761-001 15

TE460-137 User’s Guide
400-0761-001 16

TE460-137 User’s Guide
400-0761-001 17

TE460-137 User’s Guide
400-0761-001 18

TE460-137 User’s Guide
400-0761-001 19
7.5.3 OSD Menu - Cable Test

TE460-137 User’s Guide
400-0761-001 20
7.5.4 Test Timings
