CLARKE TECHNOLOGY Summit Pumper Operator's Manual
CLARKETECHNOLOGY
Summit Pumper Vacuum
Connection Diagram 4/95

Page -20- CLARKETECHNOLOGYSummitPumper Operator'sManual
CLARKETECHNOLOGY
Summit Pumper Vacuum
AssemblyDrawing7/98
1234
5
6
7
8
9
10 1112
1314
15 16
17
18
19
20
21 2223
12
24
25 26
27
26
28
29
30
31
32
33
34
35
36
55
37
38
39
40
41
42
43
44
45
46
47
12 53
48
54
49 52
50
26 51
59 60
3
26
12
12
50 12
58
57
56
5536

Page -21-
CLARKE TECHNOLOGY Summit Pumper Operator's Manual
CLARKETECHNOLOGY
Summit Pumper Vacuum
AssemblyPartsList 7/98
Ref. Part No. Description Qty
1 42186B Power Cord 16/3 1
2 58013A Strain Relief 1
3 85600A Screw ¼-20 x 3/4SS 4
4 962666 Screw 10-24 x 3/4SS 1
5 68115A Stop, Latch 1
6 962979 Screw 6-32 x ½ 1
7 675012 Knob Assembly 1
8 47316B Switch,On/Off 1
9u32391C Cover,Motor 1
10 66966A Retainer, Strain Releif 1
11 170686 Locknut ½ Conduit 1
12 85397A Screw, 10-24 x 3/822
13 962950 Screw, ¼-20 x 3 3
14 653407 Gasket 1
15 47701A Terminal, .25 FIFQDC 4
16 67151A Shaft, Diverter Upper 1
17 672418 Coupling 1
18 925597 Roll Pin 2
19 34208B Gasket 1
20 628520 Screen 1
21u35235C Housing, Motor Support 1
22 693406 Gasket, Inlet 1
23 60320A Adaptor, Inlet 1
24 13003A Diverter Assembly 1
25 34275A Gasket, Chamber 1
26 872010 Clamp 4
27 674111 Hose 1
28 62651A Cover, Chamber 1
29 833301 Float, Assembly 1
30 673416 Gasket, Housing 1
31 62721A Door, Stand Tube 1
32 962077 Screw, 6-00 x ¼ 2
33 34276A Gasket, Door 1
34 39331A Tube, Assembly 1
35u38989C Tank, 16 Gal. Pumper 1
36 55713A Latch 4
37 68664A Plate, Base 1
38 692472 Caster, Swivel 1
39 85737A Screw, ¼-20 x 5/86
40 85738A Screw, 5/16 - 18 x 5/86
41 59947A Wheel, 10" x 1.75 2
42 920346 Palnut ½ 2
43 69433A Bracket,Axle 2
44 167308 Snap Ring 2
45 60506A Axle 1
46 85702A Screw, ¼-20 x 13/44
47u34807C Handle 1
48 53413A Spring 2
49 58534A Spacer 3
50 980646 Washer 7
51 674110 Hose, Exhaust 1
52 44907A VacMotor230V 1
44906A VacMotor115V 1
53 61414A Bushing, Cover 1
54 55438A Keeper, Latch 1
55 962109 Screw, 10-24 x 5/84
56 920296 Nut, 10-24 ESNA 4
57 930093 Rivet 4
58 73713B Plate, Warning 1
59 980603 Lockwasher, #10 Ext.Th. 2
60 980607 Lockwasher, #6 Ext. Th. 1
NOTE: uinducates a
changehastaken
place since last
publicationof this
manual.

Page -22- CLARKETECHNOLOGYSummitPumper Operator'sManual
Ref. Part No. Description Qty
11 66963A Retainer,SQ.Blade 2
12 85383A Screw 10-32 x 3/416
14 65434A Lift, Weldment SQ. 1
15 960952 Bolt, Shoulder 3/8 x 3/86
16 980645 Washer SS 6
17 920110 Nut,5/16-18 8
18 69512A Support,PedalRight 1
19 879260 Pad,Pedal 2
CLARKETECHNOLOGY
Summit Pumper Vacuum

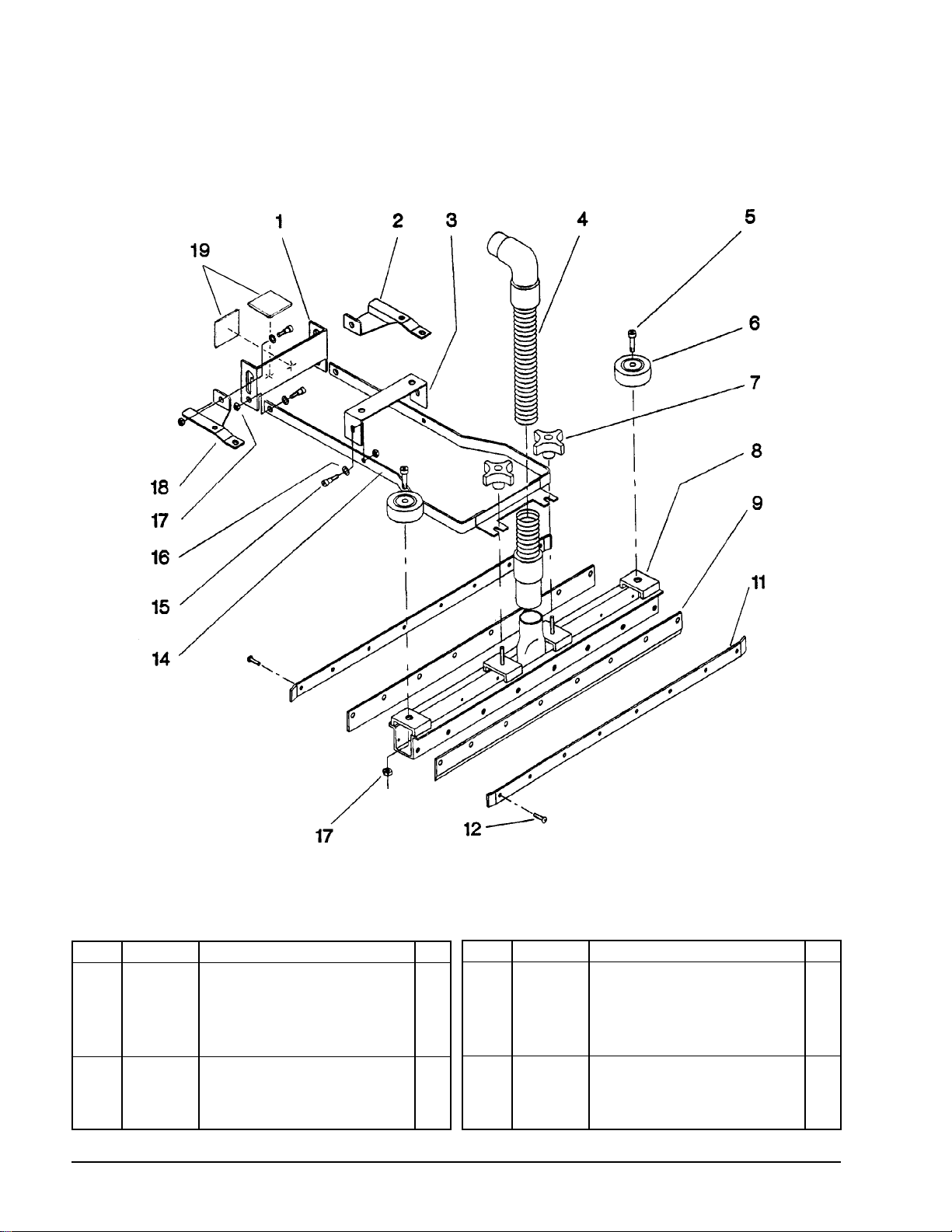

Squeegee Assembly (14605A) Drawing and Parts List 7/97
Ref. Part No. Description Qty
1 66407A Pedal, SQ. Lift 1
2 69513A Support,PedalLeft 1
3 69514A Support,Lift 1
4 30424A Hose, Vac SQ. 1
5 960953 Bolt, Shoulder 3/8 x1 2
6 419702 Wheel 2
7 55535A Knob 2
8 63425A Frame Weldment, SQ. 1
9 30940A Blade, SQ. 2
(InstructionSheet78552ARev.A)

Page -23-
CLARKE TECHNOLOGY Summit Pumper Operator's Manual
SQUEEGEEASSEMBLYINSTALLATION
For Summit Wet/Dry Vacuum squeegee assembly
(14605A)installationfollow thisprocedure:
1. Removethe head assemblyfromtank.
2. Turnthe handle andtankupsidedown.
3. Removethe axlebrackets. Leaveaxle and wheelsin
position. Attach the right and left pedal supports,
(ref. #18 and #2 - page 18) using the same bolts.
4. Remove the two bolts that secure the base plate.
Use the bolts to secure the lift support, (ref. #3 -
page18) andthebase plate.
5. Attachsqueegee lift weldmentwithshoulder bolts
provided(ref.#14 and #15-page18).
6. Turnthe handleand tankover tothe uprightposition
withthe wheels onthe floor.
7. Attach the squeegee assembly to the squeegee
liftweldment, (ref.#14 and#8 - page 18) and
tightenclamping knobs (ref. #7 - page 18).
8. Attach the straight hose cuff to the squeegee.
9. Replace the head assembly on the tank (Do not
use the filter bag for wet pickup). Attach 90°
cuff to inlet.
To Operate:
1. To raise squeegee, push down on pedal (ref. # 1
-page18)
2. To lowersqueegee, push forwardonpedal.
Thesqueegeewilloperateboth forward and
backwards.
FIJACIONDELCONJUNTODELABAYETA
Para colocar el conjunto de la bayeta en el modelo
SUMMITaguaypolvo(14615A),sírvaseseguirel
procedimientosiguiente, refiriéndose ala página ...:
1. Saque el conjunto de la cabeza de aspiración.
2. Gireelmangoyvuelque el depósito.
3. Tire los soportes del eje. Deje el eje y las ruedas
en su sitio. Fije los soportes izquierdo y derecho
del pedal (N ref. 18 y 2) con los mismos pernos.
4. Quite los pernos de sujeción de la placa de base.
Useestos pernos para fijar el soporte de
levantamiento(N ref. 3) enla placa de base.
5. Fijelaplacasoldadadelbrazodelevantamiento de
la bayeta con los pernos de apoyo suministrados (N
ref. 14 y 15).
6. Gireel mando y vuelque el depósito en posición
vertical, con las ruedas puestas en el suelo.
7. Fije el conjunto de la bayeta en la placa
soldadadelbrazodelevantamiento(N ref.14
y 8) y aprete los pernos de las uñas.
8. Fijeel manguito derecho del flexible sobrela
bayeta.
9. Coloquedenuevolacabezadeaspiración
sobre el depósito. (No use la bolsa-filtro
para aspirar el agua). Fije el manguito
acodadoenángulorectosobrelaabertura.
Funcionamiento de la bayeta
1.Paralevantarlabayeta, presione el pedal(N
ref.1).
2. Para bajar la bayeta, empuje el pedal hacia la
partedelantera.
Labayeta funcionaen marchaadelante y atrás.
FIXATIONDEL’ENSEMBLEDUSUCEUR
Pour le placement de l’ensemble du suceur sur le
modèleSUMMITeauetpoussières(14615A),veuillez
appliquerlaprocéduresuivanteenvousréférantàla
page...:
1. Déposezl’ensemblede la têted’aspiration.
2. Tournezlapoignéeetfaitesbasculerleréservoir.
3. Enlevez les supports de l’axe. Laissez l’axe et les
roues en place. Fixez les supports gauche et droit
de la pédale (N réf. 18 et 2) en utilisant les mêmes
boulons.
4. Enlevezles boulons de fixation de la plaque de
base. Utilisez ces boulons pour fixer le support de
relevage(N réf. 3) àla plaque debase.
5. Fixezlaplaquesoudéedubrasderelevagedu
suceuravec les boulonsà embase fournis(N réf. 14
et 15).
6. Tournezlapoignéeetfaitesbasculerleréservoiren
position verticale, les roues posées sur le sol.
7. Fixez l’ensemble du suceur sur la plaque de
souduredu bras derelevage. (N réf.14 et 8)
et serrez les boutons des griffes.
8. Fixez le manchon droit du flexible sur le
suceur.
9. Replacezlatêted’aspirationsurleréservoir.
(N’utilisez pas le filtre sac pour une
aspiration d’eau). Fixez le manchon coudé
enangle droit sur l’orifice.
Fonctionnement du suceur
1. Pourreleverlesuceur,appuyersurlapédale
(N réf. 1)
2. Pourabaisser le suceur, pousserla pédale
versl’avant.
Lesuceurfonctionneenmarcheavanteten
marchearrière.
