Altrex 5000 Series Quick setup guide

EN 1004
760251-C-0911 www.altrex.com
EN Assembly and Use manual
Rolling tower 5100 and 5200
Stair tower 5300
Folding tower 5400 and 5500
1 van 32
Relax. Het is een Altrex.Relax. It’s an Altrex.

NL
GENERAL
2 of 32
Relax. It's an Altrex. 2 of 64 Relax. It's an Altrex.
EN
GENERAL
Manual
assembly and use
Art. no. 760251-C-0911
Version 05/2011
Replaces: version 04/09
Copyright Altrex B.V. © ’11
All rights reserved. No part of this publication may be du-
plicated, stored in an automated data le, or disclosed in
any way or form, whether electronically, mechanically by
photocopying, recording, or in any other way, without prior
consent from Altrex B.V. Zwolle.This publication may only be
used for Altrex products.
Misprints and printing errors reserved.
2 of 64
Relax. It's an Altrex.

NL
GENERAL
EN
GENERAL
Table of contents
Page
IIntroduction ........................................................................................................................................................................ 4
II General ................................................................................................................................................................................. 4
II.I Use ............................................................................................................................................................................................................................................................. 4
II.II Additional instructions for the use of towers ............................................................................................................................................... 5
II.III Checklist for the use of towers...................................................................................................................................................................................... 5
II.IV Inspection, care and maintenance .......................................................................................................................................................................... 6
II.V Disassembly of the tower................................................................................................................................................................................................... 6
II.VI Relocating the tower............................................................................................................................................................................................................... 6
II.VII Assembling and/or repair of replacement parts ...................................................................................................................................... 6
II.VIII Warranty conditions................................................................................................................................................................................................................. 7
II.IX Assembly of toe boards ...................................................................................................................................................................................................... 7
II.X Locking pins .................................................................................................................................................................................................................................... 7
III Rolling tower 5100....................................................................................................................................................... 8
III.I Conguration table................................................................................................................................................................................................................... 8
III.II Method of assembly................................................................................................................................................................................................................ 9
IV Rolling tower 5200.................................................................................................................................................... 12
IV.I Conguration table................................................................................................................................................................................................................ 12
IV.II Method of assembly............................................................................................................................................................................................................. 14
VRolling tower 5300.................................................................................................................................................... 17
V.I Conguration table................................................................................................................................................................................................................ 17
V.II Method of assembly............................................................................................................................................................................................................. 18
VI Folding tower 5400 ................................................................................................................................................. 21
VI.I Conguration table................................................................................................................................................................................................................ 21
VI.II Method of assembly............................................................................................................................................................................................................. 22
VII Folding tower 5500 ................................................................................................................................................. 25
VII.I Conguration table................................................................................................................................................................................................................ 25
VII.II Method of assembly............................................................................................................................................................................................................. 26
VIII Diagram of order of assembly 5200-5500..................................................................................... 29
IX Ballast ..................................................................................................................................................................................... 30
XParts for the 5000 serie....................................................................................................................................... 32
XI Instruction for on the tower........................................................................................................................... 33
3 of 64
Relax. It's an Altrex. 3 of 32 Relax. It's an Altrex. 3 of 64 Relax. It's an Altrex.

4 of 68 5 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
EN
GENERAL
I Introduction
This manual is solely intended to be used in conjuc-
tion with folding and rolling tower congurations,
hereinafter called the tower, as described in this as-
sembly and use manual, hereinafter referred to as
the manual.
Prior to starting assembly of the tower, you should
carefully read this manual. The tower that is required
should be assembled and used in accordance with
this manual.
All instructions in this manual have to be strictly ad-
hered to.
If the instructions contained in this manual are not
followed, accidents may arise. Altrex cannot be held
liable for any loss resulting from the assembly or use
of an Altrex tower that is not in compliance with the
manual.
The employer, supervisor and user are responsible
for the correct use of the tower in accordance with
this manual and they must ensure that this manual is
available at all times when work is being carried out
using the tower.
II General
A broad range of congurations is possible with the
Altrex 5000 series Modular Tower system. For the
standard tower congurations we refer you to the
congurations table included in this manual.
For any non-standard congurations, the so-called
combination congurations, please contact Altrex.
These congurations always have to be checked for
strength and stability according to the European
Standard EN 1004. The details fo this check have to
be present at the work place.
Towers may only be assembled, disassembled or
modied under the direction of an authorised per-
son and by employees who have received adequate
and specic training for the intended work, in terms
of the specic risks involved which, in particular, ad-
dresses
• understandingtheassembly,disassemblyorcon-
version plan of the tower in question;
• safelyassembling,disassemblingorconvertingthe
tower in question;
• measuresinordertoavoidtheriskstoindividuals
or objects;
• safetymeasuresintheeventofchangingweather
conditions which could aect the safety of the tow-
ers in question;
• theallowableload;
• everyotherriskthatcouldariseasaresultofthe
aforementioned assembly and disassembly or con-
version work.
The individuals responsible for the work and the em-
ployees involved in the work must have access to a
copy of this manual.
Only original Altrex parts should be used for assem-
bly.
The height to the rst rung must be a maximum of 40
cm. If the height is more than 40 cm a step stirrup has
to be attached or a platform on the rst rung.
The standard Altrex tower congurations meet the
European Standard EN1004, load class 3 (for strength
and stability) and EN1298 (for Manuals)
Local law and legislation might encompass meas-
ures in addition to those stated in this manual.
If possible, and if it can be achieved safely, for ad-
ditional personal safety, individuals working on the
assembly should secure themselves to the external
wall. Individuals should not secure themselves to the
tower itself, unless the tower is anchored to the wall.
II.I Use

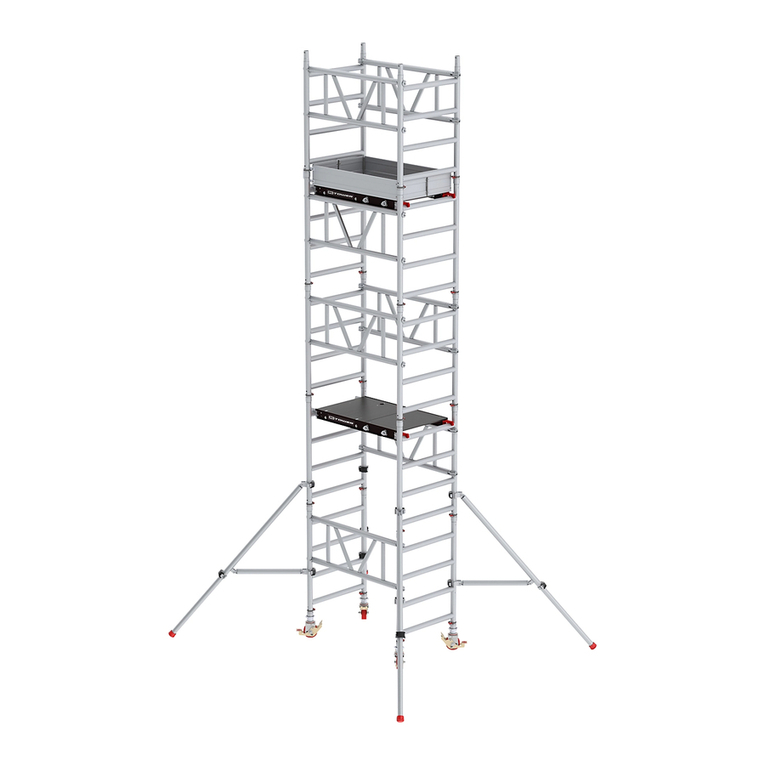

The Altrex 5000 tower is suitable for working at
heights.
Max. platform height Max. platform height
Serie Inside Outside
5100 8.2 meter 8.2 meter
5200 12.2 meter 8.2 meter
5300 12.2 meter 8.2 meter
5400 7.8 meter 7.8 meter
5500 11.8 meter 7.8 meter
* Greater heights may be possible after consulting Altrex and on the
basis of strength and stability calculations.
• Themaximumloadperplatformis200kg/m2.
• Themaximumloadonthetower(asawhole)is750
kg.
• Horizontalloads exceeding30kg resultingfrom
the work to be carried out from the tower are not
4 of 64
Relax. It's an Altrex.

EN
GENERAL
4 of 68 5 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
permitted. In the event of signicant forces, the
tower should be anchored to the wall.
• Thetowermayonlybeusedonhorizontal,atand
solid surfaces.
• Thetowermaynotbeusedatwindspeedsexceed-
ing 14 m/s (max. 6 Beaufort).
• Thetowermaynotbeusedintheeventofastorm,
snow, ice, heavy rainfall or lightning.
• Hoistingorsuspendingthetowerisnotpermitted.
• Thetowermaynotbeusedinordertogainaccess
to other constructions.
• Thestandardcongurationsarenotcalculatedon
the use of tarpaulins and/or advertising boards.
• A towershouldnotbeable to slide awayor to
make movements that are not intended.
II.II Additional instructions when
using towers
• Whenworkingwithtowers,safetyshoes,working
gloves and a safety helmet should be worn.
• Neverascendthetowerontheoutsideandnever
stand on the braces.
• Never raisetheheight ofthe workplatform
through the use of ladders, crates, etc. [1]
• Thebasedimensionsoftheplatformsmaynotbe
increased in any way.
• Theuseofhoistinggearonortothetowerisnot
permitted [2]; this can seriously aect the stability.
Tower parts and tools may only be brought up (to
the workoor)manually, by usingabucketand
rope.
• Ifthetoweristobeplacedonasoftsurface,ground
protection plates or U-proles should be placed
underneath the wheels [3]
• Particularattentionshouldbepaidtothewindload
in areas that are aected by the wind, for example,
open constructions and at the corners of a building.
In the event of a wind force in excess of 14 m/s
(max. 6 Beaufort), plus at the end of the working
day, the rolling tower must be moved to non windy
place. [4]
• Noadditionalworkplatformsorotherobjectsmay
be attached to the outside of the standard tower.
• Stagesmay notbemountedbetweenthe tower
and a building.
• Thetowermustnotbeoutoftheperpendicularin
excess of 1%. Therefore, at a height of 4 meters, the
deviation may not exceed 4 cm.
• Takesucient measuresagainst weatherinu-
ences that will help to ensure safe working on the
tower.
• Takesucient measuresagainstenvironmental
factors that will help to ensure safe working on the
tower.
• Useguardrailswhenthisisrequiredfromasafety
or legislative point of view.
• Neverleavethe towerunsupervised. Makesure
that unauthorised individuals cannot gain access
to the tower.
• Theuseofacombinationoftowerpartsofdierent
brands/manufacturers is not permitted.
• If required, attachthestabilizers. Usethe correct
stabilizerswiththecorrespondingplatformheight.
It is not obligatory under 2.5m but it is recom-
mended for work which involves signifcant hori-
zontalforces.
• The workplacearoundthe towerhas to be cor-
doned o using cones and/or marking tape.
• Makesurethatsafeworkingwiththetowerisal-
ways given priority.
• Aminimumof2peopleshouldalwaysbeusedto
assemble a tower. [5]
1
4 5
2 3
II.III Checklist for the use of towers
When an assembled tower is (re)used, the following
should always be checked:
1. that the tower is the correct one for the intended
use
2.
that the immediate vicinity in which the tower is
assembled allows for safe use;
3. that the tower can still be used safely;
4. thatthequalityofthesurfaceishorizontal,at
andsucientlyloadbearing;
5. that the environmental factors, such as opening
doors, automatically working sun blinds, above-
groundelectricalcables, tracand/orpassers-
by, etc., do not lead to dangerous situations;
6. thatthereissucientfreespacetobeabletoas-
5 of 64
Relax. It's an Altrex.

6 of 68 7 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
EN
GENERAL
semble and use the tower safely;
7. that all required parts and safety tools are avail-
able at the workplace;
8. that no damaged parts or parts other than those
prescribed are used;
9. that the tower is assembled in accordance with
this manual and in conformity with the congu-
ration and ballast table;
10. that the maximum assembly height is not ex-
ceeded;
11. that it is easy to climb up the inside of the tower;
12. that the wheels are properly attached, aligned,
and that the brake is applied;
13. that the frames are properly assembled and se-
cured;
14.thatthehorizontalanddiagonalbracesare as-
sembled and secured in the correct position;
15.thatthestabilizersthatcorrespondwiththeper-
mitted platform height are correctly assembled;
16. that the tower is perpendicular(check using a
spirit level);
17. that the tower is stable;
18. that the platforms are situated in the correct
position and the wind security lock is secured in
place;
19. that there is a rest platform at least every 4 meter;
20. that the tower conguration is inspected fre-
quently (see inspection sticker);
21 that all locking pins are in place in the construc-
tion and that these are locked.
II.IV Inspection, Care and Mainte-
nance
1 Tower parts must be handled and transported
with care, in order to avoid damage.
2. Storage should be organised in such a way that
only undamaged parts, in the correct amounts,
are available for assembly of the tower.
3. Check all moving parts for correct functioning
and to ensure that these are not contaminated.
4. Check all parts for damage. Damaged or incor-
rect parts may not be used.
5. Damaged parts have to be returned to the manu-
facturer for inspection.
6. Towers for professional use must be inspected
annually for any defects by an expert.
7. The tower must be inspected again before use
and in the case of an emergency such as a storm
etc.
II.V Disassembly of the tower
The tower should be disassembled following the in-
structions for assembly but in reverse order.
II.VI Relocating the tower
• Inordertorelocatethetowertheheighthastobe
reduced to a maximum of 6.2 meter.
• Inordertorelocatethetower,thestabilizershave
to be raised to a maximum of 10 cm.
• Thewheellegsarereleasedbypressingthebrake
pedal.
6
• Whenthetowerisbeingrelo-
cated, persons and/or materi-
als may not remain on the
tower. [6]
• Beforehand,checksshouldbemadethattheen-
vironmental factors, such as opening doors, cano-
pies, pits, automatically functioning sun blinds,
abovegroundelectricalcables, tracand/orpas-
sers-by, etc. do not pose the risk of dangerous situ-
ations while the tower is being relocated.
• Onlyrelocateatowerinthelengthwaysdirection
orinthediagonaldirection,manually,overaat,
horizontalandsucientlyload-bearingsurface.
Make sure that the tower does not start to slant
during relocation.
• Immediatelyafterrelocatingthetower,thewheel
legs have to be applied and locked, by pressing the
brake pedal.
• After relocation,the towerhas to once againbe
horizontallyaligned;thisshouldbedoneusinga
spirit level.
• Onceagainadjustallofthestabilizers,sothatthey
are in contact with the surface.

EN
GENERAL
6 of 68 7 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
II.VII Assembly and/or repair of
replacement parts
Replacement parts supplied by Altrex must be tted
to the correct Altrex product and in the same way
as the part that is replaced. Assembly (attachment)
and/or repair is eectuated at the own risk and ex-
pense of the client. Altrex is not liable for damage
caused by incorrect assembly and/or repair. Against
payment, Altrex can be called in for the repair of your
product, and/or the assembly of the parts in ques-
tion.
II.VIII Warranty Conditions
This Altrex product has been designed, manufac-
tured and tested with the greatest care. Should this
product be used in accordance with the instructions
and its intended use, a warranty will apply under the
following conditions:
1 Altrex guarantees the reliability of the product
and the quality of the materials used for the
product.
2 We will rectify any defects that are covered by the
warranty by replacing the defective part, or the
product itself, or by supplying a part for replace-
ment.
3 Not covered by the warranty are any defects that
occur as a result of the following:
a) Use of the product contrary to its intended use
or contrary to the instructions for use.
b) Normal wear and tear of the product.
c) Assembly or repair by the client or by third
parties (with the exception of tting the spare
parts provided by Altrex as indicated above un-
der point 2).
d) Any modied governmental regulations con-
cerning the nature or quality of the material
used in the product.
4. Any defects that are found upon the delivery of
the product should be reported immediately to
Altrex. Should notication of these defects not
take place immediately, the warranty will be null
and void.To make a claim under the warranty, Al-
trex or your Altrex dealer has to be provided with
the proof of purchase.
5. Any defects of the product have to be reported
to Altrex or your Altrex dealer as soon as possible,
but in any case within 14 days of the defect being
found.
6. a) Should a claim be made under the warranty
conditions, Altrex has to have the opportu-
nity to be able to investigate the product in
its Quality Centre The client must make the
product available for this purpose. Should it be
established during the investigation that the
product has been used incorrectly, the costs of
the investigation will be charged to the client.
b) Should the client ask for an investigation to
be carried out by an independent institute,
the costs for this investigation are at the
expense of the client should it be established
during the investigation that the product has
been used incorrectly.
The costs of the investigation are also at the
expense of the client if, prior to this investi-
gation, Altrex oered to repair or to replace
the product at no charge to the client.
II.IX Assembly of toe boards
Assemble the toe boards according to the diagram.
II.X Securing the frames
Securing the frames with the locking pins.

8 of 68 9 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
EN
EN 100438/8XXXD
IIIRolling tower 5100
III.I Conguration tabel 5100
Platform height (m) 2.20 3.20 4.20
¹ ²
5.20
¹
6.20
¹
7.20
¹ ²
8.20
¹ ²
Work height (m) 4.20 5.20 6.20 7.20 8.20 9.20 10.20
0.75 x 1.85 m
Description Item no. Weight (kg)
Frame 75-28-7 301104 3,8 0202020
Frame 75-28-7 301107 7,6 2244668
Guardrail frame 75-50-2 302910 3,1 2222222
Wheel leg Ø 200 mm Prof 511230 5,2 4444444
Platform 1.85 m with trapdoor (wood) 304410 14,8 1112222
Fiber-Deck® platform 1.85 with trapdoor 305210 10,8 1112222
Diagonal brace 185-21 Prof 303721 2,0 2446688
Horizontalbrace185-4Prof 303704 1,9 66 610 10 12 12
Triangularstabilizerupto4.2mplatformheight* 305612 5,8 0220000
Triangularstabilizer.Easy-Lock®universal 305613 7,6 0222222
Toeboardset2/0.75Easy-Fit® 305505 4,5 1111111
Toeboardset2/1.85Easy-Fit® 305501 8,8 1111111
Total weight (kg) including wooden platforms 86 113 120 154 162 177 185
Total weight (kg) including Fiber-Deck® platforms 82 109 116 146 352 169 177
0.75 x 2.45 m
Description Item no. Weight (kg)
Frame 75-28-7 301104 3,8 0202020
Frame 75-28-7 301107 7,6 2244668
Guardrail frame 75-50-2 302910 3,1 2222222
Wheel leg Ø 200 mm Prof 511230 5,2 4444444
Platform 2.45 m with trapdoor (wood) 304510 18,7 1112222
Fiber-Deck® platform 2.45 m with trapdoor 305310 13,7 1112222
Diagonal brace 245-16 Prof 303716 2,5 2446688
Horizontalbrace245-6Prof 303706 2,3 66 610 10 12 12
Triangularstabilizerupto4.2mplatformheight* 305612 5,8 0220000
Triangularstabilizer.Easy-Lock®universal 305613 7,6 0222222
Toeboardset2/0.75Easy-Fit® 305505 4,5 1111111
Toeboardset2/2.45Easy-Fit® 305502 10,9 1111111
Total weight (kg) including wooden platforms 95 123 131 171 179 196 203
Total weight (kg) including Fiber-Deck® platforms 90 118 126 161 169 186 193
0.75 x 3.05 m
Description Item no. Weight (kg)
Frame 75-28-7 301104 3,8 0202020
Fame 75-28-7 301107 7,6 2244668
Guardrail frame 75-50-2 302910 3,1 2222222
Wheel leg Ø 200 mm Prof 511230 5,2 4444444
Platform 3.05 m with trapdoor (wood) 304610 23,6 1112222
Fiber-Deck® platform 3.05 m with trapdoor 305410 17,3 1112222
Diagonal brace 305-22 Prof 303722 2,7 2446688
Horizontalbrace305-8Prof 303708 2,6 66 610 10 12 12
Triangularstabilizerupto4.2mplatformheight* 305612 5,8 0220000
Triangularstabilizer.Easy-Lock®universal 305613 7,6 -222222
Toeboardset2/0.75Easy-Fit® 305505 4,5 1111111
Toeboardset2/3.05Easy-Fit® 305503 12,8 1111111
Total weight (kg) including wooden platforms 104 132 140 187 195 213 220
Total weight (kg) including Fiber-Deck® platforms 98 126 134 174 182 200 208
1
)Ifthetowerisusedasafreestandingtowerinthiscongurationtherehavetobe4stabilizersaroundit.
2
) 1 additional platform is needed for the assembly of this conguration.
*Only to be used for a platform height up to 4.2 m!

8 of 68 9 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
EN
ROLLING TOWER 5100
III.II Method of assembly rolling
tower 5100
1. Fit the wheels in the base frames or in the 4 rung
frame in the event of uneven platform heights.
2. Connect the base frames of 4-rung frames to one
anotherbyusing2horizontalbraces.Assemble
thehorizontalbraces,workingfromtheinsideto
the outside and under the 1st rung to the uprights
of the base frames. In the event of uneven plat-
form heights: place two 7 rung assembly frames
and secure with the locking pins supplied.
3. Then place two diagonal braces in a cross be-
tween the 2nd and the 6th rung of the base frame,
one on the left and one on the right side of the
frame. Place a platform with trapdoor on the rst
rung of the base frame. In the event of uneven
platform heights, place a platform with trapdoor
on the upper rung of the 4 rung frame. Stand
on the platform and then position two diagonal
braces between the 2nd and 6th rung of the 7
rung assembly frame.
Align the wheels so that they point outwards.
Lock the wheels by pushing down the brake
pedal.Thensetthebaseframehorizontallyinthe
length and width direction using a spirit level on
thebottomrungandhorizontalbrace.
For a conguration with a platform height of
2.2 meter follow step 4, 5 and 6.
4. Stand on the underlying platform and attach 2
guardrail frames to the base frame of the rolling
tower. Secure the guardrail frames with the lock-
ing pins. See II.X. Then assemble the knee brace
working from the inside to the outside against
the uprights of the guardrail frames.

10 of 68 11 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
EN
EN 100438/8XXXD
5. Subsequently reposition the platform with
trapdoor to the 7th rung of the (base) frame. Sit
through the platform trapdoor and assemble the
top two guardrail braces working from the inside
to the outside against the uprights of the guard-
rail frames.
6. Attach the toe boards. See II.IX.
The tower is now ready for use at a platform height
of 2.2 meter.
Follow steps 7, 8 and 9 for a conguration
with a platform height of 3.2 m.
7. From the platform, position the 2 guardrail braces
on the assembly frame. Secure the guardrail bra-
ces with the locking pins. Position a platform with
trapdoor on the 7th rung of the assembly frame.
Assemblethe4stabilizersonthecornersofthe
tower at an angle of about120° to the longitudi-
nal access of the tower
 Attachthecouplersofthestabilizerstotheup-
rights under the 2nd and 7th rungs. Make sure
thattheendofeachstabilizerisincontactwith
thesolidsurfaceandsecurethestabilizer. Posi-
tionthelowerarmofthestabilizerapproximately
horizontal,secure the couplingandcheckthe
120° angle.
8. Sit through the platform trapdoor and assemble
the guardrail braces working from the inside to
the outside against the uprights of the guardrail
braces. Attach the toe boards. See II.IX
9. The lower platform must be removed before the
tower can be used. Then place 2 diagonal braces
in a cross between the 2nd and 6th rung.
The tower is now ready for use.
Further assembly with 7 rung frames to a plat-
form height of 4.2 meter.
10. Assume the base frame described in step 3. Then
attachthe4stabilizerstothecornersofthetower,
at an angle of approximately 120° to the longitu-
dinal axis of the tower.
 Attachthecouplersofthestabilizerstotheup-
rights under the 2nd and the 7th rungs of the
frames.Makesurethattheendofeachstabilizer
is in contact with the solid surface and secure the
stabilizer.Positionthelowermostarmofthesta-
bilizerapproximatelyhorizontally,assemblethe
stabilizerssecurelyandchecktheangleof120°.
11. Stand on the platform and place two 7 rung
frames on the base frame of the rolling tower. Se-
cure the frames with the locking pins.
12. Then place two diagonal braces in a cross be-
tween the 2nd and the 6th rung of the frame, one
on the left and one on the right side of the frame.
Place a platform with trapdoor on the 7th rung of
the (base) frame.Then sit through the trapdoor of
theplatformandplacehorizontalbracesonboth
sides on the 2nd and 4th rung above the platform.

10 of 68 11 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
EN
ROLLING TOWER 5100
13. For attaching the guardrail frames and the toe
boards follow step 4, 5, and 6 again.
14. The platform in between can be removed before
the tower can be used!
The tower is now ready for use.
Further assembly with 7 rung frames to a plat-
form height of 5.2 meter and 7.2 meter.
15. Assume the (uneven) basic conguration from
step3.Assemblethe4stabilizersonthecorners
of the tower at an angle of about 120° to the lon-
gitudinal access of the tower.
 Attachthecouplersofthestabilizerstotheup-
rights under the 2nd and 7th rungs. Make sure
thattheendofeachstabilizerisincontactwith
thesolidsurfaceandsecurethestabilizer.Posi-
tionthelowerarmofthestabilizerapproximately
horizontal,secure the couplingandcheckthe
120° angle.
16. From the platform, place two 7 rung frames. Se-
cure the frames with the locking pins supplied.
Place a platform with trapdoor on the 7th rung.
Sit through the platform trapdoor and place ho-
rizontalbracesonbothsidesonthe2ndand4th
rung above the platform. For a 7.2 metre platform
height, repeat this step. From the platform, positi-
on the 2 guardrail frames on the assembly frame.
Secure the guardrail frames with the locking pins.
17. Position a platform with trapdoor on the 7th rung
of the assembly frame. Sit through the platform
trapdoor and assemble the guardrail braces wor-
king from the inside to the outside against the
uprights of the guardrail braces. Attach the toe
boards, see II.IX.
18. The lower platform must be removed before the
tower can be used. Then place 2 diagonal braces
in a cross between the 2nd and 6th rung of the
base frame.
The tower is now ready for use.
Further assembly with 7 rung frames to a plat-
form height of 6.2 meter and 8.2 meter.
You will need 2 platforms with trapdoors. If ap-
plicable use a rope for hoisting parts.
19. Repeat step 11 and 12. Assemble the guardrail-
ing by following step 4, 5 and 6.
The tower 5100 is now ready for use.

12 of 68 13 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
EN
EN 100438/12XXXD
IV Rolling tower 5200
IV.I Conguration table 5200 2-4 and 1-2 conguration
Platform height (m) 2.20 3.20 4.20
1 3
5.20 6.20
1
7.20
Work height (m) 4.20 5.20 6.20 7.20 8.20 9.20
1.35 x 1.85 m
Description Item no. Weight (kg)
Frame 135-28-4 301604 5,4 020202
Frame 135-28-7 301607 10,9 224466
Guardrail frame135-50-2 302920 4,1 222222
Wheel legØ 200 mm Prof 511230 5,2 444444
Platform 1.85 m with trapdoor (wood) 304410 14,8 11 12/1 ² 2/1 ² 2/1 ²
Platform 1.85 m without trapdoor (wood) 304420 14,4 11/2 ² 1/2 ² 2/3 ² 2/3 ² 2/4 ²
Fiber-Deck® platform 1.85 m with trap 305210 10,8 11 12/1 ² 2/1 ² 2/1 ²
Fiber-Deck® platform 1.85 m without trapdoor 305220 10,1 11/2 ² 1/2 ² 2/3 ² 2/3 ² 2/4 ²
Diagonal brace 185-21 Prof 303721 2,0 48 8 12 12 16
Horizontalbrace185-4Prof 303704 1,9 66 6 10 10 10
Triangularstabilizerupto4.2mplatformheight* 305612 5,8 022000
TriangularstabilizerEasy-Lock®universeel 305613 7,6 022222
Toeboardset2/1.35Easy-Fit® 305506 6,6 111111
Toeboardset2/1.85Easy-Fit® 305501 8,8 111111
Total weight (kg) including wooden platforms 114 164/150 174/160 217/217 227/227 260/246
Total weight (kg) including Fiber-Deck® platforms 107 152/142 162/152 200/200 210/210 239/229
1.35 x 2.45 m
Description Item no. Weight (kg)
Frame 135-28-4 301604 5,4 020202
Frame 135-28-7 301607 10,9 224466
Guardrail frame135-50-2 302920 4,1 222222
Wheel legØ 200 mm Prof 511230 5,2 444444
Platform 2.45 m with trapdoor (wood) 304510 18,7 11 12/1 ² 2/1 ² 2/1 ²
Platform 2.45 m without trapdoor (wood) 304520 18,4 1
1
1/2 ² 2/3 ² 2/3 ² 2/4 ²
Fiber-Deck® platform 2.45 m with trap 305310 13,7 11 12/1 ² 2/1 ² 2/1 ²
Fiber-Deck® platform 2.45 m without trapdoor 305320 13,3 11/2 ² 1/2 ² 2/3 ² 2/3 ² 2/4 ²
Diagonal brace 245-16 Prof 303716 2,5 48 8 12 12 16
Horizontalbrace245-6Prof 303706 2,3 66 6 10 10 10
Triangularstabilizerupto4.2mplatformheight* 305612 5,8 022000
TriangularstabilizerEasy-Lock®universeel 305613 7,6 022222
Toeboardset2/1.35Easy-Fit® 305506 6,6 111111
Toeboardset2/2.45Easy-Fit® 305502 10,9 111111
Total weight (kg) including wooden platforms 129 185/166 195/176 244/244 254/254 294/276
Total weight (kg) including Fiber-Deck® platforms 119 169/156 179/166 224/224 234/234 269/256
1.35 x 3.05 m
Description Item no. Weight (kg)
Frame 135-28-4 301604 5,4 020202
Frame 135-28-7 301607 10,9 224466
Guardrail frame135-50-2 302920 4,1 222222
Wheel legØ 200 mm Prof 511230 5,2 444444
Platform 3.05 m with trapdoor (wood) 304610 23,6 11 12/1 ² 2/1 ² 2/1 ²
Platform 3.05 m without trapdoor (wood) 304620 23,3 111/2 ² 2/3 ² 2/3 ² 2/4 ²
Fiber-Deck® platform 3.05 m with trap 305410 17,3 11 12/1 ² 2/1 ² 2/1 ²
Fiber-Deck® platform 3.05 m without trapdoor 305420 16,7 11/2 ² 1/2 ² 2/3 ² 2/3 ² 2/4 ²
Diagonal brace 305-22 Prof 303722 2,7 48 8 12 12 16
Horizontalbrace305-8Prof 303708 2,6 66 6 10 10 10
Triangularstabilizerupto4.2mplatformheight* 305612 5,8 022000
TriangularstabilizerEasy-Lock®universeel 305613 7,6 022222
Toeboardset2/1.35Easy-Fit® 305506 6,6 111111
Toeboardset2/3.05Easy-Fit® 305503 12,8 111111
Total weight (kg) including wooden platforms 143 205/181 215/191 271/271 281/281 327/304
Total weight (kg) including Fiber-Deck® platforms 130 185/168 195/178 245/245 255/255 294/278

EN
MOVEABLE SCAFFOLD 5200
12 of 68 13 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
Platform height (m) 8.20
1 3
9.20 10.20
1 3
11.20 12.20
1 3
Work height (m) 10.20 11.20 12.20 13.20 14.20
1.35 x 1.85 m
Description Item no. Weight (kg)
Frame 135-28-4 301604 5,4 02020
Frame 135-28-7 301607 10,9 8810 10 12
Guardrail frame 135-50-2 302920 4,1 22222
Wheel leg Ø 200 mm Prof 511230 5,2 44444
Platform 1.85 m with trapdoor (wood) 304410 14,8 2/1 ² 3/1 ² 3/1 ² 3/1 ² 3/1 ²
Platform 1.85 m without trapdoor (wood) 304420 14,4 2/4 ² 3/5 ² 3/5 ² 3/6 ² 3/6 ²
Fiber-Deck® platform 1.85 m with trapdoor 305210 10,8 2/1 ² 3/1 ² 3/1 ² 3/1 ² 3/1 ²
Fiber-Deck® platform 1.85 m without trapdoor 305220 10,1 2/4 ² 3/5 ² 3/5 ² 3/6 ² 3/6 ²
Diagonal brace 185-21 Prof 303721 2,0 16 20 20 24 24
Horizontalbrace185-4Prof 303704 1,9 10 14 14 14 14
Triangularstabilizer.Easy-Lock®universal 305613 7,6 22222
Toeboardset2/1.35Easy-Fit® 305506 6,6 11111
Toeboardset2/1.85Easy-Fit® 305501 8,8 11111
Total weight (kg) including wooden platforms 270/256 312/313 322/323 365/343 376/353
Total weight (kg) including Fiber-Deck® platforms 249/239 286/288 296/298 326/317 336/327
1.35 x 2.45 m
Description Item no. Weight (kg)
Frame 135-28-4 301604 5,4 02020
Frame 135-28-7 301607 10,9 8810 10 12
Guardrail frame 135-50-2 302920 4,1 22222
Wheel leg Ø 200 mm Prof 511230 5,2 44444
Platform 2.45 m with trapdoor (wood) 304510 18,7 2/1 ² 3/1 ² 3/1 ² 3/1 ² 3/1 ²
Platform 2.45 m without trapdoor (wood)) 304520 18,4 2/4 ² 3/5 ² 3/5 ² 3/6 ² 3/6 ²
Fiber-Deck® platform 2.45 m with trapdoor 305310 13,7 2/1 ² 3/1 ² 3/1 ² 3/1 ² 3/1 ²
Fiber-Deck® platform 2.45 m without trapdoor 305320 13,3 2/4 ² 3/5 ² 3/5 ² 3/6 ² 3/6 ²
Diagonal brace 245-16 Prof 303716 2,5 16 20 20 24 24
Horizontalbrace245-6Prof 303706 2,3 10 14 14 14 14
Triangularstabilizer.Easy-Lock®universal 305613 7,6 22222
Toeboardset2/1.35Easy-Fit® 305506 6,6 11111
Toeboardset2/2.45Easy-Fit® 305502 10,9 11111
Total weight (kg) including wooden platforms 304/286 354/354 364/364 404/359 414/369
Total weight (kg) including Fiber-Deck® platforms 279/266 323/324 333/334 368/356 378/366
1.35 x 3.05 m
Description Item no. Weight (kg)
Frame 135-28-4 301604 5,4 02020
Frame 135-28-7 301607 10,9 8810 10 12
Guardrail frame 135-50-2 302920 4,1 22222
Wheel leg Ø 200 mm Prof 511230 5,2 44444
Platform 3.05 m with trapdoor (wood) 304610 23,6 2/1 ² 3/1 ² 3/1 ² 3/1 ² 3/1 ²
Platform 3.05 m without trapdoor (wood) 304620 23,3 2/4 ² 3/5 ² 3/5 ² 3/6 ² 3/6 ²
Fiber-Deck® platform 3.05 m with trapdoor 305410 17,3 2/1 ² 3/1 ² 3/1 ² 3/1 ² 3/1 ²
Fiber-Deck® platform 3.05 m without trapdoor 305420 16,7 2/4 ² 3/5 ² 3/5 ² 3/6 ² 3/6 ²
Diagonal brace 305-22 Prof 303722 2,7 16 20 20 24 24
Horizontalbrace305-8Prof 303708 2,6 10 14 14 14 14
Triangularstabilizer.Easy-Lock®universal 305613 7,6 22222
Toeboardset2/1.35Easy-Fit® 305506 6,6 11111
Toeboardset2/3.05Easy-Fit® 305503 12,8 11111
Total weight (kg) including wooden platforms 337/314 394/394 403/404 449/426 459/436
Total weight (kg) including Fiber-Deck® platforms 304/288 354/355 364/365 403/387 413/397
1
) Ifthetowerisusedasafreestandingtowerinthiscongurationtherehavetobe4stabilizersaroundit .
2
)1
st
number refers to a 2-4 conguration, the 2
nd
number refers to a 1-2 conguration.
3
)Twoextrahorizontalbracesarerequiredtoassemblethesecongurations.
* To only be used for a platform height up to 4.2 m!

14 of 68 15 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
EN
EN 100438/12XXXD
IV.II Method of assembly 5200 roll-
ing towers
The towers can be used in two dierent congura-
tions with the 5200.
1/2: Every two meters one platform without a
trapdoor, rstly one along the long side,
then one along the other side.
2/4: Two platforms every four meters at least one
of which with a trapdoor.
1. Fit the wheels in the base frames or in the 4 rung
frame in the event of uneven platform heights.
2. Connectthebaseframes by using2horizontal
braces. Assemblethehorizontalbraces, work-
ing from the inside to the outside and under
the 1st rung to the uprights of the base frames.
In the event of uneven platform heights, place
two rung assembly frames and secure these with
locking pins.
3. Then attach two diagonal braces on one side of
the base frame, in a cross between the 2nd and
the 6th rung of the base frames. Then place a plat-
form without trapdoor on the 3rd rung of the base
frame on the side of the diagonals. Then attach
two diagonal braces on the other side of the base
frame, in a cross between the 2nd and the 6th rung
of the base frames.
4. Align the wheels so that they
point outwards. Lock the wheels by pushing
down the brake pedal. Then set the base frame
horizontallyinthelengthandwidthdirectionus-
ingaspiritlevelonarungandahorizontalbrace.
5. In the event of uneven platform heights, attach 2
diagonal braces in a cross to one side of the tower
between the 2nd rung of the 4 rung frame and
the 2nd rung of the frame. Then place a platform
without trapdoor on the 1st rung of the 4 rung
frame on the side of the diagonals. Stand on the
platform and then position two diagonal braces
in a cross between the 2nd and 6th rung of the
frame. On the other side of the tower, place 2 di-
agonal braces in a cross between the 2nd rung of
the 4 rung frame and the 2nd rung of the frame.
Stand on the platform and then position two dia-
gonal braces in a cross between the 2nd and 6th
rung of the frame.
6. Align the wheels and then position the basic
frame as indicated in point 4.
 Assemblethe4stabilizersonthecornersofthe
tower at an angle of about 120° to the longitudi-
nal access of the tower.
 Attachthecouplersofthestabilizerstotheup-
rights under the 2nd and 7th rungs. Make sure
thattheendofeachstabilizerisincontactwith
thesolidsurfaceandsecurethestabilizer.Posi-
tionthelowerarmofthestabilizerapproximately
horizontal,secure the couplingandcheckthe
120° angle.

EN
MOVEABLE SCAFFOLD 5200
14 of 68 15 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
For a tower with a platform height of 2.2 meter
follow step 5 to 8.
7. Stand on the platform and attach 2 guardrail
frames to the (base) frame of the rolling tower.
Secure the guardrail frames with the locking pins.
See II.X. Then, assemble the knee and hip braces
working from the inside to the outside against
the uprights of the guardrail frames.
8. Place a platform with trapdoor on the7th rung of
the (base) frame.
9. Move the lowest platform without trapdoor to
the highest level as well.
10. Assemble the toe boards according to II.IX.
The rolling tower is now ready for use for a plat-
form height of up to 2.2 meter.
Platform height 3.2 m
11. Place another platform on the 3rd rung of the
frame, staggered in relation to the platform be-
low. Sit down on the highest platform and attach
hip braces to each side of the (rest) platform on
the 4th rung above the platform.
 Attach4stabilizers tothecornersoftherolling
tower, at an angle of approximately 120° to the
longitudinal axis of the rolling tower. Attach the
couplersofthestabilizerstotheuprights,under
the 2nd and the 7th rungs of the base frame.
 Makesurethattheendofeachstabilizerisincon-
tact with the solid surface and secure the stabili-
zer.Positionthelowermostarmofthestabilizer
(approximately)horizontally,assemblethestabi-
lizerssecurelyandchecktheangleof120°.
Follow steps 7 to 10.
For further assembly to platform heights of
4.2 meter follow step 12 to 16.
12.Attach4stabilizerstothecornersoftherolling
tower, at an angle of approximately 120° to the
longitudinal axis of the rolling tower. Attach the
couplersofthestabilizerstotheuprights,under
the 2nd and the 6th rungs of the base frame.
 Makesurethattheendofeachstabilizerisincon-
tact with the solid surface and secure the stabi-
lizer.Positionthelowermostarmofthestabilizer
(approximately)horizontally,assemblethestabi-
lizerssecurelyandchecktheangleof120°.
13. If needed (see ballast table at IX) attach the bal-
last to the 4 uprights of the base frame using the
ballast holders.
Ballast holder art. 415277
Ballast 5kg art. 415271

16 of 68 17 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
16 of 68 17 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
EN
EN 100438/12XXXD
14. Stand on the platform and place two 7 rung
frames on the base frame of the rolling tower. Se-
cure the frames with the locking pins.
15. Then place two diagonal braces in a cross be-
tween the 2nd and the 6th rung on both sides of
the frames which were just placed. Place another
platform on the 3rd rung of the next frames, stag-
gered in relation to the platform below.
16. Sit down on the highest platform and attach a
hip braces to each side of the (rest) platform on
the 4th rung above the platform.
Repeat the steps 14, 15 and 16 until the de-
sired platform height of 5.2 meter, 6.2 meter,
7.2 meter, 8.2 meter, 9.2 meter, 10.2 meter 11.2
meter or 12.2 meter is reached. Then follow
steps 7 to 10 for the placing of the guardrail
frames and the guardrail braces en then con-
tinue with step 17 in order to prepare the tow-
er for use. If applicable use a rope for hoistng
parts.
17. The platforms in between are now still in position
to ensure safety during assembly.
The tower can be set up in two congurations,
1 platform staggered every 2 meters (1-2 con-
guration) or two platforms next to each other
every 4 meters (2-4 conguration). The platforms
in between, including the hip braces have to be
moved before the tower can be used.
For the adjusting of the platforms at dierent
congurations follow the diagrams for the order
of assembly under VI.
18. The tower is now ready for use.
1/2 conguration 2/4 conguration

EN
STAIR TOWER SCAFFOLD 5300
16 of 68 17 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
16 of 68 17 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
V Stair tower 5300
V.I Conguration table 5300
Platform height (m) 2.20 4.20
1
6.20
1
8.20
1
10.20
1
12.20
12
Work height (m) 4.20 6.20 8.20 10.20 12.20 14.20
1.35 x 2.45 m
Description Item no. Weight (kg)
Frame 135-28-7 301607 10,9 1357911
Walkthrough frame 5200-28 307008 10,2 111111
Guardrail frame 135-50-2 302920 4,1 222222
Wheel leg Ø 200 mm Prof 511230 5,2 444444
Platform 2.45 m without trapdoor (wood) 304520 18,4 123456
Fiber-Deck® platform 2.45 without trapdoor 305320 13,3 123456
Diagonal brace 245-16 Prof 303716 2,5 36912 15 18
Horizontalbrace245-6Prof 303706 2,3 57911 13 15
Triangularstabilizerupto4.2mplatformheight* 305612 5.8 020000
TriangularstabilizerEasy-Lock®universal 305613 7,6 022222
Toeboardset2/1.35Easy-Fit® 305506 6,6 111111
Toeboardset2/2.45Easy-Fit® 305502 10,9 111111
Stairs RS 5200 2.45 306015 17,0 123456
HandrailbraceforstairsRS52002.45 306018 3,9 123456
Vide guardrail 306019 8,7 111111
Step stirrup (for stairs RS 5200 2.45) 306017 1,8 111111
Total weight (kg) including wooden platforms 136,4 224,8 298,0 371,2 444,4 517,6
Total weight (kg) including Fiber-Deck® platforms 131,3 214,6 221,8 274,4 327,0 379,6
1
)Ifthetowerisusedasafreestandingtowerinthiscongurationtherehavetobe4stabilizersaroundit.
2
) Tower load above 10 meter max. 500 kg.
During assembly 1 extra diagonal brace is needed.
* To only be used for a platform height up to 4.2 m!

18 of 68 19 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
EN
EN 100438/12XXXD
V.II Method of assembly 5300 stair
tower
1. For the base of the stair tower 1 walkthrough
frame and 1 frame are used. Fit the wheels in the
walkthrough frame and the frame. Connect the
frames by using2horizontalbracesunderthe
rst rung working from the inside to the outside.
2. Place 1 diagonal brace in a cross between the 3rd
rung of the frame and the 7th rung of the walk-
through frame. Then, place 2 diagonal braces on
the other side in a cross between the 2nd and the
6th rung from the base frame to the walkthrough
frame.Then using the adjusting nut on the wheel
legssetthebaseframehorizontallyinthelength
and width direction using a spirit level.
3. Place the stairs between the 1st rung of the walk-
through frame and the 7erung of the frame. At-
tach the step stirrup to the bottom rung in front
of the entrance to the walkthrough frame with
the coupler on the outside of the tower. Stand on
the 5th step of the stair and place a platform on
the the 7th rung of the frames. Check if the wind
security lock is secured in place.
For a tower with a platform height of 2.2 meter
follow step 4 to 9.
4. Stand on the 2nd step of the stair. Then attach
a guardrail frame to the entry side of the base
frame of the rolling tower. Secure the guardrail
frames with locking pins, see general II.X. Then,
place an extra diagonal between the 7th rung of
the base frame and the 2nd rung of the guardrail
frame.
5. Stand on the 5th step of the stair. Attach a guard-
rail frame to the base frame of the rolling tower.
Secure the guardrail frames with the locking pins.
6. Attach the handrail brace between the 1st and 2nd
rung of the guardrail frame and tightly secure the
wingnuts on to the coupler. Remove the tempo-
rary diagonal at the stair side.
7. Sitting at the platform side attach the guardrail
braces working from the inside to the outside
on to the uprights of the guardrail frames. Place
1 guardrail brace at the stairs side below the top
rung onto the uprights of the guardrail frames.

EN
STAIR TOWER SCAFFOLD 5300
18 of 68 19 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
8. Attach the toe boards. See II.IX.
9. Attach a vide guardrail to the opposite at the
guardrail brace and to the guardrail frame oppo-
site the stairs exit.
The tower with a platform height of 2.2 meter is
now ready for use.
For stair tower with a platform height of 4.2,
6.2, 8.2, 10.2 or 12.2 meter follow the further
assembly steps 10 to 16. If applicable use a
rope for hoisting parts.
10. Assume the base frame as described in step 3. At-
tachthestabilizerstothecornersofthetower,at
an angle of approximately 120° to the longitudi-
nal axis of the tower. Make sure that the end of
eachstabilizerisincontactwiththesolidsurface
andsecurethestabilizer.Positionthelowermost
armofthestabilizer(approximately)horizontally,
assemblethestabilizerssecurelyandcheckthe
angle of 120°.
If needed (see ballast table at IX) attach the bal-
last to the 4 uprights of the base frame using the
ballast holders.
Ballast holder art. 415277
Ballast 5kg art. 415271
11. Stand on the 2nd step of the ladder and attach a
frame to the base frame at the entry side of the
tower. Secure the frame with locking pins. Then,
place an extra diagonal brace between the 7th
rung of the base frame and the 4th rung of the
frame.
12. Stand on the 5th step of the stair and place a
frame on the other side of the tower and secure
them.
13. Attach the railing above the third rung of the 2nd
frame and tightly secure the wingnuts on to the
coupler.
14. Then attach two diagonal braces on the side of
the platform, in a cross between the 2nd and the
6th rung of the frames. Then, at the platform side,
place 2 guardrail braces on the 2nd and 4th rung
of the frames. Then assemble the second set of
stairs between the 1st and the 7th rung of the 2nd
assembly section. Then move the extra diagonal
brace at the stair side to the 3rd and 7th rung of the
next frames.
15. Attach a platform next to the stairs on the top
rungs of the frames.

20 of 68 21 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
20 of 68 21 of 68
Relax. It's an Altrex. Relax. It's an Altrex.
EN
EN 100438/12XXXD
Repeat step 11 to 15 until the desired platform
height has been reached.
16. For the assembly of the guardrailing, toe boards
and vide guardrail repeat steps 4 to 9.
The tower is now ready for use.
Comments: You can use the 5300 stair tower as
an access tower, for additional rules
and condtitions you should contact
Altrex B.V.
