• 1 PN9108 Station
• 1 PN9108 to AC Source Power Cord (1.8M)
• 8 Power Outlet Power Cords
• 8 Safe Shutdown Cables
• 1 PON Cable (DB9 F to DB9 M)
• 4 Foot Pads
• 1 Rack mount kit
(Brackets and Philips Head Hex M3 x 8 Screws)
• 1 User Manual
• 1 Quick Start Guide
• 1 Software Disk
The complete package consists of:
Package Contents
1
The PN9108 Unit ( Rear View )
3
1. Power Socket
2. Circuit Breaker
3. AC Power Outlets
4. RS-232 Port
5. Safe Shutdown Ports
Single Stage Installation
4. Use the AC power cord provided with this package to connect the PN9108’s Power
Socket to an AC power source.
5. Turn on the PN9108.
6. Turn on the computers.
2The PN9108 Unit ( Front View )
1. Port LEDs
2. Current LED
3. Station ID LED
4. 10/100 Mbps Data LED
5. Power LED
6. Power Control Buttons
7. Current Display Switch
8. Reset Switch
9. Link LED
7 8 9
6
1
2 3 4 5
9
351 6
8
4
7
2
4-1
These instructions show how to install the PN9108 Power over the NET. For detailed
information, refer to the user manual included in the kit.
53
2
1
Power cord : The power source is a 220- 240 V AC supply, use a tandem (T blade) type
attachment plug with ground conductor power cord that meets the respective European
country's safety regulations, such as VDE for Germany. Plug should comply with the VDE
0620 specification; the connector should comply with the VDE 0625 specification. A
minimum 10A, 0.75 mm2 x 3G power cord (H05VV-F or VW-1) should be used.
Power outlet cord : Connector should comply with the VDE 0625 or EN60320
specification. A minimum 10A, 0.75 mm2 x 3G power cord (H05VV-F or VW-1) should
be used.
Note:
Use the power cord supplied with this package. If you need to purchase additional
power cord, you must choose ones that comply with the above specifications.
6. PON (Power over the NET) Output Port
7. Power Switch
8. RJ-45 Port
9. PON Input Port Daisy Chaining Installation
To manage even more computers, up to 15 additional PN9108 Stations can be daisy
chained down from the top level unit. In this way, up to 128 computers can be managed
on a complete installation.
Note: In a daisy chained installation, a switch is the child of the switch above it, and the
parent of the switch below.
5
Single Stage Installation
4
1. For each computer, use an AC Output cable to connect from any available PN9108 output
port to the computer’s AC socket.
2. For Windows 98E, ME, NT, 2000, XP, and 2003 Server computers, for each computer
use a Safe Shutdown cable to connect from the PN9108’s Safe Shutdown port to the
computer’s Serial port.
3. Plug the LAN or WAN cable into the PN9108’s RJ-45 socket.
Power over the NET (PN9108 / PN9108U)

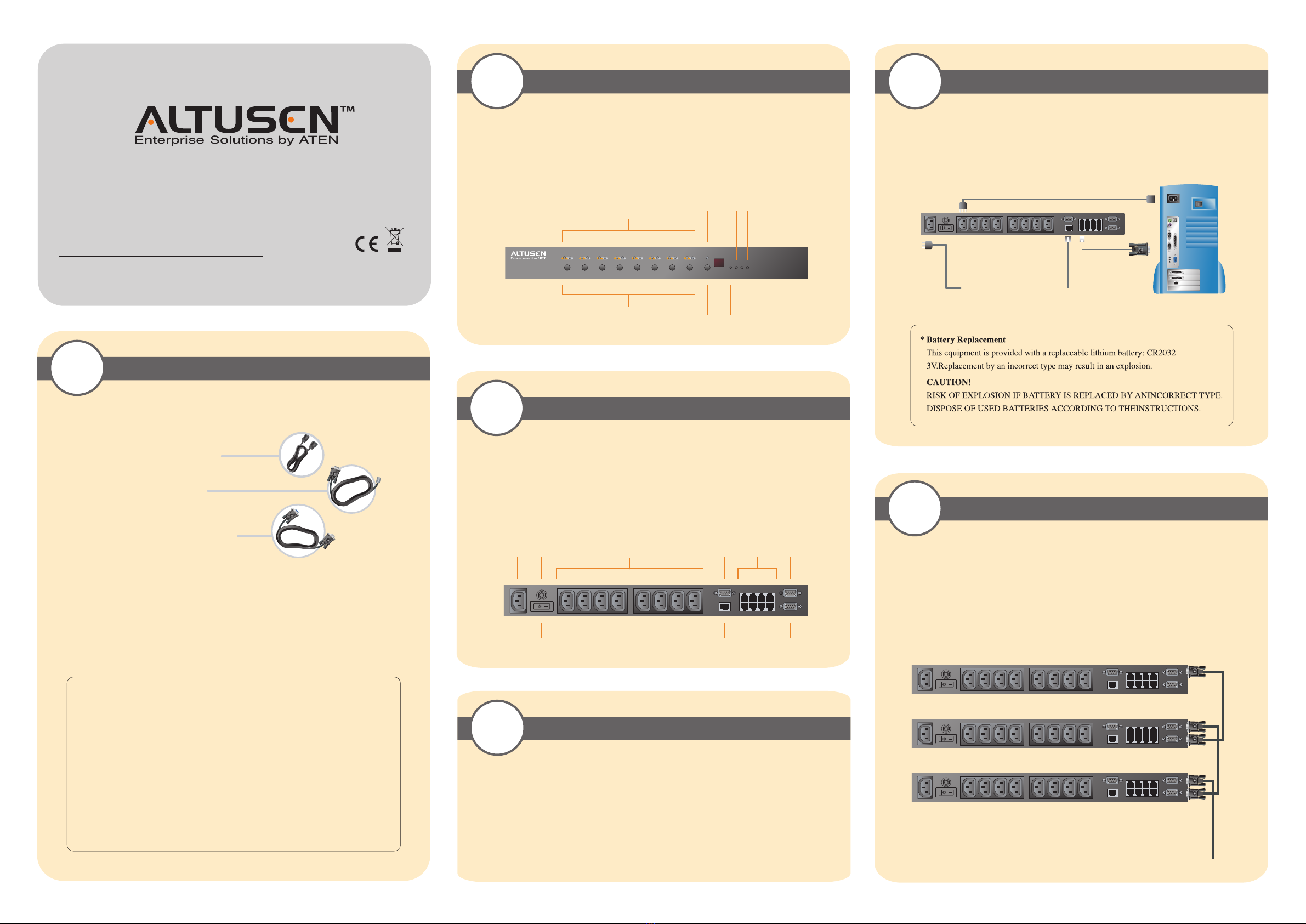

QUICK START GUIDE
© Copyright 2011 ATEN®International Co., Ltd. www.aten.com
Altusen and the Altusen logo are trademarks of ATEN International Co., Ltd.
All rights reserved. All other trademarks are the property of their respective owners.
This product is RoHS compliant PAPE-1214-B01G Printing Date: 06/2011
Patent No.
CN ZL 200420007513.7
DE 202004005510.4
TW M253187
US 6909609
