Alumax Lani L-303X-32 User manual

L005
L-303X-32
L-423X-32
L-423TBX-32

Please keep this manual and product code number for future reference
and replacement parts ordering if necessary.

2 PEOPLES REQUIRED
GENERAL INSTRUCTIONS
- Read this manual carefully and completely before
proceeding.
- It is recommended that you wear safety glasses at all
times during the installation.
INSTALLATION OVER CERAMIC TILES
- Silicone should be used to seal the gap where the ceramic
tiles meet the xed panel.
- If your shower door is to be installed over ceramic tiles, the
tiles should lay completely under the wall jamb.
NOTICE
- Caulking: no sealant is required inside the shower.
Unless otherwise stated.
- Some models are equipped with clear sealing gaskets.
CARE FOR YOUR SHOWER DOOR
- Never use scouring powder pads or sharp instruments on
metal pieces or glass panels.
An occasional wiping down with a mild soap diluted in
water is all that is needed to keep the panels and
aluminum parts looking new .
- We recommend wiping the glass panels with a squeegee
after each use.
Product specications are subject to change
without notice.

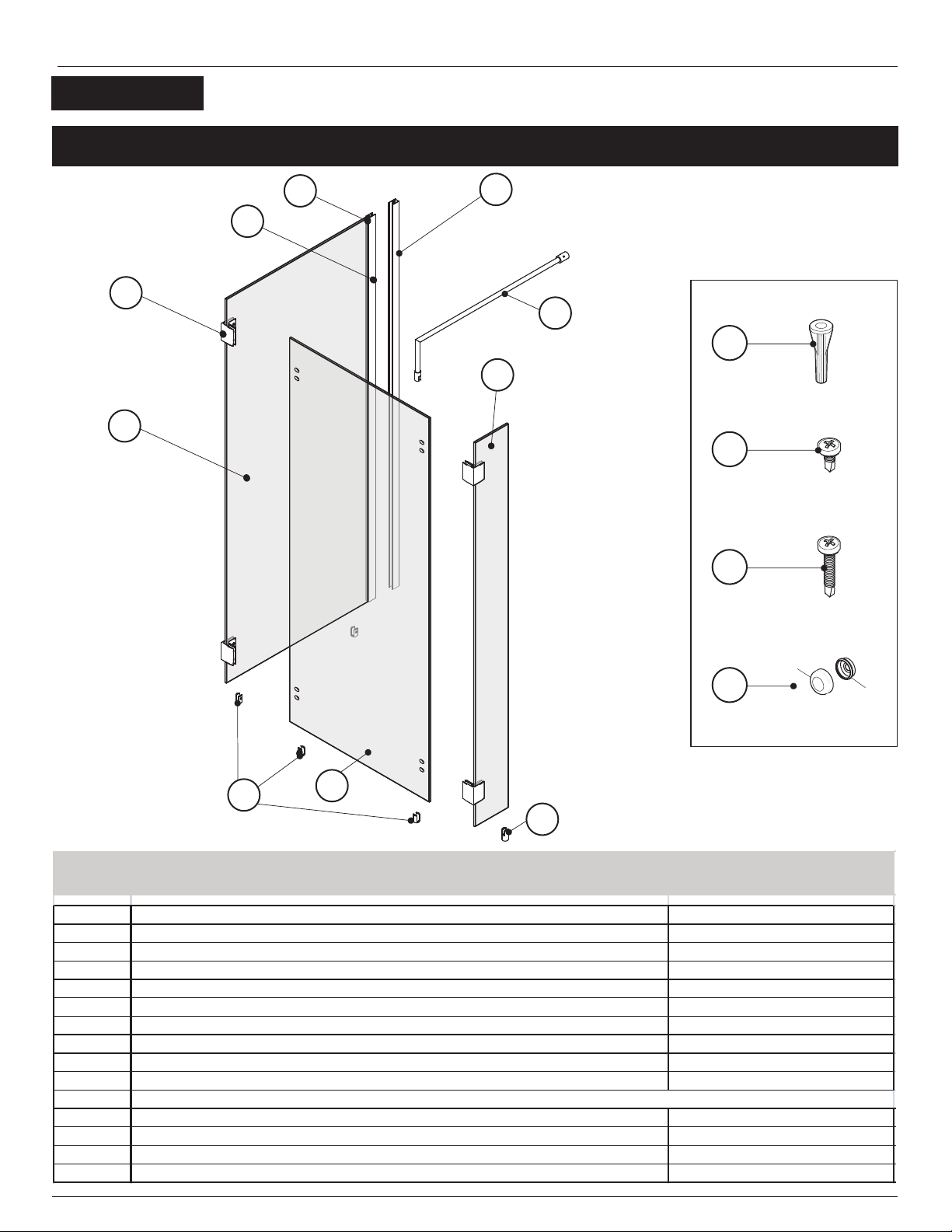

PARTS LISTING
INSTRUCTION MANUAL
1
3.1
8
4
7
3.3
3.2
1
5
2
6
b
a
WALL PLUG #6-1
SCREW CAP
11.1
11.4
SCREW #8-3/8
11.2
SCREW #8- 1 1/4
11.3
HARD WARE
I T E M # P A R T S Q T Y
1 F I X E D P A N E L 1
2 S M A L L R E T U R N P A N E L 1
3 . 1 R E T U R N P A N E L 1
3 . 2 G A S K E T 1
3 . 3 E X P A N D E R 1
4 W A L L J A M B 1
5B O T T O M G L A S S C L I P 4
6 L O N G B O T T O M C L I P 1
7S U P P O R T B A R 1
8C O R N E R C L I P 4
1 1
1 1 . 1 W A L L P L U G # 6 - 1 4
1 1 . 2 S E L F D R I I L L I N G S C R E W # 8 - 3 /8 3
1 1 . 3 S E L F D R I L L I N G S C R E W # 8 - 1 1 / 4 3
1 1 . 4 S C R E W C A P # 8 / 8 4
H A R D W A R E
303X

INSTRUCTION MANUAL

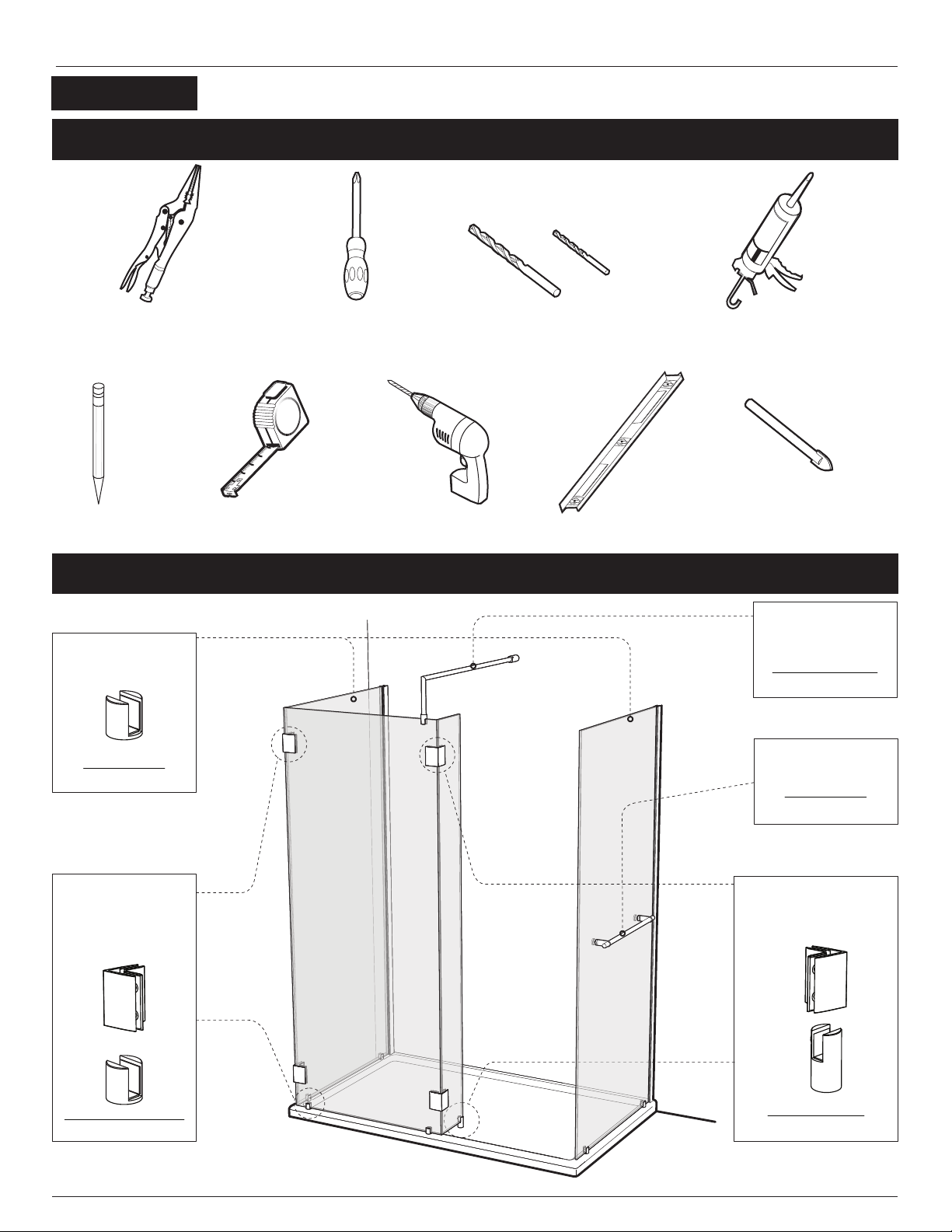

TOOLS AND MATERIALS REQUIRED
see page 9-10
Front panel
Corner clips
Bottom clips
Return panel
Bottom clips
see page 7-8
see page 1 1-12
Support bar
see page 13-14
INSTRUCTION OF COMPONENTS
Corner clips
Long bottom clip
2
PENCIL DRILL
SILICONESCREWDRIVERS
LEVEL
TAPE MESURE
LONG NOSE LOCKING PLIER
1/4”
1/8”
ACRYLIC DRILL BIT
1/4”
CERAMIC TILE DRILL BIT
303X

PAR TS LISTING
INSTRUCTION MANUAL
3
3.1
8
4
7
3.3
3.2
1
5
2
9.3
9.2 4
65
9.1
b
a
WALL PLUG #6-1
SCREW CAP
11.1
11.4
SCREW #8-3/8
11.2
SCREW #8- 1 1/4
11.3
HARDWARE
I T E M # P A R T S Q T Y
1 F I X E D P A N E L 1
2S M A L L R E T U R N P A N E L 1
3 . 1 R E T U R N P A N E L 1
3 . 2 G A S K E T 1
3 . 3 E X P A N D E R 1
4W A L L J A M B 2
5 B O T T O M G L A S S C L I P 6
6L O N G B O T T O M C L I P 1
7 S U P P O R T B A R 1
8C O R N E R C L I P 4
9 . 1 R E T U R N P A N E L 1
9 . 2 G A S K E T 1
9 . 3 E X P A N D E R 1
1 1
1 1 . 1 W A L L P L U G # 6 - 1 8
1 1 . 2 S E L F D R I L L I N G S C R E W # 8 - 3 / 8 6
1 1 . 3 S E L F D R I L L I N G S C R E W # 8 - 1 1 / 4 6
1 1 . 4 S C R E W C A P # 8 / 8 8
H A R D W A R E
423X

INSTRUCTION MANUAL

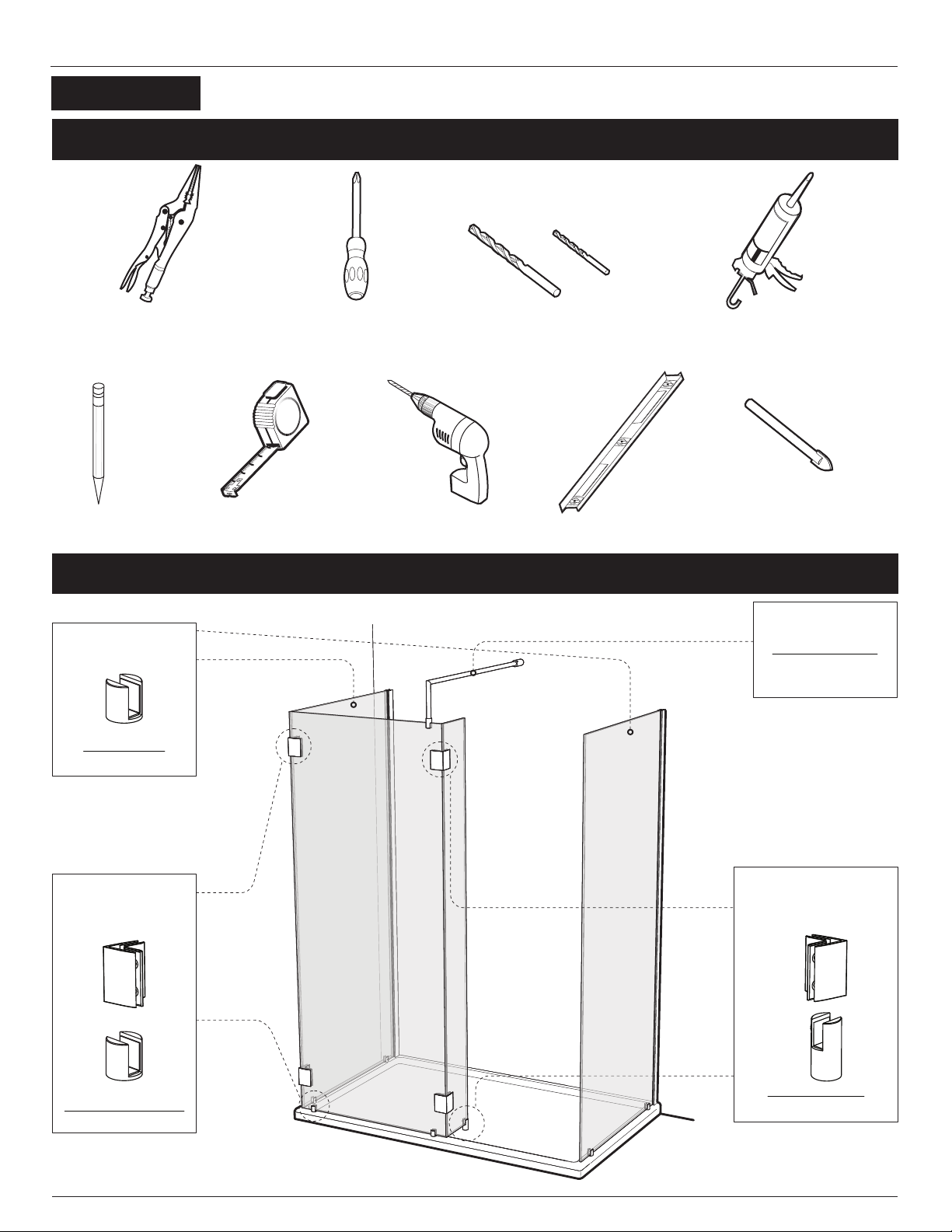

TOOLS AND MATERIALS REQUIRED
4
see page 9-10
Front panel
Corner clips
Bottom clips
Return panel
Bottom clips
see page 7-8
see page 1 1-12
Support bar
see page 13-14
Small xed panel
Corner clips
Long bottom clip
PENCIL DRILL
SILICONESCREWDRIVERS
LEVELTAPE MESURE
LONG NOSE LOCKING PLIER
1/4”
1/8”
ACRYLIC DRILL BIT
1/4”
CERAMIC TILE DRILL BIT
INSTRUCTION OF COMPONENTS
423X

PARTS LISTING
INSTRUCTION MANUAL
5
3.1
8
4
7
3.3
3.2
1
5
2
9.3
9.2 4
65
9.1
10
b
a
WALL PLUG #6-1
SCREW CAP
11.1
11.4
SCREW #8-3/8
11.2
SCREW #8- 1 1/4
11.3
HARD WARE
I T E M # P A R T S Q T Y
1F I X E D P A N E L 1
2S M A L L R E T U R N P A N E L 1
3 . 1 R E T U R N P A N E L 1
3 . 2 G A S K E T 1
3 . 3 E X P A N D E R 1
4W A L L J A M B 2
5B O T T O M G L A S S C L I P 6
6L O N G B O T T O M C L I P 1
7 S U P P O R T B A R 1
8C O R N E R C L I P 4
9 . 1 R E T U R N P A N E L 1
9 . 2 G A S K E T 1
9 . 3 E X P A N D E R 1
1 0 T O W E L B A R 1
1 1
1 1 . 1 W A L L P L U G # 6 - 1 8
1 1 . 2 S E L F D R I I L L I N G S C R E W # 8 - 3 /8 6
1 1 . 3 S E L F D R I L L I N G S C R E W # 8 - 1 1 /4 6
1 1 . 4 S C R E W C A P # 8 / 8 8
H A R D W A R E
423TBX

INSTRUCTION MANUAL
TOOLS AND MATERIALS REQUIRED
6
see page 9-10
Front panel
Corner clips
Bottom clips
Return panel
Bottom clips
see page 7-8
see page 1 1-12
Support bar
see page 13-14
Small xed panel
Corner clips
Long bottom clip

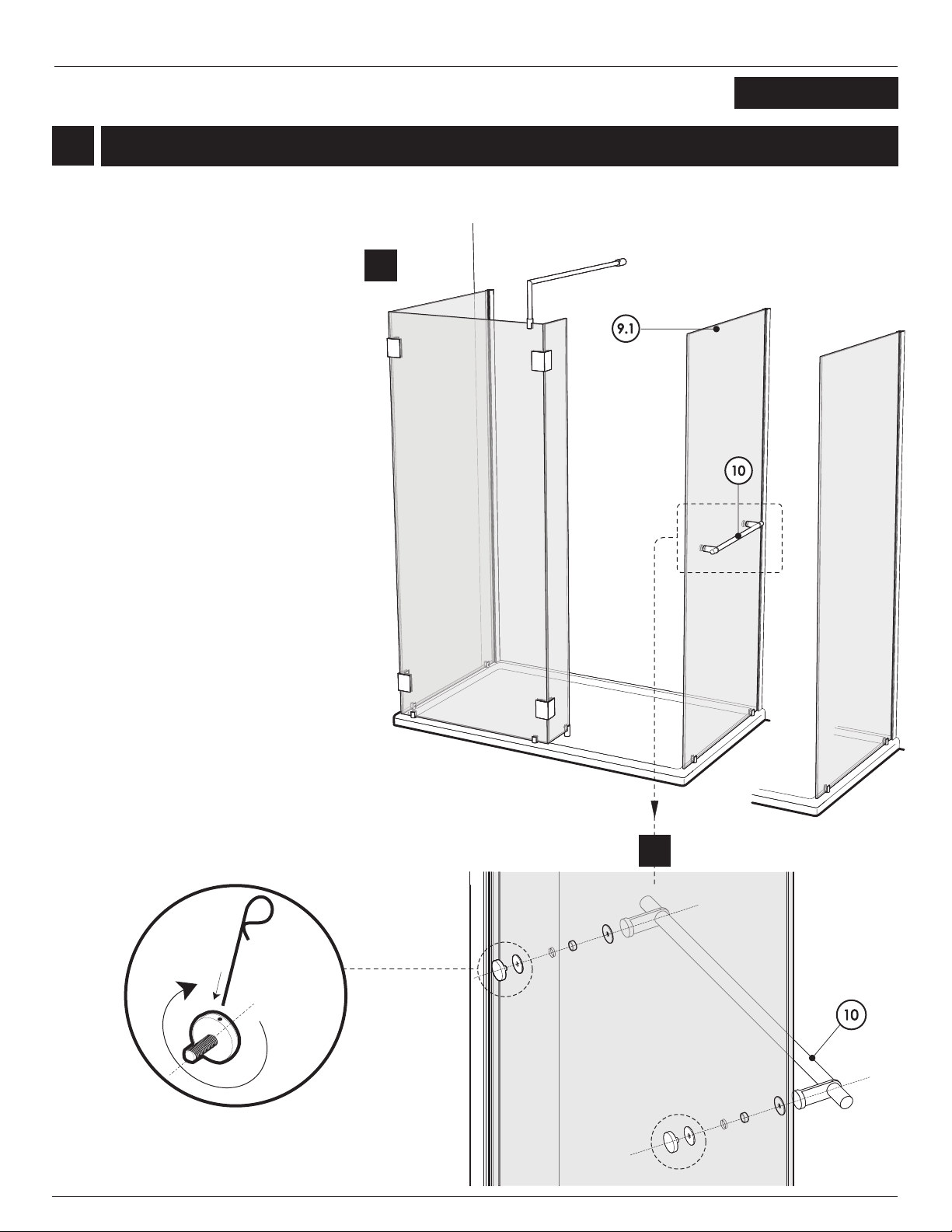

see page 16
Towel bar
PENCIL DRILL
SILICONESCREWDRIVERS
LEVELTAPE MESURE
LONG NOSE LOCKING PLIER
1/4”
1/8”
ACRYLIC DRILL BIT
1/4”
CERAMIC TILE DRILL BIT
INSTRUCTION OF COMPONENTS
423TBX

INSTRUCTION MANUAL
1RETURN PANEL INSTALLA
303X, 423X, 423TBX
TION
1a.
1b.
1c.
1d.
Using a measuring tape, mark the center of
the threshold of the base.
Using the marking established in the
previous step, run a second line up the
wall. Use a level to ensure verticality of this
line.
Place the wall jamb (4) onto the wall while
ensuring that the wall jamb slotted holes
are centered to the center line. The side
holes of the wall jamb should face the
interior of the shower .
Drill holes using a Ø1/8 ½drill bit, through
the wall using the wall jamb slotted holes
as reference.
Insert a drop of silicone into each hole
made in the previous step. Insert a wall
plug (11.1) into each hole and from there
the wall jamb can be repositioned and
permanently fastened using self drilling
screws #8-1 1/4 (11.3).
1a
1b
1d
4
4
11.1
11.3
THIS INSTALLATION PROCEDURE APPLIES FOR
ALL RETURN PANELS INSTALLATION
REGARDLESS QUANTITY OR ADITTIONAL
FIXTURE AS TOWEL BAR.
7
1c
INTERIOR
SHOWER SIDE

INSTRUCTION MANUAL

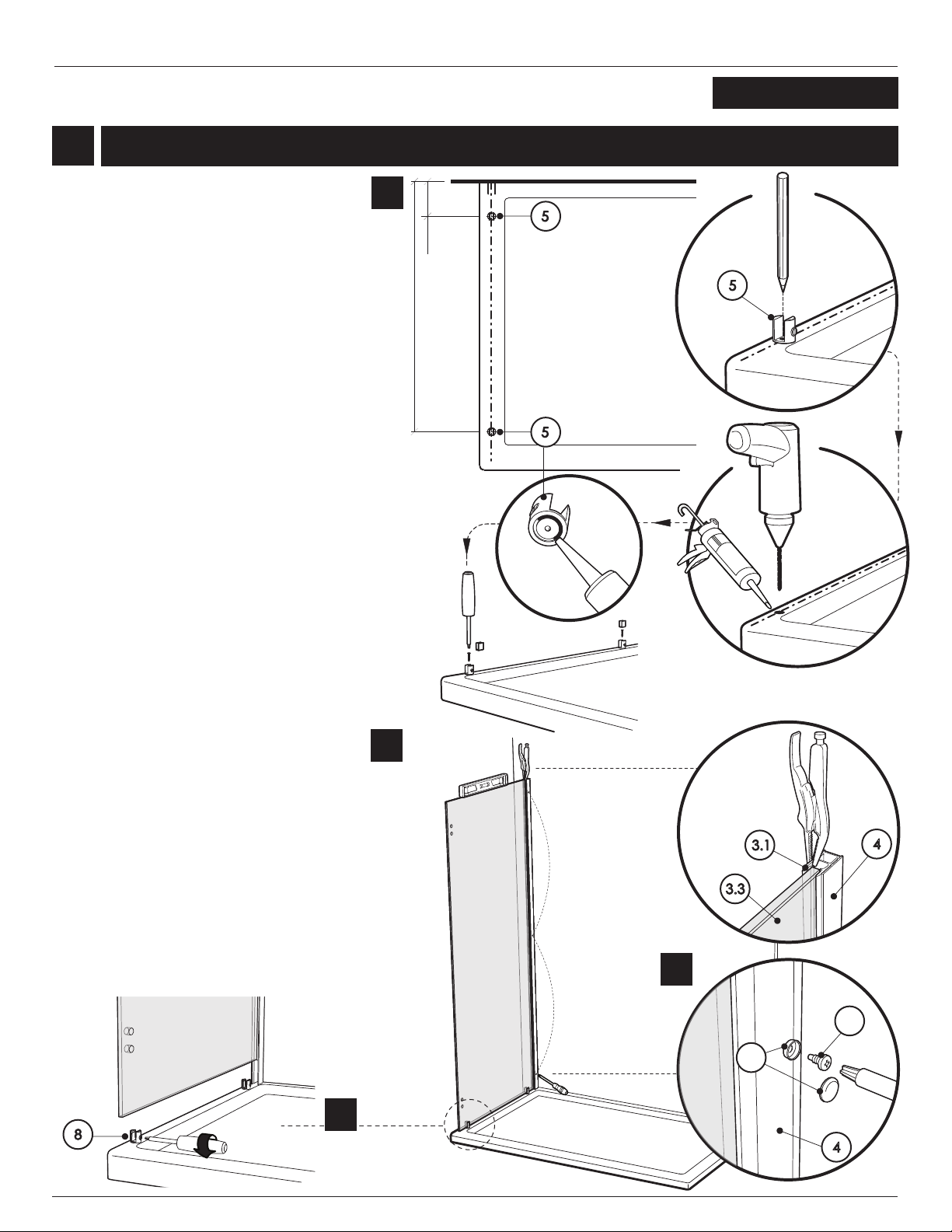

1CONTINUED
1f
1g
1e
1e.
1f.
Place the bottom clips (5) for return panel
on the line traced previously following
dimension shown on the plan view .
Mark the screw location.
1g.
1h.
Tighten
Remove temporary the bottom clips to drill
the base using #1/8” drill bit.
Put silicone onto the bottom clip bottom
face groove and around the hole. Finally ,
fasten the bottom clips to the base using
the provided screws.Place the gaskets into
bottom clips slots.
Slide the return panel assembly into the
wall jamb (4) and through the bottom clips
slots.
Once the return panel has been adjusted,
secure the expander (3.1) (9.1) to the wall
jamb (4) by using a clamp to keep the
return panel leveled.
the bottom clips set screws(5).
Secure the wall jamb (4) to the expander
(3.1) (9.1) by using.#8- 3/8 screws (11.2),
as well as screw caps (11.4)
8
8
8
4
11.4
11.2
3.3
3.1 4
1h
4 1/4" (11cm)
30 3/8" (77cm)
5
5
5
303X, 423X, 423TBX

2c
INSTRUCTION MANUAL
2
BOTTOM CLIPS INSTALLATION
2b
CORNER CLIPS INSTALLATION
1
3FRONT PANEL
FRONT PANEL
1
2
13
8
3
1
5
2a
3 1/2”

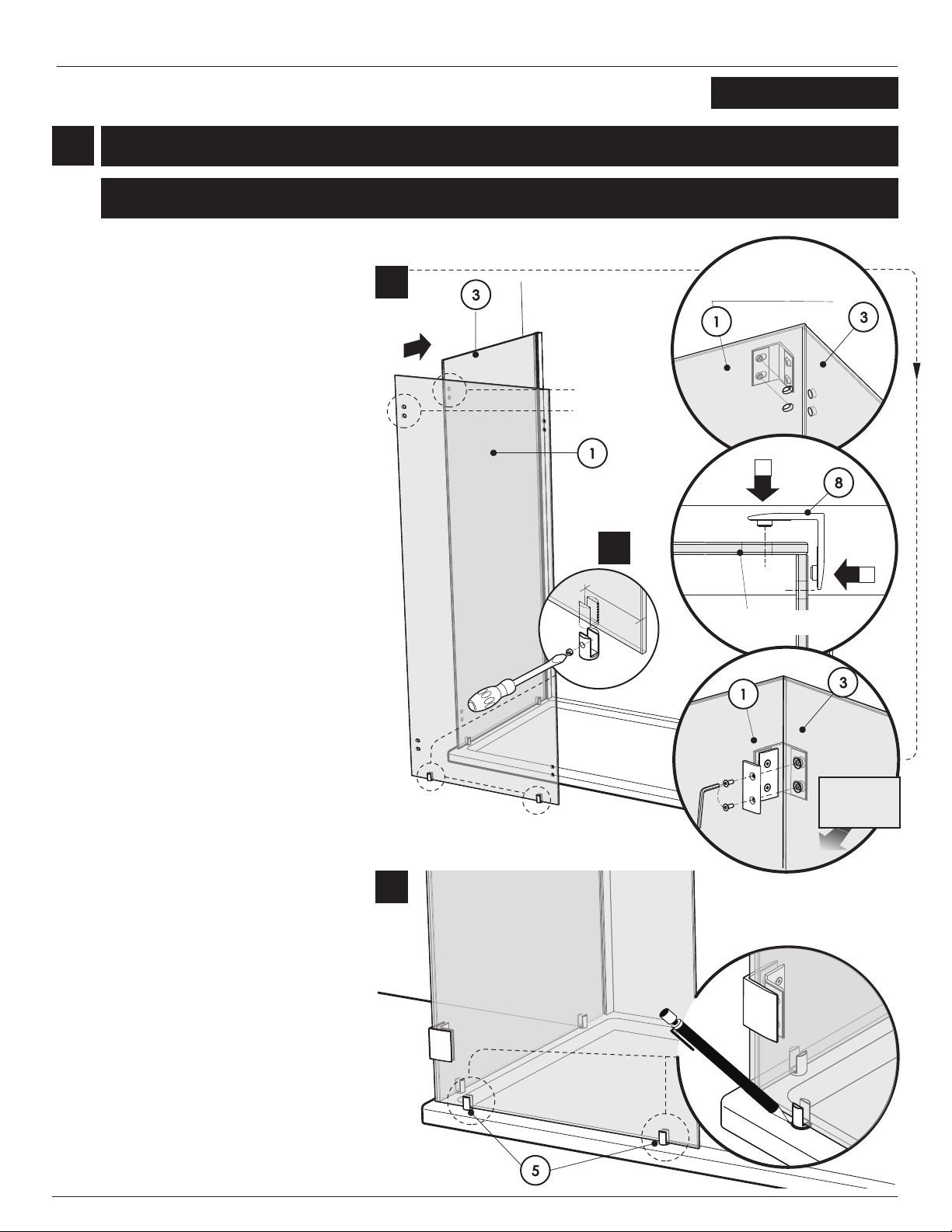

2a.
Fasten bottom clips (5) at both sides of the
front panel (1) at approximately 3 ½” from
the edges.
2b.
2c. Mark on the base the location of bottom
clips (5).
Temporarily install the corner clip (8) on the
panels (1 & 3).
Align the front panel (1) to the edge of the
return panel (3) as shown. Install the front
plate of the corner clip in the slotted holes
and slide it into the holes of the return panel
(1).
A second person proceeds to tighten the
black plates of corner clip from the inside of
the shower .
Make the necessary adjustments and level
the front panel (1) by adjusting the corner
clip.
9
slots
holes
INTERIOR
SHOWER SIDE
303X, 423X, 423TBX

INSTRUCTION MANUAL
2

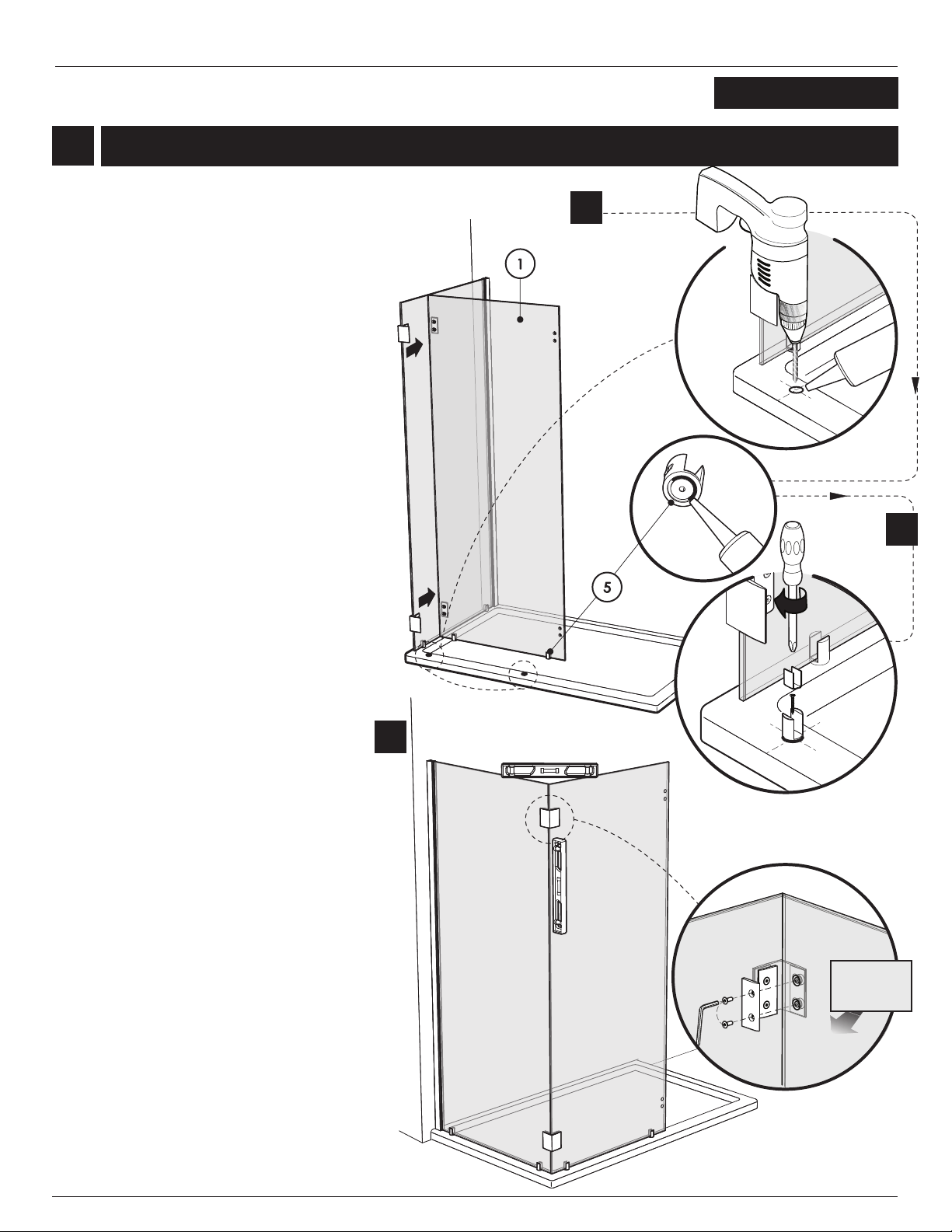

2d.
2e.
2f.
Remove the front panel (1) by
disassembling the corner clip back plate.
Drill pilot hole on the base with Ø1/8” drill
bit according to marking.
Apply silicone sealant into the groove on
the underside of the piece and around pilot
holes.
Fasten the bottom clips (5) to the base with
# 6 –1” provided screws and replace the
gasket.
Reinstall the front panel (1) by sliding into
the bottom clips (5).
Level all panels prior to tightening the
corner clips back plates and bottom clips
set screws.
Remove the bottom clips from the front
xed panel (1).
2d
CONTINUED
2f
10
2e
1
5
INTERIOR
SHOWER SIDE
303X, 423X, 423TBX

INSTRUCTION MANUAL

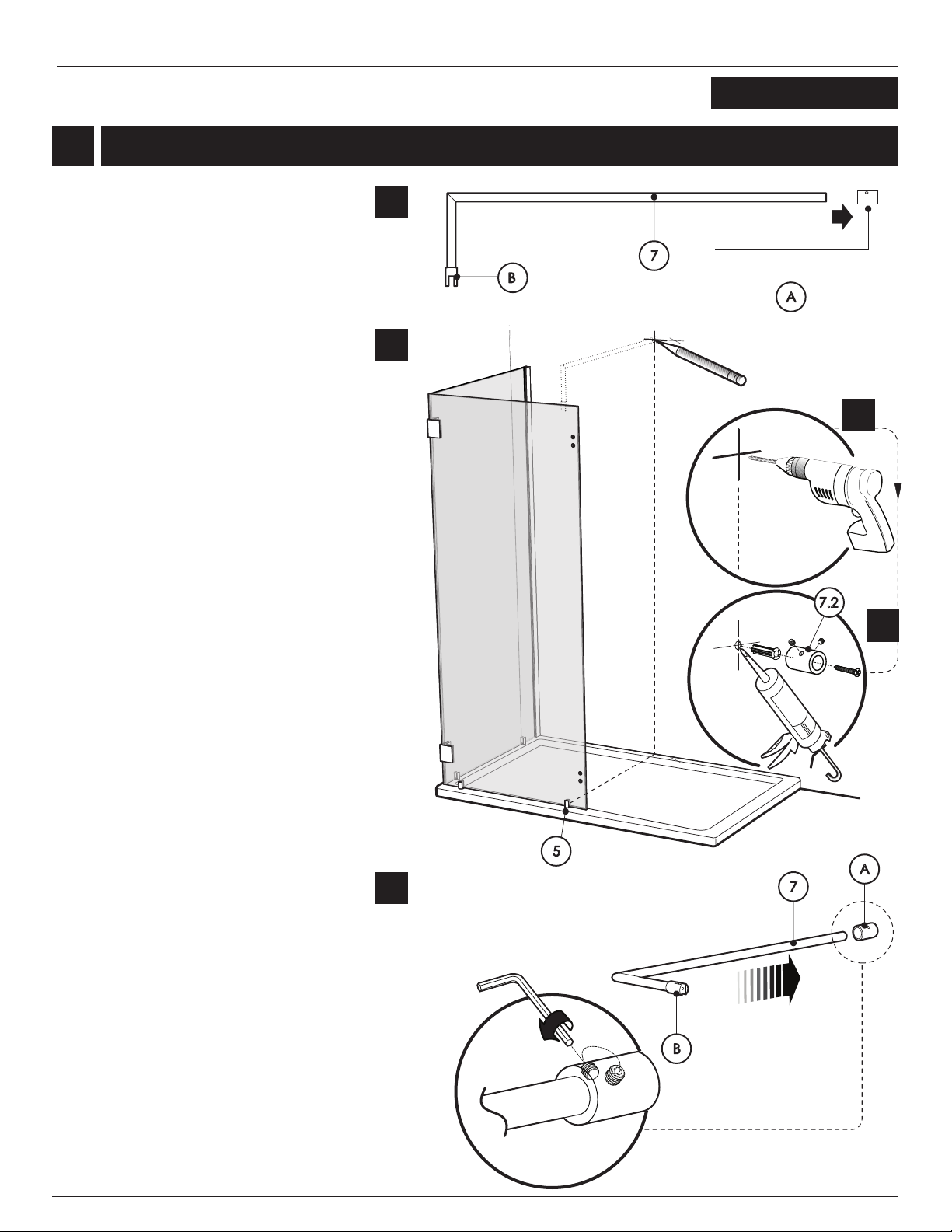

SUPPORT BAR INSTALLATION
3c
3a
3
3a. Take apart the end component (A) of the
support bar with the provided Allen Key.
3b. Transfer the position of the bottom clip (5)
to the back wall. At 82” from the threshold
mark the position (center of the cylinder )
for the support bar end component (A)
mounting
3c. Drill the back wall using a Ø1/4”drill bit.
3d.
3e.
Apply a bead of silicone in each hole and
insert the wall plug.
Proceed to fasten the wall end components
(A) onto the wall.
To ease subsequent installation on the front
panel. Insert bar (B) in the component wall
(A) on a horizontal plane as shown.
Tighten the set screws. 3e
MIN 82” | MAX. 82 1/4”
DIST ANCE FROM TOP OF THRESHOLD TO CENTER OF WALL END COMPONENT
WALL END COMPONENT
7
5
7
A
11
3d
3b
A
7.2
B
B
303X, 423X, 423TBX

INSTRUCTION MANUAL
CONTINUED
3
3h.
3g.
Insert the clear gasket as shown. Then
Loosen and rotate support bar to grab the
front panel.
Level support bar. Tighten the set screws.
3h
3g
12
A
B
B
B
CLEAR GASKET
INTERIOR
SHOWER SIDE
INTERIOR
SHOWER SIDE
303X, 423X, 423TBX

INSTRUCTION MANUAL
4
4a
13
2
1
FRONT PANEL
FRONT PANEL
1
2
1
2
8
8

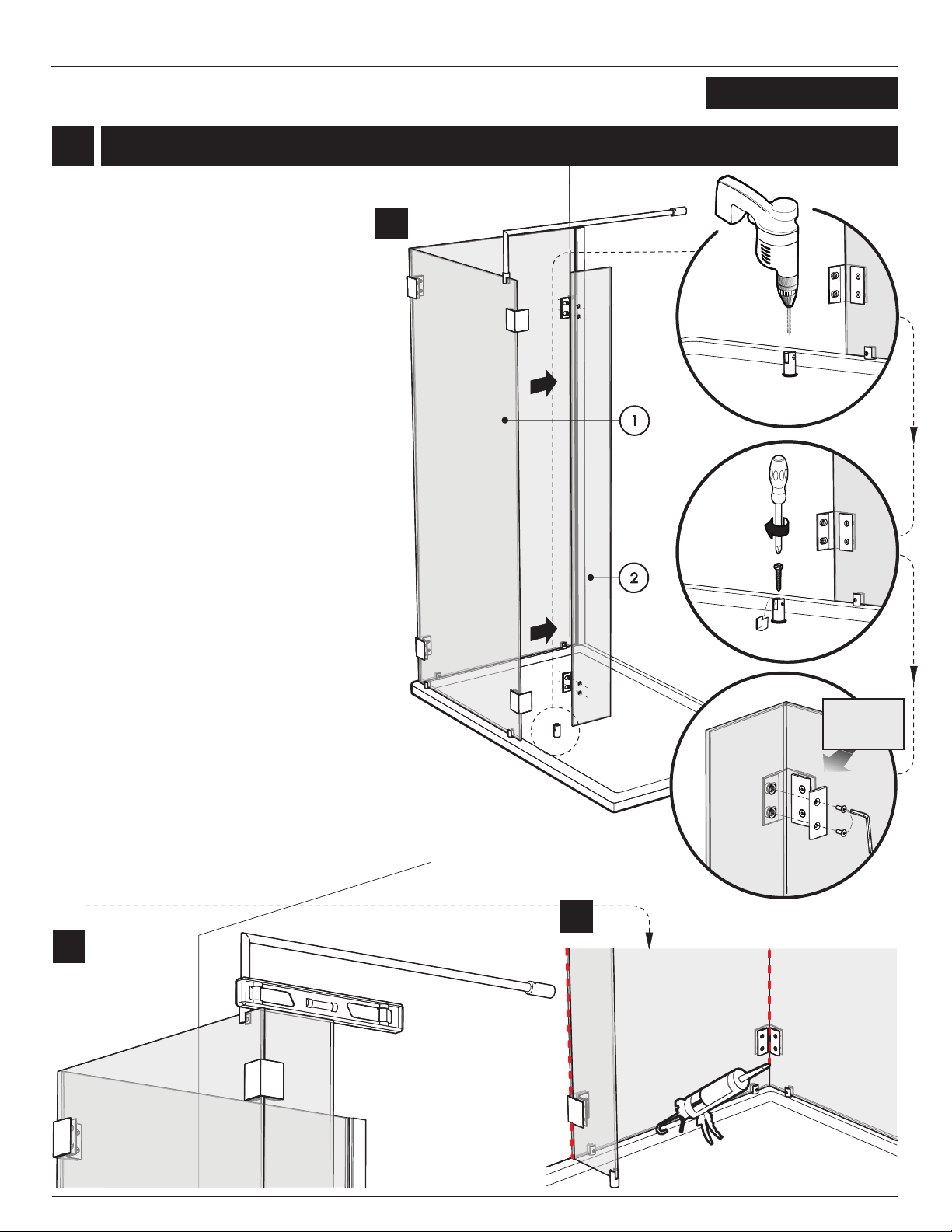

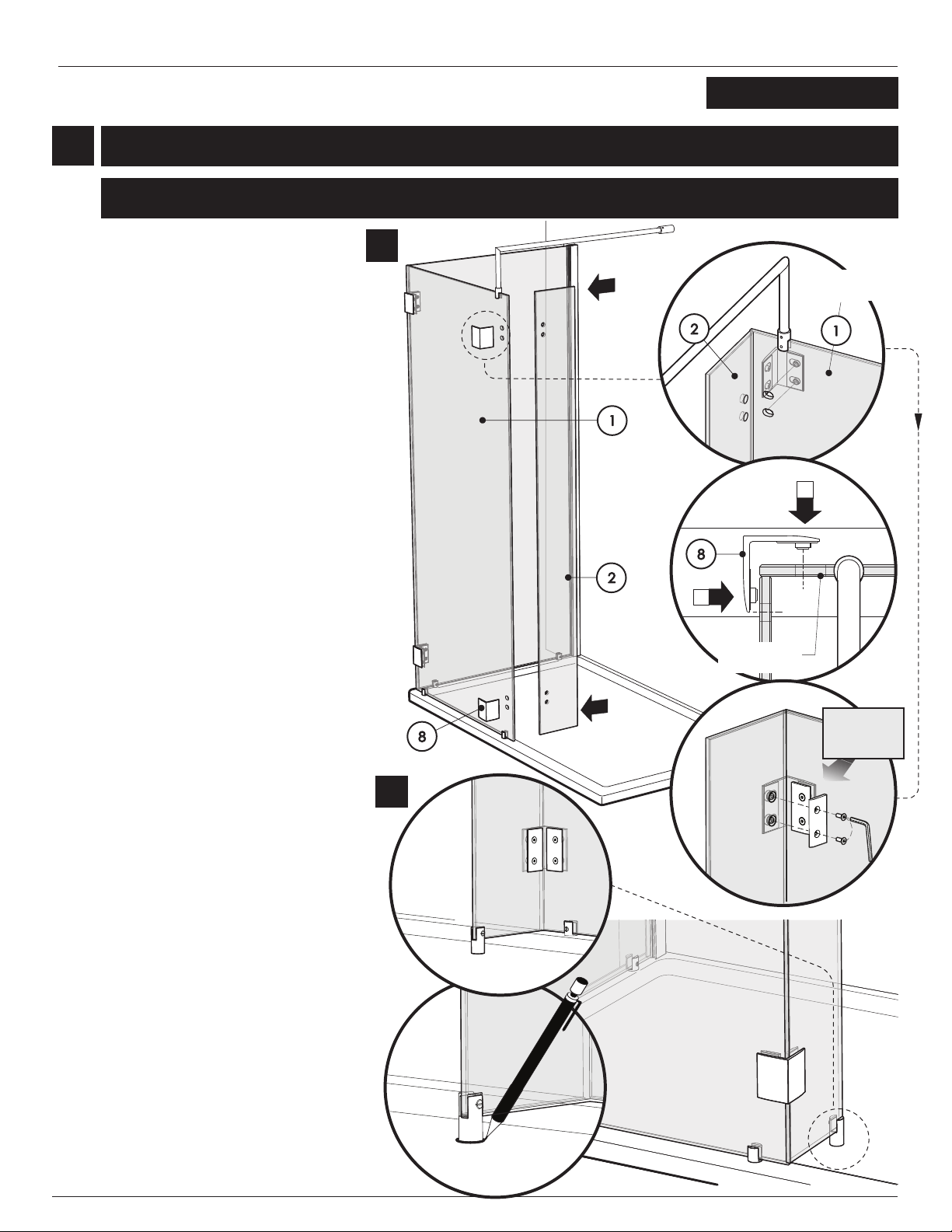

4a.
4b. Place the long bottom clip (6) right along
the edge of the glass (2). Mark on the base
its location.
Temporarily install the corner clip (8) on the
glass panels (1 & 2). Align the small panel
(2) to the edge of the front panel (1) as
shown. Install the front plate of the corner
clip in the slotted holes and slide it into the
holes of the small panel (2).
A second person proceeds to tighten the
black plates of corner clip from the inside of
the shower .
Make the necessary adjustments and level
the small panel (2) by adjusting the corner
clip.
4b
EDGE
LONG BOT TOM CLIPS INSTALLATION
CORNER CLIPS INSTALLATION
INTERIOR
SHOWER SIDE
303X, 423X, 423TBX

INSTRUCTION MANUAL
4
4e
14
4d
2
1
4c.
Install the provided gasket.
4d.
For 56308 - 56309 models.
Remove the small xed panel by
unscrewing the corner clip back plate.
On the marked position drill the base with a
drill bit 1/8”. Put silicone onto the bottom
clip bottom face groove and around the
hole.
Fasten it to the base with screw #6-1”.
Level the small xed panel and adjust its
position according to the frontal panel
through the corner clips.
You might want to nish installation before
sealing the shower.
For 56307 placed inside the shower
silicone seal de corner between the glass
panels all the way long trough out the
corner clips. Go to page 16 for complete
sealing instructions.
4e.
CONTINUED
4c
INTERIOR
SHOWER SIDE
303X, 423X, 423TBX

INSTRUCTION MANUAL
5TOWEL BAR INSTALLATION
5a. For 5638 - 56309 congurations.
If installation of return panel has not been
performed yet please, refer to step #1 to
complete the installation.
5b. For 56309 install the towel bar(10) as
illustrated.
5a
15
10
9.1
10
5b
Model L-423TBX
Model L-423X
423TBX

INSTRUCTION MANUAL

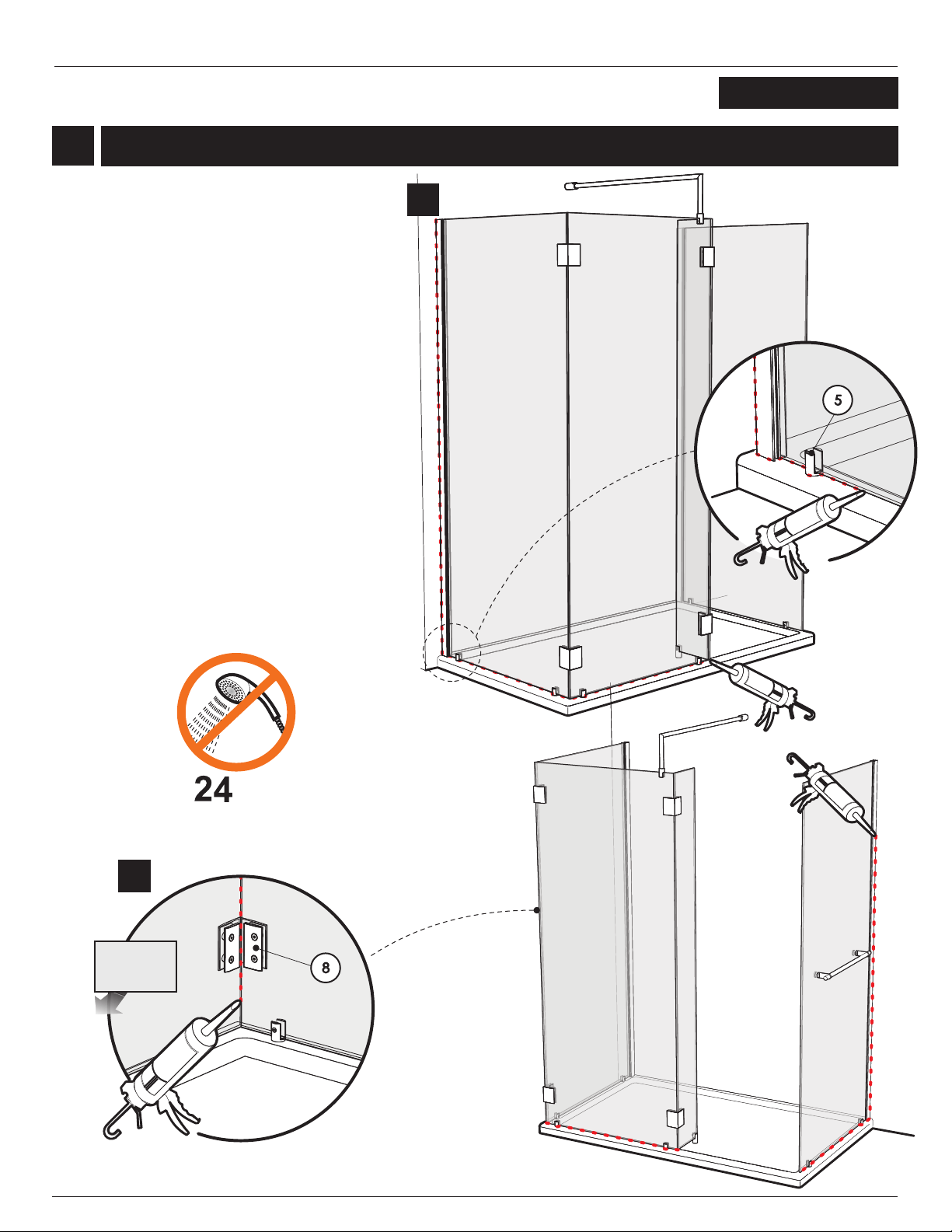

6SILICONE SEAL THE SHOWER DOOR
6a.
6b.
Seal the exterior of the shower along
the wall with silicone. Fill gap between
the glass panels and base surrounding
the bottom clips (5).
Inside the shower seal along the corner
between the glass panels by passing
trough the center of the corner clips (8)
with silicone.
HOURS
6b
16
5
6a
8
Picture shown - model 423TBX
INTERIOR
SHOWER SIDE
303X, 423X, 423TBX
