Alva GH312 Installation guide

Training Manual :
ALVA Indoor Gas Heaters

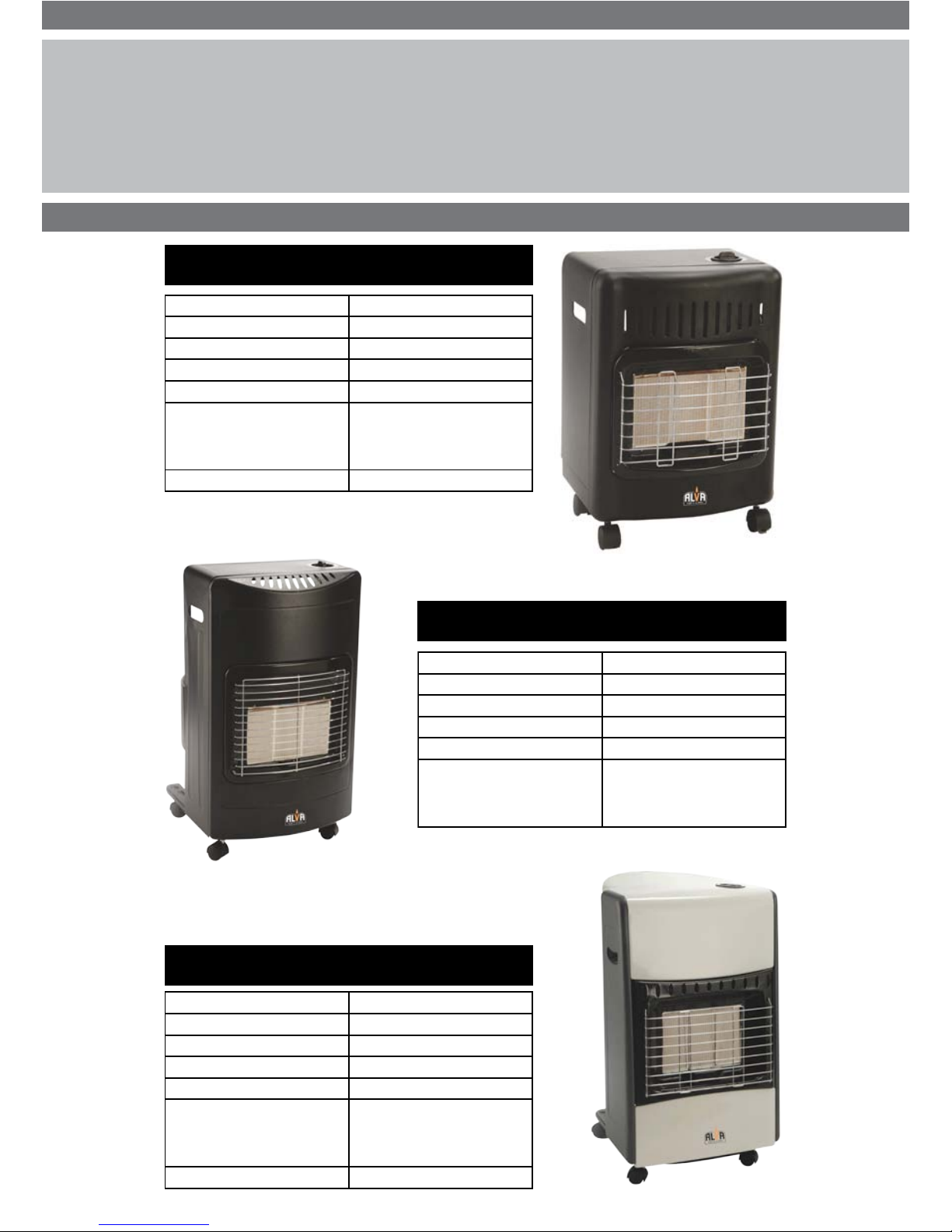

SPECIFICATIONS
Model ALVA
Infrared Heater
GH302
Type
Description
of Gas LPG
Operating pressure2 .8kPa
Injector size 0.59
Gas Consumption
Position 3 (3 panels)
Position 2 (2 panels)
Position 1 (1 panel)
265gr/hr
175gr/hr
90gr/hr
Heat output 4.2kW
e2
SPECIFICATIONS
Model
DescriptionI nfrared Heater
ALVA GH312
Type of Gas LPG
Operating pressure2 .8kPa
Injector size 0.59
Gas Consumption
Position 3 (3 panels)
Position 2 (2 panels)
Position 1 (1 panel)
265gr/hr
175gr/hr
90gr/hr
e2
SPECIFICATIONS
Model
DescriptionI nfrared Heater
ALVA GH312
Type of Gas LPG
Operating pressure2 .8kPa
Injector size 0.59
Gas Consumption
Position 3 (3 panels)
Position 2 (2 panels)
Position 1 (1 panel)
265gr/hr
175gr/hr
90gr/hr
e2
SPECIFICATIONS
Model
Description
ALVA
Infrared Heater
GH313
Type of Gas LPG
Operating pressure2 .8kPa
Injector size 0.59
Gas Consumption
Position 3 (3 panels)
Position 2 (2 panels)
Position 1 (1 panel)
265gr/hr
175gr/hr
90gr/hr
Heat output 4.2kW
e2

* LPGSASA Approved
Q: What is a flame failure protection device?
A: If the pilot flame dies, the thermocouple system will cool down instantly. The
sensor will close the electromagnetic valve cutting the gas flow off. This will stop
the gas from flowing through the system, turning the heater off.
086 100 (ALVA) 2582
e-mail: [email protected]
Q: What is infrared heating?
A: Infrared heating systems refer to pieces of equipment or appliances that are
placed inside a space to provide heating. Heating occurs due to radiation heat
transfer. Radiation heat transfer is the exchange of thermal energy between two
or more bodies.
The ceramic panels create infrared heating, heating objects around the heater
as well as the air (convection heating).
Q: What is an ODS (Oxygen Depletion Sensor)?
A: A safety device that activates the heaters’ monitoring device in case
excessive levels of CO² (carbon monoxide), are detected. Continuous burning
reduces the levels of oxygen, causing the pilot flame to become unstable and lift
off the thermocouple (flame failure protection device) tip. The appliance then
turns off automatically long before the situation becomes dangerous.
Q: What is a positive off switch?
A: A positive off switch enables the
user to switch the appliance off without
having to close the valve on the cylinder
(like a stove or BBQ).
* Positive Off - Heater Can Be
Switched Off At Control Knob
* Oxygen Depletion System
(ODS) Safety Feature Shuts
Heater Down If Carbon
Monoxide Levels In Room
Reach 200 Parts Per Million
* Spares Readily Available
* Variable Heat Control
* Instant, Powerful Heat
* Economical To Run
* Safe & Easy To Use
* Flame Failure Safety Device
Off Completely If Pilot
Flame Dies
That Shuts The Gas Flow
Features & Benefits Of Owning An ALVA Gas Heater:
Contact Details:
Heater FAQ’s:

Q: How long is the heater supposed to burn for?
A: Refer to your instruction manual or technical data sticker on the back of your
heater. It will supply the g/h (grams per hour)consumption. Take the weight of
your gas cylinder e.g. (9kg = 9000g) and divide it by the g/h of your appliance.
The total you get will be the maximum amount of hours the appliance will be
able to burn for. (eg. 9000g / 265g/h = 34hrs at max)
Q: Can I see if the cylinder is over-filled?
A: The cylinder neck contains information on the weight of the cylinder. The
tare weight (TW) is the weight of an empty cylinder. Add the tare weight to the
capacity of the cylinder (e.g. TW – 9.4 and capacity 9 = 18.4kg) and weigh it. If
it exceeds the total weight, then your unit is over-filled. In such an instance, the
cylinder must be returned to the re-filling station. Users are no longer allowed to
purge the excess gas themselves.
Heater FAQ’s: (continued...)
Q: Can a cylinder be overfilled?
A: Yes. Cylinders should only be filled to 80% of the
cylinder capacity. This allows for gas expansion/
vaporization in the remaining 20% space.
If the cylinder is filled to the top, and then warmed, the
liquid will expand and the cylinder can burst open. This
is very dangerous and could cause serious damage and
probable injury. It should therefore be kept away from
extreme heat. Over-filling also causes issues with a gas
appliance not functioning correctly as liquid gas is being
pumped into the regulator, blocking it up.
GAS CYLINDER:
A 9kg ALVA gas cylinder with a 5/8 inch BSP left hand
thread is recommended.
This matches the supplied regulator.
Cylinders must be stored in an upright position, in a well
ventilated and damp free area and out of reach of children.
The cylinder must never be stored where temperatures can
reach or exceed 50’C.
DO NOT store the cylinder near open flames, pilot lights or
any other sources of ignition.
DO NOT SMOKE WHILE HANDLING THE CYLINDER.
A 9kg ALVA gas cylinder
Q: What effects do separate burner chambers have on a heater?
A: On older heater models all three ceramic panels were mounted on a single
burner chamber. This allowed gas to “drift” to non-burning panels and escape
through it, allowing a slight increase in the gas smell and the wasting of fuel. The
new generation of heaters have 3 independent gas chambers. This prevents the
gas from floating to unused panels and thus reduces gas emission odours.

Heater Set Up:
This heater makes use of an industrial cylinder (9kg
cylinder recommended) with a 5/8” BSP thread; horizontal
exit valve. The Bullnose regulator
supplied with the heater tightens to the left hand side
(anti-clockwise). (Figure A)
If you have bought a new gas cylinder, the cylinder needs
to be purged (cleared out), before it’s first use. If it is not
purged of air, the heater will not work properly. This should
Fig.A
happen at the gas filling station when you fill up the cylinder. Always check this
with your gas supplier.
Advise customers to be sure that this is
the product they need before opening
and removing the heater from the
packaging.
Assemble the unit.
Check if the nose cone is present, secure
and in good condition. (Figure B)
1.
2.
3.
Fig.B
The regulator goes directly
into the cylinder valve. Always
make sure the regulator
bottoms fully. The use of any
adaptors is illegal.
Screw the regulator into the
cylinder valve. DO NOT use a
tool to tighten the regulator; it
is to be hand-tightened only.
Open the control valve 1½ turns
to the left (anti-clockwise).
(Figure C)
1.
2.
3.
Fig.C Fig.D
Push the control knob down for at least
10 seconds, but DO NOT try to ignite the
heater. This will allow gas to flow through
the heater,making the leak test possible.
DO THE LEAK TEST (see next page)
Place the cylinder in the heater cabinet
by securing the rear guard in place.
(Figure D)
4.
5.
6.
Fig.E

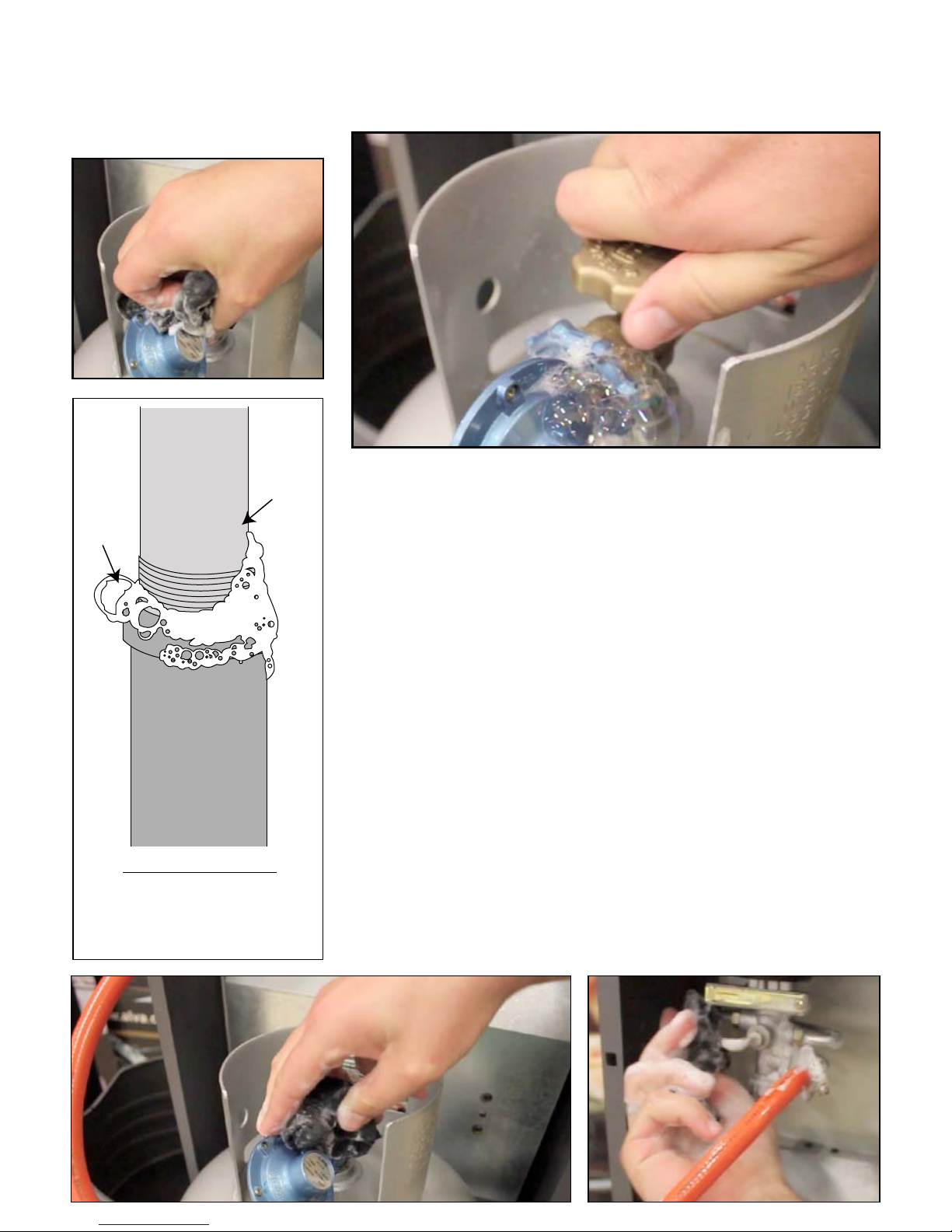

Leak Test:
The leak test must be carried out in a well-ventilated area, free from any flames
or other sources of ignition.
1.
2.
3.
4.
5.
6.
7.
With the cylinder connected to the heater. Open
the cylinder valve.
Brush the connections (heater to cylinder) with a
solution of equal parts soap and water (make sure
it’s foamy).
A stream of bubbles forming indicates a gas leak.
(See Fig.F)
If bubbles appear, turn the cylinder valve OFF
(clockwise) and disconnect the heater from the
gas cylinder.
Tighten the connection and retry the leak test.
If you are unsure or if you cannot tighten the
connection, place the cylinder outside in a cool,
well-ventilated area and contact ALVA on 086 100
(ALVA) 2582.
A leak between the heater and cylinder can lead
to a high pressure fire, which is very dangerous
and can result in extensive injury or even death.
Fig.F
Foamy
bubbles
indicate a
leak
Connection
in assembly
Connections to be leak tested
Regulator into cylinder
Hose to regulator
Hose to appliance

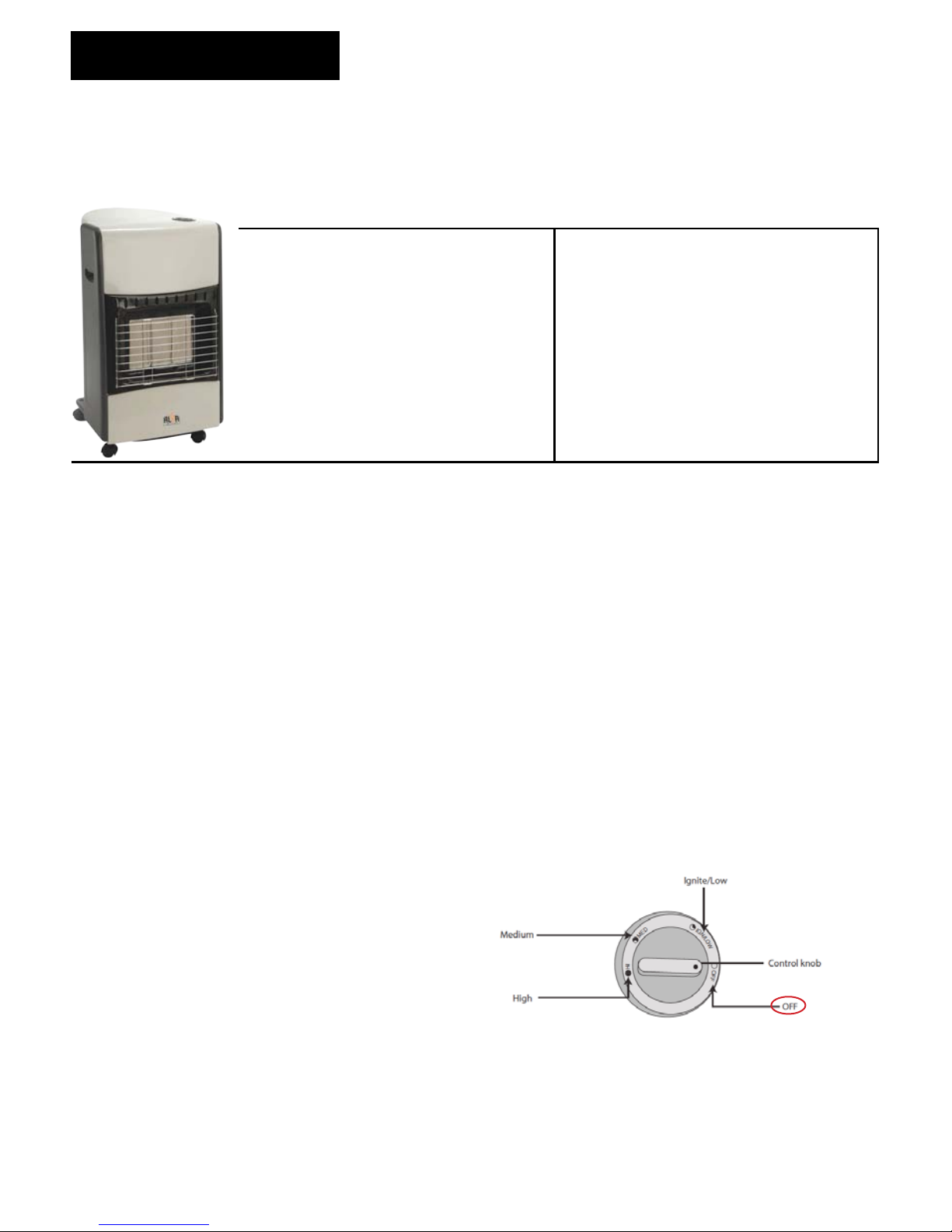

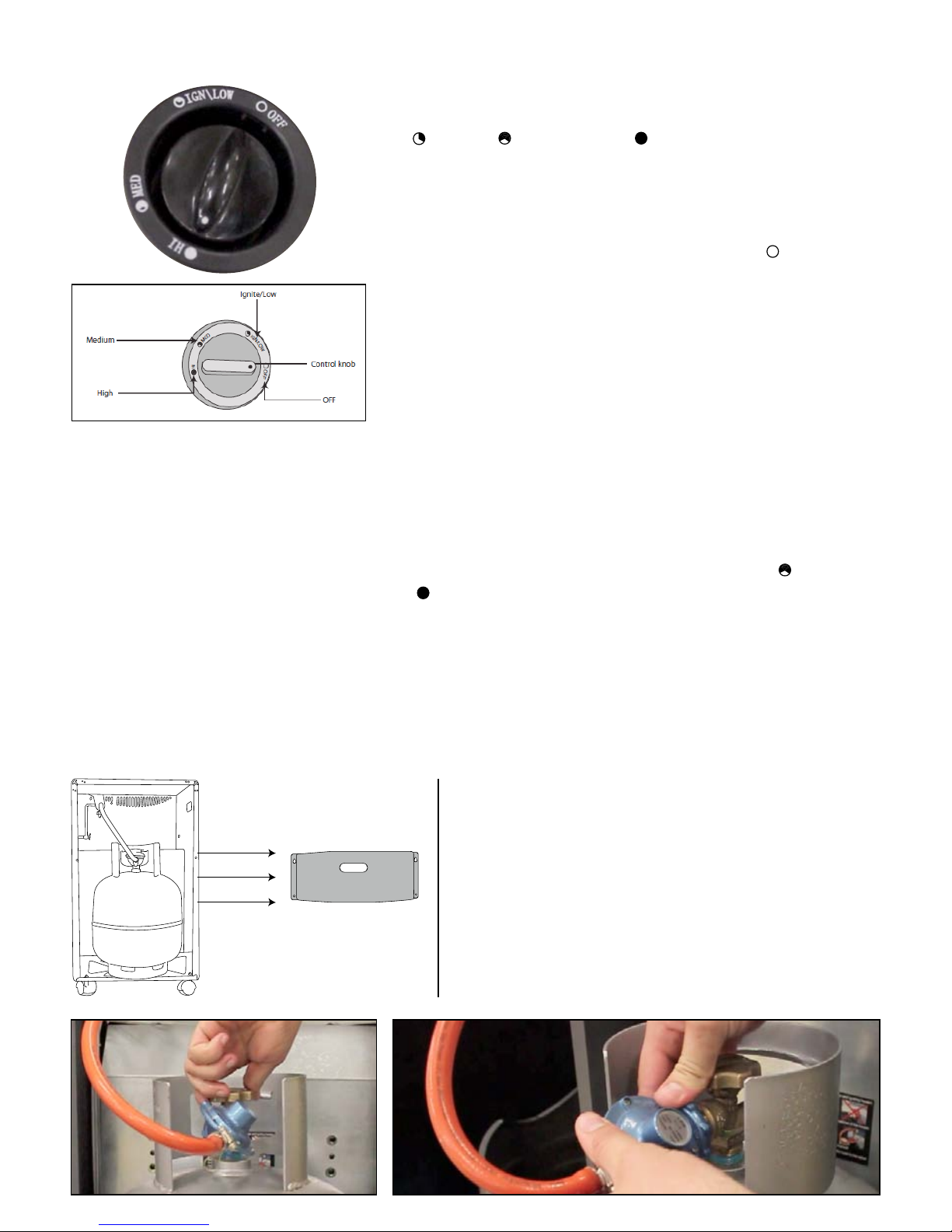

Using The Heater:
Changing The Cylinder:
This heater can be regulated to three
different heat selections:
Open the cylinder valve by turning the cylinder
valve to the left.
Press the control knob down at the “ OFF”
position. Hold the control knob down for ±10-15
seconds.
While holding it down, turn the control knob
anti-clockwise to Ignite/Low. The heater should
make a click sound and you should see a
spark. The pilot flame should ignite. Once the
pilot flame ignites hold down the knob for
another 10-15 seconds.
Repeat step 3 if the pilot flame does not stay
lit. This may require more than one attempt.
Once the pilot flame and centre panel are
burning, you can select the settings “ MED” or
“ HI” by depressing the knob slightly and
turning it to the desired setting.
and“ LOW” “ MED” “ HIGH”
1.
2.
3.
4.
5.
This heater must be turned
off using the control knob
first (Figure G) and only then
closing the cylinder valve.
This heater has a positive OFF
valve. Use the control knob
to turn it OFF before closing
the cylinder valve.
Fig.G
Make sure you cylinder valve is closed (by turning it clockwise). Allow the heater
to fully cool before replacing the cylinder. Open the rear of the heater to expose
the cylinder. (Figure L)
Remove and replace the cylinder.
ALWAYS check that the regulator-sealing
washer (nose cone) is intact and in place
before reattaching the regulator to a
cylinder. (Figure B - Page 4)
DO NOT attempt to remove the regulator
while the heater is on or if the cylinder
valve is not closed.
Fig.H

Using The Heater:
Important Safety Information:
Always make sure the heater is OFF and cool, with
the cylinder valve closed, before conducting any
maintenance.
The heater should be checked once a year by a
qualified technician.
If faults are suspected or detected, stop using the
heater and contact ALVA.
Clean the exterior and storage area of the heater
when required to remove dust and prevent lint build
up.
DO NOT use abrasive products to clean the heater;
these may damage the paint work.
While in operation the pilot flame should be steady. If
it flickers or is yellow the heater needs to be serviced.
(Fig.I)
1.1.
2.
3.
4.
5.
6.
Fig.I
Core
GOOD
BAD
Not enough air
BAD
Too much air
If any part of the heater is in need of replacing, use only
original parts. Using any other spare parts is dangerous
and will void the warranty.
When the heater is not going to be used for an extended period of time, keep it
covered or in its box, to prevent dust from settling on the panels. When removing
the heater from storage, use a vacuum cleaner to vacuum the panels before re-
use.

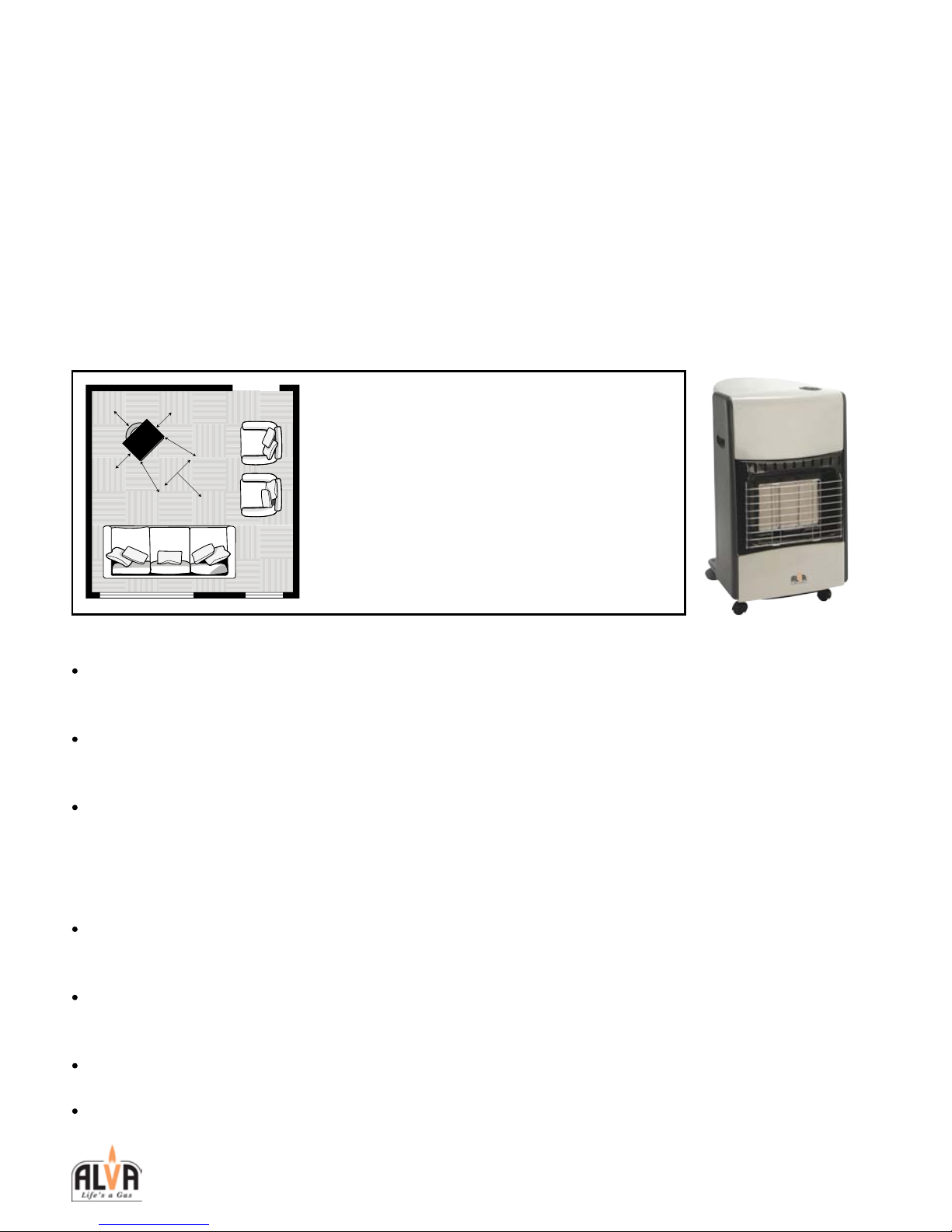

THIS UNIT MUST BE THOROUGHLY CHECKED BEFORE USE.
Ensure that all the gas fittings are correctly and firmly fitted before every use.
DO NOT use this heater in an enclosed area, which could restrict airflow, as this
is a flue-less heater (It does not have a fixed chimney). Always make sure there
is enough fresh air entering the room, by opening a door or window in the same
room.
DO NOT operate this heater in a bedroom, caravan, boat or any area less than
80 cubic meters(roughly 5 x 5 metres).
DO NOT leave the heater unattended while in use.
Ensure that the gas supply is turned OFF after use and while the heater is
unattended.
DO NOT move the heater while in use.
DO NOT place objects on or against the heater.
DO NOT use a naked flame to test for leaks. Follow the Leak Testing procedure
outlined under ‘LEAK TEST’.

Important Safety Information: (continued...)
Contact Details:
NEVER use this heater with a cylinder other than the size recommended
DO NOT unscrew the regulator while the heater is on or if the cylinder valve is open.
When turning the heater off, first turn the gas off at the control valve (on the heater) and
then make sure to close the cylinder valve.
For safety reasons, only a qualified technician may execute maintenance and repairs. The
guarantee for the heater will be rendered void if the heater is serviced or repaired by any
one other than an appointed technician.
The heater should be inspected once a year by a qualified technician, to make sure the
unit is safe and fault free.
The operator is responsible for the safety of all third parties while the heater is in use.
ALVA: 086 100 (ALVA) 2582
OR email: [email protected]
Correct Positioning:
500mm
500mm
500mm
1m
1m1m
DO NOT place the heater near walls, curtains or
furniture while in use. The heater should always
face the centre of the room.
The recommended positioning of a gas heater
in any living environment. Always have a
clearance of at least 500mm on the sides and
back and ±1000mm (1m) in front of it.
24 Month Peace Of Mind Repair Warranty:
LOGIK Indoor Heaters are warranted to the original purchaser to be free of defects in
workmanship and materials for a period of 24 months from the
date of purchase.
The retailer, distributor, or manufacturer will not be liable for incidental or
consequential damage, or loss as a result of the installation and/or
operation of this product.
Modifying or tampering with any part of the heater is illegal and unsafe and will
void your warranty.
The heater should be serviced annually by a competent registered person.
How Our Service Dept. Attends To Calls Logged:
If a customer contacts our call centre they will speak to one of our highly
trained customer service staff, who will troubleshoot their problem over the
phone with them.
If they are unable to successfully solve the problem telephonically, the
customers details are taken and a highly trained ALVA technician is despatched
to their premises.
If the problem is covered under the warranty for that product, then there is
no cost to the client for the callout and repair work.
If the problem is not covered under the product warranty, then the customer
is liable for the cost of labour and parts.
