Amarey A90+ User manual

Amarey Customer Care

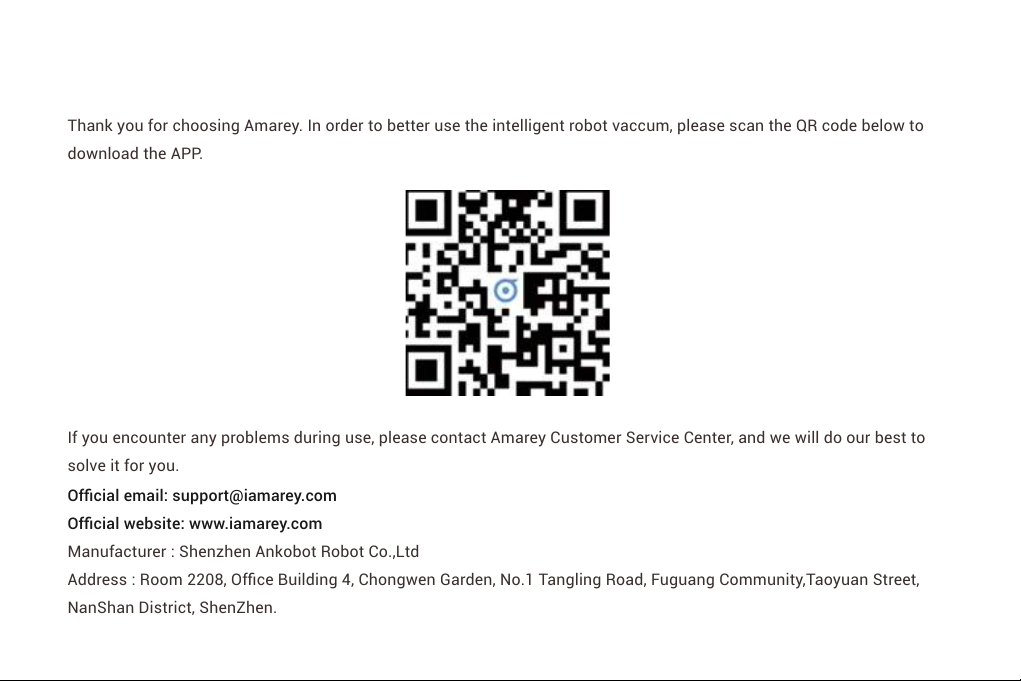

Thank you for choosing Amarey. In order to better use the intelligent robot vaccum, please scan the QR code below to
download the APP.
If you encounter any problems during use, please contact Amarey Customer Service Center, and we will do our best to
solve it for you.
Official email: [e-mail]
Official website: www.iamarey.com
Manufacturer : Shenzhen Ankobot Robot Co.,Ltd
Address : Room 2208, Office Building 4, Chongwen Garden, No.1 Tangling Road, Fuguang Community,Taoyuan Street,
NanShan District, ShenZhen.
1

Important Safety Instructions
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

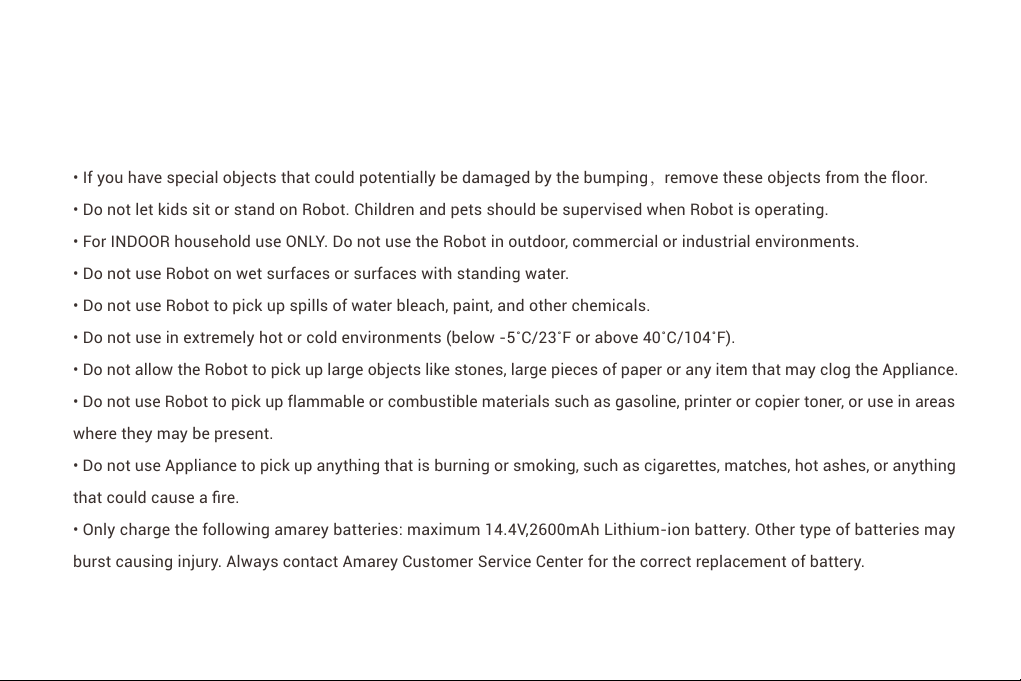

• If you have special objects that could potentially be damaged by the bumping，remove these objects from the floor.
• Do not let kids sit or stand on Robot. Children and pets should be supervised when Robot is operating.
• For INDOOR household use ONLY. Do not use the Robot in outdoor, commercial or industrial environments.
• Do not use Robot on wet surfaces or surfaces with standing water.
• Do not use Robot to pick up spills of water bleach, paint, and other chemicals.
• Do not use in extremely hot or cold environments (below -5˚C/23˚F or above 40˚C/104˚F).
• Do not allow the Robot to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
• Do not use Robot to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas
where they may be present.
• Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything
that could cause a fire.
• Only charge the following amarey batteries: maximum 14.4V,2600mAh Lithium-ion battery. Other type of batteries may
burst causing injury. Always contact Amarey Customer Service Center for the correct replacement of battery.
2

• The battery must be removed and discarded according to local laws and regulations before disposal of the Robot.
• Please dispose of used batteries according to local laws and regulations.
• WARNING Chemical Exposure: If the battery pack is leaking, do not allow the liquid to come in contact with skin or eyes.
If contact has been made, wash the affected area with copious amounts of water and seek medical advice. Place the battery
(the used battery pack included when the robot will be disposed) in a sealed plastic bag and dispose of safely according
to local environmental regulation.
• WARNING Fire or Explosion Hazard: Do not crush or dismantle battery packs, Do not heat or place the battery pack near
any heat source or direct sunlight, Do not incinerate or short-circuit the battery pack. Do not subject batteries to mechanical
shock.
Battery and Charging/Information
Lithium-ion Battery
Important: Lithium-ion batteries and products that contain Lithium-ion are subject to stringent transportation regulations.
If you need to ship this product (with the battery included) for service, travel or any other reason, you MUST comply with
the following shipping instructions:
• Remove the Lithium-ion battery from the product.
• Place a piece of tape over the battery's metal charging contacts.
3

• Reinstall the battery (with the tape on it) in the product and secure the battery cover.
• Pack the product in original packaging or in a suitable packaging that prevents any movement during transportation.
• Can only use land transportation (Air transport is prohibited).
Battery Storage
• If the robot will not be used for a long time, please remove the battery. Then store the robot and battery in a cool and dry place.
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
(2) This device must accept any interference received, including interference that may cause undesired operation. Any
Changes or modifications that not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
4

CE Warning
1. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
2. Adapter shall be installed near the equipment and shall be easily accessible.
3. The operating temperature of the device can′t exceed 40℃ and shouldn′t be lower than 0℃.
4. The plug considered as disconnect device of adapter.
5. The device complies with RF specifications when used at 20cm from the body.
6. Hereby, Shenzhen Ankobot Robot Co.,Ltd declares that this product is in compliance with essential requirements and
other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states.
5

CONTENTS
1. Package Contents............................................................................................................................7
2. Instructions....................................................................................................................................11
3. Maintenance..................................................................................................................................24
4. Troubleshooting.............................................................................................................................29
5. Technical Specifcations................................................................................................................33
6

1. Package Contents
1.1 Package Contents
Amarey A90+ Self-Empty Base 4 X Side Brush 2 X Cleaning Cloth
Cleaning Tool2 X Dust BagSponge Filter and High Efficiency Filter
7

1.2 Product Diagram

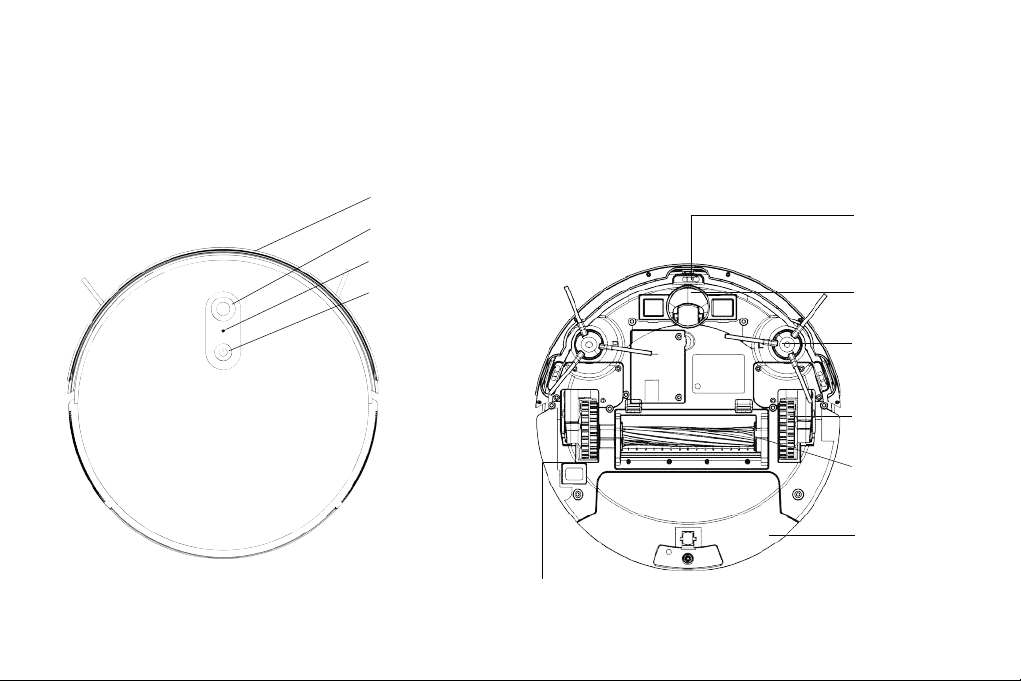

①Top View ②Bottom View
Anti-collision Sensors and Bumper
Anti-fall Sensors
Universal Wheel
Side Brushes
Wheel
Main Brush
Dust Bin
Reservoir 2 in 1
Main Power Switch (On/Off)
Camera
Wi-Fi Indicator
Start/Pause
8

③Dust Bin
Primary Filter
Sponge Filter
High Efficiency Filter
Dust Bin Cover
Water Inlet
Dust Bin Release Button
9

④Self-Empty Base
Upper Cover
Signal Emission Area
Charging Indicator
Charging Contact Points
Vacuuming Mouth
10

2. Instructions
2.1 Notes Before Cleaning
Before robotic vacuum works, please refer to the following guidelines to check the cleaning area.
Remove power cords and small
objects from the foor that the
robot could be obstructed by.
Before using A90+ on a rug with
tasseled edges, please roll the rug
edges up.
When the robot is cleaning, please
put away the objects on the edge
of the stairs to avoid being pushed
downstairs by the robot.
Do not use A90+ in a space less
than 2.4 inches to prevent it from
getting stuck. If necessary, you
can elevate your furniture.
11

2.2 Preparation
①Before usage, please remove the protective strip.
②Install the side brushes by pressing them into each slot until you hear a “click”.
Protective strip
Protective strip
12

2.3 Charge The Robot
③Turn on the main power switch at the bottom(“1” refer to power on, “0” refer to power off), the robot will play the booting
voice in about 10s, and you can start using it after the voice broadcast is over.
①Please place the self-empty station against the wall on a flat ground. Ensure a space of at least 0.5 meters on both sides
of the dust collection station and at least 1.2 meters in front of it.
13

②Connect the plug of the power cord to the socket. When the dust collection station is connected to the power, the white
light is on, otherwise robot vacuum cannot be automatically charged back.
③Turn on the power switch at the bottom of the robot, and then place the robot on the charging stand correctly. With the
announcement of "charging", the robot starts to charge.
Tips:
· The robot cannot be charged when the power is off.
· For the first use, please fully charge the robot. It takes about 3 hours to fill.
· When charging, please do not install mop components to ensure charging safety and prevent damp rags from damaging the floor.
· In order to facilitate the robot to return to the charging station, it is recommended that the robot start from the charging station and do not move the charging station
randomly.
· The robot cannot be turned on when the battery is low, please turn on the power switch and place it on the charging station. The robot will automatically turn on, and
it work normally when power is >20%.
· The vacuum robot is equipped with a high-performance lithium battery. In order to maintain battery performance, please keep the vacuum robot charged in daily use.
14

2.4 Install The Dust Bag
(1) Open the upper cover (2) Install a new dust bag (3) Make sure the dust bag
is in place
(4) Close the cover
15

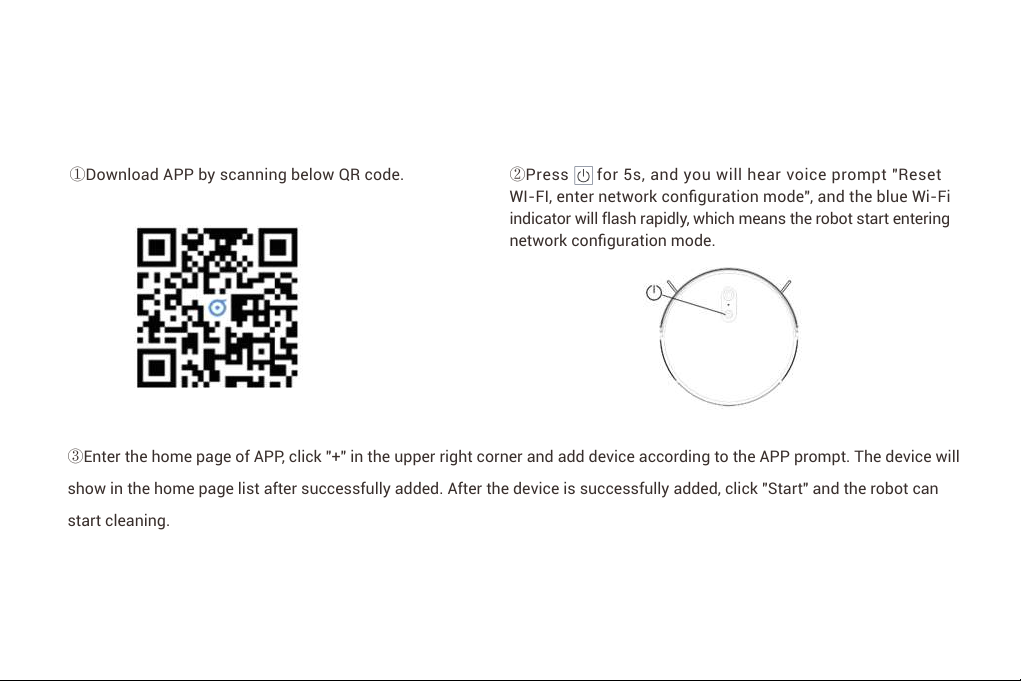

-APP control
①Download APP by scanning below QR code.
②Press for 5s, and you will hear voice prompt "Reset
WI-FI, enter network configuration mode", and the blue Wi-Fi
indicator will flash rapidly, which means the robot start entering
network configuration mode.
③Enter the home page of APP, click "+" in the upper right corner and add device according to the APP prompt. The device will
show in the home page list after successfully added. After the device is successfully added, click "Start" and the robot can
start cleaning.
16

-Voice Control
How to connect Siri?
Open the Amarey APP, enter [My] -> [Voice Control] -> [Siri Shortcut Command], click on the "+" on the upper right, and enter
[Add Finger Order].
① Click the "+" on the right
to select the instructions
that need to be added.
② Manually enter the "Shortcut
Command Name", and then
click "Add to Siri".
③ After adding successfully, you
can see the type and content of
the instruction you added.
④ Wake up Siri and say the preset
"shortcut command name" to control
the robot vacuum.
17

How to Connect Amazon Alexa？
The Amarey A90+ robot vacuum supports Alexa voice control.
You can learn how to configure Alexa through the URL below.
https://app.ankobot.com:8143/web/APPHelp/us/voice/alexa.html
Tips:
·Due to App upgrading, the operation may have little difference with above instruction, please follow the instruction in APP.
· Only support 2.4GHz WIFI, not 5GHz.
· Siri voice commands can support English, French, Spanish, Italian, German, Portuguese and other language control.
18

2.6 2 in 1 Vacuum and Mop
Note:
· You can control the water flow through the APP.
· Empty the Reservoir and remove the cleaning cloth plate before cleaning on carpet.
· Be sure to use only water, and do not put washer fuid or any other cleaning solution in the reservoir.
· After the robot fnishes mopping, empty any remaining water from the reservoir.

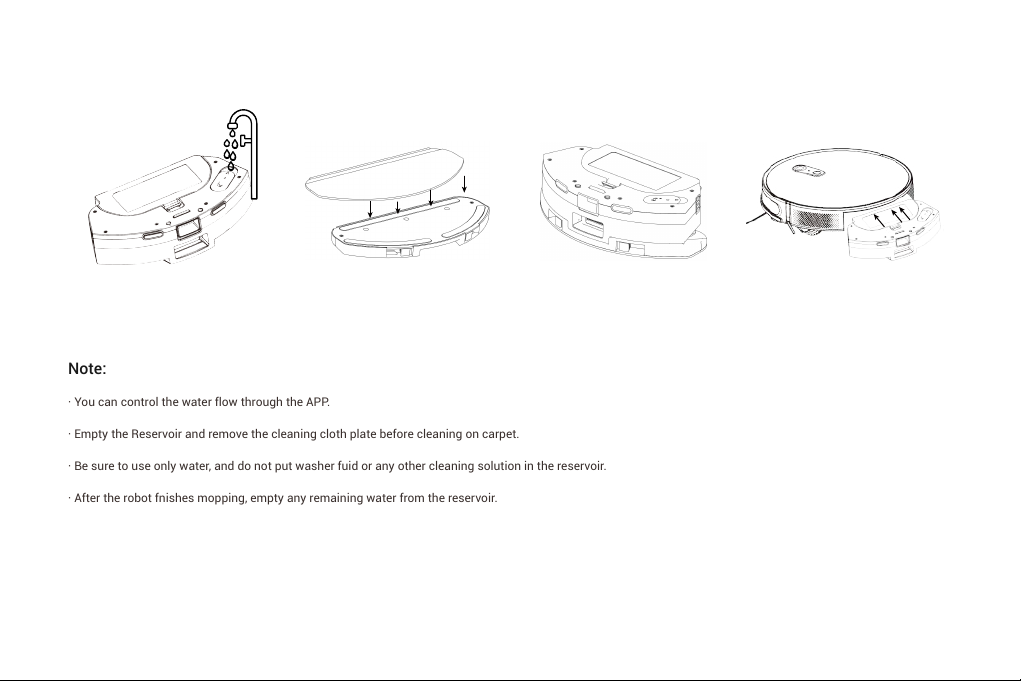

① Remove the dust bin, and
pour water into the reservoir
through the water inlet.
②Stick the cleaning cloth on
the plate.
③Fix the cleaning cloth plate
on the dust bin.
④Install the dust bin back into
the robot.
19
