A90 Robotic Vacuum Cleaner User Manual
Please read this instruction carefully before usage and keep it properly

1
．
Important Safety Instructions
• If you have special objects that could potentially be damaged by the bumping
，
remove these objects from the floor.
• Do not let kids sit or stand on Robot. Children and pets should be supervised when Robot is operating.
• Do not make Robot for outdoor use.
• Do not clean wet messes with your Robot.
• Do not use Robot to pick up spills of water bleach, paint, and other chemicals.
• Do not keep Robot at a freezing temperatures.
• Do not use Robot to pick up flammable materials such as gasoline. printer, etc.
• Ensure that Robot cannot get caught on clothing, socks, pull cords for blinds or curtains, power cords, etc.
• Only charge the following amarey batteries: maximum 14.4V,2600mAh Lithium-ion battery. Other type of batteries may
burst causing injury. Always contact amarey Customer Service Center for the correct replacement of battery.
• Always remove the battery from Robot and accessories before long-term storage or transportation.
• The battery must be removed before Robot is disposed. Remove Robot's two Battery Door's screws, and then remove
the battery by disconnecting the quick connector.
• WARNING Chemical Exposure: If the battery pack is leaking, do not allow the liquid to come in contact with skin or eyes.
If contact has been made, wash the affected area with copious amounts of water and seek medical advice. Place the
battery (the used battery pack included when the robot will be disposed) in a sealed plastic bag and dispose of safely
according to local environmental regulation.
• WARNING Fire or Explosion Hazard: Do not crush or dismantle battery packs, Do not heat or place the battery
1

the battery pack near any heat source or direct sunlight, Do not incinerate or short-circuit the battery pack. Do not subject
batteries to mechanical shock.
Battery and Charging/Information
Lithium-ion Battery
Important: Lithium-ion batteries and products that contain Lithium-ion are subject to stringent transportation regula
-
tions. If you need to ship this product (with the battery included) for service, travel or any other reason, you MUST
comply with the following shipping instructions:
• Remove the Lithium-ion battery from the product.
• Place a piece of tape over the battery's metal charging contacts.
• Reinstall the battery (with the tape on it) in the product and secure the battery door.
• Pack the product in original packaging or in your own packaging that prevents any movement during transportation.
• Ship via ground transportation only(no air shipping).
2
Battery Storage
• If storing Robot a long time, remove the battery firstly.
Then store Robot and the battery in a cool, dry place.
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,
(2) This device must accept any interference received, including interference that may cause undesired operation. Any
Changes or modifications that not expressly approved by the party responsible for compliance could void the user's authori
-
ty to operate the equipment.
This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
CE Warning
1. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
2. Adapter shall be installed near the equipment and shall be easily accessible.
3. The operating temperature of the device can’t exceed 40℃ and shouldn’t be lower than 0℃.
4. The plug considered as disconnect device of adapter.
5. The device complies with RF specifications when used at 20cm from the body.
Hereby, Shenzhen Ankobot Robot Co.,Ltd declares that this product is in compliance with essential requirements and
other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states.
3

2．About Your Amarey A90
①.Top View
Infrared Bumper
Camera
Wi-Fi Indicator
Start/Pause
Swivel Wheel
Charging Contact Points
Main Power switch (On/Off)
Cliff Sensor
Side Brushes
Wheel
Rolling brush
Dust Bin
②.Bottom View
Wi-Fi Indicator
Start/Pause
4

Filter Lower Cover
Primary Filter
High Efficiency Filter
Sponge Filter
Filter Upper Cover
Bin Release Button
Upper cover of Dust Bin
③. Dust Bin
Primary Filter
Upper cover of Dust Bin
5

Charging indicator
Signal emission Area
Charging Contact Points
Adapter
④.Charging Dock/Adapter
6

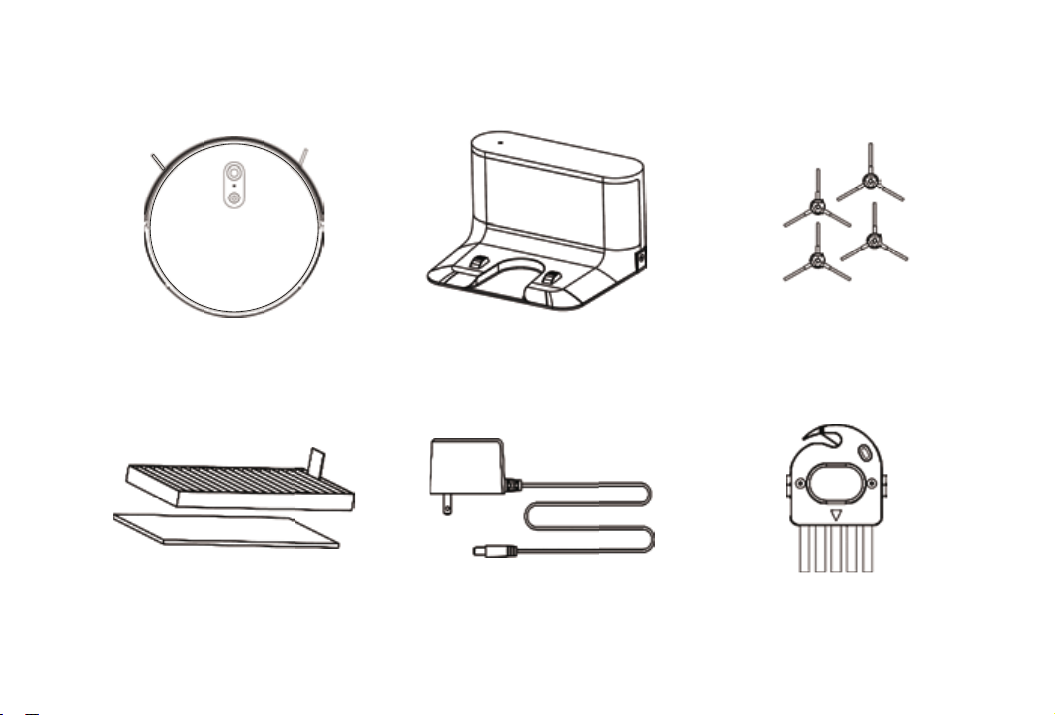

amarey A90
Charging Base
4 X Side Brush
Sponge Filter and
High Efficiency Filter
Adapter
Cleaning Tool
⑤.What’s in the Box
7

①.Important Tips Before Using A90
3．Using Your Amarey A90
Remove power cords and
small objects from the floor
that may entangle A90.
Before robotic vacuum works, please refer to the following guidelines to check the cleaning area.
A90 is not suitable for
long-pile carpet. If the carpet
has tassels, please roll up
them before usage.
Anti-fall sensors can prevent
A90 from falling down stairs.
But it may work less
effectively if sensor is dirty or
work on reflective or very
dark floor. It is recommended
to place a boundary strip to
block off.
Keep A90 away from
spaces lower than 2.4
inches to prevent A90 from
getting stuck. If necessary,
place a barricade to block
off the area or elevate your
appliance.
8

②. Preparations
󽧐
1
󽧑
Position the Charging Base on a hard level surface and against a wall.
Ensure the place is an open & uncluttered area leaving at least 4ft in the front and 1.6ft on both sides.
󽧐
2
󽧑
Connect the round end of the adapter into the power socket on the Charging
Dock and the other end into a wall outlet. When connect well, the white light will
be on. Otherwise, the robot can’t dock.
Connect the round end of the adapter into the power socket on the Charging
Dock and the other end into a wall outlet. When connect well, the white light will
9

Protective strip
protective strip
󽧐
3
󽧑
Before usage, Please remove the protective strips.
(4) Install the side brushes by pressing them into each slot until you hear the a “click”.
10

③. Charging Robot
󽧐
5
󽧑

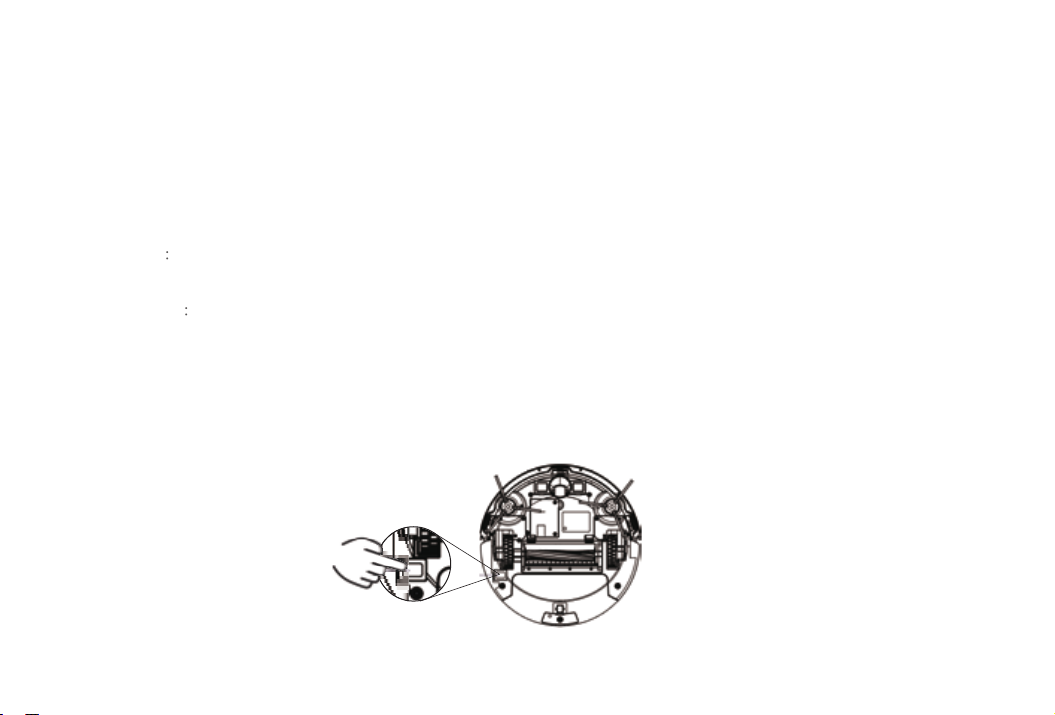

Turn on the Main Power Switch at the bottom of Robot (1 refer to power on, 0 refer to power off). The robot can start
working after startup music.
Place robot onto the Charging Dock, ensure the Charging Contact Points on
Charging Dock and the bottom of robot are contact well. The robot will start
charging after hearing “in charging”. Battery fully charged may cost around
4.5h.
Tips: 1. The robot can’t power on when in low battery. Please turn on the power
switch at the bottom and put robot on charging base, the device will power on
automatically. When the power >20%, it can work normally.
2. Lithium battery pack is built in the robot. To maintain battery performance,
please keep the robot in charging state.
11

④. Download and Install APP
(1) Download and install app
Download APP by scanning below QR code.
(2) Reset Wi-Fi
(2) Reset Wi-Fi
Press the key “ ” for 5S, and you will hear voice prompt
"Reset WI-FI, enter network configuration mode", and the blue
Wi-Fi indicator will flash rapidly, which means the robot start
entering network configuration mode.
(3) Add device
Enter the home page of APP, click "+" in the upper right corner and add device according to the APP prompt. The device will
show in the home page list after successfully added.
Tips:
·Due to App upgrading, the operation may have little difference with above instruction, please follow the instruction in APP.
·Only support 2.4GHz WIFI, not 5GHz.
12
Press the key “ ” for 5S, and you will hear voice prompt

⑤.Clean Mode
(1) Auto Cleaning
Method 1: Power on robot, after the startup music, press button on panel, auto cleaning will start.
Method 2: Click the “Start cleaning” button thru APP to start cleaning (press the pause button to pause the current task).
(2) Spot Cleaning
Reminder:
If power is less than 20%, Robot will not be able to carry out cleaning task, please charge it before next cleaning.
If power is less than 20% during cleaning, the robot will dock to charging base. When power up to 80%, it will start resume
cleaning.
Click Spot cleaning on APP Remote Control interface. After hearing
“Start Spot Cleaning”, the robot will clean in “Spiral” route. When cleaning
is finished, robot will keep in standby mode.
13
Method 1: Power on robot, after the startup music, press button on panel, auto cleaning will start.
Click Spot cleaning on APP Remote Control interface. After hearing

(3) Schedule Cleaning
Schedule cleaning can be set thru APP. The robot will automatically start cleaning at the specified time you set and return to
the charging base after cleaning.
1.Area cleaning
After Smart Map generated successfully, the user can divide the map into
different areas according the cleaning needs. You can set one or more cleaning
areas. Select the areas to clean after setting, the robot will only clean the select
-
ed area, and do not clean other areas.
2.Set up boundary area
In addition, some areas can be set as forbidden zones. The robot will not enter
the boundary area after setting, only clean other areas.
(4) Smart Area
Reminder
：
• Please make sure the robot has completed the smart map building before use this function. Re-building map will lose the
boundary area you set before.




14

(5) Docking Mode
Auto mode
󾋴
When the battery power is low, Robot will prompt “Low power, start docking mode”, and start finding charging
base to recharge.
Manual mode
󾋴
In any cleaning mode, press clean key twice or use app control, after voice prompt "start docking mode”, the
robot will automatically find the charging base to recharge.
（
6
）
Power Off
If the robot is not used for a long time, please power it off thru turning off the power switch at the bottom.
• The boundary area may be invalidated due to moving the charging base or furniture. So please do
not to move or interfere
the robot during cleaning.
Due to APP updating, the functions and details may have some changes, please refer to the actual version.
15

Press Bin Release Button to remove dust bin and clean it.
Tip: Please empty the dust bin after each usage.
4．Product Maintenance
Tip: Before maintenance of the robot and spare parts, please turn off the main switch at the bottom.
①.Dust Bin
16

（
1
）

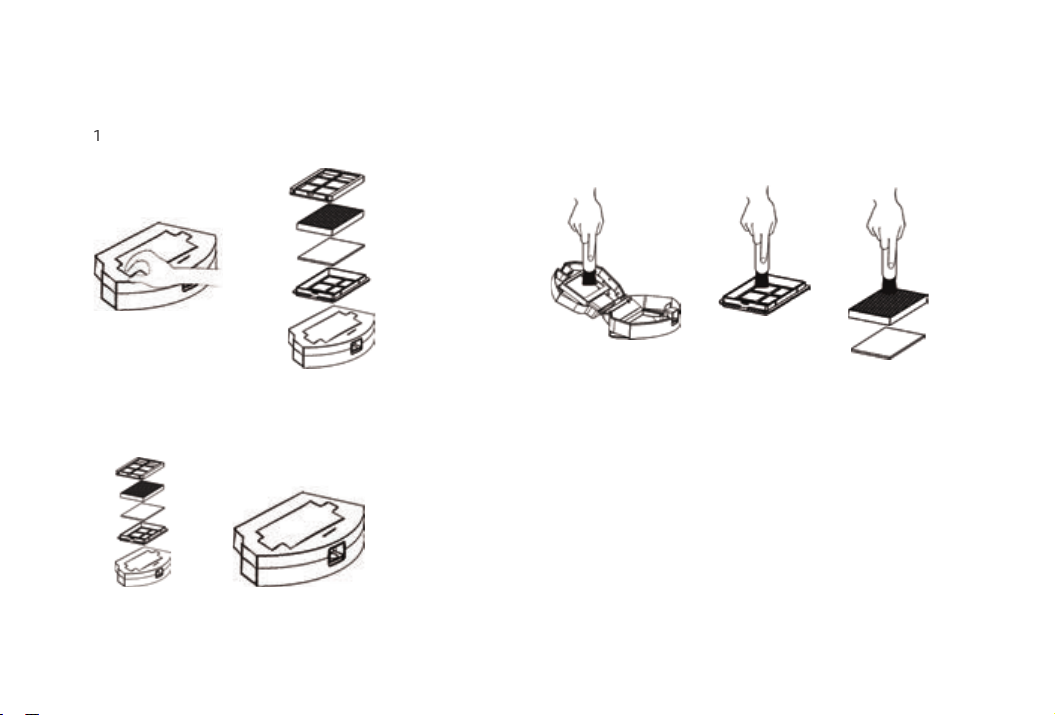

Take the filters out from the Dust Bin.
（
3
）
Put the filters back together in the Dust Bin.
Tip: Clean the filter once a week and replace it every 2 months.
②.Filters
（
2
）
Clean the Dust Bin and filters with provided Cleaning Tool.
17

③. Rolling Brush
Remove brush cover, take out the rolling brush, clean the vacuuming aisle by a cloth. If the rolling brush has hairs winded,
please cut them down with the knife on cleaning tool.
󾋸
󾋺 󾋻
󾋹
18

Tip: Please clean the rolling brush and side brushes once a week, change the side brush every 3 months, and change the
rolling brush every 6 months.
④.Side Brush
Pull out the side brushes, use the knife on cleaning
tool to cut winded hairs, and then use cloth to clean it.
⑤.Swivel Wheel
Clean the swivel wheel with a cloth.
19
