Amarillo 250 User manual
Amarillo
PUMP DRIVES
(250 HP THROUGH 350 HP)
INSTRUCTIONS FOR REPAIRING
MODELS 250, 300, and 350
Amarillo Right Angle Pump Drives, if properly installed and maintained, should
provide years of service with a minimum amount of maintenance. Repairs, when
required, usually involve bearing or gear replacement. While the job is not
difficult, it should only be performed in an adequately equipped shop by capable
personnel. It should be noted that any repairs made outside the factory without
consent of the manufacturer will void the warranty.
®
Catalog 0215
Amarillo Gear Company LLC
Post Office Box 1789
•
Amarillo, Texas 79105
•
2401 Sundown Lane (79118) 806
•
622
•
1273
•
FAX 806
•
622
•
3258
www.amarillogear.com
email: [email protected]
AMarmonWater/BerkshireHathawayCompany©AGC 2015
iiForm479
ATTENTION
Pleasenotethatgeardriveswithaserialnumbergreaterthan231989havealljointssealedwithLoctiteGasket
Eliminator515,insteadofgaskets.Loctite515isaformedinplacegasketmaterial,whichprovidessuperior
sealingoverconventionalgaskets.Afterdisassemblingforrepairorinspection,werecommendresealingwith
Loctite515.However,gasketmaystillbeused.Ifagasketisutilizedbetweenthehorizontalcarrierandthegear
caseforageardriveoriginallybuiltwithLoctite,thethicknessofthehorizontalouterspacer(550)willhaveto
bechangedtomaintaintheproperpositionofthehorizontalgear.Tocorrectthehorizontalgearposition,
increasethehorizontalspacerthicknessbythethicknessofthegasket.IfLoctiteisusedtore‐sealthegeardrive
thennochangesarerequiredtothehorizontalspacer.
iiiForm479
TABLE OF CONTENTS
Page
1.0 General Disassembly Instructions 1
2.0 Disassembly of Vertical Shaft Assembly 5
3.0 Disassembly of Horizontal Shaft Assembly 6
4.0 General Assembly Instructions 7
5.0 Assembly of Parts on the Vertical Shaft 8
6.0 Assembly of Parts on the Horizontal Shaft 10
7.0 Backlash Check 11
8.0 Tooth Contact Pattern Check 13
9.0 Backlash Adjustment 16
10.0 Final Assembly 17
11.0 Machining of New Gear Mount 18
1Form479
1.0 General Disassembly Instructions.
1.1 Refer to the appropriate cross sectional drawing during disassembly (Figures 1, 2
or 3).
1.2 Drain and dispose of the oil.
1.3 Remove the side inspection plate (not shown).
1.4 On models 300 and 350, loosen the two fittings on the heat exchanger (302) and
remove the heat exchanger, and mounting brackets (if used).
1.5 Match mark the horizontal shaft carrier (15) and the gear case (10).
1.6 Remove the horizontal carrier (15) from the gear case (10) using the following
procedure.
1.6.1 Install guide pins in two bolt holes on opposite sides of the horizontal
carrier.
1.6.2 A quick jerk up and down on the end of the horizontal shaft (500) will
usually pull the horizontal carrier out of the gear case. If the carrier
remains in place, deliver a sharp blow using a soft mallet to the side of the
shaft. This should loosen the horizontal carrier so that it can be pried out
of the gear case. Take care not to damage the gasket.
1.6.3 Guide the horizontal carrier assembly out of the gear case (10) using a
hoist,
1.7 Reach through the horizontal opening left by the carrier and remove the oil line to
the trust bearing carrier (12).
1.8 On models with non-reverse (Figure 1 or 2), remove the top cover (11) and non-
reverse clutch (24).
1.9 If the gear drive has a hollow shaft or solid shaft with non-reverse, match mark
the thrust bearing cover (21) and the thrust bearing carrier (12), then remove the
trust bearing cover.
1.10 Reach through the horizontal opening in the gear case and remove the cap screws
in the cup adjustment plate (480).
1.11 Lift the cup adjustment plate (480) and remove the shims (824). Note: The shims
are in two halves and should be kept separate.
1.12 Match mark the thrust bearing carrier (12) and the gear case (10). Remove the cap
screws and eye bolts in the thrust bearing carrier (12). Note the position of the two
eyebolts.
1.13 Install two eyebolts in the thrust bearing carrier (12) in the two tapped holes.
Using a hoist, slowly raise the vertical shaft assembly, taking care not to damage
the oil tube (801) or remaining oil lines.
1.14 Carefully set the assembly on a clean work surface, taking care not to damage the
lower bearing (601) or oil screw (19).
2Form479
1.15 If replacing the oil tube (801) remove the bottom plug (17) from the gear case
(10) and replace with a new bottom plug/oil tube assembly.
3Form479
Figure 1 Vertical Hollow Shaft
4Form479
Figure 2 Vertical Solid Shaft with Non-Reverse
5Form479
Figure 3 Vertical Solid Shaft without Non-Reverse
6Form479
Disassembly of the Vertical Shaft Assembly.
NOTE: Each gear drive contains several spacers. These spacers are not
interchangeable. Note the location of each spacer during disassembly to assure proper
reassembly.
1.16 Clamp the vertical shaft assembly in a heavy vise directly under the gear. Use
caution to avoid crushing the hollow vertical shaft.
1.17 Remove the drive sleeve locknut (702) using a spanner wrench or drift punch.
1.18 Bend the tab of the keyed washer out of the groove in the lower bearing locknut
(920) and remove the locknut using a spanner wrench or drift punch. Remove the
oil screw (19).
1.19 Install allthread in two holes, 180° apart, into the drive sleeve (700). Place a
spreader bar above a Porta-Power and fasten to the allthread with washers and
nuts. Pull the drive sleeve off of the shaft. Some heat may be required to make the
drive sleeve easier to remove. Be careful not to overheat the drive sleeve. Remove
the drive sleeve key.
1.20 The inner race of the thrust bearing (600) is pressed on the drive sleeve. The
thrust bearing carrier (12) can now be lifted off of the vertical shaft.
1.21 Remove the vertical spacer (450) and orient the assembly with the top of the
vertical shaft (400) up and place in a press.
1.22 If the gear is pressed on the shaft and is being replaced, press off the gear by
blocking under the gear and pressing on the end of the shaft (400). Remove the
vertical shaft gear key (910) and under gear spacer (451), if present.
If the gear is bolted to a gear mount, and the gear mount is being replaced, remove
the gear mount/gear assembly by blocking under the gear mount and pressing on
the end of the shaft (400). Remove the vertical shaft gear key (910) and under
gear spacer (451), if present.
If the gear is bolted to a gear mount, and the gear only is being replaced, remove
the bolts holding the gear to the gear mount. Do not press off the gear mount.
1.23 Remove the thrust bearing cup (600) from the thrust bearing carrier (12) with a
brass punch or a bearing puller.
1.24 Remove the thrust bearing cone (600) from the drive sleeve (700).
1.25 Insert allthread in two holes, 180° apart, in the cup adjustment plate (480). Place a
spreader bar, washers, and nuts on the allthread. Be sure to leave enough room to
place a porta-power ram between the spreader bar and the end of the shaft (400).
7Form479
1.26 Ensure that the cup adjustment plate (480) is centered with the outer race of the
lower bearing (601). Slowly apply pressure to the porta-power and pull the lower
bearing off of the shaft (400).
8Form479
2.0 Disassembly of the Horizontal Shaft Assembly.
2.1 Match mark the oil seal plate (16) and the horizontal carrier (15).
2.2 Remove the oil seal plate (16).
2.3 Loosen the horizontal locknut set (560) from the end of the horizontal shaft (500)
by removing the socket head cap screws.
2.4 Remove the locknut set with a spanner wrench or drift punch. Remove the thinner
portion first (Right Hand Threads).
2.5 Place the horizontal assembly in a press with the pinion down. Remove the
horizontal carrier (15) and outer bearing (602) by blocking under the horizontal
carrier and pressing on the end of the shaft (500).
2.6 For models with a locknut (561) retaining the gear proceed as follows:
2.6.1 Bend the tab of the keyed washer out of the locknut groove. Remove the
locknut using a drift punch or spanner wrench (Right Hand Threads).
2.6.2 Orient the horizontal shaft (500) vertically with the pinion up. Remove the
pinion by blocking under the pinion and pressing on the end of the shaft.
2.6.3 Turn the horizontal shaft (500) over and remove the inner bearing cone
(603) by blocking under the inner race and pressing on the end of the
shaft.
2.7 For models without a gear retainer, use the following procedure.
2.7.1 Orient the horizontal shaft (500) vertically with the pinion down.
2.7.2 Remove the pinion and inner bearing cone (603) by blocking under the
pinion and pressing on the end of the shaft (500).
2.8 Remove the horizontal shaft gear key (911).
2.9 Remove the inner and outer bearing cups (602 & 603) from the horizontal carrier
(15) using a brass punch or bearing puller.
9Form479
3.0 General Assembly Instructions.
3.1 Wash all disassembled parts and housings thoroughly with clean solvent. Clean
out all oil lines.
3.2 Check the new gear set (if required) to make sure it is a matched set. Our gears
are lapped in matched sets at the factory and must not be separated. Each set of
gears is assigned a serial number which is etched on each member of a set. Along
with the serial number, the mounting distance, part number, and minimum amount
of backlash is etched on each member.
3.3 Do not remove bearings from their cartons until they are needed for use. To
protect against contamination, cover any bearing that is not going to be used
immediately.
3.4 Inspect new replacement parts to ensure that there are no burrs on shoulders that
could cause assembly problems. Check for burrs on keys and keyways. Ensure
that keys fit properly in keyways and have a chamfer or radius on the edges.
3.5 When pressing ANY component on a shaft or into a housing, ALWAYS use an
antigalling compound.
3.6 The correct gear positions are obtained through the use of spacers (450 & 550).
The required spacer lengths will vary with changes in the mounting distances
(M.D.) of the gears. Spacer lengths should be changed if the M.D. of the new gear
differs more than 0.003 inch from the M.D. of the old gear. Usually spacer
changes are not required when replacing bearings only. If the gear case (10),
thrust bearing carrier (12), drive sleeve (700), or horizontal carrier (15) is
replaced, the assembled castings will have to be re-measured and the spacer
changed accordingly.
Note: On some models the horizontal spacer (550) is integral with the horizontal
shaft (500).
10Form479
4.0 Assembly of Parts on the Vertical Shaft.
Note: If the gear or gear mount was not pressed off the vertical shaft, proceed to Step
5.4.
4.1 Slide the under gear spacer (451) onto the vertical shaft.
4.2 Insert the vertical gear key (910) into the vertical shaft keyway.
4.3 Press the gear or gear mount onto the shaft (400). Make sure that the gear or gear
mount is pressed tightly against the under gear spacer (451).
Note: If a new gear mount was installed in Step 5.3, proceed to Step 11.
4.4 If the model has a gear mount, bolt the gear to the gear mount.
4.5 Slide the cup adjustment plate (480) and lower radial bearing cup (601) onto the
vertical shaft (400) and press on the bearing cone. Take care not to damage the
bearing roller cage.
4.6 Install the oil screw (19) and oil screw key (912).
4.7 Slide the keyed washer onto the end of the shaft (400) and thread on the locknut
(920).
4.8 Tighten the locknut (920) securely using a spanner wrench and bend a tab of the
keyed washer into a groove on the locknut.
4.9 Press the bearing cup (600) into the thrust bearing carrier (12).
4.10 Press the thrust bearing cone (600) onto the drive sleeve (700). Take care not to
damage the bearing roller cage.
4.11 Turn the shaft (400) over, slide the vertical spacer (450) onto the shaft, and set the
thrust bearing carrier on the gear or gear mount.
4.12 Insert the drive sleeve key (701) into the vertical shaft keyway.
4.13 Press the drive sleeve/thrust bearing cone (700/600) on the vertical shaft (400).
Make sure the drive sleeve is pressed tightly against the vertical shaft.
Note: Make sure all components are pressed together tightly, shoulder to shoulder.
Spacers should not spin freely on the shaft. If the assembly is not tightly pressed
together, it will not be possible to obtain correct bearing and gear settings.
4.14 Thread the drive sleeve locknut (702) on the shaft (400) and tighten securely
using a spanner wrench or drift punch.
4.15 Install two eyebolts, 180° apart, in the two tapped holes in the thrust bearing
carrier (12).
4.16 Coat the top of the gear case (10) with Loctite Gasket Eliminator 515.
4.17 Using a hoist attached to the eyebolts, slowly lower the vertical assembly into the
gear case (10). Take care not to damage the oil tube (801) or oil lines. Make sure
the match marks on the thrust bearing carrier (12) and gear case are aligned.
11Form479
4.18 Place the thrust bearing cover (21), if equipped, on the thrust bearing carrier (12).
Install the cap screws and two eyebolts in the thrust bearing carrier and tighten
securely. Make sure the eyebolts are placed in the same location noted in Step
1.12.
4.19 Place the shims under the cup adjustment plate (480). Make sure that the
thickness of the shim set is the same on both sides.
4.20 Tighten the cup adjustment plate (480) to the hub in the gear case (10). Make sure
that the register on the cup adjustment plate fits inside the hub and is on top of the
lower bearing cup (601).
4.21 Install two eyebolts in the drive sleeve (700) or one eyebolt in the end of the
vertical solid shaft (400) and rotate the shaft several revolutions in both directions
to seat the bearing.
4.22 Attach a dial indicator on top of the thrust bearing carrier (12), so that the
indicator reads off of the drive sleeve (700) or vertical shaft (400). While
watching the indicator, pull up on the drive sleeve with a hoist. The indicator
should read 0.0005 to 0.001 inch T.I.R. If the reading is outside the limits, add or
subtract shims as required. A 0.001 inch change in shim pack thickness will
change the axial movement of the shaft by 0.001 inch. If shims are changed,
rotate the shaft several revolutions to seat the bearing and recheck the axial
movement.
4.23 Connect the oil line to the thrust bearing carrier (12).
4.24 Rotate the vertical shaft (400) until the gear tooth (or teeth) marked with “X” are
located at the horizontal opening of the gear case (10). For speed decreasing
ratios, the vertical gear will have two “X”s. For speed increasing ratios, the
vertical pinion will have one “X”.
12Form479
5.0 Assembly of the Horizontal Shaft Assembly
5.1 Press the bearing cups (602 & 603) into the horizontal carrier (15).
5.2 Insert the horizontal shaft gear key (911) into the shaft keyway.
5.3 Use the following procedure if a gear retainer is used:
5.3.1 Press the pinion on the horizontal shaft (500).
5.3.2 Place the keyed washer on the end on the shaft and thread on the locknut.
5.3.3 Tighten the locknut with a spanner wrench or drift punch. Bend one of the
washer tabs into the locknut slot.
5.3.4 Turn the shaft (500) over so that the pinion is down. Press the inner
bearing cone (603) on the shaft. Take care not to damage the bearing roller
cage.
5.4 Use the following procedure if the model does not use a gear retainer.
5.4.1 Press the pinion on the horizontal shaft (500).
5.4.2 Slide the horizontal outer spacer (550) on the shaft and press on the inner
bearing cone (603). Take care not to damage the bearing roller cage.
Ensure that the bearing seats tightly against the spacer (550).
5.5 Set the horizontal carrier (15) over the shaft and press the horizontal outer bearing
cone (602) onto the shaft. DO NOT press the bearing on too tight. Leave a
minimum of 0.015” axial play. Final axial bearing adjustment will be made using
the locknut (560).
5.6 Thread the thicker portion of the locknut (560) on the horizontal shaft (500).
Note: The ground surface on the thicker locknut should be installed against the
outer bearing cone. Do not tighten.
5.7 Coat the machined surface of the horizontal carrier with Loctite Gasket
Eliminator 515, making sure to coat completely around bolt holes (See note on
inside front cover.) Using guide pins as an aid, insert the horizontal assembly into
gear case (10). Note: Make sure that the timing mark on the pinion (“X”) is
aligned with the timing mark on the gear (“X-X”). Also make sure the match
marks on the horizontal carrier and gear case are aligned. Install and tighten the
cap screws.
5.8 Mount a dial indicator on the horizontal shaft (500) so that it reads off the
horizontal carrier (15). Rotate the horizontal shaft (500) back and forth while
applying inward pressure. Zero the indicator and pull the horizontal shaft out to
measure the axial movement.
5.9 Tighten the locknut (560) with a spanner wrench or drift punch until the in and
out movement (bearing clearance) is from 0.001 to 0.003 inch T.I.R. Note: The
horizontal shaft should be rotated before each reading so the bearings will remain
seated.
5.10 Remove the dial indicator and thread the thinner part of the locknut (560) to
within 1/32 to 1/16 inch of the thicker locknut. DO NOT butt the two nuts
together.
5.11 Align the holes in the locknut set (560) and insert the cap screws. Tighten the cap
screws until the outer nut deflects and almost touches the inner nut.
13Form479
Backlash check.
Backlash is the amount of clearance between the mating teeth of a gear set and is
obtained by measuring the amount of movement of one member at the pitch diameter,
when the other member is held stationary. Backlash is very difficult to measure directly
in an assembled gear drive. Following is an indirect method of measuring backlash.
5.12 Place a spreader bar on top of the drive sleeve locknut (702) and attach it to the
thrust bearing carrier (12) using allthread or cap screws. Tighten the spreader bar
against the drive sleeve locknut to prevent the vertical shaft (400) from turning.
5.13 Place a key in the horizontal shaft (500) keyway and retain with a C-clamp to
eliminate any movement between the key and shaft.
5.14 Place a dial indicator against the key and set to zero (Figure 4).
5.15 Measure the distance from the center of the shaft (500) to the contact point
between the indicator and key (Figure 4). This is the “r” value in the equation in
Step 7.6.
5.16 Rotate the horizontal shaft (500) back and forth and record the total indicator
reading (T.I.R.). This is the “M” value in the equation in Step 7.6. Note: Make
sure no movement occurs in the vertical shaft.
5.17 Calculate the backlash using the following equation. The “C” value is found in
Table 1.
(C x M)
Backlash = ─────
r
5.18 The amount of backlash must not be less than the amount etched on the gear set;
however, the backlash may be as high as twice the etched value. If the backlash is
not within the limits stated above, it must be corrected. Refer to Step 9 after
performing the tooth contact pattern check. NEVER run the gears without
backlash.
14Form479
Table 1 Values of “C” Used in Backlash Calculations
Ratio “C”
1:1 4.86
10:11 5.20
5:6 5.65
4:5 6.25
3:4 6.00
2:3 6.45
4:7 6.65
1:2 6.75
---- -----
11:10 4.74
6:5 4.14
5:4 4.00
4:3 3.86
3:2 3.50
8:5 3.45
7:4 3.13
2:1 3.00
9:4 3.00
5:2 2.75
3:1 2.25

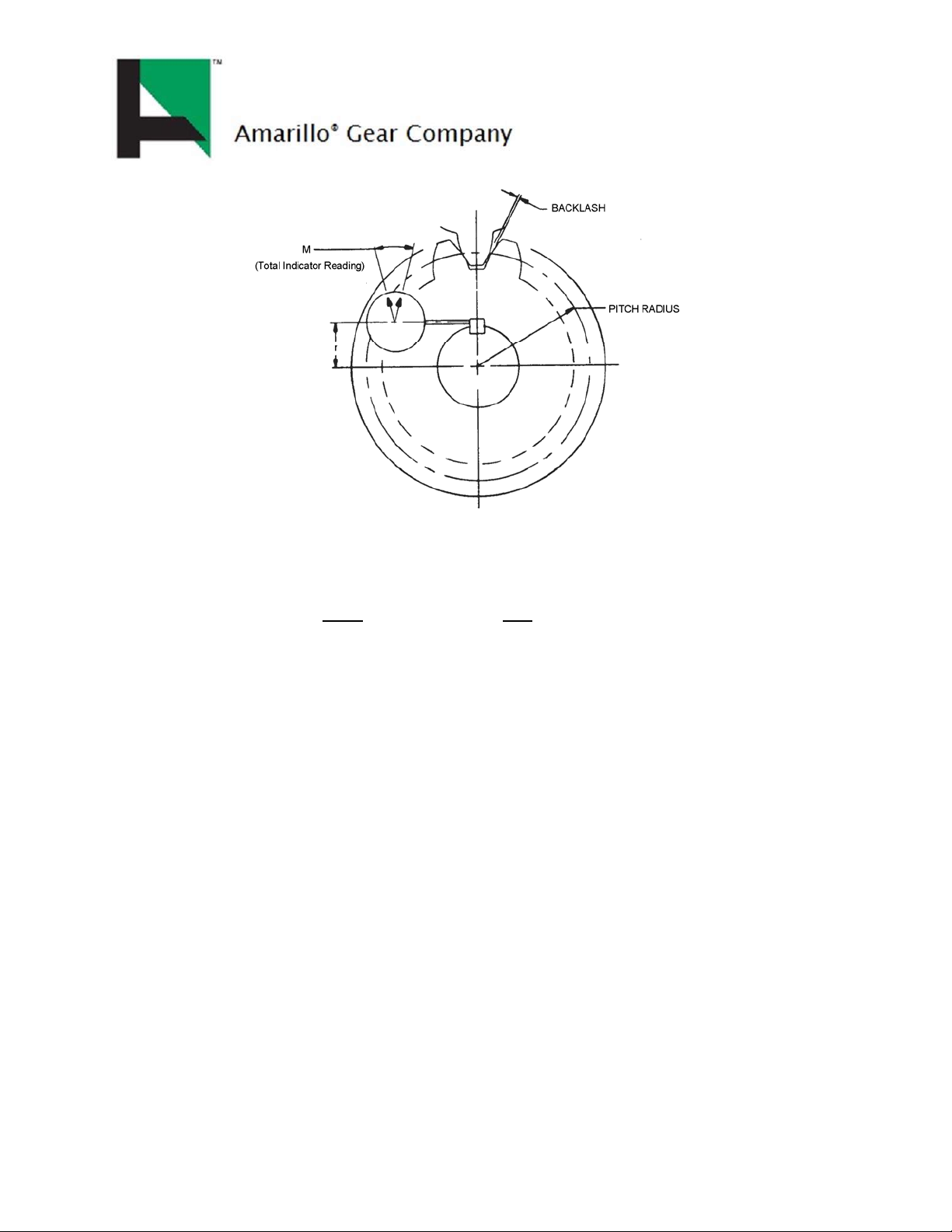

Figure 4 Backlash Check
15Form479
6.0 Tooth Contact Pattern Check
6.1 Remove the spreader bar from the top of the gear drive
6.2 Apply a suitable marking compound to the teeth of the gears and rotate the
horizontal shaft.
6.3 The correct tooth contact for a gear set is shown in Figure 5. If the tooth contact is
correct, and the backlash is within limits, proceed to Step 10.0. If the tooth contact
is correct, and the backlash needs to be corrected, proceed to Step 9.0.
6.4 Figure 6 shows the two most common forms of incorrect tooth contact. When a
tooth contact occurs as shown in Figure 6A, check the following items.
6.4.1 Make sure the horizontal carrier (15) is pulled up tightly to the gear case
(10).
6.4.2 Make sure there is only one gasket (if used) between the horizontal carrier
(15) and the gear case (10).
6.4.3 Make sure the gasket (if used) between the horizontal carrier and the gear
case is 0.015” thick.
6.4.4 If the above steps do not correct the tooth contact, then the pinion will
have to be moved toward the gear by increasing the thickness of the
horizontal inner spacer (550).
6.5 When tooth contact occurs as shown in Figure 6B, check the following items.
6.5.1 Make sure the horizontal assembly is pressed tightly together. The spacer
550 should not be able to spin freely.
6.5.2 If a gasket is used, make sure it was installed between the horizontal shaft
carrier (15) and the gear case (10).
6.5.3 Make sure that the gasket (if used) between the horizontal carrier and the
gear case is 0.015” thick.
6.5.4 If the above steps do not correct the tooth contact, then the pinion will
have to be moved away from the gear by decreasing the thickness of the
horizontal inner space (550). Note: Removal of stock from the spacer
must be done on a surface grinder or in a lathe with the spacer mounted on
an expanding mandrel.
6.6 When a tooth contact occurs as shown in Figure 7 or 8, refer to the following
instructions.
6.6.1 The most probably cause of cross contact or shaft angle error is that the
horizontal carrier is cocked in the register of the gear case.
6.6.2 To correct, remove the horizontal assembly and check for burrs, chips, a
folded gasket (if used), or any condition that will prevent the horizontal
carrier (15) from seating flat and square on the gear case (10). Contact the
factory if the problem cannot be corrected.
16Form479

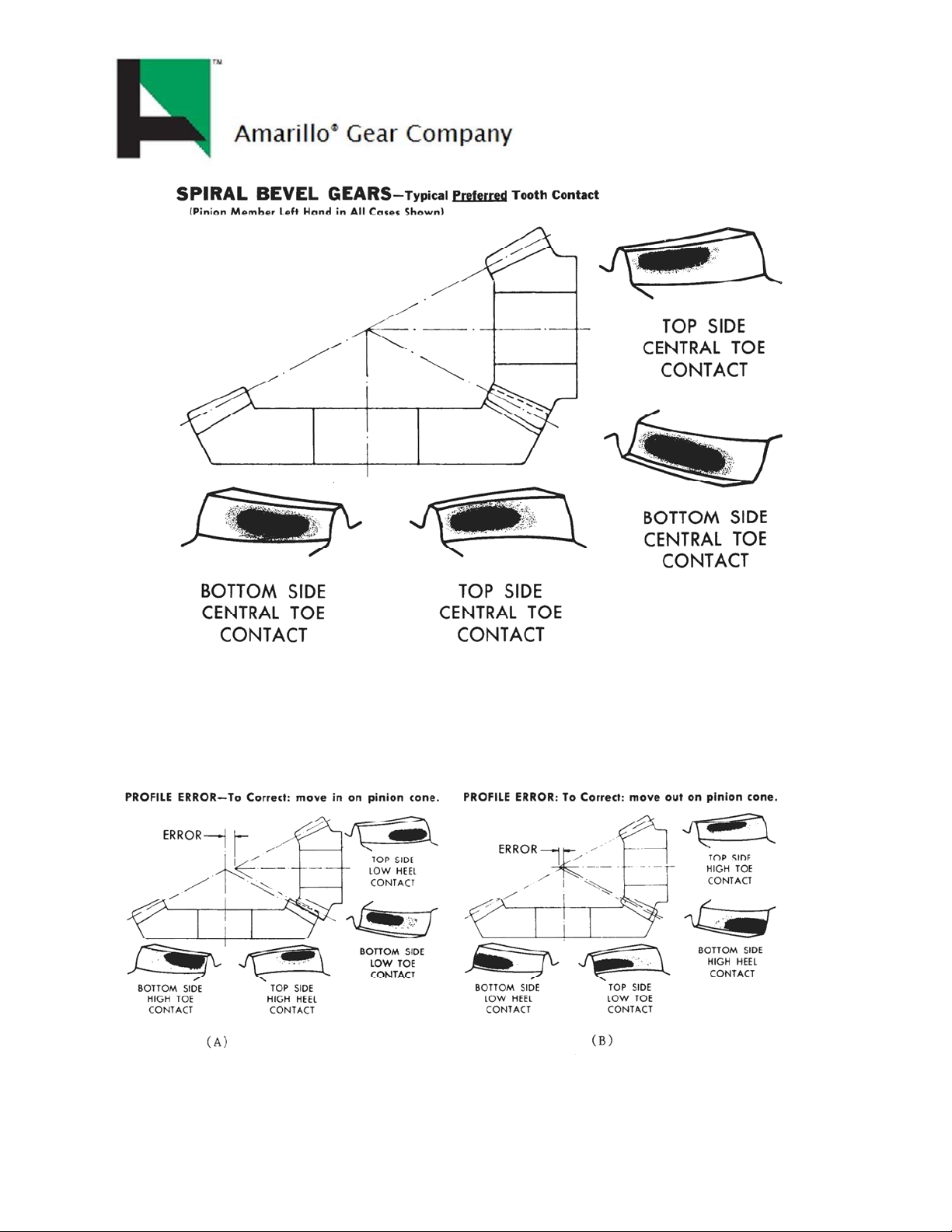

Figure 5
Figure 6
17Form479

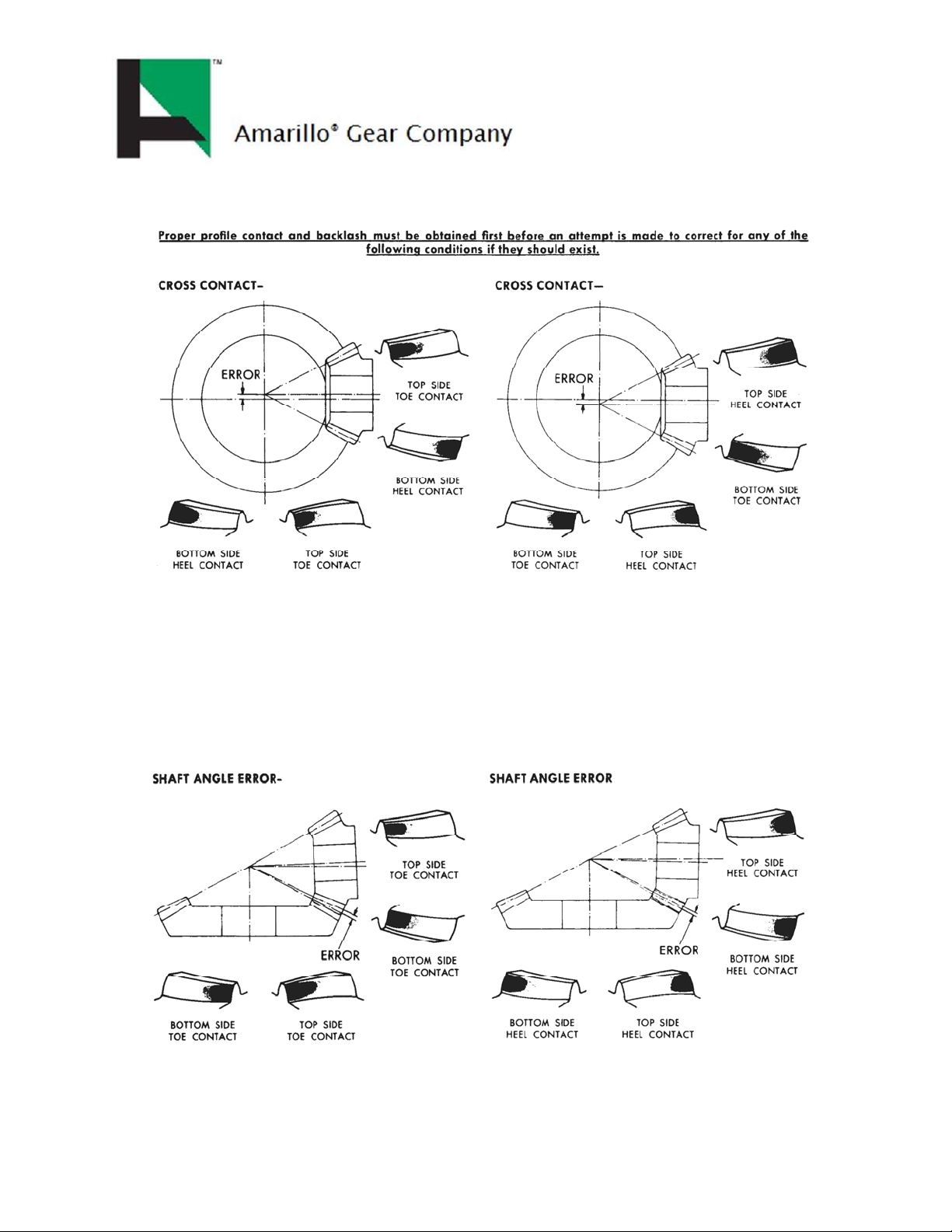

Figure 7
Figure 8
This manual suits for next models
2
Table of contents
Other Amarillo DC Drive manuals
