IMPORTANT
SAFEGUARDS
Read these instructions carefully and
retain them for future use. If this product
is passed to a third party, then these
instructions must be included.
When using electrical appliances, basic safety
precautions should always be followed to reduce
the risk of fire, electric shock, and/or injury to
persons including the following:
WARNING Risk of electric shock! Improper
use of this product can cause damage, shock,
injury or death.
WARNING Risk of electric shock! The
safety features of this product may not protect
the user if not used in accordance with this user
manual.
WARNING Risk of electric shock! Take
special care while working under wet conditions.
Humid objects and air have an increased
conductivity.
CAUTION Risk of short circuit! Use the test
probe shrouds to avoid accidental short circuiting
if the components or test points are too near each
other.

4
EN
WARNING Risk of electric shock! Use
special care when making measurements, if the
voltages are greater than 25V~ RMS or 35V .
These voltages are considered a shock hazard.
CAUTION Risk of injury! The probe tips are
sharp for accuracy. Be careful when handling and
reattach the probe tip shrouds after use.
• This product is intended for measurements
on electrical installations and is protected
by double insulation as per EN61010-1 and
IEC61010-1, 2nd Edition (2001) to Category IV
600V and Category III 1000V; Pollution Degree
2. The product also meets requirements of
UL 61010-1, 2nd Edition (2004); CAN/CSA
C22.2 No. 61010-1, 2nd Edition (2004); and
UL61010B-2-031, 1st Edition (2003).
• This product must be used by trained users
only.
• Do not exceed the maximum allowable input
range of any measurement mode.

5
EN
Mode Maximum Input
A~, A 10 A, 1000V fast
acting fuse (max.
30seconds every
15minutes)
mA~, mA 800 mA, 1000V fast
acting fuse
V~, V 1000 V ~/ RMS
Frequency,
Resistance,
Capacitance, Diode
Test, Continuity
250 V ~/ RMS
Surge Protection: 8 kV peak per IEC 61010
• Do not measure current on a CAT III circuitry
whose voltage exceeds 1000 V.
• Do not measure current on a CAT IV circuitry
whose voltage exceeds 600 V.
• When measuring volts, do not switch to
current/resistance modes.
• Set the function switch to the appropriate
position before measuring.
• Set the function switch (K) to the OFF position
when not in use.

6
EN
• When changing ranges always disconnect the
connector leads from the circuit under test.
• Inspect the condition of the connector leads
and the product itself for any damage before
operation. Repair or replace any damage
before use.
• Always discharge capacitors and remove
power from the device under test before
performing diode, resistance or continuity tests.
• Voltage checks on electrical outlets can
be difficult and misleading because of the
uncertainty of connection to the recessed
electrical contacts. Do not use this product
for checking socket outlets. Use special
equipment for checking socket outlets.
• Do not use, if the product seems to be
damaged or if it is not working properly. If in
doubt, replace the product.
• Comply with all applicable safety codes. Use
approved personal protective equipment when
working near live circuits − especially with
regard to the possibility of arc flash hazards.

7
EN
• Do not attempt repairs. There are no user
serviceable parts.
• When working in wet conditions, always attach
the rain caps onto the open input jacks.
• Always remove the connector leads before
replacing the battery or fuses.
Battery Warnings
• Always insert batteries correctly with regards
to polarity (+ and –) marked on the battery and
the product.
• Exhausted batteries should be immediately
removed from product and properly disposed.
• Keep batteries out of the reach of children.
• Do not dispose of batteries in fire.
• Remove batteries from product if it is not to be
used for an extended period of time.
• If the battery leaks, avoid contact with skin and
eyes. Rinse affected areas immediately with
plenty of clean water, then consult a doctor.

8
EN
Explanation of Symbols
WARNING
The signal word that indicates
a hazard with a medium level of
risk which, if not avoided, could
result in death or serious injury.
CAUTION
The signal word that indicates
a hazard that if not prevented
could result in minor or
moderate injury.
NOTICE
Indicates a practical tip, advice
or practice not related to
personal injury.
This symbol, adjacent to another
symbol or terminal, indicates the user
must refer to the manual for further
information.
This symbol, adjacent to a terminal,
indicates that, under normal use,
hazardous voltages may be present.
Product is protected by double
insulation or reinforced insulation.
Alternating current (AC).

9
EN
Direct current (DC).
Earth (ground) terminal/potential.
IP67 Product is protected against the effects
of temporary immersion in water.
CAT II
Typical Applications:
• Single phase receptacles and
connected loads
• Household appliances, power tools
• Outlets more than 30ft (10m) from a
Cat III source
• Outlets more than 60ft (20m) from a
Cat IV source

10
EN
CAT III
1000V
Typical Applications:
• Three-phase circuits and single
phase lighting circuits in commercial
buildings
• Equipment in fixed installations such
as 3-phase motors, switchgear and
distribution panels
• Lighting circuits in commercial
buildings
• Feeder lines in industrial plants
• Any device or branch circuit that is
close to a Cat III source
CAT IV
600V
Typical Applications:
• Connection point to utility power
and outdoor conductors
• Primary distribution panels
• Overhead or underground lines to
detached buildings
• Incoming service entrance from
utility
• Outdoor pumps

11
EN
Intended Use
• This product is intended to perform electrical
measurements on CAT III locations (3-phase
and single phase distribution) and CAT IV
locations (3-phase and single phase primary
overcurrent protection devices and ripple
control units).
• This product covers CAT II and CAT I locations.
• This product may be used only under the
conditions and for the purposes for which it
was designed.
• No liability will be accepted for damages
resulting from improper use or non-compliance
with these instructions.
Before First Use
• Check the product for transport damages.
• Remove all the packing materials.
DANGER Risk of suffocation! Keep any
packaging materials away from children – these
materials are a potential source of danger, e.g.
suffocation.

12
EN

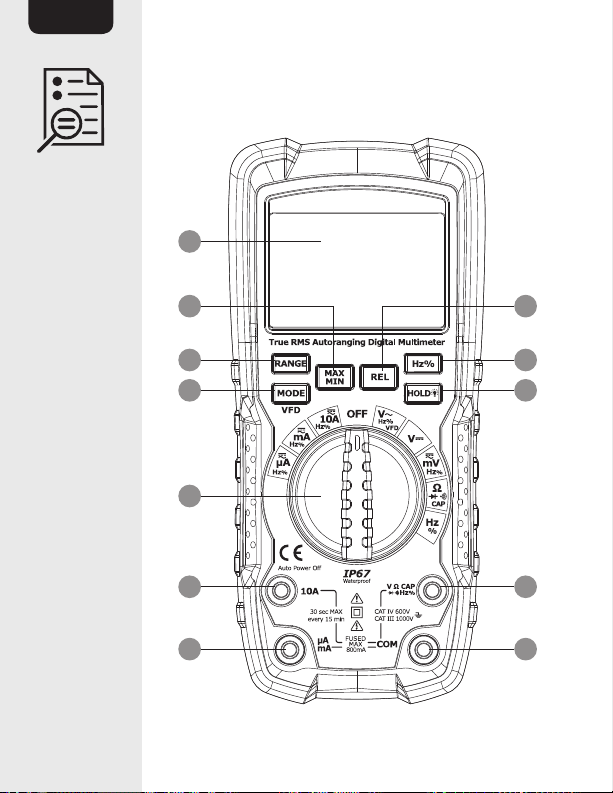

Product Description
A
B
C
D
E
F
G
H
I
J
K
L

13
EN
ADisplay JHOLD / button
BMAX/MIN button Kinput jack
CRANGE button LCOM input jack
DMODE button MTest probe holders
EFunction switch NTilt stand
F10A input jack OBattery
compartment
GμA/mA input jack PCAT III/IV probe tip
shrouds
HREL button QTest probes with
connector leads
IHz/% button RRain caps
N
O
P
Q
R
M

14
EN

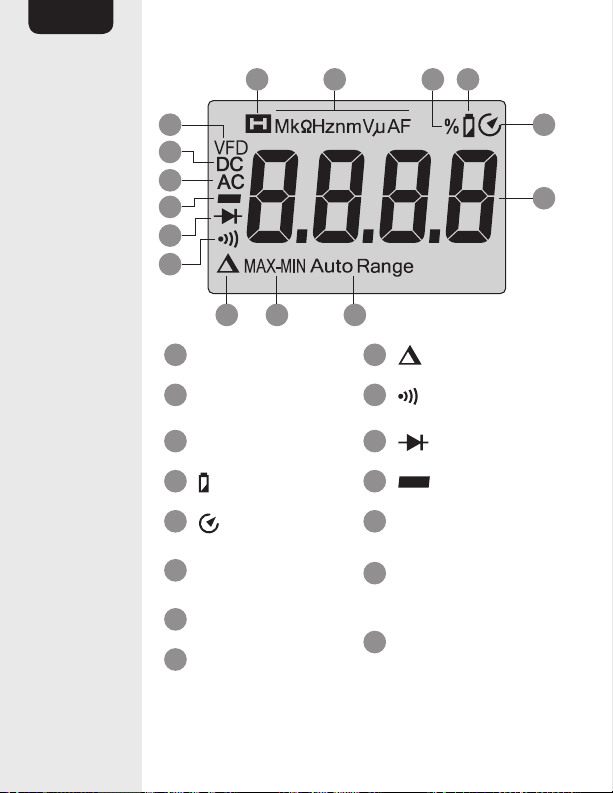

1HDisplay hold 9Relative
2Units of
measurement 10 Continuity
3%Percent (duty
cycle) 11 Diode test
4Battery status 12 Minus sign
5Auto power-off 13 AC Alternating
current/voltage
6Display reading 14 DC Direct
current/voltage
7Auto Range
indicator 15
VFD Variable
frequency drive
mode
8MAX-MIN indicator
13
14
12
11
10
15
1 2 3 4
5
6
789

15
EN

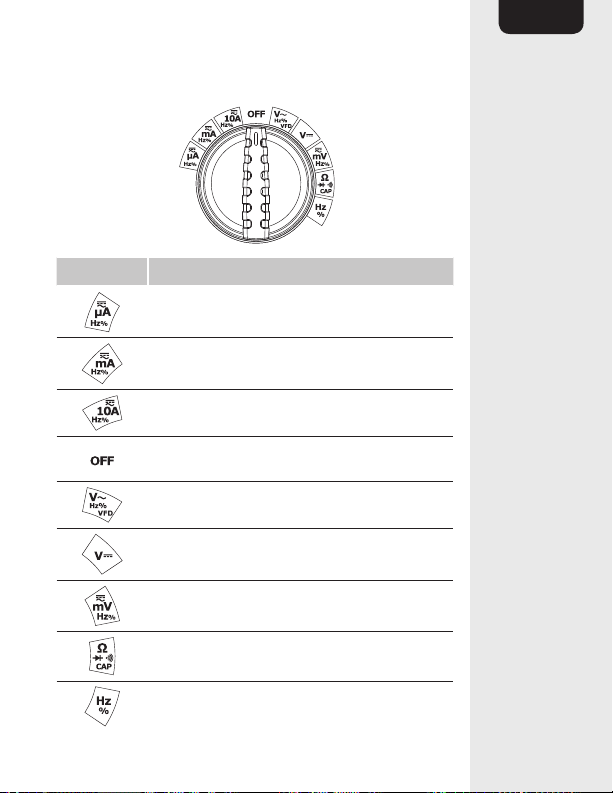

Function switch
Position Function / Measurement
AC/DC current(µA) / frequency/ duty
cycle
AC/DC current(mA) / frequency/
duty cycle
AC/DC current up to 10 A/
frequency/ duty cycle
OFF
AC voltage / frequency / duty cycle /
variable frequency drive mode
DC voltage
AC/DC voltage (mV) / frequency /
duty cycle
Resistance / diode test / continuity /
capacity
Frequency / duty cycle

16
EN
Changing Batteries
WARNING Risk of electric shock!
Disconnect the product from any circuit, remove
the connector leads (Q) from the input jacks (F)/(G)/
(K)/(L), and turn OFF the product before opening
the battery compartment (O). Do not operate the
product with an open battery compartment.
NOTICE Replace the battery when the low
battery indicator (4) is shown on the display (A).
• Open the tilt stand (N).
• Loosen the screw of the battery compartment
cover (O) and remove it.
• Insert a 9 V(6F22) battery and attach it to the
snap connector.
• Place the battery in the battery
compartment(O) and close it.
• Close battery compartment (O) and tighten the
screw.

17
EN
Operation
NOTICE Keep the protection plugs of the
connector leads and reattach after use.
Switching the product on/off
• To switch the product on, set the function
switch (E) to the desired measurement mode.
• To switch the product off, set the function
switch (E) to the OFF position.
Automatic power OFF
• In order to conserve battery life, the product
automatically emits a beeping signal that the
product has been idle for 15 minutes. Right
after 1 minute, the product turns off.
• To turn the product on again, press any button.
• When “automatic power off” is enabled, the
indicator (5) is shown on the display (A).
• To deactivate “automatic power off”, press and
hold the MODE button (D) while switching the
product on. The indicator (5) does not light
up.

18
EN
Switching the display backlight on/off
• Press and hold the HOLD / button (G) to
switch the display backlight on/off.
Display hold
• To freeze the display reading, press the HOLD /
button (J). The Hindicator (1) lights up.
• Press the HOLD / button (J) again to return
to normal operation.
Changing the measurement range
By default, the measurement range is set
automatically and the Auto Range indicator (7)
lights up. It is possible to set the measurement
range manually.
• Press the RANGE button (C) to activate the
manual mode and to disable the automatic
range setting. The Auto Range indicator (7)
goes off.
• By every press on the RANGE button (C) the
relevant decimal place changes its position.
• If a reading is higher than the measurement
range, OL lights up on the display (A).

19
EN
• Press and hold the RANGE button (C) for more
than 1second to exit manual mode and restore
automatic range setting. The Auto Range
indicator(7) lights up.
Relative measurement
The relative measurement feature allows
measurements to be made relative to a stored
value.
• Press the REL button (H) to zero the measured
value (6). The indicator (9) lights up.
• Press the REL button (H) again to show the
absolute measurement. The indicator (9)
goes off.
Maximum/minimum measurement
• Press the MAX/MIN button (B) to switch
between the maximum (MAX), minimum (MIN)
and maximum to minimum (MAX-MIN) range
value. The appropriate MAX-MIN indicator (8)
lights up.
• Press the MAX/MIN button (B) for 2seconds
to return to normal operation. The MAX-MIN
indicator (8) goes off.

20
EN
DC voltage measurement
NOTICE Doing voltage measurements while
the + connector lead (Q) is left on the ampere input
jacks (F,G) will blow the product’s internal fuse if
it draws a current greater than the internal fuses
connected are rated for.
NOTICE Risk of damage! Do not measure
motors with unstable power. Large voltage surges
may occur that can damage the product.
