IMPORTANT
SAFEGUARDS
Read these instructions carefully and
retain them for future use. If this product
is passed to a third party, then these
instructions must be included.
When using electrical appliances, basic safety
precautions should always be followed to reduce
the risk of fire, electric shock, and/or injury to
persons including the following:
WARNING Risk of electric shock! Improper
use of this product can cause damage, shock,
injury or death.
WARNING Risk of electric shock! The
safety features of this product may not protect
the user if not used in accordance with this user
manual.
WARNING Risk of electric shock! Take
special care while working under wet conditions.
Humid objects and air have an increased
conductivity.
CAUTION Risk of short circuit! Use the test
probe shrouds to avoid accidental short circuiting
if the components or test points are too near each
other.

4
EN
WARNING Risk of electric shock! Use
special care when making measurements, if the
voltages are greater than 25V~ rms or 35V .
These voltages are considered a shock hazard.
CAUTION Risk of injury! The probe tips are
sharp for accuracy. Be careful when handling and
reattach the probe tip shrouds after use.
• For indoor use. This meter is protected to CAT
lll 600 V, CAT ll 600 V, Pollution Degree 2.
• This product must be used by trained users
only.
• Do not exceed the maximum allowable input
range of any measurement mode.
Mode Maximum Input
A~, A 10 A, 250 V fast
acting fuse (max.
30seconds every
15minutes)
mA~, mA 200 mA, 250V fast
acting fuse
V~, V 600 V~rms /
Frequency,
Resistance,
Capacitance, Diode
Test, Continuity
250 V~ rms /
Surge Protection: 8 kV peak per IEC 61010

5
EN
• Do not measure current on a CAT II circuitry
whose voltage exceeds 600 V.
• Do not measure current on a CAT III circuitry
whose voltage exceeds 600 V.
• When measuring volts, do not switch to
current/resistance modes.
• Set the function switch to the appropriate
position before measuring.
• Set the function switch (C) to the OFF position
when not in use.
• When changing ranges always disconnect the
connector leads from the circuit under test.
• Inspect the condition of the connector leads
and the product itself for any damage before
operation. Repair or replace any damage
before use.
• Always discharge capacitors and remove
power from the device under test before
performing diode, resistance or continuity tests.
• Voltage checks on electrical outlets can
be difficult and misleading because of the
uncertainty of connection to the recessed
electrical contacts. Do not use this product
for checking socket outlets. Use special
equipment for checking socket outlets.

6
EN
• Do not use, if the product seems to be
damaged or if it is not working properly. If in
doubt, replace the product.
• Comply with all applicable safety codes. Use
approved personal protective equipment when
working near live circuits − especially with
regard to the possibility of arc flash hazards.
• Do not attempt repairs. There are no user
serviceable parts.
• Always remove the connector leads before
replacing the battery or fuses.
Battery Warnings
• Always insert batteries correctly with regards to
polarity (+ and –) marked on the battery and the
product.
• Exhausted batteries should be immediately
removed from product and properly disposed.
• Keep batteries out of the reach of children.
• Do not dispose of batteries in fire.
• Remove batteries from product if it is not to be
used for an extended period of time.
• If the battery leaks, avoid contact with skin and
eyes. Rinse affected areas immediately with
plenty of clean water, then consult a doctor.

7
EN

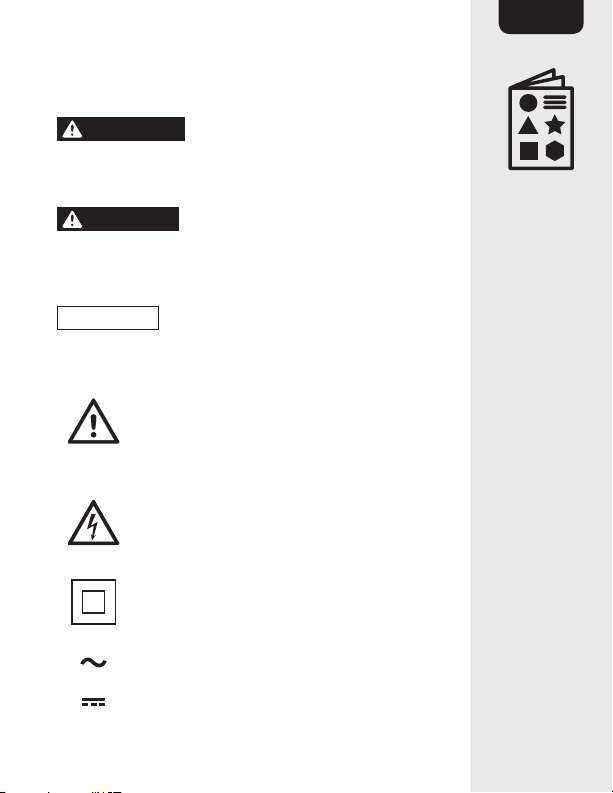

Explanation of Symbols
WARNING The signal word that indicates
a hazard with a medium level of
risk which, if not avoided, could
result in death or serious injury.
CAUTION The signal word that indicates
a hazard that if not prevented
could result in minor or
moderate injury.
NOTICE Indicates a practical tip, advice
or practice not related to
personal injury.
This symbol, adjacent to another
symbol or terminal, indicates the user
must refer to the manual for further
information.
This symbol, adjacent to a terminal,
indicates that, under normal use,
hazardous voltages may be present.
Product is protected by double
insulation or reinforced insulation.
Alternating current (AC).
Direct current (DC).

8
EN
Earth (ground) terminal/potential.
CAT II
600V
Product is designed to protect the user
during measurements performed on
circuits directly connected to the low
voltage installation (up to 600 V).
• Single phase receptacles and
connected loads
• Household appliances, power tools
• Outlets more than 30 ft (10 m) from
a Cat III source
• Outlets more than 60 ft (20 m) from
a Cat IV source
CAT III
600V
Product is designed to protect the user
during measurements performed in the
building installation (up to 600 V).
• Three-phase circuits and single
phase lighting circuits in commercial
buildings
• Equipment in fixed installations such
as 3-phase motors, switchgear and
distribution panels
• Lighting circuits in commercial
buildings
• Feeder lines in industrial plants
• Any device or branch circuit that is
close to a Cat III source

9
EN
Intended Use
• This product is intended to perform electrical
measurements on CAT II (household
appliances, portable tools and similar
equipment) and CAT III locations (3-phase and
single phase distribution).
• This product covers CAT I locations.
• This product may be used only under the
conditions and for the purposes for which it
was designed.
• No liability will be accepted for damages
resulting from improper use or non-compliance
with these instructions.
Before First Use
• Check the product for transport damages.
• Remove all the packing materials.
DANGER Risk of suffocation! Keep any
packaging materials away from children – these
materials are a potential source of danger, e.g.
suffocation.

10
EN
Product Description
A
B
C
D
E
G
F

11
EN
ADisplay HBattery
compartment
BHOLD button I200 mA fuse
CFunction switch J10 A fuse
D10A input jack KTilt stand
ECOM input jack LTest probes with
connector leads
Fbacklight button MProbe tip shrouds
GV/Ω/mA input jack
K
H
I J
M
L

12
EN
1HOLD Display hold
2Minus sign
3Low battery indicator
4Display reading
Function switch
4
1
2
3
DC voltage
Resistance
AC voltage
Diode test /
continuity
Battery test
DC current
DC current
(<200 mA)
OFF

13
EN
Changing Batteries
WARNING Risk of electric shock!
Disconnect the product from any circuit, remove
the connector leads (L) from the input jacks (D)/
(E)/(G), and turn OFF the product before opening
the battery compartment (H). Do not operate the
product with an open battery compartment.
NOTICE Replace the battery when the low
battery indicator (3) is shown on the display (A).
• Open the tilt stand (K).
• Loosen the screws of the battery compartment
cover and remove it.
• Insert a 9 Vbattery and attach it to the snap
connector.
• Place the battery in the battery
compartment(H) and close it.
• Tighten the screws of the battery compartment.
Operation
NOTICE Keep the protection plugs of the
connector leads and reattach after use.
Switching the product on/off
• To switch the product on, set the function
switch (C) to the desired measurement mode.

14
EN
• To switch the product off, set the function
switch (C) to the OFF position.
Switching the display backlight on/off
• Press and hold the backlight button (F) to
switch the display backlight on/off.
Display hold
• To freeze the display reading, press the
HOLD button (B). The HOLD indicator (1)
lightsup.
• Press the HOLD button (B) again to return to
normal operation.
DC voltage measurement
NOTICE Doing voltage measurements while :
– The + connector lead (L) is left on the 10A
ampere input jack (D).
– The + connector lead (L) is on the V/Ω/mA
input jack (G) but the switch (C) is set to the
DC current function.
It will blow the product’s internal fuse if it draws a
current greater than the internal fuses are rated for.
Check that the (+) red connector lead (L) is on the
correct terminal and the function switch (C) is set
to the correct function.

15
EN
NOTICE Risk of damage! Do not measure
motors with unstable power. Large voltage surges
may occur that can damage the product.
• Set the function switch (C) to the appropriate
voltage measurement mode:
Voltage Function switch (C) position
≤ 200mV 200mV
≤ 2000mV 2000mV
≤ 20V 20V
≤ 200V 200V
≤ 600V 600V
• Insert the black connector lead (L) into the
COM input jack (E).
• Insert the red connector lead into the
V/Ω/mA input jack (G).
• Connect the test probes (L) in parallel to the
circuit under test.
• The stabilized value on the display (A) is read as
the actual reading.

16
EN
AC voltage measurement
CAUTION Risk of electric shock! The
contact plates in powered AC outlets may be
recessed too far for the test probes to make a
connection. This may give false measurements.
Contact point of measurement must be visible for a
true reading.
NOTICE Doing voltage measurements while:
– The + connector lead (L) is left on the 10A
ampere input jack (D).
– The + connector lead (L) is on the V/Ω/mA
input jack (G) but the switch (C) is set to the
DC current function.
It will blow the product’s internal fuse if it draws a
current greater than the internal fuses are rated for.
Check that the (+) red connector lead (L) is on the
correct terminal and the function switch (C) is set
to the correct function.
NOTICE Risk of damage! Do not measure
motors with unstable power. Large voltage surges
may occur that can damage the product.
• Set the function switch (C) to the appropriate
voltage measurement mode:
Voltage Function switch (C) position
≤ 200V 200V~
≤ 600V 600V~

17
EN
• Insert the black connector lead (L) into the
COM input jack (E).
• Insert the red connector lead into the V/Ω/mA
input jack (G).
• Connect the test probes (L) in parallel to the
circuit under test.
• The stabilized value on the display (A) is read as
the actual reading.
DC current measurement
WARNING Do not test current on circuits
that exceed 250 volts.
NOTICE Do not make 10A current
measurements for longer than 30seconds.
Exceeding 30seconds may cause damage to the
product and/or the connector leads (L).
• For current measurements of up to 2000μA,
set the function switch (C) to the 2000μA
position and insert the red plug connector lead
into the V/Ω/mA input jack (G).
• For current measurements of up to 20mA, set
the function switch (C) to the 20mA position
and insert the red plug connector lead into the
V/Ω/mA input jack (G).

18
EN
• For current measurements of up to 200mA,
set the function switch (C) to the 200mA
position and insert the red plug connector lead
into the V/Ω/mA input jack (G).
• For current measurements of up to 10A, set
the function switch (C) to the 10A position
and insert the red plug connector lead into the
10A input jack (D).
• Turn off the power to the circuit under test.
Break the connection line/track and separate
the 2 points where the flow of current must be
measured.
• Connect in series by attaching securely the
test probes (L) each at the 2 open points of the
track/line.
• Apply power to the circuit.
• The stabilized value on the display (A) is read as
the actual reading.
Resistance measurement
WARNING Risk of electric shock! To avoid
electric shock, disconnect power from the unit
under test and discharge all capacitors before
taking any resistance measurements. Remove the
batteries or unplug. Resistance measurements are
taken with no electricity running in the circuit.

19
EN
NOTICE For best results, disconnect one
side of the part under test. This is to avoid the
other components in the circuit to inhibit the
measurement.
• Insert the black connector lead (L) into the
COM input jack (E).
• Insert the red connector lead into the V/Ω/mA
input jack (G).
• Set the function switch (C) to the appropriate
resistance measurement mode:
Resistance Function switch (C) position
≤ 200Ω 200Ω
≤ 2000Ω 2000Ω
≤ 20kΩ 20kΩ
≤ 200kΩ 200kΩ
≤ 2000kΩ 2000kΩ
• Place the test probes (L) across the circuit or
part under test.
• The stabilized value on the display (A) is read as
the actual reading.
Diode test
• Set the function switch (C) to the
position.

20
EN
• Insert the black connector lead (L) into the
COM input jack (E).
• Insert the red connector lead (L) into the
V/Ω/mA input jack (G).
• Place the test probes (L) across the diode
being measured.
• If the diode was measured in reverse, the
display(A) shows I. Reverse the probes (L)
position to get the correct polarity.
NOTICE Forward voltage typically indicates
400 to 700mV. A shorted diode indicates near 0V
and an open diode indicates Iin both polarities.
Continuity check
WARNING Risk of electric shock. To avoid
electric shock, never measure continuity on circuits
or wires that have voltage on them.
• Set the function switch (C) to
the position.
• Insert the black connector lead (L) into the
COM input jack (E).
• Insert the red connector lead (L) into the
V/Ω/mA input jack (G).
• Place the test probes (L) across the circuit or
component under test.
