Amazone AMADOS User manual

1
06.97 DB 521.1 AMADOS
MG 391
DB 521.1 (D) 06.97
Printed in Germany
GB
Operating Instructions
for On-Board-Computer
Error
km/h
1/min
0I +1
+
ha
100%
ha
_
1/min
Start
C
+
_
Eingabe
Input
Σ
Beforestartingtooperate,
please carefully read and
adheretothisoperationmanual
and safety advice!

2
AMADOS DB 521.1 06.97
Copyright © 1996 byAMAZONEN-Werke
H. Dreyer GmbH & Co. KG
D-49202 Hasbergen-Gaste
Germany
All rights reserved
Important Hints
Attention-Symbol
This symbol is used on places which are
especially to be considered in order to
adhere to leagal advice, order, hints and
thecorrectsequenceofoperationsaswell
as to prevent damage to the device.
Hint-Symbol
Thissymbolpointsoutimplementspecific
specialtieswhichshouldbeadheredtofor
a proper operation.
Disconnect any plugging connections to
the "AMADOS" before conducting any
weldingoperationsonthetractororonthe
mounted implement.
On receipt of the compouter
On receipt of the computer, please check whether
transportdamagehasoccuredorwhetheranypartsare
missing! Only immediate claims to be filed with the
forwarding agency may lead to replacement. Please
check whether all parts mentioned in the following are
provided.
.
1
1

3
06.97 DB 521.1 AMADOS
Error
km/h
1/min
0I +1
+
ha
100%
ha
_
1/min
Start
C
+
_
Einga be
Input
Σ
or
adaptor cable for existing signal plug at
the tractor (tractor specific)
1.
2.
16A
"AMADOS" the electronic monitoring-, controlling
and regulating system consisting of:
1. Basic unit "AMADOS", Order-No.: NE 193
consisting of:
Computer.
Console.
Battery connecting cable with plug and fuse (16A).
at random:
2. Sensor "X" for fitting to wheels- and cardan
shafts , Order-No.: NE 196
consisting of:
Sensor "X" cardan shaft/wheel
Universal mounting kit for Sensor "X" (cardan shaft/
wheel).
Complete with
• 6 magnets, 6 brass bolts with nuts and washers.
˜ Mounting clamp with magnet 27/51.
• Mounting clamp with magnet 50/70.
• 10 cable strips.
or
2. Adaptorcablefor"AMADOS"forexistingsignal-
socket on tractors (tractor specific)

4
AMADOS DB 521.1 06.97
Contents ............................................................................................................................................Page
1.0 Informations about the computer ................................................................................................... 6
1.1 Manufacturer...................................................................................................................................... 6
1.2 "AMADOS"........................................................................................................................................ 6
1.3 Function description........................................................................................................................... 6
1.4 Key pad layout ................................................................................................................................... 7
2.0 Important informations .................................................................................................................... 9
2.1 Attention-symbol ................................................................................................................................ 9
2.2 Hint-symbol ........................................................................................................................................ 9
2.3 Declined use ...................................................................................................................................... 9
2.4 Safety advice ..................................................................................................................................... 9
2.5 Important hint when using the "AMADOS" with the centrifugal broadcaster
or as a pure hectare meter................................................................................................................. 9
3.0 Operating Instructions................................................................................................................... 11
3.1 Operation mode "centrifugal broadcaster" ................................................................................ 11
3.1.1 Putting to operation .......................................................................................................................... 12
3.1.2 Operation sequence and descripotion of the key pad for the use with
centrifugal broadcaster .................................................................................................................... 12
Operating sequence......................................................................................................................... 13
1. Switching on/off AMADOS ...................................................................................................... 13
2. Choosing mode....................................................................................................................... 13
3. Entering spread rate ............................................................................................................... 13
4. Entering working width............................................................................................................ 14
5. Calibrating distance sensor..................................................................................................... 15
6. Calibrating spread rate of fertiliser .......................................................................................... 16
7. Starting spreading operation................................................................................................... 18
3.1.3 Spreading mini-rates, e. g. green manure and slut pellets............................................................... 18
3.1.3.1 Special case seeding rye grass ....................................................................................................... 18
3.1.4 Display and functions during spreading ........................................................................................... 20
3.1.4.1 Forward speed k.p.h. ....................................................................................................................... 20
3.1.4.2 Covered part- resp. total area .......................................................................................................... 20
3.1.4.3 Monitoring the r.p.m. speed ............................................................................................................. 21
3.1.4.3.1 Entering the nominal speed ............................................................................................................. 21
3.1.4.3.2 Switching off rev.-speed monitoring ................................................................................................. 21
3.1.5 Emptying hopper.............................................................................................................................. 21
3.1.6 Maintenance and care ..................................................................................................................... 21
3.1.6.1 Calibrating the setting motors .......................................................................................................... 21
3.1.7 Operating the broadcaster after electricity failure............................................................................. 22
3.1.8 Fault messages................................................................................................................................ 23
3.2 Operation mode "seed drill".......................................................................................................... 25
1. Marker- and tramlining control II .............................................................................................25
2. Marker- and tramlining control III with electrical seed rate adjustment ................................... 27
3.2.1 Putting to operation .......................................................................................................................... 28
3.2.2 Operation sequence and descripotion of the key pad for the use with with seed drill..................... 28
Operating sequence......................................................................................................................... 29
1. Switching on/off AMADOS ...................................................................................................... 29
2. Choosing mode....................................................................................................................... 29
2.1 Entering type of mode............................................................................................................. 29

5
06.97 DB 521.1 AMADOS
Contents ............................................................................................................................................Page
3. Checking position of geared motor ......................................................................................... 30
3.1 Calibrating position of geared motor ....................................................................................... 31
4. Calibrating distance sensor..................................................................................................... 32
5. Entering working width............................................................................................................ 35
6. Entering seed rate................................................................................................................... 35
7. Conducting calibration test...................................................................................................... 36
8. Programming tramline rhythm................................................................................................. 38
9. Shifting on tramline counter .................................................................................................... 41
9.1 Important hints when stopping in the field............................................................................... 41
9.1.1 Setting back tramline counter ................................................................................................. 41
10. Creating intermittent tramlines (on slopes) ............................................................................. 42
11. Starting the sowing procedure ................................................................................................42
3.2.2.1 Explaining the display window ......................................................................................................... 42
3.2.2.2 Commenting the possible situation displays .................................................................................... 43
3.2.3 Displays and functions during sowing .............................................................................................. 44
3.2.3.1 Forward speed k.p.h. ....................................................................................................................... 44
3.2.3.2 Completed part- resp. total area ...................................................................................................... 44
3.2.3.3 Monitoring r.p.m. speed ................................................................................................................... 45
3.2.3.3.1 Entering nominal r.p.m. speed ......................................................................................................... 45
3.2.3.3.2 Switching off r.p.m. speed monitoring .............................................................................................. 45
3.2.4 Fault messages................................................................................................................................ 46
3.2.5 Faults-table-seed drill....................................................................................................................... 47
3.3 Operation mode "hectare meter".................................................................................................. 51
3.3.1 Putting to operation .......................................................................................................................... 51
3.3.2 Operating procedure and description of the key pad for operating the seed drill............................. 52
1. Switching on/off AMADOS ...................................................................................................... 52
2. Choosing mode....................................................................................................................... 52
3. Entering working width............................................................................................................ 53
4 Calibrating distance sensor..................................................................................................... 53
5. Starting the operation.............................................................................................................. 54
3.3.3 Displays and functions during spreading ......................................................................................... 54
3.3.3.1 Forward speed k.p.h. ....................................................................................................................... 54
3.3.3.2 Covered part- resp. total area .......................................................................................................... 54
3.3.3.2.1 Clearing memo to "0" for determining total area ............................................................................. 55
3.3.3.3 Monitoring the shaft speed............................................................................................................... 55
3.3.3.3.1 Entering the rated rev-speed............................................................................................................ 55
3.3.3.3.2 Switching off the r.p.m. monitoring ................................................................................................... 55
4.0 Fitting instructions......................................................................................................................... 56
4.1 Console and "AMADOS".................................................................................................................. 56
4.2 Battery power connecting cable ....................................................................................................... 56
4.3 Fitting - Sensor "X"for determination the travelled distance resp. forward speed ............................ 57
4.3.1 Fitting - Sensor "X" (cardan shaft/wheel) for recording the travelled distance ................................. 57
4.3.1.1 Fitting to tractors w.o. four wheel drive............................................................................................. 57
4.3.1.2 Fitting to tractors with four wheel drive resp. "trac"-tractors ............................................................. 58
4.3.1.3 Fitting to Unimog .............................................................................................................................. 59
4.4 Connecting unit for "AMADOS" as hectare meter with r.p.m.-monitoring........................................ 59
4.4.1 Fitting-Sensor "Y" (operational position) .......................................................................................... 60
4.4.2 Fitting Sensor "A" (shaft speed monitoring) .................................................................................... 61

6
AMADOS DB 521.1 06.97
Fig. 1.1
Error
km/h
1/min
0I
+1
+
ha
100%
ha
_
1/min
Start
C
+
_
Eingabe
Input
Σ
2
3
1
10 Informationsaboutthecomputer
1.1 Manufacturer
AMAZONEN-Werke, H. Dreyer GmbH & Co. KG,
P. O. Box 51, D-49202 Hasbergen-Gaste/Germany.
1.2 AMADOS
The on-board computer "AMADOS" can be used as a
display-, monitoring- and controlling device
• for centrifugal broadcasters AMAZONE ZA-M,
• for AMAZONE seed drills
• as well as an hectare meter.
Themicro computer- theheart ofthe device- hasbeen
equipped with a memory and a lithium battery. All
entered and determined values are stores for approx.
10 years even if the on-pord power supply is switched
off.At thenextswitching onalldataareavailableagain.
1.3 Function description
"AMADOS"is supplied with a 6-digit display (1.1/1). In
operationg position of the corresponding machine the
display shows:
• at centrifugal broadcaster
current forward speed, spread rate and shutter
position "opened or shut".
• at the seed drill
current seed rate, tramline counter and marker
position
• as a pure hectare meter
the forward speed.
At the left hand edge of the display additionally 2
symbols are shown. The vertical arrow (1.1/2) shows
when the connected machine is in operating position.
The circle below (1.1/3) should flick during operation
andindicatesthatthesensorforcountingtheareaorthe
travelled idstance is transmitting impulses to the
"AMADOS”.
The key pad is offering 20 keys which are devided into
the following areas:
Red = Implement on/off
Green = Function keys (display of the
determined data).
Yellow = Input keys (entering the machine
data)
White = Keys that inform the calculator
about the change of entered orders

7
06.97 DB 521.1 AMADOS
Key seed drill fertiliser spreader hectare meter
ON key ON key ON key
OFF key OFF key OFF key
speed display [kph] speed display [kph] speed display [kph]
area/section coverage area/section coverage area/section coverage
advance tramline counter vacant position vacant position
current control rhythm vacant position vacant position
intermittent tramline ON vacant position vacant position
increase seed rate increase seed rate vacant position
reduce seed rate reduce seed rate vacant position
return seed rate to rated value
previously entered return seed rate to rated value previously entered vacant position
current position of geared
motor current position of geared motor vacant position
choice of the connected
machine "MOD seed drill" see
para.
choice possibility for the step
width of the seed rate change
choice of machine to be
connected "MOD 5" choice of machine to be connected "MOD 4"
current shaft speed [R.P.M.] current shaft speed [R.P.M.] current shaft speed [R.P.M.]
working width [m] working width [m] working width [m]
+
100%
Σ
1.4 Keypad layout
The"AMADOS"on-board-computercanbeusedwithavarietyofdifferentimplements.Dependingontheselected
implement, the keypad assignment is as follows:
+1

8
AMADOS DB 521.1 06.97
sensor impulses over a
distance of 100 metres sensor impulses over a distance of 100 metres sensor impulses over a distance of 100 metres
seed rate calibration value seed rate calibration value vacant position
input key for increasing the
displayed value input key for increasing the displayed value input key for increasing the displayed value
input key for decreasing the
displayed value input key for decreasing the displayed value input key for decreasing the displayed value
key used to confirm all entries key used to confirm all entries key used to confirm all entries
correction key correction key correction key

9
06.97 DB 521.1 AMADOS
Arbitrary modifications to the"AMADOS" may resultin
damageandthereforethemanufacturerdoesnotaccept
liability for such damage.
In case of willful intent or gross negligence on the part
of the owner or a responsible employee, the
manufacturerisnot excempt fromliability.According to
the product liability law this excemption also applies in
casewhere liabilityis givenfor damageto personsor to
propertyonprivatelyusedgoodstheliabilityexcemption
of the supplier is void. It is also void in case properties
are missing which explicitly have been guaranteed
when the guarantee has just had the purpose to cover
the purchaser for damages which have not occured on
"AMADOS".
2.4 Safety advices
Before doing any repair work to the
electricalinstallation inparticularwelding
operationsonthetractororonthemounted
machine disconnect all electric couplings
to the "AMADOS".
2.5 Important hints for the use of the
"AMADOS" with the centrifugal
broadcaster or as a pure hectare
counter.
If a signal socket according to DIN 9684
standards exists on the tractor no additio-
nal sensor "X" (cardan shaft/wheel) need
to be fitted for determining the travelled
distance. The sensor "X" will then be
exchanged for a tractor specific adaptor-
cable (option). In case of an existing radar
sensor the signals can also be taken from
this socket.
IncaseofoperatingwithaUnimogwithout
the on-board-computer "UNICOM I" the
sensor "X" should be exchanged for the
tacho adaptor (option).
When operating with a Unimog equipped
with the on-board-computer "UNICOM I"
thesensor"X"shouldbeexchangedforan
adaptorcable(option).Herewith"UNICOM
I" and "AMADOS" are directly linked with
one another.
1
.
.
.
2.0 Important Informations
2.1 Attention Symbol
This symbol will always be found in such
places of this instruction book which
shouldespeciallybeadheredtoinorderto
comply with rules, adivce, hints and the
correct procedure of the operations as
wellastopreventdamagetotheimplement.
2.2 Hint-Symbol
This symbol marks machine's specific
pointswhichshouldbeobservedtoensure
the correct operation.
2.3 Declined use of the machine
"AMADOS" has exclusively been designed for the
usualoperationasadisplay-,monitoring-andcontrolling
device for agricultural machinery.
Any use beyond the one stipulated above is no longer
considered as designed use. The manufacturer does
not accept any responsibility for damage resulting from
this; therefore the operator himself carries the full risk.
Under "declined use" also the adhering to the
manufacturer's prescribed operation-, maintenance-
and repair conditions as well the exclusive use of
original AMAZONE spare parts is to be understood.
"AMADOS" may only be operated, maintained and
repaired by such persons who have been made
qcquaintedwithitandwhohavebeenadvisedaboutthe
dangers.
Allapplicable accidentpreventiveadviceaswell asany
further generally accepted safety-, working-, medical-
and road-traffic rules should be adhered ty.
Any damages resulting from arbitrary changes on
the "AMADOS" rule out the responsibility of the
manufacturer.
Before every operation and also during the operation
check your device for proper function and for sufficient
application accuracy of the machine.
Claims regarding damage not having occured on the
"AMADOS" itself will be rejedcted. This also applies to
damages due to application errors.
1
.

10
AMADOS DB 521.1 06.97
Fig. 3.1
5
3
9
4
6
77
1
216A
88

11
06.97 DB 521.1 AMADOS
3.0 Operating Instructions
3.1 Operation mode
"centrifugal broadcaster"
"AMADOS" on centrifugal broadcaster:
• controls the spread rate [kg/ha] in dependence of
theforwardspeed.Forthistheshutterslidepositions
are changeable by 2 setting drives.
• allows the change of the spread rate in 10 % steps.
• shows the current forward speed in [k.p.h.]
• determines the worked part area in [ha].
• stores the data of the worked total area per season
in [ha].
• monitores the speed of a drive shaft equipped with
arev.speedsensor.Ifthe ratedvalueisundercutby
more than 10 % an audible alarm sounds off and
simultaneously the display changes alternatively
from "operation display" to "fault display" (please
see para. 3.1.4.3).
"AMADOS" in the main consists of:
Fig. 3.1/...
1 - Calculator .
2 - Base console with mounting bracket (3).
3 - Mounting bracket.
4 - Battery power supply cable.
5 - Sensor "X" (cardan shaft/wheel) for determination
of the travelled distance.
6 - The implement signal distributor with the sensor
"shutter slide position" (7) and the connecting
possibility for the spindle motors (8).
7 - Sensor "shutter slide position".
8 - Spindle motor.
9 - Implement plug.
"AMADOS" is connected via the implement plug
(Fig. 3.1/9) with the implement signal distributor (6) of
the centrifugal broadcaster.

12
AMADOS DB 521.1 06.97
6. Before every operation determine the flowing
behaviourofthefertiliserbyconductingacalibration
test.This valuewillbeconsideredwhenregulating
the spread rate (see para. 3.1.2 point 6).
7. Releasestartfunctionandstartspreadingoperation
(see para. 3.1.2 point 7).
3.1.2 Operation procedure and description
of the keypad for the operation with
centrifugal broadcasters
resp.
By these key the implement specific data (values)
which are required for the "AMADOS" can directly be
dialed.
Always confirm dialed values by
Key .
By the 1st pressing of the resp.
the display advances by one position into the desired
direction.
Byrenewedpressureontothekeythedisplaycontinues
to run until the key is released.
Confirmandstoresimultaneouslyallimplementspecific
data which are required for monitoring the connected
machine always by pressing key .
.
3.1.1 Putting to operation
By pressing key "MOD" (Mode) the
corresponding mode of operation is
chosen. By the entered mode "AMADOS"
recognises the connected machine
(operation mode) and chooses
automatically the correct machinery pro-
gram.
Before starting to operate enter the
implement specific data by pressing the
correspondingkeysinthementionedorder
newly respectively check .
Already entered implement specific data
remain stored.
1. Switching on the "AMADOS" (see para. 3.1.2
point 1).
If"AMADOS"hasbeenusedonaseeddrill
prior to the use on a fertiliser broadcaster
it will naturally come to a error message
when switching on because the mode for
theseeddrillhadbeenentered.Initiallythe
display shows the program entering date.
For the following period of approx. 10 sec.
then no entry is possible. Thereafter
automatically the error message "13" is
shown. After approx. 15 sec. waiting the
corrected broadcaster mode "5" may be
entered.
Display in case of a wrong mode
Error
km/h
1/min
2. EnterbroadcasterMode"5" (seepara.3.1.2Point
2 "Choose mode" ).
3. Enter the wanted value for the spread rate (see
para. 3.1.2 point 3).
4. Check the working width and correct if necessary
(see para. 3.1.2 point 4).
5. Check "Imp./100m" and correct if necessary (by
direct entry or by a calibration test; see para. 3.1.2
point 5).
.
.
1
.

13
06.97 DB 521.1 AMADOS
Operating sequence
1. AMADOS on/off switching
By pressing key "AMADOS" is switched
o and by pressing key it is switched off.
When switching on, the display briefly
shows the creation date of the computer
program.
Always ensure that the servo motors set
the setting levers nearly into the range of
the zero-position (do not mind scales).
Whenever the supply voltage drops to
below 10 volts, e. g. when starting the
tractor, the computer automatically
switchesoff.Ithastobeswitchedonagain
as described above.
2. Choosing the mode
- press key.
- via the keys resp. dial the Fig. "5"
on the display.
Diesplay of the currecnt mode
Error
km/h
1/min
- press key. The entered value "5" will be
stored.
- press key once again to check the stored
value. On the display then the Fig. "5" should be
seen.
.
1
.
3. Entering the spread rate
Thevalueforthedesiredspreadrateshould
beentered whildthetractor isnot moving.
- press
1
00%
key
- Via the keys resp. dial
the desired spread rate [kg/ha] on the display, e.g.
"500" for the spread rate 500 kg/ha.
Display of the spread rate
Error
km/h
1/min
- press key. The dialed value "500" will be
stored.
- press once again
100%
key to check the stored
value. On the display then the figure "500" should
appear.
During fertilising operation the spread
rate can be changed by the keys
+
resp. in +/-10% steps.
When changing the spread rate for more
than 50 % a new calibration test ist
recommended.
.
1
.

14
AMADOS DB 521.1 06.97

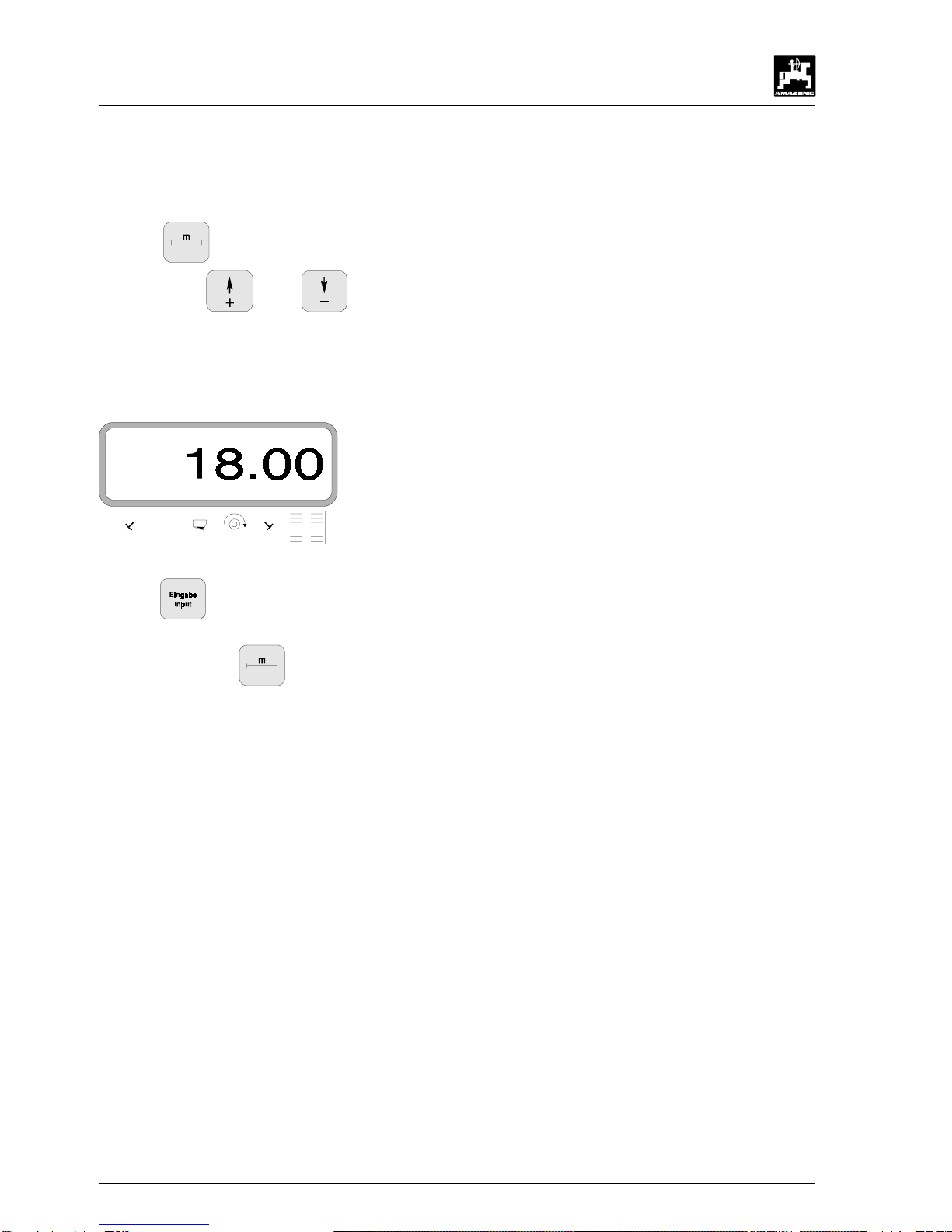

4. Enter working width
Fordeterminingtheoperatedarea"AMADOS"requires
informationaboutthe workingwidth. Theworkingwidth
should be entered as follows:
- press key.
- dia via keys resp. the desired
working width [m] on the display, e. g. "18" for 18 m
working width.
Display working width
Error
km/h
1/min
- press -key.Thechosenvaluewillbestored.
- press once more key to check the stored
value. On the display then the chosen figure, e.g.
"18" should appear.

15
06.97 DB 521.1 AMADOS
b) The value "Imp./100 m" is unknown:
- Accurately measure out in the field a calibration
distance of 100 m Mark the starting- and ending
point of the calibration distance.
100 m
0m
- Bring tractor in start position.
- Simultaneously press key and .
- Travelaccuratelyalongthecalibrationdistancefrom
the starting- till the ending point (when starting to
move the counter returns to "0"). Hereby the
continuously determined impulses are shown.
Display during the calibration test
Error
km/h
1/min
- Stop after 100 m. On the display now the number of
the determined impulses is shown.
- Press key . The shown, determined value
(Imp./100 m) will be stored.
- Press key once again to check the stored
value.Thedisplaynowshouldshowthe determined
value (Imp./100 m).
5. Calibrating the distance sensor
Fordetermeningtheactualforwardspeed "AMADOS"
required the value "Imp./100m", which sensor "X"
releasesto"AMADOS"whendrivingdownacalibration
distance of 100 m.
The figure "Imp./100m" may never be
smaller than "250" sein, as otherwise
"AMADOS" does not operate properly.
There are two possibilities of entry:
a) The value "Imp./100 m" is known:
- press key (when tractor is stopped).
- Dial the known value "Imp./100m" by keys
resp. .
- Presskey .Thechosenvaluewillbestored.
- press once again key to check the stored
value. The display should then show the dialed
value.
1

16
AMADOS DB 521.1 06.97
6. Calibration of application rate
The broadcaster can only then be set to
spread accurately when the fertiliser
properties, especially the flowing
behaviour, are exactly known.
Thisflowingbehaviourmayalreadychange
after brief storing of the fertiliser.
For this reason, conduct a fertiliser
calibration test with the fertiliser to be
spread before every operation.
In the event of a drastic change of
application rate by more than 50 % it is
advisable to carry out a fresh calibration.
Preconditions for an accurate calibration are:
•Beforestartingthephysicalcalibrationprocess,the
requiredapplicationrateandworkingwidthmust
be entered into the computer.
• An adequate quantity of fertiliser in the hopper.
When calibrating the spread rate entered
into the AMADOS may not exceed the
value shown in column "max. spread rate
to be entered for calibrating" in table 3.1
for the entered working widths.
Table 3.1: "Max. spread rate to be entered when calibrating in
dependence of the working width"
1
1
1
Working
width
[m]
max. spread rate [kg/ha]
to be entered
for calibrating
10 2400
12 2000
15 1600
16 1520
18 1350
20 1220
21 1160
24 1010
27 900
28 870
30 810
32 760
36 680
Procedure for the fertiliser calibration test:
The calibration of the application rate is carried out on
thelefthanddischargeopening(seenintraveldirection).
For this
- remove left hand spreading disc.
- Placecollectingbucketbelowthedischargeopening
(see ZAM-Instructions!)
The fertiliser calibration test can be
conductedstationaryforthecomputeronly
needstobeinformedofthefertiliservolume
persecondpassingthroughthedischarge
opening.
- Start the calibration procedure by simultaneous
pressing the keys
and .
The display shows a "0".
Display at the start of the fertiliser calibration test
Error
km/h
1/min
- Withtheptoengaged,rundthetractoratratedspeed
(540 U/min) and open the left hand shutter.
The display now shows the shutter opening time.
- After at least 30 seconds close the shutter.
After closing the shutter the display changes.
Display after closing the shutter
Error
km/h
1/min
Theshutteropeningtimesmaybeselected
.

17
06.97 DB 521.1 AMADOS
1at random, but should not be less than 30
seconds.Atlargerspreadratesplacelarger
bucket under the outlet opening.
- Weigh collected fertiliser (consider net weight of
bucket).
- Enter weight of the fertiliser via the keys
resp. into the computer,
e.g. "2.50" for 2,5 kg.
- then press key to confirm.
"AMADOS" now calculates a calibration factor
characteristic for the fertiliser and working width
used which can be called up on the display by
pressing the key .
- After completing the calibration test reinstall the
spreading disc.
How to conduct the calibration test when the
entered spread rate exceeds the maximum
spread rates mentioned in table 3.1:
Example:
Working width: 24 m
Wanted spread rate: 1300 kg/ha
Thusthemaximumallowablespreadrateforconducting
thecalibrationtest for24mworking widthof1010kg/ha
will be exceeded.
- Prior to the calibration test change the figure for the
entered spread rate of1300 kg/ha to the maximum
spread rate mentioned in the table of 1010 kg/ha.
- Continue with the calibration test as stated under
"procedure for the fertiliser calibration test".
- After having conducted the calibration test, enter
again the figure for the wanted spread rate, here
1300kg/ha.

18
AMADOS DB 521.1 06.97
7. Starting spreading operation
For starting the operation simultaneously press the
Start
keys.
The section memory for the part area [ha] returns
automatically to "0" .
When one of the shutters is opened the computer
displays
• the momentary forward speed [k.p.h.].
• the current spread rate [kg/ha].
Operating display fertiliser broadcaster
Error
km/h
1/min
6.9 500
forward speed spread rate
shows up, when the machine
is in operating position
right hand shutter
opened
left hand shutter
opened
flashes in the event of
speed sensor impulses
if an additional rev-monitoringsensor
is installed an alarm is released
when the preset rev's are undercut by 10%.
vacant position
vacant position
fault message
3.1.3 Spreading extremely small spread
rated, e. g. green manure seed and
slug pellets
Spread rates below 50 kg/ha (smallest
spread rates) will have an unfavourable
flowing effect of the material due to the
small diameter of the outlet opening and
therefore may lead to deviations of the
spread rate.
3.1.3.1 Special case spreading rye grass
Example:
Rye grass
Spread rate: 34 kg/ha
Working width: 12 m
Forward speed: 10 k.p.h.
From setting chart: shutter position "27"
Table 3.2: "Spread rate for rye grass"
excerpt from the setting chart
.
Weidelgras 0,51 kg/l
10 12
km/h km/h km/h km/h km/h
8 10 12 8 10 12 8 10 12 8 10 12 8 10 12
# #  $  $ "
$ !' ! $ !! $
% # " !# "! !" '
& $" # "! #! " !#
' %' $! #! $$ # ""
! '$ %% $" & $" #!
m
Lever setting pos.
rye grass

19
06.97 DB 521.1 AMADOS
4. Stop vehicle, press key
100%
and dial on the
display the spread rate "167" [kg/ha] via the keys
resp.
press key and store entered value "167".
Press once again key
100%
and check the
entered value. The display should then show the
figure "167".
Conduct the calibration test with grass seed (refer
to para. 3.1.2 point 6 ):
5. Press keys and and start the
calibration test. The display now shows a "0".
6. Start the tractor engine and let pto shaft rotate at
(540R.P.M.)landopenlefthandshutterslideforat
least 30 seconds.
7. Weigh the collected grass seed.
8. entertheweight ofthe collectedgrass seedviathe
keys resp. into the computer,e.g.
"0.50" for 0,5 kg.
Press key and confirm.
"AMADOS" now detemines a calibration factor
characteristicforthegrassseedandworking width
used which can be displayed by pressing
key .
9. Enterthedesiredgrassseedspreadrate(34kg/ha)
as described before.
10. Refit left hand spreading disc.
For broadcasting rye grass pleasse proceed with
the calibration test in the following order:
1. In setting chart find page for the spread rate
setting of CAN 27 % N gran. BASF .
Table 3.3: "Spread rate setting CAN 27 % N gran. BASF"
Extract from the setting chart
2. Lookforcolumn20mworkingwidthand8k.p.h.
In this column for the setting lever position "27"
(shutter position "27" for rye grass spread rate
34 kg/ha) read off the spread rate "167" [kg/ha].
3. Press key and dial via keys resp.
thefigure "12"(for 12m workingwidth with
rye grass) on the display.
Press key and store.
Lever setting pos.
CAN 27 % N Granular BASF; DSM; HYDRO 1,04 kg/l
HYDRO Super Grass NPK 25-5-5 Blend 1,01 kg/l
HYDRO Extra Grass NPK 29-5-5 Blend 0,92 kg/l
K+S Korn-Kali ® Granular 40 % K2O, 6 % MgO,
4 % S, 3 % Na 1,12 kg/l
20 21 24 27 28
km/h km/h km/h km/h km/h
8 10 12 8 10 12 8 10 12 8 10 12 8 10 12
# !# & '  & ! &$  ' %#  & $% '$ %% $"
$ #     " ! # '#  #   &"   &' %"  % &$ %
% $% !!   # '  % $ !'   '!  " '' &  ' '# %'
& &" "%  ! % # " % #"  !  !$ ' ' ! # &&
' ! $ ! # ' ! #"  ' $' ! #  ! #    " #  $ '$
! %& " &   $' " &# " &  ! $" !  # &  % $
! " '" $  !  &" #"  $  ! " %' "!   % ! ! & #
! $!  % # #   $% ' % # " $ '# #$ ! & & #   #
!! &# & '  %  % & !% '  # &  $' "  ! $ ! !$
!" !% "$  # ' ! !" '# #$  # %  & & #  % $ "$
!# !! $#  ! # #  %$  & " "# '$ $! ! $ & ' #%
!$ !## &" ! $ !! & % # '$ ! $ ' % $!  %# # !  ! $'
!% !%' !! # ! !$  &' " !$ # !   & # &% %   % &
!& "" ! ! %  !& # !& #% !!% %  # '' "  & ' !  '!
!' "! !"" & % " ' ! & %! !#& & % ! ' !& ##  ! % " $ #
" "#$ !$# ! " "! " !"& ' !& ! " # ! !!& % # ! $ $  %
" "&! !&$ ! "$  !$& !$ " ! $ & !#& &$ !& !" # % $ !
" # "& !"  "& # !&& ! " " # !"  & ! !%% ! # !$ " '  "!
"! #!% " ' !# & #  "' !" ""% !# & ' & !'& !& $# !& ! ! % #$
"" #$" "# !% $ #! % "! !#& "% !% $ ! ! "& !!" %' " ! ! $'
"# #' "%! !' # #$ " "# !%$ "'! !' # ! ' "!& !# ' " ! !! & &
"$ $  "'$ " ! #'  "% !'! #$ " ! !" " "#' !$% !$ "" ! !# " '#
"% $"% #& "! $ % "'! " #" "! !$  "& !&" !  "$ !%  !&
"& $%# #" "#  $" ! #" " ' #$! "#  !% # # " !!! "& !& $ !
"' %! #$ "$ ' $%  #!$ ""$ #&$ "$ ' !'  #  "% !"% # " !!#
# %! #&" "& % $' $ ##% "$" $' "& % " $ #" "!! !$ # " % !"&
# %#& $$ # # % #%& "& $! # # "  #$ ""' !%" #"  "! ! !$
# %&# $ & # ! %" & #'& "'& $#" # ! "! $ #& "$# !&& #$  "" ' !%"
#! & $# #"  %% ! $' ## $%% #"  "#  $ "& " #&  "$ " !&%
#" &!& $% ## ' %' & $!' #! $'' ## ' "$ $ $  "'% "" #' ' "% ' !''
m-kas12.xls
m

20
AMADOS DB 521.1 06.97
3.1.4 Displays and functions during
operation
Whilst working in the field, the display shows:
• the momentary forward speed[km/h]
• the current spread rate [kg/ha].
By pressing one of the following function keys for
approx.10secondsthewantedvaluewillbedieplayed.
Thereafter the computer automatically switches back
into the "operation display".
3.1.4.1 Forward speed k.p.h.
After pressing key the momentary forward
speed is displayed in [k.p.h.].
Display after pressind key "km/h"
Error
km/h
1/min
3.1.4.2 Covered part- resp. total area
1. Part area
After one-time pressing key
Σ
the covered part
areain[ha] isdisplayed,which hasbeencovered since
actuating the "start function".
Only the covered area will be determined
atwhichthefertiliserbroadcasterhadbeen
in operating position.
Display after one-time pressing the key
Error
km/h
1/min
2. Total area
After two-times pressing the key
Σ
the total
area in [ha], e.g. of one season, is displayed.
Therefore, prior to beginning the season,
clear the memory for the total area to "0" .
Display after two-times pressing the key
Error
km/h
1/min
3.1.4.2.1 Clearing the memo to "0" for determining
total area
Beforestartingtheseasonsetthememofordetermining
the total area on "0" by simultaneously pressing
the keay
Σ
and .
.
1
