ambient SYSTEM ABT-PSM48/E User manual

User Manual
EN 54-4: 1997/A2:2006
Fire detection and re alarm systems – part 4: Power supply equipment
EN 12101-10:2005
Smoke and heat control systems. Power supplies
Power Supply Manager
ABT-PSM48/E
Power Supply Unit
ABT-PS48800
Power Supply Unit Frame
ABT-PF4
EN
www.ambientsystem.eu Ambient System Sp. z o.o.
ul. Bysewska 27 | 80-298 Gdańsk | Poland
ver. 04.2020

2
Power supply equipment ABT-PSM48/E / ABT-PS48800 / ABT-PF4
User Manual
Table of Contents
1. Safety ____________________________________________________________________________________________________________ 3
2. Characteristics and purpose of the document _________________________________________________________________ 6
3. General description _____________________________________________________________________________________________ 6
4. ABT-PSM48/E Power Supply Manager__________________________________________________________________________ 7
4.1 Front panel__________________________________________________________________________________________________ 7
4.2 Front panel operation ________________________________________________________________________________________ 8
4.3 Rear panel _________________________________________________________________________________________________11
5. ABT-PS48800 Power Supply Unit ______________________________________________________________________________ 12
5.1 Rear panel _________________________________________________________________________________________________12
6. ABT-PF4 Power Supply Unit Frame module ___________________________________________________________________ 13
7. Manufactures remarks _________________________________________________________________________________________ 13

3
1. Safety
Danger!
High risk: This symbol indicates an imminently hazardous situation such as "Dangerous Voltage"
insidethe product. If not avoided, this will result in an electrical shock, serious bodily injury, or death.
Warning!
Medium risk: Indicates a potentially hazardous situation.
If not avoided, this could result in minor or moderate bodily injury.
Caution!
Low risk: Indicates a potentially hazardous situation.
If not avoided, this could result in property damage or risk of damage to the unit.
1 Read these instructions. All the safety and operating instructions should be read before the apparatus or system is
operated.
2 Keep these instructions. The important safety instructions and operating instructions should be retained for future
reference.
3 Heed all warnings. All warnings on the apparatus and in the operating instructions should be adhered to.
4 Follow all instructions. All instructions for installation or use/operating should be followed.
5 Do no use this apparatus near water. Do not use this apparatus near water or a moist environment – for example, near
a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, near a swimming pool, in an unprotected outdoor
installation, or any area which is classied as a wet location.
6 Clean only with dry cloth. Unplug the apparatus from the outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners.
7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Openings in
the enclosure, if any, are provided for ventilation and to ensure reliable operation of the apparatus and to protect it from
overheating. These openings must not be blocked or covered. This apparatus should not be placed in a built-in installation
unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers)
that produce heat or in direct sunlight.
9 No naked ame sources, such as lighted candles, should be placed on the apparatus.
10 Do not defeat the safety purpose of the polarized or ground-type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong
are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the
obsolete outlet.
11 Protect the power cord from being walked on or pinched particularly at plug, convenience receptacles, and the
point where they exit from the apparatus.
12 Only use attachments/accessories specied by the manufacturer. Any mounting of the apparatus should follow the
manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
13 Use only with the cart, stand, tripod, bracket or table specied by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Quick stops,
excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
14 Unplug this apparatus during lighting storms or when unused for long periods of time. Not applicable when special
functions are to be maintained, such as evacuation systems.

4
Power supply equipment ABT-PSM48/E / ABT-PS48800 / ABT-PF4
User Manual
15 Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
theapparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
16 Avoid mechanical shocks. Strong impacts and shocks may damage the device. Transport the device carefully and avoid
dropping it.
17 The apparatus shall not be exposed to dripping or splashing and that no objects lled with liquid, such as vases,
shall be placed on the apparatus.
18 Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, re or the like.
Caution!
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Dispose of used
batteries according to the environmental law and procedures.
19 Professional installation only. Do not use this equipment in residential applications.
20 Condensation. In order to avoid condensation; wait a few hours before turning on the equipment when it is transported
from a cold to a warm space.
21 Hearing damage. For apparatus with audio output, to prevent possible hearing damage, do not listen at high volume
levels for long periods.
22 Donot disassemble thedeviceorattempttorepairor modifyit.Thedevice doesnot include userreplaceablecomponents
inside the chassis. Opening the chassis and unauthorized repairs will void the warranty. Unauthorized substitutions may
result in re, electric shock or other hazards.
23 Safety check. Upon completion of any service or repairs to this apparatus, ask the service technician to perform safety
checks to determine that the apparatus is in proper operating condition.
Danger!
Overloading – do not overload outlets and extension cords as this can result in a risk of re or electric shock.
24 Power sources. This apparatus should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply you plan to use, consult your appliance dealer or local power company.
For apparatuses intended to operate from battery power, or other sources, refer to the operating instructions.
25 Power lines. An outdoor system should not be located in the vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or circuits. When installing an outdoor system, extreme care should
be taken to keep from touching such power lines or circuits, as contact with them might be fatal.
Danger!
Object and Liquid entry – never push objects of any kind into this apparatus through openings as they may
touch dangerous voltage points or short-out parts that could result in a re or electric shock. Never spill liquid of
any kind on the apparatus.
26 Protective grounding. An apparatus with class I construction shall be connected to a power outlet socket with a protective
grounding connection.
Protective earthing. An apparatus with class I construction shall be connected to a mains socket outlet with a protective
earthing connection.

5
Note for power connections
• For permanently connected equipment, a readily operable mains plug or all-pole mains switch shall be external to
theequipment and in accordance with all applicable installation rules.
• For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.
This label may appear on the bottom of the apparatus due to space limitations.
Caution!
To reduce the risk of electrical shock, DO NOT open covers. Refer servicing to qualied service personnel only.
Warning!
To prevent re or shock hazard, do not expose units to rain or moisture.
Warning!
Installation should be performed by qualied service personnel only in accordance with the National Electrical Code
or applicable local codes.
Warning!
Power disconnect: If the apparatus is mains powered and a power supply cord set is provided, the disconnect device is
the mains plug of the power cord set.
If an AC DC adapter is provided and the mains plug that is part of the direct plug in device, the AC DC adapter is the
disconnect device. The socket outlet shall be near the apparatus and shall be easily accessible.
Old electrical and electronic appliances
Electrical or electronic devices thatare nolonger serviceable must be collected separately and sent forenvironmentally
compatible recycling (in accordance with the European Waste Electrical and Electronic Equipment Directive).
To dispose of old electrical or electronic devices, you should use the return and collection systems put in place
in the country concerned.
Only used at altitude not exceeding 2000m.
Only used in non-tropical climate regions.
≤ 2000 m

6
Power supply equipment ABT-PSM48/E / ABT-PS48800 / ABT-PF4
User Manual
2. Characteristics and purpose of the document
This User Manual introduces the equipment user into correct operation and use of the ABT-PSM48/E Power Supply Manager,
ABT-PS48800 Power Supply Unit and ABT-PF4 Power Supply Unit Frame. Information on installation, electrical connection,
rstoperation and servicing is included in attached Technical Documentation.
Keep carefully this User Manual and any other attached documents for further reference.
Ambient System bears no responsibility for damages caused by failure to observe this document.
3. General description
ABT-PSM48/E Power Supply Manager is designed for distribution uninterruptible power supply of guaranteed 40…57,6 VDC
and24VDC of total maximum power up to 3,2 kW.
c The only dierence between ABT-PSM48 and ABT-PSM48E is the lack of 6 × 24VDC outputs in ABT-PSM48.
As a source of energy distribution, the Manager uses external modules of 800 W ABT-PS48800 Switch Mode Power Supply Units.
Asasource of back-up power supply, it uses the VRLA battery bank of capacity up to 4×200 Ah. Use of 12V batteries with a capac-
ity of less than 40Ah can be used only for public address. ABT-PSM48 co-operates with maximum 4 modules of ABT-PS48800
Units, ensuring safe connection for the purpose of parallel operations and monitors the output parameters of each Power Supply
Unit. If the unit is used as a back-up power supply system only, no ABT-PS48800 units will be required. ABT-PSM48 co-operates
with the 4×12V VRLA battery bank. It maintains the bank in charged condition, ensures temperature compensation of charging
parameters and monitors series resistance of the battery and its wiring in compliance with Exhibit No.A2 to the EN 54-4 Standard.
Power Supply Manager and Power Supply Units are designed for assembling in a 19” IP30 Rack with other Firedetection and
re alarm systems elements.
ABT-PSM48 ensures uninterruptible switching to back-up power supply in case of mains power supply decay or failure
ofABT-PS48800 Power Supply external modules. The Power Supply Manager is intended for systems requiring back-up power
supply, including those compliant to EN 54-16 Voice alarm control and indicating equipment.
The maximum conguration of the 54-4 compliant Power Supply Equipment includes:
• 1× ABT-PSM48 – Power Supply Manager
• 4× ABT-PS48800 – Power Supply Unit
• 1× ABT-PF4 – Power Supply Unit Frame

7
4. ABT-PSM48/E Power Supply Manager
4.1 Front panel
Fig. 1 presents the front panel of Power Supply Manager module, with its most important elements marked.
ABT-PSM48
PSU voltage
PS1=52.0V
456
1237
Fig. 1 Front panel of ABT-PSM48 Power Supply Manager
LEGEND:
1 Power
Green LED indicates supply connection.
2 Active
Green LED indicates proper operation and indicates long-press button.
3 Fault
Yellow LED indicates a system failure.
4 Entry / Exit button
Menu operation button.
5 Arrow Down button
Menu navigation button.
6 Arrow Up button
Menu navigation button.
7 Display
Alphanumeric LCD Display presents the status of the Power Supply Equipment and Power Supply Manager menu.
Menu navigation with the use of buttons available at the front panel is presented in the following subsection.

8
Power supply equipment ABT-PSM48/E / ABT-PS48800 / ABT-PF4
User Manual
4.2 Front panel operation
Typical operation of the power supply system is limited to dening the number of Power Supply Units and adjusting parameters of
batteries bank attached. Fig. 2 and Fig. 3 present a part of the Power Supply Manager front panel including buttons and LEDs indicat-
ing the condition of the module, as well as the menu structure diagram in form of information available on the alphanumeric display.
Fig. 2 Front panel buttons
The front panel buttons are used to control the equipment from its menu.To use the second function of button, press it longer (>1s).
Conrmation of this is to deactivate the LED Active.The menu enables monitoring the condition of Power Supply Units, condition of
an internal Charger, measuring series resistance of batteries and its connections, checking battery temperature and previewing a list
of registered equipment failures and check the Power Supply Manager's rmware version. It is also possible to enter service mode, in
order to choose the number of Power Supply Units, disable the battery protection system, adjust battery capacity. Navigating menu
by using buttons is described below the gure.

9
EXIT EXIT
ENTRY
ENTRY
SELECT
ENTRY
SELECT
ENTRY
SELECT
ENTRY
RESET
RESISTANCE
MEASUREMENT
ON DEMAND
SERVICE
MODE
PSU voltage
PS1=52.0V PS2=52.0V
Password:
0000
Failure register
review (0)
Number of PSU:
1[·] 2[ ] 3[ ] 4[ ]
Battery temperature:
Tbat=23.5˚C
Series resistance:
Rs=41mΩ Rmax=54mΩ
ENTRY
SELECT
ENTRY
SELECT
1.3.1
Battery condition:
Ubat=54.2V Ila=3.5A
Battery protection:
[·]
Language:
English[ ] Polish[·]
Type:
PSM24[ ] PSM48[·]
Battery test [ ]:
Ukal=54V Ild=0,0A
Battery capacity:
4x12V/15Ah
ENTRY
EXIT Failure 1/14
Low supply volt. PS(1..4)
Failure 2/14
High supply volt. PS(1..4)
Failure 4/14
Fuse failure F(1..8)A
Failure 3/14
Supply failure PS(1..4)
Failure 5/14
Supply failure 24V
Failure 6/14
! backup supply !
Failure 8/14
High bat. voltage
Failure 7/14
High bat. resistance
Failure 9/14
No battery
Failure 10/14
Charger supply fail.
Failure 11/14
Temp. sensor failure
Failure 13/14
Device failure
Failure 12/14
Charger overheat
Failure 14/14
Unknown device type
Fig. 3 Power Supply Manager menu structure block diagram

10
Power supply equipment ABT-PSM48/E / ABT-PS48800 / ABT-PF4
User Manual
ENTRY – click ENTRY/ EXIT button for more than 1 sec.
EXIT – click ENTRY/EXIT button
SELECT – press ENTRY/ EXIT button and hold for approx. 1 s
POWER SUPPLY UNITS CONDITIONS – from the main level of menu, using arrows, choose option "PSU voltage" to display
parameters of the connected Power Supply Units.
BATTERY SERIES RESISTANCE MONITOR – from the main level of menu, using arrows, choose option "Series resistance" to display
the periodically measured value of the series resistance of batteries and its connections. There are two values visible on the screen:
Rs – measurement results, Rmax – parameter depending on the battery capacity selected in the service mode menu. Rs value should
not exceed Rmax, (when Rs goes above Rmax the alarm will be indicated).
RESISTANCE MEASUREMENT ON DEMAND – from the main level of menu, using arrows, choose option "Series resistance" and
click the ENTRY/EXIT button, then wait for the Rs measurement result.
BATTERY CONDITIONS – from the main level of menu, using arrows, choose option "Battery conditions" to display conditions
of connected battery bank.
CHARGING PARAMETERS – from the main level of menu, using arrows, choose option "Battery conditions" to display parameters
of charging connected battery bank.
BATTERY TEMPERATURE – from the main level of menu, using arrows, choose option "Battery temp." to display ambient tempera-
ture around the battery bank.
PREVIEWING FAILURE REGISTER – from the main menu position, using arrows, choose a suitable option and click the ENTRY/ EXIT
button. Browse next failure using arrows or click the ENTRY/ EXIT to return to the main menu.
ENTER THE SERVICE MODE – press ENTRY/ EXIT button and Arrow Down button simultaneously, hold them for 1 s. Use Arrows and
Select to enter password. Service password is 1992. In service mode, it is possible to edit the number of Power Supply Units con-
nected, disable battery protection or dene capacity of battery bank connected. To modify settings, select an option using arrows,
press ENTRY/EXIT button and hold for approx. 1 s to change the option and click ENTRY/EXIT button to conrm changes.
EQUIPMENT RESET – press Arrow Up and Arrow Down buttons simultaneously and hold for approx. 3 s. The system will
reset and indicators tested.

11
4.3 Rear panel

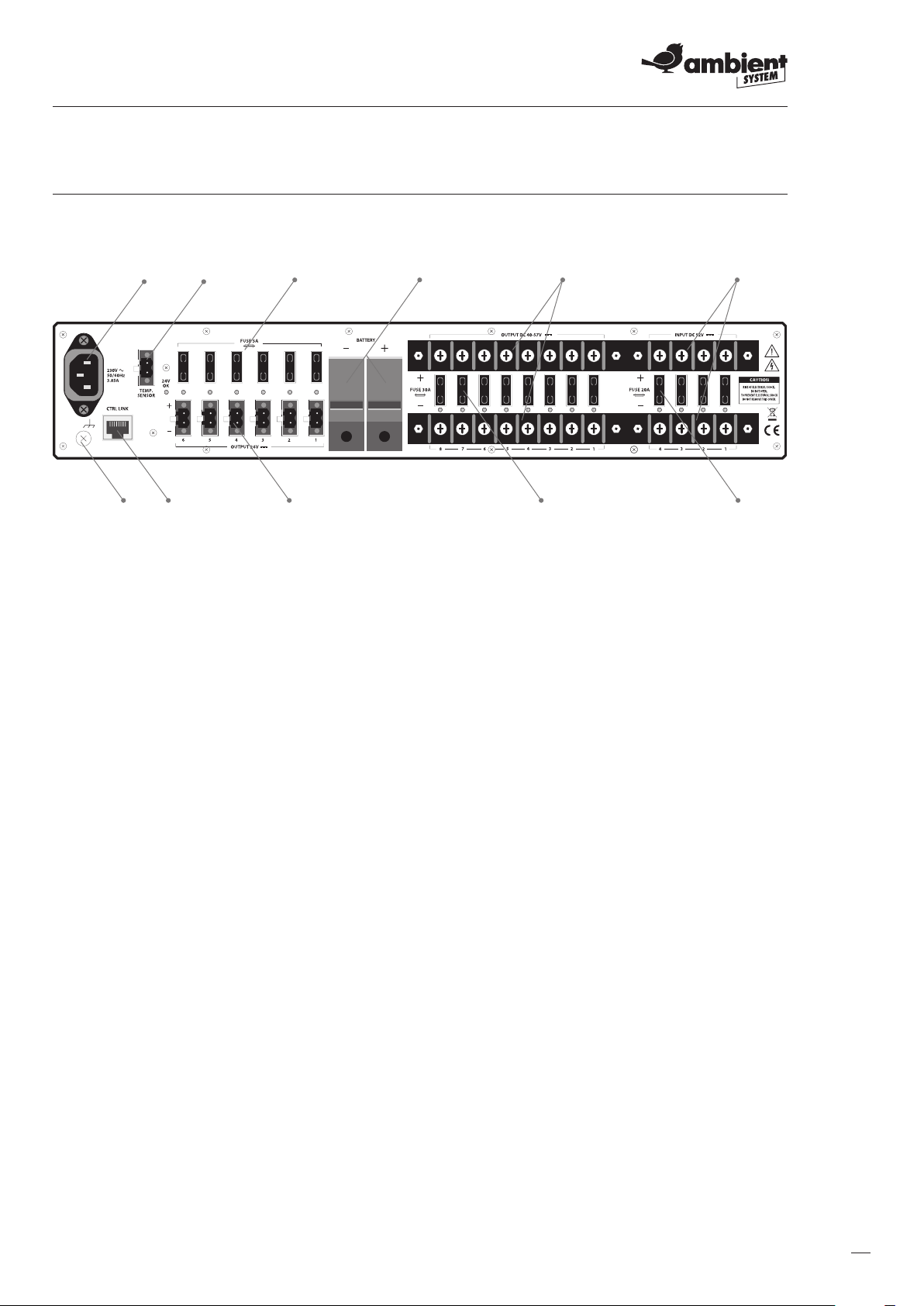

Fig. 4 presents rear panel with markings of the terminals used.
POWER SUPPLY MANAGER
78
9101
1
12 3 54 6
Fig. 4 Rear panel of ABT-PSM48/E Power Supply Manager
LEGEND:
1 Mains terminal
This terminal is used to connect the mains cable.
2 Temperature sensor terminal
The temperature sensor terminal is used to connect the NTC sensor placed around the battery bank.
3 24 V DC output fuses (5 A, 32 V DC) – available only in the version with extended functionality ABT-PSM48E
The fuses are used for overcurrent and short circuit protection of 24 V DC outputs.
4 Battery terminals
Battery terminals are used to connect the 48V VRLA battery bank working as the back-up power supply.
5 48V DC output terminals
The output terminals provide output voltage of between 40 and 57 V DC.
6 Power Supply Unit input terminals
The input terminals are used for connecting the 52 V DC from ABT-PS48800 Units.
7 Earth terminal
This terminal is used to earth the equipment.
8 Control link
The control link terminal provides failure signals (DC FAIL, AC FAIL, BATTERY FAIL, RESISTANCE EXCEEDED).
9 24 V DC output terminals – available only in the version with extended functionality ABT-PSM48E
The output terminals provide output voltage of 24 V DC.
10 48 V DC output fuses (30 A, 80 V DC)
The fuses are used for overcurrent and short circuit protection of 48V DC outputs.
11 Power Supply Unit input fuses (20 A, 80 V DC)
The fuses are used for protection Power Supply Units inputs.
Details concerning parameters, installation, electrical connection and rst run are described in relevant Technical Documentation.

12
Power supply equipment ABT-PSM48/E / ABT-PS48800 / ABT-PF4
User Manual
5. ABT-PS48800 Power Supply Unit
5.1 Rear panel
Fig. 5 presents the rear panel of ABT-PS48800 Power Supply Unit module.
Fig. 5 Rear panel of ABT-PS48800 Power Supply Unit module
1
3
2
LEGEND:
1 Mains terminal 230 V, 3,85 A
This terminal is used to connect the mains cable.
2 52 V DC power supply output terminal, 15,4 A
The output terminal provides stabilized output voltage of 52 V DC.
3 Working condition indicator lights
The working condition indicator lights signal the Power Supply Unit condition – each diode is described in the table below.
DC FAIL lights red if output voltage is not available (e.g. overload)
AC OK lights green if AC voltage is enough for proper operation
Details concerning parameters, installation, electrical connection and rst run are described in relevant Technical Documentation.

13
6. ABT-PF4 Power Supply Unit Frame module
The Power Supply Unit Frame module is designed for mounting the Power Supply Units a 19” IP30 Rack. Four independent
ABT-PS48800 may be mounted in the frame, with the use attached bolts.
Fig. 6 ABT-PF4 front panel
Details concerning parameters, installation, electrical connection and rst run are described in relevant Technical Documentation.
7. Manufactures remarks
Please note that Ambient System is not responsible for results of unauthorized repairs.
Any repairs of the equipment should be made by the Ambient System or a service centre authorized by the Ambient System.
In any unresolved issues, please contact with Ambient System's trained personnel. A content contained herein is subject to
change without notice. Ambient System reserves the right to change or modify the product and conditions applicable to the
use this product at any time.

14
Power supply equipment ABT-PSM48/E / ABT-PS48800 / ABT-PF4
User Manual

15

www.ambientsystem.eu
Ambient System Sp. z o.o.
ul. Bysewska 27 | 80-298 Gdańsk | Poland
T: [phone] | [e-mail]
