Ambient Weather WS-8400 ClearView Projection Alarm
Clock with Indoor Temperature and Color Changing
Outdoor Temperature User Manual
Table of Contents
1. Introduction.....................................................................................................................................2
2. Warnings .........................................................................................................................................2
3. Getting Started ................................................................................................................................3
3.1 Product Features.....................................................................................................................3
3.1.1 Display Clock.....................................................................................................................3
3.1.2 Wireless Transmitter...........................................................................................................5
3.2 Parts List.................................................................................................................................5
3.3 Powering Up...........................................................................................................................5
3.4 Siting the Wireless Transmitter Outside.................................................................................6
4. Clock Display..................................................................................................................................7
4.1 Normal Time Display Mode...................................................................................................7
4.2 Alarm Time Display Mode.....................................................................................................7
5. Settings............................................................................................................................................8
5.1 Time, Date, and Language Settings........................................................................................8
5.2 Alarm Settings........................................................................................................................8
5.2.1 Using theAlarm and Snooze Functions.............................................................................8
5.3 Projector and Backlight..........................................................................................................9
5.3.1 Using the Projector and Backlight .....................................................................................9
5.3.2 Projector Rotation ..............................................................................................................9
5.3.3 Adjusting Projector Focus................................................................................................10
5.3.4 Projector Temperature Display.........................................................................................10
5.4 Barometric Pressure Display and Settings ...........................................................................10
5.4.1 Barometric Pressure Units of Measure.............................................................................10
5.4.2 Absolute Pressure vs. Relative Pressure...........................................................................10
5.4.3 Relative Pressure Calibration...........................................................................................10
5.5 The Barograph...................................................................................................................... 11
5.6 Viewing Minimum and Maximum Records (Memory Mode) .............................................11
5.7 Viewing Historical Data (History Mode) .............................................................................12
5.8 Color Changing Feature .......................................................................................................12
5.8.1 Manual Color Preference .................................................................................................12
5.8.2 Outdoor Temperature Color .............................................................................................12
5.9 Low Temperature Notification .............................................................................................13
5.10 Back Light On/Off................................................................................................................13
5.11 Back Light Brightness..........................................................................................................13
5.12 Wireless Sensor Display.......................................................................................................14
5.13 Wireless Sensor Low Battery Indictor..................................................................................14
5.14 Viewing the Wireless Sensor Channels................................................................................14
5.15 Syncing and Resyncing the Wireless Sensor........................................................................14
5.16 Adding Multiple Wireless Sensors.......................................................................................14
6. Specifications................................................................................................................................15

Version 1.3 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 2
6.1 Wireless Specifications ........................................................................................................15
6.2 Measurement Specifications.................................................................................................15
6.2 Power Consumption....................................................................................................................15
7. Troubleshooting Guide..................................................................................................................15
8. Accessories ...................................................................................................................................16
9. Liability Disclaimer ......................................................................................................................16
10. FCC Statement..........................................................................................................................17
11. Warranty Information ...............................................................................................................17
1. Introduction
Thank you for your purchase of the Ambient Weather WS-8400 ClearView Projection Alarm Clock
with Indoor Temperature and Color Changing Outdoor Temperature. The following user guide
provides step by step instructions for installation, operation and troubleshooting. To download the
latest full sized manual and additional troubleshooting tips, please visit:
http://ambientweather.wikispaces.com/ws8400
2. Warnings
Warning. Never look directly into the time and temperature projector. This can cause
temporary blindness.
Warning. Only use approved AC adapter.

Version 1.3 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 3
3. Getting Started
3.1Product Features
3.1.1 Display Clock
Figure 1
No
Description
No
Description
1
REVERSE Button
- Press to reverse the projected time and
temperature.
12
BARO button
- Press to change barometric pressure units
of measure.
2
SNOOZE/LIGHT Button
- Turn on the projector and backlight for 5
13
SENSOR Button

Version 1.3 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 4
No
Description
No
Description
seconds.
- Stop the current alarm when sounding
and enter into snooze mode.
3
PROJECTOR
- Projects the time and indoor/outdoor
temperature (automatically scrolls
between indoor and outdoor temperature
every 5 seconds).
14
NIGHT LIGHT FUNCTION On/Off
Switch
- Slide to turn on/off the night light
function (remove battery door).
4
LCD Display
15
RESET Button
- Press to reset all values to default values.
- In case of malfunction, the unit can be
reset.
5
TIME Button
- Press to switch between Month/Date and
alarm time mode (Alarm 1 and 2).
- Press and hold for 2 seconds to enter
time set mode.
- In time set mode, press to step through
the different time and date settings.
16
PROJECTION On/Off Switch
- Turns the time and temperature projection
on or off.
6
ALARM Button
- In normal time display mode, Press
TIME button to displayALM1 &ALM2.
Press ALARM to turn on/off ALM1 &
ALM2.
- Press to stop the current alarm when the
alarm is ringing and turn off the alarm
and snooze function.
- In alarm time mode, press and hold for 2
seconds to enter alarm time setting mode.
- In alarm time setting mode, press to step
through the different time and date
settings.
17
LIGHT On/Off Switch
- Turns the back light on and off.
7
+/CHANNEL Button
- In set mode, press to increase the values.
- In normal time display mode, press to
switch between Channels 1, 2 and 3.
- In normal time display mode, press and
hold for 2 seconds to automatically scroll
between sensor channels 1, 2 and 3.
18
L/H Dim Switch
- Sets the back light to high or low.
8
-/MEM Button
- In set mode, press to decrease the
values.
In normal mode, press to display
minimum and maximum numbers stored
in memory.
19
DC POWER JACK
9
HISTORY Button
- In normal mode, press to view hourly
historical data stored in memory.
20
BATTERY COMPARTMENT
-Accommodates 3 xAA batteries (alkaline
recommended).
10
°F/°C Button
- Select switch between °F and °C units of
21
FOCUS Knob
-Adjust the focus of the projected time and

Version 1.3 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 5
No
Description
No
Description
measure.
temperature.
11
Loop ON/OFF Button

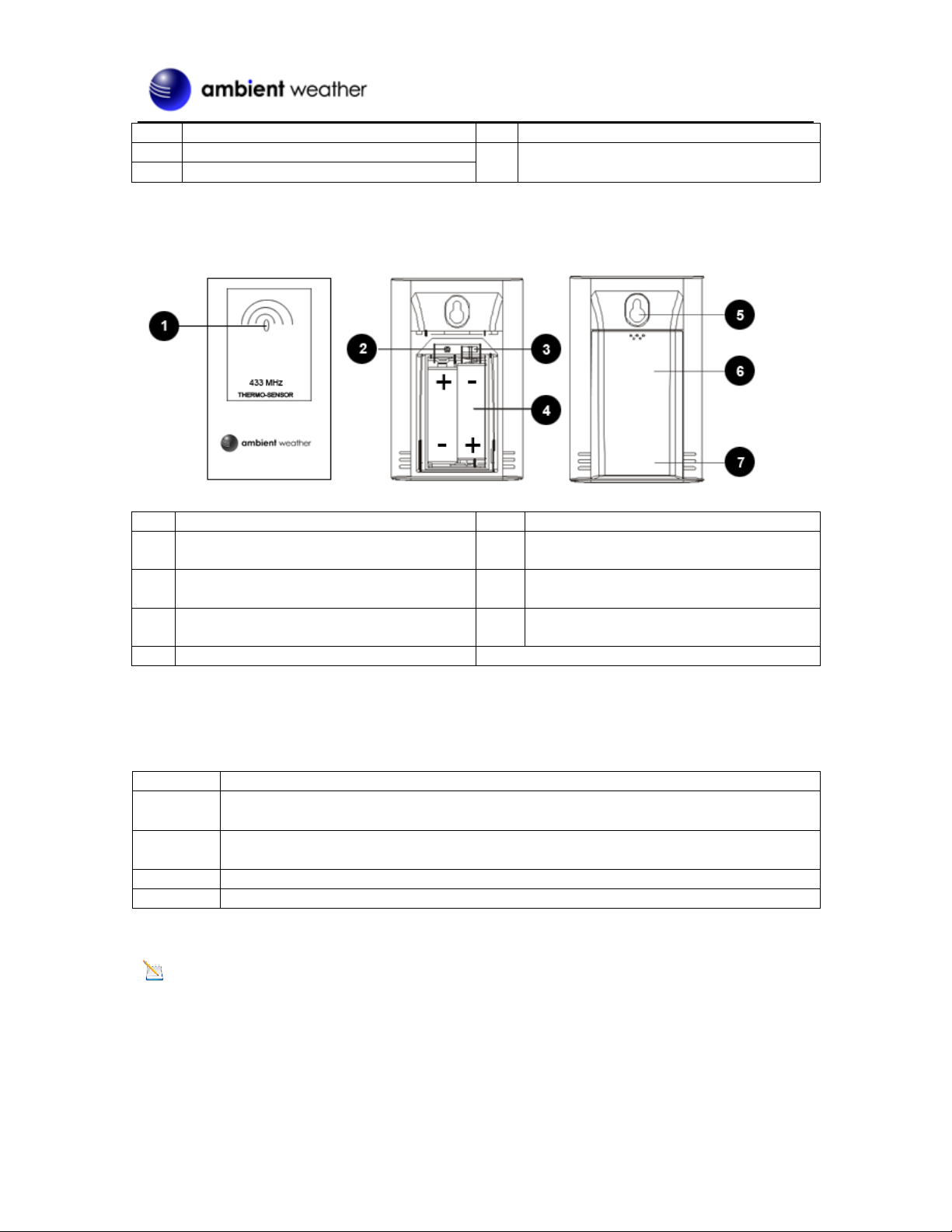

3.1.2 Wireless Transmitter
Figure 2
No
Description
No
Description
1
Transmitter LED (flashes when the remote
is transmitting)
5
Wall hanger
2
Reset button (press reset to restart the
transmitter)
6
Battery cover
3
Transmitter channel (assign the transmitter
to 1,2 or 3, default = 1)
7
Table stand
4
2 x AA batteries
Note: The WS-8400 supports three wireless channels. If you have one sensor, leave the transmitter
channel at Channel 1. If you have more than one sensor, refer to Section 5.16.
3.2 Parts List
QTY
Item
1
Clock
Frame Dimensions (LxWxH): 5.25" L x 1.5"D x 3.5"H
1
Wireless Transmitter (LxWxH): 4.0” L x 2.5” W x 1.5” D
1
UL Rated AC Adapter
1
User Manual
3.3 Powering Up
Note: The power up sequence must be performed in the order shown in this section (remote
transmitter FIRST, Display Clock SECOND) to avoid the Clock synchronization time out.
The Transmitter:
1. Remove the battery door on the back of the transmitter and insert 2 new AA batteries,
according to the polarity information marked on the battery compartment, and replace the
battery door, as shown in Figure 2. Place the transmitter about 5 feet from the clock.
The Clock:

Version 1.3 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 6
1. Plug the AC adaptor into the DC jack of the clock.
2. Remove the battery door on the bottom of the clock and insert 3 new AA batteries, according
to the polarity information marked on the battery compartment, and replace the battery door.
3. Once the batteries are inserted, all of the LCD segments will light up briefly before entering
the sensor search mode.
4. Once the wireless transmitter has synced up to the clock, you can place the sensor outside.
Note: If no display is present after powering up the clock, press the reset button on the back of the
clock with an open ended paper clip or sharp tool.
3.4 Siting the Wireless Transmitter Outside
It is recommended you place the remote sensor in a shaded area.
Direct sunlight and radiant heat sources will result in inaccurate temperature readings. Although the
sensor is weatherproof, it is best to mount in a well-protected area, such as an eve. Do not place in
standing water or snow.
Wireless signals are impacted by distance, interference (other wireless devices, wireless phones,
wireless routers, TVs and computer monitors), and transmission barriers, such as walls. In general,
wireless signals will not penetrate solid metal and earth (down a hill, for example).
The following is a table of reception loss vs. the transmission medium. Each “wall” or obstruction
decreases the transmission range by the factor shown below.
Medium
RF Signal Strength Reduction
Glass (untreated)
5-15%
Plastics
10-15%
Wood
10-40%
Brick
10-40%
Concrete
40-80%
Metal
90-100%

Version 1.3 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 7

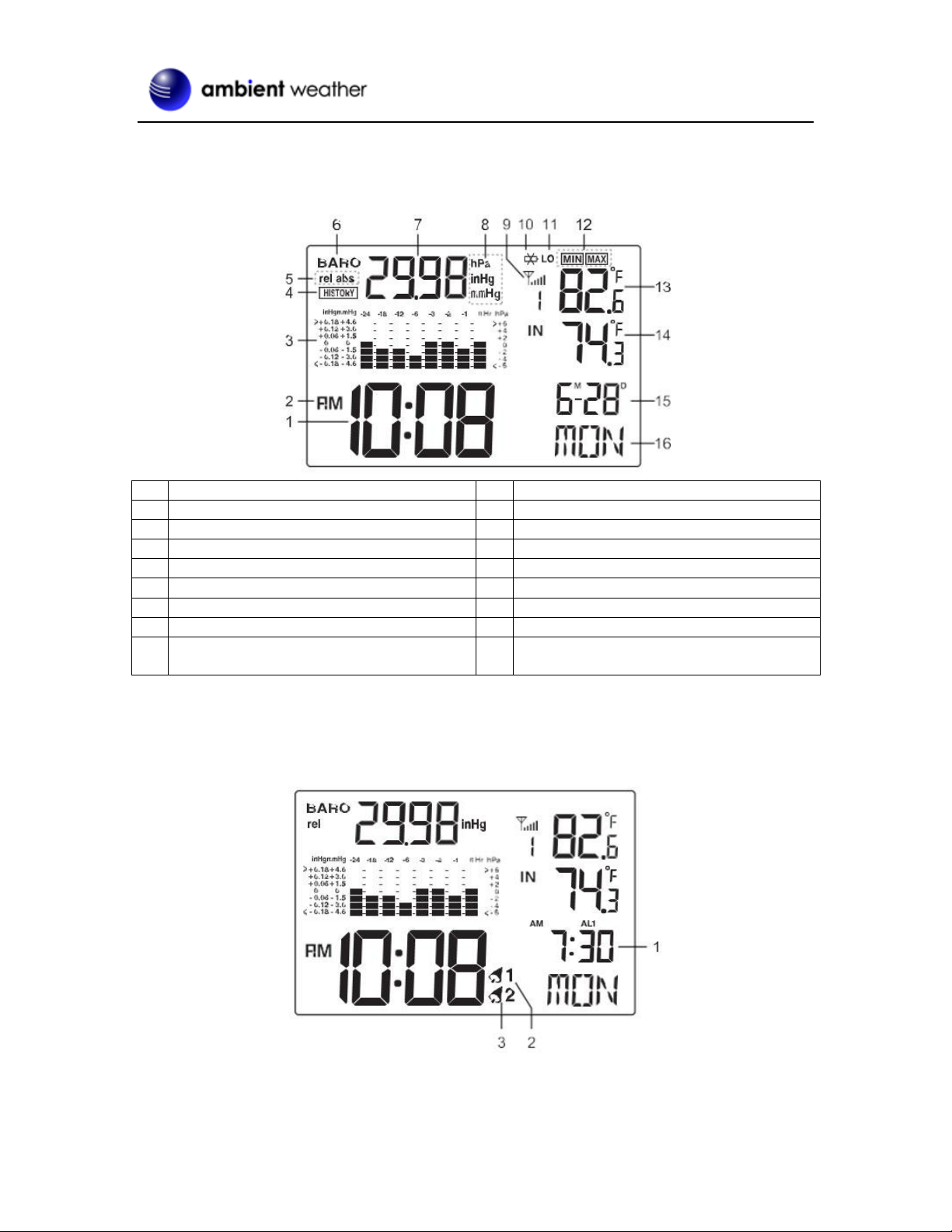

4. Clock Display
4.1 Normal Time Display Mode
No
Description
No
Description
1
Time
9
Wireless signal strength indicator
2
AM / PM
10
Low battery indicator
3
Barograph
11
Low Temperature Alert
4
History Mode indicator
12
Min/Max indicator
5
Rel / Abs Pressure
13
Wireless temperature (channels 1, 2 or 3)
6
Barometer indictor
14
Indoor temperature
7
Barometer reading
15
Month and Day
8
Barometer units of measure (inHg, hPa,
mmHg)
16
Day of Week
Figure 3
4.2 Alarm Time Display Mode

Version 1.3 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 8
No
Description
No
Description
1
Alarm Time
3
Alarm 2 On
2
Alarm 1 On
Figure 4
5. Settings
5.1Time, Date, and Language Settings
While in normal time mode, perform the following operations to set date, time and language:
Command
Mode
Settings
[TIME] + 2
seconds
Enter Time and Date Settings
12 hour / 24 hour format
Press [+/CHANNEL] to change between 12H and
24H format.
[TIME]
Hour
Press [+/CHANNEL] to increase, [-/MEM] to
decrease.
[TIME]
Minute
Press [+/CHANNEL] to increase, [-/MEM] to
decrease.
[TIME]
Year
Press [+/CHANNEL] to increase, [-/MEM] to
decrease.
[TIME]
Month / Day Format
Press [+/CHANNEL] to change between
Month/Day (M-D) and Day/Month (D-M).
[TIME]
Month
Press [+/CHANNEL] to increase, [-/MEM] to
decrease.
[TIME]
Day
Press [+/CHANNEL] to increase, [-/MEM] to
decrease.
[TIME]
Language
Press [+/CHANNEL] to change between EN
(English), FR (French), DE (German), ES
(Spanish) and IT (Italian).
[TIME]
Exit Time and Date Settings
[TIME] + 2 seconds means press and hold the TIME button for two seconds.
[TIME] means press but do not hold the TIME button.
Figure 5
5.2 Alarm Settings
While in normal time mode, press the TIME button once to set ALARM1. Press the TIME button
again to set ALARM2. Once ALARM1 or ALARM2 are displayed in the date field (see Figure 3, No.
10), perform the following:
Command
Mode
Settings
[ALARM] + 2
seconds
Enter Alarm Settings
Alarm Hour
Press [+/CHANNEL] to increase, [-/MEM] to
decrease.
[ALARM]
Alarm Minute
Press [+/CHANNEL] to increase, [-/MEM] to
decrease.
[ALARM]
Exit Alarm Settings
[ALARM] + 2 seconds means press and hold the ALARM button for two seconds.
[ALARM] means press but do not hold the ALARM button.
Figure 6
5.2.1 Using the Alarm and Snooze Functions
1. Set the alarm time as described in Section 5.2. While in normal time mode:

Version 1.3 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 9
2. Press theALARM button once to turn onALARM1 1.
3. Press theALARM button again to turn onALARM2 2.
4. Press theALARM button again to turn on 1 and 2.
5. Press theALARM button again to turn off 1 and 2.
Note: Press the ALARM button to turn off the alarm sound. If no button is pressed during the
alarm period, the alarm will turn off automatically in two minutes. To temporarily silence the alarm,
press the SNOOZE/LIGHT button on the top of the clock. The alarm bell icon will keep flashing.
If the snooze function is turned on, the 4-step crescendo alarm will sound every five minutes. Press the
ALARM button to silence the alarm.
5.3 Projector and Backlight
5.3.1 Using the Projector and Backlight
Note: The projector and backlight are temporary when operating on batteries only, to save
battery life.
1. When the clock is powered by the battery:
Press the SNOOZE/LIGHT button to turn on the projector and backlight for 5 seconds
or press and hold the SNOOZE/LIGHT button for 4 seconds to turn on the projection for 30
minutes. Press the SNOOZE/LIGHT button again to turn off the projection.
2. When the clock is powered by theAC adapter:
Slide the PROJECTION ON/OFF switch to ON position, and the projection will be on all
of the time.
Slide the PROJECTION ON/OFF switch to OFF position, and the projection will be off all
of the time, unless you press the SNOOZE/LIGHT button as described in the previous
section.
Slide the LIGHT ON/OFF switch to ON position, and the backlight will be on all the time.
Slide the LIGHT ON/OFF switch to OFF position, and the backlight will be off all of the
time, unless you press the SNOOZE/LIGHT button as described in the previous section.
5.3.2 Projector Rotation
Press the REVERSE button to reverse the projected data 180 degrees.
Figure 7

Version 1.3 ©Copyright 2016, Ambient LLC. All Rights Reserved. Page 10
5.3.3 Adjusting Projector Focus
Adjust the focus of the projected data by rotating the focus knob on the projector.
5.3.4 Projector Temperature Display
The projector will scroll between the indoor and outdoor temperature. Each time you add an additional
channel sensor, the projector will add this sensor to the scroll feature. The scroll feature cannot be
disabled.
5.4 Barometric Pressure Display and Settings
5.4.1 Barometric Pressure Units of Measure
In normal time mode, press the BARO button to change barometric units of measure (hPa / inHg /
mmHg).
5.4.2 Absolute Pressure vs. Relative Pressure
Press and hold the BARO button for 2 seconds to enter barometric mode, and press the +/CHANNEL
button to switch between the relative and absolute pressure reading.
5.4.3 Relative Pressure Calibration
Please Reference Section 5.4.3.1 for details on the purpose of calibrating relative pressure, and how
to calibrate relative pressure in your area.
1. Press and hold the BARO button for 2 seconds to enter barometric mode. The icon BARO
will flash.
Make sure the REL Pressure is showing on the display. If ABS Pressure is showing, switch to
REL pressure per Section 5.4.2.
2. Press (do not hold) the BARO button again. The relative pressure will flash.
3. Press the +/CHANNEL to increase the relative pressure and -/MEM to decrease the relative
pressure.
4. Press (do not hold) the BARO button again to exit the relative pressure calibration mode, or
wait 60 seconds to time out.
Note: After calibration, the barograph will reset to 0 change (flat line across the graph).
5.4.3.1 Relative vs. Absolute Pressure and Calibration
The clock displays two different pressures: absolute (measured) and relative (corrected to sea-level).
To compare pressure conditions from one location to another, meteorologists correct pressure to
sea-level conditions. Because the air pressure decreases as you rise in altitude, the sea-level corrected
relative pressure (the pressure your location would be at if located at sea-level) is generally higher
than your measured absolute pressure.
Thus, your absolute pressure may read 28.62 inHg (969 mb) at an altitude of 1000 feet (305 m), but
the relative pressure is 30.00 inHg (1016 mb).
