AMBILIFE L100 User manual

PHOTOCATALYTIC AIR PURIFIER
«AMBILIFE» MODEL L100
OPERATION MANUAL

CONTENT
1 GENERAL INFORMATION 3
2. SAFETY REQUIREMENTS 4
3. TECHNOLOGY FREE AND FREE AIR ON THE BASE PHOTOCATALY 5
4. APPOINTMENT 5
5. TECHNICAL CHARACTERISTICS 6
6. DEVICE AND DELIVERY KIT 6
7. PREPARATION AND WORK 7
8. POSSIBLE SORSAND AND METHOD THEIR WORK 8
9. TECHNICAL 8
10. BREAKING AND TRANSPORTATION 10
11. RECYCLING 10
12. GUARANTEE LIABILITIES 11

3
1. GENERAL INFORMATION
The device must be operated by:
- at ambient temperature from plus 10 to plus 35 degrees Celsius;
- with relative humidity of no more than 80%;
of the nominal and frequency (50-1) Hz in the AC electrical network.
of the device provided legs);
the back wall for the vertical attachment of the device. Fixing the device on the vertical
surface is carried out with the help of hook-screws, included in the package.
It is not recommended to have the device near window and doorways, as well as less
than 0.3 m from the edge of walls or partitions.
Attention! The manufacturer (seller) is not liable (including in the warranty period)
for defects and damage to the device caused by violation of operating conditions or its
rodents.
Figure 1
Dear customer!
Thank you for photocatalytic air purifier photocatalytic «Ambilife» (hereinafter to be
referred to as “the device”).
Please read this operation manual carefully before you start using the device.
After studying this operation manual you will be able to properly use your the device and
extend its service life as well as to ensure your safety.
Please keep this operation manual throughout the whole life cycle of your the device.

4
2. SAFETY REQUIREMENTS
Photocatalytic air purifier «AMBILIFE» is an electrical appliance, so general
electrical safety regulations should be followed when operating.
2.1. Persons who have familiarized with this manual are allowed to operate the
device. Children should be monitored to prevent playing with the device.
2.2. Do not install the product near heat sources (heating appliances, central heating
batteries, etc.). This can lead to deformation of the device’s body and a change in its
color.
2.3. Do not allow direct sunlight to enter the device.
2.4. Do not have the device closer than 1 metre away from the location of televisions,
radios, speakers and antennas. This product can be a source of interference.
2.5 Do not use the product outdoors.
reduce the life of the device or reduce its performance.
2.8. Turn off the product before spraying insect repellent to prevent chemicals from
entering the appliance.
to enter the device. This can lead to short circuits or electric shock.
2.10. Do not overshadow the air vents as this will reduce the performance of the
surface in a place that ensures normal air circulation.
2.11. Never use gasoline or other chemical solvents to clean the product or parts of
it. In this case, the plastic body of the device can be damaged, which will lead to electric
2.12. Do not install the product on the surface of the audio/video cases and
refrigerators. Do not place the product on unstable surfaces. This can cause it to fall
and fail.
2.13. Protect the device from mechanical impact and damage. Do not use the product
if it vibrates, tilted or fell. This can lead to breakdowns.
2.14 Paper napkins, clothing and other items may not be placed on the surface of
the device.
substances, aggressive gases, metallic dust or smoke. This can lead to Fire.
Attention!!!
the residual smell of new components that are not dangerous to health. Therefore,
it is recommended to include a new device for a few hours in a well-ventilated
room.

5
Photocatalytic air purifier «Ambilife» (hereinafter to be referred to as “the Device”)
is produced by the Limited Liability Company “Scientific-Medical Firm «Ambilife «Lipetsk,
Russian Federation.
The method of disinfection and purification of air is based on the photocatalysis princi-
ple, which belongs to the field of the nanotechnology, has been developed by the
Institute of Catalysis of the Siberian Branch of the Russian Academy of Sciences
(Novosibirsk city). The essence of this method consists in the destruction of pathogenic
microorganisms and photo-catalytic oxidation of the organic gaseous air pollutants on
the photo-catalytic surface under the effect of the ultraviolet irradiation of the soft band
«A» (with the wavelength of 320 to 400 nm). Band «A» irradiation does not represent the
source of ozone emission.
The technology of decontamination and purification of air, which is based on the
photocatalysis principle, can be explained as follows: the air under the action of the fan
comes to the dust filter, where it is cleaned from the dust, after that the air is delivered to
the photo-catalytic filter, which represents porous carrier with a photo-catalyst applied to
it, irradiated by the UV radiation source.
At the first stage of air purification the catalyst contained in the photo-catalytic filter
under the UV irradiation forms active radicals, which ensure neutralization of all harmful
substances that represent organic gaseous compounds. The same radicals at the
second stage of air purification produce hydrogen peroxide molecules, which are known
to everyone for their high antiseptic action.
Hydroxide radicals (OH) and hydrogen peroxide (H202) are characterized by the
strong oxidizing properties and by interacting with bacteria and viruses they deactivate
them. This feature allows to ensure high molecular protection level against the patho-
genic microorganisms. Molecular level, at which our photo-catalytic filter purifies the air,
is at present considered as the highest level of the modern science.
Bactericidal photo-catalysis effect differs from the direct UV radiation on the micro-
organisms, because it ensures neutralization of microorganisms, which are resistant to
UV radiation, such as Mycobacterium tuberculosis, mold spores or fungi.
3. TECHNOLOGY FREE AND FREE AIR ON THE
BASE PHOTOCATALYS
4. APPOINTMENT
in preschool and school schools .
The device decontaminates the air in the presence of people, does not have a
negative impact on the human body, is not a source of hard UV radiation, ozone, does
not ionize the air, does not require constant control of the quality of the air environment
of the premises and rationing work by time.
The device also cleans the air from volatile organic contaminants (other as well as
decompose to harmless components of air - carbon dioxide and water vapor.
The device is designed to decontaminate and clean air in administrations, industriel,
public, office and residential areas, as well as in preschool and school schools.

6
DESIGNE OF THE DEVICE
Figure explanations:
1. Top cover
2. Filter frame
4. Photocatalytic cassette
5. Control panel
6. Switch power supply (Network)
5. TECHNICAL CHARACTERISTICS
model L100
Parameters Values
100
Recommended premises’ area (square meter) (in case
ceiling height does not exceed 2.5 m)
40
Mains voltage, V 220 ± 10%
Mains frequency, Hz 50
Power consumption, W
36
EU 11
Noise level: mode I / mode II, dB 42
Peak wavelengths of radiation wave, Nm 380 - 385
Overall dimensions, mm 470 x 160 x 170
Mass, kg, not more than 4,4
Operation mode Not less than 8 hours
6. DEVICE AND DELIVERY KIT

7
7. PREPARATION AND WORK
Connect the device to the power source (stick the plug of the device’s power cord
into the socket). To transfer the device to «wait mode,» transfer the «0/1» switch (power
To put the device into working mode on the control panel, click «On/Off» (Figure 3,
p.b.), and the LED begins to constantly light up.
To switch modes, press the MODE I or MODE II buttons on the control panel (Figure
3, p. 6), while the LEDs are in the mode.
«MODE I» is the main mode with maximum air fan performance.
level (recommended at night).
To turn off the device you need:
- press the on/off button on the control panel (Figure 3, p.b)and put the device on
standby, while the LED will start to blink green light;
- transfer the power switch 7 (SET) (Figure 2, p.b) to «0»;
remove the power cord plug from the socket.
If the device malfunctions, the red LED «PROD» lights up on the control panel (Figure
3, p. 6) and the device is disconnected, while it is necessary to disconnect the device
from the network by button 6 (Figure 2, p. b), to transfer it to the position «0».
To restart the device you need:
- press button 6 (Figure 2, p. 6), put it in «I» position;
Button «On/Off»
Button «MODE I»
Button «MODE II»
Remote infrared sensor window/LED «Failure»
CONTROL PANEL
Figure 3
On/Off
MODE I
MODE II
LED «Failure»
The device is able to completely clean the air from all types of contaminants, includ-
ing: viruses, bacteria, allergens, spores, mold and fungi, urban smog, car exhaust, dust,
and any other chemical, biological and aerosol contaminants. A unique model of the Photo-
catalytic air purifier «Ambilife» with the excitement of the UV catalyst LED module.

8
8. POSSIBLE SORES AND METHODS OF THEIR
Immediately turn off the power supply of the device if:
The device buttons don’t work.
- the power cord or fork of the device is very heated;
There was a smell of smoke, unusual noise or vibration. (Fault table 1).
Fault Possible cause
The air purier doesn’t work The power cable plug is loosely
inserted into the power outlet
The air purier does not clean
the air from dust and odors
Blocked air intake hole
Clear the air intake hole or install new
lters
The air purier produces a strong
noise
If the lters are heavily contaminated,
install new lters
Before you go to the service center, do the above-mentioned operations to identify
and x the fault.
If the fault cannot be xed, or if water or foreign objects affecting the operation of the
device have got inside the air purier, please contact the service center.
9. TECHNICAL
Attention! Before the maintenance of the device, it is necessary to remove the power
cord fork from the socket.
You can remove the accumulated dust on the lid by rubbing it with a soft cloth soaked
with water or a solution that does not contain surface-active substances (PAV).
Never:
Rinse the air lter with water or any other solution.
REPLACING FILTERS.
The frequency of air lter replacement is approximately one year. This period depends
on the intensity (duration) of the device’s operation and the degree of air pollution. The
life of the lter is shortened when the device is used in kitchens and other rooms where
oil and soot vapors are present in the air.
- click «On/Off» button on the control panel (Figure 3, p. 6).
For easy control, the installation is equipped with a remote control (DU, Figure 4 p.
6).
The buttons on the remote control correspond to the buttons on the dashboard:
To put the installation to work or turn off, click on/off;
- To switch modes of operation, click «MODE I» or «MODE II.»
Before you start operating the remote control, remove the transport lm from the
remote’s power supplies.

9
Turn off the appliance and disconnect the power cord plug from the 220B network
outlet.
Place the device on an even solid horizontal surface.
With a little effort pulling on the edges, remove the top cover.
By clicking on the latches in the direction indicated by the arrows (Figure 5, p. 9),
remove the lter frame.
Remove the used air lter from the grooves of the holder. Put a new air lter in the
grooves of the holder, observing the direction of the airow indicated on it by the arrow
(the arrow is pointing downwards). Put in place the used new prelter. Put the lter frame
in place and close the lid.
Figure 6
Figure 5

10
10. BREAKING AND TRANSPORTATION
The devices should be stored at relative humidity of no higher than 80% in enclosed
areas.
The devices are transported in covered vehicles of all kinds.
If the device was in a cold room or transported at a negative temperature, before
turning on it, it is necessary to withstand the device at room temperature for at least two
hours for the condensate to disappear.
P.RECYCLING.
Recycling of the device is carried out as class A waste or solid household waste.

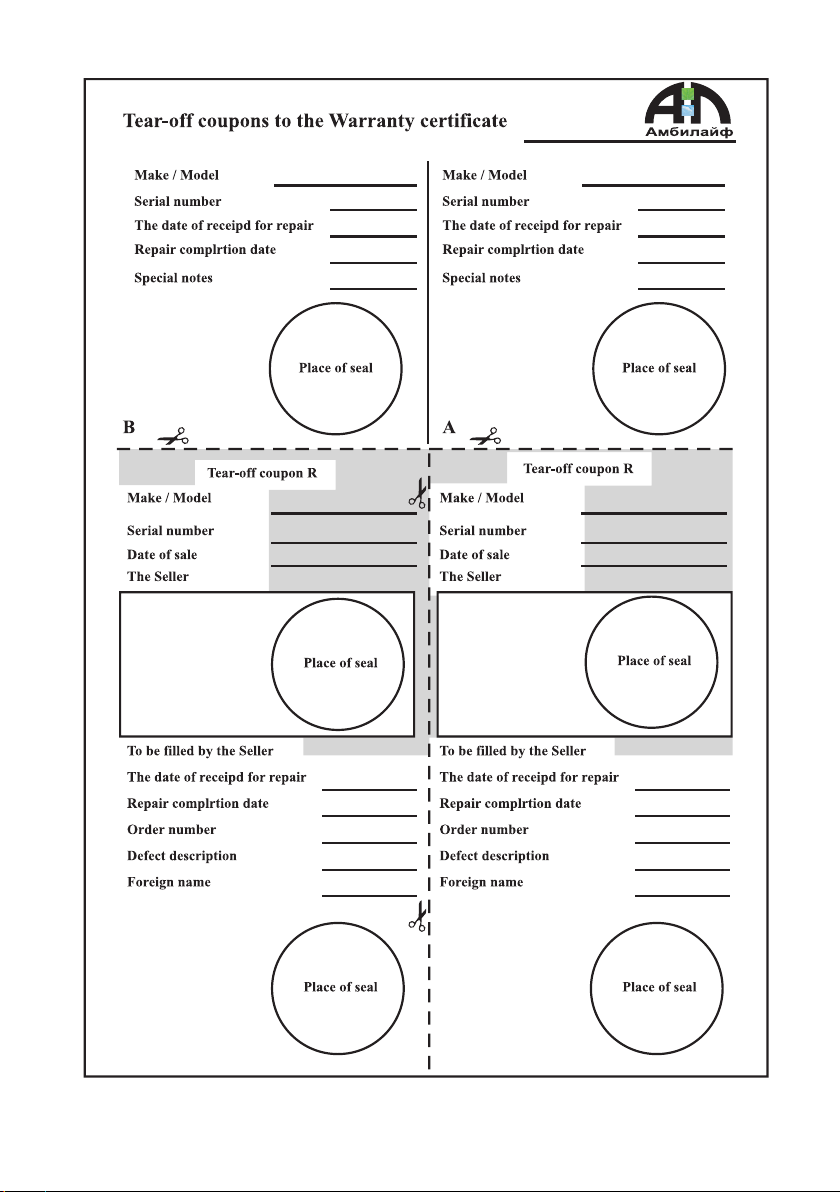

GUARANTEE LIABILITIES
The guarantee life of the device is 24 months (two years).
The warranty shelf life is more than a month from the date of manufacture of the
device. At the end of the warranty period, the warranty life begins to be used, regardless
of whether the device is used or not.
The warranty period is calculated from the moment the device is purchased. In order
to calculate the warranty period correctly, the manual of operation must have a mark on
the genus.
Guarantee period for new components installed on the product during warranty or
paid repair, or purchased separately from the product, are three months from the date
of issuance to the buyer of the product at the end of the repair, or the sale of the last of
these Components.
THE WARRANTY DOES NOT APPLY TO:
without the prior written consent of the manufacturer;
If completely/partially altered, erased, deleted, or indecipherable, the product serial
number;
- use of the product not for its intended purpose, not in accordance with its
management of operation, including the operation of the product with overload or in
conjunction with the supporting equipment not recommended by the Seller, authorized
by the manufacturer, importer, manufacturer;
- mechanical damage (chipped, cracked, etc.) on the product,
effects on the product of chemically aggressive substances, high temperatures,
High humidity/dust;
The product’s incorrect connection to the electrical grid
Defects caused by foreign objects, liquids, insects and their products, etc., entering
the product;
Incorrectly stored the product.

11
From the moment the Buyer signs the Guarantee Card, it is believed that:
All necessary information about the purchased product and its consumer properties
is provided to the buyer in full, in accordance with art. 10 Consumer Protection Act.
The buyer received instructions on how to use the purchased product in Russian
language.
The buyer is familiar and agrees with the terms of warranty service/features of the
operation of the purchased product.
The buyer has no claims to the appearance (completeness) of the purchased product.

12
Attention!
Please require the Seller to complete the warranty and detachable coupons. Filled
by a sales rm
Product/Model _________________________________________________
Serial number ________________________________________________
Sale date ____________________________________________________
Firm-seller ___________________________________________________
The company's address ________________________________________
The rm's phone ______________________________________________
The correct product in full kit, with instructions for operation received; With the terms
of the guarantee familiarized and agree: Buyer's signature

13

14

15
The product is certied in Russia by the certication body
ROSS RU. AB86. B15866 OS PRODUCTION ANO «INTERSERT».
Legal address:
117279, RF, Moscow, Street. Union, 93A, off. 423;
Tel: [phone], fax [phone]
The product complies with the requirements of the regulations:
GOST P 52161.2.31-2007
GOSTR 51318.14.1-2006 (Split.4)
GOSTR 51318.14.2-2006 (Razd.5,7)
GOST P 51317.3.2-2006 (Razd 6.7)
GOSTR 51317.3.3-2008
Certicate No: ROSS RU. AB86. B15866
Duration: February 14, 2013 to February 13, 2016
The name of the manufacturer of the air purier:
NmF Ambilife Ltd.
Manufacturer’s address:
RF, 398001, Lipetsk, Street Soviet, p. 64, um. 1

16
RELATED:
Lipetsk and Lipetsk region:
NmF Ambilife Ltd.
398001, Lipetsk, Street Soviet, p. 64, um. 1
Tel./Fax: [phone], Tel: [phone]
RTK Olympus
Legal address: 111672, Moscow, Street. Novokosinskaya, 28, p. 1
Postal address: Moscow, street. 5 Falcon Mountain, 22
Tel: [phone]
Ekaterinburg and Sverdlovsk Region:
Rutter Ltd.
620014, Yekaterinburg, Street Moscow, 14/1 Tel./Fax: [phone], Tel: 710-041,
712-918
Arkhangelsk and Arkhangelsk Region:
INMED
163000, Arkhangelsk, Lomonosova Ave., 64 Tel: [phone], tel./fax: (812-2)
20-95-25
Medtechnics Ltd.
196602, St. Petersburg, Mountains. Pushkin Street. Malinovsky, 11
Tel./Fax: [phone]
