American Audio V3000/V2000 User manual

PROFESSIONAL
POWER AMPLIFIERS
User Instructions
I
O
channel 1 channel 2
V3000
American DJ SIG20 1010 20
SIG 55CLIP CLIP PROTECT PROTECT
POWER
LIMITER LIMITER
ON ON
PROformer Series Professional Stereo Amplifier
professional products designed for
installations and the working dj.
V3000 / V2000 MK II Power Amplifier Instructions
©American AUDIO Los Angeles, CA 90058 USA
I
O
channel 1 channel 2
American DJ SIG20 1010 20
SIG 55CLIP CLIP PROTECT PROTECT
POWER
LIMITER LIMITER
ON ON
PROformer Series Professional Stereo Amplifier
&

For optimum performance and reliability DO
NOT PRESENT THE AMPLIFIER WITH A
SPEAKER LOAD OF LESS THAN 2 OHMS.
OR ANY COMBINATION OF SPEAKERS THAT
TOGETHER ARE LESS THAN 2 OHMS PER SIDE!
• Using one speaker, it must be rated at
2 ohms minimum.
• Using two speakers, they must be rated
each at 4 ohms minimum.
• Using three speakers, they must be rated
each at 8 ohms minimum.
Pour assurer la Fiabilte et obtenit une per-
formance optimale, ne soumette jamais
l’amplificateur a une charge d’impedance
totale inferieure a 2 ohms, ni avec un H.P. ni en com
binasion des H.P.
AVEC un H.P., il Faut une charge d’impedance
minimum de 2 ohms.
AVEC deux H.P., il Faut pour chaoun une charge
d’impedance minimum de 4 ohms.
AVEC trois H.P. il Faut pour chaon une churge
d’impedance minimum de 8 ohms.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER RACK.
THERE ARE NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICE TO YOUR
AUTHORIZED AMERICAN DJ AUDIO DEALER.
The lightning flash with an arrow triangular
symbol is intended to alert the user to the
presence of uninsulated “dangerous volt-
age” within the products enclosure, and may
be of sufficient magnitude to constitute a
risk of electric shock.
The exclamation point triangular symbol is
intended to alert the user to the presence of
important operating and maintenance (ser-
vicing) instructions in the user manual
accompanying the CD player.
CAUTION
Do not open -
risk of electric shock
Front Panel...............................................3
Rear Panel................................................3
Application Diagrams...........................3,4,5
Operating Voltage.....................................5
Inputs........................................................6
Outputs.....................................................6
Limiter.......................................................6
Low-Cut Filter............................................6
Gain Controls............................................7
LED Indicators..........................................7
Protect Indicators.......................................7
Protection..................................................7
Specifications............................................8
Contents:
Page 2 • American AUDIO V3000 / V2000 MK II Power Amplifier Instructions

+
1: Power Switch
2: Channel 1 gain controls
3: Channel 2 gain controls
4: Power ON indicator
5: Channel 1 indicators
6: Channel 2 indicators
7: Channel 1 protect indicators
8: Channel 2 protect indicators
9: Channel 1 clip indicator
10: Channel 2 clip indicator
11: Channel 1 limiter switch
12: Channel 2 limiter switch
I
O
channel 1 channel 2
V3000
American DJ SIG20 1010 20
SIG 55CLIP CLIP PROTECT PROTECT
POWER
LIMITER LIMITER
ON ON
PROformer Series Professional Stereo Amplifier
1
2
410
11 12
95 8
3
6
7
1234
+
+
+
+
+
+
+
+
+
++
FUSE
STEREO BRIDGE
AMP MODE
FREQUENCY
FREQUENCY
SUB
WOOF SUB
WOOF
INPUT
THRU CAUTION
MINIMUM LOAD IMPEDANCE
2 OHM PER CHANNEL
4 OHM BRIDGE
LIFT
GROUND
NORMAL NORMAL
INPUT
BAL.
1500
WATTS
HOT COLD GND
13: Channel 1 XLR input
14: Channel 1 TRS input
15: Channel 2 TRS input
16: Channel 2 XLR input
17: Channel 1 subwoof on/off switch (V3000 ONLY)
18: Channel 1 subwoof frequency adj. (V3000 ONLY)
19: Channel 1 subwoof on/off switch (V3000 ONLY)
20: Channel 1 subwoof frequency adj. (V3000 ONLY)
21: Channel 1 input THRU jack
22: Channel 2 input THRU jack
23: Fuse holder
24: AC cord outlet
25: Amplifier mode switch
26: Ground lift switch
27: Channel 1 output jack
28: Channel 2 output jack
29: Function settings dip switch
13
14
1516
17
18
19
21
20
22
23
24
25
262728
29
+
1234
+
+
+
+
+
+
+
+
+++
FUSE
STEREO BRIDGE
AMP MODE
FREQUENCY
FREQUENCY
SUB
WOOF SUB
WOOF
INPUT
THRU CAUTION
MINIMUM LOAD IMPEDANCE
2 OHM PER CHANNEL
4 OHM BRIDGE
LIFT
GROUND
NORMAL NORMAL
INPUT
BAL.
1500
WATTS
HOT COLD GND
STEREO (Typical Settings) IN IN
KEEP FAN
GATES CLEAN!
KEEP FAN
GATES CLEAN!
DO NOT EXCEED
2 OHM MINIMUM
PER CHANNEL
DO NOT EXCEED
2 OHM MINIMUM
PER CHANNEL
Page 3 • American AUDIO V3000 / V2000 MK II Power Amplifier Instructions

BRIDGE MONO (Typical Settings)
STEREO SUBWOOF
ONE NORMAL / ONE SUBWOOF (BI-AMP)
+
1234
+
+
+
+
+
+
+
+
+++
FUSE
STEREO BRIDGE
AMP MODE
FREQUENCY
FREQUENCY
SUB
WOOF SUB
WOOF
INPUT
THRU CAUTION
MINIMUM LOAD IMPEDANCE
2 OHM PER CHANNEL
4 OHM BRIDGE
LIFT
GROUND
NORMAL NORMAL
INPUT
BAL.
1500
WATTS
HOT COLD GND
+
1234
+
+
+
+
+
+
+
+
+++
FUSE
STEREO BRIDGE
AMP MODE
FREQUENCY
FREQUENCY
SUB
WOOF SUB
WOOF
INPUT
THRU CAUTION
MINIMUM LOAD IMPEDANCE
2 OHM PER CHANNEL
4 OHM BRIDGE
LIFT
GROUND
NORMAL NORMAL
INPUT
BAL.
1500
WATTS
HOT COLD GND
+
1234
+
+
+
+
+
+
+
+
+++
FUSE
STEREO BRIDGE
AMP MODE
FREQUENCY
FREQUENCY
SUB
WOOF SUB
WOOF
INPUT
THRU CAUTION
MINIMUM LOAD IMPEDANCE
2 OHM PER CHANNEL
4 OHM BRIDGE
LIFT
GROUND
NORMAL NORMAL
INPUT
BAL.
1500
WATTS
HOT COLD GND
TO NORMAL TO BRIDGE
IN
X
IN IN
SUBWOOF SUBWOOF
TO STEREO
TO SUBWOOF TO SUBWOOF
SUBWOOF
TO STEREO
TO NORMAL
TO SUBWOOF IN IN
DO NOT EXCEED
4 OHM MINIMUM
2 OHM
MINIMUM 2 OHM
MINIMUM
2 OHM
MINIMUM
2 OHM
MINIMUM
Page 4 • American AUDIO V3000 / V2000 MK II Power Amplifier Instructions

SUBWOOFER (V3000 ONLY)
The subwoofer can be operated in stereo or bridge mono, set the switch to subwoofer position
depending on your application, select the frequency from 20 Hz to 200 Hz via variable frequency
selector.
AMP MODE (STEREO/BRIDGE)
The Amplifier mode should be configured before operation, if you want to change it during perfor-
mance, you must decrease the gain controls to protect the speakers from any popping noise.
THRU
Thru will allow the user to daisy-chain one amplifiers signal input into another amplifier. Plug the
signal source outputs into the first amplifier’s input, patch from the amplifier’s THRU jacks to the
next amplifier’s input, and so on, daisy-chaining as many amplifiers as there is no excessive level
loss. Is not affected by crossover setting.
GROUND LIFT SWITCH
Applying or lifting the ground switch will change level for background noise and hum, if the noise
level remains the same in either position, better to keep the ground lift switch in the ground position.
This will eliminate 60Hz cycle Hum that is sometimes induced when mounting several units in the
same rack.
BRIDGE SUBWOOF (V3000 ONLY)
+
1234
+
+
+
+
+
+
+
+
+++
FUSE
STEREO BRIDGE
AMP MODE
FREQUENCY
FREQUENCY
SUB
WOOF SUB
WOOF
INPUT
THRU CAUTION
MINIMUM LOAD IMPEDANCE
2 OHM PER CHANNEL
4 OHM BRIDGE
LIFT
GROUND
NORMAL NORMAL
INPUT
BAL.
1500
WATTS
HOT COLD GND
SUBWOOF
IN
XTO SUBWOOF TO BRIDGE
OPERATING VOLTAGE (AC mains)
The serial number label indicates the correct AC main voltage. Connecting to the wrong voltage is
dangerous and may damage the amplifier.
4 OHM
MINIMUM
Page 5 • American AUDIO V3000 / V2000 MK II Power Amplifier Instructions

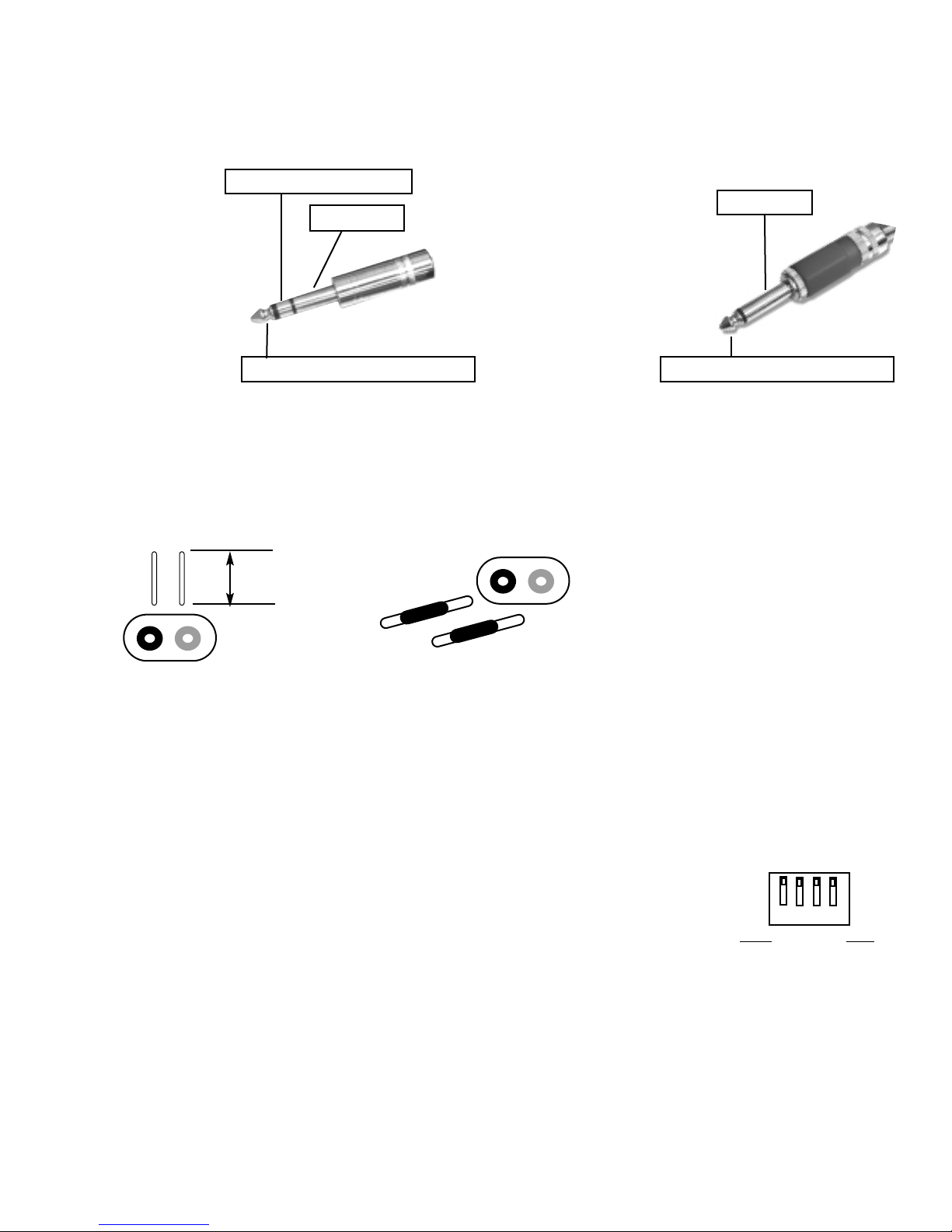

•BALANCED
•SYMETRIQUE
•SYMMETRISCHE
•BALANCEADO
GROUND
INVERTING INPUT - •UNBALANCED
•ASYMETRIQUE
•UNSYMMETRISCHE
•UNBALANCEADO
NON-INVERTING INPUT +
GROUND
NON-INVERTING INPUT +
INPUTS
OUTPUTS (Banana Jack Connection)
Strip back insulation 13-mm. Insert wire fully, tighten barrel.
13mm
1/2”
LIMITER
The limiter has a fixed threshold and will prevent continuous clipping. Below clipping, and during
short clips on peaks, the limiter does not act on the audio signal. The limiter for either channel can
be disabled independently using the slide switch on the front panel.
LOW CUT FILTER
The low-cut filter removes ultra-low frequency information from the audio signal
that could damage or cause distortion in a loud speaker system. The dip switch
on the rear panel allows you to enable or disable the filter independently for
either Channel, as well as set it for either a 50Hz or 30 Hz cut-off. Always use
the 50 Hz filter setting if you are using the amplifier to drive a distributed line system (also known as
a constant-voltage line, 70 volt line, etc.)
12 3 4
CH. 1 CH.2
1 Low 3ON=30Hz
Cut Filter OFF=50Hz
2ON=30Hz 4 Low Cut
OFF=50Hz Filter
OFF
ON
Two input connector, XLR jack for balance and 6.3mm (1/4”) TRS jack for unbalance.
Page 6 • American AUDIO V3000 / V2000 MK II Power Amplifier Instructions

OPERATION
CONFIGURING THE AMPLIFIER
A 4-position dip switch on the rear panel allows you to configure certain amplifier characteristics.
A diagram on the rear panel shows the individual switch functions and settings..
LOW-CUT FILTER: Setting position 1 to “ON” enables the low-cut
filter on channel 1 and “OFF” disables it. Position 4 does the same
for channel 2.
LOW-CUT FILTER FREQUENCY SELECTOR: When
setting position 1 or 4 to “ON” then position 2 or 3 up to cut-off of 30 Hz and down is for 50 Hz.
BUILT IN PROTECTION
LIMITER: During signal overload, the limiter will reduce the input audio signal enough to minimize
the amount of clipping. During normal operation, the limiter does not affect the audio signal. It will
allow brief clipping of peaks and will only activate when continuous, hard clipping occurs. When the
signal amplitude decreases enough that clipping ends, the limiter will deactivate and cease its gain
reduction. When the input signal overloads, the “CLIP LED’s” indicate a signal overload. At this
time, the “LIMITER” switch on the front panel should be in the “ON” position or the master volume
should be lowered to reduce distortion.
INPUT/OUTPUT PROTECTION: The input circuits are isolated by 10k resistors. An ultrasonic net-
work decouples RF (radio frequency) from the output and helps keep the amplifier stable with reac-
tive loads.
THERMAL PROTECTION: Variable-speed fans provides cooling airflow. During low level output
the fan runs at normal speeds. During high output and as heat raises, (exceeding 90°C), the fan will
run at high speed to aid the cooling process. The amplifier will mute until it cools down.
SHORT CIRCUIT PROTECTION: The Output Short Circuit Protection protects the output devices
from short circuits and stressful loads. During short circuit protection, the “CLIP LED” and “PRO-
TECT LED” will light simultaneously indicating amp fault. All channel output will be interrupted (i.e.
no sound output), during the “SHORT CIRCUIT PROTECTION.” SHORT CIRCUIT PROTECTION
can usually be traced back to the signal output line (i.e. Speaker Line). Check the line from the out-
put terminal to the speaker. If this line is good, check the internal speaker connections and compo-
nents. A short circuit will usually be traced to a bad cable or a bad speaker and is rarely traced to
the amplifier itself.
30 50
LOW CUT FREQUENCY
GAIN CONTROLS
The gain controls are located on the front panel and are calibrated in DB of attenuation from full
gain. It is best to adjust the amplifier so no “hissing” is heard from speakers with no music being
played.
LED INDICATORS
Each channel has 6 LEDS. 2 green LED and 2 yellow LED for level indication, 1 red LED for power
clips, 1 red LED for short / overload, and the green LED at center for power indicator.
Page 7 • American AUDIO V3000 / V2000 MK II Power Amplifier Instructions

SPECIFICATIONS
Output Power:
2 ohms, 1 khz 1% THD
4 ohms, 1khz, 1% THD
8 ohms, 1khz 1% THD
(Bridge Mode, mono)
4 ohms, 1khz, 1% THD
8 ohms, 1khz, 1% THD
Total Harmonic Distortion:
20Hz-20khz, @ rated output
power, 8 ohms
Input Sensitivity &
Impedance:
@ rated output power, 8 ohms
Dimensions & Weight:
Height:
Width:
Depth:
Weight:
Frequency Response:
+/- 1db, 1w RMS. 8 ohms
+/- 0.2 db, @ rated output, 8
ohms
Hum & Noise:
Below rated output, 8 ohms
Power Consumption:
@rated output power,8 ohms
Cooling System:
MODEL NO: V-3000
800W RMS PER CHANNEL
630W RMS PER CHANNEL
400W RMS PER CHANNEL
1500 WATTS RMS
1100 WATTS RMS
Less than 0.1%
1.0 RMS (0 dBv)
3.5” (8.8cm)
19” (48.3cm)
15.9” (40.5cm)
35 lbs. (14 kg.)
10 Hz- 40 kHz
20 Hz- 40 kHz
100 dB, unweighted
12A @ 120v AC
Dual 2 speed fans
and heatsink
Page 8 • American AUDIO V3000 / V2000 MK II Power Amplifier Instructions
American DJ® World Headquarters:
4295 Charter Street Los Angeles, CA 90058 USA
Tel: [phone] • Fax: [phone]
web: www.americandj.com • e-mail: [email protected]
V-2000 MK II
540W RMS PER CHANNEL
400W RMS PER CHANNEL
250W RMS PER CHANNEL
1050 WATTS RMS
820 WATTS RMS
Less than 0.1%
1.0 RMS (0 dBv)
3.5” (8.8cm)
19” (48.3cm)
15.9” (40.5cm)
31 lbs. (14 kg.)
10 Hz- 40 kHz
20 Hz- 40 kHz
100 dB, unweighted
10A @ 120v AC
Dual 2 speed fans
and heatsink
