Over 175 SpeedDome programmable
dome cameras keep tabs on major
traffic arteries throughout central
Florida. From Orlando to Tampa
and out to Cape Canaveral,
American Dynamics domes put
state transportation officials front
and center at the scene of an
accident or suspicious activity.
Video feeds supply key information
to law enforcement and news
media during emergency situations
and daily commutes.
SpeedDomes, Drones,
Controllers &Accessories
19
—
20

SpeedDome Ultra 8:
Equipped with wide dynamic range, true Day/Night
and Electronic Image Stabilization (EIS), SpeedDome
Ultra 8 with 35x and 540 TVL allows users to see
farther and clearer than ever before. A 12x digital
magnifier with 35x optical zoom yields a total zoom
of 420x. This series also features privacy zones,
on-screen programming, alarm inputs and DirectSet
for fast access to the most frequently used functions.
A choice of black or white camera assemblies is
available.
SpeedDome Ultra 8 with 22x delivers excellent
color images in scenes as dim as .02 lux. This series
combines 22x optical zoom and 11x digital zoom for
242x total zoom and has low-light capability of .004
lux. Like the SpeedDome Ultra 8 with 35x, this series
also includes DirectSet, privacy zones, on-screen
programming and alarm inputs.
SpeedDome Optima:
Powered with 22x optical zoom and 11x digital
zoom for a total of 242x zoom, SpeedDome Optima
delivers high quality color images. The series includes
an alarm imput, 96 user-programmable presets three
patterns, and a pre-wired harness for easy installation and
servicing. Compatible with any American Dynamics
controller or matrix/switcher controller system,
Optima is available in outdoor models only.
SpeedDome Optima LT:
SpeedDome Optima LT includes the same features
as a standard dome — all for an impressively low
price. Optima LT renders high quality color images
and offers up to 242x zoom (22x optical and
11x digital zoom), 96 user-programmable presets and
three patterns. It is compatible with most American
Dynamics controllers or matrix/switcher controller
systems and designed for indoor use only.
S
peedDome programmable dome cameras give you a comprehensive view that you
simply cannot get from a fixed camera. Our technology delivers the details of your
target, zooming in or out in less than a second to capture the image you need the instant an alarm
goes off. Our innovative Zoom-Adjusted Programming (ZAP) lets you pan, tilt and zoom in every
direction, automatically adjusting the pan and tilt speed in proportion to the zoom. Additional
features enable you to conduct a virtual patrol of your facility whether or not someone is manning
the controls. Auto-focus with manual override renders a clear picture every time. From the most
distant corner of a parking garage to the maze of hallways throughout a building, SpeedDome
programmable dome cameras take you everywhere you need to see.
SpeedDomes
www.americandynamics.net Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.

SpeedDomes, Drones, Controllers & Accessories
21
—
22
C H O O S E A D O M E T H A T I S R I G H T F O R Y O U
SpeedDomes
DOME COMPARISON TABLE
SpeedDome
Ultra 8 SpeedDome
Optima
(Outdoor)
Optical Zoom 35x 22x 22x 22x
Total Zoom 420x 242x 242x 242x
Digital Zoom 12x 11x 11x 11x
CCD Imager
1/4", 540 lines
(CCD center)
1/4", 470 lines
(CCD center)
1/4 " , 470 lines
(CCD center)
1/4 " , 470 lines
(CCD center)
Minimum Illumination
(20IRE, AGC)
0.24 lux (Color)
0.021 lux (B/W IR mode) 0.3 lux (Color) 1.5 lux (Color) 1.5 lux (Color)
Day/Night Yes No No No
Wide Dynamic Range Yes No No No
Electronic Image Stabilization Yes No No No
Programmable Presets
Up to 96
(controller dependent)*
Up to 96
(controller dependent)*
Up to 96
(controller dependent)*
Up to 96
(controller dependent)*
Freeze-Frame on Presets Yes Yes No No
Programmable Patterns 16 16 3 3
Preset, Area, Pattern Naming
Up to 19 characters
(user-defined)
Up to 19 characters
(user-defined)
No No
Privacy Zones Up to 8 Up to 8 No No
Direction Indicato rs Yes Yes No No
Programmable Sequences 16 16 No No
Auto Home Position Yes Yes Yes Yes
Alarm Inputs & Outputs
Up to 4 inputs/outputs,
base/housing dependent
Up to 4 inputs/outputs,
base/housing dependent
one
No
Auto Focus/Iris Yes Yes yes Yes
Zoom Adjusted Programming Yes Yes yes Yes
Password Protection Yes Yes No No
I/O Memory Base Yes No No No
Lens Focal Length 3.4 to 119 mm 4 to 88 mm 4 to 88 mm 4 to 88 mm
Lens Maximum Aperture f1.4 f1.6 f1.6 f1.6
Communication Protocols*
RS-422/RS-485,
Manchester, SensorNet,
AD UTC
RS-422/RS-485,
Manchester, SensorNet,
AD UTC
RS-422/RS-485,
Manchester &
SensorNet
Manchester, SensorNet
& Simplex
RS-422/RS-485
Reference Page Numbers 23-26 23-26 27-28 27-28
Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.
* Refer to chart on p. 29.
SpeedDome
Optima LT
(Indoor)

1 C H O O S E F E A T U R E S T H A T M A K E A D I F F E R E N C E
SpeedDome Ultra 8
* Contact your sales representative for details on competitors’ protocol support.
22x series:
• 22x optical zoom with 11x digital magnifier
(242x total zoom)
• Advanced digital signal processing (DSP)
CCD camera
• Freeze frame on presets (user-selectable
on/off)
• Open shutter to capture images in very
low directional light
• Select from two housing/eyeball assembly
colors: black or white
• Continuous auto focus
• Zoom adjusted programming
• Dome usage statistics
• Password protection
• Integrated Unshielded Twisted Pair (UTP)
simplifies wiring and installation
• Store presets and patterns with I/O base
memory
• Supports SensorNet, RS-422, Manchester,
AD UTC, NTCIP and select competitor’s
protocols*
• Dome-generated on-screen text including
direction indicators
• Up to eight privacy zones
• Programmable presets, patterns and area
names
• DirectSet feature provides fast access to
the most frequently used dome features
• Up to 96 presets (controller dependent)
• Alarm inputs and outputs
• Automatic home position
• Automatic proportional flip and automatic
gain control, line-lock and white balance
(user-selectable on/off)
35x series; includes ALL the features (listed left)
PLUS the following:
• 35x optical zoom with 12x digital magnifier
(420x total zoom)
• Wide dynamic range
• Day/night color-to-monochrome mode
• Electronic Image Stabilization (EIS)
• Dimensions:
Height: 205 mm (8 in)
Diameter: 120 mm (4.7 in)
• Weight:
Housing and Eyeball: 1.18 kg (2.6 lbs)
Base (with I/O board): .16 kg (.35 lbs)
SEE IN THE DARK
Penetrate beyond the
visible light spectrum with
the infrared capability of
SpeedDome Ultra 8. This
powerful feature enables
you to capture black & white
images in scenes so dark that
light is undetectable to the
human eye. Get the best of
both worlds with a
programmable dome camera
that renders excellent color
video during daylight and
automatically switches to
monochrome when the lights
go out.
www.americandynamics.net Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.

SpeedDomes, Drones, Controllers & Accessories
23
—
24
2 O R D E R I N G O P T I O N S
1. EACH COMPONENT INDIVIDUALLY
camera module, mounting base, mount, housing and bubble.
or
2. A PRE-CONFIGURED DOME KIT, which includes the
following components:
 aCamera Module (Color with Day/Night mode)
 bI/O Board Mounting Base (if applicable)
 cMounts
1) Hard Ceiling, 2) 2'x2' Drop Ceiling or 3) Long Wall
 dHousings
1) Top hat housing for indoor applications
2) Environmental housing for outdoor applications
 eBubbles (smoked or clear)
A NOTE ABOUT THE DOME ASSEMBLY:
A dome assembly is comprised of two
individual components:
1. Camera Module
2. I/O Board
Mounting Base
We offer an I/O Board
Mounting Base which
makes installation as easy as
screwing in a lightbulb with
just three simple steps:
1) Connect the composite
cables for power, communication
and video to the I/O PC board
in the mounting base.
2) Secure the mounting base to
the ceiling or desired location.
3 & 4) Connect the housing
and eyeball assembly to the
base by aligning the cap and
base tabs, and then turning
the housing clockwise until you
hear a click. Once the housing
is secured, only the florescent
dot will be seen.
5) Dome is mounted and
ready-to-go. Wait a few
seconds for dome to begin
its homing routine. This
mounting base supports four
alarm inputs and three alarm
outputs.
SpeedDome Ultra 8
aCamera Module bI/O Board Mounting Base
cMounts
3) Long Wall (Outdoor)
2) 2' x 2' Drop Ceiling
(Indoor)
1) Hard Ceiling (Indoor)
dHousings
1) Top Hat (Indoor) 2) Indoor & Outdoor
eBubbles
Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.
1
2
3
4
5
Smoked
Gold*
Silver*
Clear
* Indoor use only.

SpeedDome Ultra 8
SELECTION GUIDE
3 S E L E C T A M O D E L
4SELECT A
MODEL
3SELECT A
DOME FINISH
2SELECT A
ZOOM
BLACK
or
WHITE
35x
(includes 540 TVL, WDR,
Day/Night & EIS)
or
22x
35x
(includes 540 TVL, WDR,
Day/Night & EIS)
or
22x
BLACK
or
WHITE
BLACK
or
WHITE
BLACK
or
WHITE
1SELECT YOUR
ENVIRONMENT
INDOOR
or
OUTDOOR
Dome assembly*
Camera module only
5SELECT YOUR ACCESSORIES
> Housings &Bubbles: pp. 31-32
> Mounts: pp. 33-36
> Controllers: p. 39
> J-Boxes: p. 40
> Installation/Removal tool: p. 42
> Power supplies: p. 92
www.americandynamics.net Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.
ADSDU835ION
ADSDU835IOP
ADSDU835WION
ADSDU835WIOP
ADSDU822ION
ADSDU822IOP
ADSDU822WION
ADSDU822WIOP
ADSDU835N
ADSDU835P
ADSDU835W N
ADSDU835W P
ADSDU822N
ADSDU822P
ADSDU822W N
ADSDU822W P
* Includes camera module and mounting base
Note: N = NTSC and P = PAL

SpeedDomes, Drones, Controllers & Accessories
25
—
26
SpeedDome Ultra 8
3 S E L E C T A M O D E L 3 S E L E C T A M O D E L — D O M E K I T S
SELECTION GUIDE
SMOKED
or
NONE
SMOKED
or
NONE
SMOKED
or
NONE
SMOKED
or
NONE
CLEAR
CLEAR
4SELECT A
BUBBLE
3SELECT A
ZOOM
2SELECT A
MOUNT
35x
(includes 540 TVL, WDR,
Day/Night & EIS)
or
22x
HARD CEILING
or
2'x2' DROP CEILING
35x
(includes 540 TVL, WDR,
Day/Night & EIS)
or
22x
5SELECT A MODEL1SELECT YOUR
ENVIRONMENT
INDOOR
(includes 1/0 base,
and Top Hat housing)
or
ADSDU835IHSN
ADSDU835IHSP
ADSDU835IHN
ADSDU835IHP
ADSDU822IHS N
ADSDU822IHS P
ADSDU822IHN
ADSDU822IHP
ADSDU835I2X2S N
ADSDU835I2X2S P
ADSDU835I2X2N
ADSDU835I2X2P
ADSDU822I2X2S N
ADSDU822I2X2S P
ADSDU822I2X2N
ADSDU822I2X2P
ADSDU835OPC N
ADSDU835OPC P
ADSDU822OPC N
ADSDU822OPC P
ADSDU835OPC W N
ADSDU835OPCWP
ADSDU822OPCWN
ADSDU822OPCWP
35x
(includes 540 TVL, WDR,
Day/Night & EIS)
22x
or
> Housings &Bubbles: pp. 31-32
> Mounts: pp. 33-36
> Controllers: p. 39
> J-Boxes: p. 40
> Installation/Removal tool: p. 42
> Power supplies: p. 92
6SELECT YOUR ACCESSORIES
Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.
Note: N = NTSC and P = PAL
ORDER SEPARATELY
(see page 36)
or
LONG - WALL
OUTDOOR 35x
(includes 540 TVL, WDR,
Day/Night & EIS)
22x
or

• Color camera with up to 242x zoom
(22x optical, 11x digital)
• 470+ lines horizontal resolution
• Zoom adjusted programming
• Auto focus and auto iris
• Auto white balance
• Automatic gain control
• Line-lock
• Supports Manchester, SensorNet and
Simplex RS-422 protocols
• Integrated Unshielded Twisted Pair (UTP)
simplifies wiring and installation
• Up to 96 user-definable presets
• Three user-definable patterns
• Power-on functional tests
• LED diagnostics
• Easy to install and service
• Priced comparably to a PTZ, with
more features and easier to install
• Stepper motors with micro-step control
• Automatic home position
• In-ceiling series dimensions:
Total: 301 x 190.5 mm (11.9 x 7.5 in)
Above ceiling: 207.4 x 190.5 mm
(8.2 x 7.5 in)
Below ceiling: 92.7 x 178 mm
(3.65 x 7 in)
• In-ceiling series weight: 2.5 kg (5.5 lbs)
• Integral housing series dimension:
303 x 243.5 mm (11.9 x 9.6 in)
• Integral housing series weight: 2.7 kg (6.1 lbs)
1 C H O O S E F E A T U R E S T H A T M A K E A D I F F E R E N C E
FROM BOX TO
CEILING IN 15
MINUTES
SpeedDome Optima LT goes
from box to ceiling in as little
as 15 minutes. Everything
you need to install it in a
hard ceiling, including the
bubble and trim ring, comes
in one package. The housing
features an integrated
aluminum top hat enclosure
and plenum cap with swing-out
tabs that grasp ceiling
material for a secure hold.
www.americandynamics.net Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.
2 O R D E R A P R E - C O N F I G U R E D D O M E K I T
CONTENTS OF
A DOME KIT:
aColor Camera Module
bHousing
cBubble (smoked or clear)
aColor Camera Module bHousings cBubbles
In-ceiling
(Indoor)
Pendant
(Indoor/Outdoor) Smoked Clear
SpeedDome Optima &
SpeedDome Optima LT

SpeedDomes, Drones, Controllers & Accessories
27
—
28
Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.
4SELECT A MODEL3SELECT A BUBBLE
2SELECT A HOUSING1SELECT YOUR
ENVIRONMENT
SELECTION GUIDE
3 S E L E C T A M O D E L — D O M E K I T S
OPTIMA
(OUTDOOR)
NTSC: RASONPC
PAL: RASOPPC-1
NTSC: RASONPS
PAL: RASOPPS-1
NTSC: RASELH C
PAL: RASELH C - 1
NTSC: RASELH S
PAL: RASELHS-1
NTSC: RASELP C
PAL: RASELPC-1
NTSC: RASELP S
PAL: RASELP S - 1
OPTIMA LT
(INDOOR)
Available in
pendant mount
version only
IN-CEILING
or
PENDANT
CLEAR
or
SMOKED
CLEAR
or
SMOKED
CLEAR
or
SMOKED
> Mounts: pp. 33-36
> Controllers: p. 39
> J-Boxes: p. 40
> Other accessories: p. 42
> Power supplies: p. 92
5SELECT YOUR ACCESSORIES
SpeedDome Optima &
SpeedDome Optima LT

NUMBER OF PRESETS PER DOME
SpeedDome
Ultra 8 SpeedDome
Optima
SpeedDome
Optima LT
Controller, DVR or
Matrix Switcher Protocol Number of Presets
ADTT16E SensorNet 96 96 96
RS-422* 94 96 96
MegaPower LT AD-UTC 96 96 96
SensorNet 96 96 96
MegaPower 48 Plus SensorNet 96 96 96
Manchester 64 64 64
RS-422 96 96 96
MegaPower 3200 Manchester** 64 64 64
RS-422†60 60 60
Intellex SensorNet‡96 96 96
RS-422§96 96 96
EDVR RS-422 (Simplex) 10 96 96
Third party interfaces RS-485 96 N/A N/A
RS-422 96 N/A N/A
www.americandynamics.net Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.
SUPPORTED PROTOCOLS
RS-485/RS-422 Yes Yes Yes, Simplex only
NTCIP Yes No No
SensorNet Yes Yes Yes
Manchester Yes Yes Yes
AD-UTC Yes No No
Pelco Coaxitron Yes No No
Pelco “P” Yes No No
Panasonic UTC Yes No No
Vicon RS-422 Yes No No
* Using SensorNet-to-RS-422 converter (model number RCSN422).
* * Using Manchester code distributor (model number AD2091).
† Using RS-422 code distributor (model number AD2083-02C).
‡ Using USB CCTV Control Module (Model number ADACSNET).
§ Requires USB to RS-422 adaptor.

Watch traffic flow more smoothly
with the new SpeedDome Ultra 8
with 35x, which features Electronic
Image Stabilization (EIS) to reduce
the effects of vibration that can
result when cameras are mounted
on poles next to a highway.
29
—
30

Outdoor Housings:
SpeedDome Ultra Pressurized Outdoor Housing:
Housings &Bubbles
• Reinforced high-impact design
• Temperature-controlled interior
environment
• Choose from clear or smoked
bubble
• IP66/NEMA 4
• Class 2 LPS certif ied
• On demand fog and defrost heater
cycle modes prevent and quickly
remove accumulated ice
• Includes integrated I/O base
that can store presets/patterns
programming to base
• Four tamper-resistant screws with
driver bit included
• Surge and lightning protection of
video, communications, alarm input
and output and power
• Four alarm inputs, one output
• Integrated Unshielded Twisted Pair
(UTP) simplifies wiring and installation
• Dimensions:
Height: 321 mm (12.64 in)
Diameter: 244 mm (9.61 in)
• Weight with dome: 3.15 kg (6.95 lbs)
• Weight without dome: 2.06 kg (4.54 lbs)
ADSDUHO C
ADSDUHO S
• Durable engineered plastic top,
UV protected
• Temperature-controlled interior
environment
• Heater and blower standard
• IP67/NEMA 4x
• Pressurized to 5 psi with a
Schrader valve
• Low pressure alarm
• Pendant, wall or corner mount
available
• Bubble assembly affixed to the top
with nine screws
• Includes integrated I/O base
with diagnostic power and
communications LEDs (Note:
I/O base used does not currently support
storage of presets/patterns/programming)
• Surge and lightning protection of
video, communications, alarm input
and output and power
• Choose from clear or smoked
bubble
• Dimensions:
Height: 325 mm (12.8 in)
Diameter: 409 mm (16.1 in)
• Weight with dome: 3.63 kg (8.0 lbs)
RHODULP-01
RHODULP-02
Accessories
WM20G (Wall mount)
ACA2 (Corner mount)
APM3 (Pole mount)
RHONKIT*
(Nitrogen recharge kit)
RHONREG
(Regulator & Hose)
RHONTANK
(Nitrogen recharge
tank)
Pressure relief valve
* Contact your salesperson for recharge kit availability in your geographic region.
Note: For proper performance, this dome housing must be pressurized using 99.998% dry nitrogen.
Ride the Metro in Washington, D.C. and
you might glimpse an American Dynamics
SpeedDome. It’s just one example of how
our technology maintains public safety
throughout the most heavily traveled
transportation corridors.
Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.
www.americandynamics.net

Vandal Resistant Housings:
Indoor Housings:
SpeedDomes, Drones, Controllers & Accessories
31
—
32
Housings &Bubbles
• Reinforced high-impact design
• Choose from clear or smoked
bubble
• Four tamper-resistant screws with
driver bit included
• Visually identical to the outdoor
version to maintain consistent
appearance
• Dimensions:
Height: 321 mm (12.64 in)
Diameter: 244 mm (9.61 in)
• Weight with dome: 2.8 kg (6.17 lbs)
ADSDUPIH C
ADSDUPIH S
ADSDUHOVC
ADSDUHOVS
ADSDUPIVRC
ADSDUPIVRS
Upgrade Kits
RHCLRVRKIT
RHSMKVRKIT
• For use with SpeedDome Ultra
series domes (Indoor only)
• Requires RHIUTH Top Hat indoor
housing
• Provides attractive finish
• Available in clear, silver, smoked and
gold finishes
• Diameter: 176 mm (6.93 in)
• Depth: 86.5 mm (3.4 in)
• Weight: 13 kg (4.4 oz) with trim ring
Bubbles:
Indoor Top Hat Housing:
• Metal enclosure houses a dome
• Includes trim ring and plastic base
• Mounts directly to a ceiling or indoor
mounting structure
• Plenum rated
• Dimensions: 157 x 175 x 175 mm
(6 x 7 x 7 in)
• Weight: .77 kg (1.77 lbs)
RHIUTH
Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.
RUCLR
RUSLV
RUSMK
RUGLD
• Temperature-controlled interior
environment
• On demand fog and defrost heater
cycle modes prevent and quickly
remove accumulated ice
• Includes integrated I/O base
that can store presets/patterns
programming to base
• Stainless steel bubble cage and choose
from clear or smoked bubble
• Durable bubble meets impact
standard ANSI 87.1
• Retrof it kit available to upgrade
existing SpeedDome Ultra housings
• Reinforced high-impact design; four
tamper-resistant screws with driver bit
included
• Surge and lightning protection of
video, communications, alarm input
and output and power
• Four alarm inputs, one output
• Integrated Unshielded Twisted Pair
(UTP) simplifies wiring and
installation
• IP66/NEMA 4
• Class 2 LPS certif ied
• ADSDUHOVR series
Height: 321 mm (12.64 in)
Diameter: 244 mm (9.61 in)
Weight with dome: 3.86 kg (6.07 lbs)
• ADSDUPIVR series
Height: 321 mm (12.64 in)
Diameter: 75.3 mm (6.93 in)
Weight with dome: 2.8 kg (6.17 lbs)

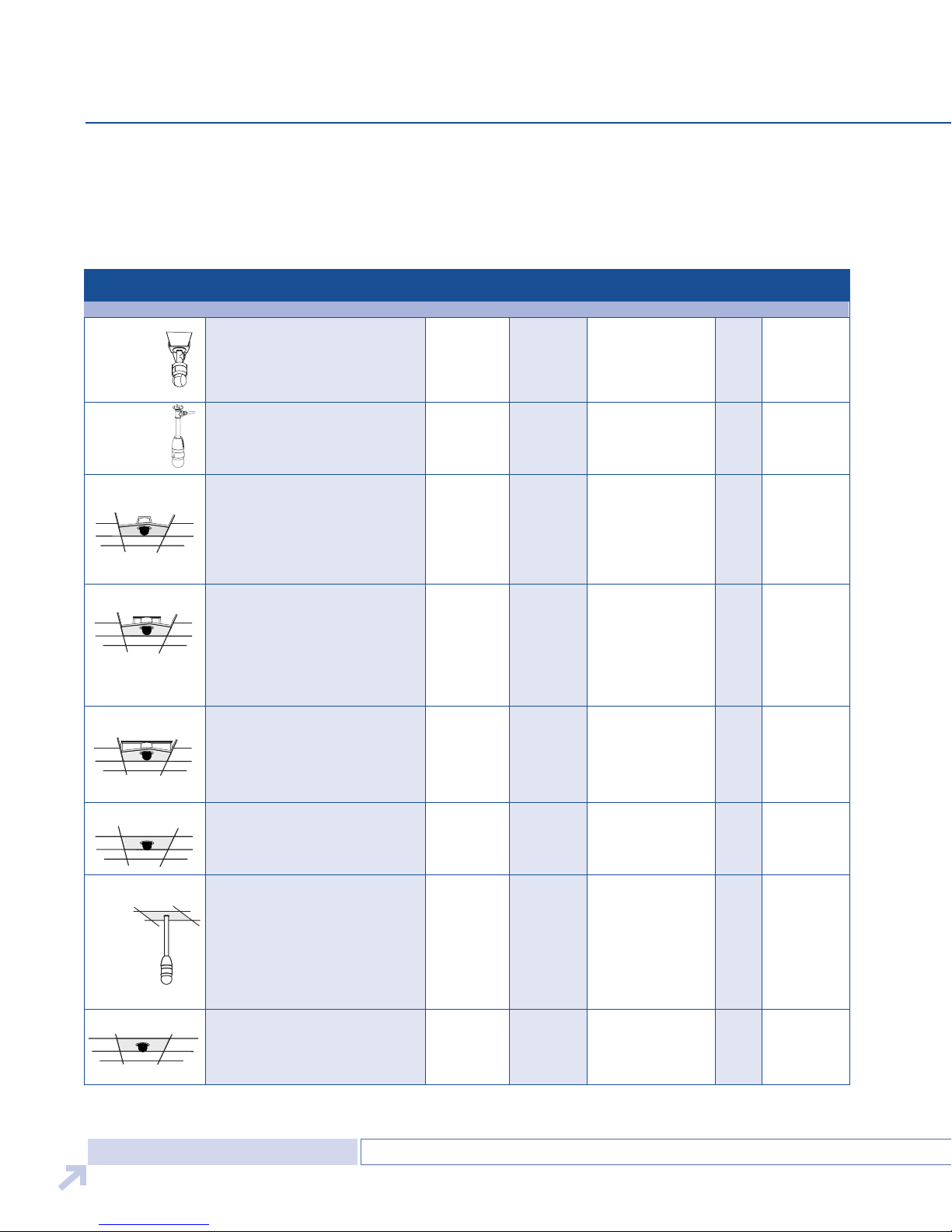

Indoor Mounts &Adapters
Top Hat Housing
with Trim Ring
I-Beam Mount
Assembly
Indoor Pendant
Mount
Hard Ceiling
Bracket
Fixed Bracket
Adjustable Bracket
2' x 2' Tile Mount
RHIUTH
RHIUIBM
RHOPN
RHIUHC
RHIUFB
RHIUAB
RHIU2X2M
RHIU2X2P
RH2X2
C H O O S E A M O U N T O R A D A P T E R F O R A N Y A P P L I C A T I O N
6 x 7 x 7 in 1.7 lbs
(157 x 175 x 175 mm) (.77 kg)
6 m [max.] x 293 x 127 mm 2.9 kg
(20 ft [max.] x 12 x 5 in) (6.4 lbs)
115 x 120 x 120 mm 1.8 kg
(4 .5 x 5 x 5 in) (4 lbs)
212 x 179 x 56 mm .70 kg
(8 x 7 x 2 in) (1.6 lbs)
180 x 632 x 100 mm 1.8 kg
(7 x 24 x 4 in) (4 lbs)
180 x 1219 x 100 mm 2.3 kg
(7 x 48 x 4 in) (5 lbs)
190 x 607 x 607 mm 2.7 kg
(7 x 24 x 24 in) (6 lbs)
47 x 605 x 605 mm 5.4 kg
(2 x 23 x 23 in) (12 lbs)
47 x 605 x 605 mm 1.7 kg
(2 x 23 x 23 in) (3.8 lbs)
Galvanized steel
Steel and
Galvanized steel
Powder-coated
aluminum and
ABS plastic
Galvanized steel
Galvanized steel
Galvanized steel
Powder-coated
aluminum and
ABS plastic
Powder-coated
aluminum and
ABS plastic
Painted aluminum
This Top Hat housing with trim ring and plastic
base mounts directly to a ceiling or indoor
mounting structure. It is a metal enclosure that
houses the dome. The trim ring is slightly larger
so that it completely covers the Top Hat’s metal
rim. The RHIUTH is plenum-rated
This assembly allows the dome to be suspended
from an I-beam; and includes a clamp, pipe tee
nipple and flange. The clamp attaches to a 1.25"
pipe, provided by the customer, then affixes to
the pendant hardware. The housing or dome
assembly also mounts to the structure.
This mount suspends a SpeedDome Ultra or a
SpeedDome Optima housing from a ceiling or
horizontal surface. It can be installed using either
1.25" NPT threaded pipe or rigid conduit, new
or existing, up to 10' (3 meters) in length.
This bracket enables the Top Hat housing to be
recessed in the ceiling (requires RHIUTH Top
Hat). The bracket is mounted to the Top Hat
and installed in a hole cut in the ceiling — per-
fect for sheet rock, plaster or solid ceilings. The
hard ceiling bracket can be installed entirely from
below the ceiling; the installer will not have to
access the area above the ceiling to install it.
Used with the RHIUTH Top Hat, this bracket
enables the housing to be recessed in the ceiling
or in a 2-foot drop ceiling tile. The bracket is
mounted to the Top Hat housing and installed in
a hole cut in the ceiling. The bracket distributes
the weight of the dome and Top Hat housing
across the T-bar framework of the ceiling. It is
also very useful for sheet rock, plaster, or solid
ceilings.
Used with the RHIUTH Top Hat, this bracket
enables the housing to be recessed in drop
ceilings that utilize anything other than 2-foot
grids. The bracket distributes the weight of the
dome and the Top Hat housing across the T-bar
framework of the ceiling and is adjustable from
632-1219 mm (24-48 in)
This mount enables the Top Hat housing to be
recessed in a 2' x 2' drop tile ceiling. The ceiling
tile is removed and the white tile mount is simply
dropped in its place. A Top Hat housing and
plastic base are included in the kit.
This mount enables the pendant mount to be
installed in a 2' x 2' drop tile ceiling. The Top
Hat housing/dome assembly also mounts to the
structure. The mounting kit includes a 2' x 2'
plate and pendant hardware. The plate attaches
to a 1.25" pipe, provided by the customer, then
affixes to the Top Hat housing/dome assembly.
If mounting a SpeedDome Optima with this
model, a RHOPN ceiling pendant mount kit is
required.
This mount enables the dome to be recessed
in a 2' x 2' drop tile ceiling. The ceiling tile is
removed and the tile mount is simply dropped
in its place.
SpeedDome
Ultra Series
SpeedDome
Ultra Series
SpeedDome
Ultra and Optima
Series
SpeedDome
Ultra Series
SpeedDome
Ultra Series
SpeedDome
Ultra Series
SpeedDome
Ultra Series
SpeedDome
Ultra and Optima
Series
SpeedDome
Optima Series
Mount Descri ption Compatibility Construction Dimens ions Weight Model #
INDOOR MOUNTING OPTIONS
• Complete line of indoor and outdoor mounts to
suit any mounting requirement
• Compatible with SpeedDome Ultra and Optima
series, plus the Ultra Drone series
• Lightweight and aesthetic
• Choose from a variety of ceiling, wall,
pendant, corner, pole and over-the-roof models
• Ground-level assembly of
dome/housing/end-cap for safe and
efficient installations
2' x 2' Tile Pendant
Mount
2' x 2' Tile Mount Plate
www.americandynamics.net Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.

SpeedDomes, Drones, Controllers & Accessories
33
—
34
RH 2 X 2
RHIU3X3
RHIU4X4
RHIUCM
RHIULWM
RHOSW
RHOLW
SpeedDome
Housing
Adapter
2 x 23 x 23 in 3.8 lb
47 x 605 x 605 mm) (1.7 kg)
2 x 90 x 90 mm .09 kg
(.08 x 3 x 3 in) (.2 lbs)
2 x 105 x 105 mm .14 kg
(.08 x 4 x 4 in) (.3 lbs)
With dome installed 1.8 kg
224 x 101 x 201 mm (4 lbs)
(9 x 4 x 8 in)
With dome installed 2.7 kg
413 x 123 x 772 mm (6 lbs)
(17 x 5 x 31 in)
With dome installed 1.3 kg
366 x 218 x 282 mm (3 lbs)
(14 x 9 x 11 in)
With dome installed 1.7 kg
366 x 218 x 282 mm (3.9 lbs)
(14 x 9 x 23 in)
Painted aluminum
Galvanized steel
Galvanized steel
Galvanized steel
Painted steel
Powder-coated
aluminum, ABS
plastic and
fiber-filled PVC
Powder-coated
aluminum, ABS
plastic and
fiber-filled PVC
This mount enables the dome to be recessed
in a 2’ x 2’ drop tile ceiling. The ceiling tile is
removed and the tile mount is simply dropped
in its place ..
This mounting plate attaches the dome to a
standard 3.5" x 3.5" duplex electrical box that
is installed in the ceiling. The Top Hat housing/
dome assembly also mounts to the structure.
This mounting plate attaches the dome to a
standard 4" x 4" duplex electrical box that is
installed in the ceiling. The Top Hat housing/dome
assembly also mounts to the structure.
This mounting structure attaches directly to a
flat wall, inside corner or outside corner. The
Top Hat housing/dome assembly mounts to the
structure for a quick and easy installation.
This mount, 24" (.6 m), positions the dome away
from the wall, enabling it to see over furniture,
shelving and displays. It attaches directly to a flat
wall, inside corner, or outside corner. The Top
Hat housing/dome assembly also mounts to this
structure.
This mounting structure attaches directly to a
flat wall. When used with the RHOWCA corner
bracket adapter or RHOWPA pole strap adapter
it can be affixed to corners as well as poles. A
mounting cover conceals the mounting plate for
a more attractive appearance.
This mount attaches directly to a flat wall,
positioning the dome away from the wall, so that
it can see over furniture, shelving and displays.
When used with the RHOWCA corner bracket
adapter or RHOWPA pole strap adapter it can
be affixed to corners as well as poles. A
mounting cover conceals the mounting plate for
a more attractive appearance.
SpeedDome
Optima Series
SpeedDome
Ultra Series
SpeedDome
Ultra Series
SpeedDome
Ultra Series
SpeedDome
Ultra Series
SpeedDome
Ultra and Optima
Series
SpeedDome
Ultra and Optima
Series
This adapter attaches the long and short wall
mounts (RHOSW & RHOLW) to outside
corners. Powder-coated aluminum construction
ensures an extremely sturdy installation.
This adapter attaches the long and short
wall mounts (RHOSW & RHOLW) to outside
corners. This kit contains stainless steel straps
that can be daisy-chained to accommodate
any size pole and all the necessary mounting
hardware.
This adapter retrofits a SpeedDome Ultra into
an existing SpeedDome housing via snap-hinge
mounts, making installation fast and easy. This kit
includes a skirt assembly to compensate for the
smaller dimensions of the SpeedDome Ultra.
This mounting assembly retrofits any existing
outdoor SpeedDome wall, pole, corner, or
over-the-roof mount to accommodate newer
outdoor housings. A modular design lets you
mount the housing to the end cap on the
ground, before installing it on the mounting
pole, making the process safe and easy.
INDOOR ADAPTER OPTIONS
Adapter Description Compatibility Construction Dimensions Weight Model #
SpeedDome
Ultra and Optima
Series
SpeedDome
Ultra and Optima
Series
SpeedDome
Ultra Series
SpeedDome
Ultra and Optima
Series
Powder-coated
aluminum
Powder-coated
aluminum and
stainless steel
Anodized
aluminum
Fiber-filled PVC
185 x 210 x 125 mm .79 kg
(7 x 8 x 5 in) (1.75 lbs)
138 x 79 x 27 mm
(5 x 3 x 1 in)
Straps support .5 kg
53 to 951 mm (1.1 lbs)
(2 to 30 in)
pole diameter
106 x 205 x 250 mm 1.4 kg
(4 x 8 x 10 in) (3 lbs)
64 x 103 x 194 mm .32 kg
(3 x 4 x 8 in) (.7 lbs)
RHOWCA
RHOWPA
RHSDA
ROENDC
INDOOR MOUNTING OPTIONS
Mount Description Compatibility Construction Dimensions Weight Model #
Indoor Mounts &Adapters
End Cap Assembly
Corner
Bracket
Adapter
Pole Strap
Adapter
Long Wall/Corner
Mount
Short Wall Mount
with End Cap
Assembly
Long Wall Mount
with End Cap
Assembly
3.5" x 3.5"
Mounting
Plate
4" x 4"
Mounting
Plate
Wall/Corner
Mount
Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.

American Dynamics SpeedDomes
are pivotal to the integrated
security system that help Aetna Inc.
streamline operations at nearly
100 field offices and consequently
cut costs.
www.americandynamics.net

Outdoor Mounts &Adapters
SpeedDomes, Drones, Controllers & Accessories
35
—
36
CHOOSE A MOUNT OR ADAPTER FOR ANY APPLICATION*
OUTDOOR MOUNTING OPTIONS
Mount Description Compatibility Construction Dimensions Weight Model #
RHOSW
RHOLW
RHOPN
RHOTR
With dome installed 1.3 kg
366 x 218 x 282 mm (3 lbs)
(14 x 9 x 11 in)
With dome installed 1.7 kg
366 x 218 x 587 mm (3.9 lbs)
(14 x 9 x 23 in)
115 x 120 x 120 mm 1.8 kg
(4.5 x 5 x 5 in) (4 lbs)
1098 x 243 x 473 mm 5.7 kg
(43 x 10 x 19 in) (12.7 lbs)
Powder-coated
aluminum, ABS
plastic and
fiber-filled PVC
Powder-coated
aluminum, ABS
plastic and
fiber-filled PVC
Powder-coated
aluminum, ABS
plastic
Powder-coated
aluminum, ABS
plastic and
fiber-filled PVC
This mounting structure attaches directly
to a flat wall. When used with the RHOWCA
corner bracket adapter or RHOWPA pole strap
adapter it can be affixed to corners as well as
poles. A mounting cover conceals the mounting
plate for a more attractive appearance.
This mount attaches directly to a flat wall,
positioning the dome away from the wall, so
that it can see over furniture, shelving and displays.
When used with the RHOWCA corner bracket
adapter or RHOWPA pole strap adapter it
can be affixed to corners as well as poles.
A mounting cover conceals the mounting plate
for a more attractive appearance.
This mount suspends an outdoor dome
housing from an outdoor ceiling or horizontal
surface. It can be installed using either new or
existing 1.25" NPT threaded pipe or rigid
conduit up to 10 feet (3 meters) in length.
This mount affixes directly to any wall,
rooftop wall or parapet, positioning the dome
away from the wall, so that it can see over
awnings, soffits and landscaping. Opposing
wing brackets secure installation to the roof
surface, while allowing the pole to be
repositioned for easy service access.
SpeedDome
Ultra Series
SpeedDome
Ultra Series
SpeedDome
Ultra Series
SpeedDome
Ultra Series
This adapter attaches the long and short wall
mounts (RHOSW & RHOLW) to affix to
outside corners. Powder-coated aluminum
construction ensures an extremely sturdy
installation.
This adapter attaches the long and short wall
mounts (RHOSW & RHOLW) to outside
corners. This kit contains stainless steel straps
that can be daisy-chained to accommodate
any size pole and all the necessary mounting
hardware.
This adapter installs the RHOTR over-the-
roof mount on horizontal and vertical roof/
parapet surfaces. Multiple fastening positions
provide versatility for mounting on any
combination of surfaces and angles.
This mounting assembly retrofits any existing
outdoor SpeedDome wall, pole, corner, or
over-the-roof mount to accommodate newer
outdoor housings. A modular design lets you
mount the housing to the end cap on the
ground, before installing it on the mounting
pole, making the process safe and easy.
OUTDOOR ADAPTER OPTIONS
Adapter Description Compatibility Construction Dimensions Weight Model #
SpeedDome
Ultra Series
SpeedDome
Ultra Series
SpeedDome
Ultra Series
SpeedDome
Ultra Series
Powder-coated
aluminum
Powder-coated
aluminum and
stainless steel
Powder-coated
aluminum
Fiber-filled PVC
185 x 210 x 125 mm .79 kg
(7 x 8 x 5 in) (1.75 lbs)
138 x 79 x 27 mm .5 kg
(5 x 3 x 1 in) (1.1 lbs)
Straps support
53 to 951 mm
(2 to 30 in)
pole diameter
369 x 240 x 240 mm 2.59 kg
(15 x 10 x 10 in) (5.75 lbs)
64 x 103 x 194 mm .32 kg
(3 x 4 x 8 in) (.7 lbs)
RHOWCA
RHOWPA
ROTRF
ROENDC
* Not applicable to pressurized housings.
Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.
Short Wall Mount
with End Cap
Assembly
Long Wall Mount
with End Cap
Assembly
Over-the-Roof
Mount with
End Cap
Assembly
Outdoor
Pendant
Mount
Corner
Bracket
Adapter
Pole Strap
Adapter
Floor Adapter
for RHOTR
End Cap Assembly

RHOPTDOME
RHDRPEN10 RD500A
RHDRCAN
• Identical in appearance to the full-featured
SpeedDome Ultra
• Friction bearings hold camera in set position
• Powerful visual deterren t
• 540 TVL color camera inside
• Night-Saver mode for low light conditions
• Interchangeable with SpeedDome Ultra and fits
I/O board mounting base
• Three auto iris lens options:
2.5 to 6 mm, 3.8 to 9.5 mm
and 9 to 22 mm
• .65 lux minimum illumination
• Dimensions:
Total height: 205 mm (8 in)
Eyeball diameter: 120 mm (4.7 in)
• Weight with chassis and camera:
1.36 kg (3 lbs)
SpeedDome Ultra Fixed Camera Drone 3 (with Camera/Lens)
ADSDUDH2506N
ADSDUDH2506P
ADSDUDH2506ION
ADSDUDH2506IOP
ADSDUDH2506PTN
ADSDUDH2506PTP
ADSDUDH3895N
ADSDUDH3895P
ADSDUDH3895ION
ADSDUDH3895IOP
ADSDUDH3895PTN
ADSDUDH3895PTP
ADSDUDH0922N
ADSDUDH0922P
ADSDUDH0922ION
ADSDUDH0922IOP
ADSDUDPTB
ADSDUIOB
• Identical in appearance to SpeedDome Optima
• Provides fixed camera capability with
appearance of a programmable dome
• Powerful visual deterrent
• Easy installation
• All-metal black box construction
• Suitable for installation in open-plenum ceilings
• Camera/lens ordered separately
• Dimensions:
Total dimension: 252.9 x 245 mm (9.96 x 9.65 in)
Above ceiling: 158 x 107.6 mm (6.23 x 107.6 in)
Below ceiling: 94.9 x 245 mm (3.74 x 9.65 in)
• Weight: 1.32 kg (2.9 lbs)
SpeedDome Optima Drone (Camera/Lens Ordered Separately)
RHOPTDOME
Drones
RDULTRA and
ADSDUD series
WHAT IS A DRONE?
A “drone” mimics the
appearance of a dome and
may or may not include a
fixed camera, which can
be ordered separately or is
included.
RHDR2X2
www.americandynamics.net Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.

SpeedDomes, Drones, Controllers & Accessories
37
—
38
• Single fixed camera applications
• Smoked bubble
• Camera/lens ordered separately
• Simple installation and camera
positioning
• Indoor only
• Hard ceiling, drop ceiling and pendant
mount versions
• Diameter: 254 mm (10 in)
Fixed Camera Drone Housing (Camera/Lens Ordered Separately)
• Identical in appearance to the full-featured
SpeedDome Ultra
• Interchangeable with SpeedDome Ultra
(fits standard and I/O board mounting
bases)
• Dimensions:
Height: 205 mm (8 in)
Eyeball diameter: 120 mm (4.7 in)
• Weight: .66 kg (1.45 lbs)
SpeedDome Ultra Dummy Drone (No Camera/Lens Capability)
RDULTRA
• Small attractive appearance
• Powerful visual deterrent
• SpeedDome look-alike
• Smoked bubble with black inner liner
• Snap-hinge chassis
• Fits any type ceiling
• Multiple mounting options
• Eyeball diameter: 190 mm (7.5 in)
• Please refer to data sheets for dimensions
• RD500:
Weight: 2 kg (4.4 lbs)
• RD500 A :
Weight: 1.2 kg (2.6 lbs)
Fixed Camera Drone Housing (Camera/Lens Ordered Separately)
RD500 (Photo not available)
RD500A
RHDR2X2
RHDRCAN
RHDRPEN10
Drones look identical in appearance to
programmable dome cameras, creating the same
deterrence for less money. Install them wherever the
appearance of surveillance matters more than the
ability to follow a moving target.
Drones
Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.

• Controls up to 64 cameras/domes
• Compatible with SensorNet domes
(SpeedDome Ultra, SpeedDome
Optima and Optima LT series)
• Variable-speed controlstick for pan/tilt
functions
• Up to 96 programmable presets per dome
• Three programmable patterns per dome
• Three levels of password protection
• DirectSet control
• One programmable sequence
• Up to four simultaneous dome input alarms
• Easily interfaces with Intellex digital video
management systems and Quest multiplexers
for dome control
• Supports ten languages
• Backlit LCD display
• Dimensions: 130 x 194 x 260 mm
(5.12 x 7.63 x 10.24 in)
• Weight: 1 kg (2.2 lbs)
ADTT16E Touch Tracker Controller
• Control a SpeedDome Optima or Ultra series
programmable dome using a PC with all
the features of an ADTT16E Touch Tracker
Controller — including DirectSet
• Monitor SensorNet communication links for
testing and troubleshooting purposes
• Upgrade domes to the latest firmware via
SensorNet without needing physical access to
the dome
• Can be used in existing SensorNet installations
— anywhere a SensorNet connection is available
• Dimensions:
Length: 102 mm (4 in)
Width: 70 mm (2.8 in)
Thickness: 25 mm (1 in)
• Weight: .5 kg (1.1 lbs)
USB Control Module
ADTT16E
Controllers &J-Boxes
ADT T16 E
Kit
RVEIM KIT
ADACSNET
ADACSNET
MAXIMIZE YOUR
SURVEILLANCE
You can operate as many as
64 domes from one central
point with the ADTT16E
Touch Tracker Controller,
maximizing your surveillance
while keeping capital costs
to the bare minimum.
www.americandynamics.net Product offerings and specifications are subject to change without notice. Actual products may vary
from photos. Not all products include all features. Availability varies by region; contact your sales rep.
