American Fibertek SM24p-PoE User manual

SM24p-PoE
20-Port 10/100/1000Base-T plus
4 RJ-45/100/1000 SFP Combo Port
Managed PoE Switch
Instruction Manual

Rev.A1
7-July-12
i
Regulatory Approval
- FCC Class A
- UL 1950
- CSA C22.2 No. 950
- EN60950
- CE
- EN55022 Class A
- EN55024
Canadian EMI Notice
This Class Adigital apparatus meets all the requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur
du Canada.
European Notice
Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage
Directive (73/23/EEC) issued by the Commission of the European Community Compliance with these
directives imply conformity to the following European Norms:
EN55022 (CISPR 22) - Radio Frequency Interference
EN61000-X - Electromagnetic Immunity
EN60950 (IEC950) - Product Safety

Rev.A1
7-July-12
ii
Table of Contents
1. INTRODUCTION....................................................................................................... 2
1-1. OVERVIEW OF THE SM24P-POE.................................................................................. 2
1-2. CHECKLIST .................................................................................................................. 4
1-3. FEATURES.................................................................................................................... 4
1-4.VIEW OF 24-PORT GIGABIT MANAGED POESWITCH................................................... 6
1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs).......................... 6
1-4-2. User Interfaces on the Rear Panel...................................................................... 7
2. INSTALLATION......................................................................................................... 9
2-1. STARTING 24-PORT GIGABIT MANAGED POESWITCH................................................. 9
2-1-1. Hardware and Cable Installation....................................................................... 9
2-1-2. Cabling Requirements ...................................................................................... 10
2-1-2-1. Cabling Requirements for TP Ports.........................................................................11
2-1-2-3. Switch Cascading in Topology................................................................................11
2-1-3. Configuring the Management Agent of 24-Port Gigabit Managed PoE Switch14
2-1-3-1. Configuring Management Agent of 24-Port Gigabit Managed PoE Switch through
Ethernet Port.........................................................................................................................14
2-1-4. IP Address Assignment ..................................................................................... 15

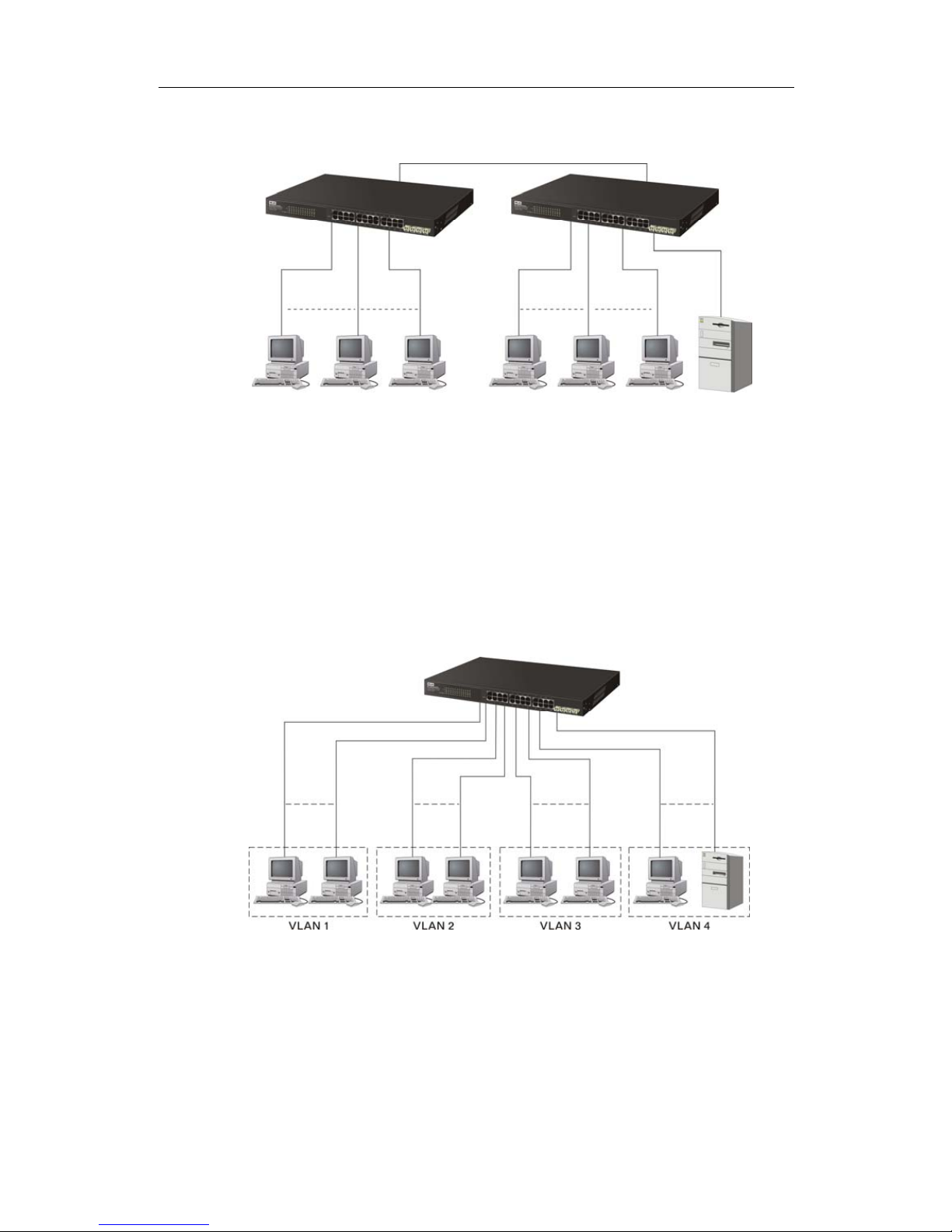

2-2.TYPICAL APPLICATIONS............................................................................................... 19
3. BASIC CONCEPTAND MANAGEMENT..................................................... 21
3-1. WHAT’S THE ETHERNET ............................................................................................. 21
3-2. MEDIAACCESS CONTROL (MAC) ............................................................................. 24
3-3. FLOW CONTROL ........................................................................................................ 29
3-4. HOW DOES A SWITCH WORK?..................................................................................... 32
3-5.VIRTUAL LAN........................................................................................................... 36
3-6. LINK AGGREGATION .................................................................................................. 42
4. OPERATION OF WEB-BASED MANAGEMENT............................................. 44
4-1.WEB MANAGEMENT HOME OVERVIEW ..................................................................... 45
4-2. CONFIGURATION........................................................................................................ 47
4-2-1. System Configuration ....................................................................................... 48
4-2-2. Ports................................................................................................................. 51
4-2-3. VLAN Mode Configuration............................................................................... 54
4-2-4. VLAN Group Configuration.............................................................................. 58
4-2-5. PoE................................................................................................................... 60
4-2-6. Aggregation...................................................................................................... 68
4-2-7. LACP................................................................................................................ 69
4-2-8. RSTP................................................................................................................. 71
4-2-9. 802.1X .............................................................................................................. 75
4-2-10 IGMP Snooping............................................................................................... 83
4-2-11. Mirror Configuration...................................................................................... 84
4-2-12. QoS(Quality of Service) Configuration.......................................................... 85
4-2-13. Filter............................................................................................................... 88
4-2-14. Rate Limit....................................................................................................... 90
4-2-15. Storm Control ................................................................................................. 92
4-2-16. SNMP ............................................................................................................. 93
4-3. MONITORING............................................................................................................. 95
4-3-1. Detailed Statistics............................................................................................. 96
4-3-2. LACP Status...................................................................................................... 99
4-3-3. RSTP Status .................................................................................................... 100
4-3-4. IGMP Status ................................................................................................... 101

Rev.A1
7-July-12
ii
4-3-5. Ping Status...................................................................................................... 103
4-4. MAINTENANCE ........................................................................................................ 105
4-4-1. Warm Restart.................................................................................................. 106
4-4-2. Factory Default .............................................................................................. 107
4-4-3. Software Upgrade........................................................................................... 108
4-4-4. Configuration File Transfer............................................................................ 109
4-4-5. Logout..............................................................................................................110
5. MAINTENANCE..........................................................................................................111
5-1. RESOLVING NO LINK CONDITION .............................................................................111
5-2. Q&A ........................................................................................................................111
APPENDIX A TECHNICAL SPECIFICATIONS.........................................................112
APPENDIX B MIB SPECIFICATIONS .........................................................................115

Rev.A1
7-July-12
iv
Revision History
Date Revision
2011/03/11 A0
2012/07/26 A1

Rev.A1
7-July-12
v
Warning:
•Self-demolition on Product is strictly prohibited. Damage caused by self-
demolition will be charged for repairing fees.
•Do not place product at outdoor or sandstorm.
•Before installation, please make sure input power supply and product
specifications are compatible to each other.
•Before importing / exporting configuration please make sure the firmware
version is always the same.
•After firmware upgrade, the switch will remove the configuration automatically to
latest firmware version.

User Manual
Publication date: Jan., 2011
Revision A1
1
About this user’s manual
This user’s manual provides instructions on how to install your Managed Switch.
This guide also covers management options and detailed explanation about
hardware and software functions.
Overview of this user’s manual
Chapter 1 “Introduction” describes the features of 24 Gigabit Managed Switch
Chapter 2 “Installation”
Chapter 3 “Operating Concept and Management”
Chapter 4 “Operation of Web-based Management”
Chapter 5 “Maintenance”

User Manual
Rev.A1
1-Mar-11
2
1.Introduction
1-1. Overview of the SM24P-POE
The SM24P-POE which is a 24-port Gigabit Managed PoE Switch, it is a
standard switch that meets all IEEE 802.3/u/x/z Gigabit and Fast Ethernet
specifications. The switch has 20 10/100/1000Mbps TP ports and 4 Gigabit TP/
(100/1000M) SFP slots, It supports Web GUI and SNMP interface for switch
management. The network administrator can logon the switch to monitor, configure
and control each port’s activity. In addition, the switch implements the QoS (Quality
of Service), VLAN, and Trunking. It is suitable for office application.
The switch also support the Power saving for reduce the power consumption
with "ActiPHY Power Management" and "PerfectReach Power Management" two
technique. It could be efficient saving the switch power with auto detect the client
idle and cable length to provide different power.
This PoE switch also complies with IEEE 802.3af, its advanced auto-sensing
algorithm enables providing powered devices (PD) discovery, classification, current
limit, and other necessary functions. It also supports high safety with short circuit
protection and power-out auto-detection to PD.
In this switch, Port 21, 22, 23, 24 includes two types of media --- TP and
(100/1000M) SFP Fiber (LC, BiDi-SC…); this port supports 10/100/1000Mbps TP or
(100/1000M) SFP Fiber with auto-detected function. (100/1000M) SFP Fiber
transceiver is used for high-speed connection expansion.
10/100/1000Mbps TP is a standard Ethernet port that meets all IEEE
802.3/u/x/z Gigabit and Fast Ethernet specifications. (100/1000M) SFP Fiber
transceiver is a Gigabit Ethernet port that fully complies with all IEEE 802.3z and
1000Base-SX/LX standards and 100Base-FX standards.

User Manual
Rev.A1
1-Mar-11
3
• Key Features in the Device
QoS:
The switch offers powerful QoS function. This function supports 802.1p
VLAN tag priority and DSCP on Layer 3 of network framework.
VLAN:
Supports Port-based VLAN, IEEE802.1Q Tag VLAN. And supports 24 active
VLANs and VLAN ID 1~4094.
Port Trunking:
Allows one or more links to be aggregated together to form a Link
Aggregation Group by the static setting.
IGMP Snooping:
Support IGMP version 2 (RFC 2236): The function IGMP snooping is used
to establish the multicast groups to forward the multicast packet to the
member ports, and, in nature, avoid wasting the bandwidth while IP
multicast packets are running over the network.
Q-in-Q VLAN for performance & security:
Limiting the broadcast traffic to within the same VLAN broadcast domain
also enhances performance. Q-in-Q, the use of double VLAN tags is an
efficient method for enabling Subscriber Aggregation. This is very useful in
the MAN.
SNMP:
SNMP agent In the device, SNMP agent is a client software which is
operating over SNMP protocol used to receive the command from SNMP
manager (server site) and echo the corresponded data, i.e. MIB object.
Besides, SNMP agent will actively issue TRAP information when happened.
Power Saving:
The Power saving using the "ActiPHY Power Management" and
"PerfectReach Power Management" two techniques to detect the client idle
and cable length automatically and provides the different power. It could
efficient to save the switch power and reduce the power consumption.
PoE:
24-PoE ports allow power to be supplied to end devices, such as Wireless
Access Points or VoIP Phones, directly through the existing LAN cables,
eliminating costs for additional AC wiring and reducing Installation Cost. It
was compliant with IEEE802.3af standard. It provides the endpoint with
48VDC power through RJ-45 pin 1, 2, 3, 6. SM24P-POEprovides 185 watts
of total power (up 15.4 Watts for 12 ports or 7.7 watts for 24 ports)

User Manual
Rev.A1
1-Mar-11
4
1-2. Checklist
Before you start installing the switch, verify that the package contains the
following:
⎯24-Port Gigabit Managed PoE Switch
⎯Mounting Accessory (for 19” Rack Shelf)
⎯This User's Manual in CD-ROM
⎯AC Power Cord
Please notify your sales representative immediately if any of the aforementioned
items is missing or damaged.
1-3. Features
The 24-Port Gigabit Managed PoE Switch, a standalone off-the-shelf switch,
provides the comprehensive features listed below for users to perform system
network administration and efficiently and securely serve your network.
• Hardware
• 20 10/100/1000Mbps Auto-negotiation Gigabit Ethernet TP ports
• 4 10/100/1000Mbps TP or 100/1000Mbps SFP Fiber dual media auto sense
• 500KB on-chip frame buffer
• In SM24P-POE, it supports 185 watts for PoE Power and up to 15.4 watts for 12
ports or 7.7 watts for 24 ports ;
• Jumbo frame support 12.2KB
• Programmable classifier for QoS (Layer 2/Layer 3)
• 8K MAC address and support VLAN ID (1~4094)
• Per-port shaping, policing, and Broadcast Storm Control
• IEEE802.1Q-in-Q nested VLAN support
• Power Saving with "ActiPHY Power Management" and "PerfectReach Power
Management" techniques.
• Full-duplex flow control (IEEE802.3x) and half-duplex backpressure
• Extensive front-panel diagnostic LEDs; System: Power, TP Port1-24:
LINK/ACT/SPD , PoE, SFP Port 21, 22, 23,24: SFP(LINK/ACT)
24 port IEEE802.3af PoE PSE.
Endpoint with 48VDC power through RJ-45 pin 1, 2, 3, 6.
Powered Device (PD) auto detection and classification.
PoE-PSE status and activity LED indicator.

User Manual
Rev.A1
1-Mar-11
5
• Management
•Supports concisely the status of port and easily port configuration
•Supports per port traffic monitoring counters
• Supports a snapshot of the system Information when you login
• Supports port mirror function
• Supports the static trunk function
• Supports 802.1Q VLAN
• Supports user management and limits one user to login
• Maximal packet length can be up to 12.2KB for jumbo frame application
• Supports Broadcasting Suppression to avoid network suspended or crashed
• Supports to send the trap event while monitored events happened
•Supports default configuration which can be restored to overwrite the current
configuration which is working on via Web UI and Reset button of the switch
• Supports on-line plug/unplug SFP modules
• Supports Quality of Service (QoS) for real time applications based on the
information taken from Layer 2 to Layer 3.
• Built-in web-based management instead of using CLI interface, providing a more
convenient GUI for the user

User Manual
Rev.A1
1-Mar-11
6
1-4. View of 24-Port Gigabit Managed PoE Switch
1-4-
1. User Interfaces on the Front Panel (Button, LEDs and Plugs)
Fig. 1-1 Full View of SM24P-POE MANAGED PoE SWITCH
There are 24 TP Gigabit Ethernet PoE ports and 4 (100/1000M) SFP fiber
ports for optional removable modules on the front panel of the switch. LED display
area, locating on the left side of the panel, contains a Power LED, which indicates
the power status and 24 ports working status of the switch.
TP Port Status Indication LEDs Gi
g
abit Ethernet Port
Fiber Port Status Indication LEDs
SFP Fiber Port
Power Indication
LED
Fig. 1-2 Front View of SM24P-POE

User Manual
Rev.A1
1-Mar-11
7
• LED Indicators Description
LED Color Function
System LED
POWER Green Lit when +5V power is coming up
10/100/1000Ethernet TP Port 1 to 24 LED
LINK/ACT/SPD Green/
Amber
Lit Green when 1000Mbps speed is active
Lit Amber when 100/10Mbps speed is active
Blinks when any traffic is present
PoE Green Lit when PoE Power is active
Fiber Port 21, 22, 23, 24 LED
SFP(LINK/ACT) Green/
Amber
Lit Green when 1000Mbps SFP connection with
remote device is good
Lit Amber when 100Mbps SFP connection with
remote device is good
Blinks when any traffic is present
Table1-1
1-4-2. User Interfaces on the Rear Panel
AC Line 100-240V 50/60 Hz
Fig. 1-3 Rear View of SM24P-POE

User Manual
Rev.A1
1-Mar-11
8

User Manual
Rev.A1
1-Mar-11
9
2. Installation
2-1. Starting 24-Port Gigabit Managed PoE Switch
This section will give users a quick start for:
- Hardware and Cable Installation
- Management Station Installation
- Software booting and configuration
2-1-1. Hardware and Cable Installation
First of all:
⇒Wear a grounding device to avoid the damage from electrostatic discharge
⇒Be sure that power switch is OFF before you insert the power cord to power
source
• Installing Optional SFP Fiber Transceivers to the 24-Port Gigabit Managed PoE
Switch
Note: If you have no modules, please skip this section.
Fig. 2-1 Installation of Optional SFP Fibe
r
Transceive
r
•Connecting the SFP Module to the Chassis:
The optional SFP modules are hot swappable, so you can plug or unplug it
before or after powering on.
1. Verify that the SFP module is the right model and conforms to the chassis
2. Slide the module along the slot. Also be sure that the module is properly
seated against the slot socket/connector
3. Install the media cable for network connection
4. Repeat the above steps, as needed, for each module to be installed into
slot(s)
5. Have the power ON after the above procedures are done

User Manual
Rev.A1
1-Mar-11
10
• TP Port and Cable Installation
⇒In the switch, TP port supports MDI/MDI-X auto-crossover, so both types of
cable, straight-through (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6 in
10/100M TP; 1, 2, 3, 4, 5, 6, 7, 8 to 1, 2, 3, 4, 5, 6, 7, 8 in Gigabit TP) and
crossed-over (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 3, 6, 1, 2) can be used.
It means you do not have to tell from them, just plug it.
⇒Use Cat. 5 grade RJ-45 TP cable to connect to a TP port of the switch and the
other end is connected to a network-aware device such as a workstation or a
server.
⇒Repeat the above steps, as needed, for each RJ-45 port to be connected to a
Gigabit 10/100/1000 TP device.
Now, you can start having the switch in operation.
• Power On
The switch supports 100-240 VAC, 50-60 Hz power supply. The power
supply will automatically convert the local AC power source to DC power. It does not
matter whether any connection plugged into the switch or not when power on, even
modules as well. After the power is on, all LED indicators will light up and then all off
except the power LED still keeps on. This represents a reset of the system.
• Firmware Loading
After resetting, the bootloader will load the firmware into the memory. It will
take about 30 seconds, after that, the switch will flash all the LED once and
automatically performs self-test and is in ready state.
2-1-2. Cabling Requirements
To help ensure a successful installation and keep the network performance
good, please take a care on the cabling requirement. Cables with worse
specification will render the LAN to work poorly.

User Manual
Rev.A1
1-Mar-11
11
⇒
⇒
2-1-2-1. Cabling Requirements for TP Ports
For Fast Ethernet TP network connection
⎯The grade of the cable must be Cat. 5 or Cat. 5e with a maximum length of
100 meters.
Gigabit Ethernet TP network connection
⎯The grade of the cable must be Cat. 5 or Cat. 5e with a maximum length of
100 meters. Cat. 5e is recommended.
2-1-2-3. Switch Cascading in Topology
• Takes the Delay Time into Account
Theoretically, the switch partitions the collision domain for each port in switch
cascading that you may up-link the switches unlimitedly. In practice, the network
extension (cascading levels & overall diameter) must follow the constraint of the
IEEE 802.3/802.3u/802.3z and other 802.1 series protocol specifications, in which
the limitations are the timing requirement from physical signals defined by 802.3
series specification of Media Access Control (MAC) and PHY, and timer from some
OSI layer 2 protocols such as 802.1d, 802.1q, LACP and so on.
The fiber, TP cables and devices’ bit-time delay (round trip) are as follows:
1000Base-X TP, Fiber 100Base-TX TP 100Base-FX Fiber
Round trip Delay: 4096 Round trip Delay: 512
Cat. 5 TP Wire: 11.12/m Cat. 5 TP Wire: 1.12/m Fiber Cable: 1.0/m
Fiber Cable : 10.10/m TP to fiber Converter: 56
Bit Time unit : 1ns (1sec./1000 Mega bit) Bit Time unit: 0.01µs (1sec./100 Mega bit)
Table 2-2
Sum up all elements’ bit-time delay and the overall bit-time delay of
wires/devices must be within Round Trip Delay (bit times) in a half-duplex network
segment (collision domain). For full-duplex operation, this will not be applied. You
may use the TP-Fiber module to extend the TP node distance over fiber optic and
provide the long haul connection.
• Typical Network Topology in Deployment
A hierarchical network with minimum levels of switch may reduce the timing
delay between server and client station. Basically, with this approach, it will
minimize the number of switches in any one path; will lower the possibility of
network loop and will improve network efficiency. If more than two switches are
connected in the same network, select one switch as Level 1 switch and connect all
other switches to it at Level 2. Server/Host is recommended to connect to the Level
1 switch. This is general if no VLAN or other special requirements are applied.

User Manual
Rev.A1
1-Mar-11
12
Case1: All switch ports are in the same local area network. Every port can access
each other (See Fig. 2-2).
Fig. 2-2 No VLAN Configuration Diagram
If VLAN is enabled and configured, each node in the network that can
communicate each other directly is bounded in the same VLAN area.
Here VLAN area is defined by what VLAN you are using. The switch
supports both port-based VLAN and tag-based VLAN. They are different in practical
deployment, especially in physical location. The following diagram shows how it
works and what the difference they are.
Case2a: Port-based VLAN (See Fig.2-3).
Fig. 2-3 Port-based VLAN Diagram
1. The same VLAN members could not be in different switches.
2. Every VLAN members could not access VLAN members each other.
3. The switch manager has to assign different names for each VLAN groups
at one switch.
