Bullhorn RM4100 Series User Guide
RM4100 Series
User Guide
Proven compliance solutions. 
Proven compliance solutions.
Relentless service.

Information in this document is subject to change without notice.
© 2013-2016 American Innovations, Ltd. All rights reserved.
American Innovations | www.aiworldwide.com | 12211 Technology Blvd | Austin, TX 78727
Reproduction in any manner whatsoever without the written permission of American Innovations is strictly
forbidden.
The American Innovations logo and icon and Bullhorn are marks of American Innovations, Ltd. Bluetooth is a
registered trademark of Bluetooth SIG, Inc. Windows Mobile and the Windows logo are trademarks of the
Microsoft group of companies.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the
marks and names or their products. American Innovations, Ltd. disclaims any proprietary interest in trademarks
and trade names other than its own.
Revised December 2016 122195-000 Rev4

iii
Contents
Change Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
C HAPTER 1 
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety and Equipment Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
ESD Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Bullhorn System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
RM4100 Series Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Required Tools and Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Required Hardware / Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Configuration and Support Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Bullhorn Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Microsoft .NET Framework . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing Microsoft .NET Framework . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

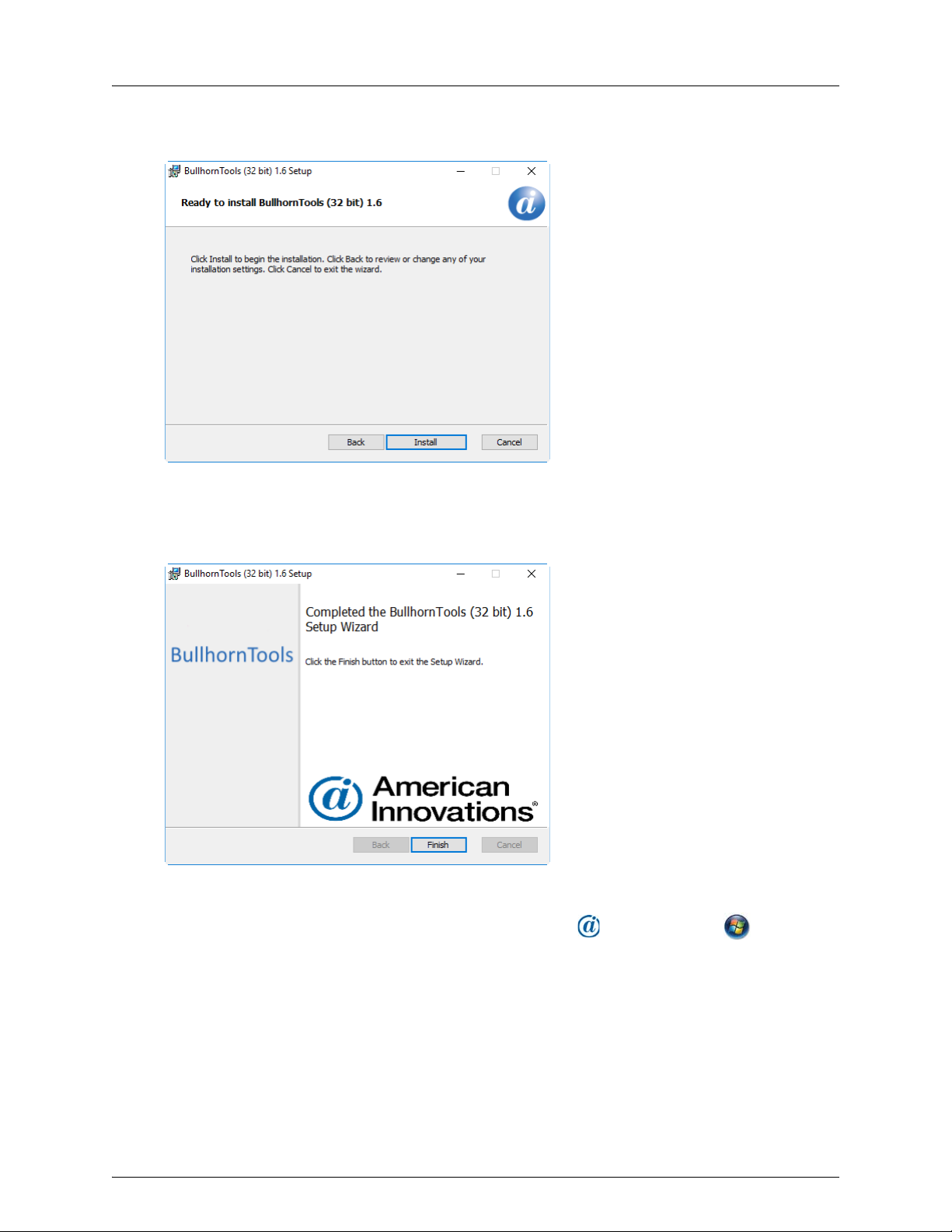

Installing Bullhorn Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Bullhorn Information Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Contacting Technical Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
C HAPTER 2 
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
RM4150 / RM4151 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Preparing for the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Ground Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Placement / Mounting Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Mounting the Enclosure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

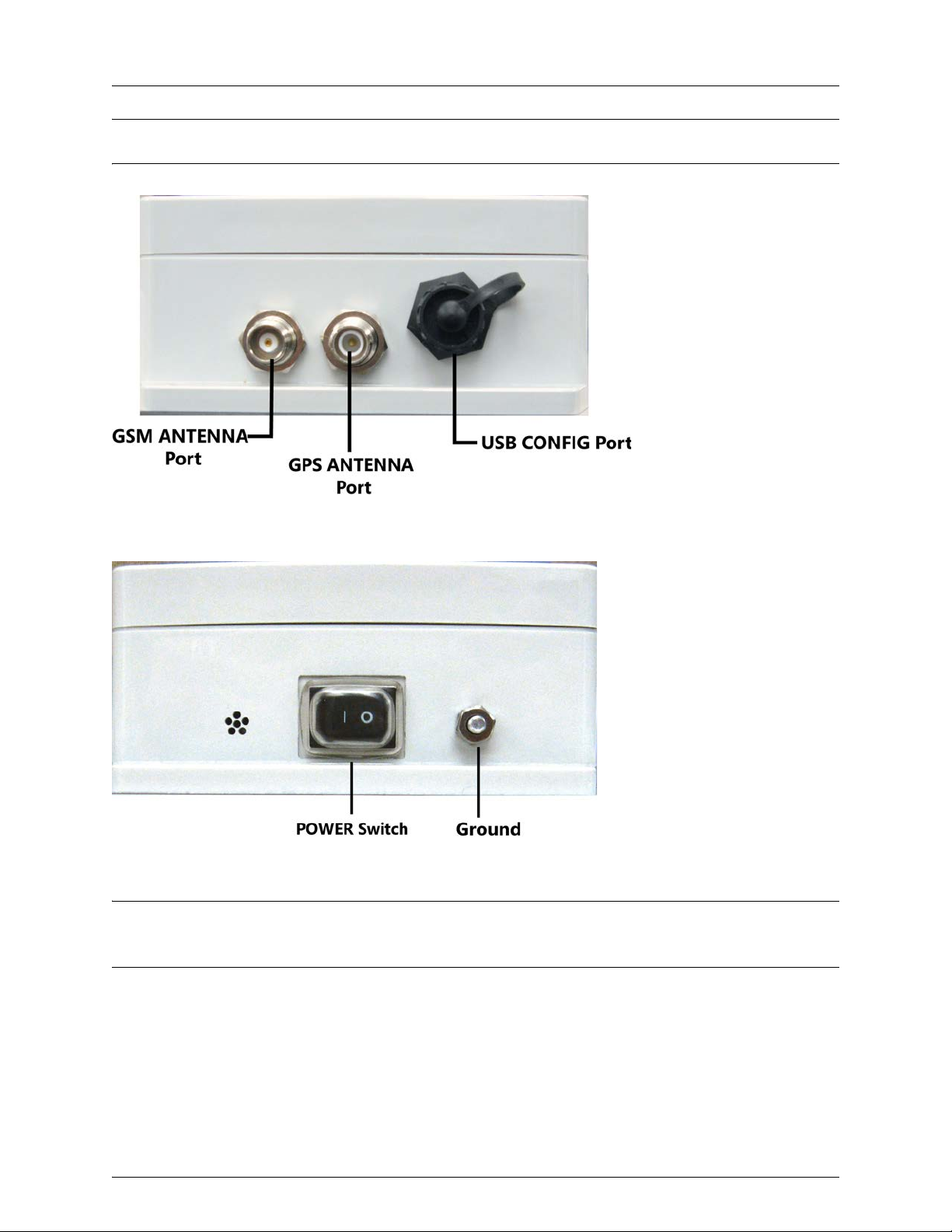

Connecting the Dual GPS / GSM Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connecting the Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Connecting Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connecting the Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Connecting Input Wires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
C HAPTER 3 
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Configuration Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

RM4100 Series User Guide
Contents iv
Disable Synchronization Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connect the Unit and Start Bullhorn Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Configure Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
View Unit Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Send Test Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Apply a Template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Set a Reporting Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Configure Interruption and Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Enable or Disable Readings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Enable or Disable Digitals & Accumulators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Configure Readings and Alarm Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
DC or AC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Instant Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Readings Graphics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Configure Digital and Accumulator Inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Edit Power Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Change SIM Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Work with Templates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Export or Delete Templates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Upgrade Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Exit Bullhorn Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Appendix A
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Appendix B
Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Appendix C
Maintenance/Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
General Maintenance Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Sealed Lead Acid Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Troubleshooting Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Appendix D
Mercury Relay Advisory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Appendix E
Regulatory Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
FCC Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
TUV and CE Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Export Control Classification Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

RM4100 Series User Guide
Contents v
Appendix F
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

vi
Change Notes
The following list identifies updated information included in the current release of this manual:
•Bullhorn Tools 1.6 - Bullhorn Tools configuration software was updated to include RM4100 Series
units, including the RM4150 and RM4151. For more information, refer to Chapter 3, Configuration
on page 25.

1
Getting Started 1
This guide explains how to install Bullhorn®RM4100 Series units, including the RM4150 and RM4151, and
to configure the units for service using the Bullhorn Tools configuration software. The information applies
to the RM4100 Series units that use cellular network services for communication with Bullhorn Web (
http:/
/www.bullhornsys.com
).
This guide provides the following information:
•Chapter 1 - Getting Started
•Chapter 2 - Installation
•Chapter 3 - Configuration
NOTE: The RM4100 Series User Guide and other related documentation can be downloaded in Adobe®
PDF format from Bullhorn Web, under the Help menu (Help menu > Documents). Use Adobe® Reader®
version 5 or higher to view the PDF. If needed, visit the Adobe website at
http://www.adobe.com to
download a free copy of the software. Configuration and support software can also be downloaded from
Help > Downloads.
Safety and Equipment Symbols
WARNING:If the RM4150 or RM4151 is used in a manner not specified by AI, the protection provided by
the equipment may be impaired.

RM4100 Series User Guide
Getting Started 2
The information in Table 1-1 provides a description of the safety and equipment symbols present on the
outside and inside of the enclosure. Safety symbols alert you to safety hazards or conditions that have the
potential to cause personal injury, death, or equipment damage. Equipment symbols may indicate a
functional state (such as on and off) and connections (such as a Earth ground terminal).
ESD Precautions
WARNING:To prevent electrostatic discharge (ESD) damage when handling electronic equipment, always
wear an anti-static wrist strap attached to an unpainted, grounded metal object. Ensure the wrist strap has
maximum contact with bare skin.
If an anti-static wrist strap is unavailable, discharge static electricity from yourself and your clothing by
touching a grounded metal object before handling electronic equipment.
Table 1-1. Safety and Equipment Symbols
Symbol Description
Caution: Failure to observe this warning may result in personal injury, death, or equipment
damage. A potential risk exists if the installation instructions are not followed.
Warning: Risk of electrical shock. Failure to observe this warning may result in personal injury,
death, or equipment damage. A potential risk exists if the installation instructions are not
followed.
Earth (ground) terminal: This symbol indicates a protective earth ground connection is
required.
On (Supply): Indicates power is on when the toggle switch is in the “ON” position.
Off (Supply): Indicates power is off when the toggle switch is in the “OFF” position.
DC power: Indicates that the input requires DC power.
Both direct and alternating current.
Positive: Indicates a positive input.
Negative: Indicates a negative input.

RM4100 Series User Guide
Getting Started 3
Bullhorn System Overview
Bullhorn is a wireless telemetry system that provides scheduled and by-exception inbound reporting for
field equipment typically located in remote areas. Data and alarm packets transmit from remote field
locations to your account on the secure Bullhorn Web (
https://www.bullhornsys.com ) using digital cellular
or satellite communication networks. You can quickly determine the status of field equipment anytime
using information that posts to your website account.
Bullhorn provides remote monitoring with full coverage using GSM cellular network, GEOS satellite
(SkyWave-Inmarsat), or LEOS satellite (ORBCOMM) communication networks.
RM4100 Series Overview
RM4100 Series units, including the RM4150 and RM4151, monitor oil and gas assets in cathodic protection
(CP) applications using various communication networks for communication with Bullhorn Web.
NOTE:To view a satellite coverage map, log on to Bullhorn Web at https://www.bullhornsys.com , click
Help, and then Coverage Maps in the navigation menu.
RM4100 Series units provide built-in surge protection, rectifier interface, and test point filtering
functionality. The RM4150 and RM4151 measure the output of rectifier current across shunt resistors.
Additionally, the RM4150 and RM4151 support GPS synchronized current interruption.
The RM4150 supports two (2) configurable digital and five (5) configurable analog inputs with the
following specifications:
•Input ANALOG CH 1 through ANALOG CH 5 (channels 1 through 5) are isolated inputs that support
analog ±150 V DC, 150 V AC, 4 - 20 mA with external resistor, or active digital input devices.
•Input DIGITAL CH 1 and DIGITAL CH 2 non-isolated inputs (0-24 V DC) that support digital dry
contact closure input devices. DIGITAL CH 1 can also be used as a pulse count accumulator, and
DIGITAL CH 2 can be used as an accumulator reset.
The RM4151 supports two (2) configurable digital and two (2) configurable analog inputs with the
following specifications:
•Input ANALOG CH 1 and ANALOG CH 2 (channels 1 and 2) are isolated inputs that support analog
±150 V DC, 150 V AC, 4 - 20 mA with external resistor, or active digital input devices.
•Input DIGITAL CH 1 and DIGITAL CH 2 non-isolated inputs (0-24 V DC) that support digital dry
contact closure input devices. DIGITAL CH 1 can also be used as a pulse count accumulator, and
DIGITAL CH 2 can be used as an accumulator reset.

RM4100 Series User Guide
Getting Started 4
Installation Requirements
Before you install the RM4150 or RM4151 unit, use the following information as a checklist to ensure a
successful installation:
WARNING:Only accessories that meet American Innovations’ specifications may be used with the RM4150
or RM4151.
Power Disconnect and Branch Circuit Protection: A customer-supplied, power disconnect device is
required for the unit installation. The power disconnect device (such as a switch, main circuit
breaker, or other type of power disconnect) should provide an easy and accessible means for
removing the main input supply power source from the unit. Multiple-pole circuit breakers shall
interrupt all neutral and ungrounded connectors of mains supply simultaneously. The power
disconnect device must be clearly marked to identify it as the disconnect device for the unit. The
power disconnect or separate overcurrent protection device should also provide overcurrent
protection in the form of a 20 amp fuse or circuit breaker suitable for branch circuit protection per
local codes and requirements.
Backup Battery: The units should only be used with a 12 V DC, 0.8 AH capacity, re-chargeable
sealed lead acid battery. If you need to replace the battery, please contact Technical Support for
information about purchasing a replacement battery (American Innovations part number 370109-
000; manufacturer’s part number PS-1208).
NOTE:Refer to Appendix B, Battery Replacement on page 58 for instructions on changing the backup
battery.
Wiring Requirements: For optimum protection from transient voltages (typically, Channels 1 and 2),
all analog inputs must be in their own multi-conductor jacket cable (such as cable AI part number
211061-000 - Belden 5308UE, or its equivalent). All cables must have intact outer jackets, except for
end cuts. Do not remove cable jackets as they protect the unit input cable from transient voltages.
Cable insulation should be suited for voltage range of inputs. Cables should be rated at a minimum
of 600 V and 105˚ C.
Input Channel Voltage Levels: All input channels are marked with acceptable input voltage ranges.
Ensure that devices connected to the RM4100 units fall within the voltages ranges listed next to the
channel input connections.
Cellular Radio Transmitter: The RM4150 and RM4151 contain a cellular radio transmitter, and usage
may be dangerous in environments such as:
–Where it can interfere with other electronic devices in environments such as hospitals, airports,
aircraft, etc.
–Where there is risk of explosion such as gasoline stations, oil refineries, etc.

RM4100 Series User Guide
Getting Started 5
–The antenna has to be installed with care in order to avoid any interference with other
electronic devices and has to be guaranteed a minimum distance from the body (20 cm). In
the event that this requirement cannot be satisfied, the system integrator has to assess the
final product against the SAR regulation.
–It is the responsibility of the user to enforce the country regulation and the specific
environment regulation.
Earth (ground) terminal: Indicates a protective earth ground connection is required. The RM4100
Series units require grounding.
•Antenna Installation: The dual GSM/GPS antenna should be placed outside the rectifier.
•Mounting the Enclosure: Place the RM4150 or RM4151 inside the rectifier, either by placing it on
the floor of the rectifier case or by attaching magnets to the unit and securing to an available area.
Choose an area that provides enough room to easily access the unit or to perform routine
maintenance after completing the installation. Use the information in Figure 1-1 when deciding
where to install the unit.
WARNING:Equipment intended to be mounted on a wall or ceiling shall withstand a force of four times
(4x) the weight of the equipment.
Figure 1-1. Enclosure Dimensions

RM4100 Series User Guide
Getting Started 6
Required Tools and Equipment
The following tools and equipment are required for installing the unit for service:
•Anti-static wrist strap
•Small slotted screwdriver
•Small Phillips head screwdriver
•Wire stripper / Wire cutter
•Voltmeter
•Adjustable wrench
•Socket or open end wrench set
•Waterproof sealing tape
•Silicone adhesive
•Mounting hardware (appropriate type for mounting surface; supplied by customer)
•Appropriate tools for preparing the mounting surface for installation (such as a hand drill and
metal, masonry, or wood drilling bit)
•Installation drawing (provided)
Required Hardware / Software
IBM-compatible computer with the following hardware and software specifications:
•Pentium® processor or equivalent
•2 GB RAM (minimum)
•400 MB free hard drive space (minimum)
•Spare USB port
•USB mini-b cable (provided; standard mini USB cable typically used with most digital cameras)
•Microsoft® Windows Vista® Home Premium, Business, or Ultimate with Service Pack 1 or higher; or
Windows 7® Home Premium, Professional, or Ultimate
•Bullhorn Tools configuration software
•Windows .NET Framework version 4.0 or higher

RM4100 Series User Guide
Getting Started 7
•Windows® Internet Explorer® version 8.0 or higher
•Adobe® Reader® version 6.0 or higher
Configuration and Support Software
To configure the RM4100 Series units for service, you will need the following software installed on your
computer:
•Bullhorn Tools
•.NET Framework
Installation files for Bullhorn Tools and support software are available through the Bullhorn Web Help
menu > Downloads.
Bullhorn Tools
Bullhorn Tools® is a software program you use to set and read the adjustable parameters of the unit. After
installing the unit, you then configure it for service using Bullhorn Tools software.
Bullhorn Tools also provides diagnostic tools for checking input channel measurements, RSSI and Signal
Strength level, and transmitting a test packet to confirm communications with Bullhorn Web.
Using the Bullhorn Tools software requires that your computer be installed with Microsoft® .NET
Framework version 4.0 or higher.
IMPORTANT:Before installing Bullhorn Tools, first export all saved templates from BATtools 1.3 (or
previous) to your computer using File > Template Management (refer to
Manage Templates on page 48).
Then uninstall the previous version of BATtools. After installing Bullhorn Tools, import the saved templates.
Microsoft .NET Framework
Before installing Bullhorn Tools, your computer must be installed with Microsoft® .NET Framework version
4.0 or higher. Microsoft .NET Framework is a set of software components that enable your computer to run
any software program that has been developed using Microsoft .NET technology. Microsoft .NET
Framework can be downloaded from your Bullhorn Web account, through the Help menu. Select
Downloads to access the file. For more information about Microsoft .NET Framework, visit the Microsoft
website at http://www.microsoft.com.

RM4100 Series User Guide
Getting Started 8
Installing Microsoft .NET Framework
To install Microsoft .NET Framework:
1Download the Microsoft .NET Framework executable file from either the Microsoft website or
Bullhorn Web.
2Navigate to the installation files and double-click the dotNetFx40_Full_x86_x64.exe file to begin
the installation.
3Follow the installation instructions.
Installing Bullhorn Tools
Bullhorn Tools is the software used to configure an RM4100 Series unit for service. Bullhorn Tools can also
be used to view unit information and to create settings templates, which can be used to configure multiple
similar units.
NOTE:Before installing an upgrade to Bullhorn Tools, first uninstall the previous version. Bullhorn Tools
requires 44MB of hard disk space.
NOTE:It is recommended that you first uninstall any previous version of Bullhorn Tools before installing
the latest version.
Complete the following steps to install Bullhorn Tools:
1Download Bullhorn Tools from Bullhorn Web.
2Navigate to the location of the Bullhorn Tools file and double-click the Bullhorn Tools executable
file (BullhornTools_xxx.exe) to begin the installation.
NOTE:The latest version of Bullhorn Tools that is available on the Help site will have the current
version number in the file name.

RM4100 Series User Guide
Getting Started 9
3When the Bullhorn Tools Setup window displays, click Install.
4On the Welcome window, click Next.
5On the End-User License Agreement window, click the I accept the terms in the License Agreement
check box, and then Next.
Figure 1-2. End-User License Agreement
6In the Custom Setup window, click the Create a shortcut for this program on the desktop check box, if
desired, and then click Next.
Figure 1-3. Custom Setup

RM4100 Series User Guide
Getting Started 10
7In the Ready to install Bullhorn Tools window, click Install.
Figure 1-4. Ready to Install Bullhorn Tools
8When the installation is complete, click Finish.
Figure 1-5. Installation Complete
9To start Bullhorn Tools, click the Bullhorn Tools desktop icon or click Windows Start menu
and select Bullhorn Tools.

RM4100 Series User Guide
Getting Started 11
Bullhorn Information Line
The Bullhorn Information Line is an automated attendant telephone system. It is typically used when
installing units in the field. The system identifies when the last data transmission (or test packet) was
received on your website account for a unit you specify.
Complete the following steps to use the Bullhorn Information Line:
1Call the Bullhorn Information Line at 866-287-6739.
2Press 1 to access the packet log when prompted.
3Use your telephone keypad to enter the unit serial number when prompted. The unit serial number
is included on the bar code label on the side of the unit. It is also included on the label of the
shipping carton. If required, repeat this step to check another unit.
Contacting Technical Services
If you need assistance with the installation or configuration, contact American Innovations (AI) Technical
Services in any of the following ways.
Telephone: Local: 512-249-3400
Toll-free: 800-229-3404
Email: [email protected]
Address: American Innovations, Ltd.
ATTN. Technical Services
12211 Technology Blvd.
Austin, TX 78727
Fax: [phone]

12
Installation 2
The procedures in this chapter explain how to install the RM4150 or the RM4151.
WARNING:If the RM4150 or RM4151 are used in a manner not specified by American Innovations, the
protection provided by the equipment may be impaired.
RM4150 / RM4151 Overview
The RM4150 and RM4151 (Figure 2-1) are housed in a NEMA-rated weatherproof enclosure. They are
designed primarily for cathodic protection applications and supports two-way communication with the
Bullhorn Web website using the GSM cellular network. The units support an optional relay connection for
GPS-synchronized current interruption.
The RM4150 supports two (2) configurable digital and five (5) configurable analog inputs with the
following specifications:
•Input ANALOG CH 1 through ANALOG CH 5 (channels 1 through 5) are isolated inputs that support
analog ±150 V DC, 150 V AC, 4 - 20 mA with external resistor, or active digital input devices.
•Input DIGITAL CH 1 and DIGITAL CH 2 are non-isolated inputs (0 - 24 V DC) that support digital dry
contact closure and active digital input devices. DIGITAL CH 1 can also be used as a pulse count
accumulator, and DIGITAL CH 2 can be used as an accumulator reset.
The RM4151 supports two (2) configurable digital and two (2) configurable analog inputs with the
following specifications:
•Input ANALOG CH 1 and ANALOG CH 2 (channels 1 and 2) are isolated inputs that support analog
±150 V DC, 150 V AC, 4 - 20 mA with external resistor, or active digital input devices.
•Input DIGITAL CH 1 and DIGITAL CH 2 are non-isolated inputs (0 - 24 V DC) that support digital dry
contact closure and active digital input devices. DIGITAL CH 1 can also be used as a pulse count
accumulator, and DIGITAL CH 2 can be used as an accumulator reset.

RM4100 Series User Guide
Installation 13
Figure 2-1. RM4150 and RM4151 Unit Hardware Configuration

RM4100 Series User Guide
Installation 14
NOTE:The backup battery is the only serviceable item in the RM4150 and RM4151.
Figure 2-2. RM4150/RM4151 Enclosure Connectors - Antenna and USB Config
Figure 2-3. RM4150/RM4151 Enclosure Connectors - Power and Ground
NOTE:Because of the variations in customer's installation and grounding methods, AI cannot warranty any
damage to equipment caused by lightning strikes.
