Chapter 1 General Information 1
1General Information
This manual provides general installation and maintenance information,
including drive installation and power supply replacement for the Megaplex II
9U chassis. The material is arranged into the following sections.
General Description of Chassis
The Megaplex II rack-mount chassis supports up to eight 3.50" SCA (Single
Connector Attachment) Low Voltage Differential (LVD) 16-bit SCSI drives.
SCA drives provide simple installation via pluggable canisters. The SCA “no
cable” design allows you to simply mount the drive into the canister and plug
into the chassis. The Megaplex II chassis includes:
•mounts for up to eight drives,
•mounts for up to three power supplies,
•seven cooling fans,
•four CPU activity LEDs, and
•Alarm Mute LED and Alarm Mute switch.
Peripheral Drives System peripherals include mountings for:
•two 5.25" half-high CD-ROM drives,
•one 3.5" floppy drives, and
•two 3.5" IDE (system drives).
Power Supplies The chassis is supported by three 450W hot-pluggable power supplies. The N+1
redundant arrangement allows the chassis to continue operation when one power
supply fails. The power supply is a modular, pluggable design. Power supplies
are mounted from the rear of the chassis. Each power supply plugs into the
chassis power distribution board via a blind mate connector. The power supplies
are hot-pluggable units that can be replaced while the system remains
operational.
Cooling Cooling is front to rear via three separate removable modular fan assemblies.
Three fan assemblies are provided in the front of the chassis. One external fan
cools the rear of the chassis.

2Megaplex II Chassis Guide

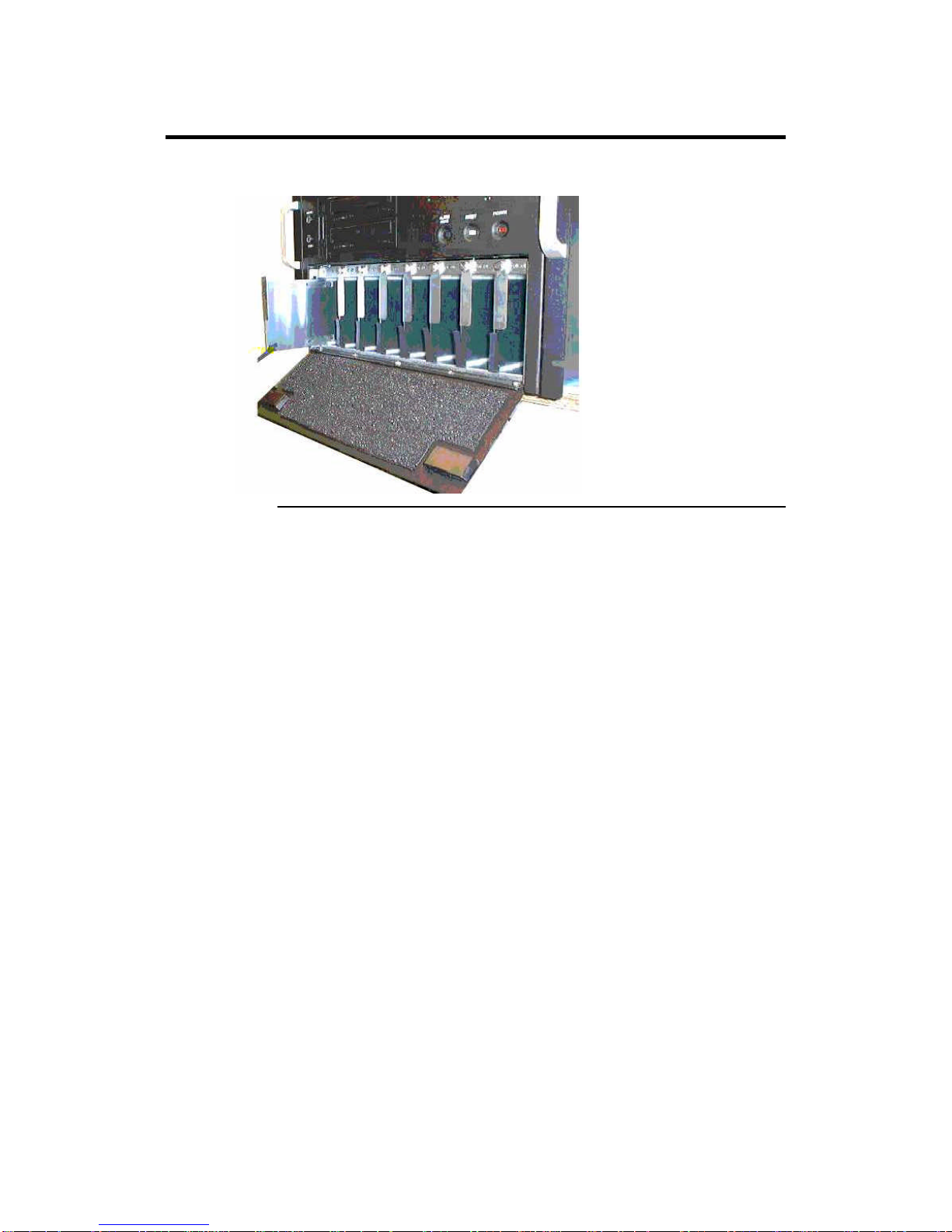

Front of Chassis

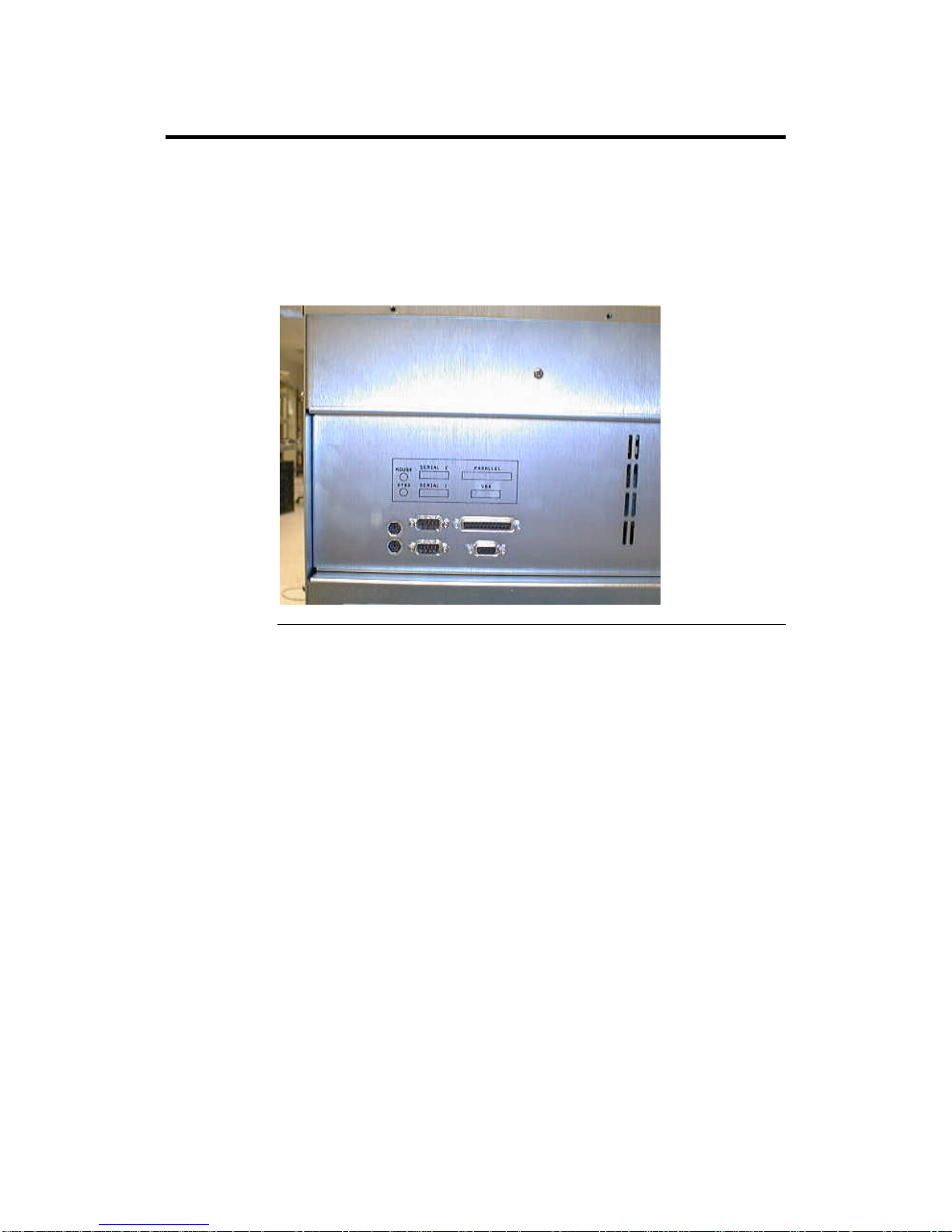

Back of Chassis

Chapter 1 General Information
3
Specifications
This chassis is designed to be used in 19” rack configurations. This chassis has
been designed to hold the Megaplex II motherboard configured with up to 4 GB
of memory. The specifications of the chassis are:
Dimensions Height : 14” (9U), Width : 19”, Depth : 26”
Weight:Approximately 100 pounds.
Controller I/O:Eight expansion slots in the rear of the chassis.
Power Supplies This chassis supports three 450W power supplies arranged in N+1 redundant
configuration.
•A minimum of two power supplies are required.
•The power supplies are hot plug and accessible from the back of the case.
•Each power supply has its own AC input plug.
•Power supplies are auto-ranging and have PFC
•Up to three power supplies are handled by the built-in power distribution
board that allows hot plug and redundancy.
AC input:•90 – 132 VAC @ 60 Hz (nominal 100 VAC) (Autoswitch) 10.0 Amps
•180 – 265 VAC @ 50 Hz (nominal 220 VAC) (Autoswitch) 5.0 Amps
DC Output:The power supply provides:
45A @ 5V
28A @ 3.3V
14A @ +12V
0.5A @ -12V
0.5A @ -5V
Cont’d

4Megaplex II Chassis Guide
Specifications, Continued
SCSI Drives The 9U chassis supports eight hot plug 3.5” 16-bit single-ended SCA LVD SCSI
drives.
•These drives are accessible from the front.
•Each drive bay can take a full height SCSI LVD drive.
•The eight drives are arranged on two separate back planes. Each back plane
supports four drives. The default IDs of these drives are 0, 1, 2, and 4.
•Access to the back planes is through two Wide SCSI cables. These cables
can be connected, for example, to two channels on a RAID controller.
Cooling There are three fans mounted in the front of the chassis. These fans are hot plug
and are monitored by the Megaplex II system BIOS Health screen and the
management software shipped with Megaplex II.
•There are three blower fans in the power supply assemblies and one
additional rear fan.
•For cooling the CPU area, the CPU top plate must be installed and the Top
Chassis cover must be closed.
Chassis Intrusion There is a chassis intrusion switch that detects when the top system cover is
open. This switch is monitored through the management software provided with
Megaplex II.
Chassis Alarm Indication There are some LEDs and alarms that are displayed on the chassis:
Each of the three power supplies has an alarm. When one of the power supply
fails, the RED LED for that power supply comes on and the buzzer goes off.
Each of the three front mounted fans has an alarm. When one of the fans fail, the
RED LED for that fan comes on and the buzzer goes off.
There is an alarm for the rear-mounted blower. When this fails, the RED LED
for this blower comes on and the buzzer goes off.
Note: There is an Alarm Mute switch that will turn off the buzzer. While the buzzer is
muted, the RED LED for the Alarm Mute is on.
Cont’d

Chapter 1 General Information
5
Specifications, Continued
LEDs and Switches There are fan failure LEDs for all four fans.
There is an IDE Activity LED, a power-on LED, a reset switch, and a power on
switch.
There are four CPU Activity LEDs.
There is an Alarm Mute LED.
There is an Alarm Mute switch.
Temperature: Operating: 0º C to 40º C
Storage: -20º to 75º C
Humidity: 0% to 95% non-condensing
Altitude:Operating: 0 feet to 10,000 feet
Storage: 0 feet to 40,000 feet

6Megaplex II Chassis Guide
Cooling Fans
There are three fans behind the top grill on the front of the Megaplex II chassis.
There is one fan on the back of the chassis.

Chapter 1 General Information
7
Connectors on Back of Chassis
The back of the chassis has connectors for the keyboard, mouse, serial ports (1
and 2), parallel port, and VGA port.
The Megaplex II has two sets of keyboard and mouse ports. The primary
keyboard and mouse ports are located on the front of the chassis, to the left of
the floppy disk drive. The keyboard and mouse ports on the back of the
Megaplex II are maintenance ports.

8Megaplex II Chassis Guide
Drive Bays on Front of Chassis
There are eight drive bays on the front of the chassis.

Chapter 2 Installation 9
2Installation
Unpacking and Inspection
Unpack the Megaplex II chassis and visually inspect it for damage that might
have occurred during shipment. Retain the shipping carton in case reshipment is
necessary.
Remove the top cover of the chassis and inspect for component damage. If any
damage has occurred, notify American Megatrends immediately. See page ii of
this manual for details.
Each shipping carton should contain the following:
•a Megaplex II chassis,
•eight drive slides,
•this manual,
•three power cords, and
•mounting hardware

10 Megaplex II Chassis Guide
Drive Installation
Before installing drives make sure that the chassis is powered down.
Step 1 Press both latches on the front cover to access the drive bays.
Step 2 Unscrew the thumbscrew at the top of the mounting bracket where the new drive
is to be installed.
Step 3 Flip the black latch at the bottom of the bracket down.
Cont’d

Chapter 2 Installation
11
Drive Installation, Continued
Step 4 Slide the bracket out, as shown below:
Step 5 Mount the disk drive on the front side of the mounting bracket.
Cont’d

12 Megaplex II Chassis Guide
Drive Installation, Continued

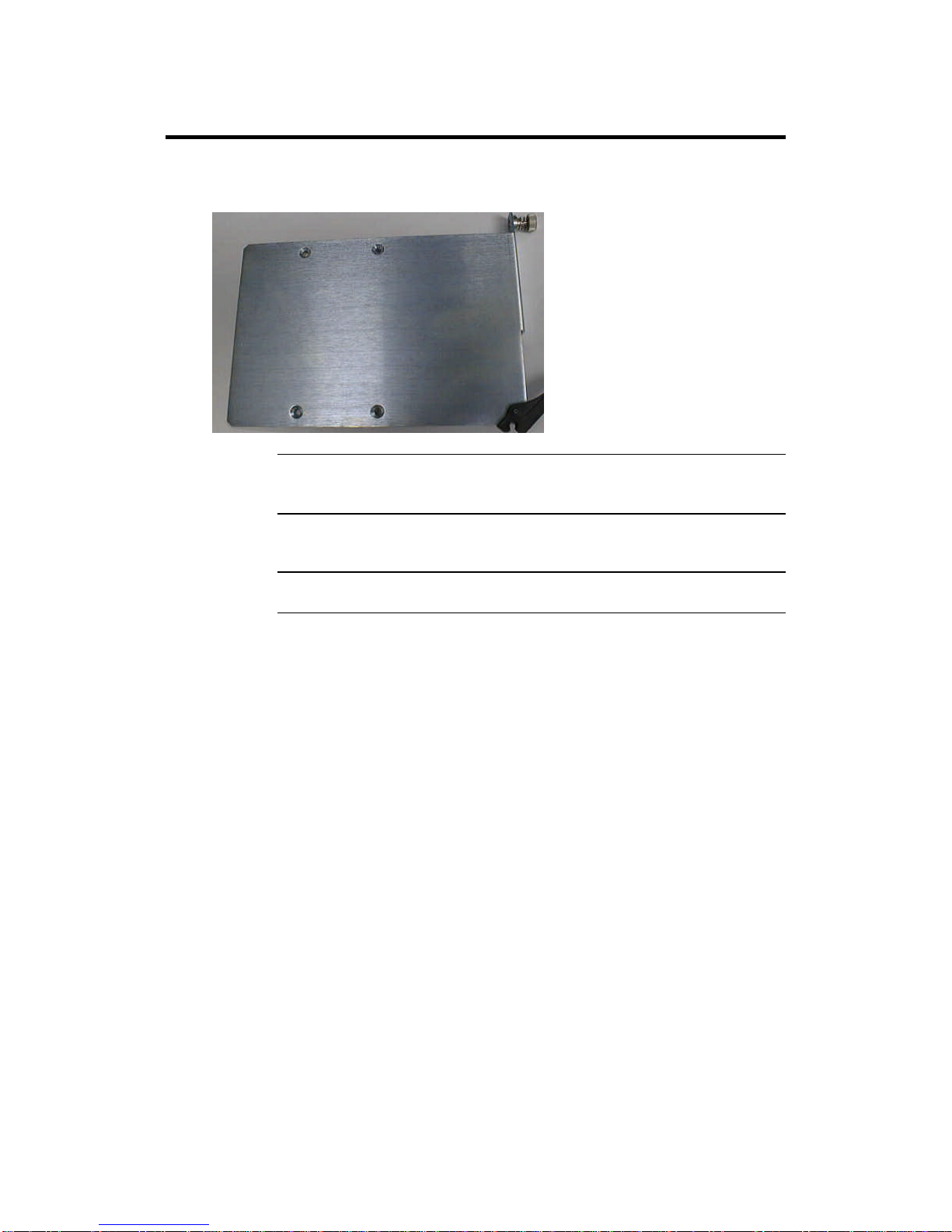

Step 6 Line up the holes in the brackets and the screw holes in the back of the drive.
The back of the bracket is shown below.
Step 7 Insert the screws through the screw holes and the brackets and tighten all four
screws.
Step 8 After the drive is securely attached to the bracket, slide the bracket into the slot
in the drive bay.
Step 9 Tighten the thumbscrew and flip the black latch up into a vertical position.

Chapter 2 Installation 13
Rack-Mount Installation
Before the unit is installed into a rack the following items should be taken into
consideration:
•The maximum ambient temperature of this unit is 40°C. Internal
temperatures of the rack assembly should be considered for safe operation.
•Do not block power supply vents or otherwise restrict airflow when
installing the unit into the rack.
•Mechanical loading of the rack should be considered so that the rack
remains stable and unlikely to tip.
•Consideration to the overall loading of the branch circuit should be given
before installing any equipment in a rack environment.
Installation Steps Use the following procedure to install the Megaplex chassis into a standard 19"
RETMA rack and apply the AC input power.
Step 1 Remove the slides from the chassis by sliding the slides out until the rear
retaining spring buttons engage. Depress the buttons and slip the slides
completely free from the chassis. Set the chassis aside.
Step 2 Remove the small claw brackets from the package and loosely fasten them, with
the teeth facing out, to the front and rear of the outer slides using 10-32 x 1/2"
screws. Notice that the bracket has slotted holes for adjustment. Use the locking
hex nuts provided to secure the screws.
Cont’d

14 Megaplex II Chassis Guide
Rack-Mount Installation, Continued

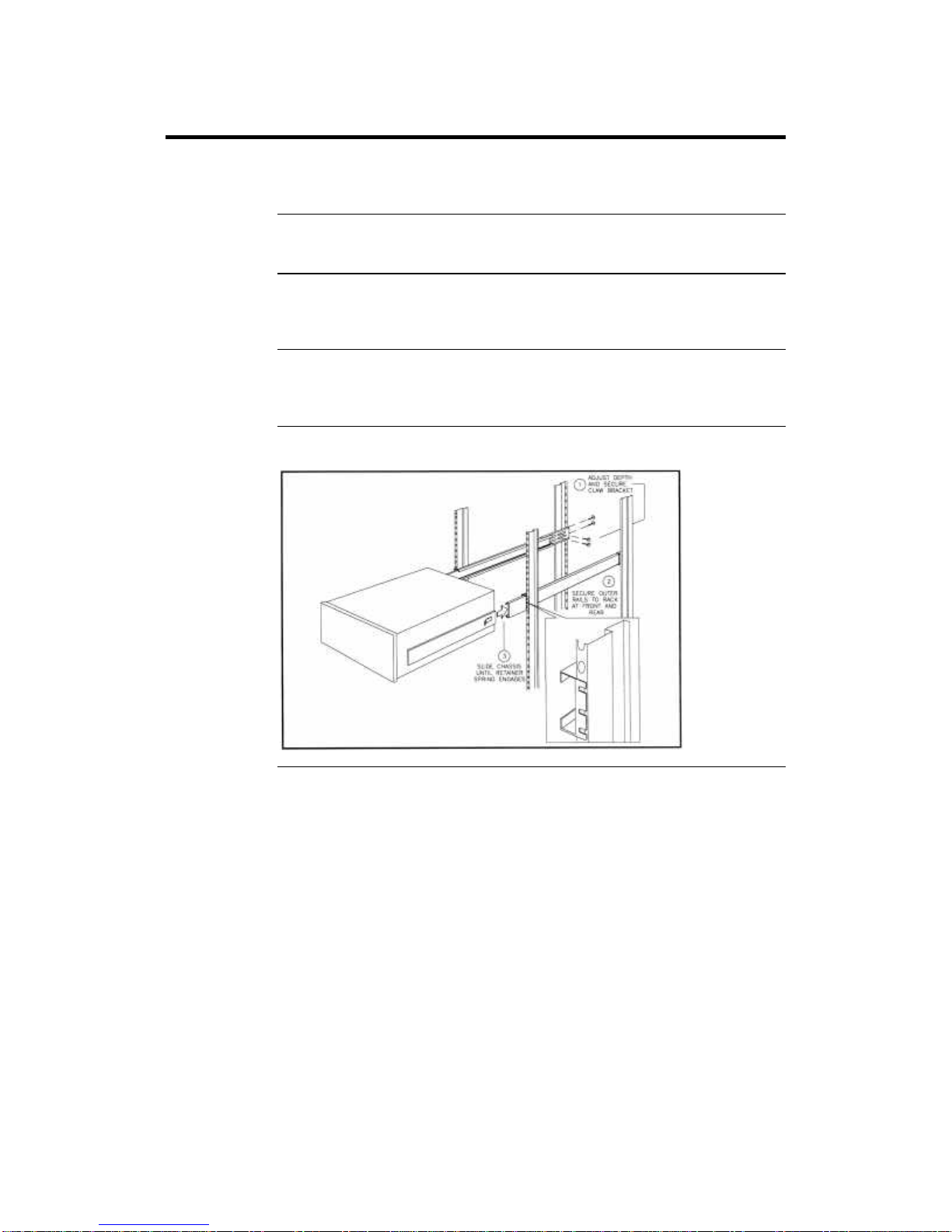

Step 3 Position the outer rails in the rack, adjusting the claw brackets and marking the
intended position of the mounting holes both on the front and rear of the rack.
Tighten the screws on the claw brackets.
Step 4 Bolt the front of the slides into place using 10-32 x 1/2" pan head screws. Flat
head screws are also provided for racks with countersunk holes.
Step 5 Bolt the rear of the slides to the rack side rails using four 10-32 x 3/8" screws. A
threaded bracket is provided in case the rack does not have threaded holes. Hex
nuts are often difficult to use at the rear of a rack to secure screws.
Step 6 Install the chassis slides into the outer slides in the rack. Push the chassis into
the rack until the rear retaining spring engages. Then press the retaining buttons
and push the chassis the rest of the way into the rack.
Step 7 Plug the AC power cord into the AC receptacle on the power supply module.
