Cisco USC 5030 Installation Guide
Cisco USC 5030 Installation Guide 2
About Your USC 5030 2
Before You Begin 2
Connect Your Cisco USC 5030 2
Verifying Your Installation 5
Safety Instructions 7

Revised: September 2, 2014,
Cisco USC 5030 Installation Guide
About Your USC 5030
The Cisco USC 5030 chassis is uniquely designed to hold either one or two Cisco USC enterprise licensed small cell modules.
Currently installation of one small cell module is supported. For a 3G enterprise solution, it is populated with the Cisco USC 5310
(Band 1 or Band 2/5).
Before You Begin
Power Considerations
Power options for the USC 5030 include:
•IEEE 802.3at POE+ 25.5 W delivered from the upstream Ethernet switch
•Cisco 3600 Series Power Injector (AIR-PWRINJ4=)
•Cisco 3600 Series local power supply (AIR-PWR-B=)
Installation Considerations
Install your USC 5030:
•in a central location, in an area where people are most likely to make calls
•away from windows, to avoid the signal leaking outside or external signals leaking in
•in an open area with airflow; not in a closed cabinet which reduces the signal strength
If you have thick internal walls, or metal, fire or rotating doors, plan to place units at either side of the obstruction at a distance shorter
than 49 feet (15 m). Install a unit across from a corner to provide coverage on both sides of the corner.
Connect Your Cisco USC 5030
Currently your Cisco USC 5030 can support the installation of up to one small cell module only (for
example, the Cisco USC 5310).
Note
Power must be disconnected before installing or removing a small cell module from the USC 5030 chassis.Note
2

Follow these instructions to connect your USC 5030 for use:
Procedure
Step 1 Install a USC 5310 small cell module into the USC 5030:
a) Align the module connector with the port connector on the back of the USC 5030 and click the module into place.
b) Screw down the thumb screws on the module.

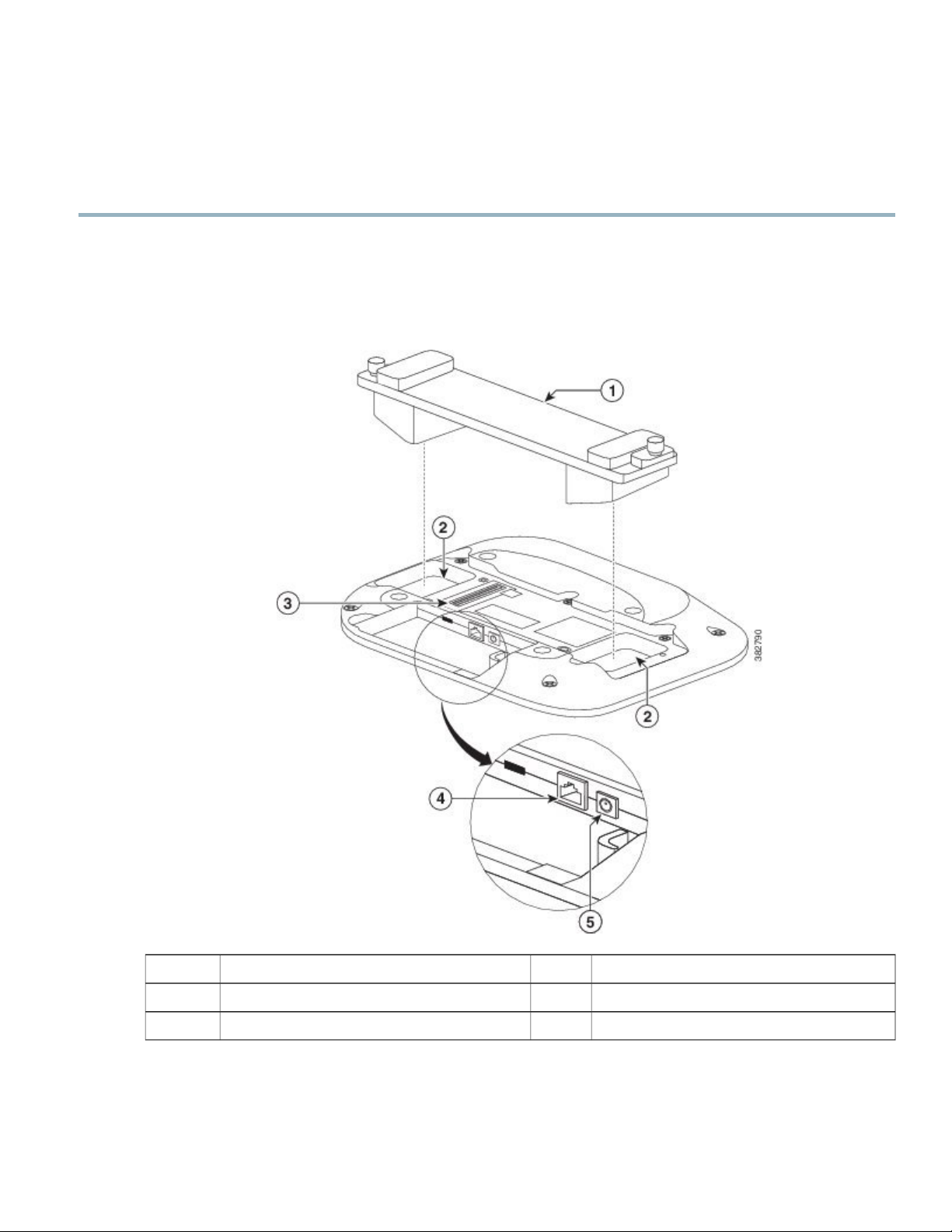

Figure 1: Small Cell Installation into USC 5030
10/100 Base-T Ethernet port4Small cell module1
Power port for DC power source5Openings for module antennas2
Port connector3
If the screws are not tightened, the module will not be recognized and may not operate correctly. Make sure not
to over-tighten the screws; they should be only hand-tightened.
Note
3

Step 2 Mount the USC 5030, with the small cell plug-in modules installed, using the universal bracket (AIR-AP-BRACKET-2).
The USC 5030 can be mounted in several configurations, including on a suspended ceiling, on a hard ceiling or wall, on
an electrical or network box, and above a suspended ceiling.
IMPORTANT SAFETY INFORMATION!
Before use, please ensure that you read the following safety information carefully!
Refer to the USC 5030 Mounting Guide at this URL: http://www.cisco.com/c/en/us/td/docs/wireless/access_point/small_cell/
usc5030/mount/usc5030mount.html.
Step 3 Connect one end of the network cable to the USC 5030 Ethernet port and the other end to your broadband router or cable
modem.
Step 4 Connect the power adapter to the power port and to an AC power source.
Step 5 When the USC 5030 boots, it automatically recognizes the installed modules. No software configuration is required.
4

Verifying Your Installation
Verify Your Cisco USC 5030 Installation
The LED display is located on the top of your Cisco USC 5030 and indicates whether modules are installed and operational or not.
Figure 2: Cisco USC 5030 LED
Status LED1
Table 1: USC 5030 Module Status LED
DescriptionLED Color
No powerOff
Unit initialization in progressGreen blinking
Initialization complete and module detected, valid and drawing powerGreen
Ethernet link down or not connectedAmber
5

DescriptionLED Color
Module slot not detectedRed
Verify Your Small Cell Module Installation
After the USC 5310 module is installed in the USC 5030 chassis and powered up, it takes approximately ten minutes for the module
to initialize, download any necessary software and configuration information, configure the radio frequency (RF) parameters, and
come into service.
Take note of the initialization sequence by noting the color and activity of the LEDs on either side of the module. The module is
ready to use when the LEDs change to solid green.
Figure 3: Cisco USC 5310 Module
Reset button1
LED—the same LED indication displays on both sides of the module
2
Table 2: Cisco USC 5310 LED Indications
Small Cell State / ActionLED Indication
Unknown State or Off—Ensure power supply is connected and turned on
Off
Initialization—Wait for action to complete
Fast Blinking Green
Temporarily out of service—Wait for action to complete
Factory reset—Wait for action to complete
6

Small Cell State / ActionLED Indication
In service, no calls or data sessionsGreen
In service, calls or data sessions are activeSlow Blinking Green
In service, experiencing congestion and cannot accept more calls
No physical LAN connection—Verify connection with residential gateway
Red blink 1 time in 4 seconds
No connection with router—Verify residential gateway is operational
No Internet connection—Verify residential gateway is connected to Internet
Red blink 2 times in 4
seconds
RF issue, local interference or poor QoS—Verify that phones are not too close to unit
Red blink 3 times in 4
seconds
Over-temperature—Verify location of unit and that there is good air flow
Red blink 4 times in 4
seconds
Cannot create secure connection—Contact operator
Red
Internal fault—Contact operator
RF issue, cannot select an RF profile—Verify whether another small cell is located in close
proximity and if so, relocate the small cell
Provisioning failure—Contact operator
Safety Instructions
Translated versions of the following safety warnings are provided in Cisco USC 5030 Regulatory Compliance and Safety Information,
located on Cisco.com.
7

Statement 1071—Warning DefinitionWarning
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work
on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard
practices for preventing accidents. Use the statement number provided at the end of each warning to locate
its translation in the translated safety warnings that accompanied this device.
SAVE THESE INSTRUCTIONS
Warning
IMPORTANTES INFORMATIONS DE SÉCURITÉ
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner
des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des
dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour
éviter les accidents. Pour prendre connaissance des traductions des avertissements figurant dans les consignes
de sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la fin
de chaque avertissement.
CONSERVEZ CES INFORMATIONS
Attention
Statement 1004—Installation InstructionsWarning
Read the installation instructions before connecting the system to the power source.Warning
Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation.Attention
Statement 1074—Comply with Local and National Electrical CodesWarning
Installation of the equipment must comply with local and national electrical codes.Warning
L'équipement doit être installé conformément aux normes électriques nationales et locales.Attention
8

Statement 1005—Circuit BreakerWarning
This product relies on the buildings installation for short-circuit (overcurrent) protection. Ensure that the
protective device is rated not greater than: 10-15A, 100-240VAC
Warning
Pour ce qui est de la protection contre les courts-circuits (surtension), ce produit dépend de l'installation
électrique du local. Vérifiez que le courant nominal du dispositif de protection n'est pas supérieur à: 10-15A,
100-240VAC
Attention
Statement 332—Antenna Installation WarningWarning
In order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a minimum
of 7.9 inches (20 cm) or more from the body of all persons.
Warning
Pour se conformer aux limites d'exposition à la fréquence radio préconisées par la FCC (Federal
Communications Commission), les antennes doivent se situer à un minimum de 20 cm de toute personne.
Attention
Statement 12—Power Supply Disconnection WarningWarning
Before working on a chassis or working near power supplies, unplug the power cord on AC units; disconnect
the power at the circuit breaker on DC units.
Warning
Avant de travailler sur un châssis ou à proximité d'une alimentation électrique, débrancher le cordon
d'alimentation des unités en courant alternatif ; couper l'alimentation des unités en courant continu au
niveau du disjoncteur.
Attention
Caution The fasteners you use to mount the unit on a ceiling must be capable of maintaining a minimum pullout
force of 20 lbs (9 kg) and must use all 4 indented holes on the mounting bracket.
Caution
Les attaches que vous utilisez pour installer le châssis au plafond doivent être capables de résister à une
force d'arrachement minimale de 9 kg (20 lb) et doivent utiliser les quatre orifices de montage prévus sur
le support de montage.
Mise en garde
9

Caution This product and all interconnected equipment must be installed indoors within the same building, including
the associated LAN connections as defined by Environment A of the IEEE 802.af Standard.
Caution
Conformément à la définition de l'environnement A de la norme IEEE 802.af, ce produit et tout l'équipement
interconnecté, y compris les connexions LAN associées, doivent être installés à l'intérieur d'un même
bâtiment.
Mise en garde
The USC 5030 is suitable for operation in a building's environmental air space, such as above suspended
ceilings, in accordance with Section 300-22(C) of the National Electrical Code (NEC) and Sections 2-128,
12-010(3) and 12-100 of the Canadian Electrical Code, Part 1, C22.1.
Peut être utilisé dans des gaines transportant de l'air traité, conformément à la section 300-22(C) du National
Electrical Code et aux articles 2l-128, 12-010(3) et 12-100 du Code Canadien de l'électricité, Premiére
partie, CSA C22.1.
Note
Use only with listed ITE equipment.Note
If you require assistance installing or operating your small cell, contact customer support.
For warranty information, refer to: http://www.cisco-servicefinder.com/WarrantyFinder.aspx
