American Standard Allegiance and Heritage 16
Two stage cooling units and heat pumps
Low Outdoor Operating Temperature
Unit Mounting
Minimum Clearances
Refrigerant Piping Limitations
American Standard Allegiance / Heritage 16

Pg. 2
The purpose of this bulletin is to provide cumulative application criteria as related to the
American Standard Allegiance / Heritage16
cooling units and heat pumps.
This bulletin discusses:
I. Off Season Cooling Operation
II. Unit Mounting
III. Minimum Operating Clearances
IV. Refrigerant Piping Limitations
ISSUED BY:
Product Training and Application Department
American Standard
Tyler, Texas

Pg. 3
Section I - Off Season Cooling Operation
The American Standard Allegiance / Heritage 16 may be operated in the cooling mode to
45oF as shipped from the factory. These units shall only be matched with variable speed air
handling units or variable speed furnace / coil combinations. The coils have factory supplied
non - bleed TXV’s.
Please refer to the accessory table below when determining if the unit will operate at the
specified conditions as well as required accessories.
Evaporator Defrost Control Kits (EDC)
AY28X079 - Cooling only
AY28X084 - Heat pumps
Compressor Crankcase Heater Kit - BAYCCHT
Compressor Hard Start Kits - BAYKSKT
Windshields
Windshields may be required, please refer to page 14 of this document for information
reagarding the installation of wind barriers.
ERUTAREPMETDO@SEIROSSECCADERIUQER
ledoM54
0
F04/03
0
F0
0
F
61ecnaigellA deppihSsA /tratsdraH/CDE
retaeHpmuSrosserpmoC
toN
devorppA
61egatireH deppihSsA /tratSdraH/CDE
retaeHpmuSrosserpmoC
toN
devorppA
Unit Model Required Required Unit Model Required Required
CCHT Hard Start Kit CCHT Hard Start Kit
4A7A6024A BAYCCHT301 BAYKSKT260 4A6H6024A Factory BAYKSKT260
Installed
4A7A6036A BAYCCHT301 BAYKSKT260 4A6H6036A Factory BAYKSKT260
Installed
4A7A6048A BAYCCHT301 BAYKSKT260 4A6H6048A Factory BAYKSKT260
Installed
4A7A6060A Factory Factory 4A6H6060A Factory Factory
Installed Installed Installed Installed

Pg. 4
Typical wiring when using the evaporator defrost control (EDC) for operation
Cooling Split System and AY28X079 Evaporator Defrost Control
R
Y1
Y2
G
W
W2
B
(R)
(O)
(BK)
(Y)
(G)
(W1)
(W2)
(W3)
(B)
Y low (not used)
R
Y 2
Y 1
G
W1
X2
B
O
EDR-1
EDC
EDR
(R)
(O)
(Y)
(BK)
(G)
(W1)
(W2)
(W3)
(B)
Y low (not used)
EDC
Heat Pump Split System and AY28X084 Evaporator Defrost Control
4A7A6 4TEE-E Thermostat
4TEE-E
Red
Yellow / Red
Yellow
X2
Blue
Orange
Thermostat
4A6H6
Note: Remove factory installed jumper between R and BK at the fan control board. Connect R to O on the terminal strip These terminals on the AHU / Gas furnace must be jumpered together.
Please refer to the equipment’s installation manual for complete control wiring.
Red
Yellow /
Black
Yellow /
Red
Blue

Pg. 5
SECTION II - Unit Mounting
This section describes appropriate methods for mounting and securing the Allegiance /
Heritage 16, however, if these units are to be mounted in a region where high winds are an
issue, please refer to the American Standard BAYECMT001 extreme conditions mounting
kit installation instructions publication Number #18-HE44D1-* (* latest version ). The
BAYECMT001 is not suitable for seizmic restraint; please refer to local professionals who
specialize in seizmic restraint.
When mounting or securing American Standard 1 - 6 ton condensing units and heat pumps
please observe the following:
1. Anytime the unit is to be supported from the edge, the supporting material shall
extend a minimum of two inches under the perimeter of the unit’s base.
2. The mounting hole locations are molded in the basepan, however, they must be
drilled.
a) Hole locations are identified on page 6.
b) Hole diameter is 5/16”.
3. Washers should be placed in between the fastener head and the basepan.
4. American Standard recommends supporting the center of the unit.
5. Base 4 pans have four mounting holes.
Refer to the dimension tables for actual unit size.
Please refer to the following illustrations for dimensions and general information.
Drawing for illustration purposes only.

Pg. 6

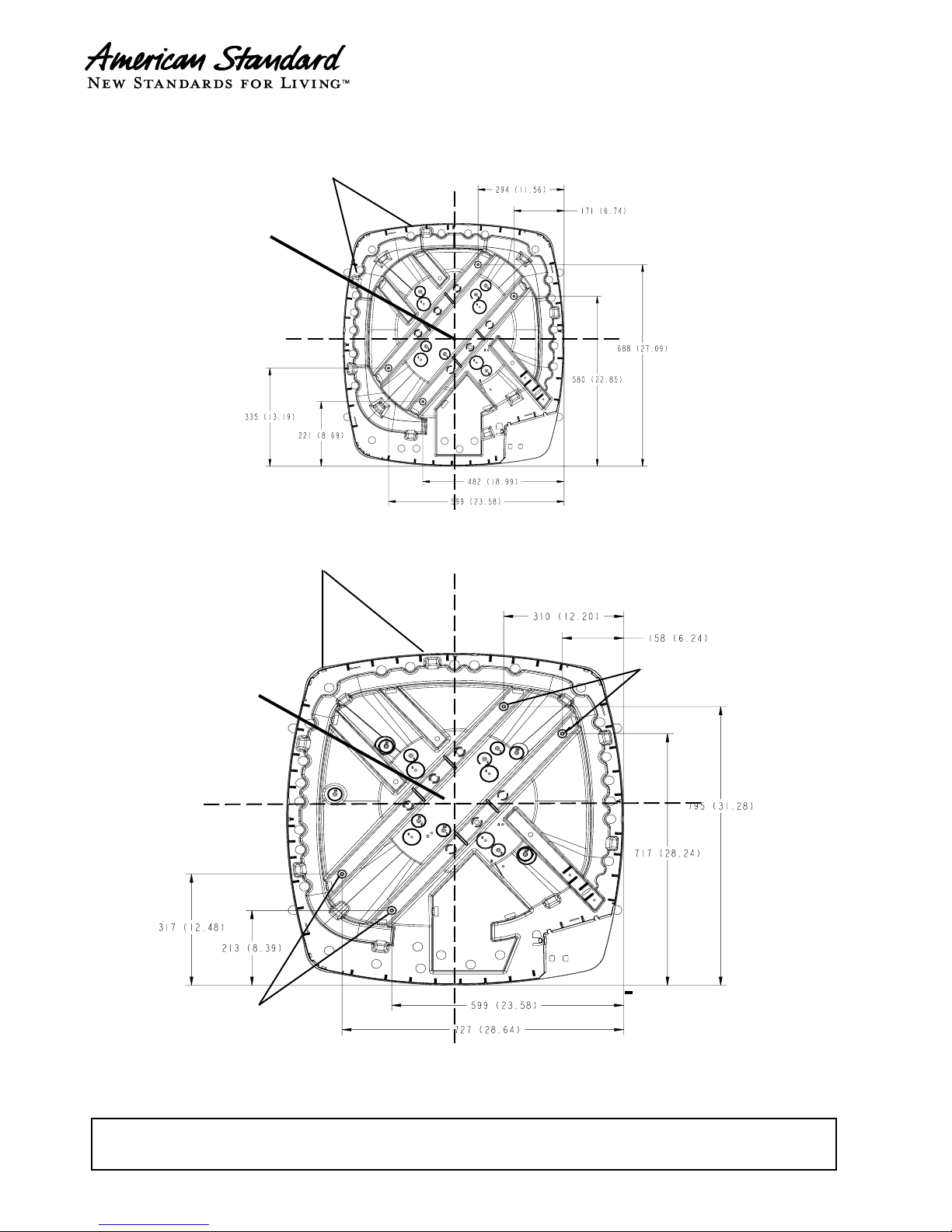

BASE PAN MOUNTING HOLE LOCATIONS
( location only, holes must be drilled )
support must extend 2” from the basepan perimeter
If supporting the base pan from the perimeter, the support must extend under the base pan at least 2”.
American Standard recommends supporting the middle of the base pan with a cross member.
support center of unit
Drill 4 places
Drill 4 places
support must extend 2” from the basepan perimeter
support center of unit
BASE 4
BASE 3

Pg. 7
Section III - Minimum Operating Clearances
This section discusses applying a condensing unit / heat pump in installations where there
are space constraints.
These concerns must be addressed:
1. System Operation - Adequate airflow must be provided to the condensing unit / heat
pump in order to enable appropriate heat transfer. If this is accomplished, head
pressure will remain within an effective operating range.
2. System Serviceability - Proper space must be allowed for the HVAC service techni-
cian to properly maintain the condensing unit / heat pump. Furthermore, space must
be allowed for major component change out in the event of a failure. Working space
is determined by the National Electric Code.
3. Space Maintenance - Appropriate area must be allowed in order to maintain the
ground area where the units are positioned to prohibit debris from collecting on the
panels, thus further providing unobstructed airflow to the condensing unit.
4. State, Local Codes, and National Codes shall prevail. Check with the local jurisdic-
tion before installation to assure compliance.
Numerous projects require reduced clearances between outdoor units and adjacent
walls, fences and other units. The obstruction in question is usually one of the following:
1. One or more walls of an adjacent building.
2. Fences or barriers provided to reduce sound transmission or visually screen the
equipment.
3. Other outdoor units in a multi-unit installation.
4. Overhangs
5. A combination of the above.
The prime considerations involved in establishing minimum clearances are:
1. Adequate airflow to the outdoor coil with minimum recirculation.
2. Service access to the equipment.
3. Compliance with the National Electric Code and other applicable codes.
4. Design temperature - Design temperatures greater than 105°F require additional
consideration.
I. In order to assure that adequate airflow reaches the Allegiance/Heritage 16 condensing
unit, size free air passages at 300 feet per minute (FPM) maximum velocity. See con-
densing unit airflow performance on page 16 of this document; or, for the most current
information, consult the unit’s product data manual.
II. The importance of providing sufficient access for maintenance and service to equip-
ment cannot be overemphasized. The HVAC service technician’s job may be performed
with greater ease and at lower cost if adequate space is allowed.
III. Knowledge of the National Electric Code and other applicable codes for the job site
location is a necessity in order to satisfy local inspectors. These codes are in place for
service as well as safety.
IV. Be sure to read all provisions and footnotes contained in this document. When ambient
temperatures exceed 105°F, more space may be required for minimum operating clear-
ances.

Pg. 8
1. Installation of a single Allegiance / Heritage 16 condensing unit / heat pump in a
corner with unrestricted top clearance.
A) For locations where the design ambient temperature is below 105°F:
1) 1’ clearance on 2 sides - If shrubbery is to be placed by the unit’s other side, then
allow 1’ minimum clearance from the unit.
2) Service access side minimum 3’. Consult Local, State, and National Electric
Codes for minimum service clearance.
B) For locations where the design ambient temperature exceeds 105°F:
1) 1.5’ clearance on 2 walls. - If shrubbery is to be placed by the unit other side,
then allow 1’ minimum clearance from the unit.
2) Service access side minimum 3’.

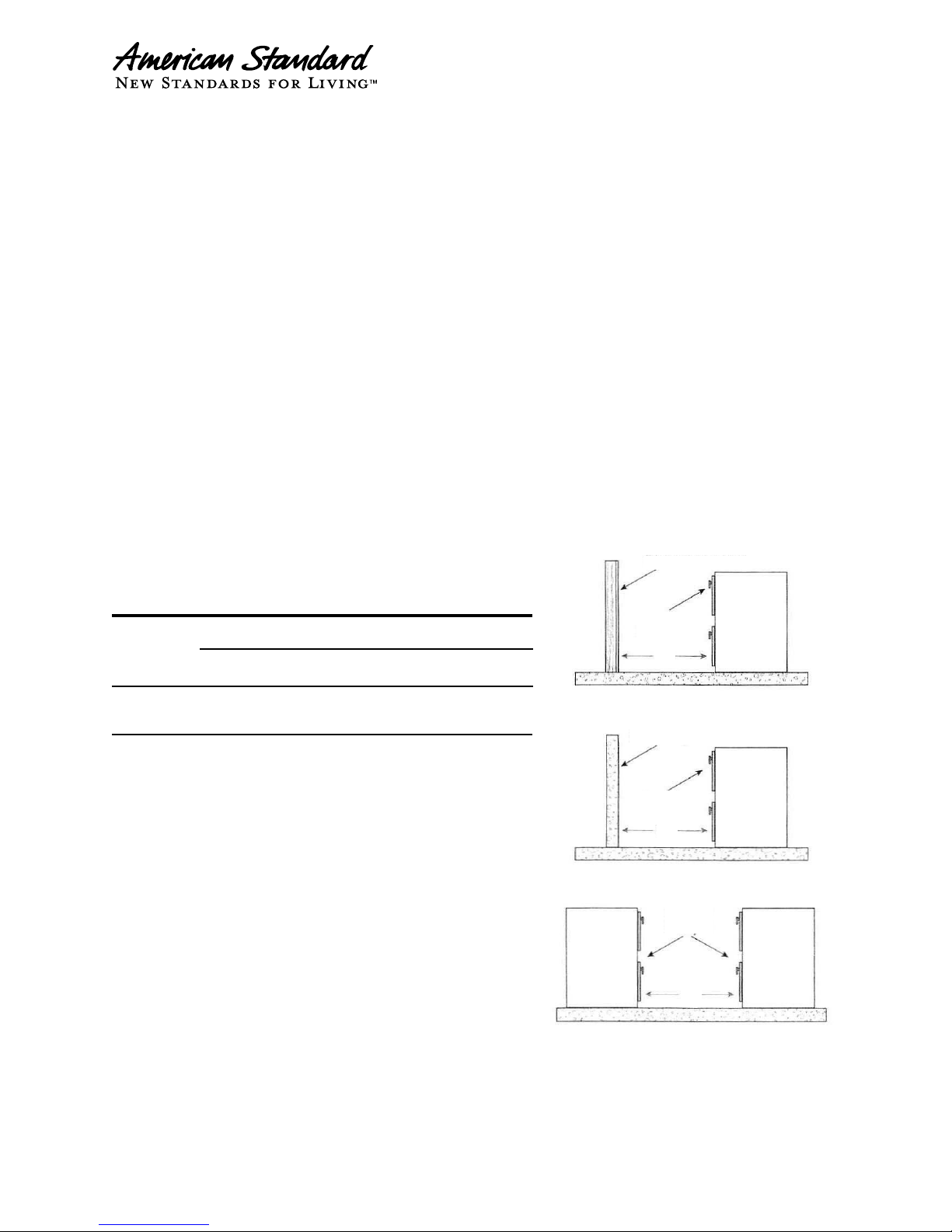

C) If unit is located in such a way that service panel is facing the wall:
1) NEC requires minimum 3’ between the unit and the wall.
a) This space may be increased to 3.5’. Consult the National Electric Code for
more information regarding minimum clearances for working spaces.
2. Installation of two or more Allegiance / Heritage 16 units where two adjacent walls
form a corner and unrestricted top clearance.
A) For locations where the design ambient temperature is below 105°F:
1) Corner unit shall have1.5’ clearance from side wall and 1’ clearance from back
wall.
2) 1’ clearance in between units, unless service panels face each other. ( if service
panels face each other, this clearance may be increased to 4’ per NEC)
B) For locations where the design ambient temperature exceeds 105°F:
1) 2’ clearance from both walls.
2) 2’ clearance in between units, unless service panels face each other. ( if service
panels face each other, this clearance may be increased to 4’ per NEC).
C) If unit’s are located in such a way that the service panels are facing the wall:
1) NEC requires minimum 3’ between the unit and the wall
a) This space may be increased to 3.5’. Consult the most current edition of the
National Electric Code for more information regarding minimum clearances
for working spaces.
SERVICE ACCESS PANEL SIDE 3’ minimum clearance
Service Panel
-1.0’-
min
-1.0’-
min
–1.0’–
min
–1.5’–
min
—1.0’—
min
—1.0’—
min
-1.0’-
min
3.0’ min 5’ minimum unrestricted top
clearance shall be provided.
5’ minimum unrestricted top
clearance shall be provided.
–1.0’–
min
–1.0’–
min

Pg. 9

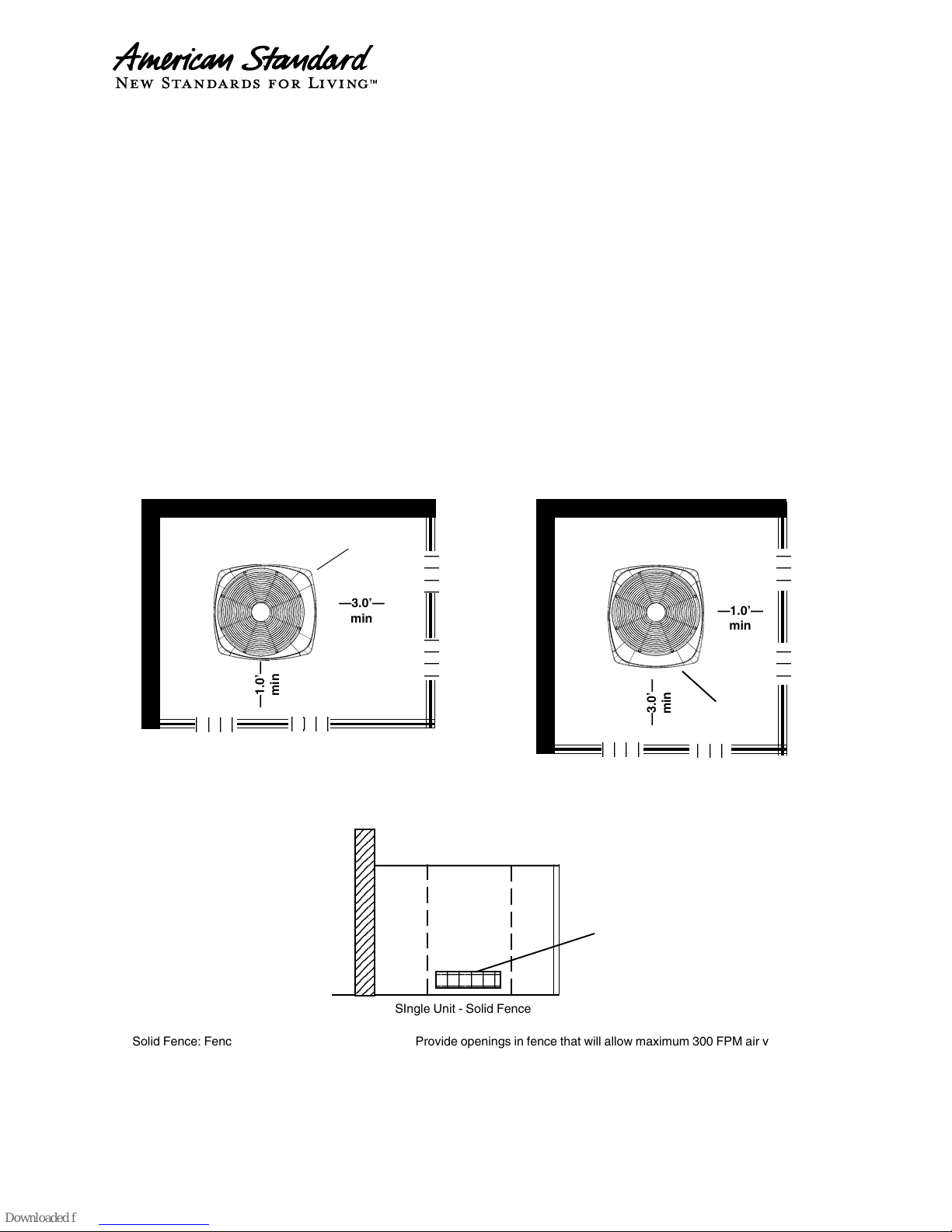

3. Single Allegiance / Heritage 16 condensing unit / heat pump in a fenced corner
with unrestricted top clearance.
A) For locations where the design ambient temperature is below 105°F:
1) 1’ clearance from both walls.
2) 1’ fence clearance - openings shall be provided to allow free air passage to unit
(Free air passage shall be sized @ 300 FPM Velocity).
3) Service access shall be 3’ minimum.
B) For locations where the design ambient temperature exceeds 105°F:
1) 1.5’ clearance from both walls.
2) Service access shall be 3’ minimum.
3) 1.5’ clearance from fence-openings shall be provided to allow free air passage to
unit (Free air passage shall be sized @ a maximum of 300 FPM Velocity).
C) If unit is located in such a way that service panel is facing the wall:
1) NEC requires minimum 3’ between the unit and the wall.
a) This space may be increased to 3.5’. Consult the National Electric Code for
more information regarding minimum clearances for working spaces.
*Service Panel
*Service Panel
—1.0’—
min
—1.0’—
min
—1.0’—
min
—1.0’—
min
1234
1
23
4
1234
1234
1
23
4
1234
12
12
12
12
12
12
12
12
1234
1234
12345
12345
12
12
12
12
12
12
12
12
12
12
—1.0’—
min
—3.0’—
min —1.0’—
min
—3.0’—
min
123
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
123
SIngle Unit - Solid Fence
Solid Fence: Fence height not to exceed top of unit. Provide openings in fence that will allow maximum 300 FPM air velocity.
These openings shall be located at the lower portion of the fence. If acceptable, the lower portion of the fence may be cut to
provide open bottom clearance provided that debris, grass and vegetation will not obstruct air passageway.
* If removable panels are used and acceptable to local inspection agency, the clearance to the removable
panel may be reduced to 2’.
123456
123456
opening size @
300 FPM
maximum velocity
5’ minimum top clearance required.
Unit shall be positioned where not affected
by water run off from roof.

Pg. 10
123
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
123

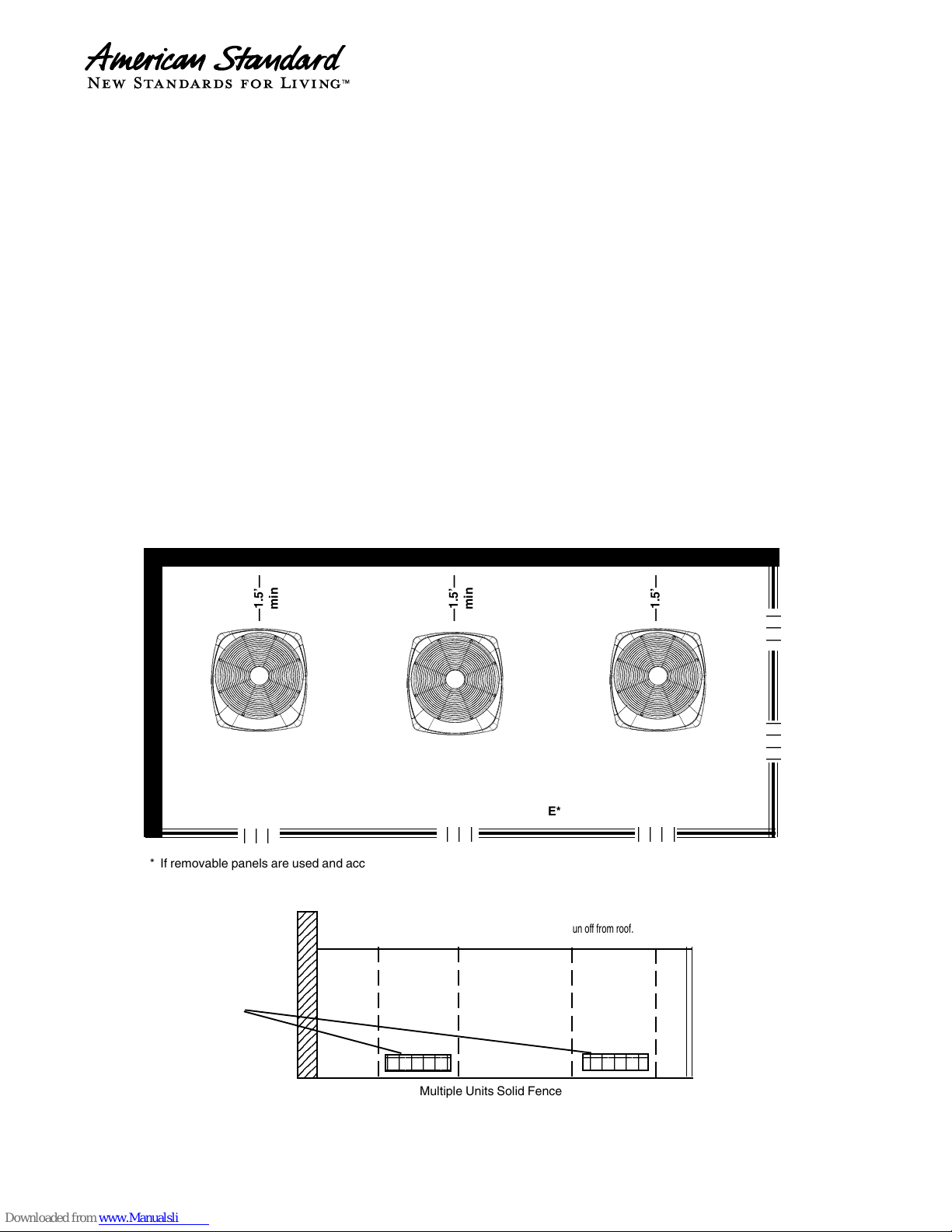

Multiple Units Solid Fence
* If removable panels are used and acceptable to local inspection agency, the clearance to the removable panel may
be reduced to 2’.
123456
123456
1234567
1234567
opening size @
300 FPM
maximum velocity
SERVICE ACCESS PANEL SIDE*
—1.5’—
min
—1.5’—
min
—1.5’—
min
—1.5’—
min
—1.5’—
min
—1.5’—
min
4. Installation of two or more Allegiance / Heritage 16 units where two adjacent walls
form a fenced corner with unobstructed top clearance.
A) For locations where the design ambient temperature is below 105°F:
1) Corner unit shall have1.5’ clearance from one wall and 1’ clearance from the
other wall.
2) 1.5’ clearance in between units.
3) NEC requires 3’clearance for service. This may be reduced to 2’ if removable
panels are used.
4) Free air passage shall be cut in order to allow maximum 300 FPM air velocity.
B) For locations where the design ambient temperature exceeds 105°F:
1) Corner unit shall have 2’ clearance from one wall and 1.5’ clearance from the
other wall.
2) 2’ clearance in between units.
3) NEC requires 3’ clearance for service. This may be reduced to 2.5’ if removable
panels are used.
C) If unit’s are located in such a way that the service panels are facing the wall:
1) NEC requires minimum 3’ between the unit and the wall.
a) This space may be increased to 3.5’. Consult the most current edition of the
National Electric Code for more information regarding minimum clearances
for working spaces.
Solid Fence: Fence height not to exceed top of unit. Provide openings in fence that will allow maximum 300 FPM air velocity. These
openings shall be located at the lower portion of the fence. If acceptable, the lower portion of the fence may be cut to provide open bottom
clearance provided that debris, grass and vegetation will not obstruct air passageway.
*For best performance, it is recommended to not construct cover over the unit’s in this type of multiple unit application.
—3.0’—
min
—3.0’—
min
—3.0’—
min
—1.5’—
min
12345
12345
12345
12345
1234
1234
12
12
12
12
12
12
12
12
12
5’ minimum top clearance required.*
Unit shall be positioned where not affected by water run off from roof.

Pg. 11
5. Installation of a single Allegiance / Heritage 16 style condensing unit / heat pump
next to one wall with unrestricted top clearance.
A) For locations where the design ambient temperature is below 105°F:
1) 6” clearance on 1 side.
2) 3’ clearance on other three sides.
3) If fence or barrier is constructed around unit, 3’ clearance is required on three
sides. The fence/barrier height shall not exceed the height of the unit.
4) Free air passage shall be cut in order to allow maximum 300 FPM air velocity if
fence / barrier is constructed.
5) Service access side minimum 3’.
C) If unit is located in such a way that service panel is facing the wall:
1) NEC requires minimum 3’ between the unit and the wall.
a) This space may be increased to 3.5’. Consult the National Electric Code for
more information regarding minimum clearances for working spaces.
Service Panel
3.0’
min
5’ minimum unrestricted top clearance
shall be provided.
3’ minimum clearance on 3 sides.
Unit to be positioned where not affected
by roof run off water.
6.0”
min
3.0’
min
6.0”
min
3.0’
min
3.0’
min
123456789012345
1
2345678901234
5
123456789012345
12
12
12
12
12
12
12
12
12
12
12
12
12
123
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
123
Service Panel
5’ minimum unrestricted top clearance
shall be provided.
3’ minimum clearance on 3 sides.
Unit to be positioned where not affected
by roof run off water.
Louvers / Free area shall be cut in
fence / barrier to provide maximum 300
FPM air velocity. Lower portion of fence
/ barrier may be undercut to allow free
air passage to unit providing that
vegetation and debris will not block air
passage.
3.0’
min
3.0’
min

Pg. 12
6A. Installation of multiple units on a pad or rooftop with unobstructed top clearance.
A) Refer to drawing for minimum clearances.
1) Do not construct cover over units in this application.
B) National Electric Code requires 3’ minimum (4’ if certain conditions are present)
clearance between service access panel and adjacent unit. If service access panel
faces the wall, the required space between the the wall and the unit shall be mini-
mum 3’. (May require as much as 3.5’).
C) Walls shall not be higher than top of units.
D) National, State, and Local Codes must be observed.
1.0’
min**
1.0’
min**
1.0’
min**
1.0’
min**
1.0’
min**
1.0’
min**
1.5’
min
1.5’
min
1.5’
min
1.5’
min
1.5’
min
1.5’
min
3.0’
min
3.0’
min
3.0’
min
3.0’
min
3.0’
min
3.0’
min
Service Access * Service Access *
Service Access * Service Access * Service Access *
* Units may be rotated, as shown on the following page, in order that service access sides
face each other provided that 3 feet minimum clearance be maintained between the units. In
order to comply with NEC, this may increase to 4’ minimum clearance.
** If wall or fence is to be constructed around the entire perimeter of the mechanical yard,
maintain minimum 1.5’ clearance from the units. The fence height shall not exceed that of the
unit. It is recommended to install louvers in the fence to allow no greater than 300 feet per
minute velocity. Consult the table on page 16 for unit airflow. Place louvers in the lower
section of the fence by each unit in order to provide air access to each unit located by the
fence. The lower portion of the fence may also be cut in order to equal the calculated free
area.
Service Access *
Service Access * Service Access * Service Access *
3.0’
min
3.0’
min
3.0’
min
Clearances apply to geographical
areas where the design outdoor dry
bulb = 105 °F or less

Pg. 13
6B. Installation of multiple units on a pad or rooftop with unobstructed top clearance.
A) Refer to drawing for minimum clearances.
1) Do not construct cover over units in this application.
B) National Electric Code requires 3’ minimum (4’ if certain conditions are present)
clearance between service access panel and adjacent unit. If service access panel
faces the wall, the required space between the the wall and the unit shall be mini-
mum 3’. (May require as much as 3.5’).
C) Walls shall not be higher than top of units.
D) National, State, and Local Codes must be observed.
* Units may be rotated as shown above, in order that service access sides face each other
provided that 3 feet minimum clearance be maintained between the units. In order to comply
with NEC, this may increase to 4’ minimum clearance.
** If wall or fence is to be constructed around the entire perimeter of the mechanical yard,
maintain minimum 1.5’ clearance from the units. The fence height shall not exceed that of the
unit. It is recommended to install louvers in the fence to allow no greater than 300 feet per
minute velocity. Consult the table on page 16 for unit airflow. Place louvers in the lower
section of the fence by each unit in order to provide air access to each unit located by the
fence. The lower portion of the fence may also be cut in order to equal the calculated free area.
Clearances apply to geographical
areas where the design outdoor dry
bulb = 105° F or less
1.0’
min**
1.0’
min**
1.0’
min**
1.0
min**
1.0’
min**
1.0’
min**
1.5’
min
1.5’
min
1.5’
min
1.5’
min
1.5’
min
1.5’
min
3.0’
min
3.0’
min
1.5’
min
1.5’
min
3.0’
min
1.5’
min
Service Access * Service Access *
Service Access * Service Access * Service Access *
Service Access *
Service Access * Service Access * Service Access *

Pg. 14
7. Fence construction.
A) Height shall not exceed the top of the unit.
B) Free air passages shall be sized at no greater than 300 FPM velocity.
C) Free air passages shall be cut at the lower portion of the fence.
D) Fence may also be undercut to allow free air passage provided grass, vegeta-
tion, or debris will not obstruct the free air passage.
E) Shrubbery shall not be planted within one foot of the fence.
F) If removable panel is utilized, the distance from the unit’s service panel to the
removable panel may be reduced to 2’. (3’ if geographical location’s design
outdoor dry bulb is greater than 1050F.
8. Windshields:
If low ambient operation of 30°F or lower is required, windshields may be required
to block prevailing winds from impacting system performance at low outdoor tem-
peratures.

Pg. 15
Electrical Code Information
Compliance with Local, State, and National Codes is a must on every HVAC Installation.
This page discusses the criteria regarding minimum working spaces as defined in the 2002
National Electric Code.
The main concern is the safety of the HVAC service / maintenance person. Minimum work-
ing clearances are specified in the National Electric Code (NEC) Article 110.26.
For electrical equipment that from ground to power the voltage is 600 volts or less:
The National Electric Code specifically states that service area around electrical equipment
shall provide sufficient access, and shall be properly maintained in order to permit safe
operation and maintenance of the equipment. Table 110.26(A)(1) as well as the figures
beside the table describe the minimum clearance for proper service and access to electri-
cal equipment.
American Standard residential and light commercial condensing units ranging from 1 to 6
ton require access to the side service panel as indicated on the previous pages to gain
access to the electrical controls.
Condition 1
(3 ft min. for 151 - 600 V)
Condition 2
(Space would increase to 3 1/2 ft for 151 - 600 V)
Condition 3
(Space would increase to 4 ft for 151 - 600 V)
Minimum Clear Distance
Condition 1 Condition 2 Condition 3
Nominal Voltage
to Ground
0-150 900 mm (3 FT) 900 mm (3 FT) 900 mm (3FT)
151-600 900 mm (3FT) 1 M (3.5FT) 1.2 M (4FT)
Note: Where the conditions are as follows
Condition 1 - Exposed live parts on one side and no live or grounded parts
on the other side of the working space, or exposed live parts on both sides
effectively guarded by suitable wood or other insulating materials. Insulated
wire or insulated busbars operating at not over 300 volts to ground shall not
be considered live parts.
Condition 2 - Exposed live parts on one side and grounded parts on the
other side. Concrete, brick, or tile walls shall be considered as grounded.
Condition 3 - Exposed live parts on both sides of the work space (not
guarded as provided in Condition 1) with the operator between.
Table 110.26(A)(1) Working Clearances
The table and figure below are excerpts from the National Electric Code 2002:
Reprinted with permission from NFPA 70-2002, National Electrical Code®, Copyright © 2001, National Fire
Protection Association. This reprinted material is not the complete and official position of the NFPA on the
referenced subject, which is represented only by the standard of it’s entirety.
National Electrical Code and NEC are registered trademarks of the National Fire Protection Association, Quincy, MA.
Electric
switchboard
150V nominal
or less
Effectively Insulated
Electric
switchboard
150V nominal
or less
Electric
switchboard
150V nominal
or less
Electric
switchboard
150V nominal
or less
Exposed
Live Parts
Exposed
Live Parts
Exposed
Live Parts
Grounded parts, concrete, etc
3’
3’
3’

Pg. 16
elbaTwolfriAtinUroodtuOegatireH/ecnaigellA
stinUgnilooCstinUpmuPtaeH
rebmuNledoMtinUMFCrebmuNledoMtinUMFC
A4206A7A40002A4206H6A40072
A6306A7A40093A6306H6A45793
A8406A7A40054A8406H6A40024
A0606A7A40034A0606H6A40044
Required Opening = CFM / 300 FPM (Maximum)
Example:
Given:
Qty. of 2 units in an area surrounded by a fence on two sides and solid walls on the other
two sides. Units are 4A7A6060A1000A.
Required:
Determine free air opening space required in fence.
Solution:
4300 CFM X Qty. of 2 = 8600 CFM
8600 CFM / 300 FPM = 28.66 square feet
Round 28.66 to 29 square feet of free air opening in the fence sections surrounding the
units. It is recommended to place these opening equally on all four sides, however, if one or
two of the sides are sections of the building structure, it is acceptable to place them on two
sides.
*Table produced Jan. 2003. For the most current information, please refer to specific equipment Product Data.

Pg. 17
Allegiance / Heritage 16 unit dimensions
ledoMtinUesaBABC ledoMtinUeziSesaBABC
A4206A7A43"4/363"8/523"4/3921A4206H6A43"4/363"8/523"4/392
A6306A7A44"8/133"4/173"4/1431A6306H6A44"8/173"4/173"4/143
A8406A7A44"8/114"4/173"4/1431A8406H6A44"8/114"4/173"4/143
A0606A7A44"8/114"4/173"4/1431A0606H6A44"8/114"4/173"4/143

Pg. 18
Section IV - Refrigerant Piping
A) Purpose
1) Liquid line - The purpose of the liquid refrigerant line is to convey refrigerant, in the
liquid state, from the outdoor unit to the indoor unit in the cooling mode and from the
indoor unit to the outdoor unit in the heating mode.
2) Gas line - The purpose of the gas line is to convey refrigerant in the gas state and oil
from the indoor unit to the outdoor unit in the cooling mode and from the outdoor
unit to the indoor unit in the heating mode.
B) Limitations:
1) The Allegiance / Heritage 16 utilizes a single unloading scroll type compressor.
Therefore, it is crucial that refrigerant lines are properly sized and do not exceed the
length set forth in the unit’s installation manual.
2) Line length limits:
A. Gas line = 80’ linear length. Of the linear length, 25’ may be installed vertically.
B. Liquid line = 80’ linear length. Of the linear length, 25’ may be installed vertically.
3) No exceptions shall be allowed to these piping limitations.
C) Explanation:
1) Refrigerant lines shall not exceed 80’ total line length. 25’ of the 80’ may be vertical.
2) Liquid subcooling may not be achieved on first stage if the liquid line exceeds 80’ /
25’ vertical.
3) Insufficient oil return during first stage operation if the gas line exceeds 80’ / 25’
vertical.
D) For greater detail regarding refrigerant piping refer to Publication 32-3009-*
(*latest version).
25 Ft. Max
55 Ft. Max
80 Feet Max.
55 Ft. Max
25 Ft. Max
vertical

Pg. 19
NOTES
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________

Literature Order Number
File Number ALG16-APG01-EN 07/04
Supersedes New
Stocking Location
Since American Standard has a policy of continuous product improvement, it reserves the
right to change design and specifications without notice.
American Standard, Inc.
6200 Troup Highway
Tyler, Texas 75711
© 2004 American Standard Inc. All rights reserved
