loT Detectlnk™Paradigm™Integrated
Faucet with Optional Above-Deck
Mixing & SmarTherm®
702B405 / 702B505 / 702B605
Image shown may vary from product purchased.
RECOMMENDED TOOLS
Drill
Installation steps will indicate which tools should be used with asscociated letter
A
Flat Blade
Screwdriver
B
Adjustable
Wrench
C
Plug-In AC
Power Kit
Hard-Wired AC
Power Kit
Hard-Wired AC &
Multi-AC Power Kit
PWRX
Power Kit
PK00.PAC
PK00.BBU
PK00.WRK PK00.HAC
PK00.BBU
PK01.MAC / PK00.HAC
PK00.BBU
POWER KITS SOLD SEPARATELY
PROTECTIVE
FILM FROM FILM FROM
INSTALLATION IS
DO NOT REMOVE
PROTECTIVE
FILM FROM
SENSOR EYE UNTIL
INSTALLATION IS
COMPLETE.
DO NOT REMOVE
PROTECTIVE
FILM FROM
SENSOR EYE UNTIL
INSTALLATION IS
COMPLETE.
INSIDE THE BOX
702P.400
Paradigm 4"
Mounting Kit
Spout
Assembly
(less mixing)
Spout
Assembly
(mixing)
Assembly Parts
Flow Sensor Flow Sensor
Control Box
NOTE TO INSTALLER: Please give this manual to the customer after installation.
To learn more about American Standard Selectronic®Products visit our website at:
www.americanstandard-us.com or e-mail us at: [e-mail]
For Parts, Service, Warranty or other Assistance,
please call (844) CRT-TEAM / [phone]
(In Toronto Area only: 1-905-306-1093)

1SPOUT ASSEMBLY INSTALLATION
Turn off hot and cold water
supplies before beginning.
INSTALLATION INSTRUCTIONS
A
1. Make sure O-RING (1) is installed in spout base.
IMPORTANT: Do not use putty when installing faucet
without escutcheon.
2. If installing DECK PLATE (2) (optional): Apply a bead of
putty to bottom edge of PUTTY PLATE (2). Install SCREW
(11) into the MOUNTING BASE OF THE FAUCET (13) and
allign SCREW (11) with HOLE (12).
3. Insert supply HOSES (3), SHANK (4) and WIRES (5)
through hole in DECK PLATE with PUTTY PLATE (2) and
mounting surface.
4. Assemble RUBBER WASHER (7), BRASS WASHER (8)
and THREADED LOCKNUT (9) onto SHANK (4) from
underside of sink or mounting surface. Hand tighten
LOCKNUT (9).
5. Use a screwdriver to tighten SCREWS (10) on LOCKNUT
(9). Work your way around LOCKNUT (9), tightening the
screws slightly each time until all are snug to ensure even
pressure.
2MAKE WATER SUPPLY CONNECTIONS
B
IMPORTANT: Do not
use sealent on threads
1
2
3
COLD
HOT
(3) FLOW
SENSOR
5
4
1. Turn off hot and cold water supplies before beginning.
2. Install FLOW SENSOR (3) on each wall supply outlet. Be sure
that FLOW SENSOR (3) is inserted in the correct direction.
3. Connect HOT FLEXIBLE SUPPLY (marked with red stripe) (1)
to FLOW SENSOR (3) on hot water control stop (4). Connect
COLD FLEXIBLE SUPPLY (marked with blue stripe) (2) to
FLOW SENSOR (3) on cold water control stop (5). Use
adjustable wrench to tighten connections. Do not over tighten.
4. Faucet supplies are 24" long from faucet base.
Note: If additional supply length is required, installer
must purchase those parts separately.
Important; If SUPPLY HOSES (1, 2) are too long, loop
as illustrated to avoid kinking.
Note: For non-mixing models only one ow sensor and
supply line connection is needed.
10
PUTTY
(If required)
MOUNTING
SURFACE
(OPTIONAL)
TIGHTEN
SPIN NUTS
2
1
4
12
13
3
7
8
9
5
IMPORTANT: Do not
use putty when installing
faucet without escutcheon.
IMPORTANT: Do not
use sealant on threads
11

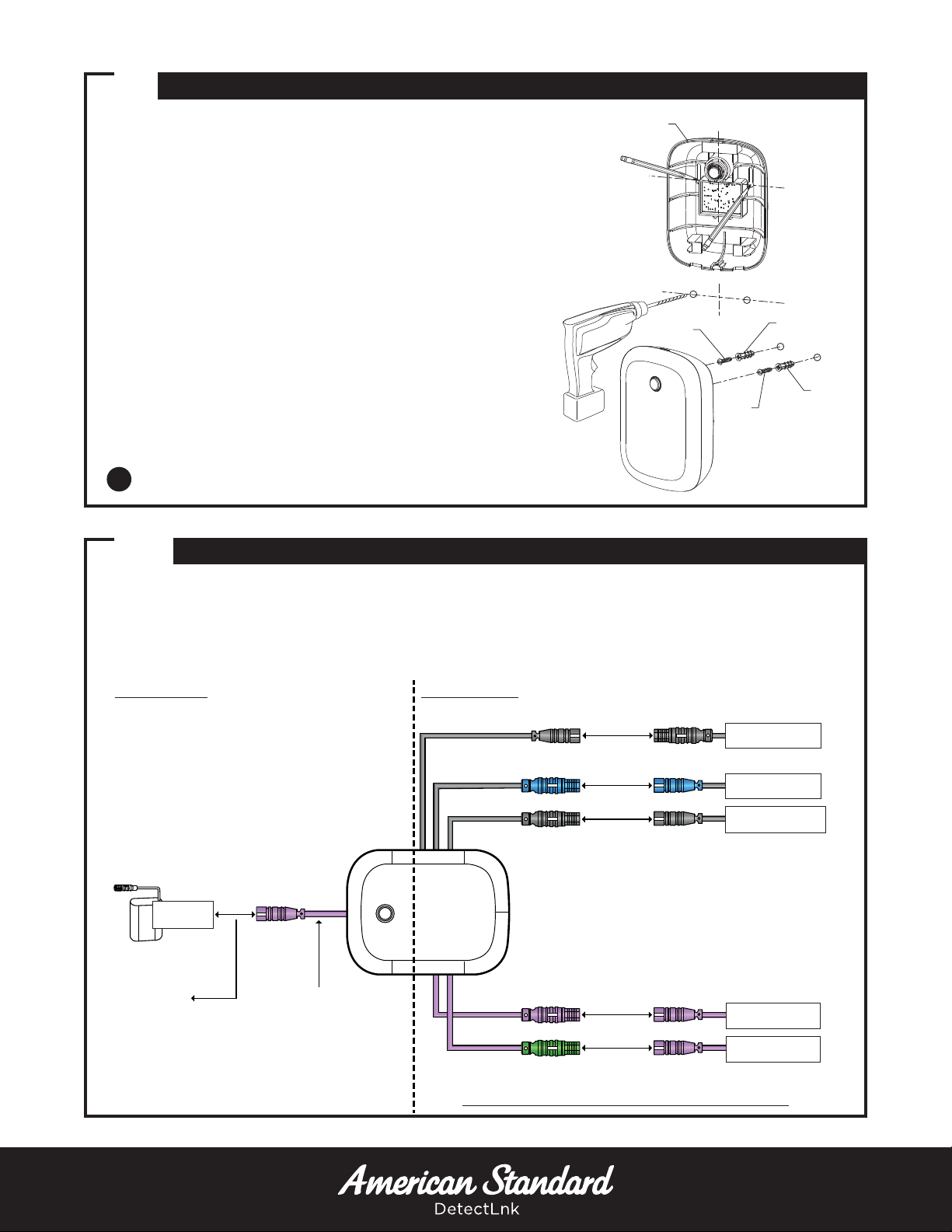

3CONTROL BOX INSTALLATION
VERTICAL
C/L
HORIZONTAL
C/L
1
2
3
2
3
1. Remove the SCREW (4) from the bottom of the control box and
lift the cover off.
2. Determine the mounting location of the control box by checking
the wire length of the faucet and flow sensor when connected to
the control box.
3. Place the CONTROL BOX (1) on the horizontal center line and
mark the location of the mounting holes to be drilled.
4. Using a ¼" diameter drill bit, drill two mounting holes
approximately 1" deep.
5. Install the two ANCHORS (2) provided into the mounting holes.
6. Partially thread the SCREWS (3) in to the ANCHORS (2).
7. Place CONTROL BOX (1) over the SCREWS (3) and slide
down to lock.
8. Tighten SCREWS (3) if a more secure connection is desired.
Note: The cover should be left off as it will be reinstalled at a
later point.
C
3.1 MAKE WIRED CONNECTIONS
1. Connect IR sensor wire to control box.
2. Connect solenoid wire to control box.
3. Connect flow sensor wires, hot and cold, to the control box.
4. Connect battery wire to the black and purple wire.
Note: for non-mixing versions only one flow sensor connection is needed.
Internal Wiring External Wiring
To IR Sensor
To IR Sensor
Battery
in the Box
2 Pin purple
male connector
Two wires (black, purple)
2 Pin black wire /
black male connector
2 Pin black wire /
black female connector
To Faucet Solenoid
2 Pin black wire /
blue female connector
2 Pin black wire /
blue male connector
2 Pin black wire /
black female connector
2 Pin black wire /
black male connector
3 Pin purple wire /
purple female connector
3 Pin purple wire /
purple male connector
To Flow Sensor
3 Pin purple wire /
green female connector
3 Pin purple wire /
purple male connector
To Flow Sensor
AC adapter
(if applicable)
Note: Green connector can attach to either male purple connector

3.2 AC VERSIONS (HARD-WIRED / PLUG-IN POWER SUPPLY
4
2
3
5
1
7
8
WALL
OUTLET
4" CONTROL BOX
OR EQUIVALENT BY
OTHERS (6)
BLACK & WHITE
POWER
CONNECTIONS
6
AC-DC
CONVERTER
1
10' EXTENSION
Do not connect power to transformer
until installation of faucet is complete.
Recommended Electrical Box or Equivalent
by others 4” (102mm) SQ. X 2-1/2” (64mm)
DEEP 2-GANG ELECTRICAL BOX Appleton
#4SD1 OR EQUAL (BY OTHERS).
CAUTION: Use only American Standard supplied transformers and cable sets. Using non-AS supplied cables, or cutting,
splicing or modifying any components will void the warranty.
Important: Turn off power to outlet or
electrical box.
FOR PLUG-IN VERSION;
1. Connect PLUG-IN AC POWER SUPPLY (2) to
BATTERY BACK-UP KIT (7).
2. Connect the other end of the 10’ extension
cable to the black and purple wire (9) in the
control box.
3. Connect PLUG-IN AC POWER SUPPLY (2) to
wall outlet.
FOR HARD-WIRED VERSION;
1. Connect HARD-WIRED AC TRANSFORMER
(3) to AC-DC CONVERTER (6).
2. Connect BACK-UP BATTERY (8) to 10'
EXTENSION CABLE (1).
3. Connect AC-DC CONVERTER (6) to
BACK-UP BATTERY (8).
4. Connect BLACK and PURPLE WIRE (9) to the
other end of the 10' EXTENSION CABLE (1).
5. Make Black and White power line connections
to HARD-WIRED AC TRANSFORMER (3) and
mount on ELECTRICAL BOX (5).

Unit #1
(Already
Installed)
Unit #2 Unit #3 Unit #4
1
23
4
5
MAXIMUM OF 8 UNITS PER TRANSFORMER.
10' MAXIMUM CABLE LENGTH BETWEEN UNITS.
BLACK & WHITE
POWER
CONNECTIONS
3.3 MULTI-AC VERSION (DAISY CHAIN)
Important: Disconnect the rst unit’s Multi-AC Adapter from power supply before making
daisy-chain connections.
Note: For Unit #1 electrical instructions, refer to Step 3.1.
For subsequent Units, refer to instructions below...
1. Connect one end of the 10' EXTENSION (1) to the available terminal of the previous unit’s Multi-AC
ADAPTER (2), and the other end to the single terminal of the current unit’s Multi-AC ADAPTER (3).
2. Connect EXTENSION CABLE (4) to BATTERY BACK-UP KIT (5).
3. Connect the EXTENSION CABLE (4) to the black and purple wire (6).
4. Connect BATTERY BACK-UP KIT (5) to either of the two available terminals of Multi-AC ADAPTER (3).
5. Repeat Steps above for each additional Unit, for a Max. of 10 Units on one AC POWER SUPPLY.

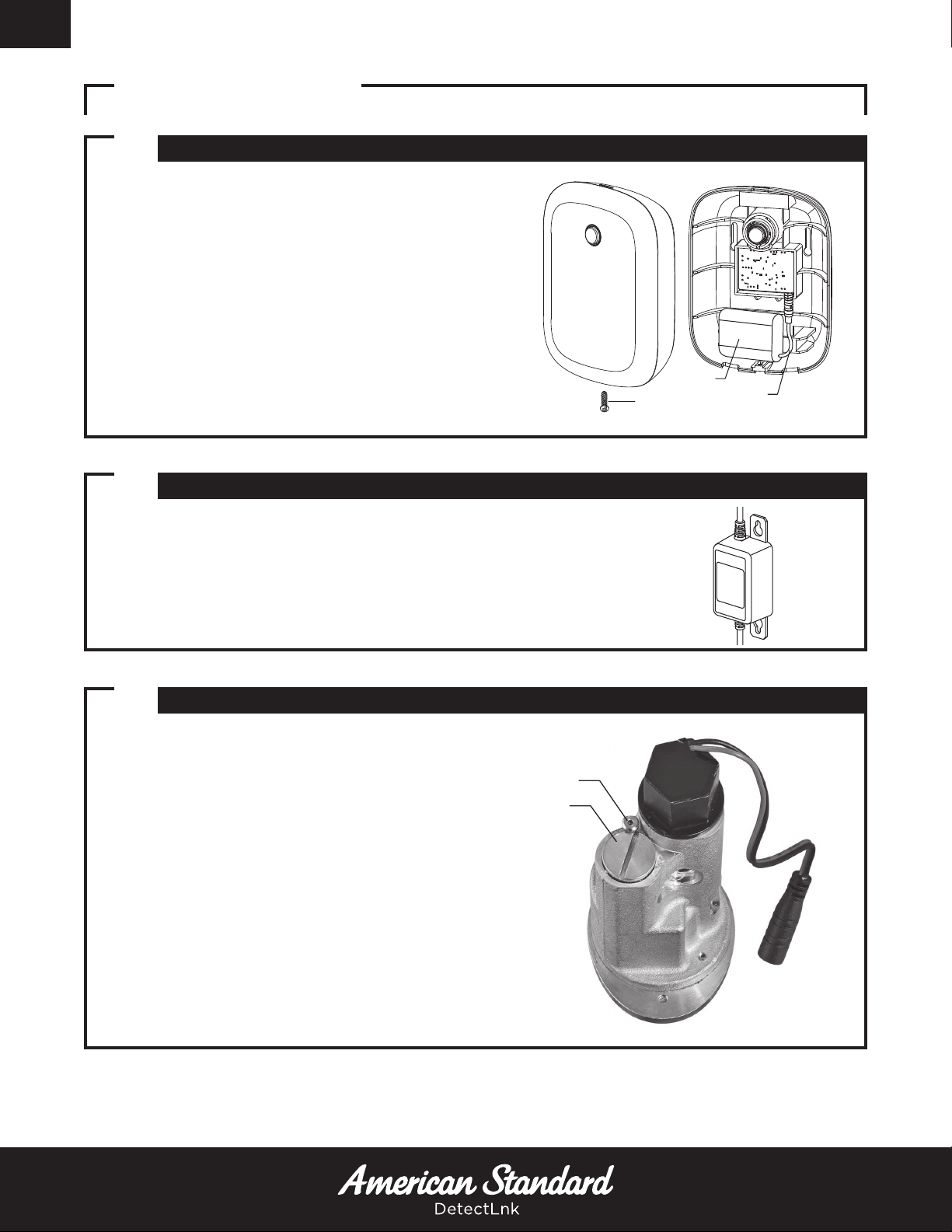

4REMOVE MIXING HANDLE
Note: Before removing the handle, preset the desired
water temperature and while disassembling make sure
to keep the SHAFT EXTENSION (8) in place.
1. Unthread Set screw (3) and remove handle (5).
2. Remove Limit stop (1).
3. Using a Slotted screwdriver unthread Screw (7) and
remove SHAFT extension (8).
Note: Hold the extension in place while unthreading the
screw.
4. Install Cap (9) onto the Body and press until you hear
a click.
Note: Sharper side faces towards the back of the body.
Adjust hot limit safety
To reduce the amount of hot water that can mix with
cold, the installer can adjust hot limit stop (Four
different settings).
1. Rotate Lever Handle (5) counter-clockwise to its
stop position (100% cold).
2. Remove LEVER SCREW (3) and pull off the LEVER
HANDLE (5).
3. Pull out LIMIT STOP (1) from the VALVE STEM (2).
4. Rotate LIMIT STOP (1) between the shaded area
and insert back onto VALVE STEM (2).
5. Each notch on the LIMIT STOP (1) will reduce the
amount of hot water by approximately 3%. For
example, the 2nd notch will have 97% of maximum
temp, the 3rd notch will have 94% and the fourth
will be 91%.
6. Replace LEVER HANDLE (5), LEVER HANDLE
SCREW (3) and tighten.
1
2
5
3
DETECTION
ZONE
PROTECTIVE FILM
1
9
8
7
5
3

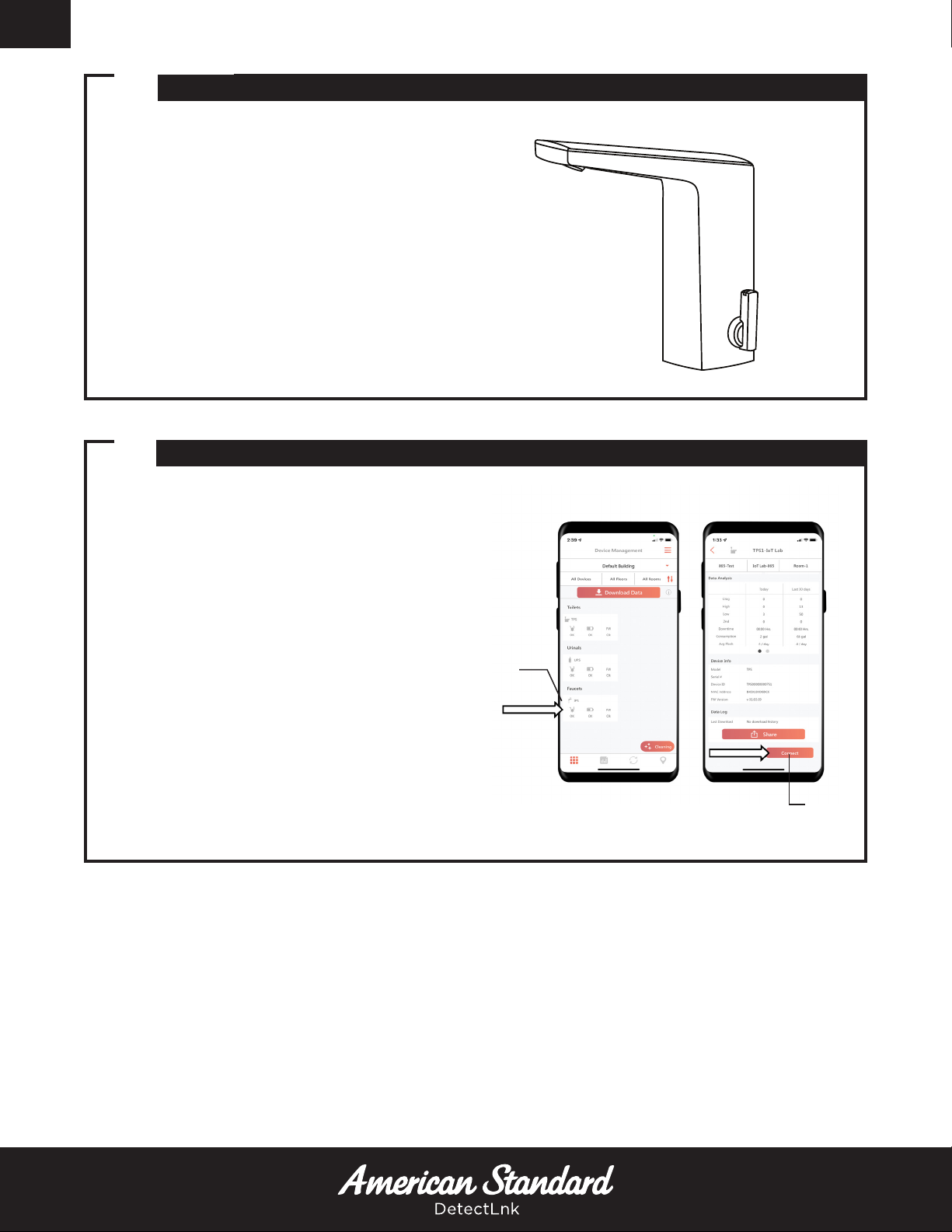

5HAND WASH SENSOR OPERATION
REMOVE PROTECTIVE FILM FROM SENSOR EYE
WHEN INSTALLATION IS COMPLETE.
When the Sensor detects a user, the water immediately
starts to flow. Water flow will stop 1.5 seconds after user is
out of sensor range. This Comfort delay allows the user to
comfortably move their hands without the water turning off.
As a precaution, a Safety Timer will turn off the water, after
the sensor has been blocked for 30 seconds. The water
will stay off until the blockage is removed from the
detection zone.
The Comfort and Safety time settings can be adjusted
using the Mobile Application.
Refer to the Quick Start Guide to complete
setting up the Faucet functionality.
DETECTION
ZONE
PROTECTIVE FILM
1
9
8
7
5
3

1. Remove control box cover by unthreading SCREW (3).
2. Disconnect Battery (1) from WIRE (2).
3. Connect the new battery to WIRE (2).
4. Check that the new battery is successfully activating
the faucet.
5. Cover control box with the cover and SCREW (3).
1REPLACE BATTERY
MAINTENANCE
3
12
2REPLACE BACK-UP BATTERY KIT FOR AC VERSION
1. Remove old back-up battery by disconnecting the
two wires.
2. Install new kit by connecting it to the two wires.
3ADJUST OR REPLACE MAXIMUM OUTLET TEMPERATURE
1. With the COVER off, the installer can reduce the
maximum mixed water temperature by turning the
THERMO VALVE (4) clockwise with a screwdriver.
2. Remove SCREW (6) and unthread THERMO VALVE (4).
Replace with new THERMO VALVE (4).
WARNING
•Do not turn the THERMO VALVE (4) More than
1 turn.
•The maximum mixed water temperature can
not be increased due to ASSE 1070 requirements.
4
6

4GENERAL CLEANING
1. Only use a damp, soft cloth to clean the spout and
the sensor.
2. For tougher dirt, use a soft cloth with diluted dish
washing detergent. Wipe the area using a wet cloth
and dry using a soft cloth.
CAUTION
Do not scratch the sensor when cleaning.
Avoid using any abrasives or harsh detergents
or chemicals.
5SET DETECTION RANGE (IF REQUIRED)
1. Once the device is paired, you may edit the
settings by navigating to Device Management
screen and finding the DEVICE CARD (1).
You must be in Bluetooth range to the device.
2. Press on the DEVICE CARD (1) and scroll
down to find the CONNECT (2) button.
3. Once the app connects to the device, a
“Settings” button will be available.
4. Enter the Settings screen and adjust IR
sensor distance as needed and press “Apply”
Comfort Time should not be modified unless
specified in the by manufacturer.
2
1

6TROUBLE SHOOTING GUIDE FOR FAUCET
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Faucet will not operate.
Supply valve is closed. Open supply valve.
Battery/The electric wire(s) is not
connected. Connect the wires.
Sensor lens is dirty. Clean lens.
Reflective surface in front of
sensor.
Remove the reflective surface from in front of the
sensor.
Detection range not adjusted
properly. Adjust the detection range.
The infrared sensor or the actua-
tor is out of order. Contact distributor for replacement.
Battery is critical.
Press button on the control box for 3-5 seconds.
If LED does not blink blue, the battery is critically
low and needs to be replaced.
Faucet Valve Electronic is faulty. Replace Faucet Valve Electronic.
No power provided by battery/
power supply. Replace battery/power supply.
Faucet valve does not
activate when User presence.
Sensor does not recognize a user. Using the DetectLnkTM app, enter the
device settings and adjust IR Distance.
Battery/Power Supply is disrupted.
Verify connection to sensor.
Check available voltage where Battery/
Power supply is connected with sesnor with DC
voltmeter. 5.8 to 6.5 VDC is required.
Faucet is running too long
or not shutting off.
Solenoid may be stuck open.
Press the control box button for at least 3-5 sec.
If the LED starts blinking blue, but the water does
not stop, the Solenoid needs to be replaced. If the
LED does not blink blue and water does not stop,
the Battery needs to be replaced.
Battery/Power Supply is disrupted.
Verify connection to sensor.
Check available voltage where Battery/
Power supply is connected with sesnor with DC
voltmeter. 5.8 to 6.5 VDC is required.
Flush is not considered quiet. Piping system is source of noise.
High pressure in the system can sometimes be
controlled by the stop valve. Other sources of
noise may be the absence of air chamber and
shock arrestors, loose pipes, improper size pipes,
etc. In these cases the building engineer should
be consulted.
Faucet “ghost” activations
or activates randomly with
no user present.
Sensor lens is dirty. Clean lens.
Sensor is detecting reflections. Using the DetectLnkTM app, enter the device
settings and adjust IR Distance.
Running low flow issues.
EXTERNAL SUPPLY STOPS are
partially closed.
Fully open external supply stops by turning
counter clockwise.
Check for blockage.
Inspect flow sensor assembly, aerator and
solenoid valve. Remove, clean and insert back
to original position. NOTE: Aerator must only be
serviced with appropriate American Standard
repair parts.

7TROUBLE SHOOTING GUIDE FOR FAUCET CONT’D
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Device is not communicating.
Device lost power.
Double check power connections and
supply.
If using AC version, check backup battery &
replace.
Multi AC power cable was not
connected. Ensure that cable is securely connected.
Sensor not advertising.
Press Button for 3 second, then Blue LED
stats blinking, connect through DetectLnkTM
app.
Have a question or need help on install?
For questions or help on installation call us at 855-815-0004.

APPENDIX A
Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identier: IoT Detectlnk Paradigm and 702B405 / 702B505 / 702B605
Responsible Party : AS America, Inc. d/b/a LIXIL Americas
Address :
AS America, Inc. d/b/a LIXIL Americas
865 Centennial Ave.
Piscataway, New Jersey 08854
www.americanstandard.com | www.dxv.com | www.grohe.com/us | lixil.com
FCC Compliance Statement : According to FCC Part 15
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
— The equipment complies with the safety requirements for RF exposure for mobile (>20 cm) use
conditions in accordance with FCC rule part 2.1091.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two
conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation
of the device.
3. The equipment complies with the safety requirements for RF exposure in accordance with RSS-102
Issue 5 section 2.5.2 for mobile (>20 cm) use conditions.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR
d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts
de licence. L’exploitation est autorisée aux deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
3. L’équipement est conforme aux exigences de sécurité pour l’exposition aux RF conformément à la
norme RSS-102 Édition 5 section 2.5.2 pour les conditions d’utilisation mobiles (>20 cm).

M985164 EN (7/23)
702B405/702B505/702B605
TELL US WHAT YOU THINK!
Please leave us a product review or story
at AmericanStandard.com/reviews
Register your warranty and sign up for an idea-filled newsletter at
AmericanStandard-us.com/support/warranty
PLEASE COMPLETE AMERICAN STANDARD WARRANTY REGISTRATION PROCESS AND
SAVE THIS WARRANTY INFORMATION IMPORTANT:
Registration of the sink must be completed for this warranty to become eective. Your registration
will make it easier to contact you in the event of a product recall.*
INSTRUCTIONS: Register your sink at www.americanstandard.com. Please save your proof of purchase
(sale receipt). If you need assistance or do not have access to our website, please contact American Standard
Customer Care at: [phone]. An American Standard representative will assist in completing
the warranty registration.
*In California, your warranty rights remain intact even if you do not complete the registration process.
Find installation videos at
youtube.com/americanstandard
WANT MORE INFO?
For questions or help call us at 855-815-0004,
or visit AmericanStandard.com
UNITED STATES
American Standard Brands
865 Centennial Ave.
Piscataway, New Jersey 08854
Attention: Director of Customer Care
For residents of the United States,
warrantyinformation may also be
obtained by calling the following
toll free number: [phone]
www.AmericanStandard.com
CANADA
LIXIL Canada, Inc.
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Toll Free: [phone]
AmericanStandard.ca/support/
warranty
MEXICO
American Standard B&K Mexico
S. de R.L. de C.V.
Via Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico
Toll Free: 800-839-1200
AmericanStandard.com.mx/garantia
SHARE YOUR NEW PRODUCT!
Tag us @american_standard on Instagram
and show us how your new product looks.
