American Water Heater SRCC OG-300 User manual

1
PRINTED 0311 320009-001
KEEP THIS MANUAL IN THE POCKET ON HEATER FOR FUTURE REFERENCE
WHENEVER MAINTENANCE ADJUSTMENT OR SERVICE IS REQUIRED.
ALL TECHNICALAND WARRANTY QUESTIONS: SHOULD BE DIRECTED TOTHE LOCAL DEALER FROM WHOMTHE WATER HEATER WAS
PURCHASED. IF YOUARE UNSUCCESSFUL, PLEASE WRITETO THE COMPANY LISTED ONTHE RATING PLATE ON THE WATER HEATER.
Instruction Manual
RESIDENTIAL SOLAR WATER HEATING SYSTEMS
STANDARD SYSTEMS
WITH DOUBLE WALL HEAT EXCHANGER
FOR POTABLE WATER HEATING ONLY
Solar Water Heater
CUS
LISTED
Solar Collector
SRCC OG-100
™
Solar Water Heating System
SRCC OG-300
™

2
All safety messages will generally tell you about the type of hazard, what can happen if you do not follow the safety
message, and how to avoid the risk of injury.
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of
substances known to the State of California to cause cancer, birth defects, or other reproductive harm, and requires
businesses to warn of potential exposure to such substances.
WARNING: This product contains a chemical known to the State of California to cause cancer, birth defects, or other
reproductive harm.
This appliance can cause low-level exposure to some of the substances listed in the act.
Hydrogen gas can be produced in a hot water system that has not been used for a long period of time (generally two
weeks or more). Hydrogen gas is extremely flammable and can ignite when exposed to a spark or flame. To prevent
the possibility of injury under these conditions, we recommend the hot water faucet be opened for several minutes at
the kitchen sink before using any electrical appliance which is connected to the hot water system. If hydrogen is pres-
ent, there will probably be an unusual sound such as air escaping through the faucet as water begins to flow. Do not
smoke or have any open flame near the faucet at the time it is open.
IMPORTANT DEFINITIONS
• Qualified Installer: A qualified installer must have ability equivalent to a licensed tradesman in the fields of
plumbing and electrical installation of these appliances. This would include a thorough understanding of the
requirements of the National Electrical Code and applicable local electrical and plumbing codes (and tools
necessary to confirm proper installation and operation of the water heater) as they relate to the installation
of electric water heaters. The qualified installer must have a thorough understanding of the water heater
Instruction Manual.
• Service Agency: A service agency also must have ability equivalent to a licensed tradesman in the fields of
plumbing and electrical installation of these appliances. This would include a thorough understanding of the
requirements of the National Electrical Code and applicable local electrical and plumbing codes (and tools
necessary to confirm proper installation and operation of the water heater) as they relate to the installation
of electric water heaters. The service agency must have a thorough understanding of the water heater
Instruction Manual.
SAFE INSTALLATION, USE AND SERVICE
Your safety and the safety of others is extremely important in the installation, use, and servicing of this water
heater.
Many safety-related messages and instructions have been provided in this manual and on your own water heater to
warn you and others of a potential injury hazard. Read and obey all safety messages and instructions throughout this
manual. It is very important that the meaning of each safety message is understood by you and others who install,
use, or service this water heater.
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER
WARNING
CAUTION
DANGER indicates an imminently hazardous
situation which,if notavoided, willresult indeath
or injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or injury.
CAUTION indicates a potentially hazardous
situation which, if not avoided, could result in
minor or moderate injury.
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation
which, if not avoided, could result in property
damage.
CAUTION

3
GENERAL SAFETY

4
Thank You for purchasing this water heating system.
Properly installed and maintained, it should give you years
of trouble free service.
Abbreviations Found In This Instruction Manual:
• ANSI - American National Standards Institute
• ASME - American Society of Mechanical Engineers
• GAMA - Gas Appliance Manufacturers Association
• NEC - National Electrical Code
• NFPA- National Fire ProtectionAssociation
• UL - Underwriters Laboratories Inc.
• SRCC - Solar Rating and Certification Corp.
SYSTEM DESCRIPTION
This Solar Water Heating System consists of four main
parts — the solar collectors, the solar pump station, the
solar storage tank, and the plumbing for the heat transfer
fluid.
The solar pump station uses a pump to circulate a heat-
transfer fluid through the “collector loop”. This collector
loop includes the solar collectors, the fluid lines or “line-
set” and a heat exchanger. The collector loop is a “closed
loop”, meaning there is no contact of the heat transfer fluid
with your potable water or with the atmosphere. The collec-
tor loop contains only a small volume of heat-transfer fluid
which is non-toxic and freeze-protected to -30°F (Freeze
tolerance limits are based upon an assumed set of environ-
mental conditions). Though freeze protection may not be
necessary in all areas, the heat-transfer fluid also contains
corrosion inhibitors which protect the system components,
has an elevated boiling point, and is suitable throughout
North America.
When exposed to sunlight, the solar collectors get hot.
As the heat-transfer fluid passes through the collectors,
it absorbs the heat and then travels down the line-set to
the tank. The hot fluid passes through the heat exchanger
and heat is transferred to the potable water.After giving up
its heat to the potable water, the cool heat-transfer fluid is
pumped back to the solar collectors to be heated again.
Hot potable water is stored in the solar storage tank.
The auxiliary or back-up electric-heating guarantees hot
water even under poor solar conditions (at night or when
very cloudy). The minimum acceptable temperature set-
point is specified in local plumbing codes.
You can save the most money on your water-heating bills
by using the backup heater on your system as little as pos-
sible. If the sun shines brightly between 10 am and 3 pm,
enough heat will normally be generated to keep the water
hot throughout the rest of the day and night.
However, on days when the sky is cloudy or when large
quantities of hot water are being used, we recommend
leaving the backup heater turned on and set to 120° F to
provide adequate hot water.
PREPARING FOR THE INSTALLATION
1. Readthe“General Safety”sectionof thismanualfirst and
then the entire manual carefully. If you don’t follow the
safetyrules,thewater heater willnotoperate properly. It
could cause DEATH, SERIOUS BODILY INJURY, AND/
OR PROPERTY DAMAGE.
This manual contains instructions for the installation,
operation, and maintenance of the solar water heater.
It also contains warnings throughout the manual that
you must read and understand. All warnings and all
instructions are essential to the proper operation of
the water heater and your safety. READ THE ENTIRE
MANUAL BEFORE ATTEMPTING TO INSTALL OR
OPERATE THE WATER HEATER.
2. The installation must conform with these instructions
and the local code authority having jurisdiction and the
requirements of the power company. In the absence of
local code requirements follow NFPA-70, the National
Electrical Code (current edition), which may be
ordered from: National Fire Protection Association, 1
Batterymarch Park, Quincy, MA 02169.
3. If after reading this manual you have any questions or
donotunderstandany portionof theinstructions, callthe
localutility or themanufacturer whose name appears on
the rating plate.
4.Carefullyplanyourintendedplacementofthewaterheater
and collectors. INSTALLATION OR SERVICE OF THIS
WATER HEATER REQUIRES ABILITY EQUIVALENT
TOTHATOFALICENSEDTRADESMAN INTHE FIELD
INVOLVED.PLUMBINGAND ELECTRICALWORKARE
REQUIRED.
Examinethelocationto ensure thewaterheatercomplies
with the “Facts to Consider About the Location” section
in this manual.
5. For California installation this water heater must be
braced, anchored, or strapped to avoid falling or moving
during an earthquake. See instructions for correct
installation procedures. Instructions may be obtained
fromCalifornia Officeof the StateArchitect, 400PStreet,
Sacramento, CA 95814.
6. Massachusetts Code requires this water heater to be
installed in accordance with Massachusetts 248-CMR
2.00: State Plumbing Code and 248-CMR 5.00.
7. Thesolar energy systemdescribed bythismanual, when
properly installed and maintained, meets the minimum
standards established by the SRCC. This certification
does not imply endorsement or warranty of this product
by SRCC.
INTRODUCTION

5
TABLE OF CONTENTS
SAFE INSTALLATION, USE AND SERVICE.............................2
Important Definitions ..................................................2
GENERAL SAFETY ..................................................................3
INTRODUCTION ......................................................................4
System Description ....................................................4
Preparing for Installation.............................................4
TABLE OF CONTENTS ............................................................5
SYSTEM DIAGRAM/TYPICAL INSTALLATION .......................6
SYSTEM COMPONENT PART ................................................7
STORAGE TANK INSTALLATION ............................................7
Local Codes ...............................................................7
Temperature-Pressure Relief Valve ........................7-8
Closed System/Thermal Expansion............................8
Locating the Solar Water Heater ................................8
Water Piping ............................................................8-9
Installation in Residential Garages..............................9
Filling the Solar Water Heater with Water...................9
Wiring of Element .....................................................10
Thermostat ...............................................................10
Temperature Regulation ......................................10-11
Temperature Settings ............................................... 11
Temperature Adjustment .......................................... 11
Tank Sensor ............................................................. 11
Draining ...............................................................11-12
Element ....................................................................12
Element Replacement ..............................................12

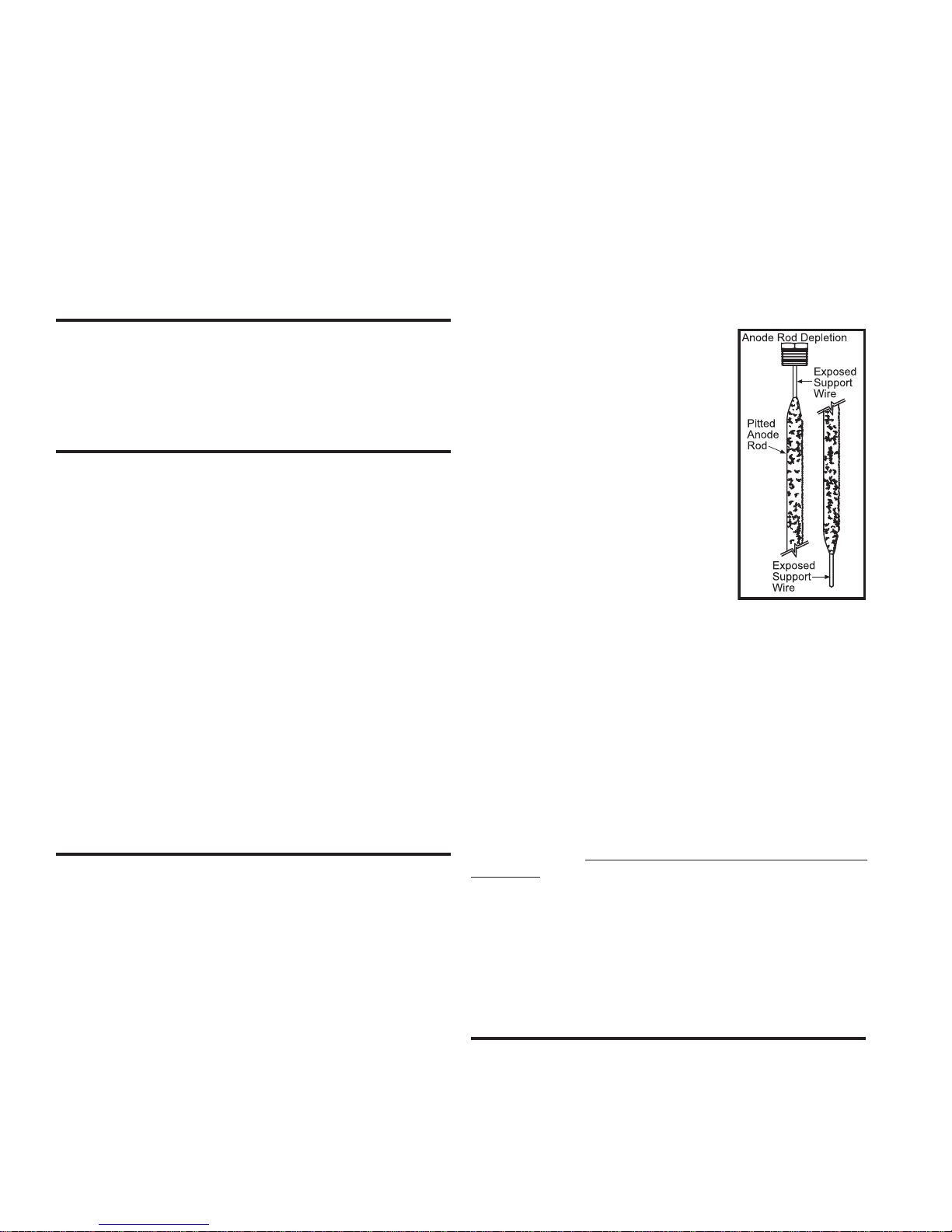

Anode .......................................................................12
Water Heater Sounds ...............................................12
SOLAR COLLECTOR INSTALLATION ..................................13
Collector Location ....................................................13
General Considerations ...........................................13
Collector Orientation ...........................................13-14

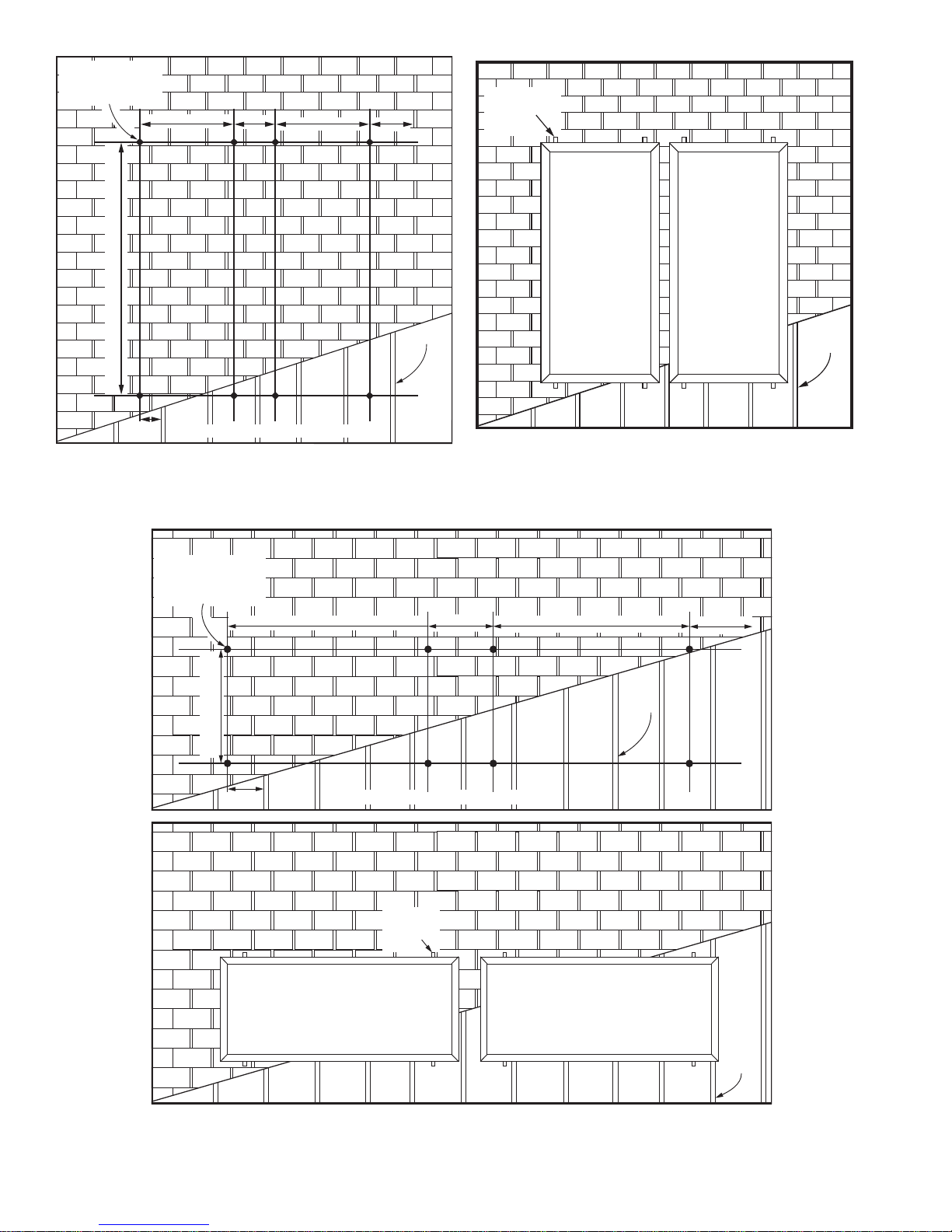

Spanner Mounting ...............................................15-17
Attaching Collector to Mounting Brackets ................18

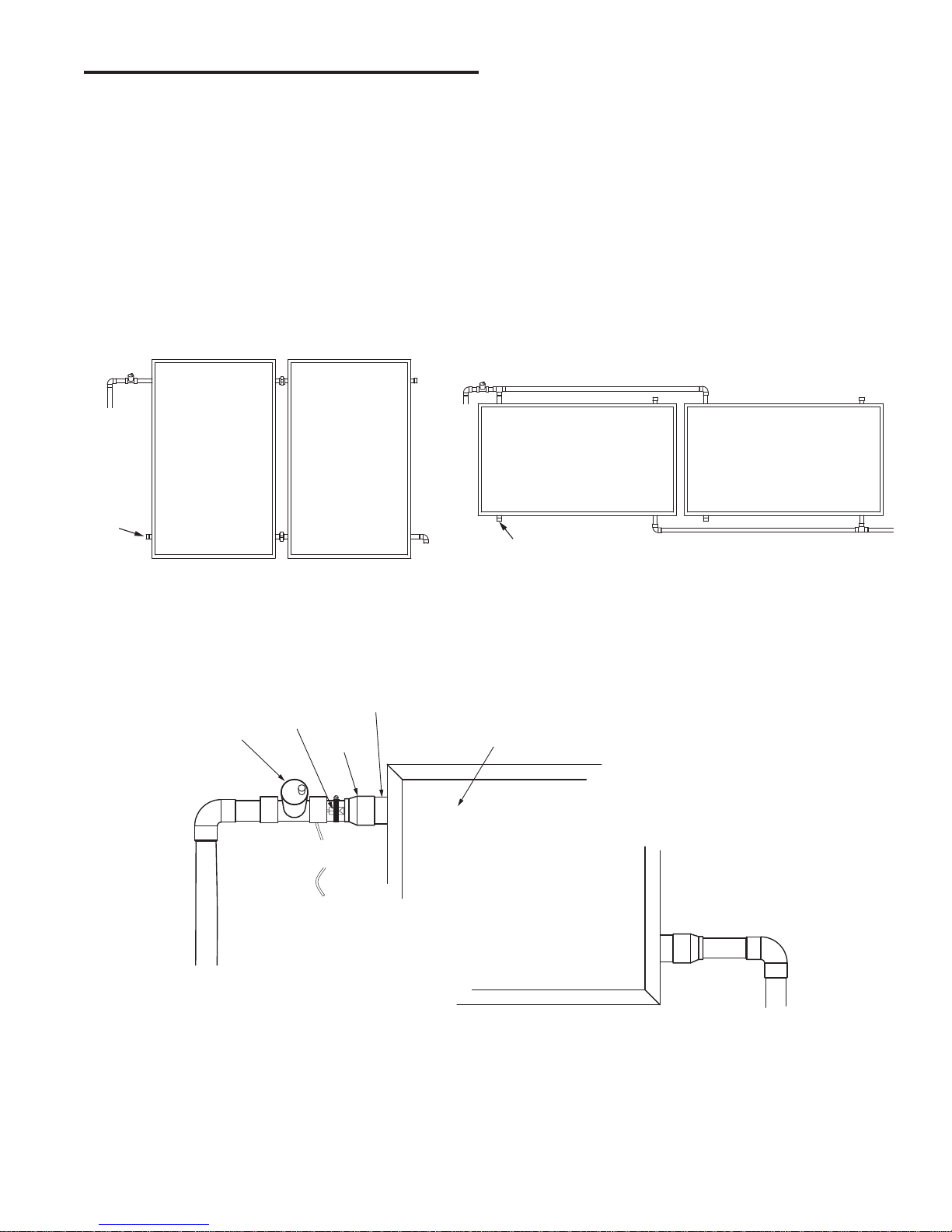

Collector Piping ........................................................19
Collector Piping Detail ..............................................20
Sensor Wiring at Collector .......................................20
Sensor Mounting at Collector ...................................20
Piping Through the Roof ..........................................20
Piping Insulation .......................................................20
PUMP STATION INSTALLATION ...........................................21
Pump Station ............................................................21
Safety Instructions ....................................................21
Safety Equipment .....................................................22
Wall Mounting the Solar Pump Station ....................22
Plumbing Configuration ............................................23
Function ...................................................................23
Flowmeter ................................................................23
Start-up and Operation of the Solar Pump Station ...24
Leak Detection .........................................................24
Flushing ....................................................................24
Filling ........................................................................24
Preparation of the Heat Transfer Fluid .....................24
Filling the Solar Loop ...........................................24-25
Draining.....................................................................25
PUMP STATION CONTROL INSTRUCTIONS .......................26
Control Instructions ..................................................26
System Description .............................................26-33
TROUBLESHOOTING ......................................................34-36
SYSTEM MAINTENANCE ......................................................37
REPAIR PARTS ......................................................................38
HEAT TRANSFER FLUID PROPERTIES ..............................39
SOLAR RATING / MODELS / WARRANTY.......INSERT SHEET

6
SYSTEM DIAGRAM/TYPICAL INSTALLATION
Figure 1.
INSTALL VACUUM
RELIEF IN COLD
WATER INLET LINE AS
REQUIRED BY LOCAL
CODES.
INSTALL SUITABLE METAL DRAIN
PANS UNDER HEATERS TO PREVENT
DAMAGE DUE TO LEAKAGE. REFER
TO WATER HEATER LOCATION, SEE
“LOCATING THE SOLAR WATER
HEATER” SECTION.
INSTALL THERMAL EXPANSION
TANK OR DEVICE IF WATER HEATER
IS INSTALLED IN A CLOSED WATER
SYSTEM.
6” Maximum Air Gap
Piped To An
Adequate Drain
At Least 2” Greater Than The
Diameter Of The Water Heater.
Metal
Drain
Pan
Discharge Pipe
(DO NOT CAP
OR PLUG)
Flow Direction
1 1
610
9
4
7
3
10
8
5
2
11
VACUUM RELIEF
VALVE
INSTALL PER
LOCALCODES
INSTALL THERMALEXPANSION
TANK IF WATER HEATER IS
INSTALLED IN ACLOSED
WATER SYSTEM

7
Item Component Function
1 Solar collector Absorbs the sun’s heat energy and transfers this to the heat transfer
fluid circulating through the collector.
2 Solar storage tank Stores potable water heated by solar generated heat or installed
back-up electric resistance element.
3 Double Wall Heat exchanger (inside
Solar pump station) Transfers the heat from the collector loop to the potable water in the solar storage tank.
4 Solar Loop Expansion tank Allows for the expansion and contraction of the heat transfer fluid as
it heat and cools.
5 Temperature and Pressure relief
valve Required by plumbing code to automatically open and dump water if the storage tank exceeds 150 PSI of pressure or 210° F in tempera-
ture.
6 Air vent Purges air from the collector loop fluid during the installation.
7 Drain valve Used to drain the heat transfer fluid from the collector loop.
8 Mixing valve Used to temper hot water from the solar storage tank with cold inlet
water to maintain appropriate temperature hot water delivered from
the system.
9 Solar pump station Controls the flow of heat transfer fluid from the collectors to the tank
through the heat exchanger. For a detailed description of the solar
pump station see page 20.
10 Temperature sensor Tank and collector sensor work together to turn the circulating
pump(s) on and off at preset temperature differentials.
11 Cold Water Cut-Off Valve Isolates the tank from incoming water supply.
SYSTEM COMPONENT PART
STORAGE TANK INSTALLATION
Never operate the electrical heating element without being
certain the solar water heater is completely filled with water.
If any air is left in the top of the tank, the heating element
will burn out.
LOCAL CODES
The installation of this solar water heater must be in
accordance with these instructions and all applicable local
codes and electric utility requirements. In the absence of
local codes, install in accordance with the latest edition of the
National Electrical Code (NFPA-70).
TEMPERATURE-PRESSURE RELIEF VALVE
Forprotectionagainstexcessivepressuresandtemperatures
in this water heater, install temperature-pressure protective
equipment required by local codes, but not less than a
combination temperature-pressure relief valve certified by
a nationally recognized testing laboratory that maintains
periodic inspection of production of listed equipment or
materials, as meeting the requirements for Relief Valves for
HotWater Supply Systems,thelatesteditionofANSIZ21.22.
This valve must be marked with a maximum set pressure not
to exceed the marked hydrostatic working pressure of the
water heater (150 lbs./sq. in.).
Install the temperature-pressure relief valve directly into the
fitting of the water heater. Position the valve downward and
provide a discharge pipe that must terminate a maximum
of six inches above a floor drain or external to the building.
In cold climates, it is recommended that the discharge pipe
be terminated at an adequate drain inside the building. Be
certain that no contact is made with any live electrical part.
Thedischargeopeningmustnotbeblockedorreducedinsize
under any circumstances. Excessive length, over 15 feet, or
useofmorethantwoelbowscancauserestrictionandreduce
the discharge capacity of the valve.
No valve or other obstruction is to be placed between the
temperature-pressure relief valve and the tank. Do not
connect tubing directly to discharge drain unless a 6” air
gap is provided. To prevent bodily injury, hazard to life
or damage to property, the temperature-pressure relief
valve must be allowed to discharge water in quantities
should circumstances demand. If the discharge pipe is not
connectedto a drainor othersuitable means, the water flow
may cause property damage.
The Discharge Pipe:
• Shall not be smaller in size than the outlet pipe size of the
temperature-pressure relief valve, or have any reducing
couplings or other restrictions.
• Shall not be plugged or blocked.
• Shall be of material listed for hot water distribution.
• Shallbe installedso astoallowcomplete drainageofboththe
temperature-pressure relief valve, and the discharge pipe.
• Mustterminate amaximum ofsix inchesabove afloor drain

8
orexternaltothebuilding.Incoldclimates,itisrecommended
that the discharge pipe be terminated at an adequate drain
inside the building.
• Shall not have any valve between the relief valve and tank.
When installing the temperature-pressure relief valve, use
two or three turns of Teflon® tape or other suitable thread
sealer around the threaded end of the valve.
Figure 2.
The temperature-pressure relief valve should be manually
openedonce a year. Caution shouldbe takento ensure that
(1) no one is in front of or around the outlet of the
temperature-pressure relief valve discharge line, and (2)
the water manually discharged will not cause any bodily
injury or property damage because the water may be
extremely hot.
If after manually operating the valve, it fails to completely
reset and continues to release water, immediately close
the cold water inlet to the water heater, follow the draining
instructions, and replace the temperature-pressure relief
valve with a new one.
If the temperature-pressure relief valve on the appliance
weeps this may be due to thermal expansion. The water
supply serving this solar water heater may have a check
valveinstalled. Contactthe watersupplieror localplumbing
contractor on how to control this situation. Do not plug the
temperature-pressure relief valve.
CLOSED SYSTEM/THERMAL EXPANSION
As water is heated, it expands (thermal expansion). In a
closedsystem, the volumeof waterwill grow.As the volume
of water grows, there will be a corresponding increase
in water pressure due to thermal expansion. Thermal
expansioncan cause prematuretank failure(leakage).This
type of failure is not covered under the limited warranty.
Thermalexpansioncanalsocauseintermittenttemperature-
pressure relief valve operation: water discharged from the
valvedue to excessive pressure build up.The temperature-
pressure relief valve is not intended for the constant relief
of thermal expansion. This condition is not covered under
the limited warranty.
Aproperly-sized thermal expansiontank should beinstalled
on all closed systems to control the harmful effects of
thermal expansion. Contact a plumbing service agency or
your retail supplier regarding the installation of a thermal
expansion tank..
LOCATING THE SOLAR WATER HEATER
Ifyouhaveachoiceof where to installthesolarwaterheater,
these ideas may help you decide.
1. Put the solar water heater indoors as close as possible
to where you use the most hot water. This water heater
is not intended for outdoor installation.
2. It is handy to have a floor drain, tub or sink nearby.
That will make it easy to drain water from the water
heater. It is also a good place to end the drain line of
the temperature-pressure relief (T & P) valve.
3. Thesolar water heateror the pipesand the connections
may, intime, leak. Put the solar water heater in aplace
where a water leak will not damage anything.
4. You must not put the water heater in an area where
it might freeze You must turn off the electricity to the
water heater before you drain it, to protect the heating
elements.
5. Make sure that you are able to reach the drain valve
andall access panelswhen the waterheater isin place.
This will make it easy to service the water heater.
6. The water heater must be level before you begin the
piping.
WATER HEATERS EVENTUALLY LEAK. The installation
ofthewaterheater mustbe accomplished in such a manner
that if the tank or any connections should leak, the flow
of water will not cause damage to the area adjoining the
water heater or to lower floors of the structure. When such
locationscan’tbeavoided, a suitablemetaldrain pan should
be installed under the water heater. Such a pan should be
no greater than 1 1/2 inches deep, have a minimum length
and width of at least two inches greater than the heater
dimensions and must be piped to an adequate drain.
This solar water heater, as all water heaters, will eventually
leak. Do not install without adequate drainage provisions
where water flow will cause damage. Note: normal
condensation from a solar water heater may appear to be
a leaking tank.
WATER PIPING
This solar water heater is design certified to be used with a
potable water system. When connecting water piping with
solder joints use only lead free solder.
This solar water heater shall not be connected to any
heating systems or component(s) previously used with a
non-potable water heating appliance.
If this solar water heater is also used for space heating
applications, all piping and components connected to the
solar water heater shall be suitable for use with potable
water.
This appliance has been design certified as a solar water
heater complying with Standards for Safety - UL174 for
the U.S. and can/csa-c22.2 No 110 F379.1 and F379.2

9
for Canada. The particular application of this appliance
described(above paragraph) may be subjectto review and
approval by local code officials.
Toxicchemicalssuchasused for treatmentofboilersornon-
potablewater heatingappliances shall never be introduced
into a potable water space heating system.
Figure 3.
The solar water heater will work better if you keep the hot
water runs short. You will also get hot water faster and with
less heat loss.
The illustration showsthe correct valves and fittingsthat you
will need to install the solar water heater. Threaded (3/4”)
water connections are supplied through the tank top.
Figure 4.
1. Buy the fittings that you need to connect the pipes.
Remember that you have to connect both the hot and
cold water pipes.
2. Apply a light covering of pipe joint compound to each
outside thread before making connection.
3. Connectthe coldwater supply pipe to thecold waterinlet
of your solar water heater as follows:
a. Look at the top cover of the solar water heater. The
hot and cold connections are marked there.
b. Anon-metallic diptube issupplied tocarry cold water
from the tank top to the bottom. Be sure that it is in
the cold water inlet.
c. If using copper tubing, solder tubing to an adapter
BEFORE you attach the adapter to the cold water
inlet. DO NOT solder the cold water supply pipe
directly to the cold water inlet connection. It might
harm the dip tube.
d. Thecold watersupply line must have ashut-offvalve
and union.
4. Use a union to connect the hot water supply pipe to the
solar water heater’s hot water outlet.
Operating an empty or partially filled solar water heater will
result in damage to the tank.
If a solar water heater is installed in a closed water system;
such as one having a back flow preventer, check valve or
water meter with check valve in the cold water supply line,
means shall be provided to control thermal expansion.
Contact the water supplier or local plumbing contractor on
how to control this situation.
INSTALLATION IN RESIDENTIAL GARAGES
The solar water heater must be located and/or protected
so it is not subject to physical damage by a moving vehicle.
FILLING THE SOLAR WATER
HEATER WITH WATER
MIXING VALVE
HOT WATER OUTLET
SIDE SOLAR
WATER LOOP
CONNECTIONS
TOP SOLAR WATER
LOOP CONNECTIONS
TEMPERATURE-PRESSURE
RELIEF VALVE
TO SUITABLE
DRAIN
DRAIN VALVE
6” AIR GAP
DRAIN LINE
ACCESS COVER
COLD WATER
INLET
TEMPERED
WATER
OTLET
Figure 5.
Before filling the solar water heater with water, the pump
station storage tank loop must be connected to the water
heater. See “Filling The Storage Tank Loop” section of the
manual.
The solar water heater is equipped with top and side pump
stationwaterloop connections.Cap or plugthe connections
that are not used in your application.
1. Close the solar water heater drain valve. The drain
valve is on the lower front of the solar water heater.
2. Open the cold water supply to the solar water heater.
NOTE: THIS VALVE MUST BE LEFT OPEN WHEN
THE SOLAR WATER HEATER IS IN USE.
3. Fill the solar water heater until a constant flow of water
runs out an opened hot water faucet. This will let out
air in the solar water heater and the piping. Close the
faucet and solar loop air vent after all air has been
purged and the water comes out with constant flow.
You must not turn the electricity on until the solar water
heateris fullof water. IFANYAIR IS LEFTINTHETOP
OF THE SOLAR WATER HEATER OR IN THE PUMP
STATION STORAGE TANK LOOP THE HEATING
ELEMENT WILL BURN OUT IMMEDIATELY.
4. Checkall thenew water pipingfor leaks.Fix as needed.

10
WIRING OF ELEMENT
Determine voltage and wattage from the rating plate
attached to the solar water heater. All external wiring,
connection, and overcurrent protective devices must be
provided and installed in accordance with the latest edition
ofthe National Electrical Code, local codes, and localutility
requirements. The solar water heater must be electrically
“grounded”by the installer. Agreen ground screw has been
provided on the solar water heater’s junction box.
The grounding electrode conductor shall be of copper,
aluminum, or copper clad aluminum. The material shall
be resistant to corrosion, and shall be of one continuous
length without a splice or joint.
Rigidmetalconduit, intermediate metalconduit, or electrical
metallic tubing may be used for the grounding means
if conduit or tubing is terminated in fittings approved for
grounding.
Figure 6.
Flexible metal conduit or flexible metallic tubing shall be
permitted for grounding if all the following conditions are
met:
1. The length in any ground return path does not exceed
6 feet.
2. The circuit conductors contained therein are protected
by overcurrent devices rated at 20 amperes or less.
3. The conduit or tubing is terminated in fittings approved
for grounding.
Never use this solar water heater unless it is completely
full of water.
SOLAR WATER HEATERS EQUIPPED FOR ONE TYPE
VOLTAGE ONLY. This solar water heater is equipped
for one type of voltage only. Check the rating plate near
the bottom access panel for the correct voltage. DO NOT
USETHIS SOLARWATER HEATERWITHANYVOLTAGE
OTHER THAN THE ONE SHOWN ON THE MODEL
RATING PLATE. Failure to use the correct voltage can
cause problems which can result in DEATH, SERIOUS
BODILY INJURY OR PROPERTY DAMAGE. If you have
any questions or doubts consult your electric company.
If wiring from the fuse box or circuit breaker box was alumi-
numfor theold tank, replace it with copper wire. Ifyou wish
to reuse the existing aluminum wire, have the connection
at the solar water heater made by a competent electrician.
Contact your local utility to arrange for a professional elec-
trician.
BLACK
RED
BLACK
ELEMENT
RED
F
C)(66 F(60 C)
F
C)(49
Figure 7.
THERMOSTAT
Each thermostat is factory preset at 120°F to reduce the
risk of scald injury. This setting has proven by experience
to be most satisfactory from the standpoint of operational
costs and household needs.
Solar water heaters installed in Florida require the
thermostat(s) to be set at 125°F. If you wish to adjust the
settings, see the “Temperature Adjustment” section of this
installation manual on page 11.
TEMPERATURE REGULATION
HOTTER WATER CAN SCALD: Solar water heaters are
intendedtoproducehotwater.Waterheatedtoatemperature
which will satisfy clothes washing, dish washing, and other
sanitizing needs can cause scalds resulting in serious
personal injury and/or death. Some people are more likely
to be permanently injured by hot water than others. These
include the elderly, children, the infirmed, or physically
handicapped. If anyone using hot water in your home fits
into one of these groups or if there is a local code or state
law requiring a certain temperature water at the hot water
tap, then you must take special precautions. Please see
Figure 8 and Table 2 for information regarding thermostat
settings.Inadditiontousing the lowest possibletemperature
setting that satisfies your hot water needs, some type of
mixingdevice, such as a mixing valve shouldbe usedat the

11
hot water taps used by these people or at the solar water
heater. Mixing valves are available at plumbing supply or
hardware stores. Follow manufacturers instructions for
installation of the valves. Before changing the factory
settingof the thermostat, read the TemperatureAdjustment
section.KEEPING THE THERMOSTAT SETTINGAT120°F
WILL REDUCE THE RISK OF SCALDS. Never allow
small children to use a hot water tap, or to draw their own
bath water. Never leave a child or handicapped person
unattended in a bathtub or shower.
TEMPERATURE SETTINGS
NOTE: This residential solar water heater will not supply
sanitizing hot water for dishwashers.
The thermostat is factory set at its lowest position which
approximates 120°F and is adjustable if a different water
temperature is desired. For best system savings this
temperature should not be changed. Read all warnings in
thismanualandonthesolarwaterheaterbeforeproceeding.
ADJUSTABLE
THERMOSTAT
WITH
HIGH LIMIT
HIGH LIMIT
CONTROL
RESET
BUTTON
Figure 8.
Water
Temperature °F
Time for 1st Degree
Burn
(LessSevere Burns)
Time for Perma-
nent Burns 2nd &
3rd Degree (Most
SevereBurns)
110
116
116
122
131
140
149
154
(normalshower temp.)
(pain threshold)
35minutes
1minute
5seconds
2seconds
1second
instantaneous
45 minutes
5 minutes
25 seconds
5 seconds
2 seconds
1 seconds
(U.S. Government Memorandum, C.P.S.C., Peter L.Armstrong, Sept. 15,1978)
Table 2.
TEMPERATURE ADJUSTMENT
To adjust the temperature setting:
1. Turn “OFF” the electrical power to the water heater, at
the junction box.
HAZARD OF ELECTRICAL SHOCK! Failure to turn
“OFF” electric powerto the solar waterheater will result
in the possibility of DEATH, SERIOUS BODILY INJURY
OR PROPERTY DAMAGE.
2. Take off the access panel and fold away the insulation.
3. Turn the water temperature dial clockwise ( ) to
increase the temperature, or counterclockwise ( ) to
decrease the temperature.
4. Fold the insulation back in place and replace the access
panel.
5. Turn “ON” the power supply.
A non-adjustable high temperature limit control operates
before steam temperatures are reached. The high limit is
inthe same areaas theupper thermostat and must bereset
manually when it activates. BECAUSE THE HIGH LIMIT
ACTIVATES ONLY WHEN ABNORMALLY HIGH WATER
TEMPERATURES ARE PRESENT, IT IS IMPORTANT
THAT A QUALIFIED SERVICE AGENT BE CONTACTED
TO DETERMINE THE REASON FOR OPERATION
BEFORE RESETTING.
TANK SENSOR
The surface mount tank sensor should be attached to the
sensor stud behind the lower door by placing the hole in
the sensor over the stud provided and securing in place
with a nut. The end of the tank sensor shall be connected
to the red wires in the opening with wire nuts (with no
regard for polarity). The other ends of the red temperature
sensor extension extend from the top of the tank and shall
be connected to the controller in the tank sensor position.
DRAINING
It is recommended that the storage tank be drained and
flushed every 6 months to remove sediment which may
build up during operation. The water heater should be
drained if being shut down during freezing temperatures.
To drain the tank, perform the following steps:
1. Turn off power to the water heater.
2. Open a nearby hot water faucet until the water is no
longer hot.
3. Close the cold water inlet valve.
4. Connect a hose to the drain valve and terminate it to
an adequate drain or external to the building.
5. Open the water heater drain valve and allow all of the
water to drain from the tank. Flush the tank with water
as needed to remove sediment.
6. Close the drain valve, refill the tank, and restart the
heater as directed in this manual.
If the water heater is going to be shut down for an extend-
ed period, the drain valve should be left open.
IMPORTANT: Condensation may occur when refilling the
tank and should not be confused with a tank leak.
If the solar water heater is to be shut off and exposed to

12
freezing temperatures, it must be drained. Water, if left in
the tank and allowed to freeze, will expand and damage
the solar water heater.
1. Turn“OFF” the electricalsupply to thesolar waterheater.
Make sure the electrical supply to the solar water heater
is turned OFF. Failure to heed this will result in the
possibility of DEATH, SERIOUS BODILY INJURY OR
PROPERTY DAMAGE.
2. Open a nearby hot water faucet until the water is no
longer hot, then turn off the cold water supply and open
the drain valve, leaving the hot water faucet open.
3. The drain valve must be left open during the shut-down
period. Once the solar water heater is drained close the
hot water faucet.
ELEMENT
In some water areas, scale or mineral deposits will build up
on heating elements. This build up may cause a rumbling
noise. Followtheelementreplacement directions toremove
theelementsfromthetank. Soaking in vinegar andscraping
will remove the mineral deposit. Be careful not to bend the
element.
ELEMENT REPLACEMENT
Replacement elements must (1) be the same voltage and
(2) nogreater wattagethan listedon the modeland rating
plate affixed to the solar water heater.
1. Turn OFF the electrical supply to the solar water heater.
Make sure the electrical supply to the solar water heater
is turned OFF. Failure to heed this will result in the
possibility of DEATH, SERIOUS BODILY INJURY OR
PROPERTY DAMAGE.
2. Drain the solar water heater. Follow the directions for
draining.
3. Take off the access panel and take off the access panel
and remove the insulation. Disconnect the wires from the
heating element terminals.
4. Useanelementwrenchtoremovetheelementandgasket.
Youshouldalwaysuseanewgasketwhenyoureplacethe
element.
5. Install new element.
6. Reconnect the wires as they were.
7. Fill the tank , following the filling directions on page 9. Fill
the tank completely with water, BEFORE you turn on the
electric supply.
ANODE
Each water heater contains at least one anode rod, which
will slowly deplete (due to electrolysis) prolonging the life
of the water heater by protecting the glass-lined tank from
corrosion.Adversewater quality,hotter watertemperatures,
high hot water usage, hydronic heating devices, and water
softening methods can increase the rate of anode rod
depletion. Once the anode rod is depleted, the tank will
start to corrode, eventually developing a leak.
Certain water conditions will cause a reaction between the
anode rod and the water. The most common complaint
associated with the anode rod is a “rotten egg smell”
produced from the presence of hydrogen sulfide gas
dissolvedin the water.IMPORTANT: Do notremove this rod
permanentlyas itmay void any warranties.Aspecial anode
rod may be available if water odor or discoloration occurs.
NOTE: This rod may reduce but not eliminate water odor
problems. The water supply system may require special
filtration equipment from a water conditioning company to
successfully eliminate all water odor problems.
Artificiallysoftened wateris exceedingly corrosive because
the process substitutes sodium ions for magnesium and
calcium ions. The use of a water softener may decrease
the life of the water heater tank.
The anode rod should be inspected after a maximum of
three years and annually thereafter until the condition of
the anode rod dictates its replacement. NOTE: artificially
softened water requires the anode rod to be inspected
annually.
The following are typical (but not all) signs of a depleted
anode rod:
• The majority of the rod’s diameter is less than 3/8”.
• Significant sections of the support wire (approx. 1/3 or
more of the anode rod’s length) are visible.
If the anode rod shows signs of either
or both it should be replaced. NOTE:
Whether re-installing or replacing the
anode rod, check for any leaks and
immediately correct if found.
In replacing the anode:
1. Turn off power supply to the water
heater.
2. Shut off the water supply and
open a nearby hot water faucet to
depressurize the water tank.
3. Drain approximately 5 gallons
of water from tank. (Refer to
“Draining and Flushing” for proper
procedures). Close drain valve.
4. Remove old anode rod.
5. Use Teflon® tape or approved pipe sealant on threads
and install new anode rod.
6. Turn on water supply and open a nearby hot water
faucet to purge air from water system. Check for any
leaks and immediately correct any if found.
7. Restart the water heater as directed in this manual.
See the Storage Tank Repair Parts section for anode
rod location.
TEFLON® is a registered trademark of E.I. Du Pont De
Nemours and Company.
Hydrogen gas can be produced in a hot water system that
has not been used for a long period of time (generally two
weeksor more). Hydrogen gasis extremelyflammable and
explosive. To prevent the possibility of bodily injury under
these conditions, open the hot water faucet for several
minutesat the kitchen sink beforeany electrical appliances
whichareconnected to thehot water systemareused (such
as a dishwasher or washing machine). If hydrogen gas is
present, there will probably be an unusual sound similar
to air escaping through the pipe as the hot water faucet is
opened. There must be no smoking or open flame near
the faucet at the time it is opened.
WATER HEATER SOUNDS
1. The solar water heater is equipped with an immersion
heating element for fastest recovery. If the solar water
heateroccasionally makes noisesthis isnot adefect or a
safety hazard.
2. Lime or scale has accumulated on the heating element
causinga hissing sound. Element scale removal can be
accomplished by using vinegar or by scraping.
Figure 9.

13
Figure 10.
COLLECTOR LOCATION
Proper location and orientation of the solar collectors is
important for maximum system efficiency. The collectors
should be unshaded from 10:00 am through 3:00 pm each
day in every month of the year and should be located as
close to the storage tank as possible to minimize heat loss
in the piping runs. The best orientation is achieved when
the collectors are facing due south +/- 45° and tilted at
an angle from the horizontal equal to the latitude of the
SOLAR COLLECTOR INSTALLATION
location + 15°. A steeper angle provides better winter per-
formance as the sun is lower in the sky. The collectors
will also shed snow more effectively at the steeper angle.
Figure 10 below shows many alternatives for collector
mounting. Placing the collectors as close as possible to
the peak of the roof will make installation easier by provid-
ing increased attic access.
GENERAL CONSIDERATIONS
The contractor shall obtain all required permits and
approvals.
The installation shall conform to all federal, state and local
regulations, codes, ordinances and standards governing
solar water heating system installations and the contractor
shall adhere to sound building safety and trade practices.
Special consideration must be given to building code
requirements for the penetration of structural members
and fire rated assemblies.
Ensure the mounting surface is solid and able to with-
stand in excess of 330lbs / 150kg of pull force that
may be encountered during high winds. Consult a
structural engineer if in doubt.
The solar collector must be located in a structurally sound
area of the roof that will be unshaded for the majority of the
day all year round.Adjacent buildings and trees should be
checked for possible winter shading. An instrument such
as the Solar Pathfinder (www.solarpathfinder.com) can be
used for solar site analysis.
Before the installation the contractor shall inspect the con-
dition of the roof and notify the homeowner of any existing
roof damage or necessary repairs.
COLLECTOR ORIENTATION
Proper tilt angle for solar collectors is latitude plus 15°.
This 15° additional tilt improves performance in the
winter, when the sun is weaker and at a lower angle.
The cost in performance in the summer when the sun is
high is overcome by the hours of sunlight and strength
of irradiation that occurs in the summer. Tilt mounting
accessory kits are available to set the proper collector
angle. Please call your local dealer for more information.
When the collectors are mounted one behind the other,
they should be spaced sufficiently apart so that when the
sun is at its lowest altitude, the collectors will not shade
each other and cause efficiency loss. See Figure 11 and
Table 3. If a collector must be installed horizontally, replace
the upper vent with a rubber plug in order to prevent rain
penetration. See Figures 12 & 13.

14
A”
48”
COLLECTOR TILT
Figure 11.
Figure 12. Figure 13.
LATITUDE 25° N 30° N 35° N 40° N 45° N 50° N 55° N 60° N 65° N
COLLECTOR TILT 35° 40° 45° 50° 55° 60° 65° 70° 75°
ROOF
ANGLE
&
PITCH
ANGLE PITCH A” SPACING IN INCHES
0° FLAT 87 103 127 159 213 260 330 446 661
5° 1/12 76 87 103 122 151 174 204 244 295
9° 2/12 69 78 90 104 123 139 157 180 205
14° 3/12 63 69 78 88 101 111 123 136 149
18° 4/12 59 64 71 78 88 96 105 115 123
23° 5/12 54 59 64 70 77 83 89 96 102
27° 6/12 52 55 59 64 70 75 80 86 90
30° 7/12 50 53 57 61 66 70 75 79 83
34° 8/12 48 51 54 57 61 65 69 72 75
37° 9/12 N/A 49 52 55 59 62 65 68 70
40° 10/12 N/A 48 50 53 56 59 62 65 66
43° 11/12 N/A N/A 49 51 54 56 59 62 63
45° 12/12 N/A N/A 48 50 53 55 57 60 61
Table 3. (For All Horizontally Mounted Collectors)

15
CAUTION
ALL PERSONS WORKING ON ROOFS SHOULD
HAVE SUCCESSFULLY COMPLETED A FALL SAFETY
COURSE AND SHOULD BE PROPERLY EQUIPPED
WITH THE APPROPRIATE SAFETY EQUIPMENT
AFTER COMPLETION OF THE COLLECTOR
MOUNTING AND PRIOR TO SYSTEM CHARGING THE
COLLECTORS MUST BE COVERED BY A BLANKET OR
OTHER MEANS TO AVOID SOLAR RADIATION FROM
HEATING THE COLLECTORS. THE SURFACES OF THE
COLLECTOR CAN BECOME EXTREMELY HOT AND
COULD POSE A BURN HAZARD.
WARNING
WARNING
The most important structural consideration is to securely
anchor the solar collector and the mounting hardware to the
structuralmembersoftheroofwiththestainlesssteelhardware
provided.Thesolarcollectormustbeattachedtothemounting
hardware as detailed in Figure 17.
Preserving the integrity of the roof membrane is the
most important roofing consideration. Ensure that all roof
penetrationsrequiredtoplumb and mountthesolarcollector
areproperlyflashedandsealedinaccordancewith standard
roofing practices.
If the region is subject to hurricane conditions, additional
stepsmay berequired tosecure thecollector andmounting
hardware to the structural members. In certain areas of the
country,local buildingcodesmay require collectorwind load
testing or prescribe specific mounting procedures. Consult
your local building department.
Install the collectors as described in the Spanner Mounting
instructions.
SPANNER MOUNTING
Although there are other installation methods for mounting
solar collectors, it has been determined that the spanner
mounting method is the most suitable for this application.
Consult with your installer if other mounting means are
required for your installation.
1. After locating the mounting points from Figure 14 for
vertical collector mounting, Figure 15 for horizontal
collector mounting, and Table 4, layout the roof as
specified and drill 5/16” holes between the rafters
where indicated.
2. A 12” length of stainless steel 5/16” all-thread is then
insertedthrough thehole and a stainless steelnut, lock
washer, and flat washer secures the all-thread to the
mounting bracket. The all-thread should extend about
4” below the roof rafters.
3. Fabricate spanners, one for each mounting bracket,
using a 2” x 4” or similar lumber. Spanners must be
long enough to span at least two rafters. In the attic or
crawlspace drill a5/16” holethrough each spannerand
insert the all-thread through it. Secure each spanner to
therafters with deckingor woodscrews. See Figure16.
4. Fabricatespacerblocks, one for eachmountingbracket,
using a 2” x 4” or similar lumber the same width of the
rafter next to each all-thread. Place spacer blocks next
tothe all-thread between the spanner and roof. Secure
each spacer block to the spanners with decking or
wood screws. Spacer blocks are necessary to avoid
deformation of the roof. See Figure 16.
5. With a stainless steel nut, lock washer and fender
washer secure the all-thread to each spanner. Tighten
down until the mounting bracket is tightly secured to
the roof (approx. 97 inch pounds). Be careful not to
overtighten and dish out the roof tiles underneath the
mounting bracket.
Repeat steps 2-5 for the remainder of the mounting
bracket locations.

16
MOUNTING
BRACKETS
RAFTER
VERTICAL MOUNTING
HORIZONTAL MOUNTING
RAFTER
MOUNTING
BRACKET
RAFTER
Figure 14.
Figure 15.
B” B”C” C”
A”
DRILL POINTS
(CLEARANCE HOLE
for 5/16” BOLT)
RAFTER
D” BASED ON 16” CENTER RAFTERS
B” B”C” C”
A”
DRILL POINTS
(CLEARANCE HOLE
for 5/16” BOLT)
RAFTER
D” BASED ON 16” CENTER RAFTERS

17
4” MOUNTING BRACKET
ROOF
RAFTER
WOOD SPANNER
(2” x 4” or 2” x 6” LUMBER)
SHINGLES
PLYWOOD
SHEETING
FLASHING
STAINLESS STEEL NUT, ALLTHREAD ROD
LOCK WASHER, & EPDM BONDED WASHER
CP COMPRESSION
BRACKET WASHER
DECKING/WOOD
SCREWS FENDER WASHER
LOCK WASHER
NUT
ROOF
RAFTER
SPACER
BLOCK
Figure 16.
Table 4.
* IF MOUNTING WITH AN OPTIONAL TILT MOUNT
KIT, FOR OPTIMAL COLLECTOR ANGLE REFER TO
ITS INSTRUCTION SHEET FOR THE APPLICABLE “A”
DIMENSION.
NOTICE
NOTICE
COLLECTOR A B C D
Vert. 3.5’ X 7’ 86* 32 14 7-1/4
Vert. 4’ X 8’ 97* 35 16 11-3/4
Vert. 4’ X 10’ 121* 35 16 11-3/4
Horiz. 3.5’ X 7’ 42.25* 62 28 13-1/2
Horiz. 4’ X 8’ 47* 72 28 12
Horiz. 4’ X 10’ 47* 94 30 9

18
Figure 17.
ATTACHING COLLECTOR TO MOUNTING BRACKETS
Once all of the mounting brackets have been secured to
the roof the solar collector(s) can be installed. Refer to
Figure 17 for these instructions.
1. Insert the stainless steel channel nut w/spring inside
of the mounting bracket.
2. Fasten the solar collector mounting clip to the channel
nut with the stainless steel bolt, lock-washer, and flat
washer as shown. Do not tighten. Repeat step for the
other mounting bracket locations.
3. The solar collector can now be set on the mount-
ing brackets. To aid in handling the collectors on the
roof the mounting clips may be tightened to the lower
mounting brackets prior to raising the collectors. The
collector can then be set on the lower mounting brack-
ets while the top clips are fastened over the lip on the
collector frame.
4. After the solar collector is in position, locate the upper
mounting clip so that its lip over-hangs the lip of the
solar collector frame as shown. Tighten the mounting
clip to the solar collector frame securely. Repeat for
the other upper mounting clips.
5. Once the upper mounting clips are secured, the bot-
tom mounting clips can be loosened and retightened
over the collector lip as directed in step 4.
6. Repeat steps as needed for other solar collectors.
SOLAR COLLECTOR FRAME
MOUNTING CLIP
STAINLESS STEEL BOLT,
LOCK WASHER,
& FLAT WASHER
CHANNEL NUT with SPRING
(One Piece Part)
ROOF
MOUNTING
BRACKET
STAINLESS STEEL
NUT, ALL THREAD ROD
with LOCK WASHER, &
FLAT WASHER

19
COLLECTOR PIPING
Thepipingof the systemshouldbe considered beforeafinal
decisionis made on how the collectors are mounted. Piping
should be made of copper tube of the type meeting local
codes, insulated with Armacell UT Solaflex or equivalent.
The maximum total piping length allowed in this system is
200 equivalent ft.
Use only lead-free solder. Use of 50/50 lead solder is
expressly prohibited. Use only type “L” or “M” copper
tubing in the collector loop plumbing. Use of galvanized
steel, CPVC, PVC, PEX or any other type of plastic pipe
is prohibited.
Care should be taken in the spacing of collectors as
attachment of piping is easiest with properly aligned
collectors. The connection between the collector panels is
madewith copperunions orcouplings. To aid in installation
the collector array layout should be planned on the ground
and the unions or couplings soldered to the adjoining
headers prior to lifting the collectors to the roof. Similarly
the top and bottom outside header that will not be used
for the inlet or outlet (should be on opposite sides) should
be capped with the 1” copper cap provided while on the
ground. See Figure 18.
VERTICAL MOUNT
OUTLET
INLET
1” COPPER
CAPS
HORIZONTAL MOUNT
OUTLET
INLET
1” COPPER
CAPS
Figure 18.
SOLAR COLLECTOR
AIR VENT
1” COPPER
PIPE
HEADER
PIPE
ADAPTER
COLLECTOR
(OUTLET)
COLLECTOR
(INLET)
TEMPERATURE
SENSOR
Figure 19.

20
COLLECTOR PIPING DETAIL
The outlets of the collector are 1” copper pipe nipples. See
Figure 19. They should be piped as shown with provisions
for an air vent. The air vent must be oriented vertically as
this must be the highest point in the system in order for air
to escape. This will prevent air lock and subsequent loss of
system efficiency. Teflon® tape or high temperature, high
quality pipe sealant should be used when making threaded
connections.
The collector inlets should be piped similarly but without
the air vent.
SENSOR WIRING AT COLLECTOR
The wiring used to connect the sensors to the controller
should be a minimum 18 AWG. The wiring should be two-
conductor, PVC UV resistant suitable for outdoor use. Use
Belden Wire No. 7409A or equivalent.
SENSOR MOUNTING AT COLLECTOR
Theangled collectorheat sensor is mounted tothe outletof
thecollector.SeeFigure 20.Thestainlesssteel screw clamp
should be used. The entire sensor should be wrapped
thoroughly with insulating stretch tape such as MOCAP
Silicone X-Treme Tape® so that the sensor is isolated from
theoutside air. If possible route the sensor wirethrough the
roof with the collector piping and connect the sensor wire
to the sensor extension wire with wire nuts.
Figure 20.
PIPING THROUGH THE ROOF
Preserving the integrity of the roof membrane is the
most important roofing consideration. Ensure that all roof
penetrationsrequiredtoplumb and mountthesolarcollector
areproperlyflashedandsealedinaccordancewith standard
roofing practices.
The return and supply lines should be supported under the
roof to prevent undue stress on the piping assemblies at
the collector. Hangers shall provide adequate support and
correct pitch of pipes. Hangers or supports for insulated
pipesor componentsshall avoid compressing or damaging
theinsulationmaterial.Piping should beslopedtoward drain
ports with a drainage slope of no less than 2 cm vertical
dropfor eachmeter of horizontal length (1/4 inch perfoot).
PIPE INSULATION
The collector loop piping (exterior and interior) must be
well insulated with a high quality flexible EPDM closed
cell insulation to minimize heat loss. The wall thickness
of the pipe insulation should not be less than ¾”. A 1” wall
thickness is required in all areas prone to annual hard
freeze conditions. When it comes to pipe insulation the
rule is simple: thicker is better. The specified insulation
material is Armacell UT Solaflex or equivalent. As part of
the insulation requirements the final 5 ft of the cold water
inlet to the storage tank must be insulated.
To the extent possible, slide the insulation material over
the pipe without cutting or taping. All butt joints must be
sealed with high temperature contact adhesive. The use
of rigid polyethylene pipe insulation is prohibited. All
outdoor insulation should be protected from moisture and
Ultraviolet deterioration by either paint or foil tape.
