User Guide
Plate Mounted Blower Unit
Publication Nº 770-073
Language: English
Issue 5
11 July 2013

Health and Safety Information
Read all of the instructions in this booklet - including all the WARNINGS and CAUTIONS
- before using this product. If there is any instruction which you do not understand.
DO NOT USE THE PRODUCT.
Safety Signs
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or
personal injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, could result in minor or
moderate injury to the user or users, or result in damage to the product or to property.
NOTE
Indicates a potentially hazardous situation which, if not avoided, could result in damage or the loss of
data.
Equipment Operation
Use of this instrument in a manner not specied by Land Instruments International may be hazardous.
Read and understand the user documentation supplied before installing and operating the equipment.
Protective Clothing, Face and Eye Protection
It is possible that this equipment is to be installed on, or near to, machinery or equipment operating at
high temperatures and high pressures. Suitable protective clothing, along with face and eye protection
must be worn. Refer to the health and safety guidelines for the machinery/equipment before installing
this product. If in doubt, contact Land Instruments International.
Electrical Power Supply
Before working on the electrical connections, all of the electrical power lines to the equipment must
be isolated. All the electrical cables and signal cables must be connected exactly as indicated in these
operating instructions. If in doubt, contact Land Instruments International.
Storage
The instrument should be stored in its packaging, in a dry sheltered area.
Unpacking
Check all packages for external signs of damage. Check the contents against the packing note.
Lifting Instructions
Where items are too heavy to be lifted manually, use suitably rated lifting equipment. Refer to the
Technical Specication for weights. All lifting should be done as stated in local regulations.
IMPORTANT INFORMATION - PLEASE READ

Contact Us
UK - Droneld
Land Instruments International
Tel: [phone]
E-Mail: [email protected]
Web: www.landinst.com
USA - Pittsburgh
AMETEK Land, Inc.
Tel: [phone]
E-Mail: [email protected]
Web: www.ametek-land.com
For further details on all LAND/Ametek ofces, distributors and representatives, please visit
our websites.
Return of Damaged Goods
IMPORTANT If any item has been damaged in transit, this should be reported to the carrier and to the
supplier immediately. Damage caused in transit is the responsibility of the carrier not the supplier.
DO NOT RETURN a damaged instrument to the sender as the carrier will not then consider a claim. Save
the packing with the damaged article for inspection by the carrier.
Return of Goods for Repair
If you need to return goods for repair please contact our Customer Service Department. They will be
able to advise you on the correct returns procedure.
Any item returned to Land Instruments International should be adequately packaged to prevent damage
during transit.
You must include a written report of the problem together with your own name and contact information,
address, telephone number, email address etc.
Design and Manufacturing Standards
The Quality Management System of Land Instruments International is approved to BS EN ISO 9001 for
the design, manufacture and on-site servicing of combustion, environmental monitoring and non-contact
temperature measuring instrumentation.
Approvals apply in the USA
This instrument complies with current European directives relating to Electromagnetic
Compatibility 89/336/EEC and Low Voltage Directive 73/23/EEC.
The Quality Management System of Ametek Motors (Shanghai) Co. Limited is approved to
ISO9001:2008 for the Design and Manufacturing of Motors and the Manufacturing of Gas
Analysers.
Operation of radio transmitters, telephones or other electrical/electronic devices in close
proximity to the equipment while the enclosure doors of the instrument or its peripherals
are open, may cause interference and possible failure where the radiated emissions exceed
the EMC directive.
The protection provided by both CE and IP classications to this product may be invalidated if alterations
or additions are made to the structural, electrical, mechanical or pneumatic parts of this system. Such
changes may also invalidate the standard terms of warranty.
Copyright
This manual is provided as an aid to owners of Land Instruments International’s products and contains
information proprietary to Land Instruments International. This manual may not, in whole or part, be
copied, or reproduced without the expressed written consent of Land Instruments International Ltd.
Copyright © 2012 Land Instruments International.

User Guide Plate Mounted Blower Unit
Contents
1 Blower Congurations 1
2 Health and Safety Warnings 2
2.1 Equipment Operation 2
2.2 Power Supply 2
2.3 Face and Eye Protection 2
2.4 Protective Clothing 2
2.5 Installation 2
3 Description 3
3.1 The Need for Air Purging 3
3.2 Blower unit conguration 3
3.3 Optional Items 4
3.4 Description - Blower Options 5
4 Installation 8
4.1 Installation Guidelines 8
4.2 Installation 9
4.3 Mains Power Connection - High Capacity Blower 10
4.4 Mains Power Connection - Low Capacity Blower 11
5 How to t a Pressure Switch 12
6 How to t a Y-Piece Adaptor 13
7 How to t an Air Pre-lter 14
8 How to t a Safety Filter 15
9 How to t a Weatherproof Cover 16
10 Specications 17
11 Maintenance 18
12 Consumables and Spare Parts 20
APPENDIX 1 - Pressure Switch Connections to Instrument
APPENDIX 2 - Pressure Switch Settings

Plate Mounted Blower Unit User Guide

Page 1
User Guide Plate Mounted Blower Unit
Part
Number Mounting Capacity Voltage Frequency Power Consumption
099.465 Base Plate High 230V single phase 50 Hz 750 W
099.466 Base Plate High 110 V single phase 60 HZ 1100 W
099.467 Base Plate High 220 V single phase 60 Hz 1100 W
099.468 Base Plate High 110 V single phase 50 Hz 750 W
099.469 Base Plate High 380 - 465 V three phase 50 Hz 750 W
099.470 Base Plate High 415 - 500 V three phase 60 Hz 900 W
099.471 Base Plate Low 230 V single phase 50 Hz 400 W
099.472 Base Plate Low 220 V single phase 60 Hz 500 W
099.473 Base Plate Low 110 V single phase 60 Hz 500 W
1 Blower Configurations
IMPORTANT
Blower Models covered by this Instruction Manual
NOTE
The blower supply voltage and frequency are detailed on the rating plate of
the supplied motor. Check carefully. (See label above).
WARNING
Do not exceed the rated supply values
Incorrect supply voltage or frequency can reduce performance, damage the
motor, or cause an explosion.
IMPORTANT NOTE
The blower is protected by a thermal cutout. Details are shown on the rating
plate supplied on the motor itself (See label below). There is no user signal
connection

Plate Mounted Blower Unit User Guide
Page 2
2 Health and Safety Warnings
2.1 Equipment Operation
Use of this instrument in a manner not specied by LAND Combustion, may be
hazardous.
2.2 Power Supply
Ascertain that all power lines are isolated before carrying out any work on the
electrical connections. All the mains cables and signal cables must be connected
in exact accordance with these operating instructions to avoid the risk of electric
shock.
2.3 Face and Eye Protection
Suitable face and eye protection must be worn when working on hot vessels and
ducts!
Special safety measures must be taken when working on a positive pressure
duct.
2.4 Protective Clothing
Protective clothing must always be worn when working in the vicinity of hot
vessels or ducts.
2.5 Installation
Installation must only be carried out by an authorized or qualied person.

Page 3
User Guide Plate Mounted Blower Unit
Baseplate
Mounting hole
Rain Cap
Interconnecting
Hose
Air Filter Unit
Blower Motor
Mains Power Connection location
Interconnecting
Hose
Standard Adaptor
Cable glands Earth stud hole
3 Description
3.1 The Need for Air Purging
In order to ensure that the optical system remains clean, air must be supplied
continuously through the purge unit. Though negative pressure within a stack
may draw sufcient air through the air purge nozzle to prevent a build up of dust
and fumes, a positive pressure air supply is recommended in all installations.
Air blowers supply ltered air to protect the optical surfaces from dirt and
overheating. Optional pressure switches may be tted to indicate insufcient air
ow.
3.2 Blower unit configuration
The standard conguration of the plate-mounted blower (illustrated), comprises a
stainless steel baseplate tted with:
• Air Filter Unit
• Rain Cap (tted onto Air Filter)
• Blower Motor (as ordered)
• Interconnecting hoses
• Standard adaptor

Plate Mounted Blower Unit User Guide
Page 4
3.3 Optional Items
The following items are available as options to the standard conguration with the
blower unit. They are all customer tted on-site.
Description Part Nº
Y-piece 704.340
Air Pre-lter 317.560
Pressure Switch Assembly and Pitot (0.5 to 5.0 mbar) 704.383
Pressure Switch Assembly and Pitot (5.0 to 20.0 mbar) 704.385
Weatherproof Cover 704.374
Safety Filter 317.604
Air Heater 110 V Contact Land
Air Heater 230 V Contact Land
Air Hose (per 1 metre / 3 feet length) 306.046
2 Year Spares Kit 775.009

Page 5
User Guide Plate Mounted Blower Unit
3.4 Description - Blower Options
Y-piece
This optional Y-piece adaptor is used where a single blow
is capable of supplying sufcient air to both sides of the
instrument. The adaptor splits the blower air supply output
into two equal parts. The Y-piece adaptor is customer tted at
site. Refer to tting instructions in Section 6.
Air Pre-filter
This optional air pre-lter is used where the ambient air
(which is the source of air for the blower) has high levels of
dust or dirt particles and is too low quality for use with the
blower. The air pre-lter is customer tted at site. Refer to
tting instructions in Section 7.
Pressure Switch
This optional Pressure Switch provides a warning
indication if the purge air ow rate falls below the
recommended minimum. This would normally
indicate a lter blockage, a pipe blockage or a
power failure to the blower motor. Remedial action
should be taken when such a condition occurs.
Select the appropriate switch for single blower or
dual blower installations. (See Appendix 2)
The pressure switch assembly is customer tted
at site. Refer to tting instructions in Section 5.
Wiring instructions for connection to various LAND
instruments are given in Appendix 1.
Safety Filter
The Safety Filter is used to provide additional
protection for the optical system. The safety lter
is tted in addition to the standard air lter. The
safety lter will quickly block up if the normal
lter element is damaged and allows dust to pass
through. The resulting drop in air ow rate will
activate the pressure switch (if tted).
Refer to tting instructions in Section 8.

Plate Mounted Blower Unit User Guide
Page 6

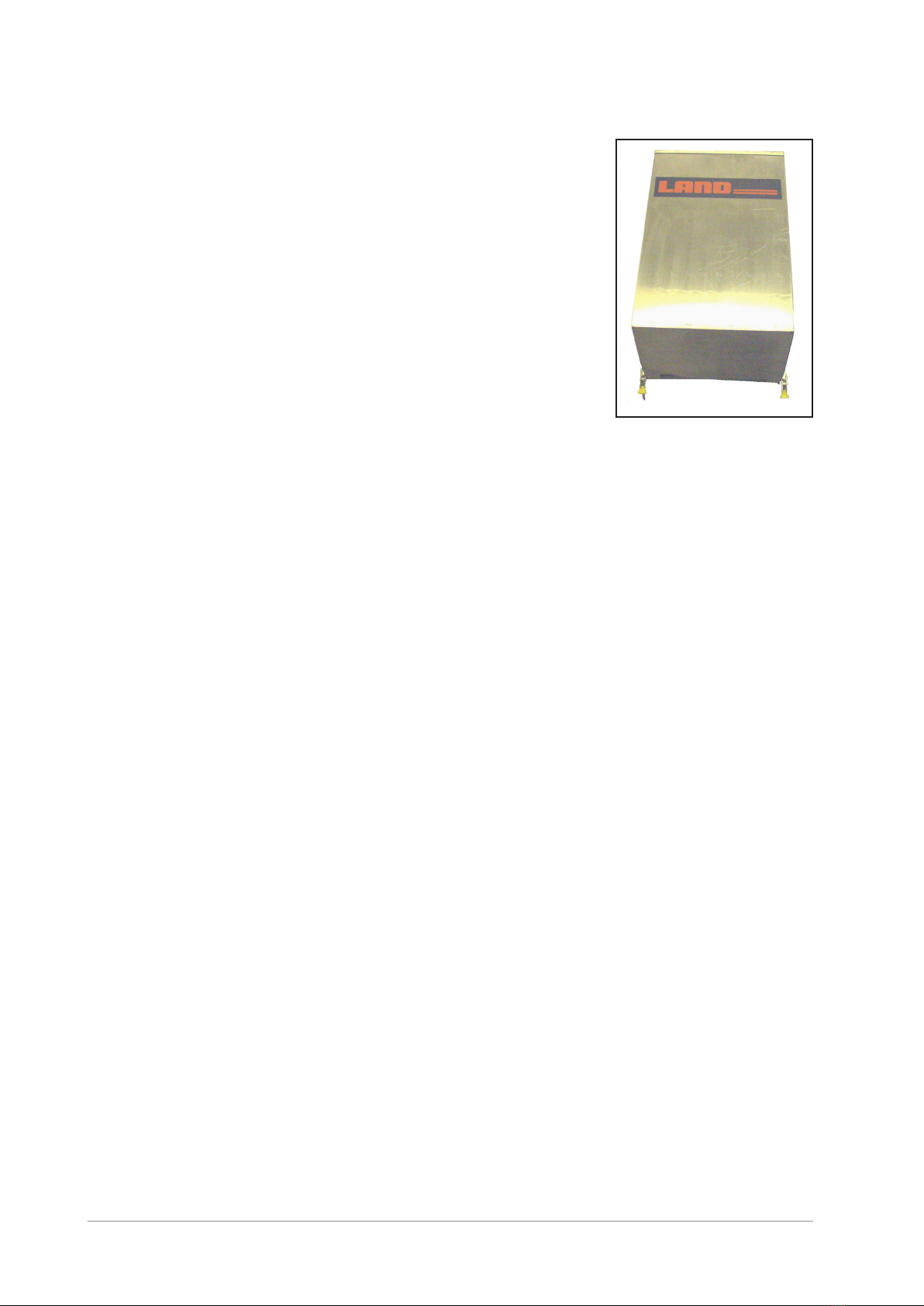

Weatherproof Cover
The blower unit is environmentally rated to IP 55 /
NEMA 4. Where further protection is required, up to IP
55 / NEMA 4X, then the optional Weatherproof cover
should be used and tted to the blower assembly. The
Weatherproof cover is customer tted at site. Refer to
tting instructions in Section 9.

Page 7
User Guide Plate Mounted Blower Unit

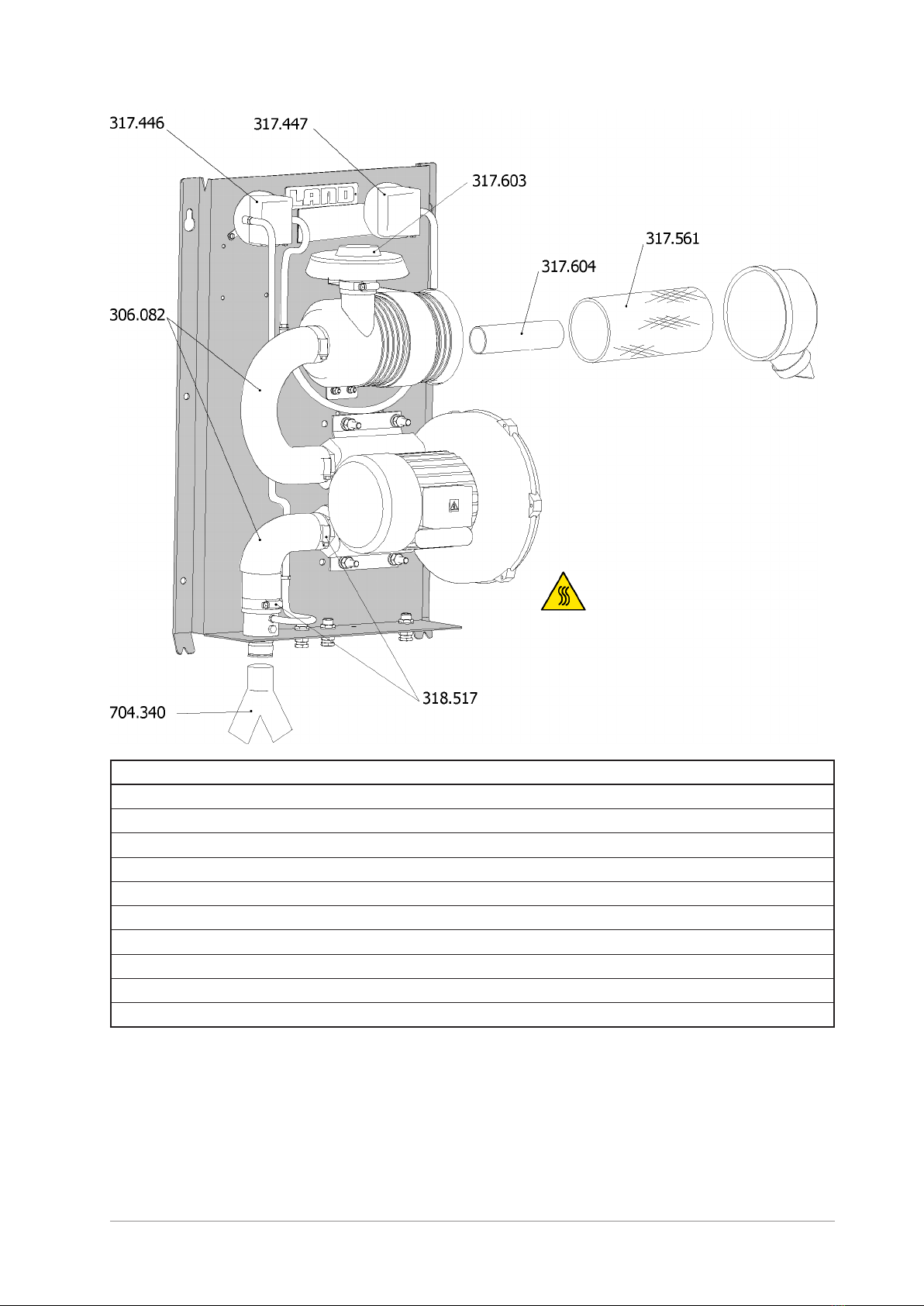

Part Nº Description
704.340 Y-piece (optional)
317.603 Rain Cap
317.446 Differential Pressure Switch
317.447 Low Pressure Trip
704.374 Weather Proof Cover (Option not shown)
317.604 Safety Filter Element (optional)
317.561 Air Filter Element
318.517 Hose Clip
306.082 Air Hose (per yard)
317.560 Air Pre-Filter (Option not shown)

Plate Mounted Blower Unit User Guide
Page 8
4 Installation
4.1 Installation Guidelines
Surface Temperatures
Surface temperatures of the motor can reach 100 °C / 212 °F. If there is
a possibility of the accidentally touching the motor surface in the intend-
ed location, the weatherproof cover or some other guard must be tted.
Air Quality
Use only in locations where the incoming air is not corrosive, inammable or
explosive.
Rating Plate
The rating plate must be in a readable position.
Supply Requirements
For electrical supply, refer to rating plate tted to the blower motor itself.
The recommended circuit breaker (See Section 10) must be tted close to the
blower and marked for the purpose.
Air Hose lengths
If two blower units are used, these should be positioned so as to keep the air
hoses as short as practical.
If one blower unit is used, installation midway between the instruments is
recommended. In any case, equal lengths of hose must be used to connect the
blower to the two parts of the instrument.
Air Quality Requirements
CAUTION
The air temperature at the intake point must not exceed 50°C
(122°F).
The air blower intake must be at a point where the least dust,
oil or moisture accumulates.

Page 9
User Guide Plate Mounted Blower Unit
4.2 Installation
The mountings for the air blower should be marked out in the xing position.
1) Fit the plate mounted blower to the mounting position using suitable bolts.
There are six holes available for attaching the baseplate to a at, vertical
surface. Ensure the blower is rmly secured. Refer to Installation Drawings.
770-073 DRG1 Plate-Mounted Blower Unit - Standard Assembly
770-073 DRG2 Plate-Mounted Blower Unit - Optional Accessories
It is recommended to use bolts and NOT studs as these would prevent
tting of the weatherproof cover.
2) Make the electrical connections. Refer to Sections 6-3, 6-4 and Appendix 1.
Connections No. of
cores
Core Size
mm2
Core Size
strands/dia
Core Size
awg Screened Supplied By
Pressure
Switch 3 0.5 to 1.5 16/0.2 to 30/.02 22 to 16 NO Customer
Mains Power 3 2 32/0/2 14 NO Customer
3) Check that the fan motor is running in the correct direction. The running
direction is shown on the motor and the direction of ow on the pump
housing by arrows.
CAUTION
Running the blower in the wrong direction will cause hot gases
to be sucked into the optical unit and ultimately inside the blow-
er unit. Prolonged mis-operation may result in complete unit
failure. Turn off immediately and do not use. Contact LAND for
advice
4) If the units are not to be installed immediately, protect the open ends of the
hoses against moisture.
CAUTION
Where ue gas ducts are already in use, the fans must be
switched on and the air hoses pushed on to the connection noz-
zles before tting the instruments.
Use the hose clamps supplied to secure the air hoses.

Plate Mounted Blower Unit User Guide
Page 10
4.3 Mains Power Connection - High Capacity Blower
CAUTION
Ensure mains power supply is isolated before making any connec-
tions.
Never remove the connector cover when the mains power is
switched on.
The blower unit requires a mains power supply to that
stated on the blower rating plate.
It is necessary to remove the connector cover to make the
connections.
A gland (size Pg 13.5) is tted into the bottom plate for the
cable entry.
Make connections as illustrated in the diagram inside the cover. Ret the cover.
W2 V2 U2
U1 V1 W1
Neutral (N)
{U1}
Protective
Earth (E)
Live (L)
{W1}
A hole for an earth stud (customer supplied) is drilled along side the cable
entries.
Location of Earth stud hole

Page 11
User Guide Plate Mounted Blower Unit
4.4 Mains Power Connection - Low Capacity Blower
CAUTION
Ensure mains power supply is isolated before making any connec-
tions.
Never remove the connector cover while the mains power
is switched on.
The blower unit requires a mains power supply to that
stated on the blower rating plate.
It is necessary to remove the connector cover to make the
connections.
A gland (size Pg 13.5) is tted into the bottom plate for the
cable entry.
Make connections as illustrated in the diagram inside the cover Ret the cover.
W2 V2 U2
U1 V1 W1
Neutral (N)
{U1}
Protective
Earth (E)
Live (L)
{W1}
A hole for an earth stud (customer supplied) is drilled along side the cable
entries.
Location of Earth stud hole

Plate Mounted Blower Unit User Guide
Page 12
5 How to fit a Pressure Switch
This Pressure Switch is a customer tted option
The pressure switch assembly is supplied in two parts:
• Pressure Switch, tted with two rubber pipes, and
mounting plate (not shown)
• Pitot tube
Fitting Procedure
1) Remove the air hose from the standard connector
piece.
2) Remove the existing connector piece, by
removing the 3 retaining screws.
3) Fit the new Pitot tube and secure with 3
retaining screws, ensuring that the outlets are
positioned as shown in the photo.
4) Fit the pressure switch into position and secure
its mounting plate to the backplate through the
4 holes, using the screws supplied. Refer to DRG
770-073 02 for exact locations.
5) Push the air pipes securely on to the Pitot tube
outlets. Ensure that the pipes are connected
correctly. The pipe marked ⊕ in the photo, goes
to the connection on the pressure switch marked
⊕.
6) Remove the cover from the pressure switch by
releasing the single retaining screw.
7) Run the signal cable through the gland (size Pg
11) and connect to the terminals.
Refer to APPENDIX 1 for connection details to specic instruments.
Terminal 1 - Supply Cable
Terminal 2 - Normally Closed (NC) Contact
Terminal 3 - Normally Open (NO) Contact
8) Check that the setting is correct according to the table in Appendix 2.
9) Ret the pressure switch cover and secure.
10) Push the air pipe retaining clips into holes drilled in the backplate, and
secure the air pipes against the backplate. Fitting is now complete.
⊕

Page 13
User Guide Plate Mounted Blower Unit
6 How to fit a Y-Piece Adaptor
The blower unit is dispatched with a single hose adaptor tted. Where the blower
is being used to supply two instruments a ‘Y’-piece adaptor should be tted.
Fitting Procedure
1) Push the ‘Y’ piece adaptor onto the existing connector piece, making sure it
goes over the seal, and is pushed on as far as possible.
2) Secure with the 3 retaining screws.
Photo: ‘Y’-piece adaptor tted

Plate Mounted Blower Unit User Guide
Page 14
7 How to fit an Air Pre-filter
Where the ambient air quality around the blower unit contains high levels of dust
or ash, then it is recommended to t an air pre-lter.
Fitting Procedure
1) It is necessary to remove the rain cap before tting the pre-lter.
2) Loosen the clip connector around the rain cap and pull upwards until the cap
is free. The cap is no longer required.
3) Push the air pre-lter onto the pipe and secure using the clip connector.
4) Fitting is now complete.
Photo: Air Pre-lter shown tted
